2023 HYUNDAI IONIQ 6 Owners Manual

7
7-145
Remote Smart Parking Assist
Malfunction and Limitations
Remote Smart Parking Assist
malfunction
Remote Smart Parking Assist check
B7009501
When Remote Smart Parking Assist is not
working properly, the ‘Check Parking
Assist’ warning message will appear on
the infotainment system. If the message
appears, stop using Remote Smart
Parking Assist, and have the vehicle
inspected by an authorized HYUNDAI
dealer.
Remote Smart Parking Assist canceled
B7009502
When Remote Parking Assist is operating,
the function can be canceled, and the
‘Parking Assist Canceled’ warning
message may appear regardless of the
parking order. Other messages may
appear depending on the situations.
Follow the instructions provided on the
infotainment system while parking your
vehicle with Remote Parking Assist.
Always look around and pay attention
when using Remote Smart Parking Assist. Remote Smart Parking Assist standby
B7009503
The
‘Parking Assist Conditions Not Met’
message will appears in the following
circumstances:
• When ‘Parking Assist Conditions Not
Met’ message appears when
Parking/View ( ) button has been
pressed and held while Remote Smart
Parking Assist is in standby. After a
while, press and hold the Parking/View
( ) button again to see if Remote
Smart Parking Assist works.
• When the smart key's battery is low. Check the smart key battery level.
• It does not work even when the EV mode is in the Utility mode. For related
information, refer to the “Setting Utility
Mode” section in chapter 1.
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to park
or exit the vehicle may be limited, there
may be a risk of collision, or Remote
Smart Parking Assist may turn off. Park or
exit the vehicle manually if necessary.
• An object is attached to the steering wheel
• The vehicle is installed with a snow chain, spare tire or different size wheel
• Tire pressure is lower or higher than the standard tire pressure
• Your vehicle is loaded with cargo longer or wider than your vehicle or a trailer is
connected to your vehicle
:MWMXEHIEPIVSVRIEVF]WIVZMGIGIRXIV
'ERGIPIH
XSXLIS[RIVWQERYEP
'SRHMXMSRW2SX1IX
XSXLIS[RIVWQERYEP
Hyundai_CE_en_US.book Page 145

Driver Assistance System
7-146
• There is a problem with the wheel alignment
• Your vehicle is leaned severely to one side
• Your vehicle is equipped with a trailer hitch
• The license plate is installed differently from the original location
• There is a person, animal or object above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated
• The parking space is curved or diagonal
• There is an obstacle such as a person, animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar, etc.) near the parking space
• There is a circular pillar or narrow pillar, or a pillar surrounded by objects such
as fire extinguisher, etc., near the
parking space
• The road surface is bumpy (curbstone, speed bump, etc.)
• The road is slippery
• The parking space is near a vehicle with higher ground clearance or big, such as
a truck, etc.
• The parking space is Inclined
• The road surface of parking space with lines is wet due to snow, puddles, or
there is a road marker inside the
parking space
• The road surface of the parking space with lines is bumpy due to road cracks
• The parking line is too thin or thick
• The parking line is partially erased or blurred
• The parking line is obscured by people, animals, or objects such as snow,
boxes, etc.
• There is heavy wind
• Operating Remote Smart Parking Assist on uneven roads, gravel roads, bushes,
etc. • The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather
• The ultrasonic sensor is covered with snow or water
• An object that generates ultrasonic waves is nearby
• A wireless device with a transmission function operates near the ultrasonic
sensors
• Your vehicle is affected by another vehicle’s Parking Distance Warning
• The sensor is mounted or positioned incorrectly by an impact to the bumper
• The cameras is improperly mounted or out of position due to side view mirror
damage
• The ultrasonic sensor cannot detect the following objects when:
- Sharp or slim objects, such as ropes, chains or small poles
- Objects smaller than 40 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb sensor frequency, such as clothes, spongy
material or snow
- A narrow object such as a corner of a square pillar
- Person, animal or object near the ultrasonic sensor
• The cameras may not properly recognize or may not recognize the
parking line and objects when:
- There are small objects (curb, etc.), sharp objects, or thin objects (rope,
etc.) around
- People, animals or objects are too close or too far from the vehicle
- Objects are on a higher position, such as pickup trucks
- The camera is obscured by dirt or moisture
- The camera is exposed to bright light
Hyundai_CE_en_US.book Page 146

7
7-147
- The surrounding is too dark
- The light is reflected from the surface
Remote Smart Parking Assist may not
operate properly under the following
circumstances:
• Parking on inclines
B7009504
Park or exit manually when the vehicle
is on inclines.
• Parking on uneven road
B7009505
Remote Smart Parking Assist may
cancel when the vehicle slips, or the
vehicle cannot move due to road
conditions such as pebbles or
fragmented stones. • Parking behind a truck
B7009506
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus, truck,
etc. It may lead to an accident.
• Parking near a pillar
B7009507
Remote Smart Parking Assist
performance may reduce or collision
with an obstacle may occur when there
is a narrow object, circular pillar, square
pillar, or a pillar surrounded by objects
such as a fire extinguisher, etc., near
the parking space. The driver should
park the vehicle manually.
Hyundai_CE_en_US.book Page 147

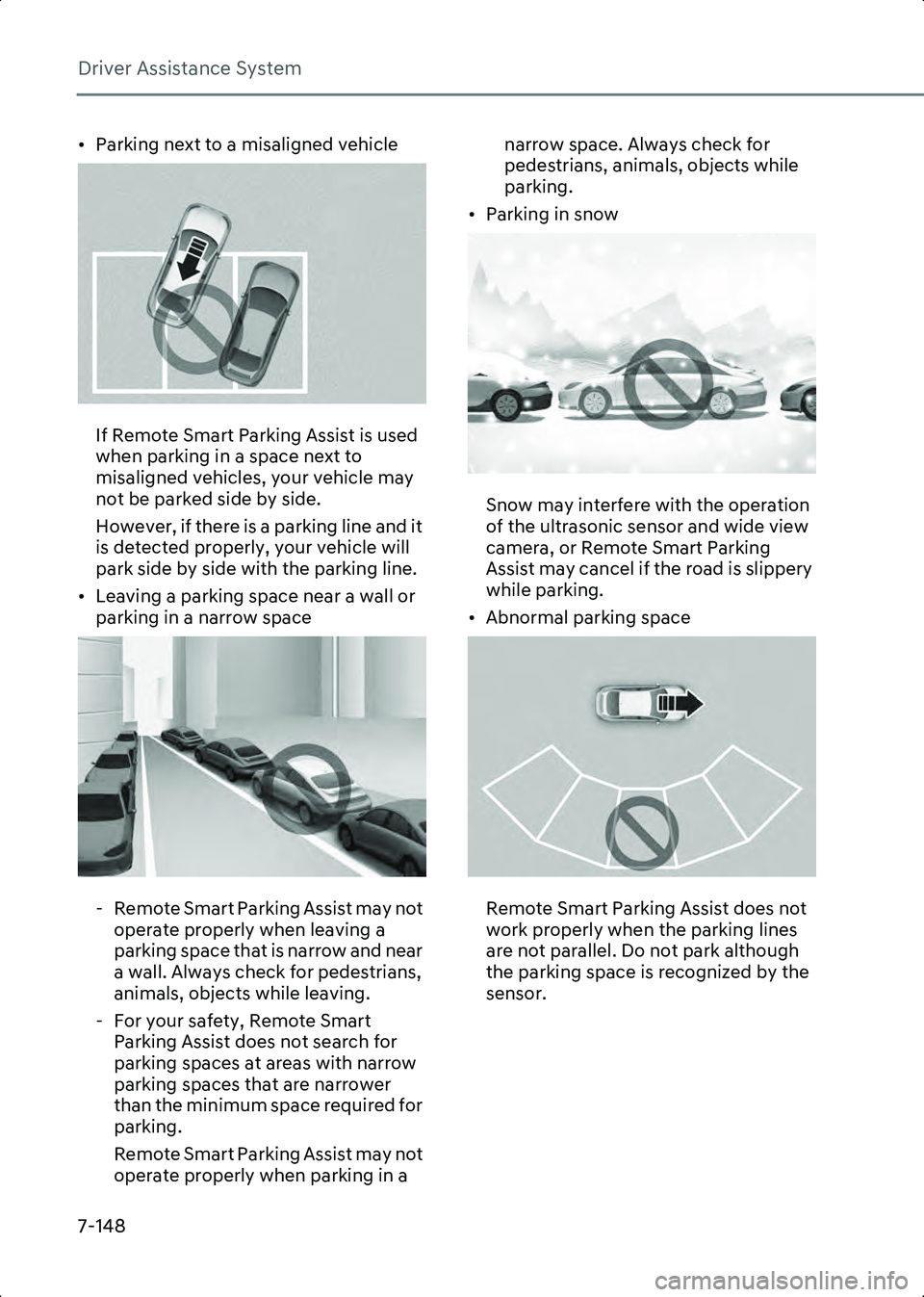

Driver Assistance System
7-148
• Parking next to a misaligned vehicle
B7009508
If Remote Smart Parking Assist is used
when parking in a space next to
misaligned vehicles, your vehicle may
not be parked side by side.
However, if there is a parking line and it
is detected properly, your vehicle will
park side by side with the parking line.
• Leaving a parking space near a wall or parking in a narrow space
B7009509
- Remote Smart Parking Assist may not operate properly when leaving a
parking space that is narrow and near
a wall. Always check for pedestrians,
animals, objects while leaving.
- For your safety, Remote Smart Parking Assist does not search for
parking spaces at areas with narrow
parking spaces that are narrower
than the minimum space required for
parking.
Remote Smart Parking Assist may not
operate properly when parking in a narrow space. Always check for
pedestrians, animals, objects while
parking.
• Parking in snow
B7009511
Snow may interfere with the operation
of the ultrasonic sensor and wide view
camera, or Remote Smart Parking
Assist may cancel if the road is slippery
while parking.
• Abnormal parking space
B7009512
Remote Smart Parking Assist does not
work properly when the parking lines
are not parallel. Do not park although
the parking space is recognized by the
sensor.
Hyundai_CE_en_US.book Page 148

7
7-149
• Inclined parking space
B7009513
Remote Smart Parking Assist does not
work properly on a inclined or curved
road surface. Do not park although the
parking space is recognized by the
sensor.
• Parking diagonal
B7009514
Remote forward function may not
operate properly in a diagonal parking
space.
WARNING Take the following precautions when
using Remote Smart Parking Assist:
• The driver is responsible for safe parking and exit when using Remote
Smart Parking Assist.
• When using Remote Smart Parking Assist, stay out of the way in the
direction the vehicle moves for your
safety.
• Always check surroundings when using Remote Smart Parking Assist. You may
collide with pedestrians, animals, or
objects if they are near the sensor or are
in the sensor’s blind spot area.
• A collision may occur if a pedestrian, animal, or object suddenly appears
while Remote Smart Parking Assist is
operating.
• Do not use Remote Smart Parking Assist when under the influence of
alcohol.
• Do not let children or other people to use the smart key.
• If Remote Smart Parking Assist is used continuously for a long period, it may
adversely affect Remote Smart Parking
Assist performance.
• Remote Smart Parking Assist may not operate properly if the vehicle needs
wheel alignment adjustment such as
when the vehicle tilts to one side. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
• Noise may be heard when braking occurs by Remote Smart Parking Assist
or when the brake pedal is depressed
by the driver.
• Remote Smart Parking Assist may suddenly apply the brake to avoid
collision with pedestrian, animal, or
object.
• Use Remote Smart Parking Assist only in a parking space that is large enough
for the vehicle to move safely.
Hyundai_CE_en_US.book Page 149

Driver Assistance System
7-150
• If Remote Smart Parking Assist does not operate properly, have the vehicle
inspected by an authorized HYUNDAI
dealer.

NOTICE
[ ,IWKHUGVWDJHZDUQLQJFRQWLQXRXV EHHS\fRIWKH)RUZDUG5HYHUVH3DUNLQJ
'LVWDQFH:DUQLQJVRXQGVZKLOH
5HPRWH6PDUW3DUNLQJ$VVLVWLV
RSHUDWLQJLWPHDQVWKHREVWDFOH
GHWHFWHGLVFORVHWR\RXUYHKLFOH$WWKLV
WLPH5HPRWH6PDUW3DUNLQJ$VVLVWZLOO
WHPSRUDULO\VWRSRSHUDWLQJ0DNHVXUH
WKHUHDUHQRSHGHVWULDQVDQLPDOVRU
REMHFWVDURXQG\RXUYHKLFOH

[ 'HSHQGLQJRQEUDNHRSHUDWLRQWKH VWRSOLJKWVPD\FRPHRQZKLOHWKH
YHKLFOHLVPRYLQJ

[ ,IWKHYHKLFOHLVUHPRWHO\VWDUWHGWKDW KDVEHHQSDUNHGLQFROGZHDWKHUIRUD
ORQJWLPHWKHRSHUDWLRQRI5HPRWH
6PDUW3DUNLQJIXQFWLRQPD\EHGHOD\HG
RUFDQFHOHGGHSHQGLQJRQYHKLFOH
FRQGLWLRQ

Declaration of
if equipped
Conformity
Front Radar
The radio frequency components (front
radar) complies:
• For USA
OANATEL351
FCC ID: 2A3OZ-MRR30
This device complies with Part 15 of the FCC
Rules. Operaon is subject to the following two
condions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause
undesired operaon.
CAUTION TO USERSChanges or modificaons not expressly
approved by the party responsible for
compliance could void the user`s authority to
operate the equipment.
Hyundai_CE_en_US.book Page 150

7
7-151
• For Canada
OANATEL327
Front Corner Radar/Rear
Corner Radar
The radio frequency components (Front
corner radar/Rear corner radar) complies:
• For USA
OANATEL320
Model: MRR-30
IC: 27992-MRR30
This device complies with Industry Canada
licence-
exempt RSS standard(s). Operaon is
subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference,including interference that may cause undesired
operaon of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitaon est
autorisée
aux deux condions suivantes:
(1) l'appareil ne doit pas produire de brouillage,
et
(2) l'ulisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si lebrouillage est suscepble d'en compromere
le fonconnement.
FCC ID :LTQ2H5TR
This device complies with Part 15 of the FCC
Rules. Operaon is subject to the following two
condions: (1) this device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operaon.
CAUTION TO USERS
Changes or modificaons not expressly
approved by the party responsible forcompliance could void the user`s authority to
operate the equipment.
Hyundai_CE_en_US.book Page 151

Driver Assistance System
7-152
OANATEL320_1
• For Canada
OANATEL317
OANATEL317
FCC ID : LTQH5TR
This device complies with Part 15 of the FCC
Rules. Operaon is subject to the following two
condions:(1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause
undesired operaon.
CAUTION TO USERS Changes or modificaons not expressly
approved by the party responsible for
compliance could void the user`s authority tooperate the equipment.
Model: 2H5TR
IC: 3659A-2H5TR
This device complies with Industry Canada
licence-
exempt RSS standard(s). Operaon is
subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesiredoperaon of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitaon est
autorisée
aux deux condions suivantes:
(1) l'appareil ne doit pas produire de brouillage,
et
(2) l'ulisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est suscepble d'en compromerele fonconnement.
Model: H5TRIC: 3659A-H5TR
This device complies with Industry Canada
licence-
exempt RSS standard(s). Operaon is
subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operaon of the device.Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitaon est
autorisée
aux deux condions suivantes:
(1) l'appareil ne doit pas produire de brouillage,
et
(2) l'ulisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est suscepble d'en compromere
le fonconnement.
Hyundai_CE_en_US.book Page 152
