2023 HYUNDAI IONIQ 6 Owners Manual

1
1-3
Introduction
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you
to the growing number of discerning people who drive HYUNDAIs. We are very proud of the advanced engineering and high-quality construction of each HYUNDAI we build.
Your Owner’s Manual will introduce you to the features and operation of your new
HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,
read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safely operate
your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your car
be performed by an authorized HYUNDAI dealer. HYUNDAI dealers are prepared to
provide high-quality service, maintenance and any other assistance that may be
required.
This Owner’s Manual should be considered a permanent part of your vehicle, and should
be kept in the vehicle so you can refer to it at any time. The manual should stay with the
vehicle if you sell it to provide the next owner with important operating, safety and
maintenance information.
HYUNDAI MOTOR AMERICA
CAUTION Severe vehicle damage may result from the use of poor quality lubricants that do not
meet HYUNDAI specifications. You must always use high quality lubricants that meet the
specifications listed in the Vehicle Specifications section of the Owner’s Manual.

Copyright 2023 HYUNDAI Motor America. All rights reserved. No part of this publication
may be reproduced, stored in any retrieval system or transmitted in any form or by any
means without the prior written permission of HYUNDAI Motor America.
Hyundai_CE_en_US.book Page 3

Introduction/Getting Started with Your Electric Vehicle
1-4
GUIDE TO HYUNDAI GENUINE PARTS
1. What are HYUNDAI Genuine Parts?HYUNDAI Genuine Parts are the same parts used by HYUNDAI Motor Company to
manufacture vehicles. They are designed and tested for the optimum safety,
performance, and reliability for our customers.
A100A01L
A100A02L
2. Why HYUNDAI Genuine Parts?HYUNDAI Genuine Parts are engineered and built to meet rigid manufacturing
requirements.
Damage caused by using imitation, counterfeit or used salvage parts is not covered
under the HYUNDAI New Vehicle Limited Warranty or any other HYUNDAI warranty.
In addition, any damage to or failure of HYUNDAI Genuine Parts caused by the
installation or failure of an imitation, counterfeit or used salvage part is not covered by
any HYUNDAI Warranty.
Hyundai_CE_en_US.book Page 4

1
1-5
A100A04L

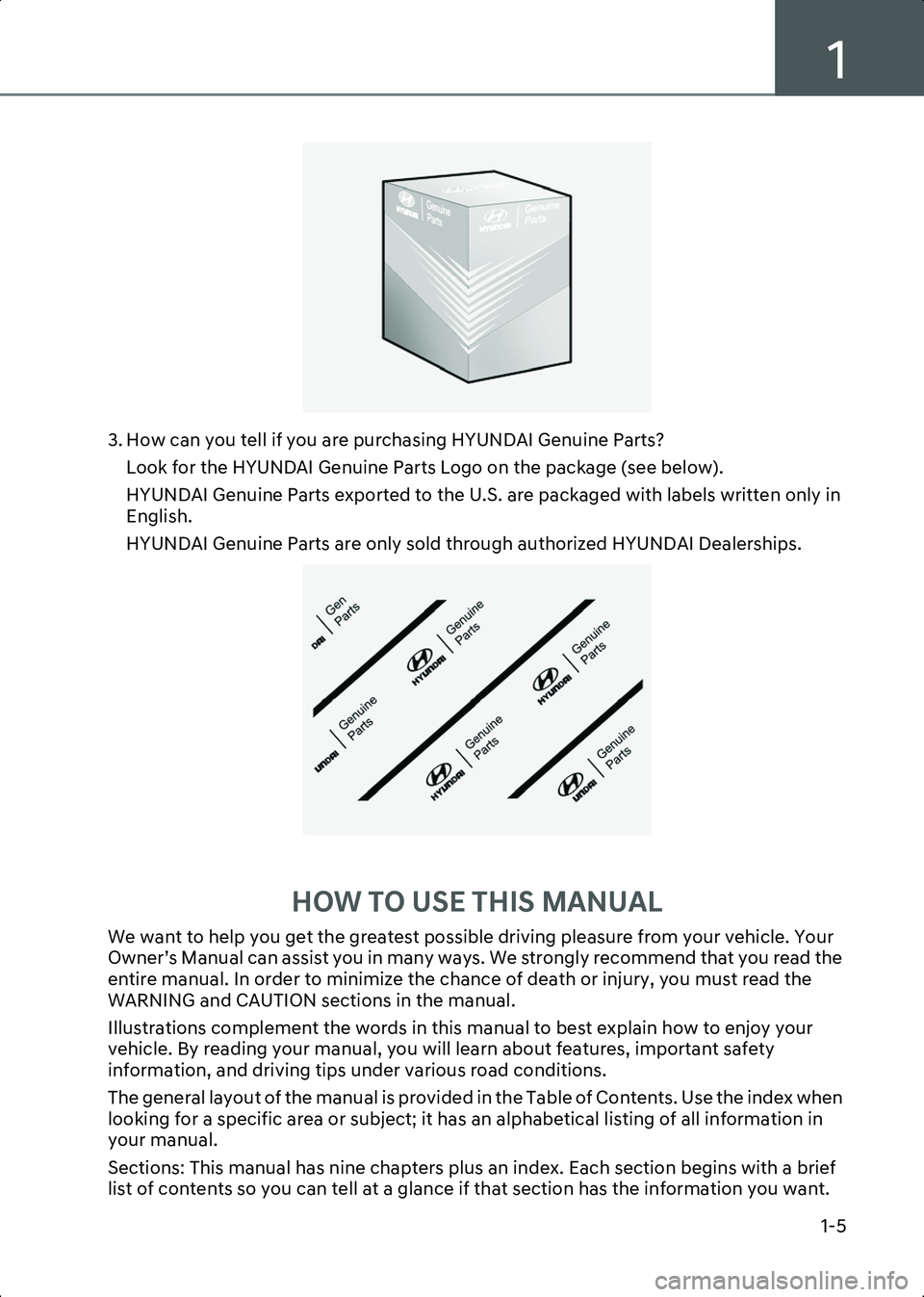

3. How can you tell if you are purchasing HYUNDAI Genuine Parts?Look for the HYUNDAI Genuine Parts Logo on the package (see below).
HYUNDAI Genuine Parts exported to the U.S. are packaged with labels written only in
English.
HYUNDAI Genuine Parts are only sold through authorized HYUNDAI Dealerships.
A100A03L
HOW TO USE THIS MANUAL
We want to help you get the greatest possible driving pleasure from your vehicle. Your
Owner’s Manual can assist you in many ways. We strongly recommend that you read the
entire manual. In order to minimize the chance of death or injury, you must read the
WARNING and CAUTION sections in the manual.
Illustrations complement the words in this manual to best explain how to enjoy your
vehicle. By reading your manual, you will learn about features, important safety
information, and driving tips under various road conditions.
The general layout of the manual is provided in the Table of Contents. Use the index when
looking for a specific area or subject; it has an alphabetical listing of all information in
your manual.
Sections: This manual has nine chapters plus an index. Each section begins with a brief
list of contents so you can tell at a glance if that section has the information you want.
Hyundai_CE_en_US.book Page 5

Introduction/Getting Started with Your Electric Vehicle
1-6

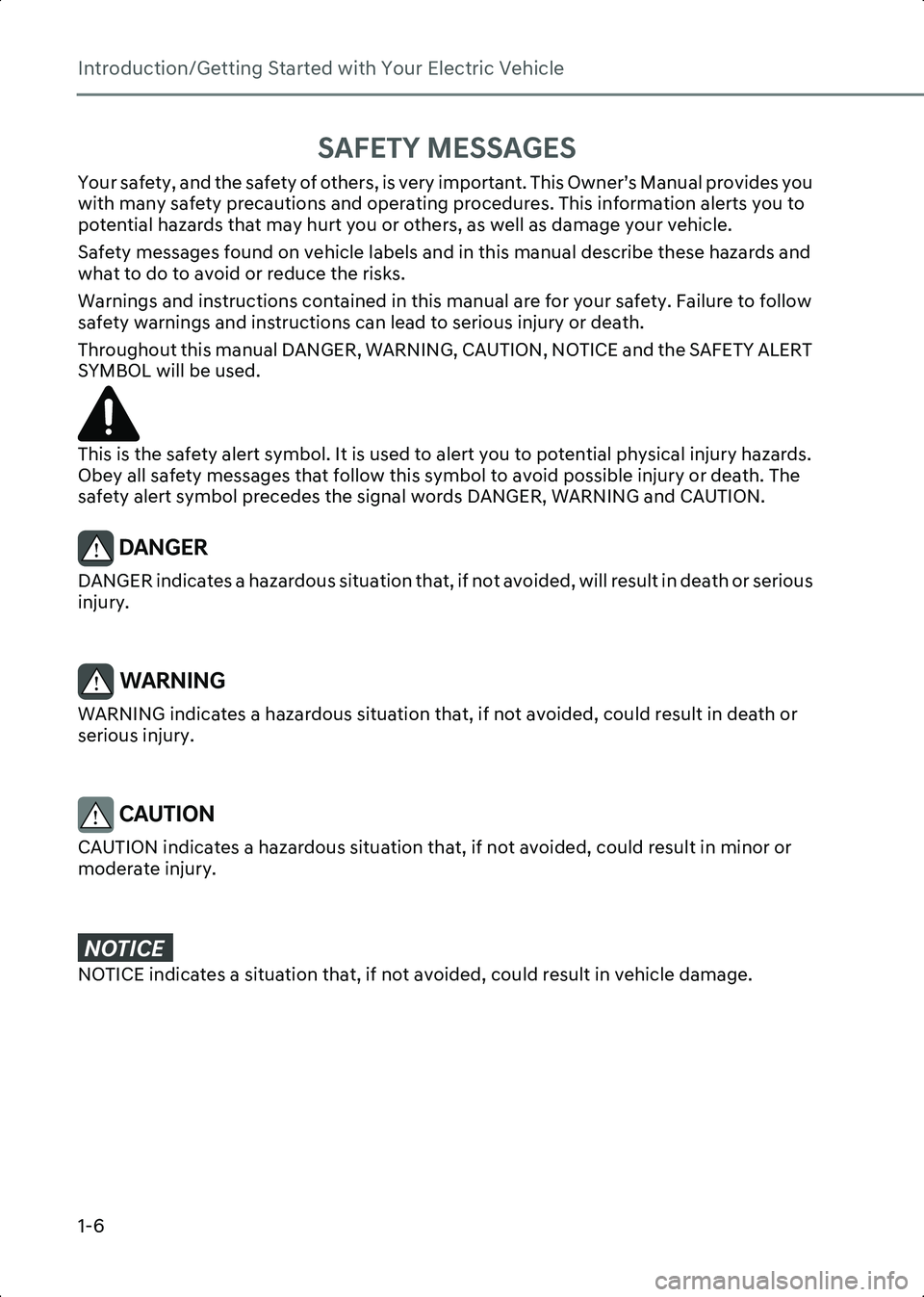

SAFETY MESSAGES
Your safety, and the safety of others, is very important. This Owner’s Manual provides you
with many safety precautions and operating procedures. This information alerts you to
potential hazards that may hurt you or others, as well as damage your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards and
what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow
safety warnings and instructions can lead to serious injury or death.
Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY ALERT
SYMBOL will be used.
This is the safety alert symbol. It is used to alert you to potential physical injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death. The
safety alert symbol precedes the signal words DANGER, WARNING and CAUTION.
DANGER DANGER indicates a hazardous situation that, if not avoided, will result in death or serious
injury.

WARNING WARNING indicates a hazardous situation that, if not avoided, could result in death or
serious injury.

CAUTION CAUTION indicates a hazardous situation that, if not avoided, could result in minor or
moderate injury.

NOTICE127,&(LQGLFDWHVDVLWXDWLRQWKDWLIQRWDYRLGHGFRXOGUHVXOWLQYHKLFOHGDPDJH

Hyundai_CE_en_US.book Page 6

1
1-7
VEHICLE MODIFICATIONS
• This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may not
be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE6RPHYHKLFOHLQWHULRUVRXQGVLQFOXGLQJZHOFRPHVRXQGQDYLJDWLRQDOHUWVRUZDUQLQJ
VRXQG\fPD\EHJHQHUDWHGIURPWKHLQWHULRUVSHDNHUVDQGDPSOLILHU'RQRWUHSODFHWKHVH
FRPSRQHQWVZLWKDQ\WKLQJRWKHUWKDQWKHRULJLQDO+<81'$,IDFWRU\SDUWV$Q\
XQDXWKRUL]HGSURGXFWPD\FDXVHDPDOIXQFWLRQRIWKHYHKLFOHLQWHULRUVRXQGVWKDWPD\
DIIHFWWKHLQWHQGHGRSHUDWLRQRIWKHYHKLFOH

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like situations, such as an airbag deployment
or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems
performed. The EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/ fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situation occurs;
no data are recorded by the EDR under normal driving conditions and no personal data
(for example, name, gender, age, and crash location) are recorded. However, other
parties, such as law enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such
as law enforcement, that have the special equipment, can read the information if they
have access to the vehicle or the EDR.
Hyundai_CE_en_US.book Page 7

Introduction/Getting Started with Your Electric Vehicle
1-8

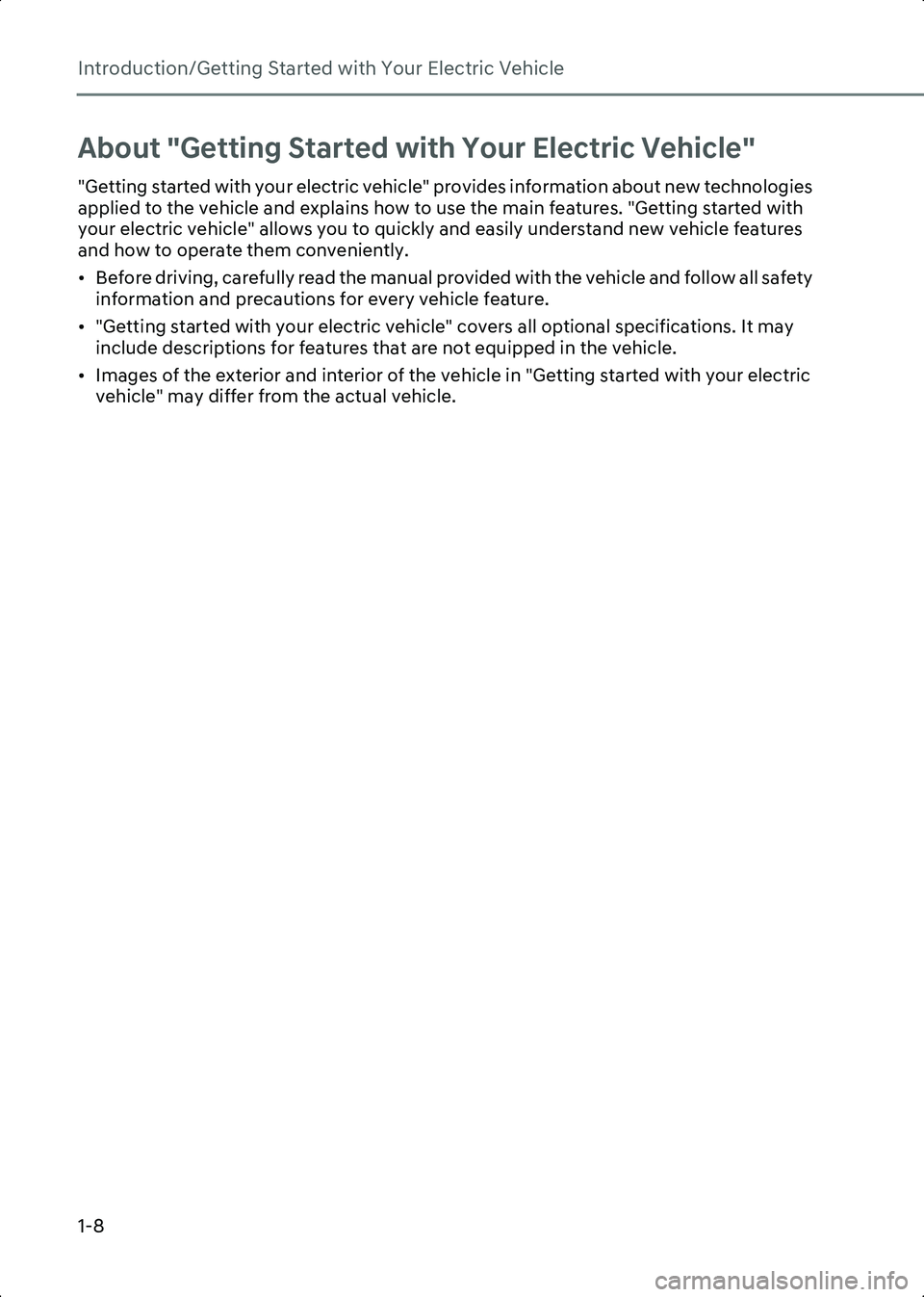

About "Getting Started with Your Electric Vehicle"
"Getting started with your electric vehicle" provides information about new technologies
applied to the vehicle and explains how to use the main features. "Getting started with
your electric vehicle" allows you to quickly and easily understand new vehicle features
and how to operate them conveniently.
• Before driving, carefully read the manual provided with the vehicle and follow all safety information and precautions for every vehicle feature.
• "Getting started with your electric vehicle" covers all optional specifications. It may include descriptions for features that are not equipped in the vehicle.
• Images of the exterior and interior of the vehicle in "Getting started with your electric vehicle" may differ from the actual vehicle.
Hyundai_CE_en_US.book Page 8

1
1-9
Understanding Your Electric Vehicle
Electric vehicles are driven using a battery and an electric motor. Understand the
characteristics of your electric vehicle and check the features that you must know before
driving it.
Characteristics of Your Electric Vehicle
The characteristics that differentiate electric vehicles from gasoline vehicles are as
follows:
• Electric vehicles are eco-friendly because they do not use fossil fuels for driving. Additionally, unlike gasoline vehicles, noise and vibration are minimal, and the
vehicle’s lifespan is relatively long.
• When slowing down or driving downhill, regenerative braking is used. Regenerative braking charges the high voltage battery and minimizes energy loss.
• If the high voltage battery is running low, you can charge the vehicle using the AC charger, DC charger, or portable charging cables. For more information, refer to the
"Charging Your Electric Vehicle" section in this chapter.
Information Regenerative braking uses an electric motor when decelerating and braking, and it transforms
kinetic energy to electrical energy in order to charge the high voltage battery.

Battery information
The batteries used in the electric vehicle are as follows:
•High voltage battery (high capacity) : Drives the motor and operates the air
conditioner and heater. It can be charged via an AC charger, DC charger, or portable
charger.
• 12 V battery : Operates all lights, wipers, and audio system. The 12 V battery charge can
also be maintained by the high voltage battery at parked condition at certain
conditions.
Main components of your electric vehicle
The main components of your electric vehicle and their functions are as follows:
• On-Board Charger (OBC) : Charges the high voltage battery by converting the power
grid’s AC power to DC power.
• Inverter : Converts power from direct current (DC) to alternating current (AC) and
supplies power to the motor, and converts power from AC to DC to charge the high
voltage battery during deceleration and braking.
• Low Voltage DC-DC Converter (LDC) : Converts the high voltage battery’s power
source to a low voltage (12 V) power source for supply of power to the electrical devices
on the vehicle.
Hyundai_CE_en_US.book Page 9

Introduction/Getting Started with Your Electric Vehicle
1-10
•Vehicle Control Unit (VCU) : Controls the various controllers and sensors on the
vehicle.
• Motor : Uses electricity accumulated on the high voltage battery to drive the vehicle
(same role as an engine in gasoline vehicles).
• Gear: Delivers the rotational force of the motor to the tires at appropriate speeds and
torque.
• High voltage battery (Lithium-ion battery) : Stores and supplies power necessary for
the electric vehicle to operate. (The separately installed 12 V battery provides power to
the vehicle when the vehicle is in ACC or OFF.)
WARNING • Do not remove or disassemble any high voltage battery’s connectors and wires. Doing so may lead to accidents, such as electric shock, and result in serious injury and
significantly degrade the vehicle’s performance and durability.
• When the high voltage battery or its related components require inspection and maintenance, contact an authorized HYUNDAI dealer.

Precautions When Using the High Voltage Battery
Precautions for high voltage battery when driving and storing the vehicle are as follows:
CAUTION • Keep the gauge of the high voltage battery from going below 10 %. Storing the vehicle while the battery level is too low for a long time may damage the battery or reduce the
battery’s capacity.
• If a collision occurs and the vehicle is impacted, have the vehicle inspected by an authorized HYUNDAI dealer and check the battery connection status.
• Using the V2L function may reduce the driving distance due to the use of high voltage battery energy, and repeated use of the V2L function may impact battery life.
• Frequent use of DC charging may impact battery life.

• The high voltage battery level may reduce naturally even if the vehicle is not driven.
• Storing the vehicle in temperatures that are too hot or cold may degrade the battery performance.
• The distance to empty or power output may vary depending on the driving conditions, such as the outside temperature. Driving on highway at high speeds or uphill will
increase battery consumption, resulting in a shorter distance to empty.
• If you use the air conditioner or heater, which is powered by the high voltage battery, the distance to empty will be reduced. Maintain reasonable temperature when using
the air conditioner or heater to maximize distance to empty.
• Depending on the vehicle’s period of use, natural degradation of the battery may occur that reduces distance to empty over long period of vehicle life. When the charge
Hyundai_CE_en_US.book Page 10
