Using EV Mode Functions
EV mode provides driving information and high voltage battery information. You can set
various electric vehicle functions in EV mode.
Checking the EV Mode Screen Configuration
Follow the instruction below to enter EV mode and check the screen configuration.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV.
• The EV mode screen appears.
The details of the EV mode screen is as follows:
A0001601
No.NameDescription
(1) Energy information You can check the distance to empty, total
battery power remaining, and expected
charging time for each charge type.
(2) Next departure time You can set anticipated departure time for
scheduled charging and target temperature.
(3) Scheduled charging and climate
control You can set the date and time of when to charge
the battery and the climate control
temperature. Also, you may select the time to
start charging using the off-peak time setting.
(4) Vehicle to Load (V2L) setting You can set the battery discharging limit (%) for
the high voltage battery for driving.
1
2345
Hyundai_CE_en_US.book Page 33
Page 42 of 582
Introduction/Getting Started with Your Electric Vehicle
1-36
Checking electricity use
On the Energy Information screen, select Electricity Use.
• You can check the current energy consumption for each vehicle system.
B0001703
No.NameDescription
(1) Electronics Shows the power and energy consumption used by the vehicle
system, including the instrument cluster, infotainment system
(speaker and navigation), headlight, vehicle control unit, etc., and
the percentage of the power vehicle system used in total power
used since starting the vehicle.
(2) Climate Shows the power and energy consumption used by the air
conditioner or heater and the percentage of the power climate
system used in total power used since starting the vehicle.
(3) Drive train Shows the percentage of instantaneous and regenerative energy
consumed by the motor to drive the vehicle and the percentage of
the power driving system used in total power used since starting
the vehicle.
(4) Battery Care Shows the momentary power and energy consumption used when
increasing and cooling down the battery temperature to maintain
optimal battery performance and the percentage of battery
temperature control mode (Battery Care mode) used in the total
power used since starting the vehicle.
1234
Hyundai_CE_en_US.book Page 36
Page 43 of 582
1
1-37
Checking the electric energy economy history
On the Energy Information screen, select EV Electricity History.
• You can check the history of electric energy economy with the date and distance of previous driving.
B0001704
Setting the Next Departure Time
You can set an anticipated departure time for scheduled charging and target
temperature.
Information • Scheduled charging and climate will be activated based on the departure time.
• To use scheduled charging and climate function, the vehicle must be connected to the charger at the scheduled time.
• The scheduled climate function directly uses the power of the connected charger. It can maintain a pleasant environment and enhance vehicle performance by controlling the temperature of the
vehicle and the battery without using the high voltage battery power.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV > Next Departure Time .
3. Set the anticipated departure schedule.
B0001801
Hyundai_CE_en_US.book Page 37
Page 44 of 582
Introduction/Getting Started with Your Electric Vehicle
1-38

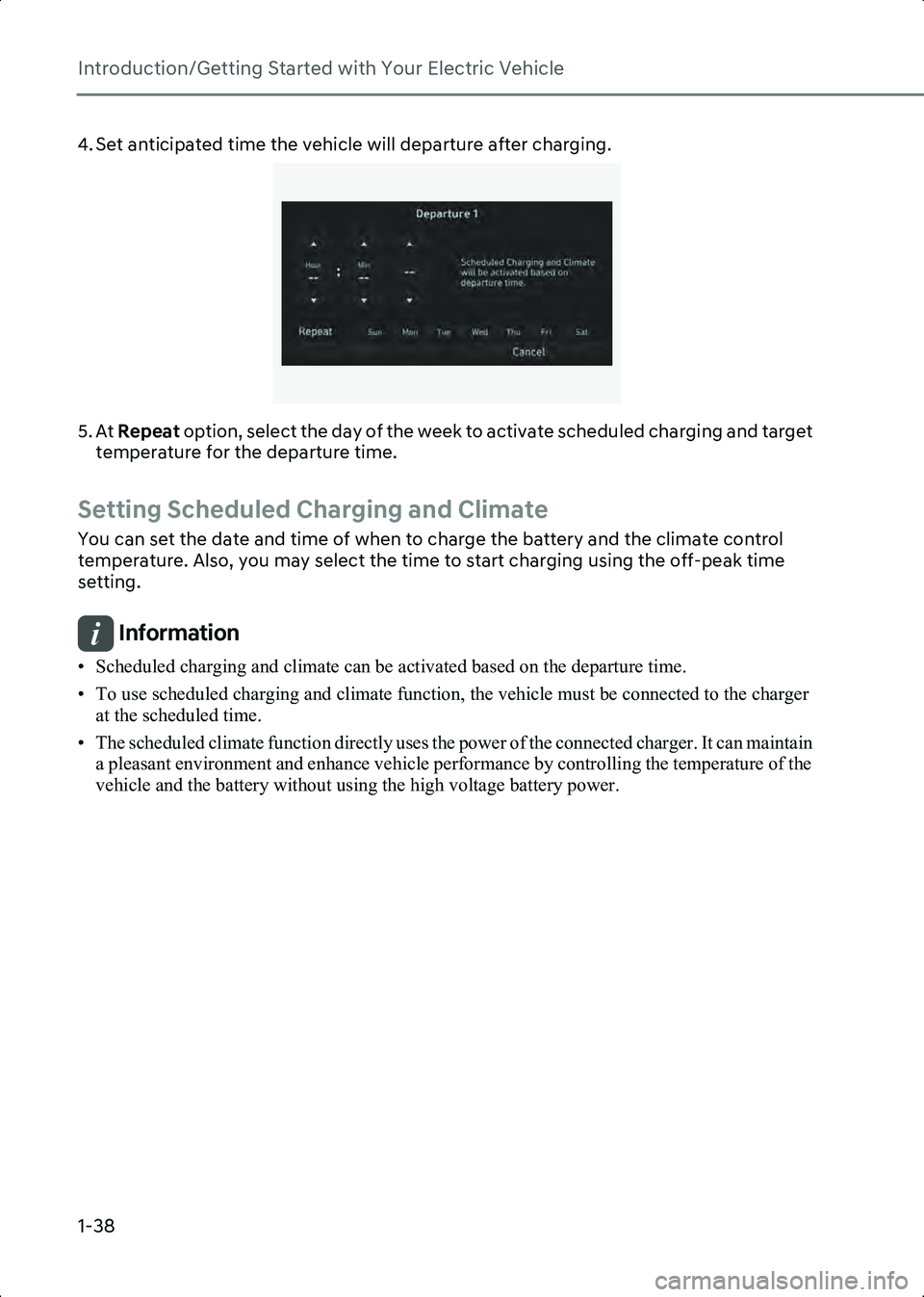

4. Set anticipated time the vehicle will departure after charging.
B0001802
5. At Repeat option, select the day of the week to activate scheduled charging and target
temperature for the departure time.
Setting Scheduled Charging and Climate
You can set the date and time of when to charge the battery and the climate control
temperature. Also, you may select the time to start charging using the off-peak time
setting.
Information • Scheduled charging and climate can be activated based on the departure time.
• To use scheduled charging and climate function, the vehicle must be connected to the charger at the scheduled time.
• The scheduled climate function directly uses the power of the connected charger. It can maintain a pleasant environment and enhance vehicle performance by controlling the temperature of the
vehicle and the battery without using the high voltage battery power.
Hyundai_CE_en_US.book Page 38
Page 46 of 582
Introduction/Getting Started with Your Electric Vehicle
1-40
Setting a scheduled climate
Follow the instructions below to set the scheduled climate control temperature.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV > Scheduled Charging and Climate > Scheduled
Charging .
3. Set the desired temperature. • The air conditioning system is activated at the departure time.
• For more information about setting the departure time, refer to the “Setting the Next Departure Time” section in this chapter.
B0001902
Setting a Battery Discharging Limit When Using Vehicle to Load
(V2L)
Setting battery discharging limit (%) can prevent the battery from discharging when
operating home appliances or electronic devices using the high voltage battery.
• For more information about V2L function, refer to the “Setting the Next Departure Time” section in this chapter.
Information V2L is the system provides AC power using the high voltage battery for driving to operate several
electronic devices. You can operate home appliances and electronic devices, or charge another
electric vehicle in emergency using the charged electricity from the vehicle’s battery while
camping or doing other outdoor activities.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV > Electricity Use .
3. Set the desired battery discharging limit (%). • The battery discharging limit can only be set below the current high voltage battery level.
• When the high voltage battery level reaches the set battery discharging limit, V2L function automatically cuts off electrical supply.
10 ×
Hyundai_CE_en_US.book Page 40
Page 79 of 582
2
2-5
Center Console Overview
A1000601The actual shape may differ from the illustration.
(1) Instrument cluster ...................................................................................................... 4-2
(2) Horn........................................................................................................................... 5-33
(3) Driver’s front airbag ................................................................................................. 3-37
(4) Infotainment system ...............................................................................................5-107
(5) Hazard warning flasher button.................................................................................. 8-2
(6) Start/Stop button ....................................................................................................... 6-4
(7) Automatic climate control system ..........................................................................5-80
(8) Parking/View button ................................................................................................ 7-96
14
5
67
12
13
14
1815
10
11
16
2
3
A
A
B
B
CC
17
89
Hyundai_CE_en_US.book Page 5
Page 98 of 582
Seats & Safety System
3-4
ONE1031077L
Infotainment system
Select Setup > Vehicle > Seat from the Settings menu in the infotainment system, you
may use various convenience functions.
• Seat Position Change Alert: When the seat position changes, details of the change are shown with a seat image.
• Heated/Ventilated Features - Auto. Controls That Use Climate Control Settings (for driver’s seat): The seat temperature is automatically controlled.
• Seating Easy Access - Driver Seat Easy Access: The distance (Normal/Extended/Off) the seat automatically moves when the driver enters or leaves the vehicle may be selected.
Information • The information provided may differ depending on which functions are applicable to your vehicle.
• The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.
Hyundai_CE_en_US.book Page 4
Page 109 of 582
3
3-15
WARNING The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of time.
Passengers must be able to feel if the seat
is becoming too warm so they can turn it
off, if needed.
Seat warmer consume large amounts of
electricity. Please avoid using seat
warmers while the vehicle is off in order
to prevent battery discharge.
People who cannot detect temperature
change or pain to the skin should use
extreme caution, especially the following
types of passengers:
• Infants, children, elderly or disabled persons, or hospital outpatients.
• People with sensitive skin or who burn easily.
• Fatigued individuals.
• Intoxicated individuals.
• People taking medication that can cause drowsiness or sleepiness.
WARNING NEVER place anything on the seat that
insulates against heat when the seat
warmer is in operation, such as a blanket
or seat cushion. This may cause the seat
warmer to overheat, causing a burn or
damage to the seat.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H V H D W Z D U P H U V
D Q G V H D W V
[ 1 H Y H U X V H D V R O Y H Q W V X F K D V S D L Q W W K L Q Q H U E H Q ] H Q H D O F R K R O R U J D V R O L Q H W R
F O H D Q W K H V H D W V
[ ' R Q R W S O D F H K H D Y \ R U V K D U S R E M H F W V R Q V H D W V H T X L S S H G Z L W K V H D W Z D U P H U V [ ' R Q R W F K D Q J H W K H V H D W F R Y H U , W P D \
G D P D J H W K H V H D W Z D U P H U
if equipped
Front seat warmers
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B3000602
Press in the front climate control
panel.
