Introduction/Getting Started with Your Electric Vehicle
1-44
B0002104
• The (ready indicator) turns off and the UTIL (utility indicator) illuminates on the
instrument cluster and the EPB is applied.
• The utility mode can be deactivated by pressing the Start/Stop button to the OFF position.
• If you want to utilize V2L function in the vehicle while the utility mode is activated, refer to the “Using Electricity Inside the Vehicle” section in this chapter.
Information If the utility mode is not activated when the vehicle is in the ready ( ) mode and the gear is
shifted to P (Park), inspect the operation status of EPB.
Searching for nearby charging stations
Around the course, around the current site, around the selected destination or charging
stations of interest can be searched. If you choose the charging station, the detailed
information is provided.
Information • When you sign up HYUNDAI BlueLink service, the available chargers at each charging station are displayed.
• The HYUNDAI Carpay function in the in-vehicle payment app allows for convenient payments to affiliated charging stations and parking lots without using physical cards. For more
information, refer to the user's manual provided in the infotainment system and the quick
reference guide.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV and select the charging station icon next to the
vehicle
Hyundai_CE_en_US.book Page 44
Page 65 of 582
1
1-59
Checking the warning lights
Check the cause of the warning lights referring to the table below and take appropriate
measures.
Warning LightCauseMeasure
Service warning light This warning light illuminates:
• When there is a problem with
related parts of the electric
vehicle control system, such
as sensors, etc.
• When an actuator, electric compressor for air
conditioning, etc.
malfunctions. In a normal condition, it
illuminates for about 3 seconds
when the Start/Stop button is in
the ON position and then goes
off.
• When the warning light
illuminates while driving, or
does not go off after starting
the vehicle, have your vehicle
inspected by an authorized
HYUNDAI dealer.
Power down indicator light This warning light illuminates:
• When the high voltage
battery level is too low or
voltage is decreasing.
(Output limit occurs when the
charge level is insufficient.)
• When the temperature of the high voltage battery is too
high or too low.
• When the driving system temperature is overheated
and requires protection. If it illuminates alone, it is not
failure.
• If both Power down indicator
light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• When the indicator is illuminating, immediately
charge the vehicle. The
driving speed may be limited
and the vehicle may not
properly drive uphill.
High voltage battery level warning light This warning light illuminates
when the high voltage battery
level is low. Immediately charge the
vehicle. The vehicle can drive
an additional 18-31 mi. (30-50
km).
• The actual distance to empty
depends on the driving
conditions.
Regenerative brake warning light This warning light illuminates
when the regenerative brake
does not operate and the brake
does not perform well due to
the malfunction of the brake
system. Drive safely and have your
vehicle inspected by an
authorized HYUNDAI dealer.
• The operation of the brake
pedal may feel deeper than
normal or the braking
distance may increase.
Hyundai_CE_en_US.book Page 59
Page 68 of 582
Introduction/Getting Started with Your Electric Vehicle
1-62
Power limitedThis warning message is
displayed when the power of
the vehicle is limited to ensure
the safety of high-powered
components for the reasons
below:
• The high voltage battery level
is too low or voltage is
decreasing.
• The temperature of the high voltage battery is too high or
too low.
• When the driving system is overheated and requires
protection. If it illuminates alone, it did not
fail.
• Charge the vehicle is the
charge level is low.
• If both Power down indicator light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• Do not accelerate or start the vehicle suddenly when the
warning message is
displayed.
• Be careful when the Power down indicator light is
displayed. The vehicle may
not properly drive uphill and
roll back on a slope.
Low EV battery
temperature. Power
limited If you start or turn off the
vehicle when the outside
temperature is low, both
warning messages appear to
protect electric vehicle system.
• If the high voltage battery
charge level is low and parked
outside for a long time,
vehicle power could be
limited due to the low battery
temperature. • Charging the battery before
driving helps increase power.
• If these warning messages are still displayed even after the
ambient temperature has
increased, have the vehicle
inspected and repaired by an
authorized HYUNDAI dealer.
EV Battery
Overheated! Stop
vehicle The high voltage battery
temperature is too high. • Stop the vehicle in a safe place
and turn off the Start/Stop
button and wait until the
battery temperature
decreases.
• If these warning messages are still displayed even after
turning off the engine and
waiting for a sufficient time,
immediately have the vehicle
inspected by an authorized
HYUNDAI dealer.
Warning MessageCauseMeasure
1 P X F S M J N J U F E
- P X C B U U F S Z
U F N Q F S B U V S F
1 P X F S M J N J U F E
# B U U F S Z
P W F S I F B U F E 4 U P Q T B G F M Z
Hyundai_CE_en_US.book Page 62
Page 156 of 582
Instrument Cluster
4-6
the Smart Regenerative System’s
operation status is displayed.
For more information, refer to the
"Regenerative Braking System (Paddle
Shifter)" section in chapter 6.
Warning and Indicator Lights
Information Make sure that all warning lights are OFF
after starting the vehicle. If any light is still
ON, this indicates a situation that needs
attention.
Ready Indicator Light
WL_ReadyLamp
This indicator illuminates:
When the vehicle is ready to be driven.
• ON: Normal driving is possible.
• OFF: Normal driving is not possible, or a problem has occurred.
• Blinking: Emergency driving.
When the indicator goes off or blinks,
there is a problem with the system. In this
case, have your vehicle inspected by an
authorized HYUNDAI dealer.
Service Warning Light
WL_ServiceWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Service warning light
illuminates for 3 seconds and then goes
off.
• When there is a problem with related parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go off after starting
the vehicle, have your vehicle inspected
by an authorized HYUNDAI dealer.
Power Down Indicator Light
WL_PowerDownLamp
This indicator light illuminates:
When the power is limited for the safety
of the high-powered parts of an electric
vehicle. The power is limited for the
following reasons:
• The high voltage battery level is too low or voltage is decreasing
• The temperature of the high voltage battery is too high or too low
• The temperature of the motor is high
Hyundai_CE_en_US.book Page 6
Page 157 of 582
4
4-7
NOTICE [ ' R Q R W D F F H O H U D W H R U V W D U W W K H Y H K L F O H V X G G H Q O \ Z K H Q W K H S R Z H U G R Z Q
L Q G L F D W R U O L J K W L V L O O X P L Q D W H G
[ : K H Q W K H S R Z H U L V O L P L W H G I R U W K H V D I H W \ R I K L J K S R Z H U H G S D U W V R I D Q H O H F W U L F
Y H K L F O H W K H S R Z H U G R Z Q L Q G L F D W R U O L J K W
L O O X P L Q D W H V < R X U Y H K L F O H P D \ Q R W E H
G U L Y H Q R U P D \ U R O O E D F N R Q D V O R S H Z L W K
W K H L Q G L F D W R U O L J K W L O O X P L Q D W H G G X H W R
W K H O L P L W D W L R Q R I Y H K L F O H S R Z H U
Information Unless both the Service Warning Light and
Power Down Indicator Light illuminate at the
same time, it is not a failure.
Charging Connector Indicator Light
WL_ChargingConnectLamp
This warning light indicates the
connection status of the charging
connector. When the charging connector
is connected to the vehicle, the green
light illuminates for about 1 minute.
High Voltage Battery Level Warning
Light
WL_BatteryLovelLowWarningLamp
This warning light illuminates:
When the high voltage battery level is
low.
Charge the high voltage battery as soon
as possible.
Seat Belt Warning Light
WL_SeatBeltWarningLamp
This warning light informs the driver that
the seat belt is not fastened.
For more information, refer to the “Seat
Belts” section in chapter 3.
Airbag Warning Light
WL_AirbagWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Airbag warning light
illuminates for 3-6 seconds and then
goes off.
Hyundai_CE_en_US.book Page 7
Page 171 of 582
4
4-21
Battery discharging due to external
electrical devices
ONE1041054L
This warning message is displayed when
a battery discharge due to excessive
current is detected by mounting an
unauthorized electrical device such as a
black box.
Be careful as it may cause battery
discharge problems.
If the warning message is not
disappeared after the external electrical
device is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Power limited due to low EV battery
temperature. Charge battery
OOSEV040507L
Both warning messages are displayed to
protect electric vehicle system when
outside temperature is low. If the high
voltage battery charging level is low and
parked outside in low temperature for a
long time, vehicle power may be limited.Charging the battery before driving helps
increase power.
NOTICE , I W K H V H Z D U Q L Q J P H V V D J H V D U H V W L O O
G L V S O D \ H G H Y H Q D I W H U W K H D P E L H Q W
W H P S H U D W X U H K D V L Q F U H D V H G K D Y H W K H
Y H K L F O H L Q V S H F W H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
Power limited
This Indicator light illuminates:
• This warning message is displayed to
ensure the safety of high-powered
components of electric vehicles. The
power is limited for the following
reasons:
- The high voltage battery level is too low or voltage is decreasing
- The temperature of the high voltage battery is too high or too low
- The temperature of the motor is high
NOTICE [ : K H Q W K L V Z D U Q L Q J P H V V D J H L V G L V S O D \ H G G R Q R W D F F H O H U D W H R U V W D U W W K H
Y H K L F O H V X G G H Q O \
[ : K H Q W K H S R Z H U L V O L P L W H G I R U W K H V D I H W \ R I K L J K S R Z H U H G S D U W V R I D Q H O H F W U L F
Y H K L F O H W K H Z D U Q L Q J P H V V D J H L V
G L V S O D \ H G < R X U Y H K L F O H P D \ Q R W E H
G U L Y H Q R U P D \ U R O O E D F N R Q D V O R S H Z L W K
W K H Z D U Q L Q J P H V V D J H G L V S O D \ H G G X H W R
W K H O L P L W D W L R Q R I Y H K L F O H S R Z H U
Information Unless both the Service Warning Light and
Power Down Indicator Light illuminate at the
same time, it is not a failure.
# B U U F S Z E J T D I B S H J O H E V F U P F Y U F S O B M
F M F D U S J D B M E F W J D F T
1 P X F S M J N J U F E E V F U P M P X & 7 C B U U F S Z
U F N Q F S B U V S F
$ I B S H F C B U U F S Z
Hyundai_CE_en_US.book Page 21
Page 505 of 582
8
8-9
Low Tire Pressure Warning
Light
Low Tire Pressure Position
and Tire Pressure Telltale
B8002102
When the tire pressure monitoring
system warning indicators are illuminated
and a warning message displayed on the
cluster display, one or more of your tires is
significantly under-inflated. The Low Tire
Pressure Position Telltale will indicate
which tire is significantly underinflated by
illuminating the corresponding parking
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s side
center pillar outer panel.
If you cannot reach a service station or if
the tire cannot hold the newly added air,
replace the low pressure tire with the
spare tire.The Low Tire Pressure Telltale will remain
on and the TPMS Malfunction Indicator
may blink for one minute and then remain
illuminated (when the vehicle is driven
about 10 minutes at speed above 15.5
mph (25 km/h)) until you have the low
pressure tire repaired and replaced on the
vehicle.
CAUTION In winter or cold weather, the Low Tire
Pressure Telltale may be illuminated if the
tire pressure was adjusted to the
recommended tire inflation pressure in
warm weather. It does not mean your
TPMS is malfunctioning because the
decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a warm
area to a cold area or from a cold area to a
warm area, or the outside temperature is
greatly higher or lower, you should check
the tire inflation pressure and adjust the
tires to the recommended tire inflation
pressure.
WARNING Low pressure damage
Significantly low tire pressure makes the
vehicle unstable and can contribute to
loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.
- P X U J S F Q S F T T V S F
- P X
- P X
- P X
- P X
Hyundai_CE_en_US.book Page 9
Page 512 of 582

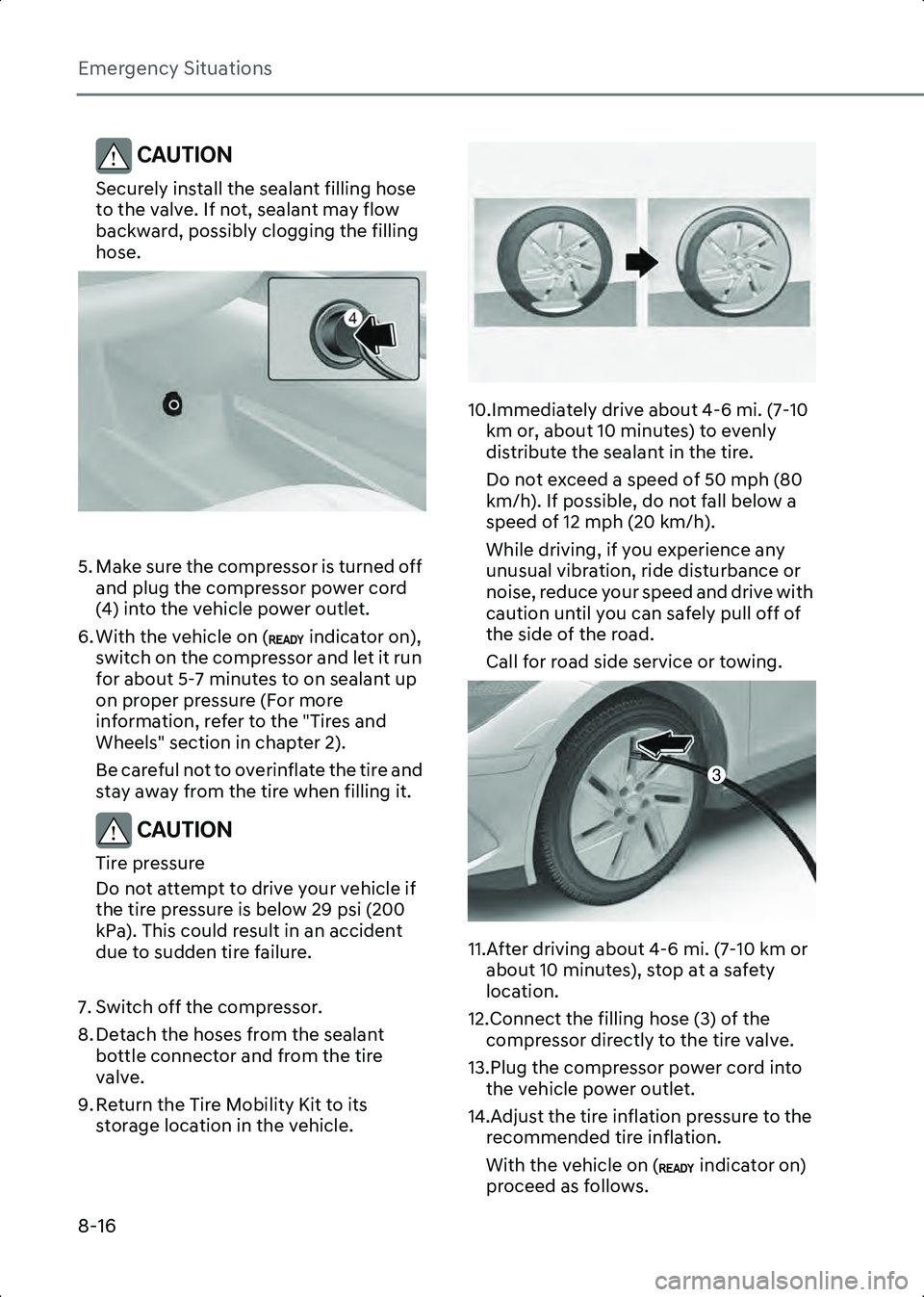

Emergency Situations
8-16
CAUTION Securely install the sealant filling hose
to the valve. If not, sealant may flow
backward, possibly clogging the filling
hose.
B8002507
5. Make sure the compressor is turned off and plug the compressor power cord
(4) into the vehicle power outlet.
6. With the vehicle on ( indicator on), switch on the compressor and let it run
for about 5-7 minutes to on sealant up
on proper pressure (For more
information, refer to the "Tires and
Wheels" section in chapter 2).
Be careful not to overinflate the tire and
stay away from the tire when filling it.
CAUTION Tire pressure
Do not attempt to drive your vehicle if
the tire pressure is below 29 psi (200
kPa). This could result in an accident
due to sudden tire failure.
7. Switch off the compressor.
8. Detach the hoses from the sealant bottle connector and from the tire
valve.
9. Return the Tire Mobility Kit to its storage location in the vehicle.
B8002508
10.Immediately drive about 4-6 mi. (7-10 km or, about 10 minutes) to evenly
distribute the sealant in the tire.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive with
caution until you can safely pull off of
the side of the road.
Call for road side service or towing.
B8002509
11.After driving about 4-6 mi. (7-10 km or about 10 minutes), stop at a safety
location.
12.Connect the filling hose (3) of the compressor directly to the tire valve.
13.Plug the compressor power cord into the vehicle power outlet.
14.Adjust the tire inflation pressure to the recommended tire inflation.
With the vehicle on ( indicator on)
proceed as follows.
3
Hyundai_CE_en_US.book Page 16
