2023 HYUNDAI IONIQ 6 trailer

6
Good Braking Practices............................................................................................. 6-35
All Wheel Drive (AWD) .................................................................................................. 6-36 Emergency Precautions ............................................................................................ 6-38
Drive Mode Integrated Control System (2WD) ........................................................... 6-39 Drive Mode................................................................................................................. 6-39
Drive mode Integrated Control System (AWD) ........................................................... 6-41 Drive Mode.................................................................................................................. 6-41
Drive Modes Characteristic ...................................................................................... 6-43
Active Air Flap................................................................................................................ 6-44 Malfunction................................................................................................................ 6-44
Active Sound Design..................................................................................................... 6-45
Special Driving Conditions ........................................................................................... 6-45 Hazardous Driving Conditions.................................................................................. 6-45
Rocking the Vehicle .................................................................................................. 6-46
Smooth Cornering ..................................................................................................... 6-46
Driving at Night ......................................................................................................... 6-46
Driving in the Rain ..................................................................................................... 6-46
Hydroplaning ............................................................................................................. 6-47
Driving in Flooded Areas ........................................................................................... 6-47
Highway Driving ........................................................................................................ 6-47
Winter Driving ............................................................................................................... 6-48 Snow or Icy Conditions ............................................................................................. 6-48
Winter Precautions .................................................................................................... 6-50
Vehicle Load Limit......................................................................................................... 6-52 The Loading Information Label ................................................................................ 6-52
Trailer Towing ................................................................................................................. 6-57
Hyundai_CE_en_US.book Page 2

6

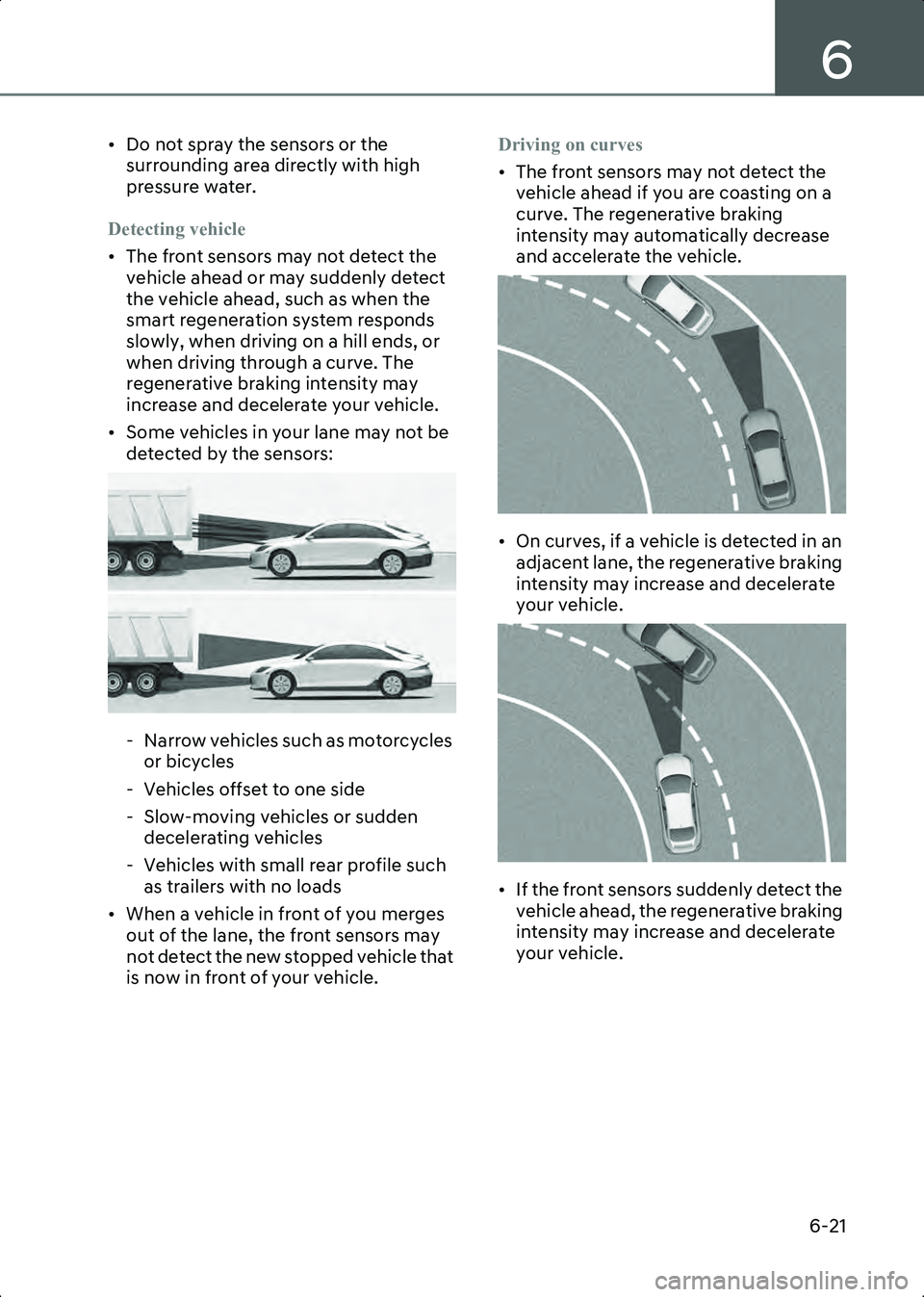

6-21
• Do not spray the sensors or the surrounding area directly with high
pressure water.
Detecting vehicle
• The front sensors may not detect the vehicle ahead or may suddenly detect
the vehicle ahead, such as when the
smart regeneration system responds
slowly, when driving on a hill ends, or
when driving through a curve. The
regenerative braking intensity may
increase and decelerate your vehicle.
• Some vehicles in your lane may not be detected by the sensors:
B6003201
- Narrow vehicles such as motorcycles or bicycles
- Vehicles offset to one side
- Slow-moving vehicles or sudden decelerating vehicles
- Vehicles with small rear profile such as trailers with no loads
• When a vehicle in front of you merges out of the lane, the front sensors may
not detect the new stopped vehicle that
is now in front of your vehicle. Driving on curves
• The front sensors may not detect the
vehicle ahead if you are coasting on a
curve. The regenerative braking
intensity may automatically decrease
and accelerate the vehicle.
B6003202
• On curves, if a vehicle is detected in an adjacent lane, the regenerative braking
intensity may increase and decelerate
your vehicle.
B6003203
• If the front sensors suddenly detect the vehicle ahead, the regenerative braking
intensity may increase and decelerate
your vehicle.
Hyundai_CE_en_US.book Page 21

6
6-53
Type C
ONE1061058N
Vehicle capacity weight
5 persons: 860 lbs. (390 kg)
Vehicle capacity weight is the
maximum combined weight of
occupants and cargo. If your vehicle
is equipped with a trailer, the
combined weight includes the
tongue load.
Seating capacity
Total : 5 persons (Front seat : 2
persons, Rear seat : 3 persons)
Seating capacity is the maximum
number of occupants including a
driver, your vehicle may carry.
However, the seating capacity may
be reduced based upon the weight of
all of the occupants, and the weight
of the cargo being carried or towed.
Do not overload the vehicle as there
is a limit to the total weight, or load
limit including occupants and cargo,
the vehicle can carry.
Cargo capacity
The cargo capacity of your vehicle
will increase or decrease depending
on the weight and the number of
occupants and the tongue load, if
your vehicle is equipped with a trailer.Steps for determining correct load
limit
1. Locate the statement "The
combined weight of occupants and
cargo should never exceed XXX kg
or XXX lbs." on your vehicle's
placard.
2. Determine the combined weight of the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX
kg or XXX lbs.
4.The resulting figure equals the available amount of cargo and
luggage load capacity. For
example, if the "XXX" amount
equals 1400 lbs. and there will be
five 150 lbs. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 - 750 (5 x 150) = 650
lbs.)
5. Determine the combined weight of luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity
calculated in Step 4.
6.If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your
vehicle.

3
3 L1B

QTJ
L1B

QTJ
Hyundai_CE_en_US.book Page 53

Driving Your Vehicle
6-56
Certification label
OBH059070
The certification label is located on
the driver's door sill at the center
pillar and shows the maximum
allowable weight of the fully loaded
vehicle. This is called the GVWR
(Gross Vehicle Weight Rating). The
GVWR includes the weight of the
vehicle, all occupants, fuel and cargo.
This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross Axle
Weight Rating (GAWR).
The total weight of the vehicle,
including all occupants, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle
Weight Rating (GAWR). To find out
the actual loads on your front and
rear axles, you need to go to a weigh
station and weigh your vehicle. Be
sure to spread out your load equally
on both sides of the centerline.
WARNING Overloading
• Never exceed the GVWR for your vehicle, the GAWR for either the
front or rear axle and vehicle
capacity weight. Exceeding these ratings can affect your vehicle's
handling and braking ability, and
cause an accident.

• Do not overload your vehicle. Overloading your vehicle can cause
heat buildup in your vehicle's tires and
possible tire failure, increased stopping
distances and poor vehicle handling-all
of which may result in a collision.


NOTICE2YHUORDGLQJ\RXUYHKLFOHPD\FDXVH
GDPDJH5HSDLUVZRXOGQRWEH
FRYHUHGE\\RXUZDUUDQW\'RQRW
RYHUORDG\RXUYHKLFOH

WARNING If you carry items inside your vehicle
(for example, suitcases, tools,
packages, or anything else), they are
moving as fast as the vehicle. If you
have to stop or turn quickly, or if there
is a crash, the items will keep going
and can cause an injury if they strike
the driver or a passenger.
• Put items in the cargo area of your vehicle. Try to spread the weight
evenly.
• Do not stack items, like suitcases, inside the vehicle above the tops of
the seats.
• Do not leave an unsecured child restraint in your vehicle.
• When you carry something inside the vehicle, secure it.

Trailer Towing
We do not recommend using this vehicle
for trailer towing.
Hyundai_CE_en_US.book Page 56

Driver Assistance System

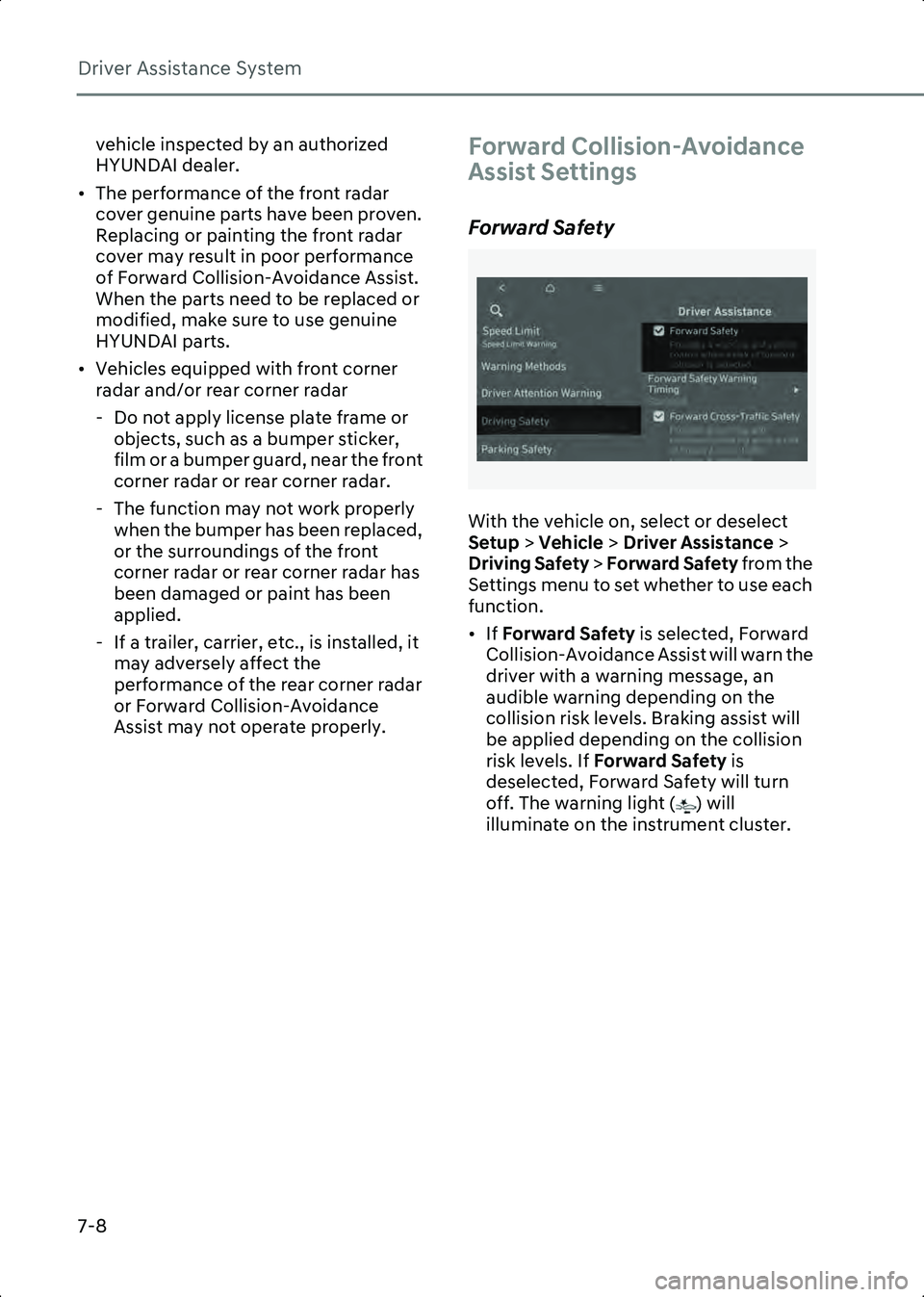

7-8
vehicle inspected by an authorized
HYUNDAI dealer.
• The performance of the front radar cover genuine parts have been proven.
Replacing or painting the front radar
cover may result in poor performance
of Forward Collision-Avoidance Assist.
When the parts need to be replaced or
modified, make sure to use genuine
HYUNDAI parts.
• Vehicles equipped with front corner radar and/or rear corner radar
- Do not apply license plate frame or objects, such as a bumper sticker,
film or a bumper guard, near the front
corner radar or rear corner radar.
- The function may not work properly when the bumper has been replaced,
or the surroundings of the front
corner radar or rear corner radar has
been damaged or paint has been
applied.
- If a trailer, carrier, etc., is installed, it may adversely affect the
performance of the rear corner radar
or Forward Collision-Avoidance
Assist may not operate properly.
Forward Collision-Avoidance
Assist Settings
Forward Safety
B7000201_1
With the vehicle on, select or deselect
Setup > Vehicle > Driver Assistance >
Driving Safety > Forward Safety from the
Settings menu to set whether to use each
function.
• If Forward Safety is selected, Forward
Collision-Avoidance Assist will warn the
driver with a warning message, an
audible warning depending on the
collision risk levels. Braking assist will
be applied depending on the collision
risk levels. If Forward Safety is
deselected, Forward Safety will turn
off. The warning light ( ) will
illuminate on the instrument cluster.
Hyundai_CE_en_US.book Page 8

Driver Assistance System

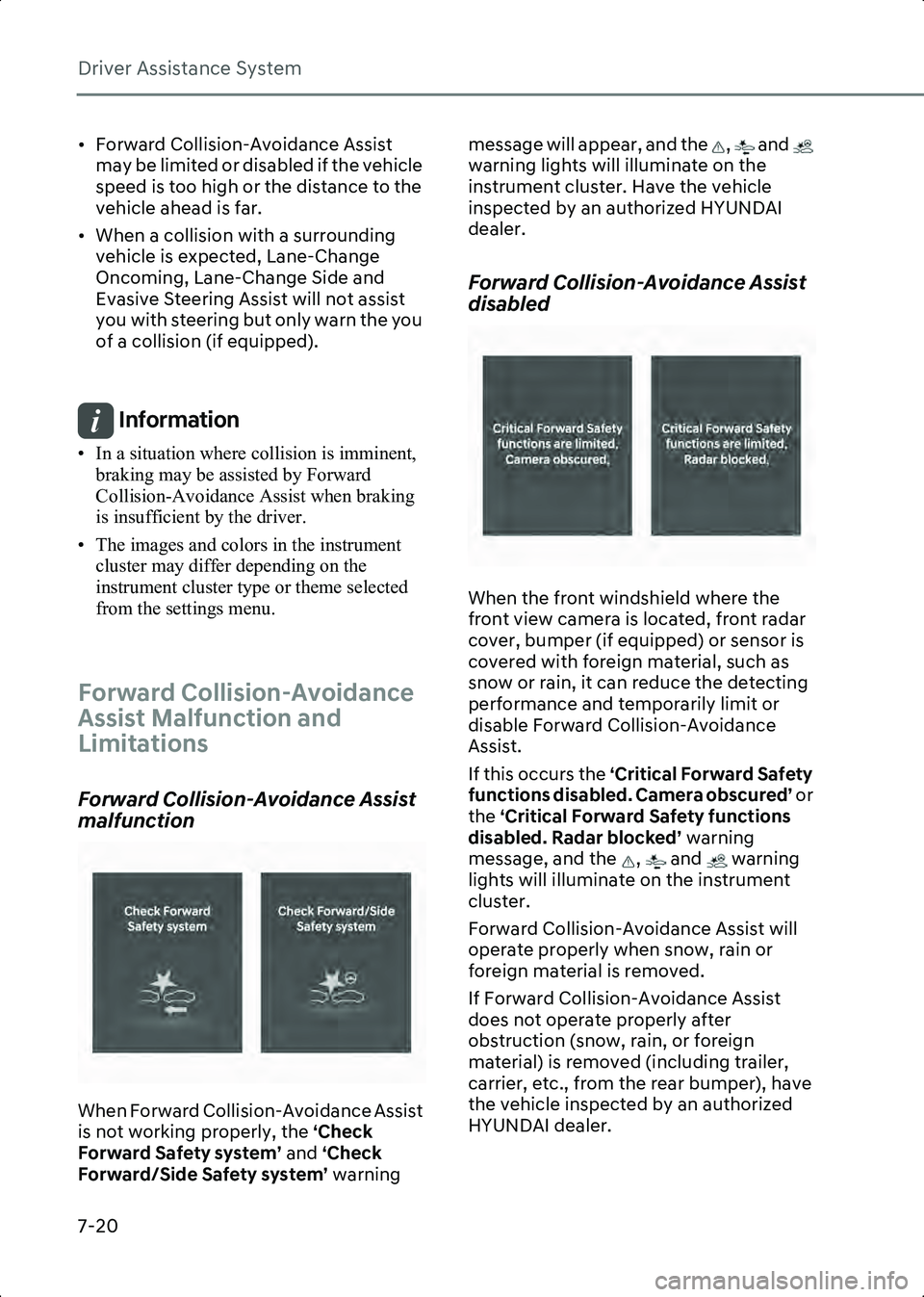

7-20
• Forward Collision-Avoidance Assist may be limited or disabled if the vehicle
speed is too high or the distance to the
vehicle ahead is far.
• When a collision with a surrounding vehicle is expected, Lane-Change
Oncoming, Lane-Change Side and
Evasive Steering Assist will not assist
you with steering but only warn the you
of a collision (if equipped).

Information • In a situation where collision is imminent, braking may be assisted by Forward
Collision-Avoidance Assist when braking
is insufficient by the driver.
• The images and colors in the instrument cluster may differ depending on the
instrument cluster type or theme selected
from the settings menu.

Forward Collision-Avoidance
Assist Malfunction and
Limitations
Forward Collision-Avoidance Assist
malfunction
B7000401
When Forward Collision-Avoidance Assist
is not working properly, the ‘Check
Forward Safety system’ and ‘Check
Forward/Side Safety system’ warning message will appear, and the , and
warning lights will illuminate on the
instrument cluster. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
Forward Collision-Avoidance Assist
disabled
B7000402
When the front windshield where the
front view camera is located, front radar
cover, bumper (if equipped) or sensor is
covered with foreign material, such as
snow or rain, it can reduce the detecting
performance and temporarily limit or
disable Forward Collision-Avoidance
Assist.
If this occurs the ‘Critical Forward Safety
functions disabled. Camera obscured’ or
the ‘Critical Forward Safety functions
disabled. Radar blocked’ warning
message, and the , and warning
lights will illuminate on the instrument
cluster.
Forward Collision-Avoidance Assist will
operate properly when snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed (including trailer,
carrier, etc., from the rear bumper), have
the vehicle inspected by an authorized
HYUNDAI dealer.
Hyundai_CE_en_US.book Page 20

7

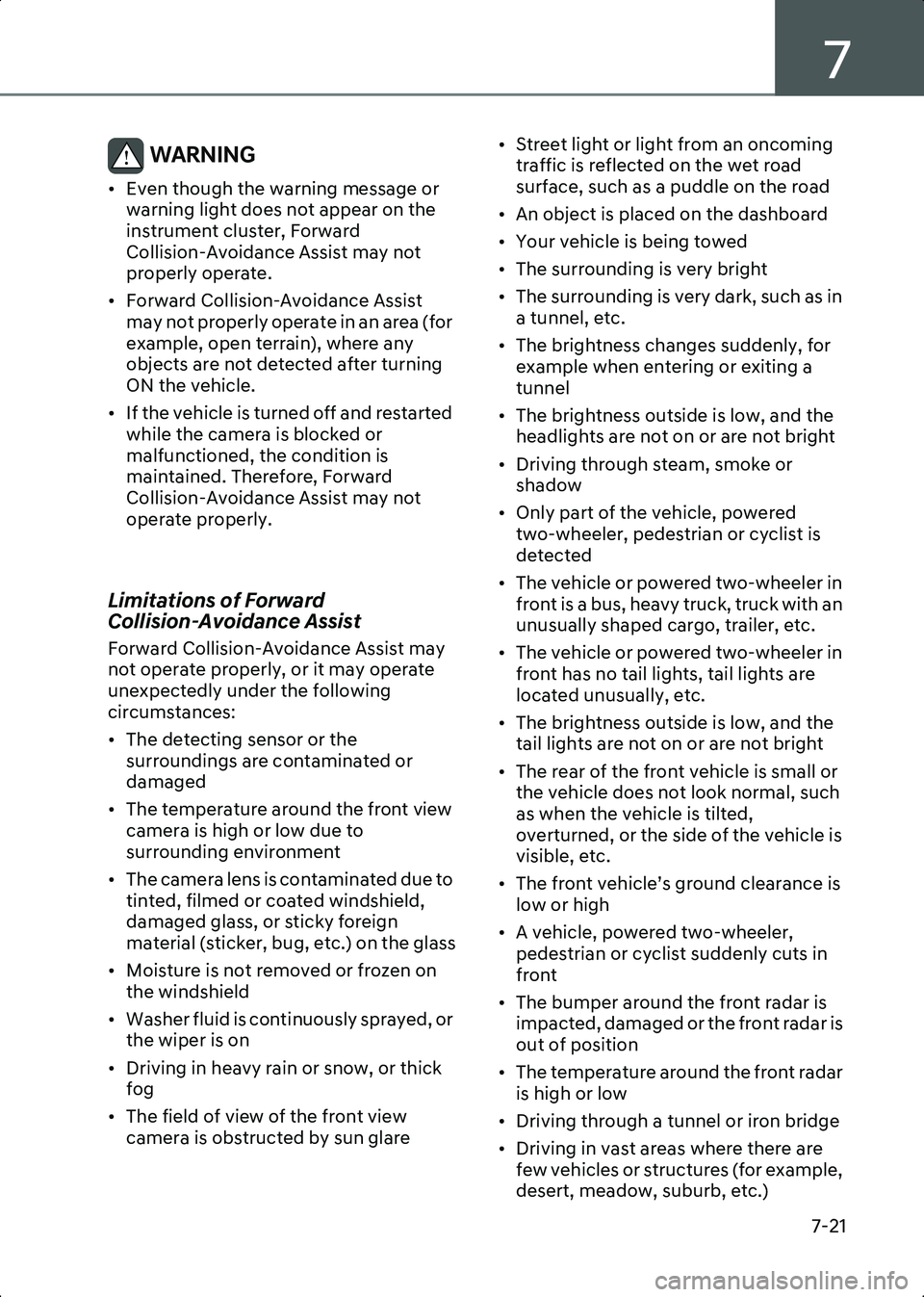

7-21
WARNING • Even though the warning message or warning light does not appear on the
instrument cluster, Forward
Collision-Avoidance Assist may not
properly operate.
• Forward Collision-Avoidance Assist may not properly operate in an area (for
example, open terrain), where any
objects are not detected after turning
ON the vehicle.
• If the vehicle is turned off and restarted while the camera is blocked or
malfunctioned, the condition is
maintained. Therefore, Forward
Collision-Avoidance Assist may not
operate properly.

Limitations of Forward
Collision-Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
• The detecting sensor or the surroundings are contaminated or
damaged
• The temperature around the front view camera is high or low due to
surrounding environment
• The camera lens is contaminated due to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the glass
• Moisture is not removed or frozen on the windshield
• Washer fluid is continuously sprayed, or the wiper is on
• Driving in heavy rain or snow, or thick fog
• The field of view of the front view camera is obstructed by sun glare • Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road
• An object is placed on the dashboard
• Your vehicle is being towed
• The surrounding is very bright
• The surrounding is very dark, such as in a tunnel, etc.
• The brightness changes suddenly, for example when entering or exiting a
tunnel
• The brightness outside is low, and the headlights are not on or are not bright
• Driving through steam, smoke or shadow
• Only part of the vehicle, powered two-wheeler, pedestrian or cyclist is
detected
• The vehicle or powered two-wheeler in front is a bus, heavy truck, truck with an
unusually shaped cargo, trailer, etc.
• The vehicle or powered two-wheeler in front has no tail lights, tail lights are
located unusually, etc.
• The brightness outside is low, and the tail lights are not on or are not bright
• The rear of the front vehicle is small or the vehicle does not look normal, such
as when the vehicle is tilted,
overturned, or the side of the vehicle is
visible, etc.
• The front vehicle’s ground clearance is low or high
• A vehicle, powered two-wheeler, pedestrian or cyclist suddenly cuts in
front
• The bumper around the front radar is impacted, damaged or the front radar is
out of position
• The temperature around the front radar is high or low
• Driving through a tunnel or iron bridge
• Driving in vast areas where there are few vehicles or structures (for example,
desert, meadow, suburb, etc.)
Hyundai_CE_en_US.book Page 21

7
7-23

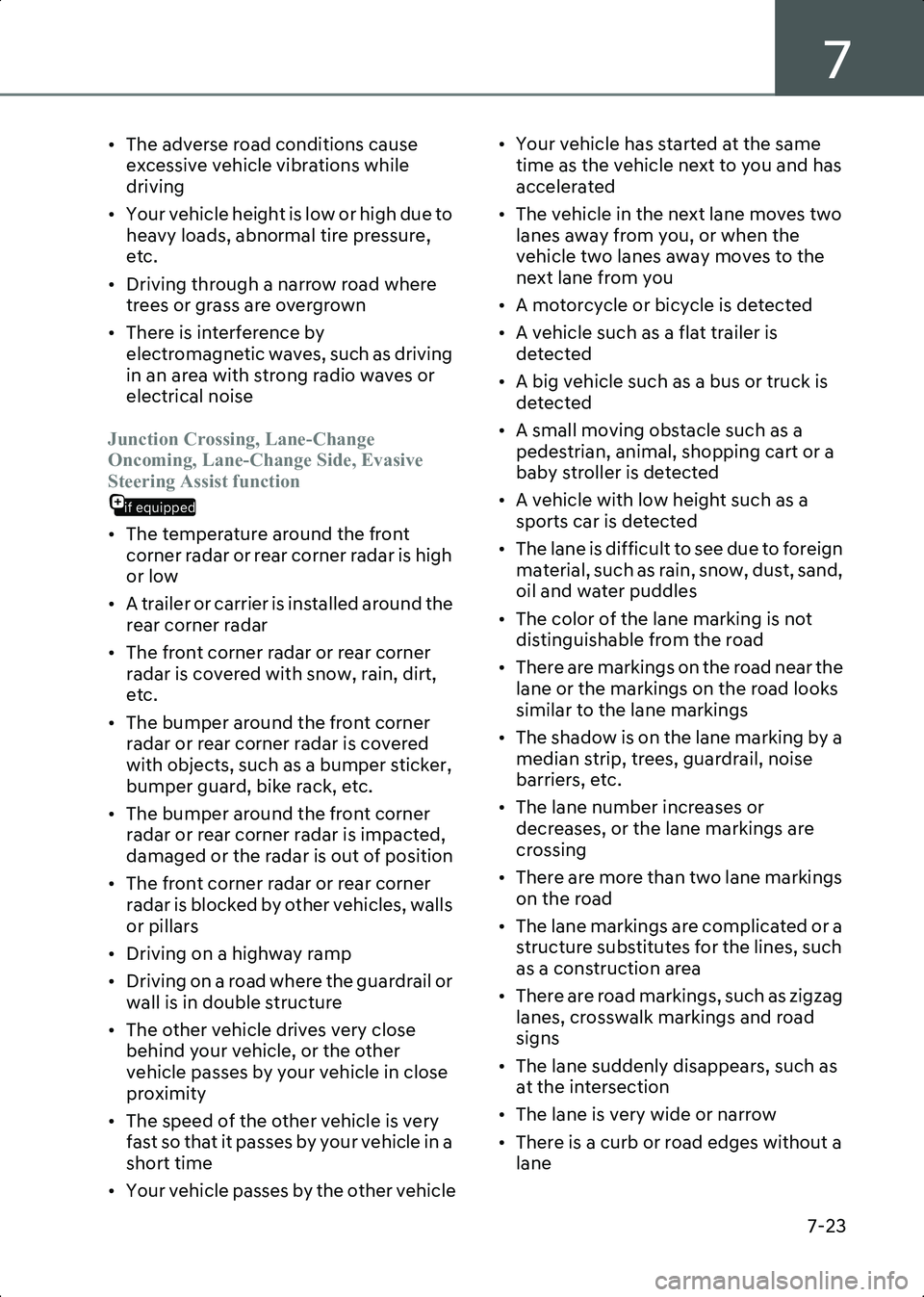

• The adverse road conditions cause excessive vehicle vibrations while
driving
• Your vehicle height is low or high due to heavy loads, abnormal tire pressure,
etc.
• Driving through a narrow road where trees or grass are overgrown
• There is interference by electromagnetic waves, such as driving
in an area with strong radio waves or
electrical noise
Junction Crossing, Lane-Change
Oncoming, Lane-Change Side, Evasive
if equipped
Steering Assist function
• The temperature around the front corner radar or rear corner radar is high
or low
• A trailer or carrier is installed around the rear corner radar
• The front corner radar or rear corner radar is covered with snow, rain, dirt,
etc.
• The bumper around the front corner radar or rear corner radar is covered
with objects, such as a bumper sticker,
bumper guard, bike rack, etc.
• The bumper around the front corner radar or rear corner radar is impacted,
damaged or the radar is out of position
• The front corner radar or rear corner radar is blocked by other vehicles, walls
or pillars
• Driving on a highway ramp
• Driving on a road where the guardrail or wall is in double structure
• The other vehicle drives very close behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity
• The speed of the other vehicle is very fast so that it passes by your vehicle in a
short time
• Your vehicle passes by the other vehicle • Your vehicle has started at the same
time as the vehicle next to you and has
accelerated
• The vehicle in the next lane moves two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you
• A motorcycle or bicycle is detected
• A vehicle such as a flat trailer is detected
• A big vehicle such as a bus or truck is detected
• A small moving obstacle such as a pedestrian, animal, shopping cart or a
baby stroller is detected
• A vehicle with low height such as a sports car is detected
• The lane is difficult to see due to foreign material, such as rain, snow, dust, sand,
oil and water puddles
• The color of the lane marking is not distinguishable from the road
• There are markings on the road near the lane or the markings on the road looks
similar to the lane markings
• The shadow is on the lane marking by a median strip, trees, guardrail, noise
barriers, etc.
• The lane number increases or decreases, or the lane markings are
crossing
• There are more than two lane markings on the road
• The lane markings are complicated or a structure substitutes for the lines, such
as a construction area
• There are road markings, such as zigzag lanes, crosswalk markings and road
signs
• The lane suddenly disappears, such as at the intersection
• The lane is very wide or narrow
• There is a curb or road edges without a lane
Hyundai_CE_en_US.book Page 23
