Driver Assistance System

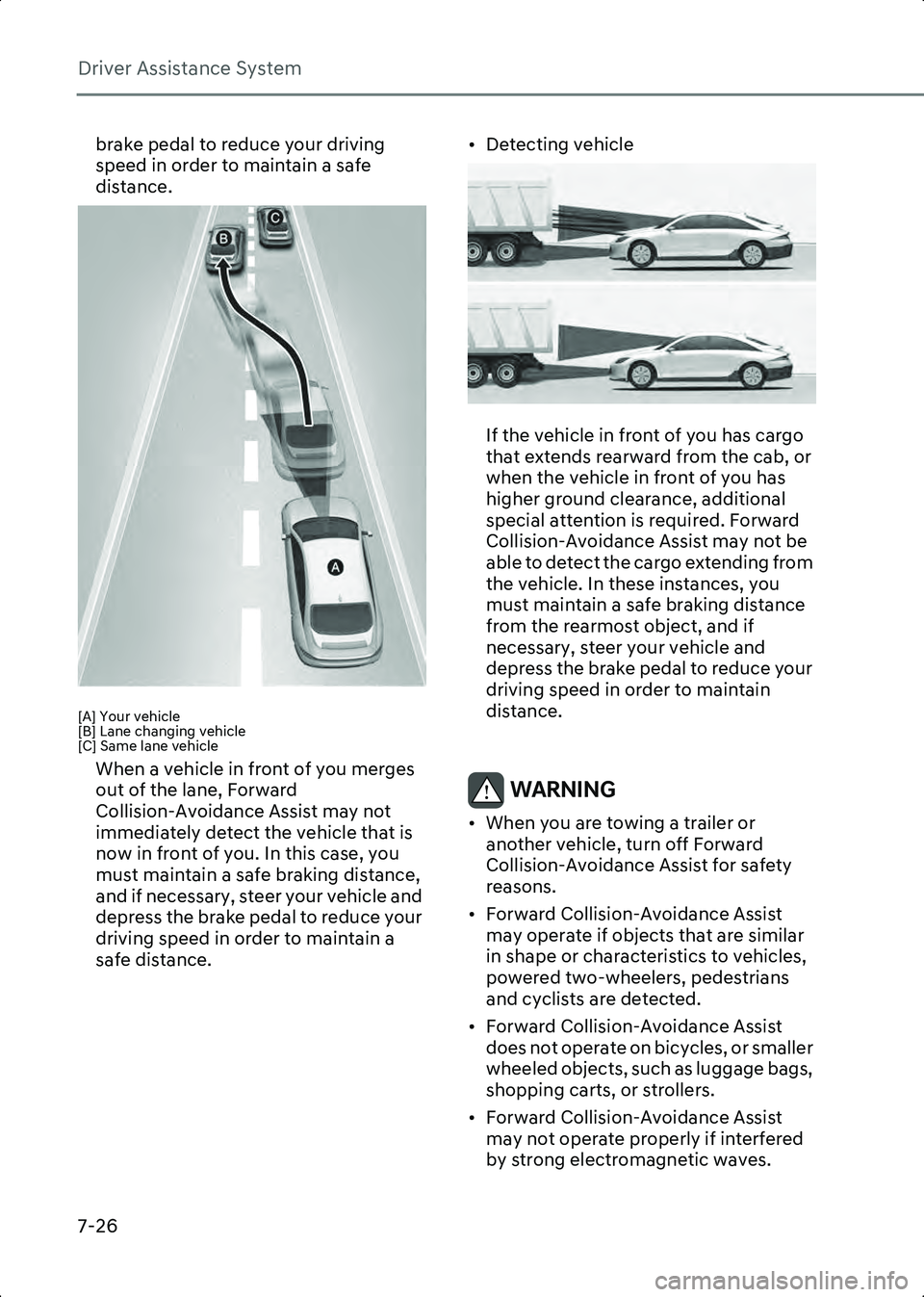

7-26
brake pedal to reduce your driving
speed in order to maintain a safe
distance.
B7000413
[A] Your vehicle
[B] Lane changing vehicle
[C] Same lane vehicle
When a vehicle in front of you merges
out of the lane, Forward
Collision-Avoidance Assist may not
immediately detect the vehicle that is
now in front of you. In this case, you
must maintain a safe braking distance,
and if necessary, steer your vehicle and
depress the brake pedal to reduce your
driving speed in order to maintain a
safe distance.• Detecting vehicle
B7000414
If the vehicle in front of you has cargo
that extends rearward from the cab, or
when the vehicle in front of you has
higher ground clearance, additional
special attention is required. Forward
Collision-Avoidance Assist may not be
able to detect the cargo extending from
the vehicle. In these instances, you
must maintain a safe braking distance
from the rearmost object, and if
necessary, steer your vehicle and
depress the brake pedal to reduce your
driving speed in order to maintain
distance.

WARNING • When you are towing a trailer or another vehicle, turn off Forward
Collision-Avoidance Assist for safety
reasons.
• Forward Collision-Avoidance Assist may operate if objects that are similar
in shape or characteristics to vehicles,
powered two-wheelers, pedestrians
and cyclists are detected.
• Forward Collision-Avoidance Assist does not operate on bicycles, or smaller
wheeled objects, such as luggage bags,
shopping carts, or strollers.
• Forward Collision-Avoidance Assist may not operate properly if interfered
by strong electromagnetic waves.
Hyundai_CE_en_US.book Page 26

Driver Assistance System
7-32
Limitations of Lane Keeping Assist
Lane Keeping Assist may not operate
properly or may operate unexpectedly
under the following circumstances:
• The lane is contaminated or difficult to detect because:
- The lane markings (or road edge) are covered with rain, snow, dirt, oil, etc.
- The color of the lane marking (or road edge) is not distinguishable from the
road
- There are markings (or road edges) on the road near the lane or the
markings (or road edges) on the road
look similar to the lane markings (or
road edge)
- The lane marking (or road edge) is indistinct or damaged
- The shadow is on the lane marking (or road edge) by a median strip, trees,
guardrail, noise barriers, etc.
• The lane number increases or decreases, or the lane markings (or
road edges) are crossing
• There are more than two lane markings (or road edges) on the road
• The lane markings (or road edges) are complicated or a structure substitutes
for the lines, such as a construction
area
• There are road markings, such as zigzag lanes, crosswalk markings and road
signs
• The lane suddenly disappears, such as at the intersection
• The lane (or road width) is very wide or narrow
• There is a road edge without a lane
• There is a boundary structure in the roadway, such as a tollbooth, sidewalk,
curb, etc.
• The distance to the front vehicle is extremely short or the vehicle in front is
covering the lane marking (or road
edge)Information For more information on the limitations of the
front view camera, refer to the “Forward
Collision-Avoidance Assist (FCA)” section in
this chapter.

WARNING Take the following precautions when
using Lane Keeping Assist:
• The driver has the responsibility to safely drive and control the vehicle. Do
not solely rely on Lane Keeping Assist.
• The operation of Lane Keeping Assist can be cancelled or not work properly
depending on road conditions and
surroundings. Always be cautious while
driving.
• Refer to the “Limitations of Lane Keeping Assist” if the lane is not
detected properly.
• When you are towing a trailer or another vehicle, turn off Lane Keeping
Assist for safety reasons.
• If the vehicle is driven at high speed, the steering wheel will not be
controlled. The driver must always
follow the speed limit when using Lane
Keeping Assist.
• If any other system’s warning message is displayed or audible warning is
generated, Lane Keeping Assist
warning message may not be displayed
and audible warning may not be
generated.
• You may not hear the warning sound of Lane Keeping Assist if the surrounding
is noisy.
• If you attach objects to the steering wheel, steering may not be assisted
properly.
• Lane Keeping Assist may not operate for 15 seconds after the vehicle is
started, or the front view camera is
initialized.
Hyundai_CE_en_US.book Page 32

7
7-35
or a bumper guard near the rear corner
radar.
• Blind-Spot Collision-Avoidance Assist may not work properly if the bumper
has been replaced, or the surroundings
of the rear corner radar have been
damaged or paint has been applied.
• If a trailer, carrier, etc., is installed, it may adversely affect the performance
of the rear corner radar or Blind-Spot
Collision-Avoidance Assist may not
operate.

Blind-Spot
Collision-Avoidance Assist
settings
Blind-Spot Safety
B0320EE01
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Blind-Spot Safety from the
settings menu to set whether to use each
function.
• If Blind-Spot Safety is selected,
Blind-Spot Collision Avoidance Assist
will warn the driver with a warning
message, an audible warning
depending on the collision risk levels.
Braking assist will be applied for
parking exit depending on the collision
risk levels.
OTM070097N
When the vehicle is restarted with
Blind-Spot Collision-Avoidance Assist off,
the 'Blind-spot safety system is Off’
message will appear on the instrument
cluster.
If you select Blind-Spot Safety , warning
light on the side view mirror will blink for
three seconds. In addition, if the vehicle is
turned on, when Blind-Spot Safety is
selected, the warning light on the side
view mirror will blink for three seconds.
WARNING The driver should always be aware of the
surroundings and drive safely. If
Blind-Spot Safety is deselected,
Blind-Spot Collision-Avoidance Assist
cannot assist you.

Information If the vehicle is restarted, Blind-Spot
Collision-Avoidance Assist will maintain the
last setting.

#MJOE
TQPU
TBGFUZ
TZTUFN
JT
0GG
Hyundai_CE_en_US.book Page 35

7
7-39
B7001602
When the side view mirror warning light is
not working properly, the 'Check side
view mirror warning light' warning
message will appear on the instrument
cluster for several seconds, and the
master ( ) warning light will illuminate on
the instrument cluster. If this occurs, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Blind-Spot Collision-Avoidance
Assist disabled
B7001603
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the 'Blind-Spot Safety
system disabled. Radar blocked'
warning message will appear on the
instrument cluster. Blind-Spot Collision-Avoidance Assist will
operate properly when such foreign
material or trailer, etc., is removed, and
then the vehicle is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate properly after it is
removed, have the vehicle inspected by
an authorized HYUNDAI dealer.
WARNING • Even though the warning message
does not appear on the instrument
cluster, Blind-Spot Collision-Avoidance
Assist may not properly operate.
• Blind-Spot Collision-Avoidance Assist may not properly operate in an area (for
example, open terrain) where any
objects are not detected right after the
vehicle is turned on, or when the
detecting sensor is blocked with
foreign material right after the vehicle
is turned on.

CAUTION Turn off Blind-Spot Collision-Avoidance
Assist to install or remove a trailer, carrier,
or another attachment. Turn on
Blind-Spot Collision-Avoidance Assist
when finished.

Limitations of Blind-Spot
Collision-Avoidance Assist
Blind-Spot Collision-Avoidance Assist
may not operate properly, or it may
operate unexpectedly under the
following circumstances:
• There is inclement weather, such as heavy snow, heavy rain, etc.
• The rear corner radar is covered with snow, rain, dirt, etc.
• The temperature around the rear corner radar is high or low
• Driving on a highway ramp
Hyundai_CE_en_US.book Page 39

Driver Assistance System
7-40
• The road pavement (or the peripheral ground) abnormally contains metallic
components (for example, possibly due
to subway construction)
• There is a fixed object near the vehicle, such as sound barriers, guardrails,
central dividers, entry barriers, street
lamps, signs, tunnels, walls, etc.
(including double structures)
• Driving in vast areas where there are few vehicles or structures (for example,
desert, meadow, suburb, etc.)
• Driving through a narrow road where trees or grass are overgrown
• Driving on a wet road surface, such as a puddle on the road
• The other vehicle drives very close behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity
• The speed of the other vehicle is very fast that it passes by your vehicle in a
short time
• Your vehicle passes by the other vehicle
• Your vehicle changes lane
• Your vehicle has started at the same time as the vehicle next to you and has
accelerated
• The vehicle in the next lane moves two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you
• A trailer, carrier or other attachment is installed around the rear corner radar
• The bumper around the rear corner radar is covered with objects, such as a
bumper sticker, bumper guard, bike
rack, etc.
• The bumper around the rear corner radar is impacted, damaged or the
radar is out of position
• Your vehicle height is low or high due to heavy loads, abnormal tire pressure,
etc.
Blind-Spot Collision-Avoidance Assist
may not operate properly, or it may operate unexpectedly when the following
objects are detected:
• A motorcycle or bicycle is detected
• A vehicle such as a flat trailer is
detected
• A big vehicle such as a bus or truck is detected
• A moving obstacle such as a pedestrian, animal, shopping cart or a
baby stroller is detected
• A vehicle with low height such as a sports car is detected
Braking control may not work, driver’s
attention is required in the following
circumstances:
• The vehicle severely vibrates while driving over a bumpy road, uneven road
or concrete patch
• Driving on a slippery surface due to snow, water puddle, ice, etc.
• The tire pressure is low or a tire is damaged
• The braking system has been modified
• The vehicle makes abrupt lane changes
Information For more information on the limitations of the
front view camera, refer to the “Forward
Collision-Avoidance Assist (FCA)” and
“Lane Keeping Assist (LKA)” section in this
chapter.

Hyundai_CE_en_US.book Page 40

Driver Assistance System
7-42
• Driving where the heights of the lanes are different
B7001616
Blind-Spot Collision-Avoidance Assist
may not operate properly when driving
where the heights of the lanes are
different. The function may not detect
the vehicle on a road with different lane
heights (underpass joining section,
grade separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.

WARNING • When you are towing a trailer or another vehicle, make sure that you
turn off Blind-Spot Collision-Avoidance
Assist.
• Blind-Spot Collision-Avoidance Assist may not operate properly if interfered
by strong electromagnetic waves.
• Blind-Spot Collision-Avoidance Assist may not operate for 15 seconds after
the vehicle is started, or the front view
camera or rear corner radars are
initialized.

Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device.

Information Radio frequency radiation exposure
information:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and
operated with minimum distance of 8 in. (20
cm) between the radiator (antenna) and your
body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

Hyundai_CE_en_US.book Page 42

Driver Assistance System
7-46
Safe Exit Warning disabled
B7002103
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the 'Blind-Spot Safety
system disabled. Radar blocked'
warning message will appear on the
instrument cluster.
Safe Exit Warning will operate properly
when such foreign material or trailer, etc.,
is removed, and then the vehicle is
restarted.
If Safe Exit Warning does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING • Even though the warning message does not appear on the instrument
cluster, Safe Exit Warning may not
properly operate.
• Safe Exit Warning may not properly operate in an area (for example, open
terrain) where any objects are not
detected right after the vehicle is
turned on, or when the detecting
sensor is blocked with foreign material
right after the vehicle is turned on.

CAUTION Turn off Safe Exit Warning to install or
remove a trailer, carrier, or another
attachment. Turn on Safe Exit Warning
when finished.

Limitations of Safe Exit Warning
Safe Exit Warning may not operate
properly, or it may operate unexpectedly
under the following circumstances:
• Getting out of the vehicle where trees or grass are overgrown
• Getting out of the vehicle where the road is wet
• The approaching vehicle is very fast or very slow
Information For more information on the limitations of the
rear corner radar, refer to the “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in this chapter.

WARNING • Safe Exit Warning may not operate properly if interfered by strong
electromagnetic waves.
• Safe Exit Warning may not operate for 3 seconds after the vehicle is started, or
the rear corner radars are initialized.
• If the vehicle is turned off and restarted while the rear corner radar is blocked or
malfunctioned, the condition is
maintained. Therefore, Safe Exit
Warning may not operate properly.

Hyundai_CE_en_US.book Page 46

7
7-71
• Always be aware of the selected speed and headway distance.
• Keep a safe distance according to road conditions and vehicle speed. If the
headway distance is too close during
high-speed driving, a serious collision
may result.
• When maintaining distance with the vehicle ahead, if the front vehicle
disappears, Smart Cruise Control may
suddenly accelerate to the set speed.
Always be aware of unexpected and
sudden situations from occurring.
• Vehicle speed may decrease on an upward slope and increase on a
downward slope.
• Always be aware of situations such as when a vehicle cuts in suddenly.
• When you are towing a trailer or another vehicle, turn off Smart Cruise
Control for safety reasons.
• Turn off Smart Cruise Control when your vehicle is being towed.
• Smart Cruise Control may not operate properly if interfered by strong
electromagnetic waves.
• Smart Cruise Control may not detect an obstacle in front and lead to a collision.
Always look ahead cautiously to
prevent unexpected and sudden
situations from occurring.
• Vehicles moving in front of you with a frequent lane change may cause a
delay in Smart Cruise Control reaction
or may cause Smart Cruise Control to
react to a vehicle actually in an adjacent
lane. Always drive cautiously to prevent
unexpected and sudden situations
from occurring.
• Always be aware of the surroundings and drive safely, even though a warning
message does not appear or an audible
warning does not sound.
• If any other system’s warning message is displayed or warning sound is
generated, Smart Cruise Control
warning message may not be displayed and warning sound may not be
generated.
• You may not hear the warning sound of Forward Collision-Avoidance Assist if
the surrounding is noisy.
• The vehicle manufacturer is not responsible for any traffic violation or
accidents caused by the driver.
• Always set the vehicle speed under the speed limit in your area.
• Vehicle distance, acceleration and reaction speed may change if the
driver’s driving style changes.

Information • Smart Cruise Control may not operate for 15 seconds after the vehicle is started or the
front view camera or front radar is
initialized.
• You may hear a sound when the brake is controlled by Smart Cruise Control.

Smart Cruise Control
Malfunction and Limitations
Smart Cruise Control malfunction
B7004401
When Smart Cruise Control is not working
properly, the ‘Check Smart Cruise
Control System’ warning message will
appear, and the ( ) warning light will
illuminate on the instrument cluster. Have
Hyundai_CE_en_US.book Page 71
