Driving Your Vehicle
6-30
Anti-Lock Brake System (ABS)
WARNING Anti-Lock Braking System (ABS) or
Electronic Stability Control (ESC) system
will not prevent accidents due to
improper or dangerous driving
maneuvers. Even though vehicle control
is improved during emergency braking,
always maintain a safe distance between
you and objects ahead of you. Vehicle
speeds should always be reduced during
extreme road conditions. The braking
distance for vehicles equipped with ABS
or ESC may be longer than for those
without these systems in the following
road conditions.
Drive your vehicle at reduced speeds
during the following conditions:
• Rough, gravel or snow-covered roads.
• On roads where the road surface is pitted or has different surface height.
• Tire chains are installed on your vehicle.
The safety features of ABS or ESC
equipped vehicle should not be tested by
high speed driving or cornering. This
could endanger the safety of yourself or
others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.
Using ABS
To obtain the maximum benefit from your
ABS in an emergency situation, do not
attempt to modulate your brake pressure
and do not try to pump your brakes.
Depress your brake pedal as hard as
possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes, or
feel a corresponding sensation in the brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or distance
it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS ( ) warning light will stay on
for several seconds after the Start/Stop
button is in the ON position.
During that time, ABS will go through
self-diagnosis and the light will go off if
everything is normal. If the light stays on,
you may have a problem with your ABS.
Contact an authorized HYUNDAI dealer as
soon as possible.
WARNING
If the ABS ( ) warning light is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, contact your authorized
HYUNDAI dealer as soon as possible.
Hyundai_CE_en_US.book Page 30
Page 324 of 582
Driving Your Vehicle
6-36
if equipped

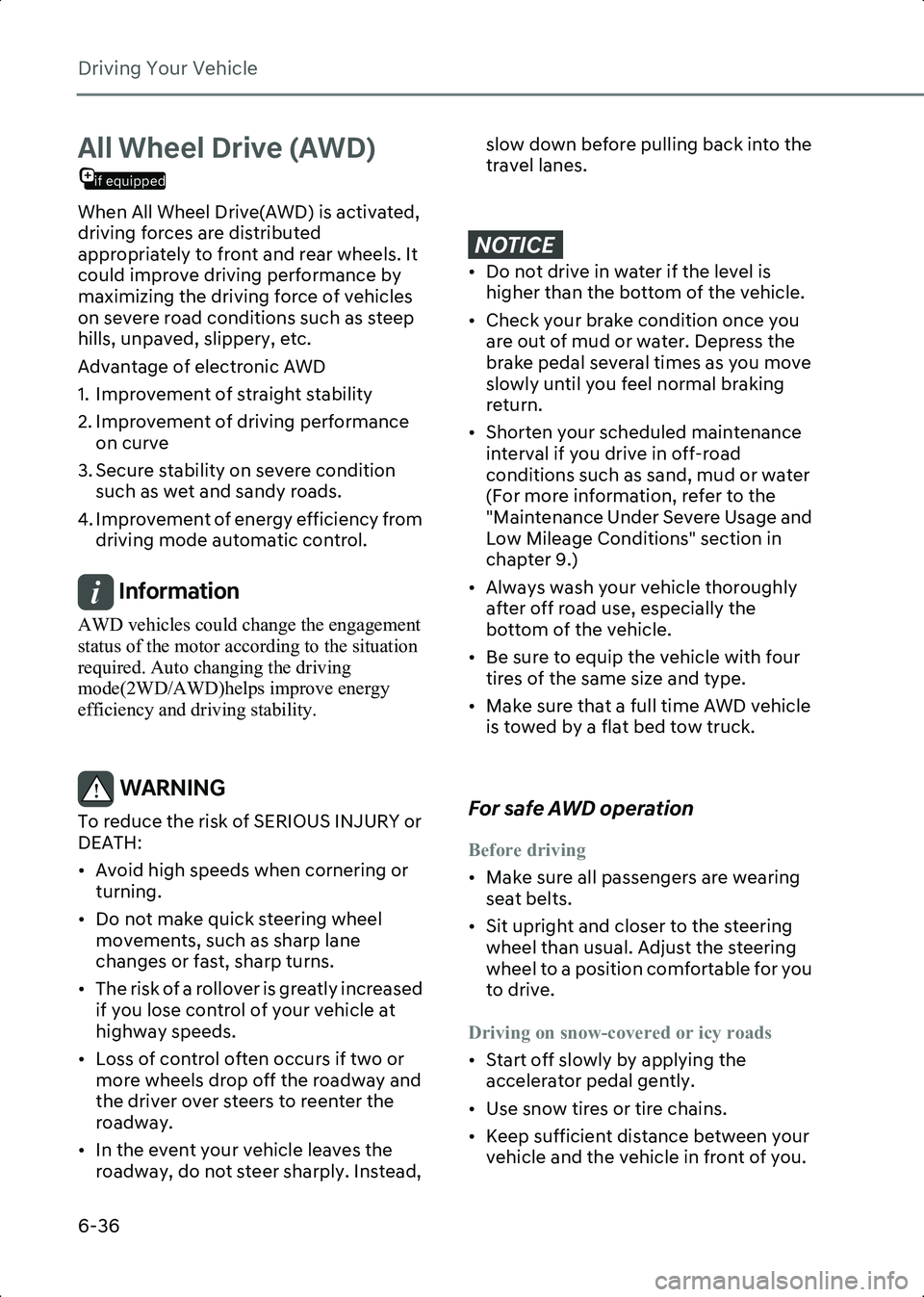

All Wheel Drive (AWD)
When All Wheel Drive(AWD) is activated,
driving forces are distributed
appropriately to front and rear wheels. It
could improve driving performance by
maximizing the driving force of vehicles
on severe road conditions such as steep
hills, unpaved, slippery, etc.
Advantage of electronic AWD
1. Improvement of straight stability
2. Improvement of driving performance on curve
3. Secure stability on severe condition such as wet and sandy roads.
4. Improvement of energy efficiency from driving mode automatic control.
Information AWD vehicles could change the engagement
status of the motor according to the situation
required. Auto changing the driving
mode(2WD/AWD)helps improve energy
efficiency and driving stability.
WARNING To reduce the risk of SERIOUS INJURY or
DEATH:
• Avoid high speeds when cornering or turning.
• Do not make quick steering wheel movements, such as sharp lane
changes or fast, sharp turns.
• The risk of a rollover is greatly increased if you lose control of your vehicle at
highway speeds.
• Loss of control often occurs if two or more wheels drop off the roadway and
the driver over steers to reenter the
roadway.
• In the event your vehicle leaves the roadway, do not steer sharply. Instead, slow down before pulling back into the
travel lanes.
NOTICE [ ' R Q R W G U L Y H L Q Z D W H U L I W K H O H Y H O L V K L J K H U W K D Q W K H E R W W R P R I W K H Y H K L F O H
[ & K H F N \ R X U E U D N H F R Q G L W L R Q R Q F H \ R X D U H R X W R I P X G R U Z D W H U ' H S U H V V W K H
E U D N H S H G D O V H Y H U D O W L P H V D V \ R X P R Y H
V O R Z O \ X Q W L O \ R X I H H O Q R U P D O E U D N L Q J
U H W X U Q
[ 6 K R U W H Q \ R X U V F K H G X O H G P D L Q W H Q D Q F H L Q W H U Y D O L I \ R X G U L Y H L Q R I I U R D G
F R Q G L W L R Q V V X F K D V V D Q G P X G R U Z D W H U
) R U P R U H L Q I R U P D W L R Q U H I H U W R W K H
0 D L Q W H Q D Q F H 8 Q G H U 6 H Y H U H 8 V D J H D Q G
/ R Z 0 L O H D J H & R Q G L W L R Q V V H F W L R Q L Q
F K D S W H U \f
[ $ O Z D \ V Z D V K \ R X U Y H K L F O H W K R U R X J K O \ D I W H U R I I U R D G X V H H V S H F L D O O \ W K H
E R W W R P R I W K H Y H K L F O H
[ % H V X U H W R H T X L S W K H Y H K L F O H Z L W K I R X U W L U H V R I W K H V D P H V L ] H D Q G W \ S H
[ 0 D N H V X U H W K D W D I X O O W L P H $ : ' Y H K L F O H L V W R Z H G E \ D I O D W E H G W R Z W U X F N
For safe AWD operation
Before driving
• Make sure all passengers are wearing seat belts.
• Sit upright and closer to the steering wheel than usual. Adjust the steering
wheel to a position comfortable for you
to drive.
Driving on snow-covered or icy roads
• Start off slowly by applying the accelerator pedal gently.
• Use snow tires or tire chains.
• Keep sufficient distance between your vehicle and the vehicle in front of you.
Hyundai_CE_en_US.book Page 36
Page 325 of 582
6
6-37
• Using regenerative braking helps the steering on the downhill. However, it
may be difficult to adjust the vehicle
while coasting using regenerative
braking, so avoid using the third level of
regenerative braking as much as
possible.
• Avoid speeding, rapid acceleration, sudden brake applications, and sharp
turns to prevent skids.
• It is difficult to start again if the vehicle stops on an uphill road. Keep your
distance from other vehicles and drive
slowly.
Information When using Snow Tires, mount them on all
four wheels.
When using tire chains, install them on the
rear tires.
However, driving speed must be below 18
mph (30 km/h) and minimize the driving
distance. High-speed or long-term driving
with tire chains installed may malfunction or
damage the AWD system.
For more information on Snow Tires and Tire
Chains, refer to the "Winter Driving" section
later in this chapter.
Driving in sand or mud
• Maintain slow and constant speed.
• Use tire chains driving in mud if necessary.
• Keep sufficient distance between your vehicle and the vehicle in front of you.
• Reduce vehicle speed and always check the road condition.
• Avoid speeding, rapid acceleration, sudden brake applications, and sharp
turns to prevent getting stuck.
NOTICE : K H Q W K H Y H K L F O H L V V W X F N L Q V Q R Z V D Q G R U
P X G S O D F H D Q R Q V O L S P D W H U L D O X Q G H U W K H
G U L Y H Z K H H O V W R S U R Y L G H W U D F W L R Q 2 5 V O R Z O \
V S L Q W K H Z K H H O V L Q I R U Z D U G D Q G U H Y H U V H
G L U H F W L R Q V Z K L F K F D X V H V D U R F N L Q J P R W L R Q
W K D W P D \ I U H H W K H Y H K L F O H
Driving up or down hills
• Driving uphill
- Before starting off, check if it is possible to drive uphill.
- Drive as straight as possible.
• Driving downhill - Do not change gear while driving downhill. Select gear before driving
downhill.
- Drive straight as possible.
WARNING Exercise extreme caution driving up or
down steep hills. The vehicle may flip over
depending on the grade, terrain, water
and mud conditions.
WARNING Do not drive across the contour of steep
hills. A slight change in the wheel angle
can destabilize the vehicle, or a stable
vehicle may lose stability if the vehicle
stops its forward motion. Your vehicle
may roll over and lead to a serious injury
or death.
Driving through water
• Try to avoid driving in deep standing water.
• Do not change gear while driving in water.
Hyundai_CE_en_US.book Page 37
Page 333 of 582
6
6-45
if equipped

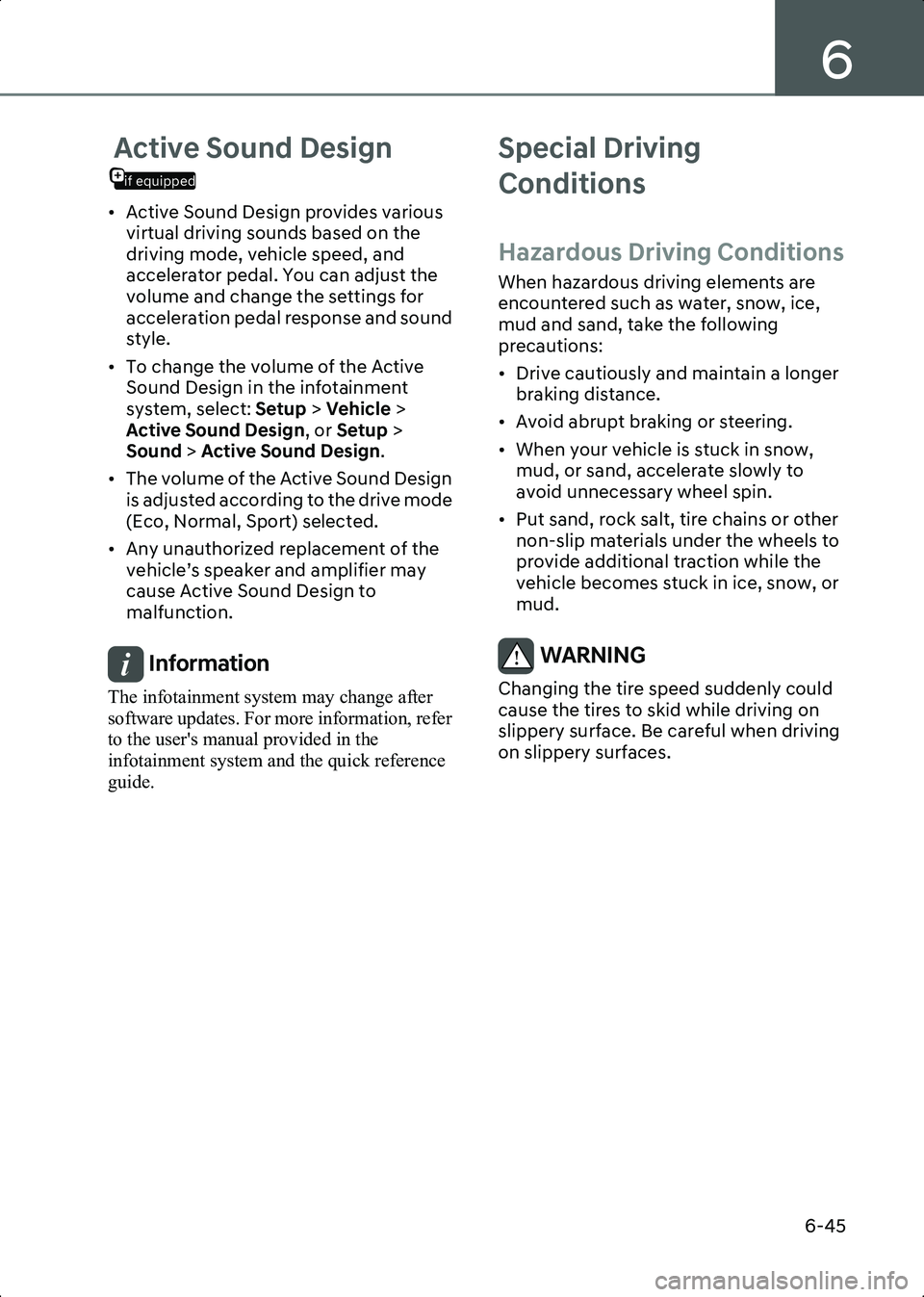

Active Sound Design
• Active Sound Design provides various virtual driving sounds based on the
driving mode, vehicle speed, and
accelerator pedal. You can adjust the
volume and change the settings for
acceleration pedal response and sound
style.
• To change the volume of the Active Sound Design in the infotainment
system, select: Setup > Vehicle >
Active Sound Design , or Setup >
Sound > Active Sound Design .
• The volume of the Active Sound Design is adjusted according to the drive mode
(Eco, Normal, Sport) selected.
• Any unauthorized replacement of the vehicle’s speaker and amplifier may
cause Active Sound Design to
malfunction.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Special Driving
Conditions
Hazardous Driving Conditions
When hazardous driving elements are
encountered such as water, snow, ice,
mud and sand, take the following
precautions:
• Drive cautiously and maintain a longer braking distance.
• Avoid abrupt braking or steering.
• When your vehicle is stuck in snow, mud, or sand, accelerate slowly to
avoid unnecessary wheel spin.
• Put sand, rock salt, tire chains or other non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow, or
mud.
WARNING Changing the tire speed suddenly could
cause the tires to skid while driving on
slippery surface. Be careful when driving
on slippery surfaces.
Hyundai_CE_en_US.book Page 45
Page 336 of 582
Driving Your Vehicle
6-48
Winter Driving
The severe weather conditions of winter
quickly wear out tires and cause other
problems. To minimize winter driving
problems, you should take the following
suggestions:
Snow or Icy Conditions
You need to keep sufficient distance
between your vehicle and the vehicle in
front of you.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are potentially very
hazardous practices. Sudden brake
applications on snowy or icy roads may
cause the vehicle to skid.
To drive your vehicle in deep snow, it may
be necessary to install tire chains on your
tires.
Always carry emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains, a
flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,
etc.
Snow tires
WARNING Snow tires should be equivalent in size
and type to the vehicle’s standard tires.
Otherwise, the safety and handling of
your vehicle may be adversely affected.
If you mount snow tires on your vehicle,
make sure to use radial tires of the same
size and load range as the original tires.
Mount snow tires on all four wheels to
balance your vehicle’s handling in all
weather conditions. The traction
provided by snow tires on dry roads may
not be as high as your vehicle’s original
equipment tires. Check with the tire dealer for maximum speed
recommendations.
Information Do not install studded tires without first
checking local and municipal regulations for
possible restrictions against their use.
Summer tires
• Summer tires are used to maximize the
driving performance on dry roads.
• If the temperature is below 45 °F (7 °C) or you are driving on snowy or icy
roads, the summer tires lose their brake
performance and traction as the tire
grip weakens significantly.
• If the temperature is below 45 °F (7 °C) or you are driving on snowy or icy
roads, mount snow tires or all-season
tires of the same size with your
vehicle’s standard tire for safe driving.
Both snow and all-season tires have
M+S markings.
• When using the M+S tires, use tires with the same tread produced by the same
manufacturer for safe driving.
• When driving with the M+S tires with the lower maximum allowable speed
than that of the vehicle’s standard
summer tire, be careful not to exceed
the speed allowed for the M+S tires.
Hyundai_CE_en_US.book Page 48
Page 337 of 582
6
6-49
Tire chains (Wire chains)
B6015201
Since the sidewalls of radial tires are
thinner than other types of tires, they may
be damaged by mounting some types of
tire chains on them. Therefore, the use of
snow tires is recommended instead of tire
chains. If tire chains must be used, use
genuine Hyundai parts and install the tire
chain after reviewing the instructions
provided with the tire chains. Damage to
your vehicle caused by improper tire
chain use is not covered by your vehicle
manufacturer’s warranty.
When using tire chains, install tire chains
only on the rear tires.
WARNING The use of tire chains may adversely
affect vehicle handling:
• Drive less than 20 mph (30 km/h) or the chain manufacturer’s recommended
speed limit, whichever is lower.
• Drive carefully and avoid bumps, holes, sharp turns, and other road hazards,
which may cause the vehicle to
bounce.
• Avoid sharp turns or locked wheel braking.
Information • Install tire chains only in pairs and on the rear tires. It should be noted that installing
tire chains on the tires will provide a greater
driving force, but will not prevent side
skids.
• Do not install studded tires without first checking local and municipal regulations
for possible restrictions against their use.
Tire chains (Auto sock)
B6015202
Since the sidewalls of radial tires are
thinner, they can be damaged by
mounting some types of snow chains on
them. Therefore, the use of snow tires is
recommended instead of snow chains.
Do not mount tire chains on vehicle
equipped with aluminum wheels; snow
chains may cause damage to the wheels.
If snow chains must be used, use
AutoSock (fabric snow chain). Damage to
your vehicle caused by improper snow
chain use is not covered by your vehicle
manufacturer’s warranty.
When using tire chains, install tire chains
only on the rear tires.
Hyundai_CE_en_US.book Page 49
Page 338 of 582
Driving Your Vehicle
6-50
CAUTION Always check chain installation for proper
mounting after driving about 0.3-0.6 mi.
(0.5-1 km) to ensure safe mounting.
Retighten or remount the chains if they
are loose.
Chain installation
When installing tire chains, follow the
manufacturer’s instructions and mount
them as tightly possible. Drive slowly (less
than 20 mph (30 km/h)) with chains
installed. If you hear the chains
contacting the body or chassis, stop and
tighten them. If they still make contact,
slow down until the noise stops. Remove
the tire chains as soon as you begin
driving on cleared roads.
When mounting snow chains, park the
vehicle on level ground away from traffic.
Turn on the vehicle Hazard Warning
Flasher and place a triangular emergency
warning device behind the vehicle (if
available). Always place the vehicle in P
(Park), apply the parking brake and turn
off the vehicle before installing snow
chains.
NOTICE : K H Q X V L Q J W L U H F K D L Q V
[ : U R Q J V L ] H F K D L Q V R U L P S U R S H U O \ L Q V W D O O H G F K D L Q V F D Q G D P D J H \ R X U
Y H K L F O HT V E U D N H O L Q H V V X V S H Q V L R Q E R G \
D Q G Z K H H O V
[ 8 V H 6 $ ( U 6V F O D V V R U Z L U H F K D L Q V
[ , I \ R X K H D U Q R L V H F D X V H G E \ F K D L Q V F R Q W D F W L Q J W K H E R G \ U H W L J K W H Q W K H
F K D L Q W R S U H Y H Q W F R Q W D F W Z L W K W K H
Y H K L F O H E R G \
[ 7 R S U H Y H Q W E R G \ G D P D J H U H W L J K W H Q W K H F K D L Q V D I W H U G U L Y L Q J P L
N P \f
[ ' R Q R W X V H W L U H F K D L Q V R Q Y H K L F O H V H T X L S S H G Z L W K D O X P L Q X P Z K H H O V , I
X Q D Y R L G D E O H X V H D Z L U H W \ S H F K D L Q
[ , Q V W D O O W L U H F K D L Q V W K D W P H H W W K H V S H F L I L F D W L R Q V R I H D F K W L U H V L ] H W R
S U H Y H Q W G D P D J H \ R X U Y H K L F O H
[ L Q W L U H V X V H Z L U H F K D L Q V O H V V W K D Q L Q P P \f
[ L Q W L U H V X V H $ X W R 6 R F N I D E U L F V Q R Z F K D L Q \f
Winter Precautions
Use high quality ethylene glycol coolant
Your vehicle is delivered with high quality
ethylene glycol coolant in the cooling
system. It is the only type of coolant that
should be used because it helps prevent
corrosion in the cooling system,
lubricates the water pump, and prevents
freezing. Be sure to replace or replenish
your coolant in accordance with the
"Scheduled Maintenance Services"
section in chapter 9.
Before winter, have your coolant tested to
make sure that its freezing point is
sufficient for the temperatures
anticipated during the winter.
Hyundai_CE_en_US.book Page 50
Page 339 of 582
6
6-51
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in chapter 9. The
battery charging level can be inspected
by an authorized HYUNDAI dealer or in a
service station.
To prevent locks from freezing
Spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
already covered with ice, spray approved
de-icing fluid over the ice to remove it.
When an internal part of a lock freezes, try
to thaw it with a heated key. Carefully use
the heated key to avoid an injury.
Use approved window washer anti-freeze
solution
Add authorized window washer
anti-freeze solution, as specified on the
window washer container. Window
washer anti-freeze solution is available
from an authorized HYUNDAI dealer, and
most vehicle accessory outlets. Do not
use coolant or other types of anti-freeze
solution, to prevent any damage to the
vehicle paint.
Do not let your parking brake freeze
Under some conditions, your parking
brake may freeze in the engaged position.
This is most likely to happen when there is
an accumulation of snow or ice around or
near the rear brakes or the brakes are wet.
When there is the risk that your parking
brake may freeze: temporarily apply the
parking brake with the gear in P (Park),
then block the rear wheels, and then
release the parking brake.Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
may build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, check underneath the vehicle on a
regular basis, to make sure that the front
wheels and the steering components are
not blocked.
Carry emergency equipment
In accordance with weather conditions,
carry appropriate emergency equipment,
while driving. Some of the items you may
want to carry include tire chains, tow
straps or chains, flashlight, emergency
flares, sand, shovel, jumper cables,
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
Do not place objects or materials in the
motor compartment
Putting objects or materials in the motor
compartment may cause a motor failure.
Such damage is not be covered by the
manufacturer’s warranty.
Hyundai_CE_en_US.book Page 51
