1
1-43
Information Be aware of the followings when using battery conditioning mode.
• The driving distance may be reduced as energy is required to increase the battery temperature.
• If the battery temperature is low during driving or when the scheduled air conditioner/heater is activated, the battery conditioning mode is operated to improve driving performance. To ensure
driving distance the battery conditioning mode will not be operated when the battery level is too
low.
• If you set the DC charging station as your destination while using the battery conditioning mode, the battery temperature is optimized for charging and you can shorten the charging time after
you arrive and start charging.
• Battery conditioning mode is available for vehicles equipped with the battery heater.

Setting Utility Mode
Utility mode allows the high voltage battery to be used instead of the 12 V auxiliary
battery for purposes other than driving. You can use the audio and lights of the vehicle
without discharging the 12 V auxiliary battery and even use the indoor V2L feature.
Information • You cannot drive the vehicle while the utility mode is activated, and the gear can only be shifted to P (Park).
• You can use every electric device in the vehicle while the utility mode is activated.
• When the utility mode is activated, the Electronic Parking Brake (EPB) is applied automatically.

Follow the instructions below to set the utility mode.
1. Check the operation conditions of the utility mode. • The (ready indicator) is displayed on the instrument cluster.
• The gear is shifted to P (Park).
2. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
3. On the All menus screen, select EV > (EV Settings) > Utility mode and select Activate
Utility mode to activate the function (Utility Mode: ON).
Hyundai_CE_en_US.book Page 43

Introduction/Getting Started with Your Electric Vehicle
1-44
B0002104
• The (ready indicator) turns off and the UTIL (utility indicator) illuminates on the
instrument cluster and the EPB is applied.
• The utility mode can be deactivated by pressing the Start/Stop button to the OFF position.
• If you want to utilize V2L function in the vehicle while the utility mode is activated, refer to the “Using Electricity Inside the Vehicle” section in this chapter.
Information If the utility mode is not activated when the vehicle is in the ready ( ) mode and the gear is
shifted to P (Park), inspect the operation status of EPB.

Searching for nearby charging stations
Around the course, around the current site, around the selected destination or charging
stations of interest can be searched. If you choose the charging station, the detailed
information is provided.
Information • When you sign up HYUNDAI BlueLink service, the available chargers at each charging station are displayed.
• The HYUNDAI Carpay function in the in-vehicle payment app allows for convenient payments to affiliated charging stations and parking lots without using physical cards. For more
information, refer to the user's manual provided in the infotainment system and the quick
reference guide.

1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV and select the charging station icon next to the
vehicle
Hyundai_CE_en_US.book Page 44

1
1-45
B0002105
3. Choose a searching option from the list on the left side of the screen.• You can choose among Along Route, Near My Location , Near Destination, Near
Center of Map and Favorite Station .
• The direction (arrow) and distance, charger type, address, and location on the map of the charging stations corresponding to the selected option are displayed on the
right side of the screen.
B0002106
4. Select the charging station on the list and check the detailed information.
Hyundai_CE_en_US.book Page 45

Introduction/Getting Started with Your Electric Vehicle
1-46
Using V2L Function
Using the Vehicle to Load (V2L) feature, you can turn on electronic devices by connecting
them to the high voltage battery.
Safety Precautions When Using the V2L Function
Before using the V2L function, read and comply with all the safety information below.
Failure to do so may cause electric shock or fire and result in serious injury, death, vehicle
malfunction, or property damage.
Precautions when using the V2L function
WARNING • Do not use the V2L function if the V2L connector, charging inlet, power plug, or cable is damaged, corroded, or rusted.
• Do not touch the V2L connector, charging inlet, or power plug with wet hands.
• Do not use the V2L function if the connection part of the V2L connector and the charging inlet is loose.
• Check if there is no water, dust, or other contaminants before connecting the connector and the power plug. They may cause electric shock or fire.
• Do not put metal objects or touch the V2L connector or charging inlet with bare hands.
• For electric devices used outdoors in a vehicle, use a product that is waterproof or use it in a waterproof environment. If rain or humidity intrude into electric devices,
multi-outlets, extension cords, etc., it may cause electric shock or damage the vehicle
or devices.
• If there is a risk of lightning, do not use the V2L function outside the vehicle.
• Do not use electric heating appliances such as an electric kettle, toaster, or iron in the vehicle. Doing so may result in a fire and injury.

Precautions when the cooling fan operates
WARNING
WL_MotorRoomHotCaution
When using the V2L, the cooling fan in the vehicle motor compartment can operate
automatically even if the vehicle is turned off. Do not put your hand near the cooling fan
when the V2L is operating.
Hyundai_CE_en_US.book Page 46

1
1-47

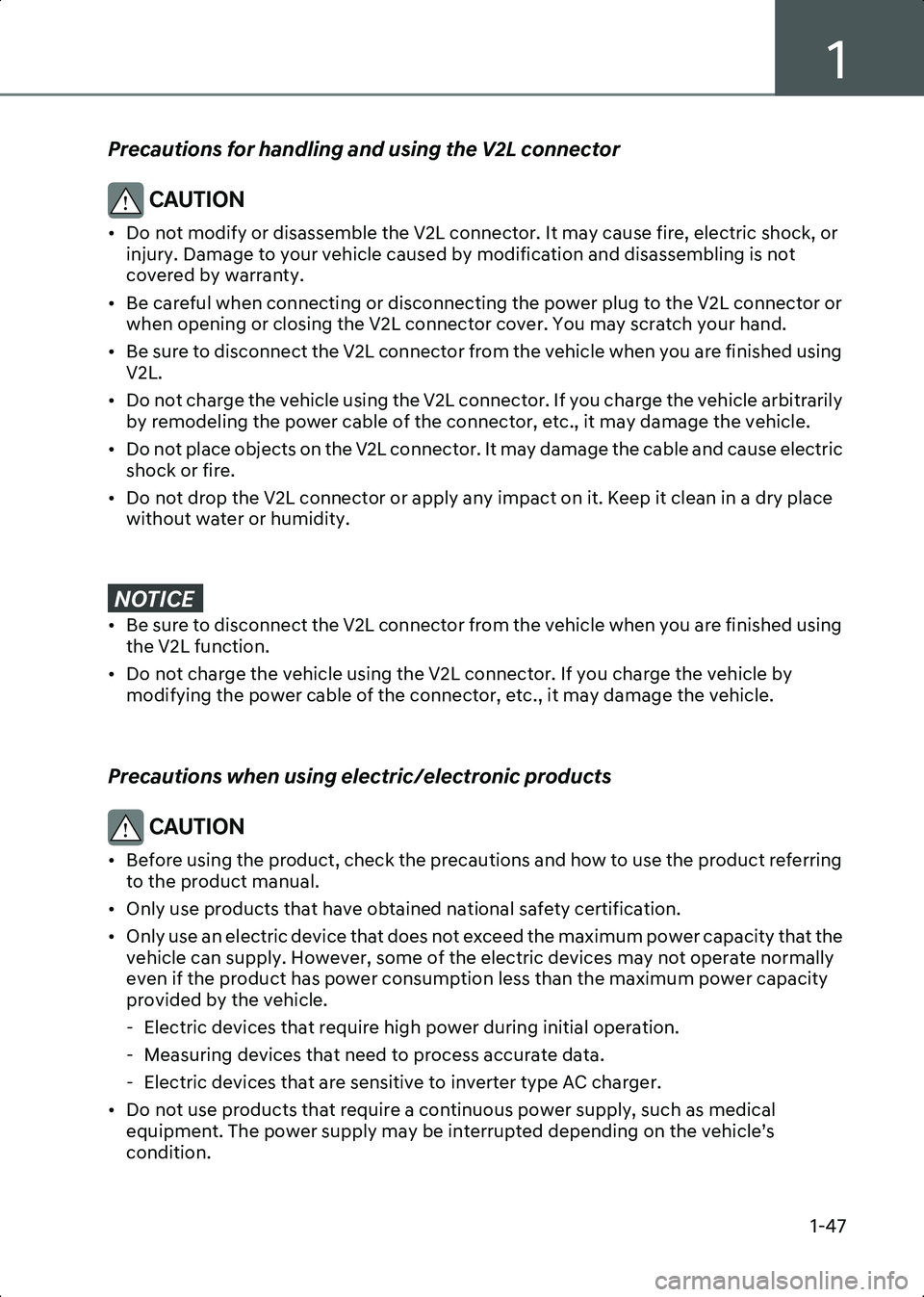

Precautions for handling and using the V2L connector
CAUTION • Do not modify or disassemble the V2L connector. It may cause fire, electric shock, or injury. Damage to your vehicle caused by modification and disassembling is not
covered by warranty.
• Be careful when connecting or disconnecting the power plug to the V2L connector or when opening or closing the V2L connector cover. You may scratch your hand.
• Be sure to disconnect the V2L connector from the vehicle when you are finished using V2L.
• Do not charge the vehicle using the V2L connector. If you charge the vehicle arbitrarily by remodeling the power cable of the connector, etc., it may damage the vehicle.
• Do not place objects on the V2L connector. It may damage the cable and cause electric shock or fire.
• Do not drop the V2L connector or apply any impact on it. Keep it clean in a dry place without water or humidity.

NOTICE
[ %HVXUHWRGLVFRQQHFWWKH9/FRQQHFWRUIURPWKHYHKLFOHZKHQ\RXDUHILQLVKHGXVLQJ WKH9/IXQFWLRQ

[ 'RQRWFKDUJHWKHYHKLFOHXVLQJWKH9/FRQQHFWRU,I\RXFKDUJHWKHYHKLFOHE\ PRGLI\LQJWKHSRZHUFDEOHRIWKHFRQQHFWRUHWFLWPD\GDPDJHWKHYHKLFOH

Precautions when using electric/electronic products
CAUTION • Before using the product, check the precautions and how to use the product referring to the product manual.
• Only use products that have obtained national safety certification.
• Only use an electric device that does not exceed the maximum power capacity that the vehicle can supply. However, some of the electric devices may not operate normally
even if the product has power consumption less than the maximum power capacity
provided by the vehicle.
- Electric devices that require high power during initial operation.
- Measuring devices that need to process accurate data.
- Electric devices that are sensitive to inverter type AC charger.
• Do not use products that require a continuous power supply, such as medical equipment. The power supply may be interrupted depending on the vehicle’s
condition.
Hyundai_CE_en_US.book Page 47

Introduction/Getting Started with Your Electric Vehicle
1-48
• The V2L discharging mode is blocked automatically in the event of overheating. When the discharging mode is blocked, check whether the V2L connector or power plug is
contaminated, worn, corroded or broken.
- If the temperature falls to a proper level after it is left unattended, you can use it again.
- If overheating repeats when using a certain electric device, do not use the electric device.
• Do not connect more than two extension cords or multi-outlet. Also, when using the extension cable, ensure that the cable is not twisted. Heat from the overlapped cable
may cause fire.
• Do not hang home appliances on the wire.
• Do not use if the sheath of home appliance cables is damaged or broken.
• Fully insert the power plug when connecting it to the power.
• Only use qualified power plug with ground connection that meets the standard. Do not use worn, corroded, or broken power plug or improper power plug that does not meet
the standard.

Using Electricity Outside the Vehicle
Before using V2L function, carefully read all the safety information and precautions on
the “Safety Precautions When Using the V2L Function” section and follow the
instructions.
Follow the instructions below to connect the V2L connector to the charging inlet on the
vehicle and supply power to an electronic product.
1. Open the cover of the V2L connector.
2. Close the cover after connecting the plug of an electronic product to the power outlet of the connector.
WARNING Some types of plugs may not fit into the outlet cover of the V2L connector, causing
incomplete closing of the cover. Do not use the V2L connector on a rainy or snowy day
if the outlet cover is not completely closed. There is a risk of fire and/or injury.

3. Open the connection terminal protection cap of the connector with the open switch pressed.
4. Open the charging door and connect the V2L connector to the charging inlet on the vehicle.
• Connect the V2L connector to the charging inlet within 60 seconds after opening the charging door.
5. Press the power switch of the V2L connector. • The power is supplied and the indicator on the V2L connector is turned on.
Hyundai_CE_en_US.book Page 48

1
1-49
Information • When the V2L connector is connected to the charging inlet of the vehicle, all doors and connectors will be automatically locked to prevent theft and separation. To disconnect the V2L
connector, unlock the door and pull the connector with the open switch pressed.
• Before using the V2L function, deactivate the scheduled climate setting referring to the “Setting Scheduled Charging and Climate”. The V2L function may be cut off depending on the
scheduled climate setting.
• To check and change the V2L setting, refer to the “Setting a Battery Discharging Limit When Using Vehicle to Load (V2L)”.
• If an electric device that exceeds the maximum power capacity is connected, a warning message appears on the instrument cluster and the power supply shuts off immediately.

Using Electricity Inside the Vehicle
You can connect home appliances or electric devices to the power outlet inside the
vehicle.
WARNING Do not use an electric heating appliances like electric kettle, toaster, or iron in the vehicle.
It may cause a fire or injury.

1. Press the Start/Stop button to the ON position or activate the utility mode. • For more information about the utility mode, refer to the “Setting Utility Mode” section in this chapter.
2. Use the smart key to unlock the power outlet cover.
B0002501
Hyundai_CE_en_US.book Page 49

Introduction/Getting Started with Your Electric Vehicle
1-50
B0002502
3. Open the power outlet cover by sliding it to the left, and connect the power plug of the electric device to the power socket.
Information • The indicator on the power outlet indicates the operation status.
B0002503
• V2L discharging mode shuts off if the vehicle turns off while using indoor V2L when the vehicle is ON.
• Opening the charging door or connecting the V2L connector to the charging inlet, the V2L discharging mode shuts off.
• If you want to use the indoor and outdoor V2L simultaneously, first connect the V2L connector to the charging inlet and then use the indoor V2L.
• When the high voltage battery charge level reaches the set discharging limit (%), the operation stops, and a warning message appears on the instrument cluster. If you want V2L operation, set
the discharging limit (%) lower than the current battery charge.
Indicator StatusDescription
Blue Standby
Red The power outlet is connected but no power is supplied.
Green The power outlet is connected, and the power is
supplied normally.
