2023 HYUNDAI IONIQ 6 Owners Manual

5
5-39
the hanging antenna wire is attached to
the motor-head unit (see the device’s
manual to identify this button). The
name and color of the button may vary
by manufacturer.
• A ladder and/or second person may simplify the following steps.
7. Firmly press and release the 'Learn', 'Smart', 'Set' or 'Program' button. You
now have up to 30 seconds in which to
complete the next step.
8. Return to the vehicle and firmly press, hold for two seconds and release, the
HomeLink button up to three times in a
row slowly. Do not press the HomeLink
button rapidly. As soon as you see the
garage door start to move, stop
pressing any buttons until a few
seconds after the garage door has
come to a complete stop, regardless of
position. At this point, programming is
complete and your device should
operate when the HomeLink button is
pressed and released.
3) Two-Way Communication
Programming (For select garage door
openers)
If your garage door opener has the ‘myQ’
logo on its side, your opener likely has
Two-Way Communication capability.
HomeLink has the capability to establish
Two-Way Communication with your
garage door opener. HomeLink can
receive and display “closing” or
“opening” status messages from
compatible garage door openers. At any
time, Home-Link can also recall and
display the last recorded status
communicated by the garage door
opener to indicate your garage door
being “closed” or “opened”.
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/Two-w
ay-Communication. If your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror appear while the garage door is opening/closing, then no further
steps are needed. Two-Way
Communication Programming is already
complete. However, if your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror DO NOT appear while the
garage door is opening/closing, use the
following instructions to enable this
functionality.
1. In your vehicle, press and hold the
programmed HomeLink button for 2
seconds, then release. Confirm that the
garage door is moving. AFTER it stops,
you will have one minute to complete
the following steps:
• A ladder and/or second person may simplify the following steps.
2. On your garage door opener in your garage, locate the 'Learn' button
(usually near where the hanging
antenna wire is attached to the garage
door opener). If there is difficulty
locating this button, reference the
device’s owner’s manual.
3. Press and release the 'Learn' button.
4. A light on your garage door opener may flash, and your Two-Way
Communication indicators (4), (6) in
your vehicle may flash, confirming
completion of the process.
5. Return to the vehicle and firmly press and release the programmed
HomeLink button to activate your
garage door. The Two-Way
Communication indicators (4), (6) flash
in orange when the door is moving. Do
not make any additional button presses
until AFTER the garage door has come
to a complete stop.
6. Your Two-Way Communication programming is now complete.
Hyundai_CE_en_US.book Page 39

Convenience Features
5-40
Information If your garage door opener has Two-Way
Communication functionality, it is possible
for HomeLink to stop functioning the garage
door shortly after initial programming, IF the
Two-Way Communication Programming
wasn’t properly completed. This usually
happens after the first 10 times a programmed
HomeLink button is pressed. If you
experience this, completing the
“Programming a New HomeLink Button” and
“Two-Way Communication Programming”
will restore door operation.

4) Canadian Programming
Canadian radio-frequency laws require
transmitter remote signals to “time-out”
(or quit) after a couple seconds of
transmission, which may not be long
enough for HomeLink to pick up the
signal during programming.
If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the
programming procedures, replace
“Programming a New HomeLink Button”
step 3 with the following:
While the HomeLink indicator light (7) is
flashing orange, press and release
(“cycle”) your device’s hand-held remote
every two seconds until the HomeLink
indicator light (7) changes from orange to
green. You may now release the
hand-held remote button. Then proceed
with “Programming a New HomeLink
Button” step 4.2. Operating HomeLink®
1) Operating HomeLink®
ONE1051263N_1
1. Press and release the desired
programmed HomeLink button (1, 2 or
3).
Information The HomeLink indicator (7) should light
green, solid or flashing, and your programmed
device should operate.
If your device does not operate, the HomeLink
programming was not successful, and you’ll
need to reprogram the button.

2) Two-Way Communication Display
Behavior
ONE1051265N
1. Press and release one of the programmed HomeLink buttons (1, 2 or
3).
Hyundai_CE_en_US.book Page 40

5
5-41
ONE1051266N
2. The indicator (4) and (6) operates as below, if your garage door opener has
Two-Way Communication
functionality.
• If the indicator (4) flashes in Orange, it indicates that the garage door is
“Closing”.
• The indicator (4) turns solid green once the garage door has closed.
• If the indicator (6) flashes in Orange, it indicates that the garage door is
“Opening”.
• The indicator (6) turns solid green once the garage door has fully
opened.
• If the indicator (4) or (6) does not turn to green, it indicates that the last
status of garage door was not
received properly. The HomeLink
mirror tries to receive the last known
status of the garage door for a few
seconds.
3) Recalling Garage Door Status
HomeLink mirror with Two-Way
Communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” or “2 and 3”
simultaneously.
• If the indicator (4) appears solid Green, it indicates that the last activated
device was “closed” properly. • If the indicator (6) appears solid Green,
it indicates that the last activated
device was “open” properly.
3. Erasing HomeLink® Buttons
1) Erasing and Reprogramming a Single
HomeLink® Button:
1. Press and hold the desired HomeLink button you want to re-program. DO
NOT release the button.
2. The HomeLink indicator light (7) will illuminate solid green. Release the
button as soon as the HomeLink
indicator light (7) begins to flash
orange, usually about 20 seconds.
3. Proceed with the steps in the “Programming a New HomeLink
Button” section.
Information If you do not complete the re-programming of
a new device to the button, it will revert to the
previously stored programming.

2) The following instructions will erase
ALL HomeLink® programming from ALL
buttons:
ONE1051267N
1. Press and hold the buttons (1) and (3) simultaneously
2. The HomeLink indicator light (7) will illuminate solid Orange for about 10
seconds
Hyundai_CE_en_US.book Page 41

Convenience Features
5-42
3. Release the buttons once the HomeLink indicator light (7) changes to
Green and flashes rapidly
4. Now all three HomeLink buttons (1), (2) and (3) are cleared of any programming
Information HomeLink® and the HomeLink® House logo
are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc.

FCC (USA) and ISED (Canada)
This device complies with FCC rules part
15 and Innovation, Science, and
Economic Development Canada RSS-210.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference that may be
received including interference that may
cause undesired operation. WARNING:
The transmitter has been tested and
complies with FCC and ISED rules.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the device.
This equipment complies with FCC and
ISED radiation exposure limits set forth
for an uncontrolled environment. End
Users must follow the specific operating
instructions for satisfying RF exposure
compliance. This transmitter must be at
least 20cm from the user and must not be
co-located or operating in conjunction
with any other antenna or transmitter.
Cet appareil est conforme aux reglements
de la FCC, section 15, et au CNR-210
d’Innovation, Sciences et
Dhveloppement economique Canada. Le
fonctionnement est assujetti aux deux
conditions suivantes: (1) cet appareil ne
doit pas causer d’interferences nuisibles
et (2) cet appareil doit accepter toute
interference recue, y compris celle qui pourrait entrainer un dysfonctionnement.
MISE EN GARDE: L’emetteur a subi des
tests et est conforme aux reglements de
la FCC et d’ISDE. Les changements ou
modifications non approuves
explicitement par la partie responsable de
la conformite pourraient rendre caduque
l’autorisation de l’utilisateur de se servir
du dispositif.
Cet appareil est conforme aux limites
d’exposition aux radiations de la FCC et
d’ISDE etablies pour un environnement
non controle. Les utilisateurs finaux
doivent respecter les instructions
d’utilisation specifiques pour satisfaire
aux exigences de conformite aux
expositions de RF. L’emetteur doit se
trouver a 20 cm au minimum de
l’utilisateur et ne doit pas etre situe au
meme endroit que tout autre emetteur ou
antenne ni fonctionner avec un autre
emetteur ou antenne.
HomeLink 5 Programing Flow Chart
ODL3A040518
Hyundai_CE_en_US.book Page 42

5
5-43
Side View Mirrors
B5007001
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with mirror adjustment control
switch. Adjust the side view mirrors to
your desired position before driving. The
side view mirrors can be folded manually
to help prevent damage when going
through an automatic car wash or when
passing through a narrow street.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the side view mirror or turn your head
and look to determine the actual distance
of other vehicles prior to changing lanes.

WARNING Do not adjust or fold the side view mirrors
while driving. This may cause loss of
vehicle control resulting in a collision.

NOTICE
[ 'RQRWVFUDSHLFHRIIWKHPLUURUIDFH7KLVPD\GDPDJHWKHVXUIDFHRIWKH
JODVV

[ ,IWKHPLUURULVMDPPHGZLWKLFHGRQRW DGMXVWWKHPLUURUE\IRUFH8VHDQ
DSSURYHGGHLFHUQRWUDGLDWRU
DQWLIUHH]H\fVSUD\RUDVSRQJHRUVRIW
FORWKZLWKYHU\ZDUPZDWHURUPRYH
WKHYHKLFOHWRDZDUPSODFHDQGDOORZ
WKHLFHWRPHOW

[ 'RQRWFOHDQWKHPLUURUZLWKKDUVK DEUDVLYHVIXHORURWKHUSHWUROHXP
EDVHGFOHDQLQJSURGXFWV

Adjusting the side view mirrors
B5007002
Adjusting the side view mirrors:
1. When the Start/Stop button is in the ACC, ON or START position, move
either the L (Left side) or R (Right side)
button (1) to select the side view mirror
you would like to adjust.
2. Use the mirror adjustment control switch (2) to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever (1) to the middle to prevent unintended
adjustment.
NOTICE
[ 7KHPLUURUVVWRSPRYLQJZKHQWKH\UHDFKWKHPD[LPXPDGMXVWLQJDQJOHV
EXWWKHPRWRUFRQWLQXHVWRRSHUDWH
1
2
Hyundai_CE_en_US.book Page 43

Convenience Features
5-44
while the switch is pressed. Do not
press the switch longer than necessary,
because this can damage the motor.
• Do not attempt to adjust the side view mirrors by hand, because this can
damage the motor.

Folding the side view mirrors
B5007003
Folding button
Press the button to fold or unfold the side
view mirrors.
Infotainment system setting
• Enable on door unlock If Setup > Vehicle > Lights > Welcome
Mirror/Light > Enable on Door Unlock
is selected from the Settings menu in
the infotainment system,
• The mirror will fold or unfold when the door is locked or unlocked by the smart
key.
• The mirror will fold or unfold when the door is locked or unlocked by the touch
sensor or button on the outside door
handle.
• Enable on driver approach If Setup > Vehicle > Lights > Welcome
Mirror/Light > Enable on Driver
Approach is selected from the Settings
menu in the infotainment system, the
mirror will unfold when the vehicle is approached with the smart key in
possession.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

NOTICE)RU\RXUVDIHW\WKHVLGHYLHZPLUURUV
FDQQRWEHIROGHGDXWRPDWLFDOO\ZKHQ
GULYLQJDWDVSHHGRIPSKNPK\fRU
IDVWHU

NOTICE7KHHOHFWULFW\SHVLGHYLHZPLUURU
RSHUDWHVHYHQWKRXJKWKH6WDUW6WRS
EXWWRQLVLQWKH2))SRVLWLRQ+RZHYHUWR
SUHYHQWXQQHFHVVDU\EDWWHU\GLVFKDUJH
GRQRWDGMXVWWKHPLUURUVORQJHUWKDQ
QHFHVVDU\ZKLOHWKHYHKLFOHLVWXUQHGRII
 LQGLFDWRURII\f

NOTICE'RQRWIROGWKHHOHFWULFW\SHVLGHYLHZ
PLUURUE\KDQG,WFRXOGFDXVHPRWRU
IDLOXUH

Hyundai_CE_en_US.book Page 44

5
5-45
if equipped
Reverse Parking Aid
B5007004
When the gear is shifted to the R
(Reverse) position, the side view lever(s)
will rotate downwards to aid with driving
in reverse.
The state of the side view mirror lever (1)
determines whether or not the mirrors
will move:
How it works
• Left/Right: When either the L (Left) or R (Right) lever is selected, both side view
mirrors will move.
• Neutral: When neither switch is selected, the side view mirrors will not
move.
The side view mirrors will automatically
revert to their original positions if any of
the following occur:
• The Start/Stop button is pressed to either the OFF position or the ACC
position.
• The gear is shifted to any position except R (Reverse).
• The side view mirror adjustment button is not selected.
Reverse parking aid user settings
mode
You may change the angle of the side
view mirror if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing. When the vehicle is first delivered, the set
downward angle of the left and right side
view mirror are different to ensure driver
visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift the
gear to R (Reverse). When L (Left) or R
(Right) lever is selected, both side view
mirror angle will move downward to the
basic set position.
3. Move either L or R lever to select the side view mirror you would like to
adjust. Then press “ , , , ” switch
to adjust the side view mirror to the
desired angle.
4. After adjusting the angle to save the adjusted side view mirror angle, shift
the gear to another position other than
R (Reverse), or change the L and R
levers to the neutral position (L and R
levers are not selected).
5. Set the other side view mirror following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirror angle back
to the basic angle, shift the gear to R
(Reverse), and adjust the mirror angle
higher than when the gear is in P (Park), N
(Neutral) and D (Drive).
NOTICE:KHQFKDQJLQJWKHDQJOHRIERWKVLGH
YLHZPLUURUVLWLVUHFRPPHQGHGWR
FKDQJHWKHDQJOHRQHVLGHDWDWLPH
IROORZLQJWKHSURFHGXUHWR

Hyundai_CE_en_US.book Page 45

Convenience Features
5-46

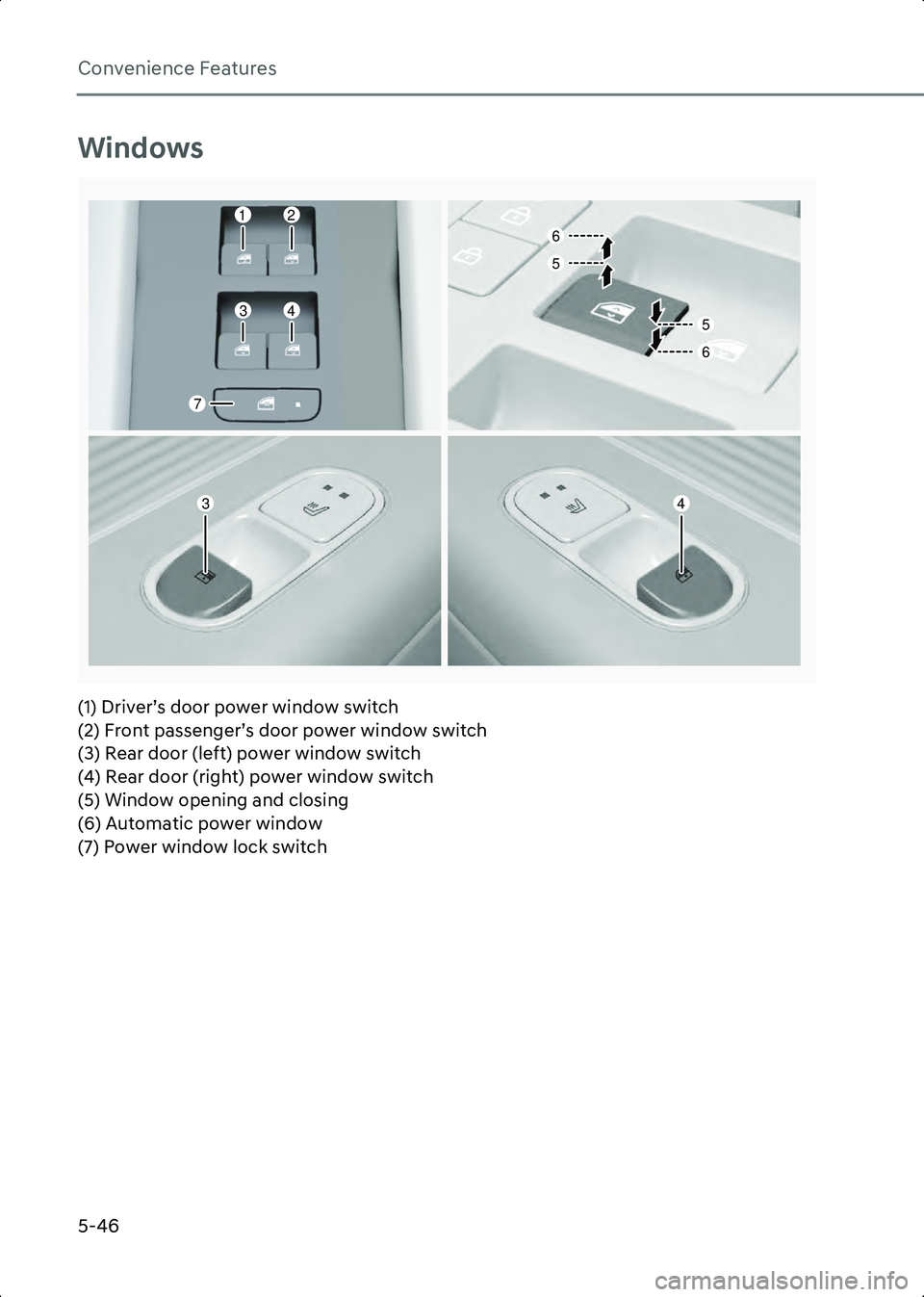

Windows
A5008101(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
12
3
3
7
6
5
5
6
4
4
Hyundai_CE_en_US.book Page 46
