Demister switch
When this switch is pressed, the mode
changes to the “
” mode. The indication
lamp (A) will come on. The selected mode (B) is shown in the display. (Refer to
“Changing the mode selection” on page 8-04.)
NOTEz When the demister switch is pressed, the air
conditioning system automatically operates and outside air (as opposed to recirculated air) is selected. This automatic switching control is carried out to prevent misting of
the windows even if “Disable automatic air conditioning control” or “Disable automaticair selection control” is set. (Refer to “Cus-
tomizing the air conditioning switch” on page 8-11, “Customizing the air selection”
on page 8-10.)NOTEz To ensure a clear view, the engine may start
when the demister switch is pressed evenwhile the EV priority mode is activated.
Refer to “EV switch” on page 7-25.Operating the system in auto-
matic mode
In normal conditions, use the system in the
AUTO mode and follow these procedures: 1. Push the AUTO switch.
2. Set the temperature control dial to the
desired temperature.

The mode selection, blower speed ad-
justment, recirculated/outside air selec- tion, temperature adjustment, and air conditioner ON/OFF status are all con-
trolled automatically.
NOTEz If the blower speed selection switch, air con-
ditioning switch, MODE switch, or air selec- tion switch is operated while the system is
operating in the AUTO mode, the activated function overrides the corresponding func-
tion of automatic control. All other functions
remain under automatic control.Operating the system in man-
ual mode
Blower speed and ventilator mode will be
controlled manually by setting the blower speed selection switch and the MODE switchto the desired positions.
To return to automatic operation, press the AUTO switch.
Demisting of the windscreen
and door windowsCAUT,ONz For safety, make sure you have a clear view
through all the windows.
Automatic climate control air conditioner
8-132**(20(1For pleasant driving8

For ordinary demisting
1. Set the air selection switch to the outsideposition.
2. Set the MODE switch to the “
” posi-
tion.
3. Select your desired blower speed by pressing the blower speed selection
switch.
4. Select your desired temperature by turn- ing the temperature control dial.
5. Push the air conditioning switch.
For quick demisting
1. Push the demister switch to change to the “
” position.
2. Set the blower to the maximum speed.
3. Set the temperature to the highest posi- tion.
NOTEz To demist effectively, direct the air flow
from the side ventilators towards the door
windows.
z Do not set the temperature to the max. cool
position. Cool air will blow against the win-
dow glasses and prevent demisting.Important operation tips for
the air conditioner
z Park the vehicle in the shade.
Parking in the hot sun will make the ve-
hicle inside extremely hot, and it will re-
quire more time to cool the interior.
If it is necessary to park in the sun, open
the windows for the first few minutes of air conditioning operation to expel the
hot air.
z Close the windows when the air condi-
tioner is in use. The entry of outside air
through open windows will reduce the cooling efficiency.
z Too much cooling is not good for the
health. Keep the difference between the
vehicle interior temperature and outside
temperature at 5 to 6

Air conditioning system refrig-erant and lubricant recommen-dations
If the air conditioner seems less effective
than usual, the cause might be a refrigerant leak.
We recommend you to have the system in-
spected.
[Except for vehicles for Ukraine@
The air conditioning system in your vehicle
must be charged with the refrigerant
HFO-1234yf and the lubricant POE MA68EV.
[Vehicles for Ukraine@
The air conditioning system in your vehicle
must be charged with the refrigerant HFC-134a and the lubricant POE MA68EV.
Use of any other refrigerant or lubricant will
cause severe damage which will result in the
need to replace your vehicle’s entire air con- ditioning system. The release of refrigerant
into the atmosphere is not recommended.
We recommend you to recover and recycle the refrigerant for reuse.
During a long period of disuse
The air conditioner should be operated for at
least five minutes each week, even in cold weather. This is to prevent the compressor
from seizing and to maintain the air condi- tioner in the best operating condition.
Air purifier
An air filter has been incorporated into this air conditioner so that dirt and dust are
cleaned from the air.
Replace the air filter periodically as its ability
to clean the air will be reduced as it collects pollen and dirt. For the maintenance interval,
refer to the “SERVICE BOOKLET”.NOTEz Operation in certain conditions such as driv-
ing on a dusty road and frequent use of the air conditioner can lead to reduction of serv-
ice life of the filter. When you feel that the air flow is lower than normal or when the
windscreen or windows start to fog up easi- ly, replace the air filter.
We recommend you to have it checked.Remote Climate Control*
You can run the air conditioner in advance of
using the vehicle.
For details, refer to “MITSUBISHI Remote
control: Remote Climate Control” on page
3-20.
Heating
When heating, the engine starts running be-
cause the heating system uses the heat of en-
gine coolant.
On vehicles with electric heater, it can de-
crease the number of times engine starting because electrical power stored in the drive
battery is also used when heating.NOTEz If you want to stop the engine running for
heating, select the EV priority mode before operating the air conditioner. Refer to “EV
switch” on page 7-25.LW/MW/FM radio/CD
player*
The audio system can only be used when the operation mode of the power switch is in ON
or ACC.
Air purifier
8-152**(20(1For pleasant driving8

NOTEzTo listen to the audio system while the Plug-
in Hybrid EV system is not operating, put the operation mode of the power switch in
ACC.
If the operation mode of the power switch is left in ACC, the accessory power will auto-
matically turn off after a certain period of time and you will no longer be able to use
the audio system. The accessory power comes on again if the operation mode of the power switch is operated with is in the ACC.
Refer to “ACC power auto-cutout function”
on page 7-12.
z If a cellular phone is used inside the vehicle,
it may create noise from the audio equip-
ment. This does not mean that anything is wrong with your audio equipment. In such acase, use the cellular phone at a place as far
away as possible from the audio equipment.
z If foreign objects or water get into the audio
equipment, or if smoke or a strange odour comes from it, immediately turn off the au-
dio system. We recommend you to have it checked. Never try to repair it by yourself.
Avoid continuous usage without inspection
by a qualified person.Important Points on Usage
iPod/iPhone Playback Func-
tion*
z This product supports audio playback
from iPod/iPhone devices, however dif- fering versions mean that playback can-not be guaranteed.
z Please be aware that depending on the
iPod/iPhone model or version, operation may differ.
How to Clean
z If the product becomes dirty, wipe with a
soft cloth.
z If very dirty, use a soft cloth dipped in
neutral detergent diluted in water, and
then wrung out. Do not use benzene,
thinners, or other chemical wipes. This may harm the surface.
Trademarks
z Product names and other proper names
are the trademarks or registered trade-marks of their respective owners.
z Furthermore, even if there is no specific
denotation of trademarks or registered
trademarks, these are to be observed in their entirety.
“Made for iPod”, “Made for iPhone”
mean that an electronic accessory has
been designed to connect specifically to iPod or iPhone, respectively, and hasbeen certified by the developer to meet
Apple performance standards.
iPhone, iPod, iPod classic, iPod nano,
and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.
Apple is not responsible for the opera- tion of this device or its compliance with
safety and regulatory standards.
NOTEz iPod and iTunes licensing allows individual
users to privately reproduce and play back
non- copyrighted material as well as material
that may be legally copied and reproduced.
Infringement of copyright is prohibited.
LW/MW/FM radio/CD player*
8-162**(20(1For pleasant driving8

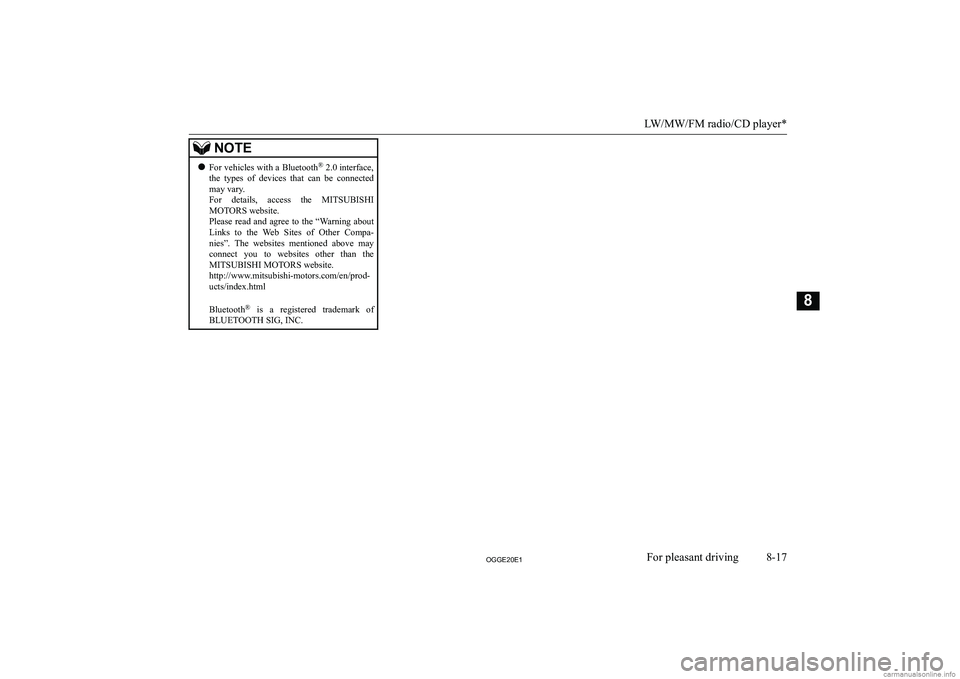

NOTEzFor vehicles with a Bluetooth

5th generation
(video)5th generation
(video)6th generation5th generation
(video camera)4th generation (video)1st generation2nd generation
(aluminium)3rd generation
(video)
LW/MW/FM radio/CD player*
8-182**(20(1For pleasant driving8

LW/MW/FM radio/CD player*
8-192**(20(1For pleasant driving84th generation
8GB 32GB 64GB
16GB 32GB 64GB 16GB 32GB 8GB 16GB 32GB 8GB 16GB 3rd generation
32GB 64GB
2nd generation
8GB 16GB 32GB 1st generation
8GB 16GB 32GB

Handling of Discs
This explains care that should be taken in the handling of discs.
Important Points on Handling
z Fingerprints or other marks on the read
surface of the disc may result in its con-
tent being more difficult to read. When
holding the disc, grip both edges, or one edge and the centre hole, in order that
the read surface is not touched.
z Do not affix paper or stickers, or other-
wise damage the disc.
z Do not forcefully insert a disc if another
is already within the device. This can re- sult in damage to discs, or malfunction.
Cleaning
z Periodically clean the read surface of the
disc. When cleaning, do not wipe in a
circular motion. Instead, wipe gently outwards from the centre of the disc to the outer edge.
z New discs may have burring around the
outer edge or in the hole in the centre.
Ensure you check for these. If there are burrs, these may lead to faulty operation,
therefore ensure these are removed.
Important Points on Storage
z When not using discs, ensure these are
kept in cases, and stored out of direct sunlight.
z If discs are not going to be used for a
long period of time, remove these from
the product.
Disc Playback Environment
In cold environments such as in mid-winter
when the interior of the vehicle is cold, turn- ing the heater on and immediately trying to
use the product may cause condensation (wa-
ter droplets) to form on the disc and internal optical components, and this may prevent the product from operating correctly.
In these conditions, remove the disc, and wait
a short time before use.
Copyright
Actions such as unauthorized reproduction,
broadcast, public performance, or rental of discs that comprise other than personal use are prohibited by law.
Types of Disc That Can Be
Played Back
The following marks are printed on the disc
label, package, or jacket.
TypeSize
Maxi-
mum
playback time
Comments
CD-DA12 cm74 mi-
nutes—CD-
TEXT12 cm74 mi-
nutes—CD-
R/RW12 cm—
