CAUT,ON

CAUT,ON

NOTEzWhen the FCM and UMS ON/OFF switch is
held pressed to change the ON/OFF state ofthe FCM, the ON/OFF state of the UMS is
also changed at the same time.
To turn on/off the system
You can switch the system from OFF to ON
or ON to OFF if you hold the FCM and UMSON/OFF switch pressed when the operation mode is set to “ON”.
Once the system is turned on, the information
screen of the multi-information display shows the collision alarm timing currently se- lected, and the
indicator on the instrument
cluster goes out.
When you turn off the system, the following message appears on the screen and the
in-
dicator comes on.
Cycling the operation mode to ON will set
the FCM back ON.NOTEz The
indicator is combined with the “UMS
OFF” indicator.
To change alarm timing
Give a short press to the FCM and UMS
ON/OFF switch to change the timing at which the frontal collision alarm is triggered. Every time you press the switch, the alarm
timing changes between three levels: “FAR”
(earlier alarming), “MIDDLE” (normally alarming) or “NEAR” (later alarming).
As you make selection, the selected alarm timing is displayed on the information screen
of the multi-information display. Even after turning off the FCM or setting the operation
mode to “OFF”, the system retains your last selected alarm timing in memory.
When “FAR” is selected
When “MIDDLE” is selected
When “NEAR” is selected
CAUT,ONz For the FCM brake prefill, the FCM brake
assist and the FCM braking functions, the function triggering timing cannot be changed.System problem warning
If there is a malfunction in the system, a
warning will appear on the information
screen of the multi information display de- pending on the situation.
When the sensor cannot detect accurately
When the FCM system determines that its
performance has been degraded, the FCM will become inoperative.
Forward Collision Mitigation System (FCM)*
7-712**(20(1Starting and driving7

This can occur when:z Foreign objects, such as dirt, snow or
ice, adhere to the windscreen of the sen-
sor portion.
z There are adverse weather conditions,
such as rain, snow, sand storms, etc.
z A vehicle in front or an oncoming vehi-
cle is splashing water, snow or dirt.
The following message will appear on the in-
formation screen of the multi information
display and the
indicator will come on in
the instrument cluster.
When the sensor performance returns, the FCM functions will resume operation.
If the display keeps showing the message,
there is a possibility that the sensor has a
malfunction. Contact a MITSUBISHI
MOTORS Authorized Service Point for in-
spection of the sensor.
NOTEz The “DRIVER ASSISTANCE CAMERA
BLOCKED” message may temporarily ap-
pear on the information screen when the sen-
sor cannot detect a vehicle, a pedestrian or an object within range. This is not a mal-
function. When a vehicle or an object comes
within range, the FCM function will resume and the message will go off.
z The “DRIVER ASSISTANCE CAMERA
BLOCKED” message may appear on the in-
formation screen when driving on a nonbusy road with a few vehicles and obstacles in
front.
When the system cannot oper-
ate temporarily
If the system becomes temporarily unavaila- ble for some reason, the following messagewill appear on the information screen of the
multi information display, the
indicator
will come on in the instrument cluster, and the FCM will automatically be turned off.
If the display keeps showing the message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized Service Point for inspection of the system.
Sensor is too hot or cold
If the system becomes temporarily unavaila- ble due to a high or low temperature of thesensor, the following message will appear on
the information screen of the multi informa- tion display, the
indicator will come on in
the instrument cluster and the FCM will auto-
matically be turned off.
After the temperature of the sensor has been in range, the system will automatically return
to operation.
If the display keeps showing the message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized Service Point for inspection of the system.
Forward Collision Mitigation System (FCM)*
7-722**(20(1Starting and driving7

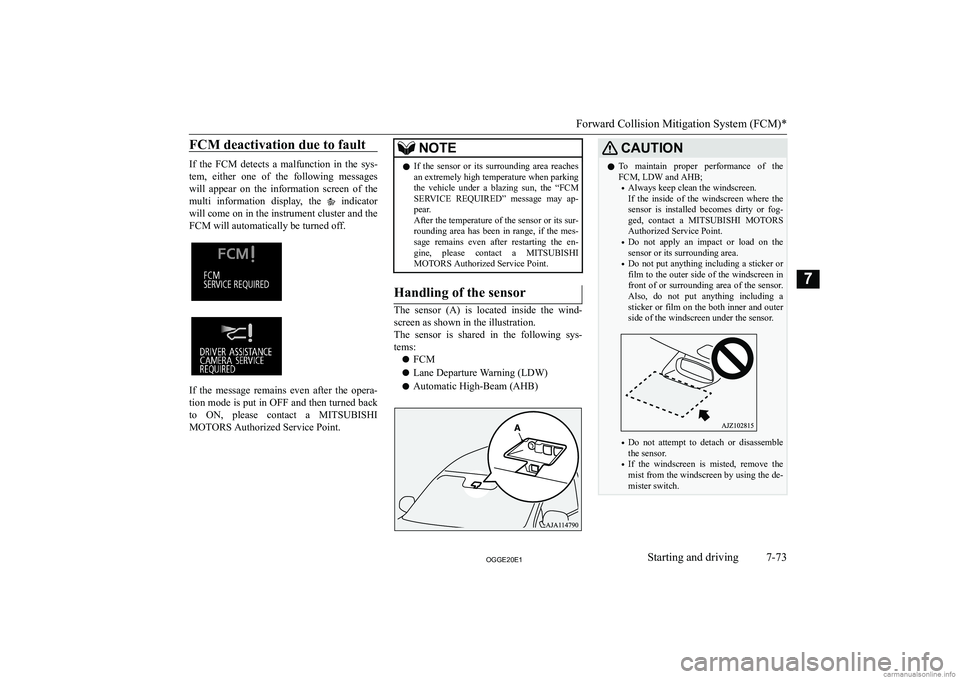

FCM deactivation due to fault
If the FCM detects a malfunction in the sys-
tem, either one of the following messages will appear on the information screen of the
multi information display, the
indicator
will come on in the instrument cluster and the FCM will automatically be turned off.
If the message remains even after the opera-tion mode is put in OFF and then turned back to ON, please contact a MITSUBISHI
MOTORS Authorized Service Point.
NOTEz If the sensor or its surrounding area reaches
an extremely high temperature when parking the vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message may ap-
pear.
After the temperature of the sensor or its sur-
rounding area has been in range, if the mes-
sage remains even after restarting the en- gine, please contact a MITSUBISHI
MOTORS Authorized Service Point.Handling of the sensor
The sensor (A) is located inside the wind-
screen as shown in the illustration.
The sensor is shared in the following sys-
tems:
z FCM
z Lane Departure Warning (LDW)
z Automatic High-Beam (AHB)
CAUT,ONz To maintain proper performance of the
FCM, LDW and AHB;

CAUT,ON

Laser warning label
Forward Collision Mitigation System (FCM)*
7-752**(20(1Starting and driving7

Ultrasonic misacceleration Mitigation System (UMS)*
The Ultrasonic misacceleration Mitigation System (UMS) operates to prevent sudden starts and mitigate collision-caused damages by suppress- ing the motor output for up to approximately 5 seconds when the system judges that the system is detected the vehicle or obstacles within ap-
proximately 4 m in front and behind your vehicle and judges that accelerator pedal was depressed promptly and too strongly such as misopera-
tion of it. This system operates when the vehicle is at stop or is moving forward or backward at less than approximately 10 km/h.
When the UMS operates, the warning display appears on the information screen of the multi information display, and the buzzer sounds intermit- tently.
The UMS ON/OFF is switched in conjunction with the ON/OFF state of the Forward Collision Mitigation (FCM). (Vehicles equipped with
FCM)SituationOperation displayBuzzerWhen an obstacle is detected in front of your vehicle with the
select position in the “D”, if the accelerator pedal is depressed promptly and too strongly, the motor output is suppressed forup to approximately 5 seconds.

Intermittent
beeping soundWhen an obstacle is detected behind your vehicle with the se-
lector lever in the “R” position, if the accelerator pedal is de-
pressed promptly and too strongly, the motor output is sup- pressed for up to approximately 5 seconds.
