2020 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

NOTEzThe foot/face air flow ratio can be adjusted with the mode selection in the “” position and the foot/demister air flow ratio can be adjusted with the mode
selection in the “
” position.
For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.
On vehicles equipped with the Smartphone-link Display Audio (SDA) or the Smartphone-link Display Audio (SDA) navigation system, screen operations can be used to make the adjustment. Refer to the separate owner’s manual for details.

Ventilators
8-052**(20(1For pleasant driving8

Automatic climate control air conditioner
Cooling or heating can only be performed when ready indicator is illuminating. When the operation mode is ON, only the blower is available.NOTEz If the drive battery level display indicates 0, the cooling performance cannot be obtained even the air conditioner is turned on.
Refer to “Drive battery level display screen” on page 6-10.
z If the engine cannot be started due to fuel shortage, etc., the heating performance cannot be obtained even the air conditioner is turned on.
z While the drive battery is being charged, you can use the air conditioner.

Control panel1- Air conditioning switch
Automatic climate control air conditioner
8-062**(20(1For pleasant driving8

2- Driver’s side temperature control dial(LHD vehicles)
Passenger’s side temperature control dial (RHD vehicles)
3- AUTO switch
4- Passenger’s side temperature control dial (LHD vehicles)
Driver’s side temperature control dial
(RHD vehicles)5- MODE switch
6- Demister switch
7- Blower speed selection switch
8- SYNC switch
9- Rear window demister switch o p. 6-73
10- Air selection switch 11- OFF switch
12- Driver’s side temperature display (LHD vehicles) o p. 8-09
Passenger’s side temperature display
(RHD vehicles) o p. 8-0913- Mode selection display
14- Blower speed display
15- SYNC indicator
16- Passenger’s side temperature display (LHD vehicles) o p. 8-09
Driver’s side temperature display (RHD
vehicles) o p. 8-09
Automatic climate control air conditioner
8-072**(20(1For pleasant driving8

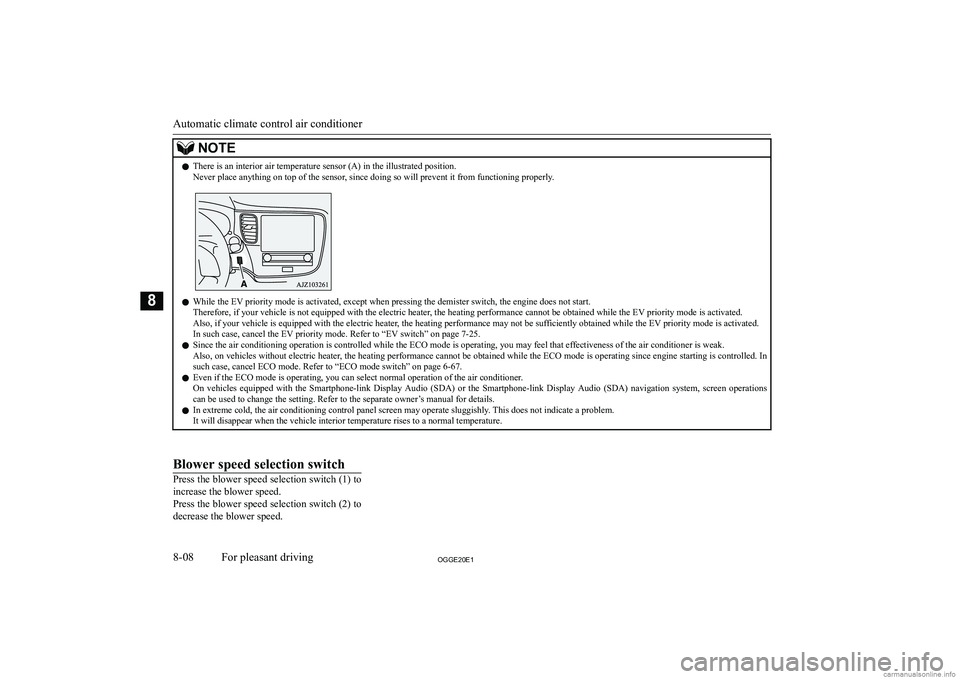

NOTEzThere is an interior air temperature sensor (A) in the illustrated position.
Never place anything on top of the sensor, since doing so will prevent it from functioning properly.
z While the EV priority mode is activated, except when pressing the demister switch, the engine does not start.
Therefore, if your vehicle is not equipped with the electric heater, the heating performance cannot be obtained while the EV priority mode is activated.
Also, if your vehicle is equipped with the electric heater, the heating performance may not be sufficiently obtained while the EV priority mode is activated.
In such case, cancel the EV priority mode. Refer to “EV switch” on page 7-25.
z Since the air conditioning operation is controlled while the ECO mode is operating, you may feel that effectiveness of the air conditioner is weak.
Also, on vehicles without electric heater, the heating performance cannot be obtained while the ECO mode is operating since engine starting is controlled. In such case, cancel ECO mode. Refer to “ECO mode switch” on page 6-67.
z Even if the ECO mode is operating, you can select normal operation of the air conditioner.
On vehicles equipped with the Smartphone-link Display Audio (SDA) or the Smartphone-link Display Audio (SDA) navigation system, screen operations
can be used to change the setting. Refer to the separate owner’s manual for details.
z In extreme cold, the air conditioning control panel screen may operate sluggishly. This does not indicate a problem.
It will disappear when the vehicle interior temperature rises to a normal temperature.

Blower speed selection switch
Press the blower speed selection switch (1) to
increase the blower speed.
Press the blower speed selection switch (2) to decrease the blower speed.Automatic climate control air conditioner
8-082**(20(1For pleasant driving8

The selected blower speed (A) will be shownin the display.
1- Increase
2- Decrease
Temperature control dial
Turn the temperature control dial clockwise
to make the air warmer. Turn it anticlockwise to make the air cooler.
The selected temperature (A) will be shown
in the display.NOTEz The temperature value of air conditioner is
switched in conjunction with outside temper-
ature display unit of the multi information
display.
Refer to “Changing the temperature unit” on
page 6-19.
z While the engine coolant temperature is low,
the temperature of the air from the heater will not change instantly, even if you have selected warm air with the dial.
To prevent the windscreen and windows
from fogging up, the ventilator mode will be
changed to “
” and the blower speed will
be reduced while the system is operating in the AUTO mode.
NOTEz When you feel that it is hot or cold to the
setting temperature, it is possible to adjust sothat you can feel more comfortable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
z When the temperature is set to the highest or
the lowest, the air selection and the air con-
ditioner will be automatically changed as follows.
Also, if the air selection is operated manual-
ly after an automatic changeover, manual operation will be selected.

For further information, we recommend youto consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Refer to “Customizing the air conditioning switch” on page 8-11.
Refer to “Customizing the air selection” on
page 8-10.
To control the driver’s side and the pas- senger’s side temperature independently
When the “SYNC” indicator (A) goes off by
turning the passenger’s side temperature con-
trol dial (B) or pressing the SYNC switch, the driver’s side and the passenger’s side temper- ature can be controlled independently.
NOTEz When the “SYNC” indicator (A) appears by
pressing the SYNC switch, the passenger’sside temperature will be controlled to thesame setting temperature as the driver’s side.
While the “SYNC” indicator (A) is dis-
played, if the driver’s side temperature con- trol dial is turned, the passenger’s side set-
ting temperature will be synchronized to the
driver’s side.Air selection switch
To change the air selection, simply press the
air selection switch.
z Outside air: Indication lamp (A) is OFF
Outside air is introduced into the passen-
ger compartment.
z Recirculated air: Indication lamp (A) is
ON
Air is recirculated inside the passenger
compartment.
CAUT,ONz Use of the recirculation position for exten-
ded time may cause the windows to fog up.NOTEz Normally, use the outside position to keep
the windscreen and side windows clear and
quickly remove fog or frost from the wind- screen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami- nated use the recirculation position. Switch
to the outside position periodically to in- crease ventilation so that the windows do notbecome fogged up.
z When the engine coolant temperature rises
to a certain level, the air selection is auto- matically switched to the recirculation posi-
tion and the indication lamp (A) comes on. At this time, the system will not switch tothe outside position even if the air selection
switch is pushed.
z When the outside air temperature is high, the
system will not switch to the outside posi- tion even when the air selection switch is
pressed or the air conditioner is operating. This is to protect the air conditioner com- pressor and is not a failure.Customizing the air selection
Functions can be changed as desired, as sta-
ted below.
Automatic climate control air conditioner
8-102**(20(1For pleasant driving8

zEnable automatic air selection control
When the AUTO switch is pressed, the
air selection switch is also controlled au- tomatically.
z Disable automatic air selection control
Even when the AUTO switch is pressed, the air selection switch is not controlled
automatically.
z Setting change method
Hold down the air selection switch for approximately 10 seconds or more.

zEnable automatic air conditioning con-
trol
When the AUTO switch is pressed, or the temperature control dial is set to the
minimum temperature, the air condition- ing switch is controlled automatically.
z Disable automatic air conditioning con-
trol
The air conditioning switch is not con- trolled automatically as long as the air
conditioning switch is not operated.
z Setting change method
Hold down the air conditioning switch
for approximately 10 seconds or more.
