3.Within 60 seconds of putting the opera-
tion mode in OFF, pull the turn signal lever towards you.
4. The headlamps will come on in the low-
beam setting for about 30 seconds. After
the headlamps go off, the headlamps can be turned on again in the low beam set-
ting for about 30 seconds by pulling the turn signal lever towards you within 60
seconds of putting the operation mode in OFF.
To turn on the headlamps again after 60
seconds of putting the operation mode in
OFF, repeat the process from step 1.
NOTEz While the coming home light function is op-
erating, perform one of the following opera-
tions to cancel the function.NOTE

Vehicle conditionSwitch position“1”“2”“2”

NOTEmake the adjustment. Refer to the separate
owner’s manual for details.
z It is possible to change the tone of a sound-
ing buzzer as the turn-signal lamps flash.
Refer to “Changing the turn-signal sound”
on page 6-21.Hazard warning flasher
switch
Use the hazard warning flasher switch when
the vehicle has to be parked on the road for
any emergency.
The hazard warning flashers can always be operated, regardless of the operation mode.Push the switch to turn on the hazard warning flashers, all turn-signal lamps flash continu-
ously. To turn them off, push the switch
again.
NOTEz If the switch is used for a long period while
the ready indicator is not illuminated, theauxiliary battery could go flat and the Plugin
Hybrid EV System could be impossible to start.
z While the hazard warning lamps are blinking
due to having manually pushed the switch,
the emergency stop signal system does not
operate.
Refer to “Emergency stop signal system” on page 7-38.ECO mode switch
ECO mode is an eco-driving support system
which automatically controls the Plug-in Hy- brid EV System and air conditioning system
to improve fuel efficiency.
When the ECO mode is active, your vehicle will slowly accelerate even when you press the accelerator pedal.
Refer to “Automatic climate control air con-
ditioner” on page 8-06.
The ECO mode starts working by pressing the ECO mode switch when the operationmode of the power switch is in ON. Push the
switch again and the ECO mode will cancel.
While the ECO mode is working, an ECO
mode indicator will be turned on.NOTEz Even if the ECO mode is selected, after put-
ting the operation mode of the power switchin OFF and then in ON again, the ECO
mode is set to OFF.
z Even if the ECO mode is operating, you can
select normal operation of the air condition-
er.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart- phone-link Display Audio (SDA) navigation
system, it is possible to change the setting by means of screen operations.
Refer to the separate owner’s manual for de- tails.
Hazard warning flasher switch
6-672**(20(1Instruments and controls6

Fog lamp switchFront fog lamp switch
The front fog lamps can be operated while
the headlamps or tail lamps are on. Turn the knob in the “ON” direction to turn on the
front fog lamps. An indication lamp in the in- strument cluster will also come on. Turn the knob in the “OFF” direction to turn off the
front fog lamps. The knob will automatically return to its original position when you re-
lease it.
NOTEz The front fog lamps are automatically turned
off when the headlamps or tail lamps are turned off. To turn the front fog lamps on again, turn the knob in the “ON” directionafter turning on the headlamps or tail lamps.NOTEz Do not use fog lamps except in conditions of
fog, otherwise excessive lamp glare maytemporarily blind oncoming vehicle drivers.Rear fog lamp switch
The rear fog lamp can be operated when the
headlamps or front fog lamps turn on.
An indication lamp in the instrument cluster comes on when the rear fog lamp is turned
on.

Turn the knob once in the “ON” direction to turn on the front fog lamps. Turn the knob once more in the “ON” direction to turn on
the rear fog lamp. To turn the rear fog lamp off, turn the knob once in the “OFF” direc- tion. Turn the knob once more in the “OFF”
direction to turn off the front fog lamps. The
knob will automatically return to its original
position when you release it.
NOTEz The rear fog lamp is automatically turned off
when the headlamps or front fog lamps are turned off.
z To turn the rear fog lamp on again, turn the
knob twice in the “ON” direction after turn- ing on the headlamps.Wiper and washer switchCAUT,ONz If the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze, which may hinder visibility. Warm
the glass with the defroster or rear window demister before using the washer.Windscreen wipersNOTEz To ensure a clear rearward view, the rear
window wiper will automatically perform
several continuous operations if the selector lever is put in the “R” position while the windscreen wipers are operating.
Refer to “Rear window wiper and washer” on page 6-71.
The windscreen wipers can be operated with
the operation mode of the power switch in ON or ACC.
Fog lamp switch
6-682**(20(1Instruments and controls6

If the blades are frozen to the windscreen or
rear window, do not operate the wipers until the ice has melted and the blades are freed,
otherwise the wiper motor may be damaged.MIST-Misting function
The wipers will operate once.OFF-OffAUTO-Auto-wiper control
Rain sensor
The wipers will automatically
operate depending on the degree
of wetness on the windscreen.LO-SlowHI-Fast
Rain sensor
Can only be used when the ignition switch or
the operation mode is in ON.
If the lever is put in the “AUTO” position,
the rain sensor (A) will detect the extent ofrain (or snow, other moisture, dust, etc.) andthe wipers will operate automatically.
Keep the lever in the “OFF” position if the
windscreen is dirty and the weather is dry.
Wiper operation under these conditions can scratch the windscreen and damage the wip-
ers.CAUT,ONz With the ignition switch or the operation
mode in ON and the lever in the “AUTO”
position, the wipers may automatically oper-
ate in the situations described below.
If your hands get trapped, you could suffer injuries or the wipers could malfunction. Be sure to put the operation mode in OFF, or move lever to the “OFF” position to deacti-
vate the rain sensor.

NOTEzThe wipers may automatically operate when
things such as insects or foreign objects are
affixed to the windscreen on top of the rain sensor or when the windscreen is frozen.
Objects affixed to the windscreen will stop
the wipers when the wipers cannot remove them. To operate the wipers again, move the
lever in the “LO” or “HI” position.
Also, the wipers may operate automatically due to strong direct sunlight or electromag-
netic wave. To stop the wipers, place the lev-
er in the “OFF” position.
z Contact a
MITSUBISHI MOTORS Author-
ized Service Point when replacing the wind- screen or reinforcing the glass around the
sensor.

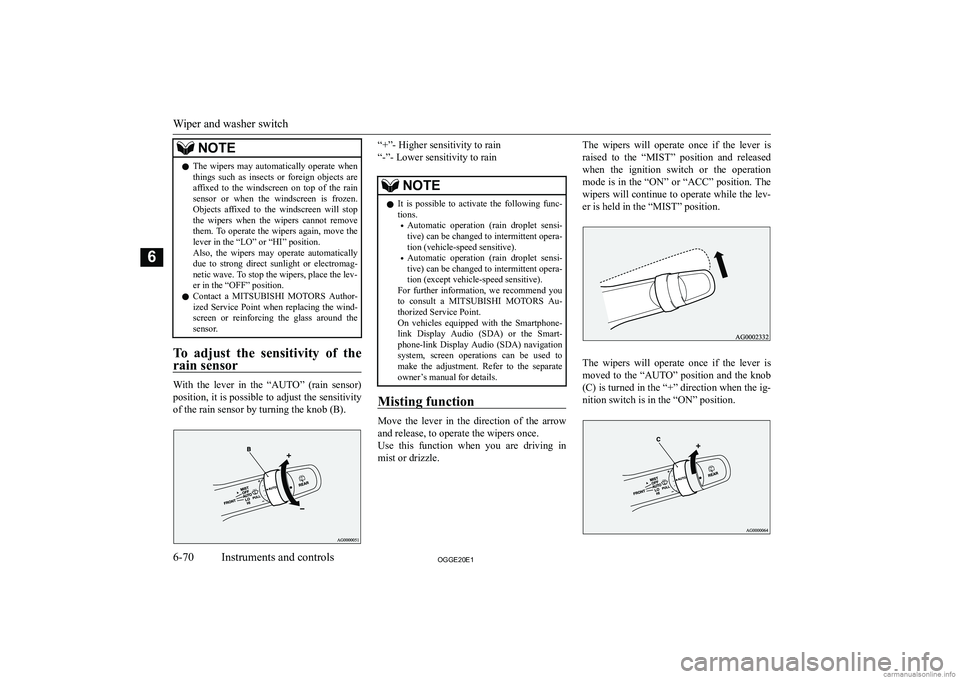

To adjust the sensitivity of the
rain sensor
With the lever in the “AUTO” (rain sensor)
position, it is possible to adjust the sensitivity of the rain sensor by turning the knob (B).
“+”- Higher sensitivity to rain
“-”- Lower sensitivity to rainNOTEz It is possible to activate the following func-
tions.

Windscreen washer
The windscreen washer can be operated with
the operation mode of the power switch in ON or ACC.
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you. When the wipers are not in operation or in in-
termittent operation, by pulling the lever to- wards you, the wipers will operate several times while the washer fluid is being sprayed.
Then about 6 seconds later, wipers operate
once more.
On vehicles equipped with a headlamp wash-
er, while the headlamps are on, the headlamp washer will operate once together with the
windscreen washer. Also, by releasing the lever soon after pulling
it towards you, the washer fluid will be sprayed several times while the wipers are
operating several times. (Intelligent washer) Then about 6 seconds later, wipers operate
once more.
Intelligent washer will stop operating with
any operation of the lever.CAUT,ONz If the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze resulting in poor visibility. Heat the glass with the defroster or demister before
using the washer.NOTEz It is possible to modify functions as follows:

-The washer fluid will be sprayed
onto the rear window when the
knob is turned fully in either di-
rection.
The wipers operate automatical-
ly several times while the wash-
er fluid is being sprayed.NOTEz The rear window wiper will automatically
perform several continuous operations if theselector lever is put in the “R” position while
the windscreen wipers or the rear window wiper is operating. (automatic operation
mode)
After the automatic operation, the rear win- dow wiper will stop operating if the knob is
in the “OFF” position. If the knob is in the “INT” position, the rear window wiper will
return to the intermittent operation.
It is possible to set the rear window wiper to perform the automatic operation only if theselector lever is put in the “R” position while
the rear window wiper is operating with the
knob in the “INT” position.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart- phone-link Display Audio (SDA) navigation
system, screen operations can be used to
make the adjustment.
Refer to the separate owner’s manual for de- tails.
z If the knob is in the “OFF” position, turn the
knob to the “INT” position twice quickly tooperate the rear window wiper continuously.
(continuous operation mode)
Turn the knob to the “OFF” position to stop the rear window wiper continuous operation.NOTEz The interval for intermittent operation can be
adjusted.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with the Smartphone- link Display Audio (SDA) or the Smart-
phone-link Display Audio (SDA) navigation
system, screen operations can be used to
make the adjustment. Refer to the separate
owner’s manual for details.Headlamp washer switch
The headlamp washer can be operated with
the operation mode in ON or ACC and the lamp switch at the “
” position.
Push the button once and the washer fluid will be sprayed on to the headlamps.
