Multi Around Monitor*
The Multi Around Monitor is a system that shows the view combined with four cameras,i.e., “Front-view camera”, “Side-view cam- eras (right and left)” and “Rear-view camera”
on a screen of the DISPLAY AUDIO, the Smartphone-link Display Audio (SDA) or the
Smartphone-link Display Audio (SDA) navi- gation system. It assists drivers to park theirvehicles in parking spaces and to parallel
park their vehicles.CAUT,ONz The Multi Around Monitor is an assistance
system that enables the driver to check the safety around the vehicle. The range where
the image can be displayed is limited. Do not place too much confidence in the Multi
Around Monitor and try to drive carefully in
the same way as for the vehicle not equipped with the Multi Around Monitor.
Its range of view is limited, so you should
not overly depend on it. Please drive just as
carefully as you would if the vehicle did not have the Multi Around Monitor.CAUT,ONz Be sure to visually confirm safety around the
vehicle with your own eyes. Especially, the four corners of the vehicle become blind spots where an object is not displayed on the
Multi Around Monitor. Do not depend en-
tirely on the Multi Around Monitor.
z Do not use the Multi Around Monitor with
the door mirrors folded in and/or with the
doors and/or the tailgate open. It will prevent
the Multi Around Monitor from displaying the appropriate range.Location of each cameras
The cameras are integrated into the location
as shown below.
A:Rear-view cameraB:Front-view cameraC:Side-view camera:ARN,NGz Do not install anything which will disturb
the operation of the cameras around thelocation of them.
Multi Around Monitor*
7-1092**(20(1Starting and driving7

Range of view of the MultiAround Monitor
The range of view of the Multi Around Mon- itor cameras is limited to the area shown in
the illustrations. It cannot show around the
both sides and the lower part of the front and
rear bumpers, etc. While driving, be sure to
visually confirm safety around the vehicle.
Range of view of the Multi
Around Monitor camerasA:Front-view cameraB:Side-view camera (Right)C:Side-view camera (Left)D:Rear-view cameraTypes of views of the Multi
Around Monitor
Two different types of views are displayed on the left side and the right side respectively.Multi Around Monitor*
7-1102**(20(1Starting and driving7

Bird’s eye-view/Rear-view mode
Views of the surroundings of the vehicle and
behind the vehicle are displayed.
Side-view/Rear-view mode
Views of the passenger’s side of the vehicle and behind the vehicle are displayed.
Bird’s eye-view/Front-view
mode
Views of the surroundings of the vehicle and
the front of the vehicle are displayed.
Side-view/Front-view mode
Views of the passenger’s side of the vehicle and the front of the vehicle are displayed.
CAUT,ONz The cameras have special lenses that can
make objects shown on the screen appear to be closer or further away than they actually
are.NOTEz Because the cameras have a special lens, the
lines on the ground between parking spaces
may not look parallel on the screen.
z In the following situations, the screen indi-
cation may be difficult to see. There is no
abnormality.

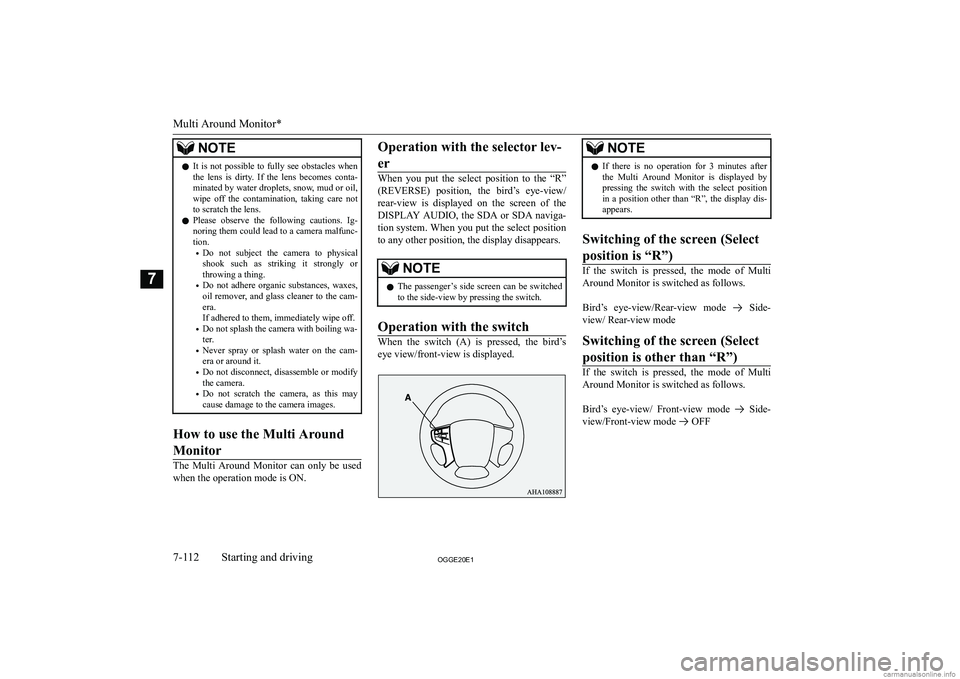

NOTEzIt is not possible to fully see obstacles when
the lens is dirty. If the lens becomes conta-minated by water droplets, snow, mud or oil,
wipe off the contamination, taking care not
to scratch the lens.
z Please observe the following cautions. Ig-
noring them could lead to a camera malfunc- tion.

NOTEzWhen you put the select position to the “R”
(REVERSE) position with the front-viewdisplayed on the driver’s side screen, the
driver’s side screen switches to the rear-view
mode. When you put the select position to any other position, the driver’s side screen
switches to the front-view mode.
z When the switch is pressed at the vehicle
speed of approximately 10 km/h (6 mph) or
higher, only the side-view can be displayed on the passenger’s side screen.
z The front-view will not be displayed when
the vehicle speed exceeds approximately
10 km/h (6 mph).
z The display of the view may be delayed dur-
ing switching of the screen.How to read the screen
In any mode other than the Bird’s eye-view
mode, the lines in the screen give the follow- ing information. Use them only as a guide.
CAUT,ONz When you accidentally hit the camera and its
circumference against something, the view
and the lines in the screen may not be dis- played correctly. Be sure to have it inspected
by a MITSUBISHI MOTORS Authorized
Service Point.Front-view mode
Reference lines for the distance and the vehi-
cle width and upper surface of the front
bumper (A) are displayed on the screen.
z The Red line (B) indicates approximate-
ly 50 cm from the front edge of the front
bumper.
z The Two Green lines (C) indicate the ap-
proximate vehicle width.
z The Orange line (D) indicates an expec-
ted course when the vehicle moves for-
ward with the steering wheel turned. It
disappears when the steering wheel is in the neutral position.
z The approximate distance from the vehi-
cle body is as follows:
1- Approximately 100 cm from the
front edge of the front bumper
NOTEz When the expected course lines are dis-
played in the front-view, the expected course lines are also displayed in the bird’s eyeview(Front: solid line, Rear: broken line).Rear-view mode
Reference lines for the distance and the vehi-
cle width and upper surface of the rear bump- er (A) are displayed on the screen.
z The Red line (B) indicates approximate-
ly 50 cm behind the rear edge of the rear
bumper.
z The Two Green lines (C) indicate the ap-
proximate vehicle width.
z The Orange line (D) indicates an expec-
ted course when the vehicle is reserved
with the steering wheel turned. It disap-
pears when the steering wheel is in the
neutral position.
z The approximate distance from the vehi-
cle body is as follows:
Multi Around Monitor*
7-1132**(20(1Starting and driving7 Check surroundings for safety.

1-Approximately 100 cm from the rear
edge of the rear bumper
2- Approximately 200 cm from the rear
edge of the rear bumper
CAUT,ONz Due to the number of people in the vehicle,
the fuel quantity, the weight and positioning of luggage, and/or the condition of the roadsurface, the lines in the view from the rear-
view camera may not be accurately posi- tioned relative to the actual road.
Use the reference lines only as a guideline,
and always do a safety check of your behind and surroundings directly while driving.NOTEz When the expected course lines are dis-
played in the rear-view, the expected course lines are also displayed in the bird’s eye-view (Front: broken line, Rear: solid line).Errors between the display and
the actual road surface
The reference lines for distance and vehicle
width are based on a level, flat road surface. In the following cases, errors are produced between the display reference lines and the distance on the actual road surface.
When the rear of the vehicle is weighed
down with the weight of passengers and luggage in the vehicle
The reference lines are displayed closer than
the actual distance.
Therefore when there is an obstacle on the
upward slope, it appears farther than its ac- tual position.A:Actual objectsB:Objects shown on the screen
When there is an upward slope behind thevehicle
The reference lines are displayed closer than the actual distance.
Multi Around Monitor*
7-1142**(20(1Starting and driving7Check surroundings for safety.

Therefore when there is an obstacle on the
upward slope, it appears farther than its ac-
tual position.A:Actual objectsB:Objects shown on the screen
When there is a downward slope behind the vehicle
The reference lines are displayed farther than
the actual distance.
Therefore when there is an obstacle on the
downward slope, it appears closer than its ac-
tual position.A:Actual objectsB:Objects shown on the screen
When solid objects are located close to the
vehicle
When solid objects are located close to the vehicle, the displayed distance on the screen
may differ from the actual distance.
Because the reference lines do not contact the body of the truck, it looks as if it would not
hit the vehicle in following illustration.
However, the vehicle may hit the truck be-
cause the body of the truck strays onto the course in reality.
Multi Around Monitor*
7-1152**(20(1Starting and driving7

When approaching to solid objects
The reference lines for distance and vehicle
width are intended to indicate the distance to a flat object such as a level, flat road surface. This may make the distance to a projecting
object shown on the screen differ from the
actual distance to the projecting object. Do not use them as a guide for distances to solid
objects.
Example: Example: On the screen the point B appears the nearest, then the point C and A in
order of distance. The points A and B actual-
ly are the same distances from the vehicle,
and the point C is farther off than the points
A and B.Side-view mode
Reference lines for the vehicle width and the
front end of the vehicle are displayed on the screen.
1- Approximate vehicle width including the
door mirror.
2- Approximate location of the axle centre
of the front wheel.
3- Approximate 50 cm from the front edge
of the front bumper.Bird’s eye-view mode
An overhead view in which the vehicle islooked down is displayed so that you can
easily identify the location of your vehicle
and the course to enter the parking space.Multi Around Monitor*
