2020 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

Tyre pressure monitoring sys-tem warning lamp/display
When the operation mode is put in ON, the tyre pressure monitoring system warning
lamp normally illuminates and goes off a few
seconds later.

If one or more of the vehicle tyres is signifi- cantly under-inflated, the warning lamp will
remain illuminated while the operation mode is in ON.
Refer to “If the warning lamp/display illumi-
nates while driving” on page 7-94 and take
the necessary measures.
NOTEz In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.CAUT,ONz If the warning lamp does not illuminate
when the operation mode is put in ON, it
means that the tyre pressure monitoring sys- tem (TPMS) is not working properly. Have
the system inspected by a MITSUBISHI
MOTORS Authorized Service Point.
In such situations, a malfunctioning of the system may be preventing the monitoring of the tyre pressure. Avoid sudden braking,sharp turning and high-speed driving.
z If a malfunction is detected in the tyre pres-
sure monitoring system (TPMS), the warn-
ing lamp will blink for approximately 1 mi- nute and then remain continuously illumina-
ted. The warning lamp will issue further
warnings each time the Plug-in Hybrid EV
System is restarted as long as the malfunc-
tion exists.
Check to see whether the warning lamp goes off after few minutes driving.
If it then goes off during driving, there is no
problem.
However, if the warning lamp does not go off, or if it blinks again when the Plug-in
Hybrid EV System is restarted, have the ve-
hicle inspected by a MITSUBISHI
MOTORS Authorized Service Point.
In such situations, a malfunctioning of the system may be preventing the monitoring of
the tyre pressure. For safety reasons, when the warning lamp appears while driving,
avoid sudden braking, sharp turning and high-speed driving.NOTEz In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.
Each tyre, including the spare (if so equip-
ped), should be checked monthly when cold and inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the tyre inflation pressure label. (If your vehiclehas tyres of a different size than the size indi-
cated on the tyre inflation pressure label, you should determine the proper tyre inflationpressure for those tyres.)
As an added safety feature, your vehicle has
been equipped with the tyre pressure moni- toring system (TPMS) that illuminates a low
tyre pressure telltale when one or more of
your tyres is significantly under-inflated.
Accordingly, when the low tyre pressure tell- tale illuminates, you should stop and checkyour tyres as soon as possible, and inflate
them to the proper pressure. Driving on a sig- nificantly under-inflated tyre causes the tyre
to overheat and can lead to tyre failure.
Tyre pressure monitoring system (TPMS)
7-932**(20(1Starting and driving7

Under-inflation also reduces fuel efficiencyand tyre tread life, and may affect the vehi-
cle’s handling and stopping ability.
Please note that the tyre pressure monitoring system (TPMS) is not a substitute for proper
tyre maintenance, and it is the driver’s re- sponsibility to maintain correct tyre pressure,even if under-inflation has not reached the
level to trigger illumination of the tyre pres-
sure monitoring system (TPMS) low tyre pressure telltale.
Your vehicle has also been equipped with a
warning lamp to indicate when the system is
not operating properly.
The warning lamp is combined with the low
tyre pressure telltale.
When the system detects a malfunction, the telltale will flash for approximately one mi-nute and then remain continuously illumina-
ted. This sequence will continue upon subse- quent vehicle start-ups as long as the mal-
function exists.
When the warning lamp is illuminated, the
system may not be able to detect or signal low tyre pressure as intended.The tyre pressure monitoring system (TPMS)
malfunctions may occur for a variety of rea- sons, including the installation of replace- ment or alternate tyres or wheels on the vehi-cle that prevent the tyre pressure monitoring
system (TPMS) from functioning properly. Always check the tyre pressure monitoring
system (TPMS) malfunction telltale after re- placing one or more tyres or wheels on yourvehicle to ensure that the replacement or al- ternate tyres and wheels allow the tyre pres-
sure monitoring system (TPMS) to continue to function properly.If the warning lamp/display il-
luminates while driving
1. If the warning lamp illuminates, avoid
hard braking, sharp steering manoeuvres
and high speeds. You should stop and adjust the tyres to the proper inflationpressure as soon as possible. Adjust the spare tyre at the same time. Refer to
“Tyres” on page 11-09.
NOTEz In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.
z When inspecting or adjusting the tyre pres-
sure, do not apply excessive force to the
valve stem to avoid breakage.NOTEz After inspecting or adjusting the tyre pres-
sure, always reinstall the valve cap on the
valve stem.
Without the valve cap, dirt or moisture could
get into the valve, resulting in damage to the tyre inflation pressure sensor.
z Do not use metal valve caps, which may
cause a metal reaction, resulting in corrosion and damage of the tyre inflation pressure
sensors.
z Once adjustments have been made, the
warning lamp will go off after a few minutesof driving.
2. If the warning lamp remains illuminated
after you have been driving for about 10
minutes after you adjust the tyre infla- tion pressure, one or more of the tyresmay have a puncture. Inspect the tyreand if it has a puncture, have it repaired
by a MITSUBISHI MOTORS Author-
ized Service Point as soon as possible.
:ARN,NGz If the warning lamp/display illuminates
while you are driving, avoid hard brak- ing, sharp steering manoeuvres and high speeds.
Driving with an under-inflated tyre ad-
versely affects vehicle performance and can result in an accident.
Tyre pressure monitoring system (TPMS)
7-942**(20(1Starting and driving7

CAUT,ONzThe warning lamp/display may not illumi-
nate immediately in the event of a tyre blow- out or rapid leak.NOTEz To avoid the risk of damage to the tyre infla-
tion pressure sensors, have any punctured
tyre repaired by a MITSUBISHI MOTORS
Authorized Service Point. If the tyre repair is
not done by a MITSUBISHI MOTORS Au-
thorized Service Point, damage to the tyre
inflation pressure sensor is not covered by your warranty.
z Do not use an aerosol puncture-repair spray
on any tyre.
Such a spray could damage the tyre inflation
pressure sensors.
Have any puncture repaired by a MITSUBISHI MOTORS Authorized Serv-
ice Point.
z Using the tyre repair kit may damage the
tyre inflation pressure sensor. The vehicle
must promptly be inspected and repaired by a MITSUBISHI MOTORS Authorized Serv-ice Point after using the tyre repair kit.
The tyre pressure monitoring system (TPMS)
may not work normally in the following cir-
cumstances:
z A wireless facility or device using the
same frequency is near the vehicle.
z Snow or ice is stuck inside the fenders
and/or on the wheels.
z The tyre inflation pressure sensor’s bat-
tery is dead.
z Wheels other than
MITSUBISHI
MOTORS GENUINE wheels are being
used.
z Wheels that are not fitted with tyre infla-
tion pressure sensors are being used.
z Wheels whose ID codes are not memo-
rized by the vehicle are used.
z A window tint that affects the radio
wave signals is installed.NOTEz Tyre inflation pressures vary with the ambi-
ent temperature. If the vehicle is subjected to
large variations in ambient temperature, the tyre inflation pressures may be underinflated
(causing the warning lamp/display come on) when the ambient temperature is relatively low. If the warning lamp/display comes on,
adjust the tyre inflation pressure.Whenever the tyres and wheels
are replaced with new ones
If new wheels with new tyre inflation pres- sure sensors are installed, their ID codes must
be programmed into the tyre pressure moni-
toring system. Have tyre and wheel replace-
ment performed by a MITSUBISHI
MOTORS Authorized Service Point to avoid
the risk of damaging the tyre inflation pres- sure sensors. If the wheel replacement is not
done by a MITSUBISHI MOTORS Author-
ized Service Point, it is not covered by your warranty.
CAUT,ONz The use of non-genuine wheels will prevent
the proper fit of the tyre inflation pressuresensors, resulting air leakage or damage of
the sensors.Reset of low tyre pressure
warning threshold
The threshold is set based on the tyre pres- sure which the reset function is executed by
following procedure.
Tyre pressure monitoring system (TPMS)
7-952**(20(1Starting and driving7

1.Operate the multi-information display
switch to switch the information screen
to the menu screen.
Refer to “Multi information display switch” on page 6-05.
Refer to “Changing the function set- tings” on page 6-16.
2. Lightly press the multi-information dis-
play switch to select “
” (reset
of low tyre pressure warning threshold).
3. Hold down the multi-information dis-
play switch for about 3 seconds or more, the buzzer sounds.
4. The warning lamp start flashing slowly.
5. Drive for a while. The reset is completed
if the warning lamp goes out.
NOTEz The reset function should be executed every
time when the tyre pressure or tyre rotationis adjusted.
z The reset function should be executed when
the tyre is cold. If it is executed when the
tyre is warm (e.g. after driving), there may be a low tyre pressure warning earlier than
usual.Tyre ID set change
In case that 2 sets of tyre inflation pressure
sensor ID are registered in the receiver, the
valid tyre ID set can be changed by following
procedure. 1. Operate the multi-information display
switch to switch the information screen
to the menu screen.
Refer to “Multi information display switch” on page 6-05.
Refer to “Changing the function set-
tings” on page 6-16.
2. Lightly press the multi-information dis-
play switch to select “
” (tyre
ID set change).
3. Hold down the multi-information dis-
play switch for about 3 seconds or more. The setting changes the selected tyre ID set.
4. The valid tyre ID set is changed, and the
number of the tyre pressure monitoring
system (TPMS) SET indicator is changed.
NOTEz Each time this procedure is done, the tyre ID
set is changed. (1 - 2 - 1 - 2

NOTEzWhen changing the tyre ID set, the reset
function of low tyre pressure warning threshold is automatically started. (The
warning lamp starts flashing slowly.) If the tyre is warm at this time, the reset function
should be executed again when the tyre is cold.Reversing sensor system*
This system operates when you are backing
the vehicle. It uses corner and back sensors to
detect an obstacle and the information screen in the multi information display and the buz-
zer to inform you of the approximate distance
to the obstacle.
CAUT,ONz The reversing sensor system assists you in
determining the approximate distance be-
tween the vehicle and an obstacle located
behind the vehicle. It has limitations in terms
of detectable areas and objects, and may not properly detect some objects. Therefore, do
not place excessive confidence in the revers- ing sensor system and operate the vehicle ascarefully as you would do with a vehicle not equipped with this system.CAUT,ONz Make sure to check the surroundings with
your own eyes to ensure safety. Do not oper- ate the vehicle by relying on the reversing
sensor system alone.Obstacle detection areas
The detection areas of the corner and back
sensors are limited to those shown in the il- lustration. Moreover, the sensors are unable
to detect low or thin objects or objects near
the rear bumper. Thus, make sure to check
the surroundings as you operate the vehicle in
a safe manner.
Corner and back sensor loca- tions
There are two corner sensors (A) at the cor-ners of the rear bumper, and two back sensors
(B) in the centre of the rear bumper.
Reversing sensor system detec-
tion areas
Depending on whether the vehicle is equip-
ped with a towing bar, you can change the re-
versing sensor system between the standard
mode and the towing bar mode. The towing
bar mode changes the system to exclude the area in which the towing bar is mounted from the detection areas.
Vehicles without a towing bar
The detection areas are within approximately
60 cm (A) from the corner sensors, 125 cm
(B) from the back sensors.
Vehicles with a towing bar
Reversing sensor system*
7-972**(20(1Starting and driving7

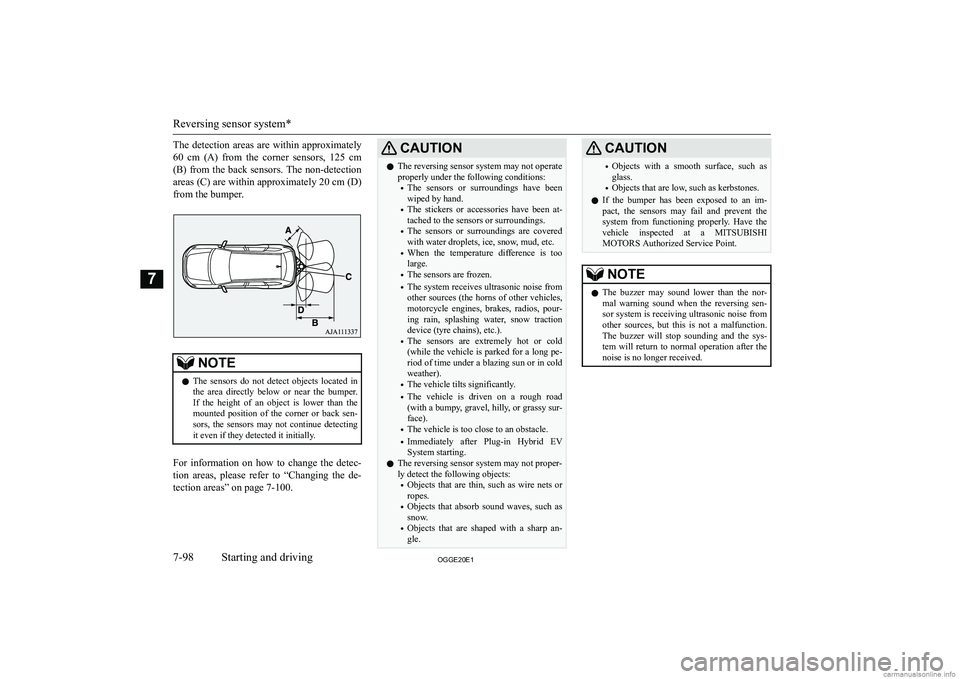

The detection areas are within approximately60 cm (A) from the corner sensors, 125 cm
(B) from the back sensors. The non-detection areas (C) are within approximately 20 cm (D)
from the bumper.NOTEz The sensors do not detect objects located in
the area directly below or near the bumper.
If the height of an object is lower than the mounted position of the corner or back sen-
sors, the sensors may not continue detecting it even if they detected it initially.
For information on how to change the detec-
tion areas, please refer to “Changing the de- tection areas” on page 7-100.
CAUT,ONz The reversing sensor system may not operate
properly under the following conditions:

To operate
To operate the system, move the selector lev-
er to the “R” position while the operation mode is put in ON. When the reversing sen-
sor system is operated, the reversing sensor
system operation indication lamp (A) will turn on. To stop the operation, push the “SO-
NAR” switch; the reversing sensor system operation indication lamp (A) goes out.
NOTEz Only when the select position is the “R” po-
sition, the reversing sensor system can be
operated or be stopped by using the “SO- NAR” switch.Warning for obstacles
If there is an obstacle behind the vehicle, a
warning will be issued with the information
screen in the multi information display and a warning buzzer.
1- Corner sensor (left)
2- Back sensor
3- Corner sensor (right)
Corner sensor
Vehicle to obstacle distanceWarning display/sound cycleApprox. 60 to 40 cmIntermittentApprox. 40 to 30 cmFast intermittentWithin approx. 30 cmContinuousBack sensor (vehicles without a towing
bar)Vehicle to obstacle distanceWarning display/sound cycleApprox. 125 to 80 cmIntermittentApprox. 80 to 40 cmFast intermittentWithin approx.40 cmContinuous
Back sensor (vehicles with a towing bar)
Vehicle to obstacle distanceWarning display/sound cycleApprox. 125 to 100 cmIntermittentApprox. 100 to 60 cmFast intermittentWithin approx.60 cmContinuousCAUT,ONzThe distances given are to be used for refer-
ence only, as errors may be caused by vari- ous factors, such as temperature, humidity,
or the shape of the obstacles.
Reversing sensor system*
7-992**(20(1Starting and driving7

NOTEzWhen the sensors are detecting different ob-
stacles at the same time, the informationscreen in the multi information display indi-
cates the directions of the obstacles each sensors are detecting. However, closer obsta-
cles are given priority over other detected
obstacles and the warning buzzer sounds to
inform you of closer obstacles.Changing the detection areas
The detection areas can be changed as fol-
lows:
Vehicles with a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and release it. The buzzer sounds twice to indi-cate that the detection area has been changed.
Vehicles without a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds once to indicate that the detection area has been changed.
NOTEz The detection area will not change if you
keep the “SONAR” switch pushed for 10
seconds or more.
z After pushing the “SONAR” switch, revers-
ing sensor system operation differs accord- ing to the detection area setting.
