2020 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

Vehicle labeling................................................................................. 12-02
Vehicle dimensions........................................................................... 12-04
Vehicle performance......................................................................... 12-05 Vehicle weight................................................................................... 12-05
Engine specifications........................................................................ 12-06
Charging system specifications.........................................................12-07
Electric motor specifications.............................................................12-08
Low voltage electrical system........................................................... 12-08Tyres and wheels............................................................................... 12-08
Fuel consumption.............................................................................. 12-09
Capacity............................................................................................ 12-106pecifications
2**(20(112

Vehicle labeling
Vehicle identification number
The vehicle identification number is stamped on the bulkhead as shown in the illustration.
Vehicle information code plate
The vehicle information code plate is riveted as shown in the illustration.
The plate shows the model code, engine
model, transaxle model and body colour
code, etc.
Please use this number when ordering re- placement parts.
1- Model code
2- Engine model code
3- Transaxle model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code
Vehicle identification number plate (RHD vehicles only)
The vehicle identification number is stamped on the plate riveted to the left front corner of
the instrument panel pad. It is visible from outside of the vehicle through the wind-
screen.
Vehicle labeling
12-022**(20(1Specifications12

Engine model/number
The engine model and number are stamped
on the engine cylinder block as shown in the illustration.
*: Front of the vehicle
Electric motor model/number
The electric motor model and number are
stamped as shown in the illustration.
1- Front motor
2- Rear motor
*: Front of the vehicle
Vehicle labeling
12-032**(20(1Specifications12

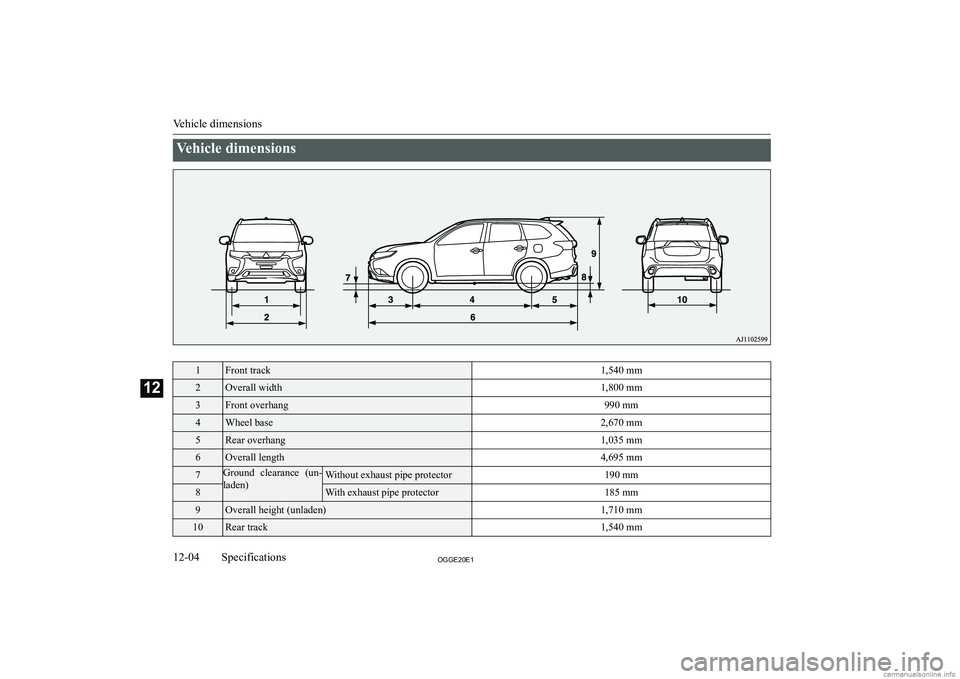

Vehicle dimensions1Front track1,540 mm2Overall width1,800 mm3Front overhang990 mm4Wheel base2,670 mm5Rear overhang1,035 mm6Overall length4,695 mm7Ground clearance (un-
laden)Without exhaust pipe protector190 mm8With exhaust pipe protector185 mm9Overall height (unladen)1,710 mm10Rear track1,540 mm
Vehicle dimensions
12-042**(20(1Specifications12

Minimum turning radiusBody5.76 mWheel5.3 m

Vehicle performanceMaximum speed170 km/h

Vehicle weightItemExcept for S EditionS EditionLHDRHDLHDRHD
Kerb weight
Without op-tional parts1,890 kg1,900 kgWith full op- tional parts1,955 kg1,953 kg1,965 kg1,963 kgMaximum gross vehicle weight2,390 kgMaximum axle
weightFront1,200 kgRear1,255 kg, 1,365 kg *Maximum towable
weightWith brake1,500 kgWithout brake750 kgMaximum trailer-nose weight75 kgMaximum roof load80 kg* : In case of trailer towing
Vehicle performance
12-052**(20(1Specifications12

ItemExcept for S EditionS EditionLHDRHDLHDRHDSeating capacity5 persons*: In case of trailer towingNOTEz Trailer specifications indicate the manufacturer’s recommendation.

Engine specificationsEngine model4B12No. of cylinders4 in lineTotal displacement2,360 ccBore88.0 mmStroke97.0 mmCamshaftDouble overheadMixture preparationElectronic injectionMaximum output (EEC net)99 kW/4,500 rpmMaximum torque (EEC net)211 N

Charging system specifications
Normal charging system
Rated input voltageAC 230V (single phase)Rated input frequency50 Hz/60 HzMaximum rated current10 A*1
, 8 A *1Maximum power consumption3.6 kVA *2
Applicable standards
Charging cable
(with connector
and control box)EN61851-1
IEC61851-1
IEC62196-1On board chargerEN61851-21
IEC61851-21Leakage current sensitivity in cable control box20 mA
Charging mode
Based on IEC61851-1
Mode 2/Case B *1
Mode 3/Case C *2IP degreesIP44: When a charge connector is connected
IP55: When charging lid is closed and vehicle is moving
Quick charging system
Applicable standardsIEC62196-1 CHAdeMOMaximum input current60 A
IP degrees
IP44: When a charge connector is connected
IP55: When the charging lid is closed and the vehicle is moving*1: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)

Charging system specifications
12-072**(20(1Specifications12

Electric motor specificationsItemFront MotorRear MotorElectric motor modelS61Y61Maximum output (ECE net)60 kW70 kWMaximum torque137 N
