2020 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

The tailgate release (see illustration) is moun-ted on the tailgate.
You and your family should familiarise your-
selves with the location and operation of the tailgate release.
To open
1. Open the lid (A) inside of the tailgate.
2. Move the lever (B) to open the tailgate.
3. Push out on the tailgate to open it.
CAUT,ONz Always keep the release lever lid on the tail-
gate closed when driving so that your lug-
gage cannot accidentally bump against the lever and open the tailgate.Security alarm system*
The security alarm system is for alerting the
surrounding area of suspicious behaviour to
prevent unlawful entry into the vehicle by op-
erating an alarm if a door, the tailgate or the bonnet is opened when the vehicle has not
been unlocked using the keyless entry system or the keyless operation function.
Also, for vehicles equipped with the interior
alarm sensor, the alarm will be activated if
any of the following occurs:
z Attempt to an unlawful moving of the
vehicle (the vehicle inclination detection
function)
z Detection of a motion in the vehicle (the
interior intrusion detection function)
z Disconnection of the battery terminal
The security alarm system is set to “active”. When making changes to the settings, please follow the procedure listed in the section ti-
tled “Changing the security alarm settings” on page 4-29.
On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart- phone-link Display Audio (SDA) navigation
system, screen operations can be used to make the adjustment. Refer to the separate
owner’s manual for details.CAUT,ONz Do not modify or add parts to the security
alarm system.
Doing so could cause the security alarm to malfunction.
Security alarm system*
4-272**(20(1Locking and unlocking4 Vehicles without
electric tailgateVehicles with
electrictailgate

NOTEzThe alarm system will not be activated if the
doors and the tailgate have been locked us-ing a key, the inside lock knob or the central
door lock switch (instead of the keyless en- try system or the keyless operation func-
tion).
z For vehicles equipped with the interior alarm
sensor, if the turn-signal lamps do not blink
after the locking and unlocking operation us- ing the keyless entry system or the keyless
operation function, the security alarm system
may be malfunctioning.
Have the vehicle inspected at a MITSUBISHI MOTORS Authorized Serv-
ice Point.
If the confirmation function (blinking of the
turn-signal lamps by locking and unlocking
the doors and the tailgate) is deactivated, the turn-signal lamps do not blink after the lock-
ing and unlocking operation.
For information on the confirmation func- tion, refer to “Keyless entry system” on page
4-03 and “To operate using the keyless oper-
ation function” on page 4-09.
z For vehicles equipped with the interior alarm
sensor, the security alarm system could be
activated in the following situations.

During this time, it is possible to temporarilyopen a door or the tailgate without using thekeyless entry system or the keyless operation
function and without causing the alarm to sound (for example, when you forget some-
thing inside the vehicle or realize that a win- dow is open).
System armed mode
(The buzzer stops and the security indicator continues to blink with the indicator’s re-duced lit-up duration time.)
Once the system preparation mode has ended,
the system armed mode starts.
If an unlawful opening of any of the doors,
tailgate or bonnet is detected during the sys- tem armed mode, the alarm will be activated
to warn people around the vehicle of an ab-
normal condition.
Also, for vehicles equipped with the interior alarm sensor, if unlawful moving of the vehi-
cle is attempted or a vehicle intrusion is de-
tected, the alarm will be activated.
Alarm activation
Inside alarm (approximately 10 seconds):
The buzzer sounds, warning those inside the vehicle of an abnormal condition.
(except for vehicles equipped with the interi-
or alarm sensor)
Outside alarm (approximately 30 seconds):
The turn-signal lamps blink and the horn (the
siren for vehicles equipped with the interior alarm sensor) sounds, warning people around
the vehicle of an abnormal condition.
Refer to “Alarm activation” on page 4-33.NOTEz The alarm will resume if unlawful actions
are taken again, even if the alarm has stop-
ped.
System cancellation
It is possible to cancel the system activation
during the system preparation mode or the
system armed mode.
In addition, it is possible to cancel the alarm once it has been activated.
Refer to “Cancelling the system” on page
4-32, “Cancelling the alarm” on page 4-33.
NOTEz When lending the vehicle to another person
or allowing the vehicle to be driven bysomeone who is unfamiliar with the securityalarm system, be sure to give the person a
proper explanation of the security alarm sys- tem.
If a person who is unfamiliar with the securi-
ty alarm system accidentally unlocked the vehicle, causing the alarm to sound, the
alarm would be a nuisance to people nearby.Changing the security alarm
settings
It is possible to set the security alarm to the “active” mode or “inactive” mode.
Follow the procedure below.
1. Put the operation mode in OFF.
2. Place the lamp switch in the “OFF” posi- tion, and leave the driver’s door open.Security alarm system*
4-292**(20(1Locking and unlocking4

3.Pull the windscreen wiper and washer
switch towards you and hold it there. (Since the operation mode in OFF, wash-
er fluid will not be sprayed.)
4. After approximately 10 seconds, the
buzzer will make a sound. Keep the windscreen wiper and washer switch
pulled towards you. (If the windscreen
wiper and washer switch was released,
the setting change mode would be can-
celled. To start over, perform the proce- dure again from step 3.)
5. When the buzzer stops, with the wind-
screen wiper and washer switch stillpulled towards you, press the UNLOCK
switch (A) on the remote control switch to select the security alarm settings
mode.
The settings mode can be toggled by
pressing the UNLOCK switch. The mode can be confirmed from the numberof times the buzzer sounds.
Number of
times the buzzer
sounds
Security alarm settings mode
1Alarm inactive2Alarm active
6.Any of the following operations can be
used to terminate the system settings change mode.

Driver’s and front passenger’s door look/unlock switches*By locking the vehicle using the keylessentry system or the keyless operation
function, the system preparation mode is activated.
The buzzer makes an intermittent beep-
ing sound and the security indicator (D) in the instrument cluster flashes for con-
firmation.NOTEz The system preparation mode is not activa-
ted when the doors and the tailgate havebeen locked using a method other than the
keyless entry system or the keyless operation
function (namely a key, the inside lock knob or the central door lock switch).NOTEz If the bonnet is open, the security indicator
illuminates, and the system does not enter the system preparation mode.
When the bonnet is closed, the system enters the system preparation mode, and after ap-
proximately 20 seconds the system enters the system armed mode.
4. After approximately 20 seconds, the
buzzer stops, and when the blinking of
the security indicator starts to slow
down, the system armed mode goes into effect.
The security indicator continues to blink
during the system armed mode.
NOTEz The security alarm system can be activated
when people are riding inside the vehicle or when the windows are open. To prevent ac-cidental activation of the alarm, do not set
the system to the system armed mode while people are riding in the vehicle.
z Avoid leaving valuable items inside the ve-
hicle even when the security alarm system
has been set to the “active” mode.
Security alarm system*
4-312**(20(1Locking and unlocking4 Tailgate LOCK switch*

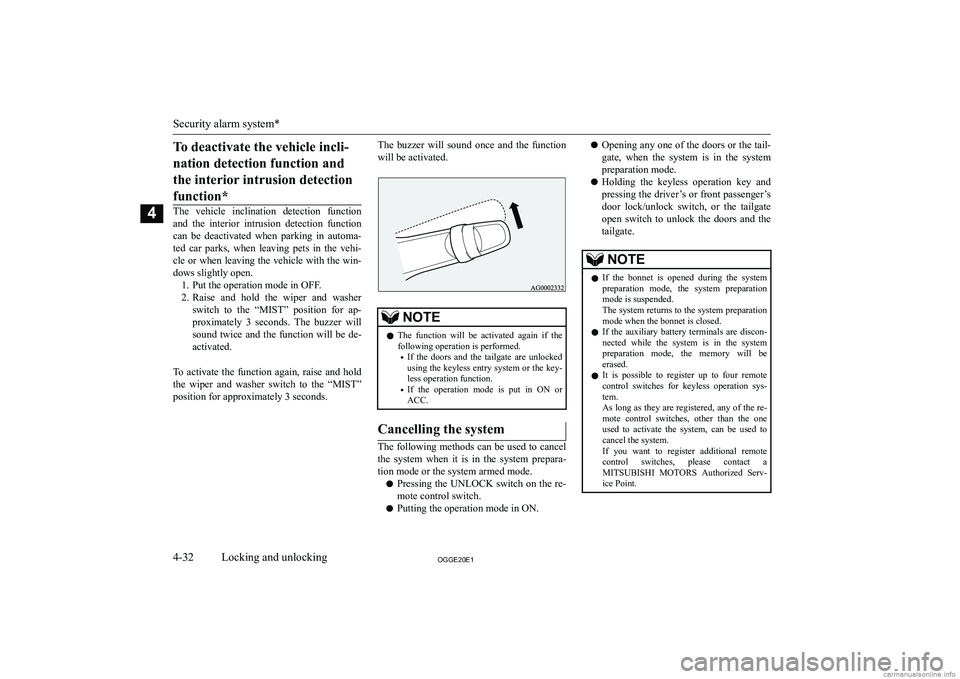

To deactivate the vehicle incli-nation detection function and the interior intrusion detectionfunction*
The vehicle inclination detection function and the interior intrusion detection function
can be deactivated when parking in automa-
ted car parks, when leaving pets in the vehi- cle or when leaving the vehicle with the win-
dows slightly open. 1. Put the operation mode in OFF.
2. Raise and hold the wiper and washer
switch to the “MIST” position for ap- proximately 3 seconds. The buzzer will
sound twice and the function will be de-
activated.
To activate the function again, raise and hold
the wiper and washer switch to the “MIST” position for approximately 3 seconds.
The buzzer will sound once and the function
will be activated.NOTEz The function will be activated again if the
following operation is performed.

NOTEzThe activation distance for keyless entry sys-
tem is approximately 4 m.
If it is not possible to lock or unlock the ve- hicle by pressing the switch at the correct
distance or the security alarm system cannot be set or cancelled using the switch, the bat-
tery may need to be replaced.
Refer to “Procedure for replacing the remote
control switch battery” on page 4-06.
z If the UNLOCK switch on the remote con-
trol switch, or the driver’s or front passeng- er’s door lock/unlock switch is pressed and no door or the tailgate is opened within 30seconds, the doors and the tailgate will auto- matically relock. In this case as well, the
system preparation mode will go into effect.
z The time between pressing the UNLOCK
switch on the remote control switch, or thedriver’s or front passenger’s door lock/
unlock switch and automatic locking can be adjusted. Please consult a MITSUBISHI
MOTORS Authorized Service Point.
On vehicles equipped with the Smartphone-
link Display Audio (SDA) or the Smart- phone-link Display Audio (SDA) navigation
system, screen operations can be used to
make the adjustment. Refer to the separate
owner’s manual for details.Alarm activation
When the system is in the system armed
mode, the alarm will be activated as follows
if the vehicle is unlocked or if any of the doors, tailgate or bonnet is opened using a method other than the keyless entry system orthe keyless operation function. 1. The inside alarm will be activated for
approximately 10 seconds. (except for
vehicles equipped with the interior alarm
sensor)
NOTEz If the bonnet is opened during the system
armed mode, the vehicle outside alarm oper-
ates immediately, without the vehicle inside
alarm operating.
z The time for the vehicle inside alarm can be
adjusted. Please consult a MITSUBISHI
MOTORS Authorized Service Point.
2. The alarm will be activated for approxi-
mately 30 seconds.
The turn-signal lamps will blink, and the
horn (the siren for vehicles equipped
with the interior alarm sensor) will
sound intermittently.
3. The alarm will resume if unlawful ac-
tions are taken again, even if the alarm has stopped.
Cancelling the alarm
It is possible to halt the activation of an alarm
using the following methods:
z Pressing the LOCK or UNLOCK switch
on the remote control switch.
(After pressing the LOCK switch, the vehicle will lock if all the doors and the
tailgate are closed, after which the sys- tem preparation mode will once again go
into effect.)
z Putting the operation mode in ON.
Security alarm system*
4-332**(20(1Locking and unlocking4

zHolding the keyless operation key and
locking or unlocking the doors and the
tailgate using the keyless operation func- tion.NOTEz Even if a door or the tailgate is closed while
the inside alarm is activating, this will notcancel the alarm activation. (except for vehi-
cles equipped with the interior alarm sensor)
z When the operation mode is put in ON, the
buzzer sounds four times. This operation in-
dicates that the alarm was activated while the vehicle was parked.
Please check the inside of the vehicle to con-
firm that nothing was stolen.
z Even if the auxiliary battery is disconnected,
the alarm activation memory will not be erased.Electric window control
The electric windows can only be operated
with the operation mode in ON.
Electric window control switch
Each door window opens or closes while the
corresponding switch is operated.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
:ARN,NGz Before operating the electric window con-
trol, make sure that nothing can get trap-ped (head, hand, finger, etc.).
z Never leave the vehicle without removing
the key.
z Never leave a child (or other person who
might not be capable of safe operation of the electric window control) in the vehicle alone.Driver’s switches
The driver’s switches can be used to operate
all door windows. A window can be opened
or closed by operating the corresponding switch.
Press the switch down to open the window, and pull up the switch to close it.
If the switch for the driver’s window is fully
pressed down/pulled up, the door window au- tomatically opens/closes completely.
If you want to stop the window movement,
operate the switch lightly in the reverse direc-
tion.
NOTEz If the switch is operated continuously, the
electric window protection function will ac-
tivate and the door window may not be
opened and closed automatically even if the switch is fully pressed down/pulled up.
In such a case, pull up the door window
switch until the window has been fully closed.
You should now be able to operate the door
window in the normal fashion.
Passenger’s switches
The passenger’s switches can be used to op-
erate the corresponding passenger’s door
windows.
Electric window control
4-342**(20(1Locking and unlocking4 Driver’s switch RHDDriver’s switch LHD
