2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

4-38
Multimedia System

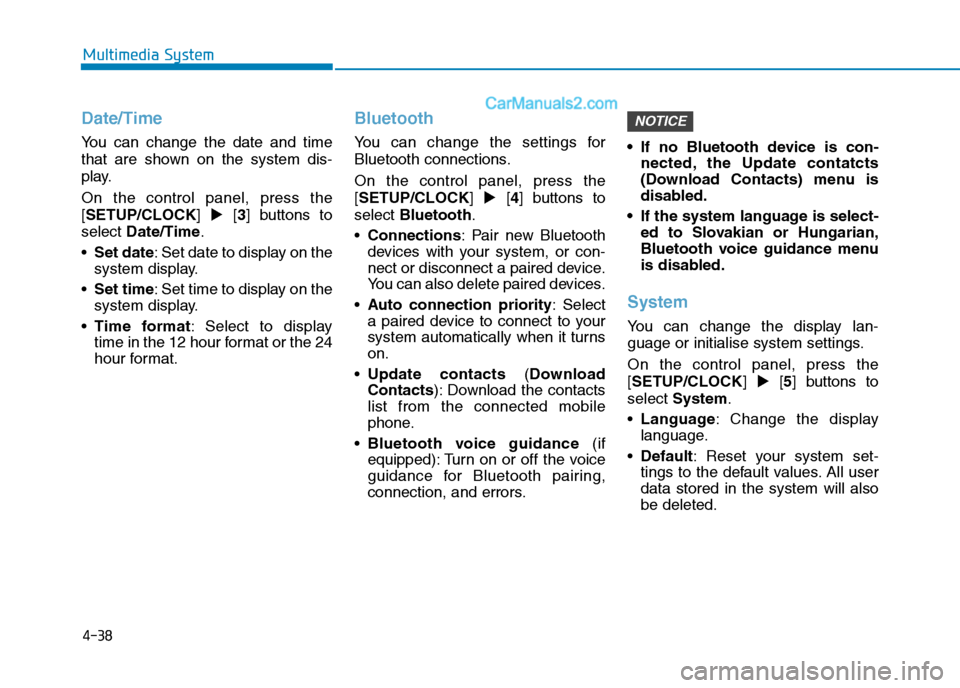

Date/Time
You can change the date and time
that are shown on the system dis-
play.
On the control panel, press the
[SETUP/CLOCK] [3] buttons to
select Date/Time.
Set date: Set date to display on the
system display.
Set time: Set time to display on the
system display.
Time format: Select to display
time in the 12 hour format or the 24
hour format.
Bluetooth
You can change the settings for
Bluetooth connections.
On the control panel, press the
[SETUP/CLOCK] [4] buttons to
select Bluetooth.
Connections: Pair new Bluetooth
devices with your system, or con-
nect or disconnect a paired device.
You can also delete paired devices.
Auto connection priority: Select
a paired device to connect to your
system automatically when it turns
on.
Update contacts(Download
Contacts): Download the contacts
list from the connected mobile
phone.
Bluetooth voice guidance(if
equipped): Turn on or off the voice
guidance for Bluetooth pairing,
connection, and errors. If no Bluetooth device is con-
nected, the Update contatcts
(Download Contacts) menu is
disabled.
If the system language is select-
ed to Slovakian or Hungarian,
Bluetooth voice guidance menu
is disabled.
System
You can change the display lan-
guage or initialise system settings.
On the control panel, press the
[SETUP/CLOCK] [5] buttons to
select System.
Language: Change the display
language.
Default: Reset your system set-
tings to the default values. All user
data stored in the system will also
be deleted.
NOTICE

4-39
Multimedia System
4
S SY
YS
ST
TE
EM
M
S
ST
TA
AT
TU
US
S
I
IC
CO
ON
NS
S

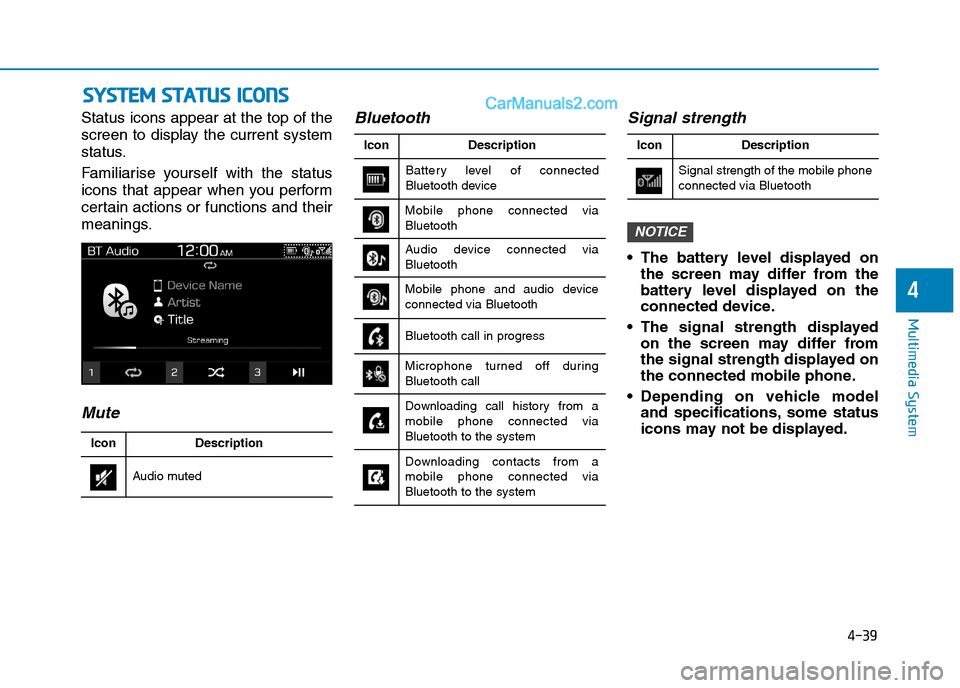

Status icons appear at the top of the
screen to display the current system
status.
Familiarise yourself with the status
icons that appear when you perform
certain actions or functions and their
meanings.
MuteBluetooth Signal strength
The battery level displayed on
the screen may differ from the
battery level displayed on the
connected device.
The signal strength displayed
on the screen may differ from
the signal strength displayed on
the connected mobile phone.
Depending on vehicle model
and specifications, some status
icons may not be displayed.
NOTICE
Battery level of connected
Bluetooth deviceDescription Icon
Bluetooth call in progress
Microphone turned off during
Bluetooth call
Downloading call history from a
mobile phone connected via
Bluetooth to the system
Downloading contacts from a
mobile phone connected via
Bluetooth to the system
Mobile phone connected via
Bluetooth
Audio device connected via
Bluetooth
Mobile phone and audio device
connected via Bluetooth
Audio mutedDescription Icon
Signal strength of the mobile phone
connected via BluetoothDescription Icon

4-40
Multimedia System

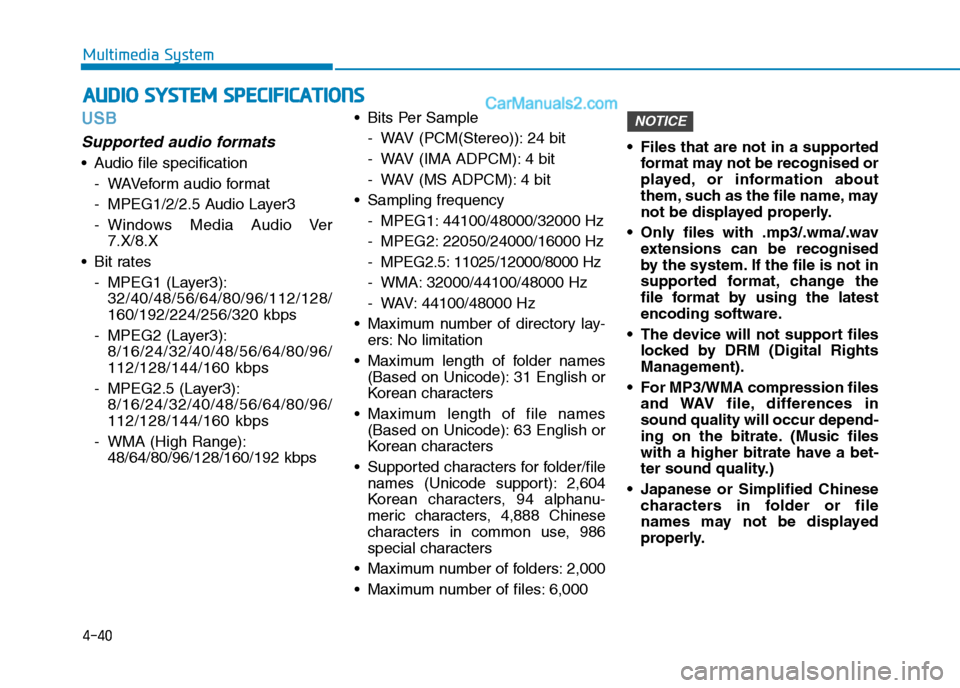

USB
Supported audio formats
Audio file specification
- WAVeform audio format
- MPEG1/2/2.5 Audio Layer3
- Windows Media Audio Ver
7.X/8.X
Bit rates
- MPEG1 (Layer3):
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
- MPEG2 (Layer3):
8/16/24/32/40/48/56/64/80/96/
112/128/144/160 kbps
- MPEG2.5 (Layer3):
8/16/24/32/40/48/56/64/80/96/
112/128/144/160 kbps
- WMA (High Range):
48/64/80/96/128/160/192 kbps Bits Per Sample
- WAV (PCM(Stereo)): 24 bit
- WAV (IMA ADPCM): 4 bit
- WAV (MS ADPCM): 4 bit
Sampling frequency
- MPEG1: 44100/48000/32000 Hz
- MPEG2: 22050/24000/16000 Hz
- MPEG2.5: 11025/12000/8000 Hz
- WMA: 32000/44100/48000 Hz
- WAV: 44100/48000 Hz
Maximum number of directory lay-
ers: No limitation
Maximum length of folder names
(Based on Unicode): 31 English or
Korean characters
Maximum length of file names
(Based on Unicode): 63 English or
Korean characters
Supported characters for folder/file
names (Unicode support): 2,604
Korean characters, 94 alphanu-
meric characters, 4,888 Chinese
characters in common use, 986
special characters
Maximum number of folders: 2,000
Maximum number of files: 6,000 Files that are not in a supported
format may not be recognised or
played, or information about
them, such as the file name, may
not be displayed properly.
Only files with .mp3/.wma/.wav
extensions can be recognised
by the system. If the file is not in
supported format, change the
file format by using the latest
encoding software.
The device will not support files
locked by DRM (Digital Rights
Management).
For MP3/WMA compression files
and WAV file, differences in
sound quality will occur depend-
ing on the bitrate. (Music files
with a higher bitrate have a bet-
ter sound quality.)
Japanese or Simplified Chinese
characters in folder or file
names may not be displayed
properly.
NOTICE
A AU
UD
DI
IO
O
S
SY
YS
ST
TE
EM
M
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
NS
S

4-41
Multimedia System
4

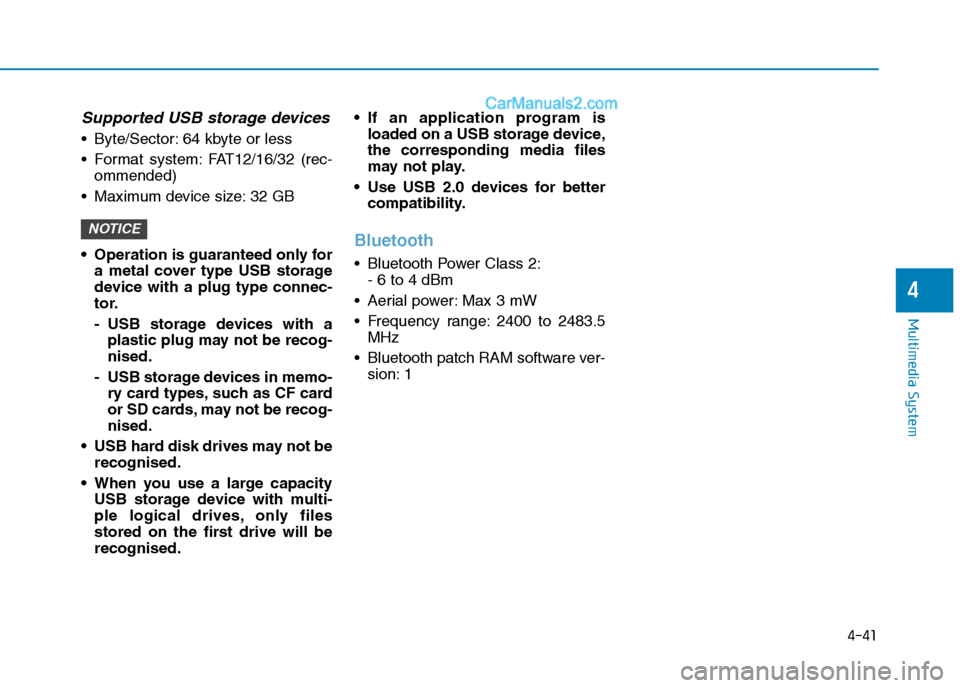

Supported USB storage devices
Byte/Sector: 64 kbyte or less
Format system: FAT12/16/32 (rec-
ommended)
Maximum device size: 32 GB
Operation is guaranteed only for
a metal cover type USB storage
device with a plug type connec-
tor.
- USB storage devices with a
plastic plug may not be recog-
nised.
- USB storage devices in memo-
ry card types, such as CF card
or SD cards, may not be recog-
nised.
USB hard disk drives may not be
recognised.
When you use a large capacity
USB storage device with multi-
ple logical drives, only files
stored on the first drive will be
recognised. If an application program is
loaded on a USB storage device,
the corresponding media files
may not play.
Use USB 2.0 devices for better
compatibility.
Bluetooth
Bluetooth Power Class 2:
- 6 to 4 dBm
Aerial power: Max 3 mW
Frequency range: 2400 to 2483.5
MHz
Bluetooth patch RAM software ver-
sion: 1
NOTICE

4-42
Multimedia System
T TR
RA
AD
DE
EM
MA
AR
RK
KS
S

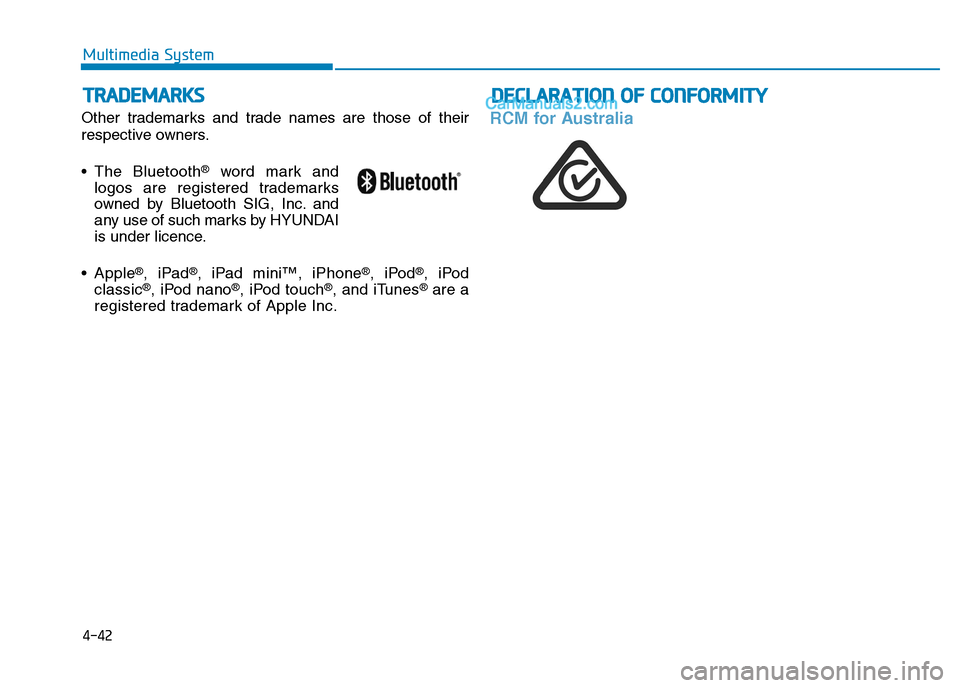

Other trademarks and trade names are those of their
respective owners.
The Bluetooth
®word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by HYUNDAI
is under licence.
Apple
®, iPad®, iPad mini™, iPhone®, iPod®, iPod
classic®, iPod nano®, iPod touch®, and iTunes®are a
registered trademark of Apple Inc.
D DE
EC
CL
LA
AR
RA
AT
TI
IO
ON
N
O
OF
F
C
CO
ON
NF
FO
OR
RM
MI
IT
TY
Y
RCM for Australia

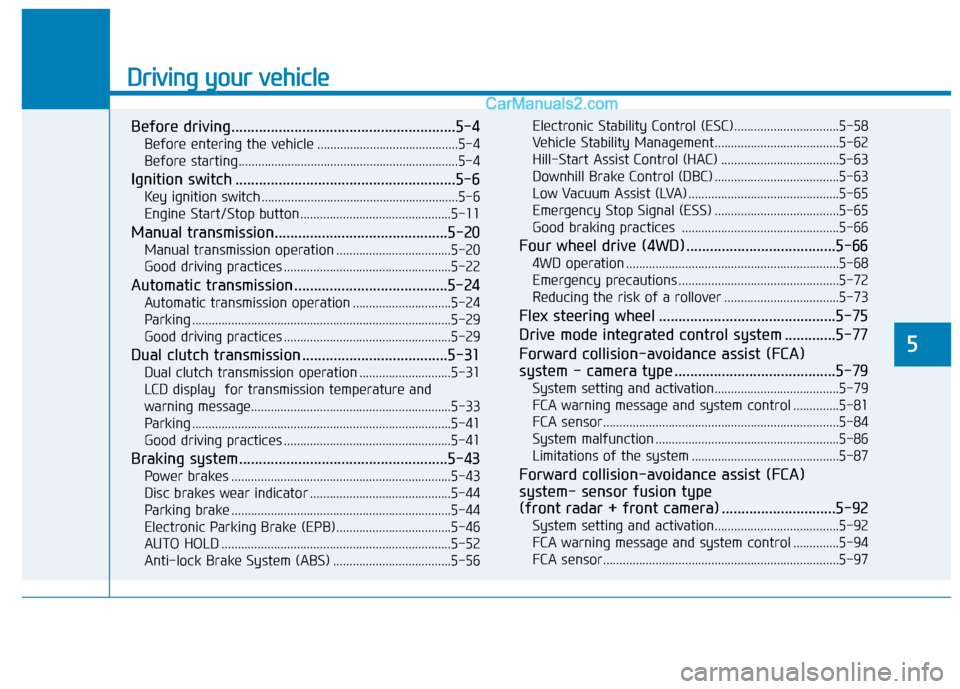

Driving your vehicle
Before driving.........................................................5-4
Before entering the vehicle ...........................................5-4
Before starting...................................................................5-4
Ignition switch ........................................................5-6
Key ignition switch ............................................................5-6
Engine Start/Stop button ..............................................5-11
Manual transmission............................................5-20
Manual transmission operation ...................................5-20
Good driving practices ...................................................5-22
Automatic transmission .......................................5-24
Automatic transmission operation ..............................5-24
Parking ...............................................................................5-29
Good driving practices ...................................................5-29
Dual clutch transmission .....................................5-31
Dual clutch transmission operation ............................5-31
LCD display for transmission temperature and
warning message.............................................................5-33
Parking ...............................................................................5-41
Good driving practices ...................................................5-41
Braking system.....................................................5-43
Power brakes ...................................................................5-43
Disc brakes wear indicator ...........................................5-44
Parking brake ...................................................................5-44
Electronic Parking Brake (EPB)...................................5-46
AUTO HOLD ......................................................................5-52
Anti-lock Brake System (ABS) ....................................5-56Electronic Stability Control (ESC)................................5-58
Vehicle Stability Management......................................5-62
Hill-Start Assist Control (HAC) ....................................5-63
Downhill Brake Control (DBC) ......................................5-63
Low Vacuum Assist (LVA) ..............................................5-65
Emergency Stop Signal (ESS) ......................................5-65
Good braking practices ................................................5-66
Four wheel drive (4WD) ......................................5-66
4WD operation .................................................................5-68
Emergency precautions .................................................5-72
Reducing the risk of a rollover ...................................5-73
Flex steering wheel .............................................5-75
Drive mode integrated control system .............5-77
Forward collision-avoidance assist (FCA)
system - camera type .........................................5-79
System setting and activation......................................5-79
FCA warning message and system control ..............5-81
FCA sensor........................................................................5-84
System malfunction ........................................................5-86
Limitations of the system .............................................5-87
Forward collision-avoidance assist (FCA)
system- sensor fusion type
(front radar + front camera) .............................5-92
System setting and activation......................................5-92
FCA warning message and system control ..............5-94
FCA sensor........................................................................5-97
5

5

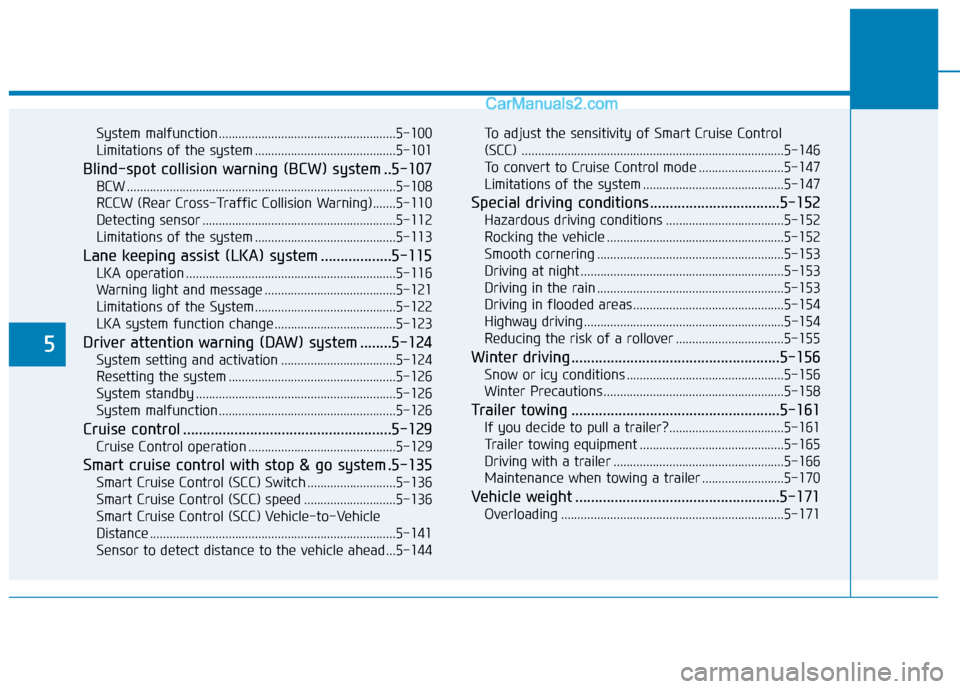

System malfunction......................................................5-100
Limitations of the system ...........................................5-101
Blind-spot collision warning (BCW) system ..5-107
BCW ..................................................................................5-108
RCCW (Rear Cross-Traffic Collision Warning).......5-110
Detecting sensor ...........................................................5-112
Limitations of the system ...........................................5-113
Lane keeping assist (LKA) system ..................5-115
LKA operation ................................................................5-116
Warning light and message ........................................5-121
Limitations of the System...........................................5-122
LKA system function change .....................................5-123
Driver attention warning (DAW) system ........5-124
System setting and activation ...................................5-124
Resetting the system ...................................................5-126
System standby .............................................................5-126
System malfunction......................................................5-126
Cruise control .....................................................5-129
Cruise Control operation .............................................5-129
Smart cruise control with stop & go system .5-135
Smart Cruise Control (SCC) Switch ...........................5-136
Smart Cruise Control (SCC) speed ............................5-136
Smart Cruise Control (SCC) Vehicle-to-Vehicle
Distance ...........................................................................5-141
Sensor to detect distance to the vehicle ahead ...5-144To adjust the sensitivity of Smart Cruise Control
(SCC) ................................................................................5-146
To convert to Cruise Control mode ..........................5-147
Limitations of the system ...........................................5-147
Special driving conditions .................................5-152
Hazardous driving conditions ....................................5-152
Rocking the vehicle ......................................................5-152
Smooth cornering .........................................................5-153
Driving at night ..............................................................5-153
Driving in the rain .........................................................5-153
Driving in flooded areas..............................................5-154
Highway driving .............................................................5-154
Reducing the risk of a rollover .................................5-155
Winter driving .....................................................5-156
Snow or icy conditions ................................................5-156
Winter Precautions .......................................................5-158
Trailer towing .....................................................5-161
If you decide to pull a trailer?...................................5-161
Trailer towing equipment ............................................5-165
Driving with a trailer ....................................................5-166
Maintenance when towing a trailer .........................5-170
Vehicle weight ....................................................5-171
Overloading ....................................................................5-171

5-3
Driving your vehicle
5

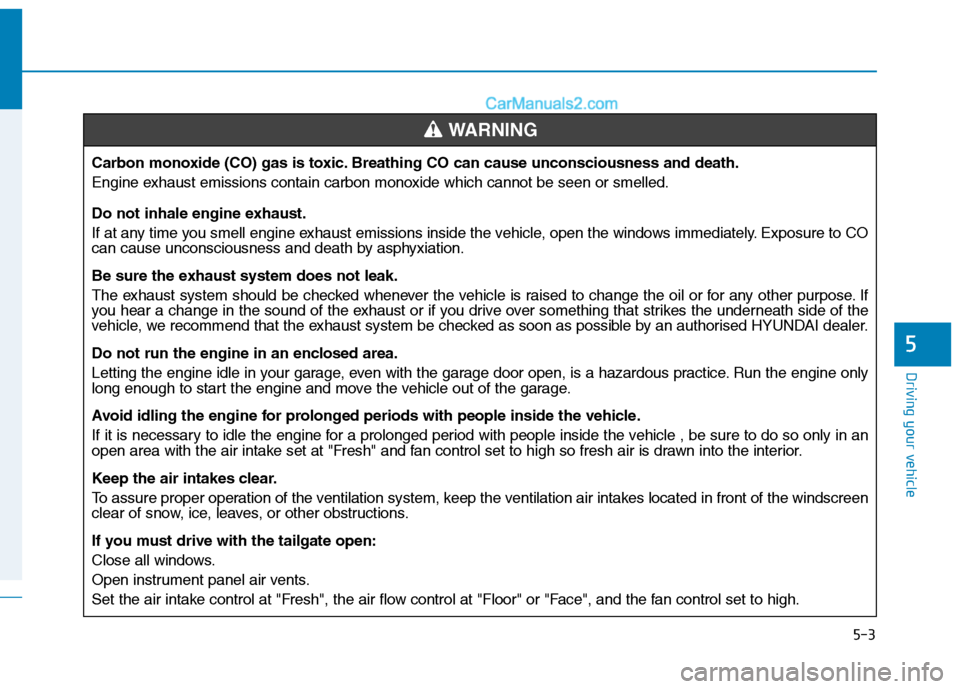

Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.
Engine exhaust emissions contain carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust emissions inside the vehicle, open the windows immediately. Exposure to CO
can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If
you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the
vehicle, we recommend that the exhaust system be checked as soon as possible by an authorised HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Run the engine only
long enough to start the engine and move the vehicle out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the vehicle , be sure to do so only in an
open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes located in front of the windscreen
clear of snow, ice, leaves, or other obstructions.
If you must drive with the tailgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan control set to high.
WARNING
