2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

3-123
Convenient features of your vehicle
3
Puddle lamp (if equipped)
Welcome light
When all doors (and tailgate) are
closed and locked, the puddle lamp
will come on for 15 seconds if the
door is unlocked by the remote key,
smart key or outside door handle
button.
For more details, refer to
"Welcome System" in this chapter.
Escort light
When the ignition switch is in the
OFF position and the driver's door is
opened, the puddle lamp will come
on for 30 seconds. If the driver's door
is closed within the 30 seconds, the
puddle lamp will turn off after 15 sec-
onds. If the driver's door is closed
and locked, the puddle lamp will turn
off immediately.
The Puddle Lamp Escort Light will
turn on the first time the driver's door
is opened, after the engine is turned
off.
OLF044259/H

3-124
Convenient features of your vehicle

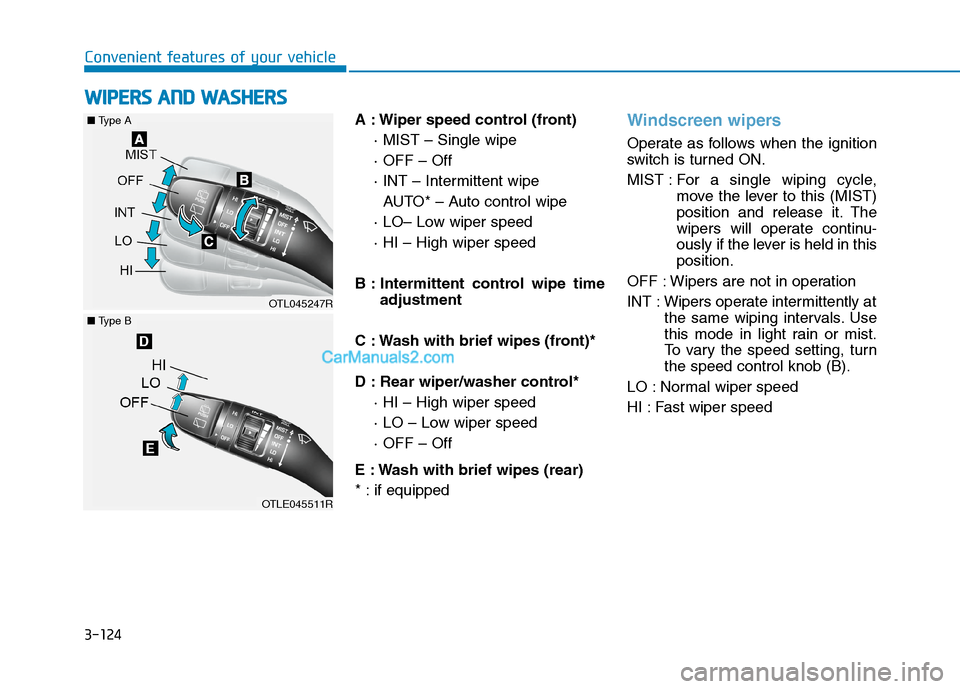

A : Wiper speed control (front)
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
AUTO* – Auto control wipe
· LO– Low wiper speed
· HI – High wiper speed
B : Intermittent control wipe time
adjustment
C : Wash with brief wipes (front)*
D : Rear wiper/washer control*
· HI – High wiper speed
· LO – Low wiper speed
· OFF – Off
E : Wash with brief wipes (rear)
* : if equipped
Windscreen wipers
Operate as follows when the ignition
switch is turned ON.
MIST : For a single wiping cycle,
move the lever to this (MIST)
position and release it. The
wipers will operate continu-
ously if the lever is held in this
position.
OFF : Wipers are not in operation
INT : Wipers operate intermittently at
the same wiping intervals. Use
this mode in light rain or mist.
To vary the speed setting, turn
the speed control knob (B).
LO : Normal wiper speed
HI : Fast wiper speed
W WI
IP
PE
ER
RS
S
A
AN
ND
D
W
WA
AS
SH
HE
ER
RS
S

OTL045247R
■Type A
OTLE045511R
■Type B

3-125
Convenient features of your vehicle
3
Information
If there is a heavy accumulation of
snow or ice on the windscreen, defrost
the windscreen for about 10 minutes,
or until the snow and/or ice is
removed before using the windscreen
wipers, to ensure proper operation.
If you do not remove the snow and/or
ice before using the wiper and washer,
it may damage the wiper and washer
system.

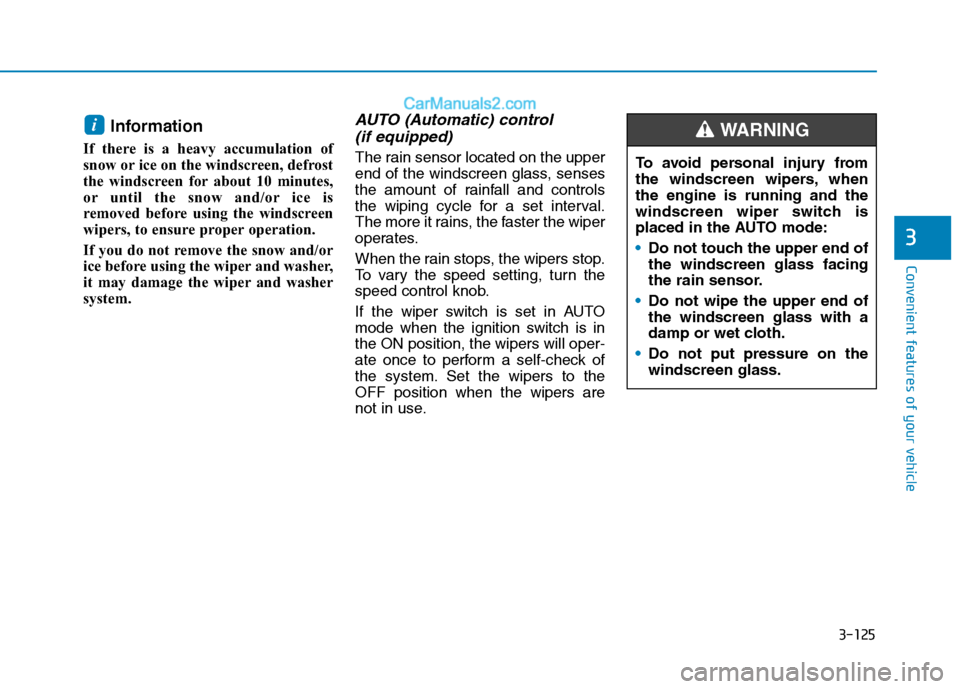

AUTO (Automatic) control
(if equipped)
The rain sensor located on the upper
end of the windscreen glass, senses
the amount of rainfall and controls
the wiping cycle for a set interval.
The more it rains, the faster the wiper
operates.
When the rain stops, the wipers stop.
To vary the speed setting, turn the
speed control knob.
If the wiper switch is set in AUTO
mode when the ignition switch is in
the ON position, the wipers will oper-
ate once to perform a self-check of
the system. Set the wipers to the
OFF position when the wipers are
not in use.
i
To avoid personal injury from
the windscreen wipers, when
the engine is running and the
windscreen wiper switch is
placed in the AUTO mode:
Do not touch the upper end of
the windscreen glass facing
the rain sensor.
Do not wipe the upper end of
the windscreen glass with a
damp or wet cloth.
Do not put pressure on the
windscreen glass.
WARNING

3-126
When washing the vehicle, set
the wiper switch in the OFF
position to stop the auto wipers
operation. The wipers may oper-
ate and be damaged if the switch
is set in the AUTO mode whilst
washing the vehicle.
Do not remove the sensor cover
located on the upper end of the
driver side windscreen glass.
Damage to system parts could
occur and may not be covered
by your vehicle warranty.
Windscreen washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windscreen and to run
the wipers 1-3 cycles. The spray and
wipers operation will continue until
you release the lever.
If the washer does not work, you may
need to add washer fluid to the
washer fluid reservoir.If equipped with the headlamp wash-
ers, washer fluid will be sprayed on
the headlamps at the same time you
operate the windscreen washer
when:
1. The ignition switch is in the ON
position.
2. The light switch is in the headlamp
position.
NOTICE
Convenient features of your vehicle
OTL045280RWhen the outside temperature
is below freezing, ALWAYS
warm the windscreen using the
defroster to prevent the washer
fluid from freezing on the wind-
screen and obscuring your
vision, which could result in an
accident and serious injury or
death.
WARNING

3-127
Convenient features of your vehicle

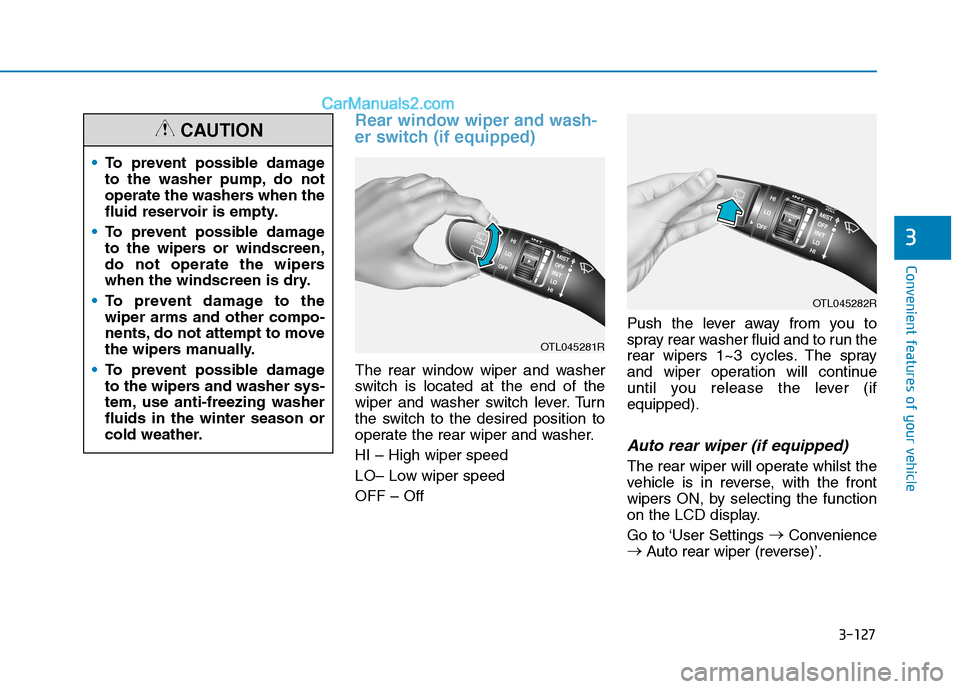

Rear window wiper and wash-
er switch (if equipped)
The rear window wiper and washer
switch is located at the end of the
wiper and washer switch lever. Turn
the switch to the desired position to
operate the rear wiper and washer.
HI – High wiper speed
LO– Low wiper speed
OFF – OffPush the lever away from you to
spray rear washer fluid and to run the
rear wipers 1~3 cycles. The spray
and wiper operation will continue
until you release the lever (if
equipped).
Auto rear wiper (if equipped)
The rear wiper will operate whilst the
vehicle is in reverse, with the front
wipers ON, by selecting the function
on the LCD display.
Go to ‘User Settings →
Convenience
→
Auto rear wiper (reverse)’.
3
To prevent possible damage
to the washer pump, do not
operate the washers when the
fluid reservoir is empty.
To prevent possible damage
to the wipers or windscreen,
do not operate the wipers
when the windscreen is dry.
To prevent damage to the
wiper arms and other compo-
nents, do not attempt to move
the wipers manually.
To prevent possible damage
to the wipers and washer sys-
tem, use anti-freezing washer
fluids in the winter season or
cold weather.
CAUTION
OTL045281R
OTL045282R

3-128

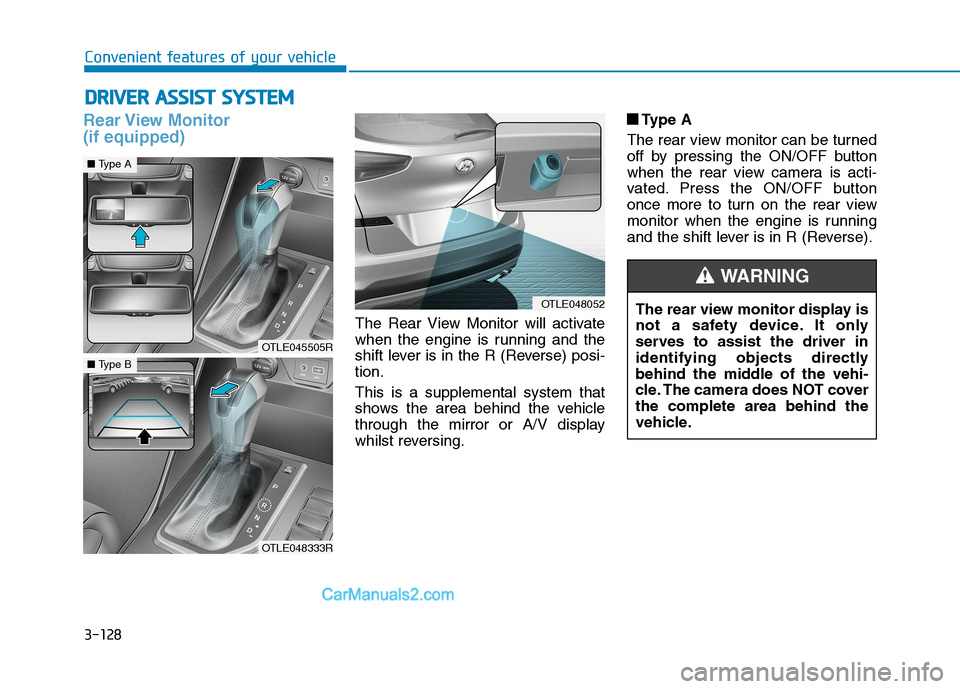

Rear View Monitor
(if equipped)
The Rear View Monitor will activate
when the engine is running and the
shift lever is in the R (Reverse) posi-
tion.
This is a supplemental system that
shows the area behind the vehicle
through the mirror or A/V display
whilst reversing.■ ■
Type A
The rear view monitor can be turned
off by pressing the ON/OFF button
when the rear view camera is acti-
vated. Press the ON/OFF button
once more to turn on the rear view
monitor when the engine is running
and the shift lever is in R (Reverse).
D DR
RI
IV
VE
ER
R
A
AS
SS
SI
IS
ST
T
S
SY
YS
ST
TE
EM
M
Convenient features of your vehicle
OTLE045505R
■Type A
The rear view monitor display is
not a safety device. It only
serves to assist the driver in
identifying objects directly
behind the middle of the vehi-
cle. The camera does NOT cover
the complete area behind the
vehicle.
WARNING
OTLE048052
OTLE048333R
■Type B

3-129
Convenient features of your vehicle
3
Information
Always keep the camera lens clean.
The camera may not work normally if
the lens is covered with foreign mate-
rial.

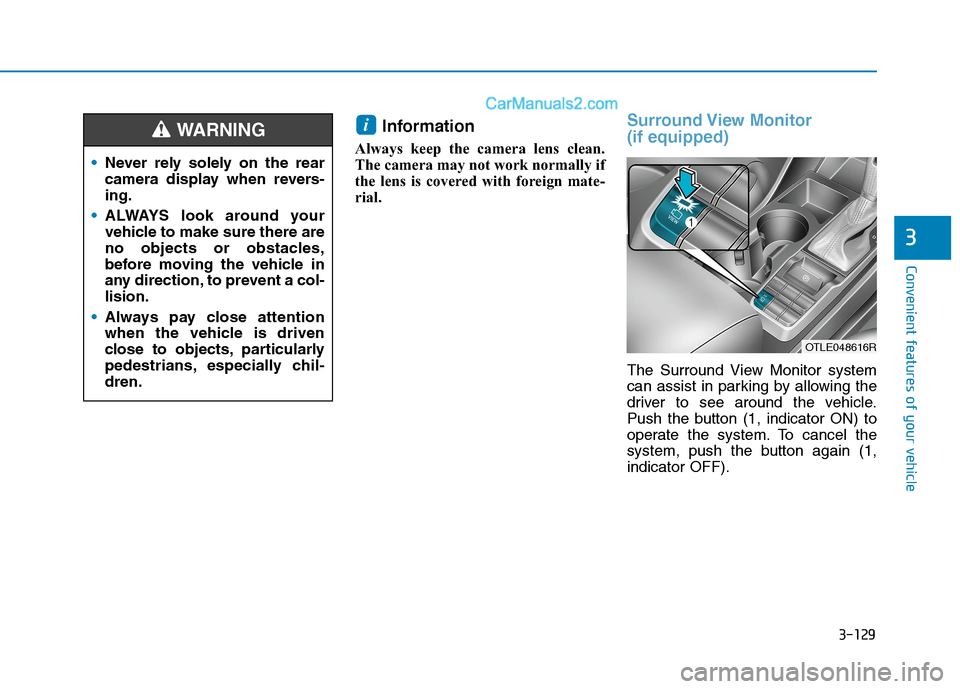

Surround View Monitor
(if equipped)
The Surround View Monitor system
can assist in parking by allowing the
driver to see around the vehicle.
Push the button (1, indicator ON) to
operate the system. To cancel the
system, push the button again (1,
indicator OFF).
i
Never rely solely on the rear
camera display when revers-
ing.
ALWAYS look around your
vehicle to make sure there are
no objects or obstacles,
before moving the vehicle in
any direction, to prevent a col-
lision.
Always pay close attention
when the vehicle is driven
close to objects, particularly
pedestrians, especially chil-
dren.
WARNING
OTLE048616R

3-130
Convenient features of your vehicle

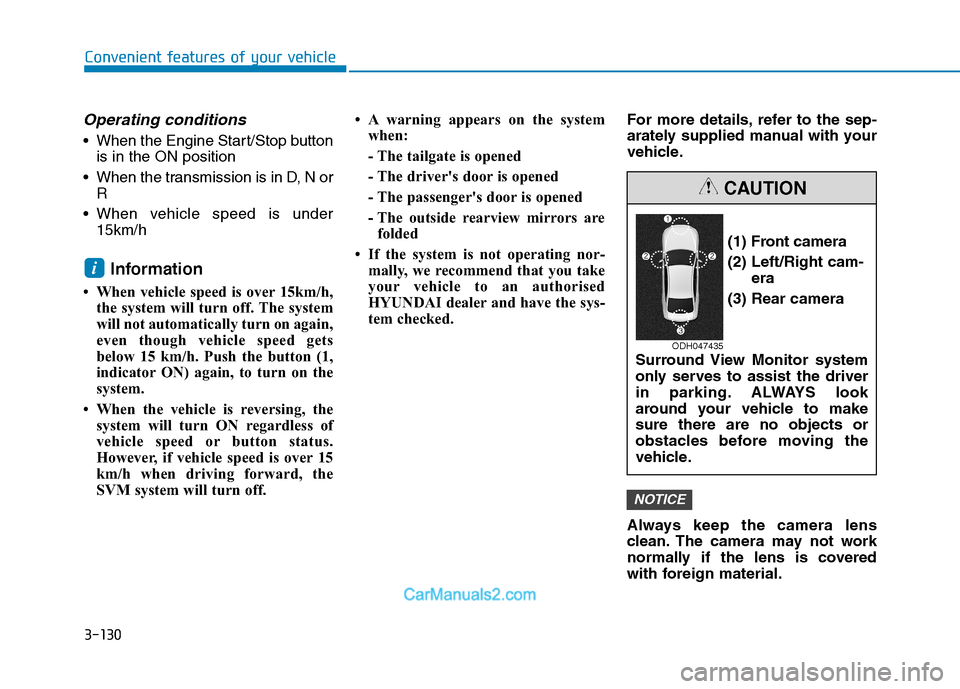

Operating conditions
When the Engine Start/Stop button
is in the ON position
When the transmission is in D, N or
R
When vehicle speed is under
15km/h
Information
• When vehicle speed is over 15km/h,
the system will turn off. The system
will not automatically turn on again,
even though vehicle speed gets
below 15 km/h. Push the button (1,
indicator ON) again, to turn on the
system.
• When the vehicle is reversing, the
system will turn ON regardless of
vehicle speed or button status.
However, if vehicle speed is over 15
km/h when driving forward, the
SVM system will turn off. • A warning appears on the system
when:
- The tailgate is opened
- The driver's door is opened
- The passenger's door is opened
- The outside rearview mirrors are
folded
• If the system is not operating nor-
mally, we recommend that you take
your vehicle to an authorised
HYUNDAI dealer and have the sys-
tem checked.For more details, refer to the sep-
arately supplied manual with your
vehicle.
Always keep the camera lens
clean. The camera may not work
normally if the lens is covered
with foreign material.
NOTICE
i
(1) Front camera
(2) Left/Right cam-
era
(3) Rear camera
Surround View Monitor system
only serves to assist the driver
in parking. ALWAYS look
around your vehicle to make
sure there are no objects or
obstacles before moving the
vehicle.
CAUTION
ODH047435
