2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

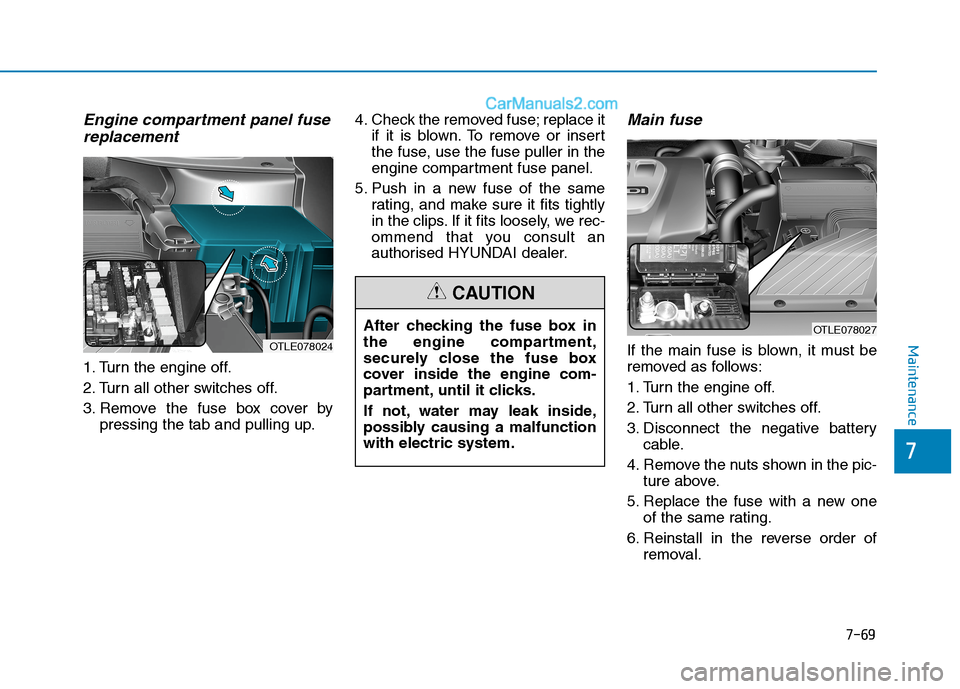

7-69
7
Maintenance
Engine compartment panel fuse
replacement
1. Turn the engine off.
2. Turn all other switches off.
3. Remove the fuse box cover by
pressing the tab and pulling up.4. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult an
authorised HYUNDAI dealer.
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn the engine off.
2. Turn all other switches off.
3. Disconnect the negative battery
cable.
4. Remove the nuts shown in the pic-
ture above.
5. Replace the fuse with a new one
of the same rating.
6. Reinstall in the reverse order of
removal.
OTLE078027After checking the fuse box in
the engine compartment,
securely close the fuse box
cover inside the engine com-
partment, until it clicks.
If not, water may leak inside,
possibly causing a malfunction
with electric system.
CAUTION
OTLE078024

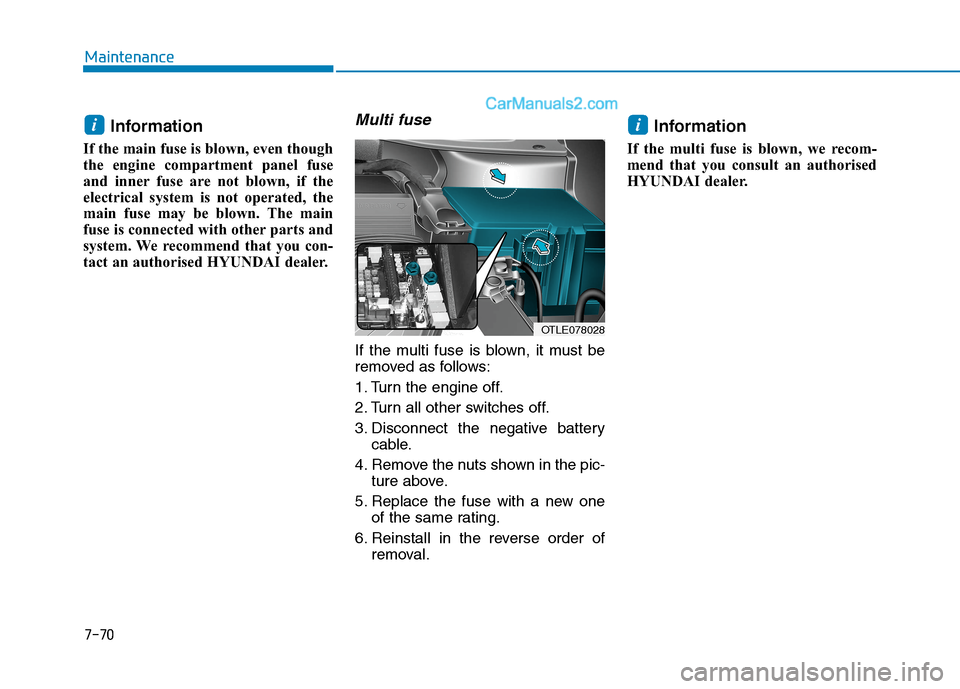

7-70
Maintenance
Information
If the main fuse is blown, even though
the engine compartment panel fuse
and inner fuse are not blown, if the
electrical system is not operated, the
main fuse may be blown. The main
fuse is connected with other parts and
system. We recommend that you con-
tact an authorised HYUNDAI dealer.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Turn the engine off.
2. Turn all other switches off.
3. Disconnect the negative battery
cable.
4. Remove the nuts shown in the pic-
ture above.
5. Replace the fuse with a new one
of the same rating.
6. Reinstall in the reverse order of
removal.
Information
If the multi fuse is blown, we recom-
mend that you consult an authorised
HYUNDAI dealer.
ii
OTLE078028

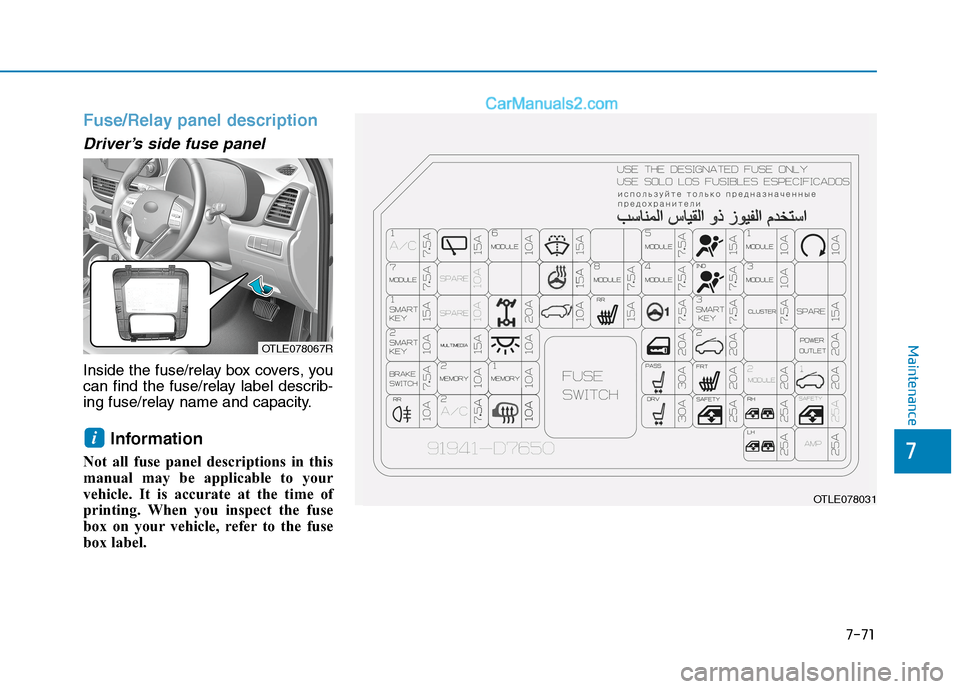

7-71
7
Maintenance
Fuse/Relay panel description
Driver’s side fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
i
OTLE078067R
OTLE078031

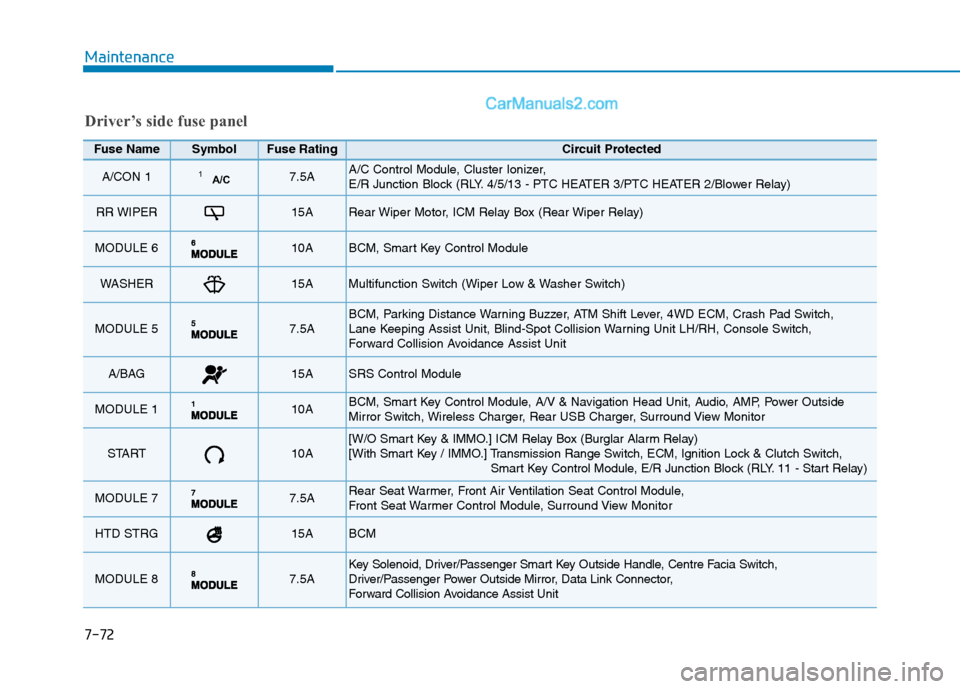

7-72
Maintenance
Driver’s side fuse panel
Fuse Name SymbolFuse RatingCircuit Protected
A/CON 1 1A/C7.5A A/C Control Module, Cluster Ionizer,
E/R Junction Block (RLY. 4/5/13 - PTC HEATER 3/PTC HEATER 2/Blower Relay)
RR WIPER 15A Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay)
MODULE 6 10A BCM, Smart Key Control Module
WASHER 15A Multifunction Switch (Wiper Low & Washer Switch)
MODULE 5 7.5A BCM, Parking Distance Warning Buzzer, ATM Shift Lever, 4WD ECM, Crash Pad Switch,
Lane Keeping Assist Unit, Blind-Spot Collision Warning Unit LH/RH, Console Switch,
Forward Collision Avoidance Assist Unit
A/BAG 15A SRS Control Module
MODULE 1 10A BCM, Smart Key Control Module, A/V & Navigation Head Unit, Audio, AMP, Power Outside
Mirror Switch, Wireless Charger, Rear USB Charger, Surround View Monitor
START 10A [W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay)
[With Smart Key / IMMO.] Transmission Range Switch, ECM, Ignition Lock & Clutch Switch,
Smart Key Control Module, E/R Junction Block (RLY. 11 - Start Relay)
MODULE 7 7.5A Rear Seat Warmer, Front Air Ventilation Seat Control Module,
Front Seat Warmer Control Module, Surround View Monitor
HTD STRG 15A BCM
MODULE 8 7.5A Key Solenoid, Driver/Passenger Smart Key Outside Handle, Centre Facia Switch,
Driver/Passenger Power Outside Mirror, Data Link Connector,
Forward Collision Avoidance Assist Unit

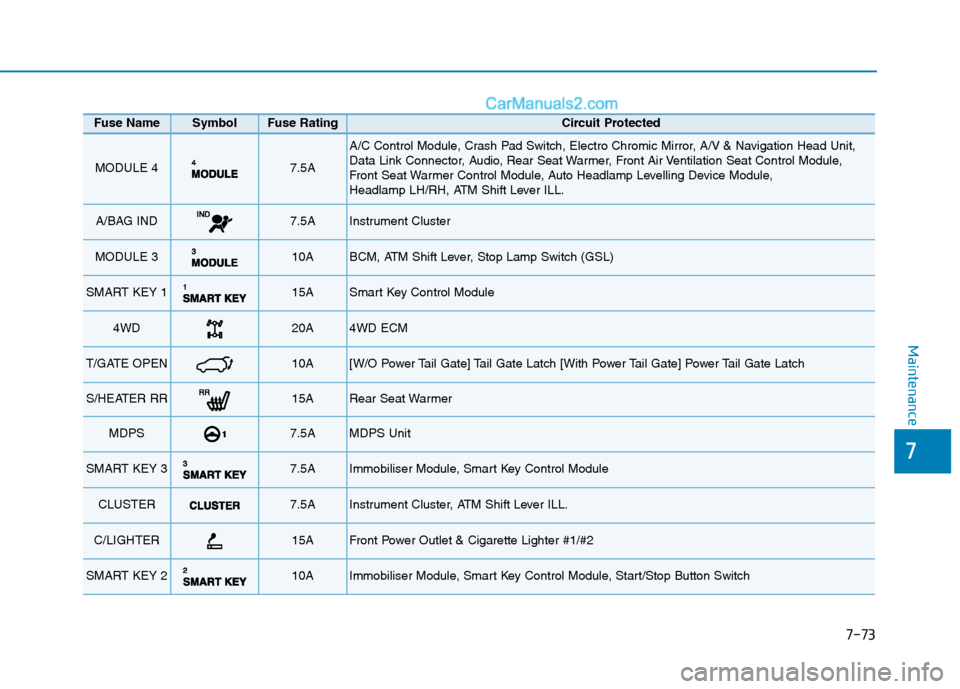

7-73
7
Maintenance
Fuse Name SymbolFuse RatingCircuit Protected
MODULE 4 7.5A
A/C Control Module, Crash Pad Switch, Electro Chromic Mirror, A/V & Navigation Head Unit,
Data Link Connector, Audio, Rear Seat Warmer, Front Air Ventilation Seat Control Module,
Front Seat Warmer Control Module, Auto Headlamp Levelling Device Module,
Headlamp LH/RH, ATM Shift Lever ILL.
A/BAG IND 7.5A Instrument Cluster
MODULE 3 10A BCM, ATM Shift Lever, Stop Lamp Switch (GSL)
SMART KEY 1 15A Smart Key Control Module
4WD 20A 4WD ECM
T/GATE OPEN 10A [W/O Power Tail Gate] Tail Gate Latch [With Power Tail Gate] Power Tail Gate Latch
S/HEATER RR 15A Rear Seat Warmer
MDPS 7.5A MDPS Unit
SMART KEY 3 7.5A Immobiliser Module, Smart Key Control Module
CLUSTER 7.5A Instrument Cluster, ATM Shift Lever ILL.
C/LIGHTER 15A Front Power Outlet & Cigarette Lighter #1/#2
SMART KEY 2 10A Immobiliser Module, Smart Key Control Module, Start/Stop Button Switch

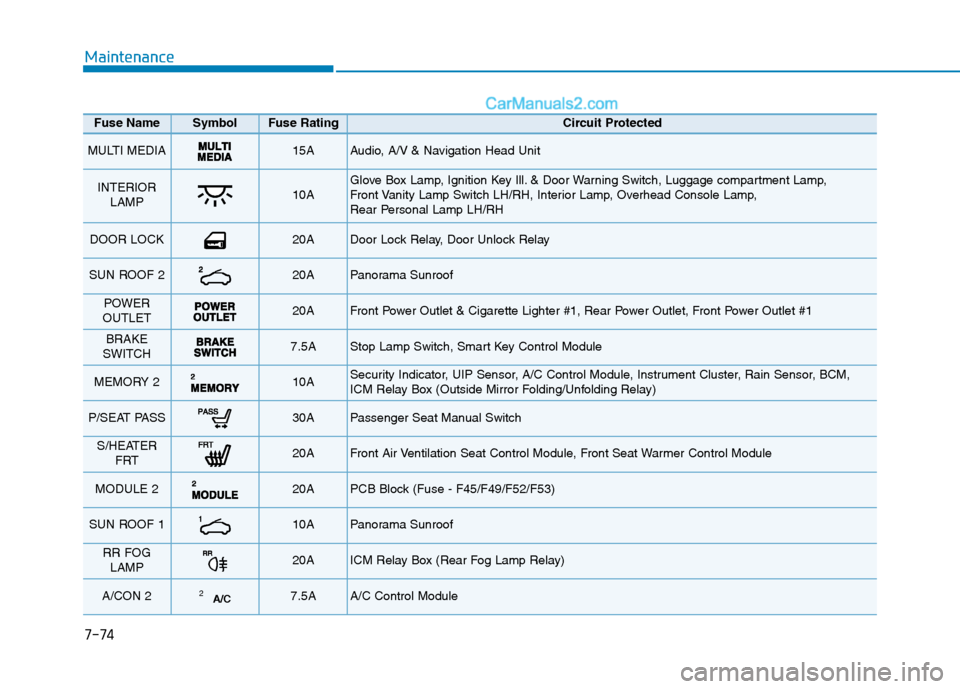

7-74
Maintenance
Fuse Name SymbolFuse RatingCircuit Protected
MULTI MEDIA 15A Audio, A/V & Navigation Head Unit
INTERIOR
LAMP 10A Glove Box Lamp, Ignition Key Ill. & Door Warning Switch, Luggage compartment Lamp,
Front Vanity Lamp Switch LH/RH, Interior Lamp, Overhead Console Lamp,
Rear Personal Lamp LH/RH
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay
SUN ROOF 2 20A Panorama Sunroof
POWER
OUTLET 20A Front Power Outlet & Cigarette Lighter #1, Rear Power Outlet, Front Power Outlet #1
BRAKE
SWITCH 7.5A Stop Lamp Switch, Smart Key Control Module
MEMORY 2 10A Security Indicator, UIP Sensor, A/C Control Module, Instrument Cluster, Rain Sensor, BCM,
ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
P/SEAT PASS 30A Passenger Seat Manual Switch
S/HEATER
FRT 20A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
MODULE 2 20A PCB Block (Fuse - F45/F49/F52/F53)
SUN ROOF 1 10A Panorama Sunroof
RR FOG
LAMP 20A ICM Relay Box (Rear Fog Lamp Relay)
A/CON 2 2A/C7.5A A/C Control Module

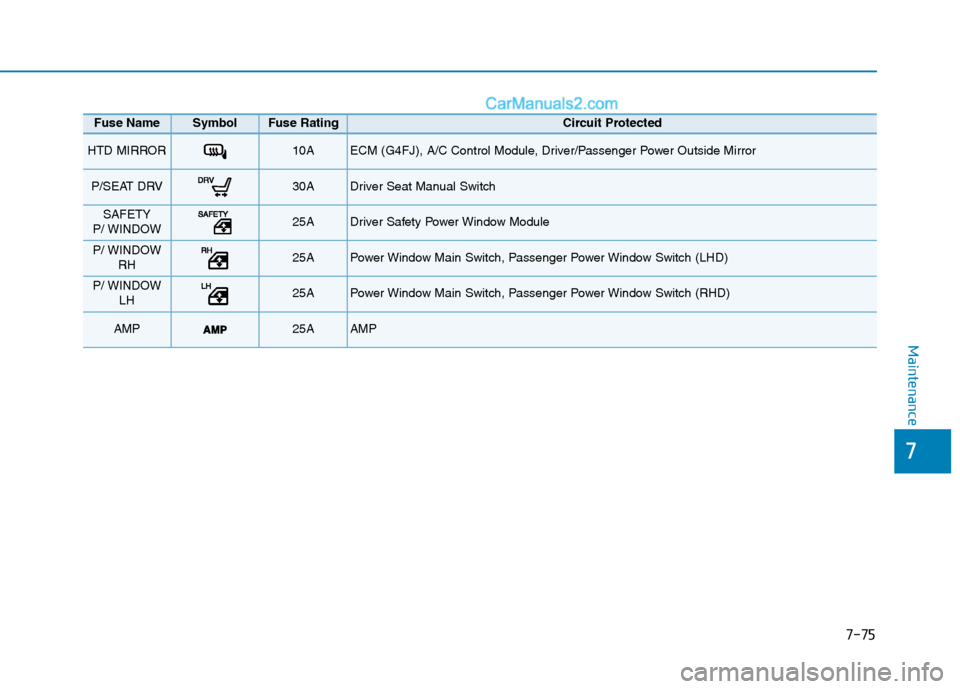

7-75
7
Maintenance
Fuse Name SymbolFuse RatingCircuit Protected
HTD MIRROR 10A ECM (G4FJ), A/C Control Module, Driver/Passenger Power Outside Mirror
P/SEAT DRV 30A Driver Seat Manual Switch
SAFETY
P/ WINDOW 25A Driver Safety Power Window Module
P/ WINDOW
RH 25A Power Window Main Switch, Passenger Power Window Switch (LHD)
P/ WINDOW
LH 25A Power Window Main Switch, Passenger Power Window Switch (RHD)
AMP 25A AMP

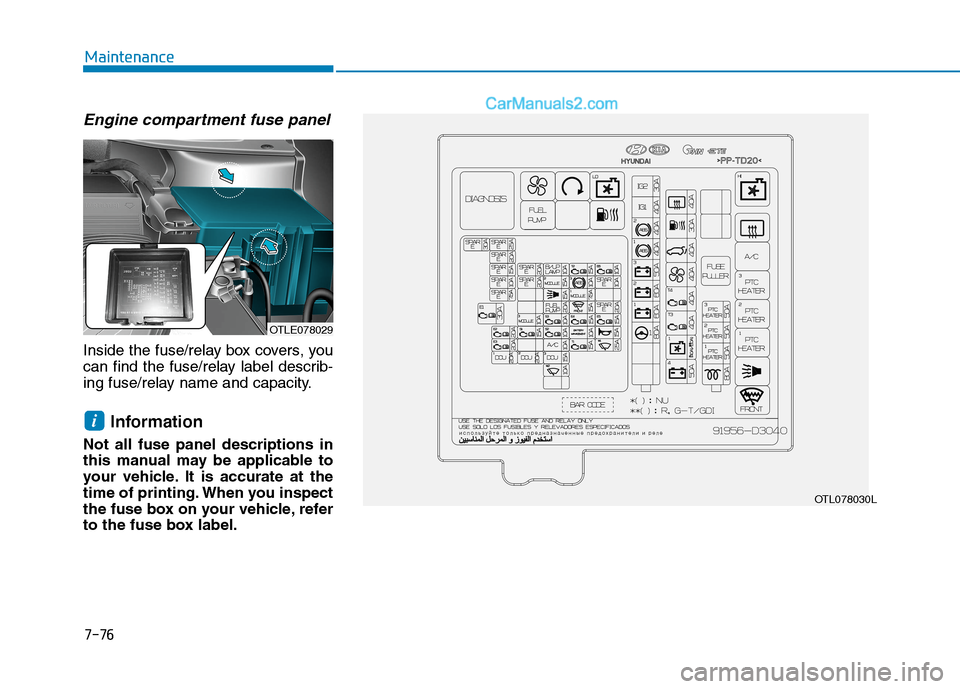

7-76
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer
to the fuse box label.
i
OTLE078029
OTL078030L
