2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

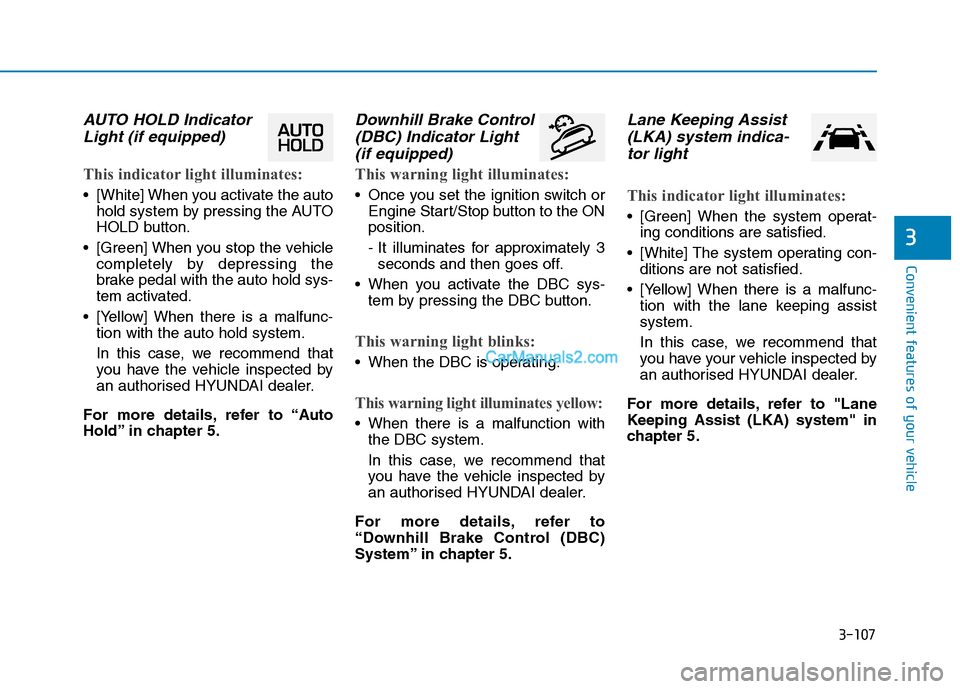

3-107
Convenient features of your vehicle
3
AUTO HOLD Indicator
Light (if equipped)
This indicator light illuminates:
[White] When you activate the auto
hold system by pressing the AUTO
HOLD button.
[Green] When you stop the vehicle
completely by depressing the
brake pedal with the auto hold sys-
tem activated.
[Yellow] When there is a malfunc-
tion with the auto hold system.
In this case, we recommend that
you have the vehicle inspected by
an authorised HYUNDAI dealer.
For more details, refer to “Auto
Hold” in chapter 5.
Downhill Brake Control
(DBC) Indicator Light
(if equipped)
This warning light illuminates:
Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
When you activate the DBC sys-
tem by pressing the DBC button.
This warning light blinks:
When the DBC is operating.
This warning light illuminates yellow:
When there is a malfunction with
the DBC system.
In this case, we recommend that
you have the vehicle inspected by
an authorised HYUNDAI dealer.
For more details, refer to
“Downhill Brake Control (DBC)
System” in chapter 5.
Lane Keeping Assist
(LKA) system indica-
tor light
This indicator light illuminates:
[Green] When the system operat-
ing conditions are satisfied.
[White] The system operating con-
ditions are not satisfied.
[Yellow] When there is a malfunc-
tion with the lane keeping assist
system.
In this case, we recommend that
you have your vehicle inspected by
an authorised HYUNDAI dealer.
For more details, refer to "Lane
Keeping Assist (LKA) system" in
chapter 5.

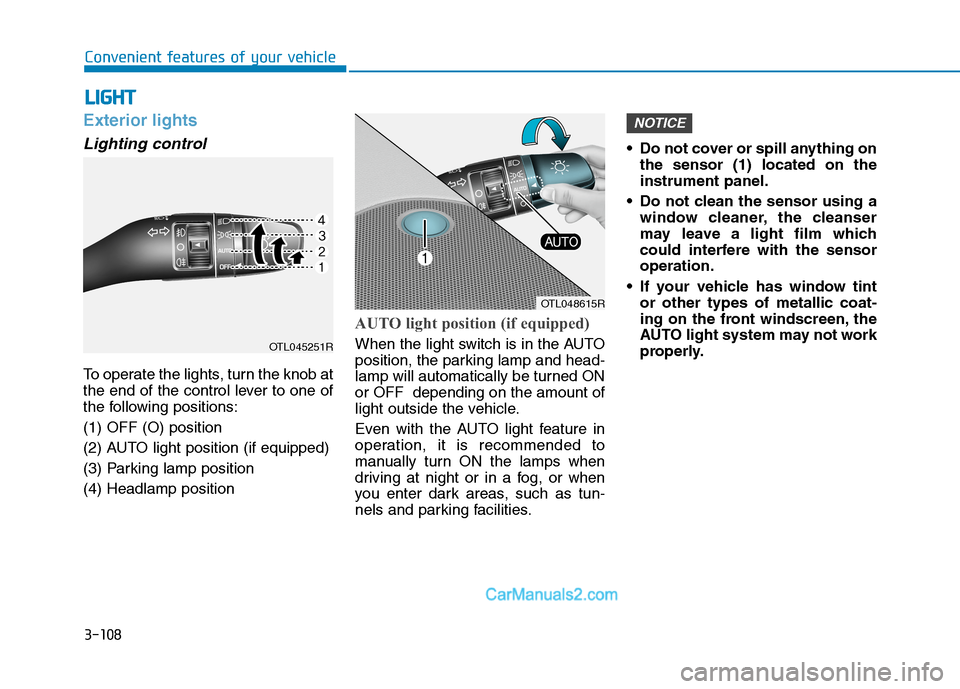

3-108
Exterior lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) OFF (O) position
(2) AUTO light position (if equipped)
(3) Parking lamp position
(4) Headlamp position
AUTO light position (if equipped)
When the light switch is in the AUTO
position, the parking lamp and head-
lamp will automatically be turned ON
or OFF depending on the amount of
light outside the vehicle.
Even with the AUTO light feature in
operation, it is recommended to
manually turn ON the lamps when
driving at night or in a fog, or when
you enter dark areas, such as tun-
nels and parking facilities. Do not cover or spill anything on
the sensor (1) located on the
instrument panel.
Do not clean the sensor using a
window cleaner, the cleanser
may leave a light film which
could interfere with the sensor
operation.
If your vehicle has window tint
or other types of metallic coat-
ing on the front windscreen, the
AUTO light system may not work
properly.
NOTICE
L LI
IG
GH
HT
T
Convenient features of your vehicle
OTL045251R
OTL048615R

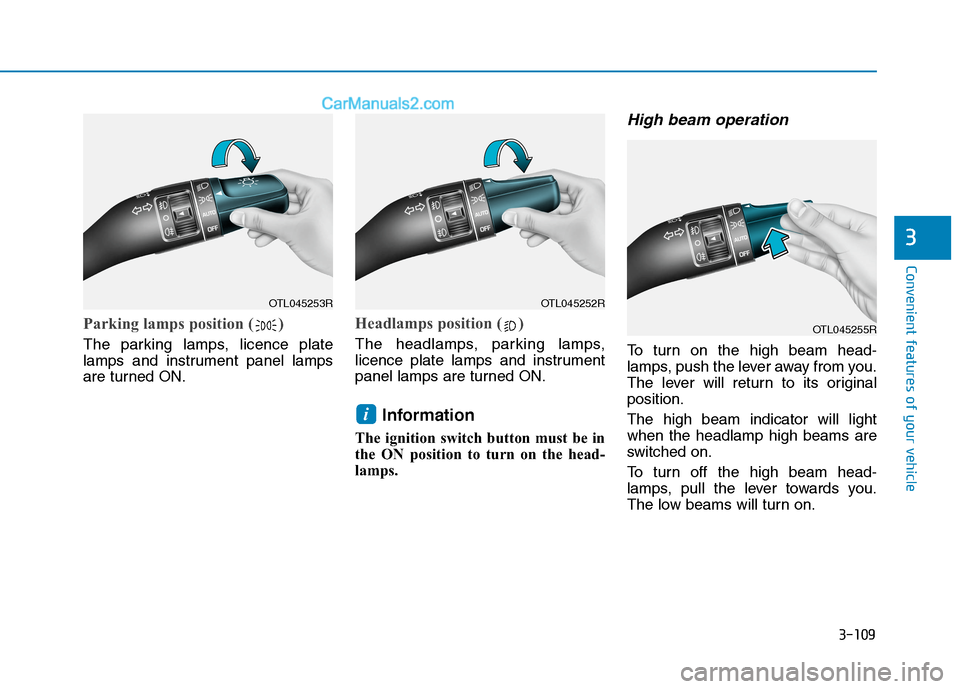

3-109
Convenient features of your vehicle
3
Parking lamps position ( )
The parking lamps, licence plate
lamps and instrument panel lamps
are turned ON.
Headlamps position ( )
The headlamps, parking lamps,
licence plate lamps and instrument
panel lamps are turned ON.
Information
The ignition switch button must be in
the ON position to turn on the head-
lamps.
High beam operation
To turn on the high beam head-
lamps, push the lever away from you.
The lever will return to its original
position.
The high beam indicator will light
when the headlamp high beams are
switched on.
To turn off the high beam head-
lamps, pull the lever towards you.
The low beams will turn on.
i
OTL045253ROTL045252R
OTL045255R

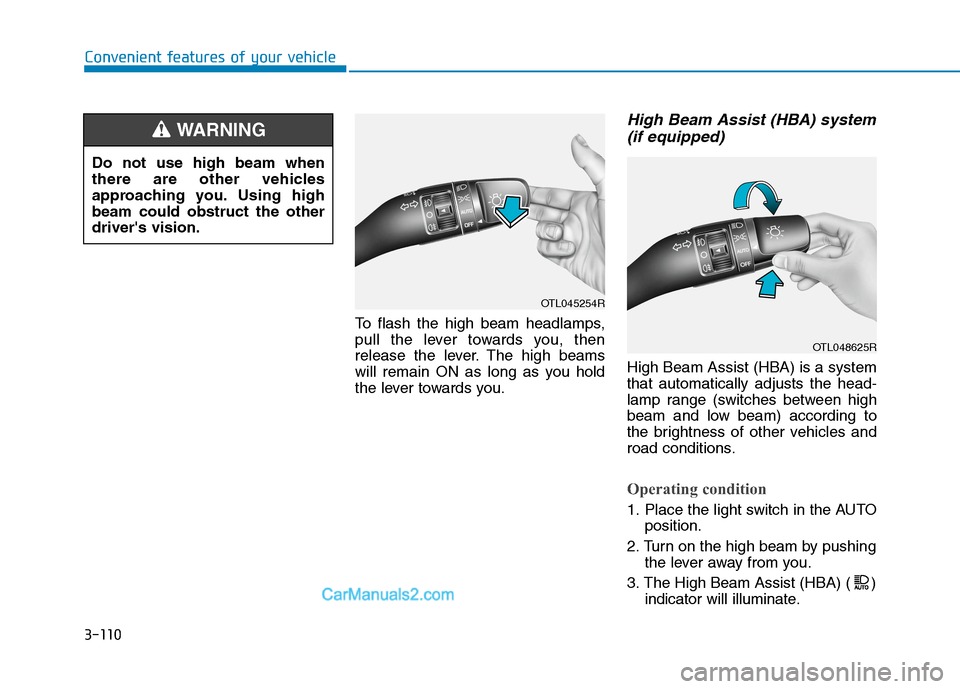

3-110
Convenient features of your vehicle
To flash the high beam headlamps,
pull the lever towards you, then
release the lever. The high beams
will remain ON as long as you hold
the lever towards you.
High Beam Assist (HBA) system
(if equipped)
High Beam Assist (HBA) is a system
that automatically adjusts the head-
lamp range (switches between high
beam and low beam) according to
the brightness of other vehicles and
road conditions.
Operating condition
1. Place the light switch in the AUTO
position.
2. Turn on the high beam by pushing
the lever away from you.
3. The High Beam Assist (HBA) ( )
indicator will illuminate.
Do not use high beam when
there are other vehicles
approaching you. Using high
beam could obstruct the other
driver's vision.
WARNING
OTL045254R
OTL048625R

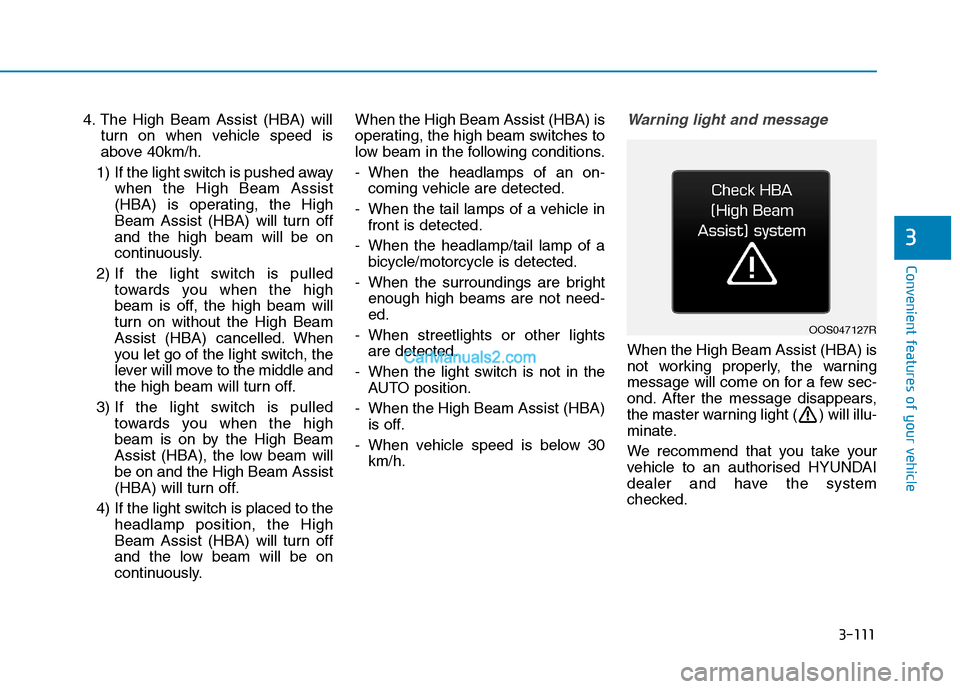

3-111
Convenient features of your vehicle
3
4. The High Beam Assist (HBA) will
turn on when vehicle speed is
above 40km/h.
1) If the light switch is pushed away
when the High Beam Assist
(HBA) is operating, the High
Beam Assist (HBA) will turn off
and the high beam will be on
continuously.
2) If the light switch is pulled
towards you when the high
beam is off, the high beam will
turn on without the High Beam
Assist (HBA) cancelled. When
you let go of the light switch, the
lever will move to the middle and
the high beam will turn off.
3) If the light switch is pulled
towards you when the high
beam is on by the High Beam
Assist (HBA), the low beam will
be on and the High Beam Assist
(HBA) will turn off.
4) If the light switch is placed to the
headlamp position, the High
Beam Assist (HBA) will turn off
and the low beam will be on
continuously.When the High Beam Assist (HBA) is
operating, the high beam switches to
low beam in the following conditions.
- When the headlamps of an on-
coming vehicle are detected.
- When the tail lamps of a vehicle in
front is detected.
- When the headlamp/tail lamp of a
bicycle/motorcycle is detected.
- When the surroundings are bright
enough high beams are not need-
ed.
- When streetlights or other lights
are detected.
- When the light switch is not in the
AUTO position.
- When the High Beam Assist (HBA)
is off.
- When vehicle speed is below 30
km/h.Warning light and message
When the High Beam Assist (HBA) is
not working properly, the warning
message will come on for a few sec-
ond. After the message disappears,
the master warning light ( ) will illu-
minate.
We recommend that you take your
vehicle to an authorised HYUNDAI
dealer and have the system
checked.
OOS047127R

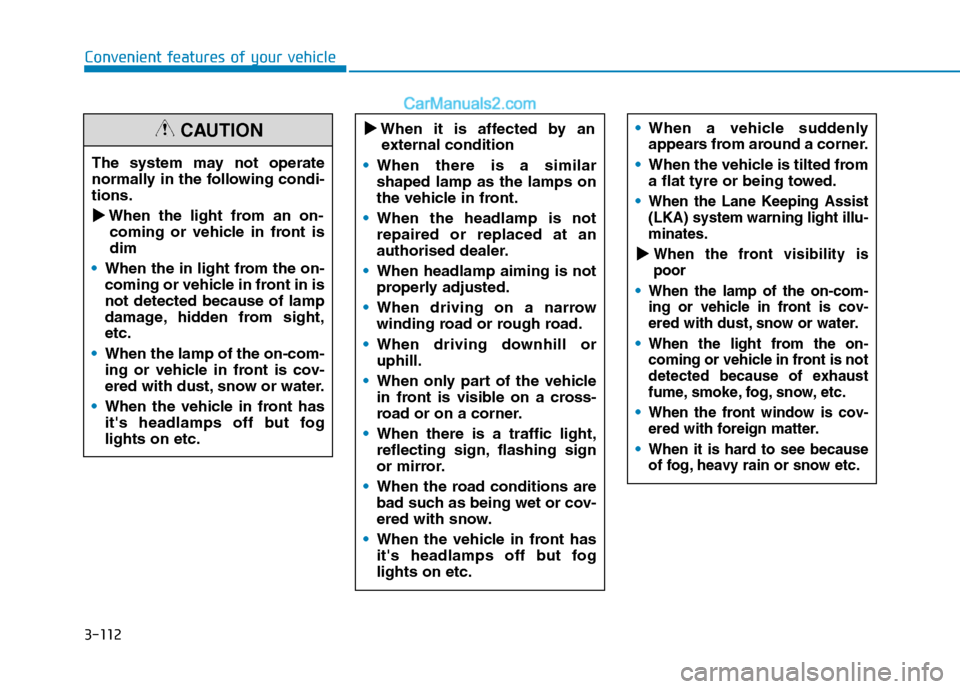

3-112
Convenient features of your vehicle
When a vehicle suddenly
appears from around a corner.
When the vehicle is tilted from
a flat tyre or being towed.

When the Lane Keeping Assist
(LKA) system warning light illu-
minates.
 When the front visibility is
poor
When the lamp of the on-com-
ing or vehicle in front is cov-
ered with dust, snow or water.
When the light from the on-
coming or vehicle in front is not
detected because of exhaust
fume, smoke, fog, snow, etc.
When the front window is cov-
ered with foreign matter.
When it is hard to see because
of fog, heavy rain or snow etc.
The system may not operate
normally in the following condi-
tions.

When the light from an on-
coming or vehicle in front is
dim
When the in light from the on-
coming or vehicle in front in is
not detected because of lamp
damage, hidden from sight,
etc.
When the lamp of the on-com-
ing or vehicle in front is cov-
ered with dust, snow or water.
When the vehicle in front has
it's headlamps off but fog
lights on etc.

When it is affected by an
external condition
When there is a similar
shaped lamp as the lamps on
the vehicle in front.
When the headlamp is not
repaired or replaced at an
authorised dealer.
When headlamp aiming is not
properly adjusted.
When driving on a narrow
winding road or rough road.
When driving downhill or
uphill.
When only part of the vehicle
in front is visible on a cross-
road or on a corner.
When there is a traffic light,
reflecting sign, flashing sign
or mirror.
When the road conditions are
bad such as being wet or cov-
ered with snow.
When the vehicle in front has
it's headlamps off but fog
lights on etc.CAUTION

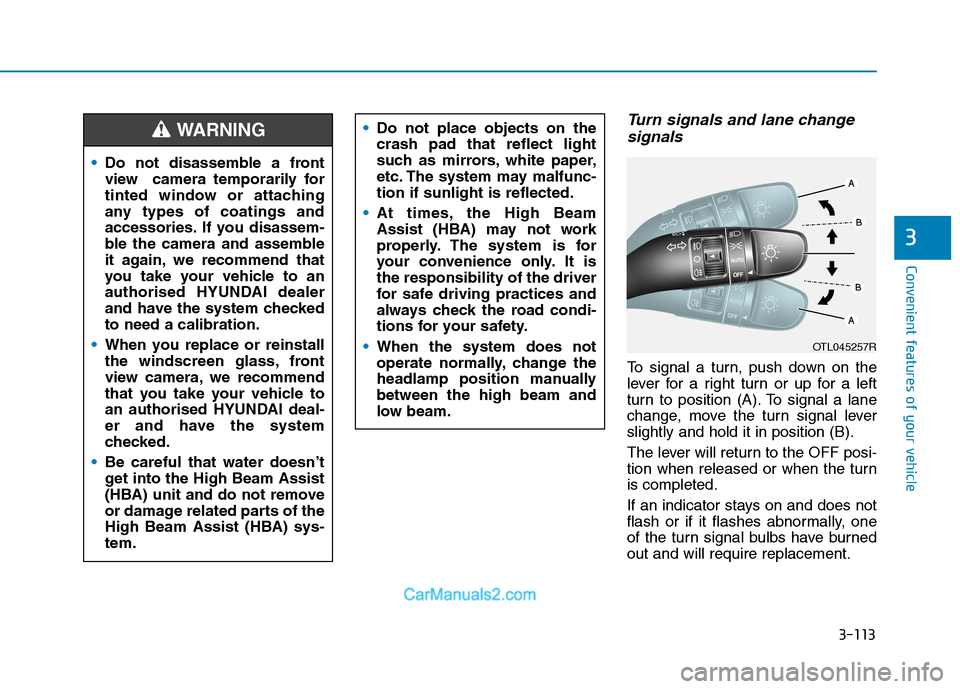

3-113
Convenient features of your vehicle
3
Turn signals and lane change
signals
To signal a turn, push down on the
lever for a right turn or up for a left
turn to position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B).
The lever will return to the OFF posi-
tion when released or when the turn
is completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one
of the turn signal bulbs have burned
out and will require replacement.
OTL045257R
Do not disassemble a front
view camera temporarily for
tinted window or attaching
any types of coatings and
accessories. If you disassem-
ble the camera and assemble
it again, we recommend that
you take your vehicle to an
authorised HYUNDAI dealer
and have the system checked
to need a calibration.
When you replace or reinstall
the windscreen glass, front
view camera, we recommend
that you take your vehicle to
an authorised HYUNDAI deal-
er and have the system
checked.
Be careful that water doesn’t
get into the High Beam Assist
(HBA) unit and do not remove
or damage related parts of the
High Beam Assist (HBA) sys-
tem.
WARNING Do not place objects on the
crash pad that reflect light
such as mirrors, white paper,
etc. The system may malfunc-
tion if sunlight is reflected.
At times, the High Beam
Assist (HBA) may not work
properly. The system is for
your convenience only. It is
the responsibility of the driver
for safe driving practices and
always check the road condi-
tions for your safety.
When the system does not
operate normally, change the
headlamp position manually
between the high beam and
low beam.

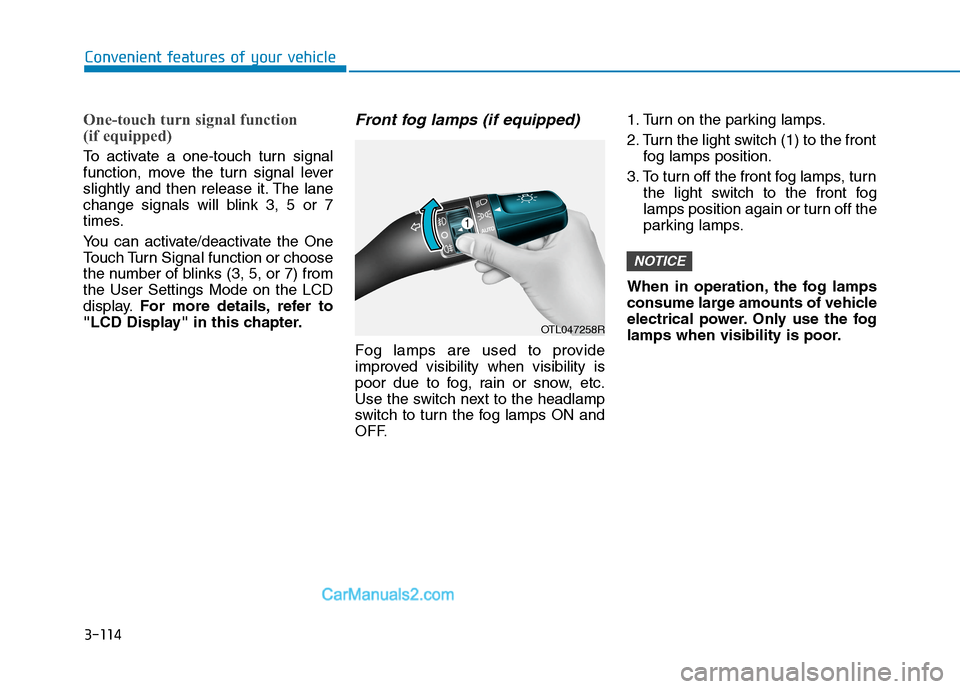

3-114
Convenient features of your vehicle
One-touch turn signal function
(if equipped)
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7
times.
You can activate/deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from
the User Settings Mode on the LCD
display.For more details, refer to
"LCD Display" in this chapter.
Front fog lamps (if equipped)
Fog lamps are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc.
Use the switch next to the headlamp
switch to turn the fog lamps ON and
OFF.1. Turn on the parking lamps.
2. Turn the light switch (1) to the front
fog lamps position.
3. To turn off the front fog lamps, turn
the light switch to the front fog
lamps position again or turn off the
parking lamps.
When in operation, the fog lamps
consume large amounts of vehicle
electrical power. Only use the fog
lamps when visibility is poor.
NOTICE
OTL047258R
