2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

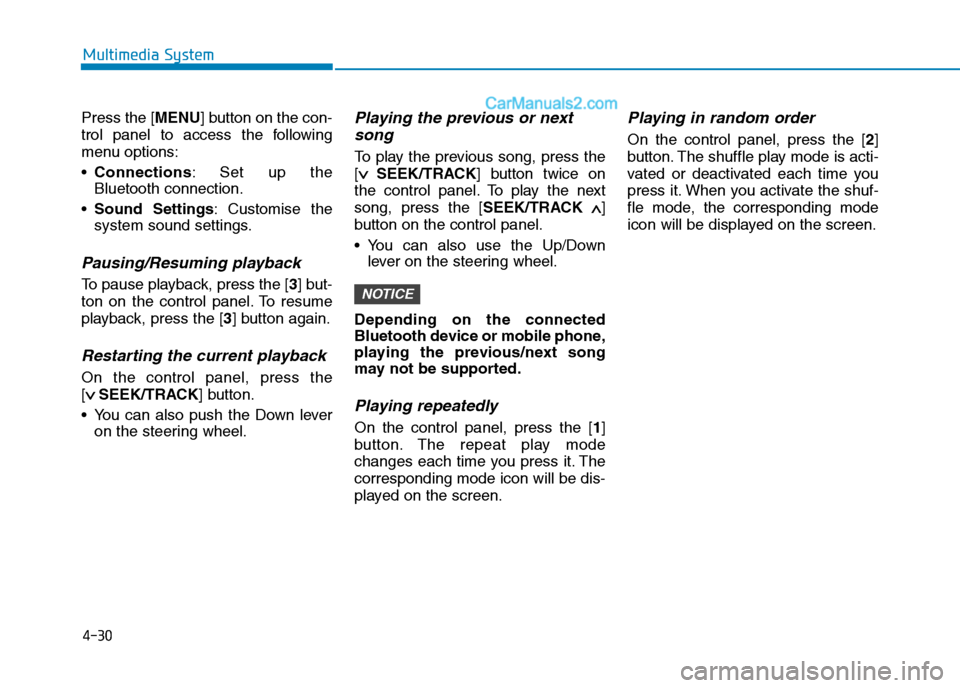

4-30
Multimedia System
Press the [MENU] button on the con-
trol panel to access the following
menu options:
Connections: Set up the
Bluetooth connection.
Sound Settings: Customise the
system sound settings.
Pausing/Resuming playback
To pause playback, press the [3] but-
ton on the control panel. To resume
playback, press the [3] button again.
Restarting the current playback
On the control panel, press the
[∨ ∨

SEEK/TRACK] button.
You can also push the Down lever
on the steering wheel.
Playing the previous or next
song
To play the previous song, press the
[∨ ∨
SEEK/TRACK] button twice on
the control panel. To play the next
song, press the [SEEK/TRACK∧ ∧
]
button on the control panel.
You can also use the Up/Down
lever on the steering wheel.
Depending on the connected
Bluetooth device or mobile phone,
playing the previous/next song
may not be supported.
Playing repeatedly
On the control panel, press the [1]
button. The repeat play mode
changes each time you press it. The
corresponding mode icon will be dis-
played on the screen.
Playing in random order
On the control panel, press the [2]
button. The shuffle play mode is acti-
vated or deactivated each time you
press it. When you activate the shuf-
fle mode, the corresponding mode
icon will be displayed on the screen.
NOTICE

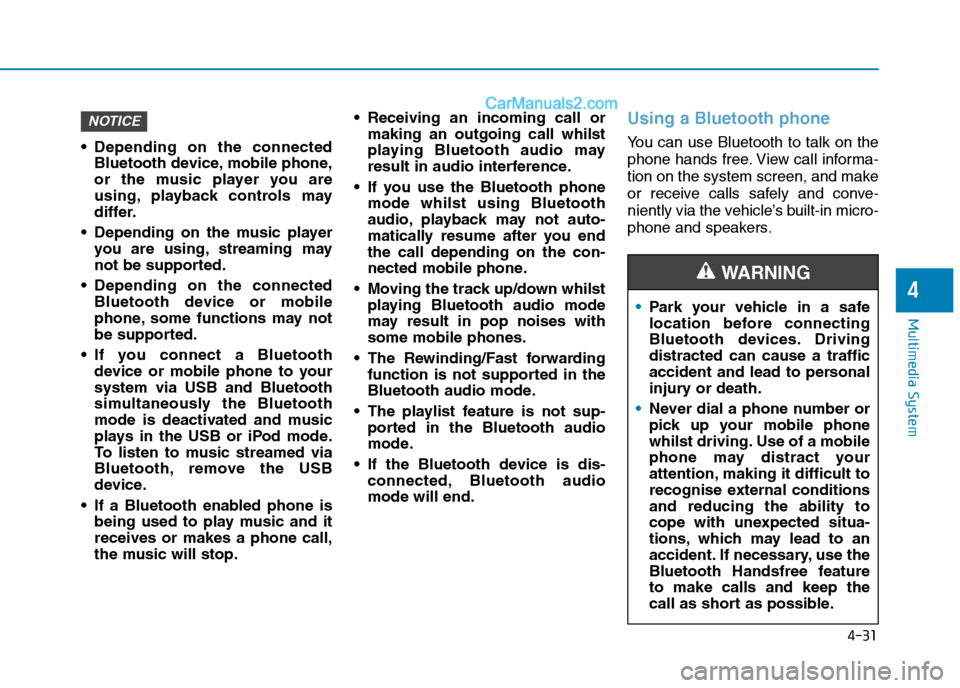

4-31
Multimedia System
4
Depending on the connected
Bluetooth device, mobile phone,
or the music player you are
using, playback controls may
differ.
Depending on the music player
you are using, streaming may
not be supported.
Depending on the connected
Bluetooth device or mobile
phone, some functions may not
be supported.
If you connect a Bluetooth
device or mobile phone to your
system via USB and Bluetooth
simultaneously the Bluetooth
mode is deactivated and music
plays in the USB or iPod mode.
To listen to music streamed via
Bluetooth, remove the USB
device.
If a Bluetooth enabled phone is
being used to play music and it
receives or makes a phone call,
the music will stop. Receiving an incoming call or
making an outgoing call whilst
playing Bluetooth audio may
result in audio interference.
If you use the Bluetooth phone
mode whilst using Bluetooth
audio, playback may not auto-
matically resume after you end
the call depending on the con-
nected mobile phone.
Moving the track up/down whilst
playing Bluetooth audio mode
may result in pop noises with
some mobile phones.
The Rewinding/Fast forwarding
function is not supported in the
Bluetooth audio mode.
The playlist feature is not sup-
ported in the Bluetooth audio
mode.
If the Bluetooth device is dis-
connected, Bluetooth audio
mode will end.
Using a Bluetooth phone
You can use Bluetooth to talk on the
phone hands free. View call informa-
tion on the system screen, and make
or receive calls safely and conve-
niently via the vehicle’s built-in micro-
phone and speakers.
NOTICE
Park your vehicle in a safe
location before connecting
Bluetooth devices. Driving
distracted can cause a traffic
accident and lead to personal
injury or death.
Never dial a phone number or
pick up your mobile phone
whilst driving. Use of a mobile
phone may distract your
attention, making it difficult to
recognise external conditions
and reducing the ability to
cope with unexpected situa-
tions, which may lead to an
accident. If necessary, use the
Bluetooth Handsfree feature
to make calls and keep the
call as short as possible.
WARNING

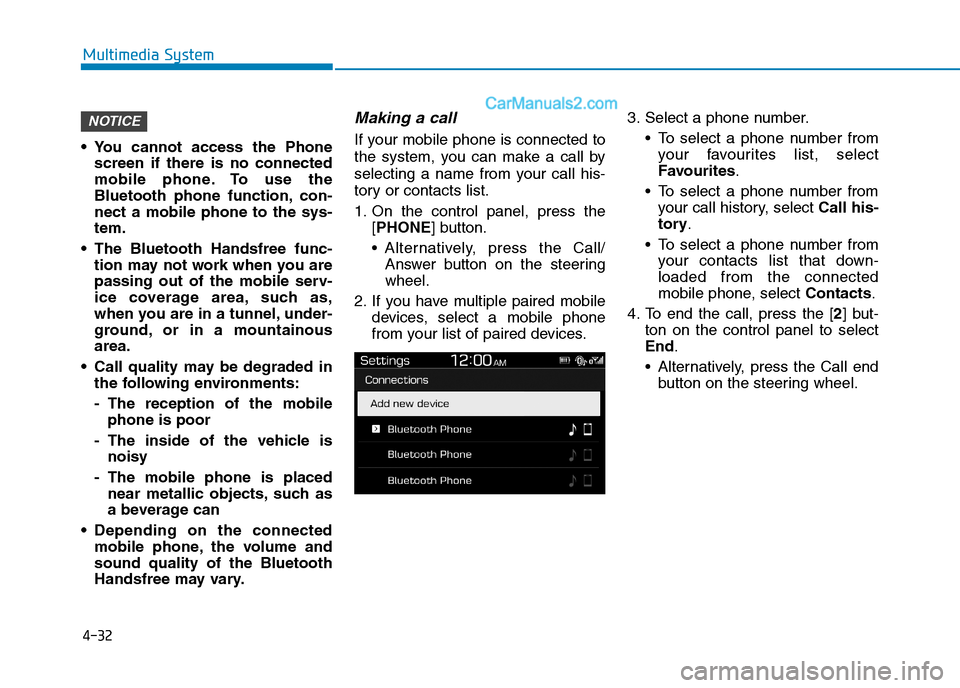

4-32
Multimedia System
You cannot access the Phone
screen if there is no connected
mobile phone. To use the
Bluetooth phone function, con-
nect a mobile phone to the sys-
tem.
The Bluetooth Handsfree func-
tion may not work when you are
passing out of the mobile serv-
ice coverage area, such as,
when you are in a tunnel, under-
ground, or in a mountainous
area.
Call quality may be degraded in
the following environments:
- The reception of the mobile
phone is poor
- The inside of the vehicle is
noisy
- The mobile phone is placed
near metallic objects, such as
a beverage can
Depending on the connected
mobile phone, the volume and
sound quality of the Bluetooth
Handsfree may vary.
Making a call
If your mobile phone is connected to
the system, you can make a call by
selecting a name from your call his-
tory or contacts list.
1. On the control panel, press the
[PHONE] button.
Alternatively, press the Call/
Answer button on the steering
wheel.
2. If you have multiple paired mobile
devices, select a mobile phone
from your list of paired devices.3. Select a phone number.
To select a phone number from
your favourites list, select
Favourites.
To select a phone number from
your call history, select Call his-
tory.
To select a phone number from
your contacts list that down-
loaded from the connected
mobile phone, select Contacts.
4. To end the call, press the [2] but-
ton on the control panel to select
End.
Alternatively, press the Call end
button on the steering wheel.
NOTICE

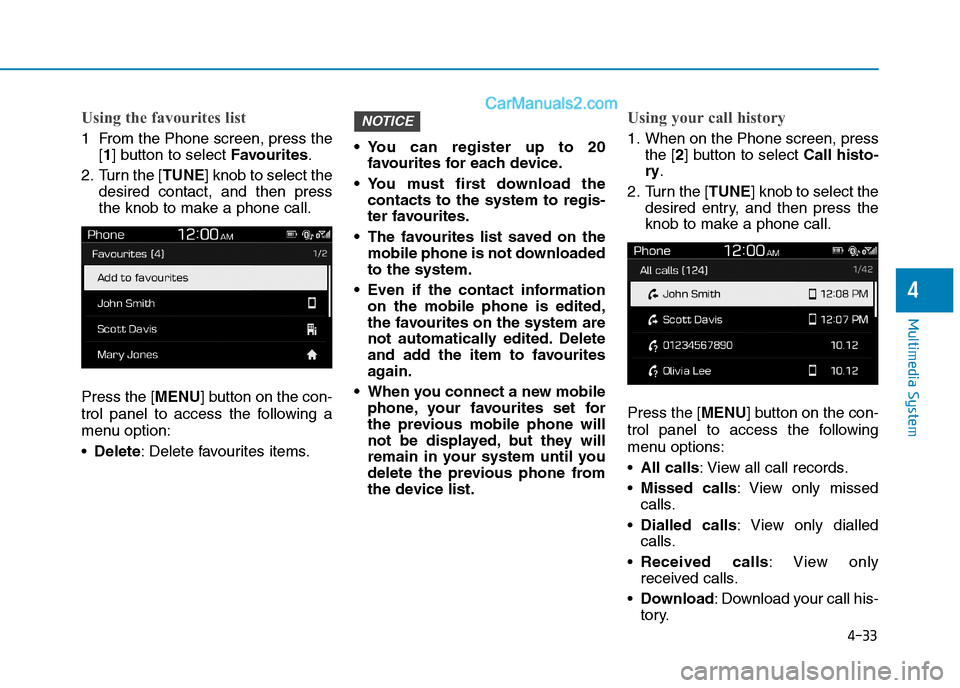

4-33
Multimedia System
4
Using the favourites list
1 From the Phone screen, press the
[1] button to select Favourites.
2. Turn the [TUNE] knob to select the
desired contact, and then press
the knob to make a phone call.
Press the [MENU] button on the con-
trol panel to access the following a
menu option:
Delete: Delete favourites items. You can register up to 20
favourites for each device.
You must first download the
contacts to the system to regis-
ter favourites.
The favourites list saved on the
mobile phone is not downloaded
to the system.
Even if the contact information
on the mobile phone is edited,
the favourites on the system are
not automatically edited. Delete
and add the item to favourites
again.
When you connect a new mobile
phone, your favourites set for
the previous mobile phone will
not be displayed, but they will
remain in your system until you
delete the previous phone from
the device list.
Using your call history
1. When on the Phone screen, press
the [2] button to select Call histo-
ry.
2. Turn the [TUNE] knob to select the
desired entry, and then press the
knob to make a phone call.
Press the [MENU] button on the con-
trol panel to access the following
menu options:
All calls: View all call records.
Missed calls: View only missed
calls.
Dialled calls: View only dialled
calls.
Received calls: View only
received calls.
Download: Download your call his-
tory.
NOTICE

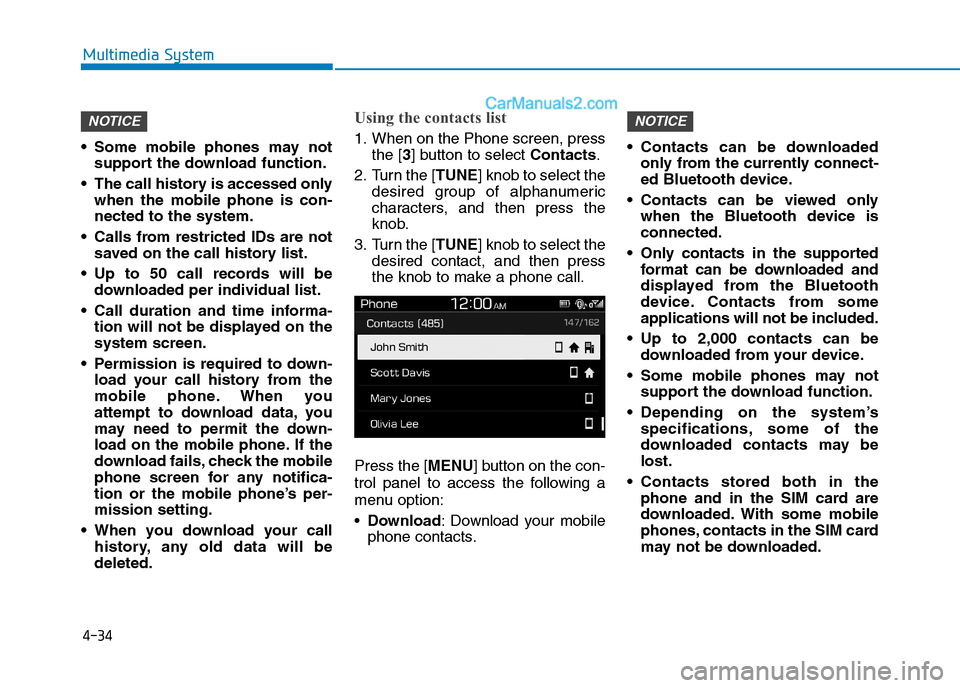

4-34
Multimedia System
Some mobile phones may not
support the download function.
The call history is accessed only
when the mobile phone is con-
nected to the system.
Calls from restricted IDs are not
saved on the call history list.
Up to 50 call records will be
downloaded per individual list.
Call duration and time informa-
tion will not be displayed on the
system screen.
Permission is required to down-
load your call history from the
mobile phone. When you
attempt to download data, you
may need to permit the down-
load on the mobile phone. If the
download fails, check the mobile
phone screen for any notifica-
tion or the mobile phone’s per-
mission setting.
When you download your call
history, any old data will be
deleted.
Using the contacts list
1. When on the Phone screen, press
the [3] button to select Contacts.
2. Turn the [TUNE] knob to select the
desired group of alphanumeric
characters, and then press the
knob.
3. Turn the [TUNE] knob to select the
desired contact, and then press
the knob to make a phone call.
Press the [MENU] button on the con-
trol panel to access the following a
menu option:
Download: Download your mobile
phone contacts. Contacts can be downloaded
only from the currently connect-
ed Bluetooth device.
Contacts can be viewed only
when the Bluetooth device is
connected.
Only contacts in the supported
format can be downloaded and
displayed from the Bluetooth
device. Contacts from some
applications will not be included.
Up to 2,000 contacts can be
downloaded from your device.
Some mobile phones may not
support the download function.
Depending on the system’s
specifications, some of the
downloaded contacts may be
lost.
Contacts stored both in the
phone and in the SIM card are
downloaded. With some mobile
phones, contacts in the SIM card
may not be downloaded.
NOTICENOTICE

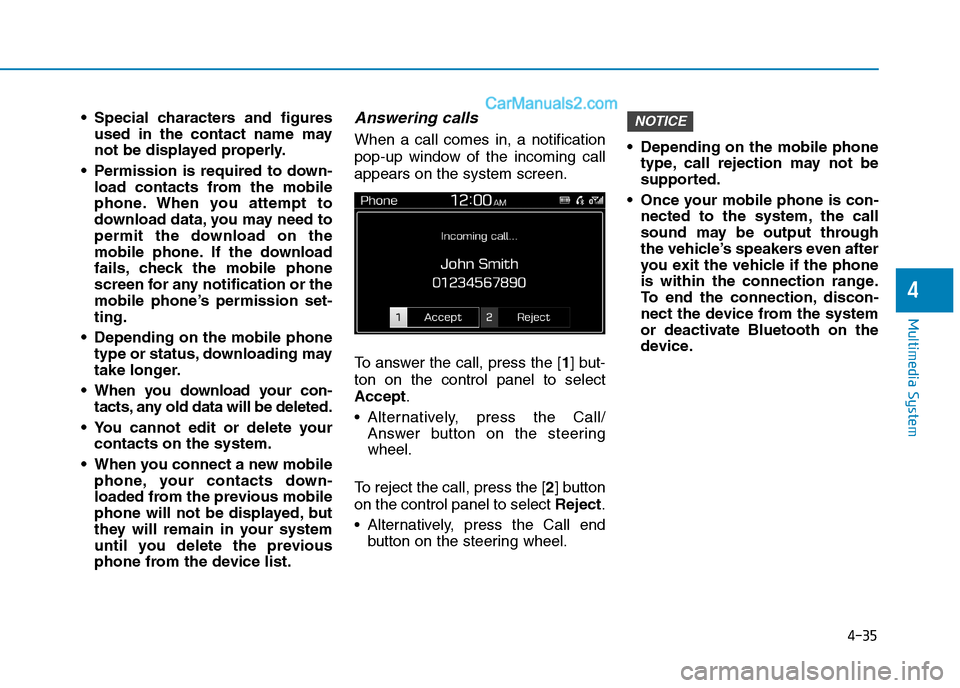

4-35
Multimedia System
4
Special characters and figures
used in the contact name may
not be displayed properly.
Permission is required to down-
load contacts from the mobile
phone. When you attempt to
download data, you may need to
permit the download on the
mobile phone. If the download
fails, check the mobile phone
screen for any notification or the
mobile phone’s permission set-
ting.
Depending on the mobile phone
type or status, downloading may
take longer.
When you download your con-
tacts, any old data will be deleted.
You cannot edit or delete your
contacts on the system.
When you connect a new mobile
phone, your contacts down-
loaded from the previous mobile
phone will not be displayed, but
they will remain in your system
until you delete the previous
phone from the device list.Answering calls
When a call comes in, a notification
pop-up window of the incoming call
appears on the system screen.
To answer the call, press the [1] but-
ton on the control panel to select
Accept.
Alternatively, press the Call/
Answer button on the steering
wheel.
To reject the call, press the [2] button
on the control panel to select Reject.
Alternatively, press the Call end
button on the steering wheel. Depending on the mobile phone
type, call rejection may not be
supported.
Once your mobile phone is con-
nected to the system, the call
sound may be output through
the vehicle’s speakers even after
you exit the vehicle if the phone
is within the connection range.
To end the connection, discon-
nect the device from the system
or deactivate Bluetooth on the
device.
NOTICE

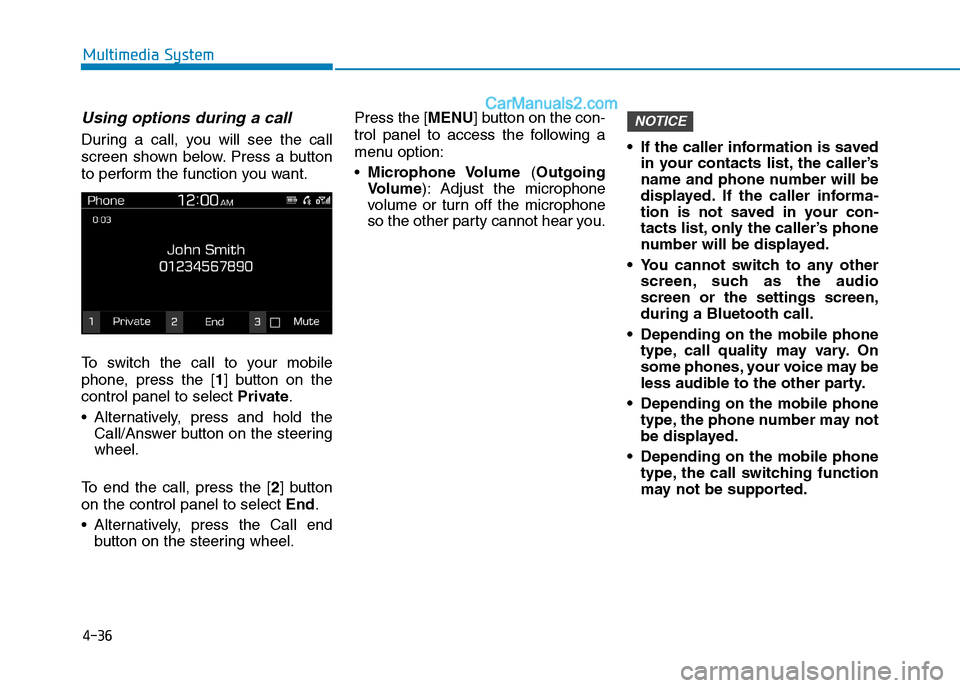

4-36
Multimedia System
Using options during a call
During a call, you will see the call
screen shown below. Press a button
to perform the function you want.
To switch the call to your mobile
phone, press the [1] button on the
control panel to select Private.
Alternatively, press and hold the
Call/Answer button on the steering
wheel.
To end the call, press the [2] button
on the control panel to select End.
Alternatively, press the Call end
button on the steering wheel.Press the [MENU] button on the con-
trol panel to access the following a
menu option:
Microphone Volume (Outgoing
Volume): Adjust the microphone
volume or turn off the microphone
so the other party cannot hear you. If the caller information is saved
in your contacts list, the caller’s
name and phone number will be
displayed. If the caller informa-
tion is not saved in your con-
tacts list, only the caller’s phone
number will be displayed.
You cannot switch to any other
screen, such as the audio
screen or the settings screen,
during a Bluetooth call.
Depending on the mobile phone
type, call quality may vary. On
some phones, your voice may be
less audible to the other party.
Depending on the mobile phone
type, the phone number may not
be displayed.
Depending on the mobile phone
type, the call switching function
may not be supported.
NOTICE

4-37
Multimedia System
4

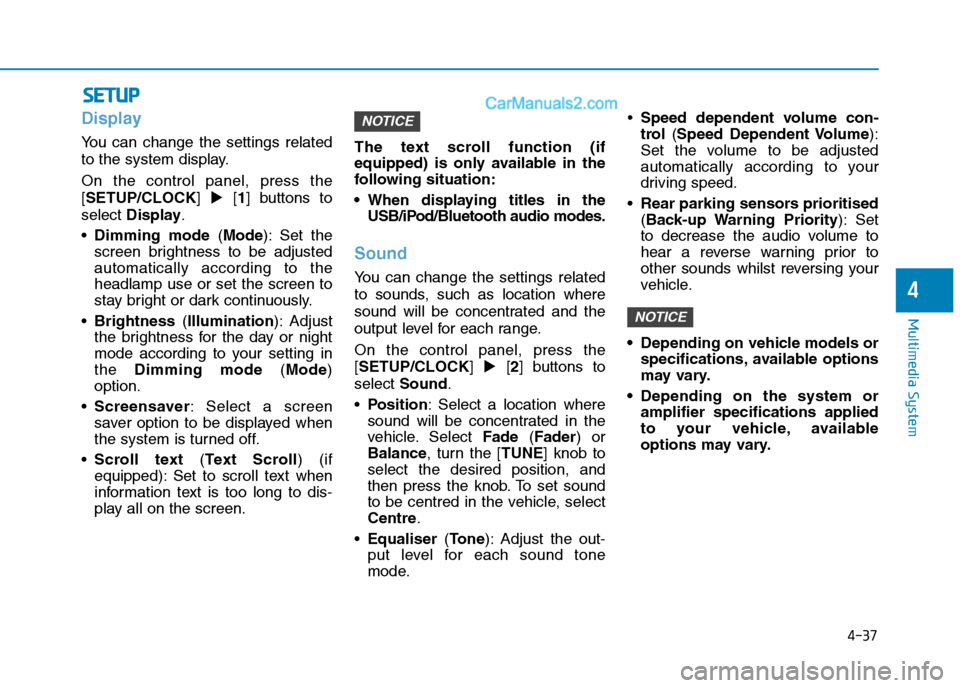

Display
You can change the settings related
to the system display.
On the control panel, press the
[SETUP/CLOCK] [1] buttons to
select Display.
Dimming mode (Mode): Set the
screen brightness to be adjusted
automatically according to the
headlamp use or set the screen to
stay bright or dark continuously.
Brightness (Illumination): Adjust
the brightness for the day or night
mode according to your setting in
the Dimming mode (Mode)
option.
Screensaver: Select a screen
saver option to be displayed when
the system is turned off.
Scroll text (Text Scroll) (if
equipped): Set to scroll text when
information text is too long to dis-
play all on the screen.The text scroll function (if
equipped) is only available in the
following situation:
When displaying titles in the
USB/iPod/Bluetooth audio modes.
Sound
You can change the settings related
to sounds, such as location where
sound will be concentrated and the
output level for each range.
On the control panel, press the
[SETUP/CLOCK] [2] buttons to
select Sound.
Position: Select a location where
sound will be concentrated in the
vehicle. Select Fade(Fader) or
Balance, turn the [TUNE] knob to
select the desired position, and
then press the knob. To set sound
to be centred in the vehicle, select
Centre.
Equaliser(Tone): Adjust the out-
put level for each sound tone
mode.
•Speed dependent volume con-
trol(Speed Dependent Volume):
Set the volume to be adjusted
automatically according to your
driving speed.
Rear parking sensors prioritised
(Back-up Warning Priority): Set
to decrease the audio volume to
hear a reverse warning prior to
other sounds whilst reversing your
vehicle.
Depending on vehicle models or
specifications, available options
may vary.
Depending on the system or
amplifier specifications applied
to your vehicle, available
options may vary.
NOTICE
NOTICE
S SE
ET
TU
UP
P
