2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

8

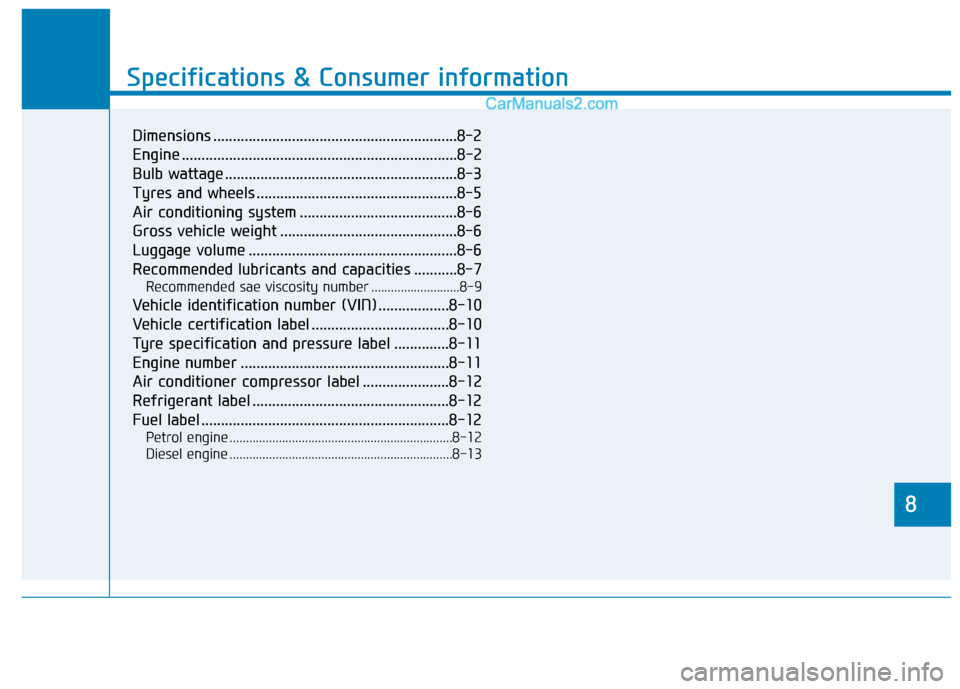

Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb wattage ...........................................................8-3
Tyres and wheels ...................................................8-5
Air conditioning system ........................................8-6
Gross vehicle weight .............................................8-6
Luggage volume .....................................................8-6
Recommended lubricants and capacities ...........8-7
Recommended sae viscosity number ...........................8-9
Vehicle identification number (VIN) ..................8-10
Vehicle certification label ...................................8-10
Tyre specification and pressure label ..............8-11
Engine number .....................................................8-11
Air conditioner compressor label ......................8-12
Refrigerant label ..................................................8-12
Fuel label ...............................................................8-12
Petrol engine ....................................................................8-12
Diesel engine ....................................................................8-13

8-2
Specifications & Consumer information

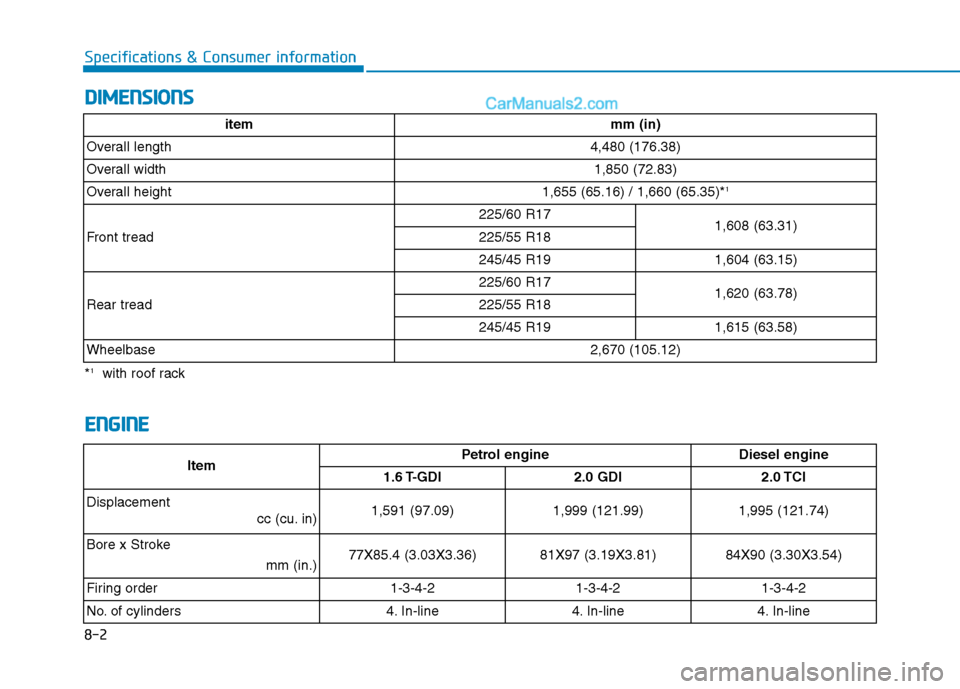

D DI
IM
ME
EN
NS
SI
IO
ON
NS
S
E EN
NG
GI
IN
NE
E
item mm (in)
Overall length 4,480 (176.38)
Overall width 1,850 (72.83)
Overall height 1,655 (65.16) / 1,660 (65.35)*
1
Front tread225/60 R17
1,608 (63.31)
225/55 R18
245/45 R19 1,604 (63.15)
Rear tread225/60 R17
1,620 (63.78)
225/55 R18
245/45 R19 1,615 (63.58)
Wheelbase 2,670 (105.12)
*1with roof rack
ItemPetrol engine
Diesel engine
1.6 T-GDI 2.0 GDI
2.0 TCI
Displacement
cc (cu. in) 1,591 (97.09) 1,999 (121.99)
1,995 (121.74)
Bore x Stroke
mm (in.)77X85.4 (3.03X3.36) 81X97 (3.19X3.81)
84X90 (3.30X3.54)
Firing order 1-3-4-2 1-3-4-2
1-3-4-2
No. of cylinders 4. In-line 4. In-line
4. In-line

8-3
8
Specifications & Consumer information

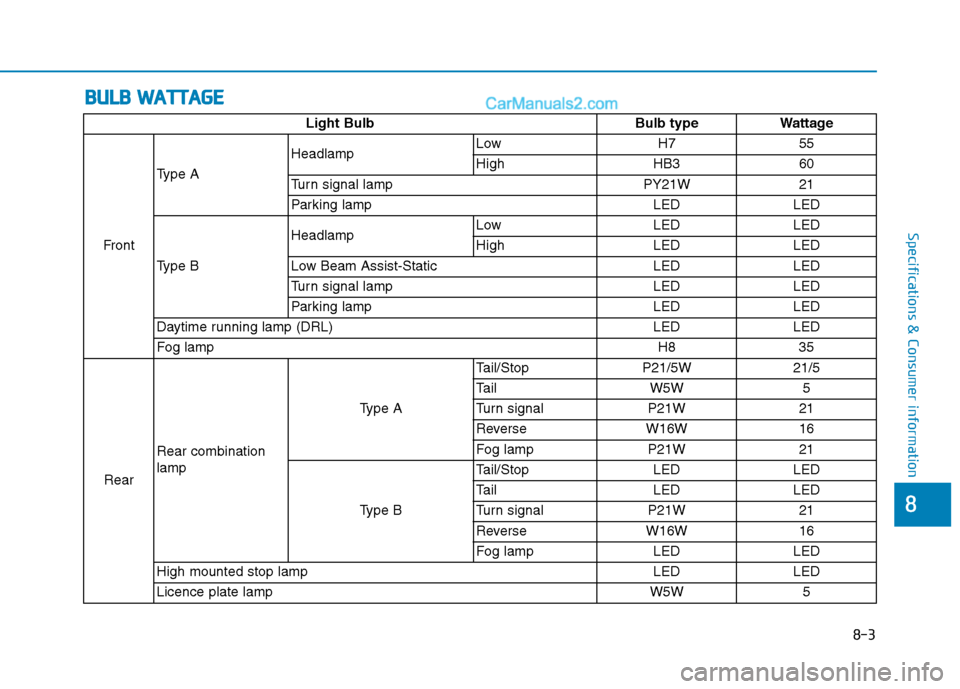

B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E
Light Bulb Bulb type Wattage
FrontType AHeadlampLow H7 55
High HB3 60
Turn signal lamp PY21W 21
Parking lamp LED LED
Type BHeadlampLow LED LED
High LED LED
Low Beam Assist-Static LED LED
Turn signal lamp LED LED
Parking lamp LED LED
Daytime running lamp (DRL) LED LED
Fog lampH8 35
RearRear combination
lampType ATail/Stop P21/5W 21/5
Tail W5W 5
Turn signal P21W 21
Reverse W16W 16
Fog lamp P21W 21
Type BTail/Stop LED LED
Tail LED LED
Turn signal P21W 21
Reverse W16W 16
Fog lamp LED LED
High mounted stop lamp LED LED
Licence plate lamp W5W 5

8-4
Specifications & Consumer information

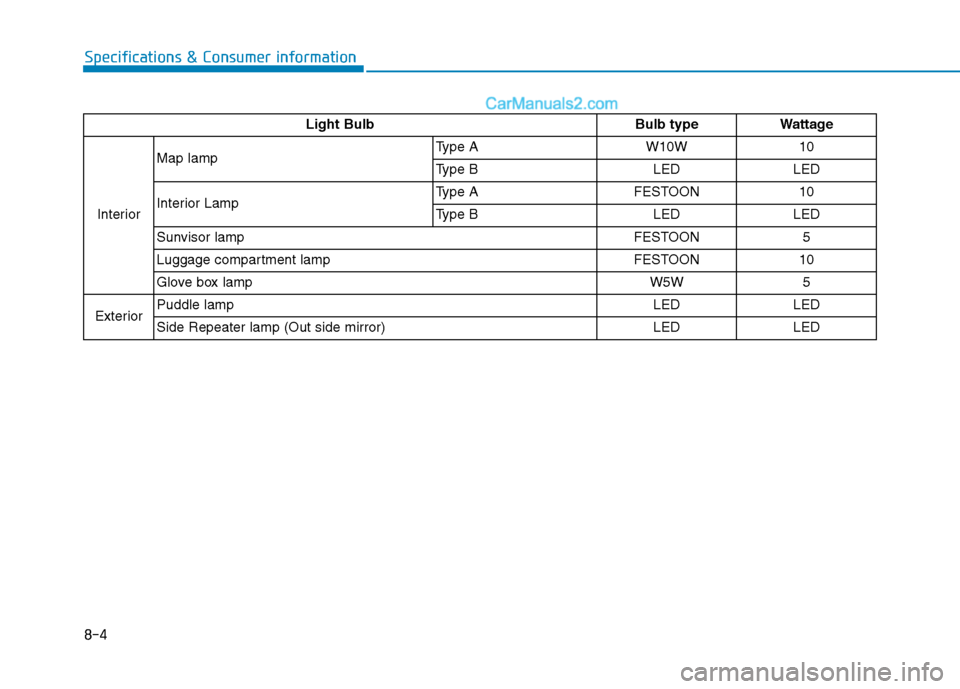

Light Bulb Bulb type Wattage
InteriorMap lampType A W10W 10
Type B LED LED
Interior LampType A FESTOON 10
Type B LED LED
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
Glove box lamp W5W 5
ExteriorPuddle lamp LED LED
Side Repeater lamp (Out side mirror) LED LED

8-5
8
Specifications & Consumer information

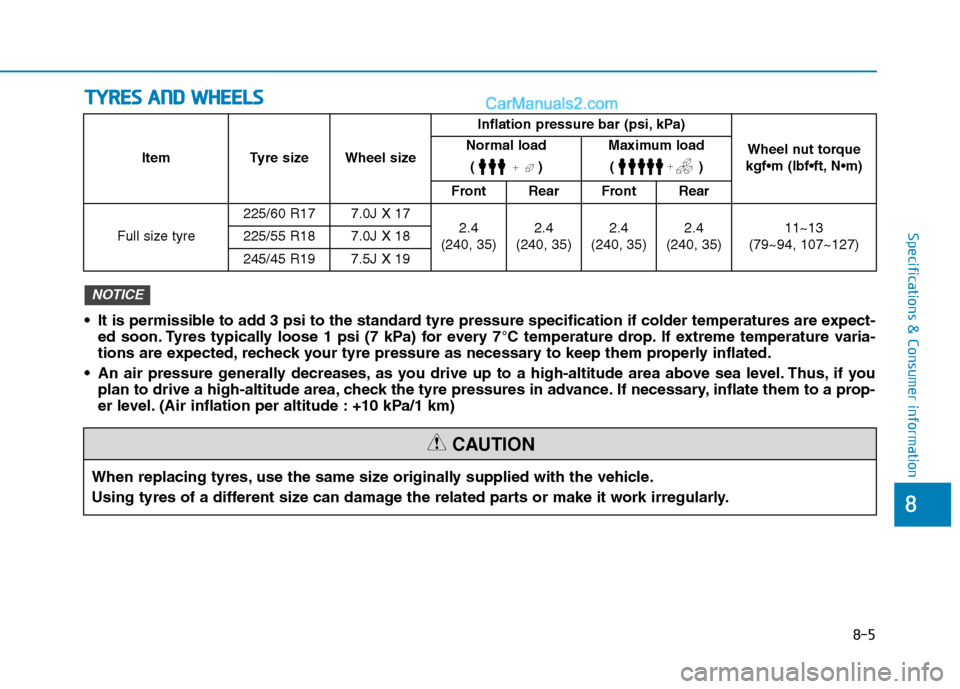

T TY
YR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or make it work irregularly.
CAUTION
Item Tyre size Wheel sizeInflation pressure bar (psi, kPa)
Wheel nut torque
kgf•m (lbf N Normal load
()Maximum load
()
Front Rear Front Rear
Full size tyre225/60 R17 7.0J X 17
2.4
(240, 35)2.4
(240, 35)2.4
(240, 35)2.4
(240, 35)11~13
(79~94, 107~127) 225/55 R18 7.0J X 18
245/45 R19 7.5J X 19
It is permissible to add 3 psi to the standard tyre pressure specification if colder temperatures are expect-
ed soon. Tyres typically loose 1 psi (7 kPa) for every 7°C temperature drop. If extreme temperature varia-
tions are expected, recheck your tyre pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you
plan to drive a high-altitude area, check the tyre pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +10 kPa/1 km)
NOTICE

8-6
Specifications & Consumer information
G GR
RO
OS
SS
S
V
VE
EH
HI
IC
CL
LE
E
W
WE
EI
IG
GH
HT
T
L LU
UG
GG
GA
AG
GE
E
V
VO
OL
LU
UM
ME
E
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.Item Full size tyre
VDAMIN488 l(17.23 cu ft)
MAX1,478 l(52.20 cu ft)
Kg (lbs)
ItemPetrol engine Diesel engine
1.6 T-GDI 2.0 GDI 2.0 TCI
4WD 2WD 4WD
D C T M T AT AT
5 seater 2,180 (4,806) 2,070 (4,564) 2,090 (4,608) 2,280 (5,027)

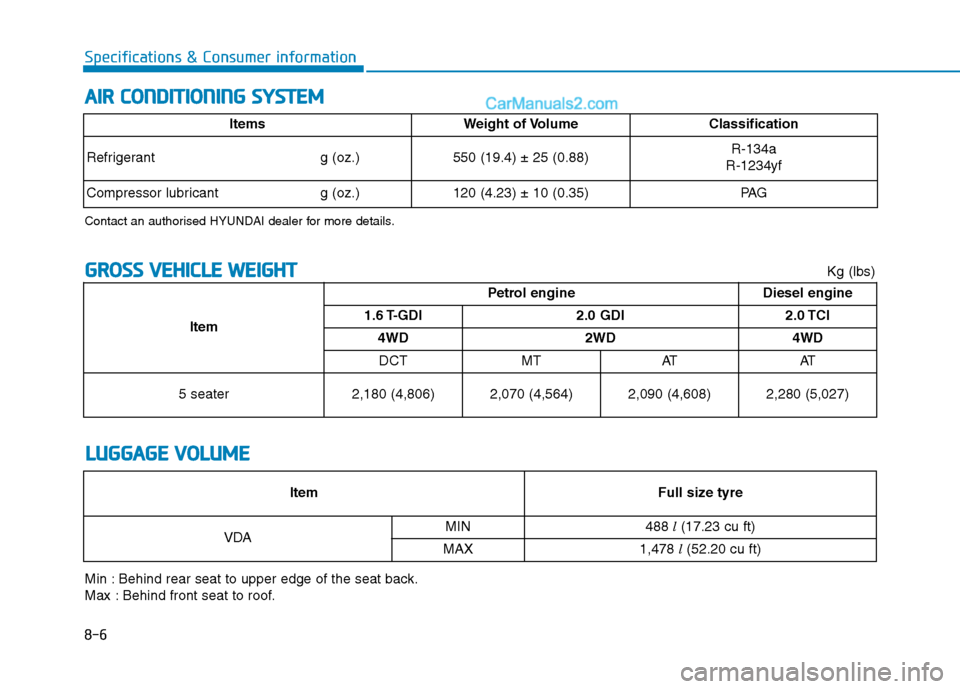

A AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M
ItemsWeight of Volume Classification
Refrigerant g (oz.)550 (19.4) ± 25 (0.88)R-134a
R-1234yf
Compressor lubricant g (oz.)120 (4.23) ± 10 (0.35)PA G
Contact an authorised HYUNDAI dealer for more details.

8-7
8
Specifications & Consumer information

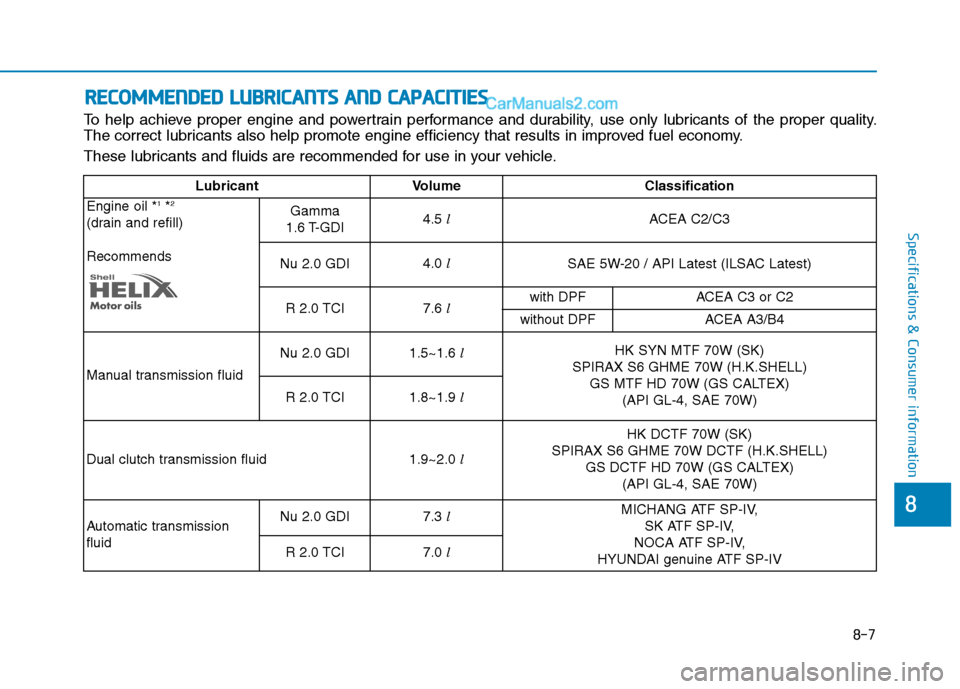

R RE
EC
CO
OM
MM
ME
EN
ND
DE
ED
D
L
LU
UB
BR
RI
IC
CA
AN
NT
TS
S
A
AN
ND
D
C
CA
AP
PA
AC
CI
IT
TI
IE
ES
S
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
RecommendsGamma
1.6 T-GDI4.5l
ACEA C2/C3
Nu 2.0 GDI4.0l
SAE 5W-20 / API Latest (ILSAC Latest)
R 2.0 TCI7.6lwith DPF ACEA C3 or C2
without DPF ACEA A3/B4
Manual transmission fluidNu 2.0 GDI1.5~1.6lHK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W) R 2.0 TCI1.8~1.9l
Dual clutch transmission fluid1.9~2.0lHK DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF (H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)
Automatic transmission
fluidNu 2.0 GDI7.3 lMICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
R 2.0 TCI7.0 l

8-8

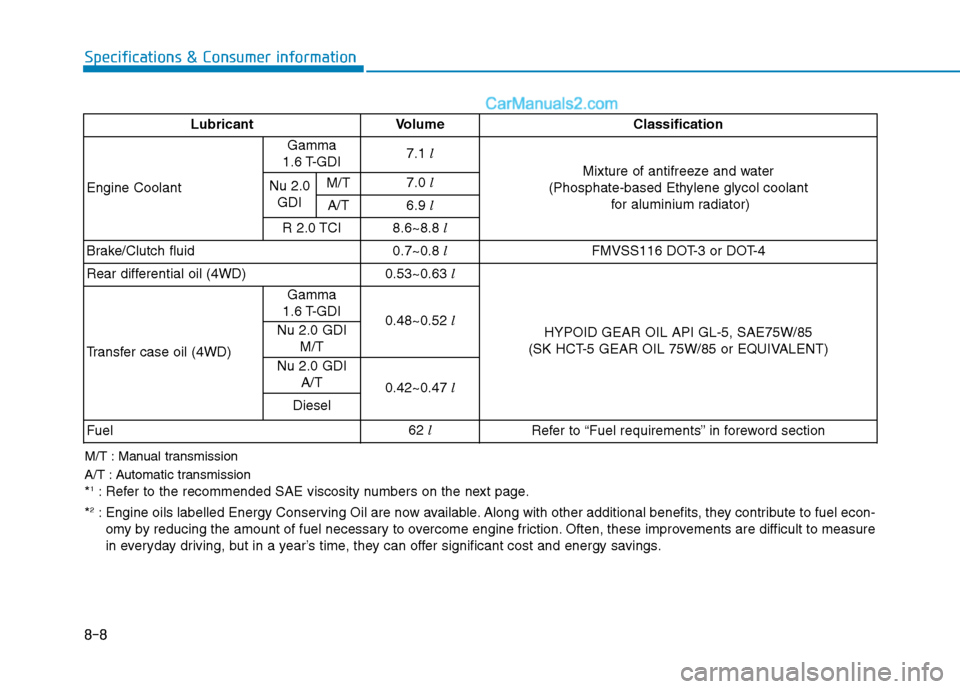

Specifications & Consumer information
M/T : Manual transmission
A/T : Automatic transmission
*1: Refer to the recommended SAE viscosity numbers on the next page.
*
2: Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.Lubricant Volume Classification
Engine Coolant
Gamma
1.6 T-GDI7.1l
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant
for aluminium radiator)Nu 2.0
GDIM/T7.0 l
A/T6.9 l
R 2.0 TCI8.6~8.8l
Brake/Clutch fluid0.7~0.8lFMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD)0.53~0.63 l
HYPOID GEAR OIL API GL-5, SAE75W/85
(SK HCT-5 GEAR OIL 75W/85 or EQUIVALENT)
Transfer case oil (4WD)
Gamma
1.6 T-GDI
0.48~0.52 lNu 2.0 GDI
M/T
Nu 2.0 GDI
A/T
0.42~0.47l
Diesel
Fuel62lRefer to “Fuel requirements” in foreword section
