2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

7-77
7
Maintenance
Engine compartment main fuse panel
Relay NameSymbolType
R LY. 1Cooling Fan High RelayMINI
R LY. 2Rear Defogger RelayMICRO
R LY. 3A/C RelayMICRO
R LY. 4PTC Heater Relay #3MICRO
R LY. 5PTC Heater Relay #2MICRO
R LY. 6PTC Heater Relay #1MICRO
R LY. 7B/A Horn RelayMICRO
R LY. 8Front Deicer RelayMICRO
R LY. 9Cooling Fan Low RelayMICRO
R LY. 1 0Fuel Filter Heater RelayMICRO
R LY. 1 1Start RelayMICRO
R LY. 1 3Blower RelayMICRO
R LY. 1 4Fuel Pump RelayMICRO

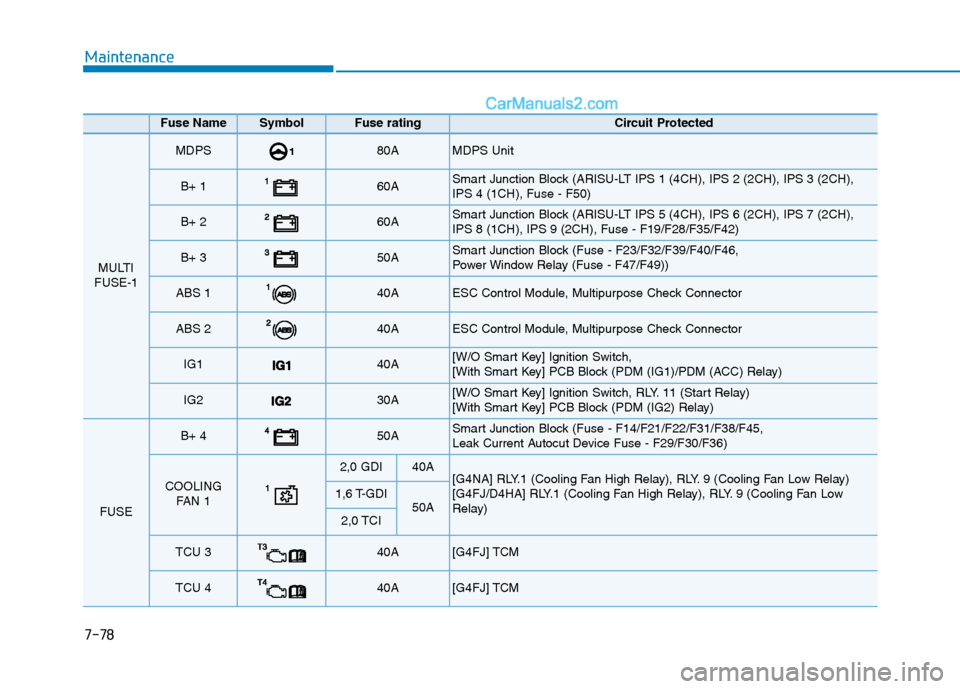

7-78
Maintenance
Fuse Name SymbolFuse ratingCircuit Protected
MULTI
FUSE-1
MDPS 80A MDPS Unit
B+ 1 60A Smart Junction Block (ARISU-LT IPS 1 (4CH), IPS 2 (2CH), IPS 3 (2CH),
IPS 4 (1CH), Fuse - F50)
B+ 2 60A Smart Junction Block (ARISU-LT IPS 5 (4CH), IPS 6 (2CH), IPS 7 (2CH),
IPS 8 (1CH), IPS 9 (2CH), Fuse - F19/F28/F35/F42)
B+ 3 50A Smart Junction Block (Fuse - F23/F32/F39/F40/F46,
Power Window Relay (Fuse - F47/F49))
ABS 1 40A ESC Control Module, Multipurpose Check Connector
ABS 2 40A ESC Control Module, Multipurpose Check Connector
IG1 40A [W/O Smart Key] Ignition Switch,
[With Smart Key] PCB Block (PDM (IG1)/PDM (ACC) Relay)
IG2 30A [W/O Smart Key] Ignition Switch, RLY. 11 (Start Relay)
[With Smart Key] PCB Block (PDM (IG2) Relay)
FUSE
B+ 4 50A Smart Junction Block (Fuse - F14/F21/F22/F31/F38/F45,
Leak Current Autocut Device Fuse - F29/F30/F36)
COOLING
FAN 1
2,0 GDI40A [G4NA] RLY.1 (Cooling Fan High Relay), RLY. 9 (Cooling Fan Low Relay)
[G4FJ/D4HA] RLY.1 (Cooling Fan High Relay), RLY. 9 (Cooling Fan Low
Relay)1,6 T-GDI50A 2,0 TCI
TCU 3 40A [G4FJ] TCM
TCU 4 40A [G4FJ] TCM

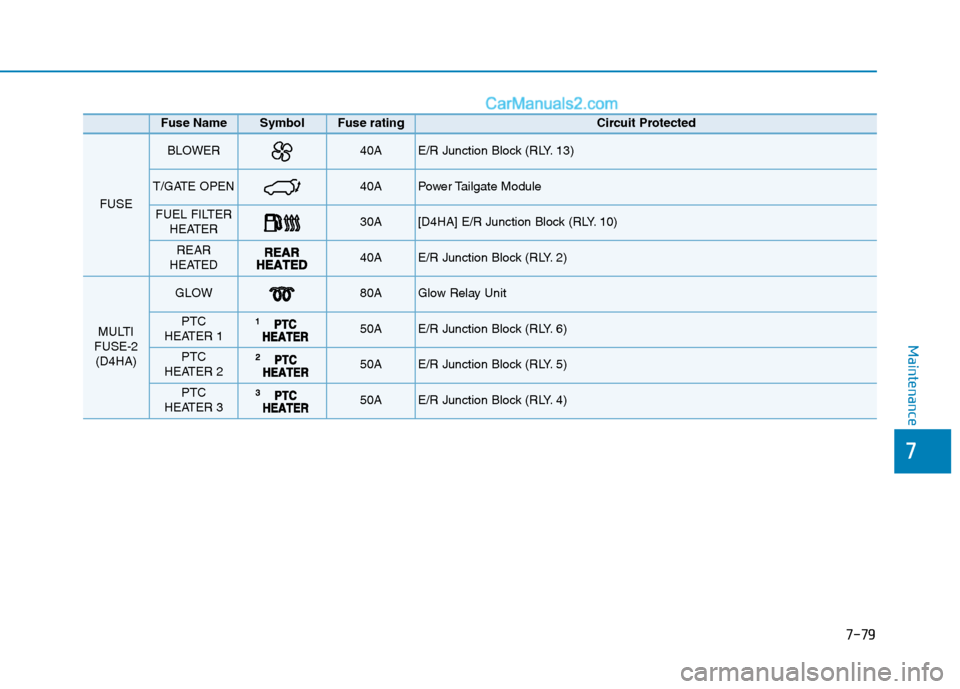

7-79
7
Maintenance
Fuse Name SymbolFuse ratingCircuit Protected
FUSE
BLOWER 40A E/R Junction Block (RLY. 13)
T/GATE OPEN 40A Power Tailgate Module
FUEL FILTER
HEATER 30A [D4HA] E/R Junction Block (RLY. 10)
REAR
HEATED 40A E/R Junction Block (RLY. 2)
MULTI
FUSE-2
(D4HA)
GLOW 80A Glow Relay Unit
PTC
HEATER 1 50A E/R Junction Block (RLY. 6)
PTC
HEATER 2 50A E/R Junction Block (RLY. 5)
PTC
HEATER 3 50A E/R Junction Block (RLY. 4)

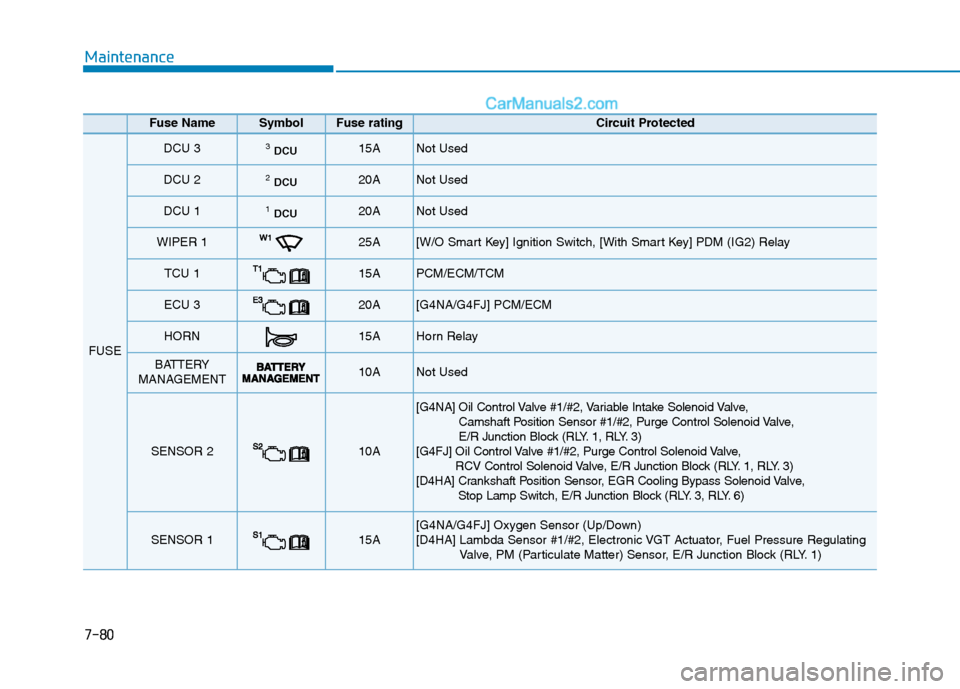

7-80
Maintenance
Fuse Name SymbolFuse ratingCircuit Protected
FUSE
DCU 3DCU315A Not Used
DCU 2DCU220A Not Used
DCU 1DCU120A Not Used
WIPER 125A [W/O Smart Key] Ignition Switch, [With Smart Key] PDM (IG2) Relay
TCU 115A PCM/ECM/TCM
ECU 320A [G4NA/G4FJ] PCM/ECM
HORN15A Horn Relay
BATTERY
MANAGEMENT10A Not Used
SENSOR 210A
[G4NA] Oil Control Valve #1/#2, Variable Intake Solenoid Valve,
Camshaft Position Sensor #1/#2, Purge Control Solenoid Valve,
E/R Junction Block (RLY. 1, RLY. 3)
[G4FJ] Oil Control Valve #1/#2, Purge Control Solenoid Valve,
RCV Control Solenoid Valve, E/R Junction Block (RLY. 1, RLY. 3)
[D4HA] Crankshaft Position Sensor, EGR Cooling Bypass Solenoid Valve,
Stop Lamp Switch, E/R Junction Block (RLY. 3, RLY. 6)
SENSOR 115A [G4NA/G4FJ] Oxygen Sensor (Up/Down)
[D4HA] Lambda Sensor #1/#2, Electronic VGT Actuator, Fuel Pressure Regulating
Valve, PM (Particulate Matter) Sensor, E/R Junction Block (RLY. 1)

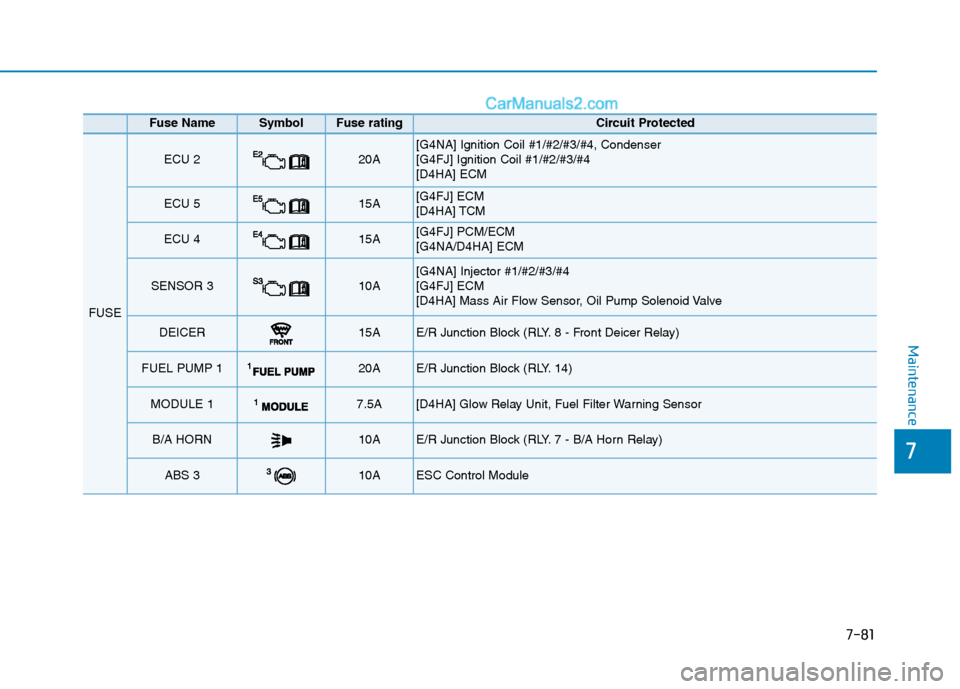

7-81
7
Maintenance
Fuse Name SymbolFuse ratingCircuit Protected
FUSE
ECU 220A [G4NA] Ignition Coil #1/#2/#3/#4, Condenser
[G4FJ] Ignition Coil #1/#2/#3/#4
[D4HA] ECM
ECU 515A [G4FJ] ECM
[D4HA] TCM
ECU 415A [G4FJ] PCM/ECM
[G4NA/D4HA] ECM
SENSOR 310A [G4NA] Injector #1/#2/#3/#4
[G4FJ] ECM
[D4HA] Mass Air Flow Sensor, Oil Pump Solenoid Valve
DEICER15A E/R Junction Block (RLY. 8 - Front Deicer Relay)
FUEL PUMP 120A E/R Junction Block (RLY. 14)
MODULE 17.5A [D4HA] Glow Relay Unit, Fuel Filter Warning Sensor
B/A HORN10A E/R Junction Block (RLY. 7 - B/A Horn Relay)
ABS 310A ESC Control Module

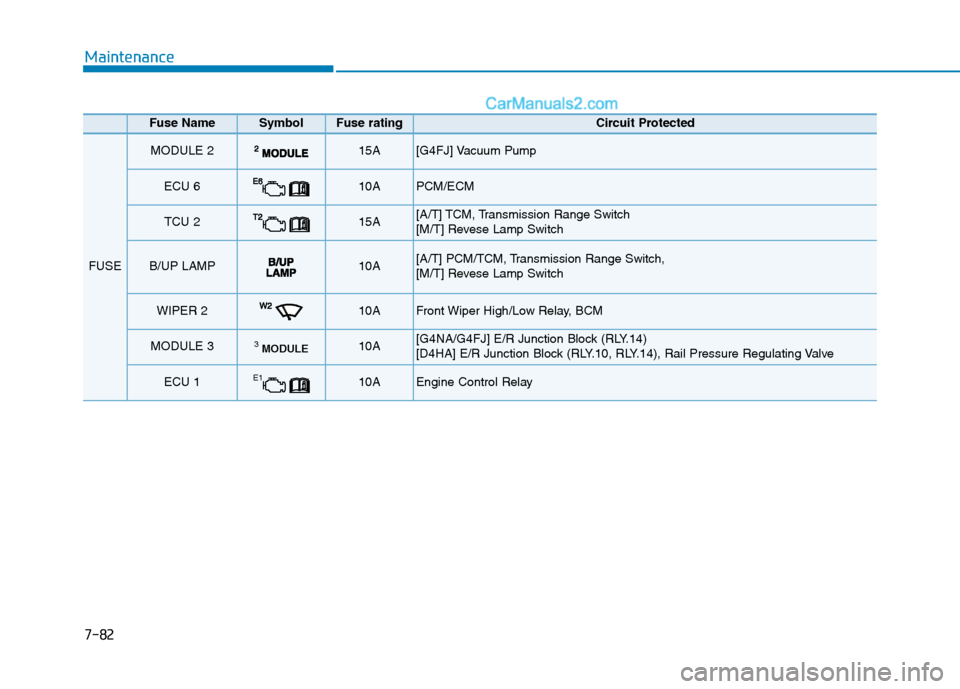

7-82
Maintenance
Fuse Name SymbolFuse ratingCircuit Protected
FUSE
MODULE 215A [G4FJ] Vacuum Pump
ECU 610A PCM/ECM
TCU 215A [A/T] TCM, Transmission Range Switch
[M/T] Revese Lamp Switch
B/UP LAMP10A [A/T] PCM/TCM, Transmission Range Switch,
[M/T] Revese Lamp Switch
WIPER 210A Front Wiper High/Low Relay, BCM
MODULE 3MODULE310A [G4NA/G4FJ] E/R Junction Block (RLY.14)
[D4HA] E/R Junction Block (RLY.10, RLY.14), Rail Pressure Regulating Valve
ECU 1E110A Engine Control Relay

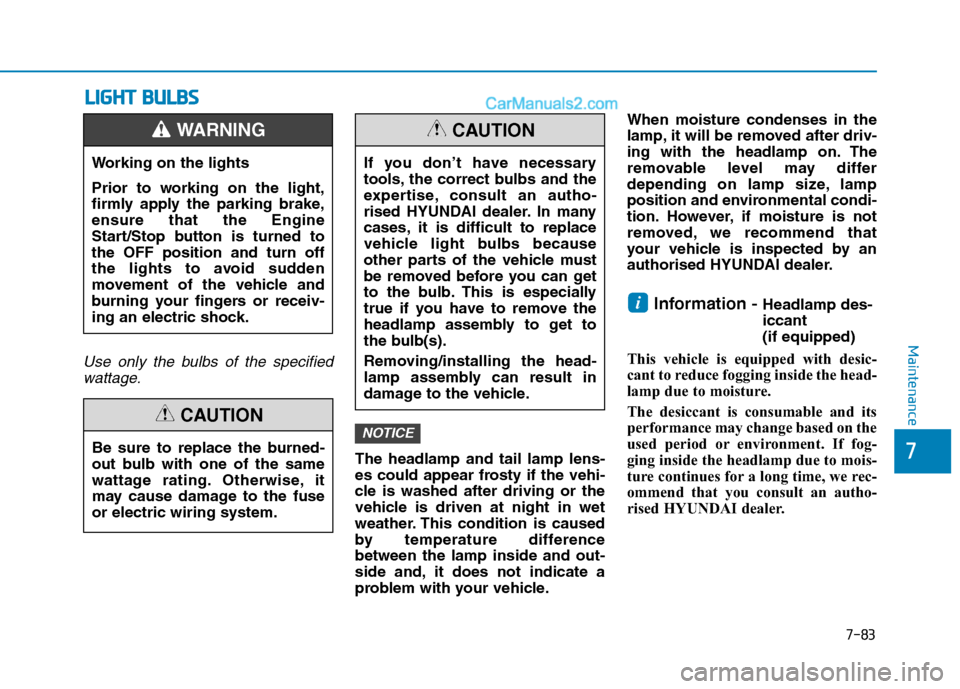

7-83
7
Maintenance
L LI
IG
GH
HT
T
B
BU
UL
LB
BS
S
Use only the bulbs of the specified
wattage.
The headlamp and tail lamp lens-
es could appear frosty if the vehi-
cle is washed after driving or the
vehicle is driven at night in wet
weather. This condition is caused
by temperature difference
between the lamp inside and out-
side and, it does not indicate a
problem with your vehicle.When moisture condenses in the
lamp, it will be removed after driv-
ing with the headlamp on. The
removable level may differ
depending on lamp size, lamp
position and environmental condi-
tion. However, if moisture is not
removed, we recommend that
your vehicle is inspected by an
authorised HYUNDAI dealer.
Information - Headlamp des-
iccant
(if equipped)
This vehicle is equipped with desic-
cant to reduce fogging inside the head-
lamp due to moisture.
The desiccant is consumable and its
performance may change based on the
used period or environment. If fog-
ging inside the headlamp due to mois-
ture continues for a long time, we rec-
ommend that you consult an autho-
rised HYUNDAI dealer.i
NOTICEBe sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
If you don’t have necessary
tools, the correct bulbs and the
expertise, consult an autho-
rised HYUNDAI dealer. In many
cases, it is difficult to replace
vehicle light bulbs because
other parts of the vehicle must
be removed before you can get
to the bulb. This is especially
true if you have to remove the
headlamp assembly to get to
the bulb(s).
Removing/installing the head-
lamp assembly can result in
damage to the vehicle.
CAUTION
Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the Engine
Start/Stop button is turned to
the OFF position and turn off
the lights to avoid sudden
movement of the vehicle and
burning your fingers or receiv-
ing an electric shock.
WARNING

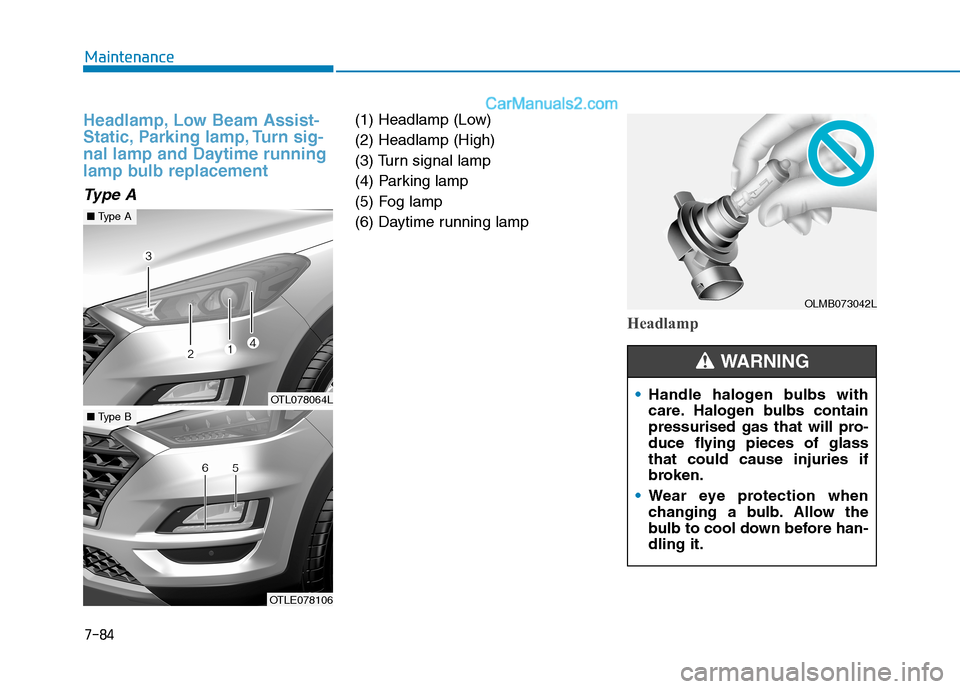

7-84
Maintenance
Headlamp, Low Beam Assist-
Static, Parking lamp, Turn sig-
nal lamp and Daytime running
lamp bulb replacement
Type A
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Parking lamp
(5) Fog lamp
(6) Daytime running lamp
Headlamp
OLMB073042L
Handle halogen bulbs with
care. Halogen bulbs contain
pressurised gas that will pro-
duce flying pieces of glass
that could cause injuries if
broken.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING
OTL078064L
■Type A
OTLE078106
■Type B
