2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

3-115
Convenient features of your vehicle
3

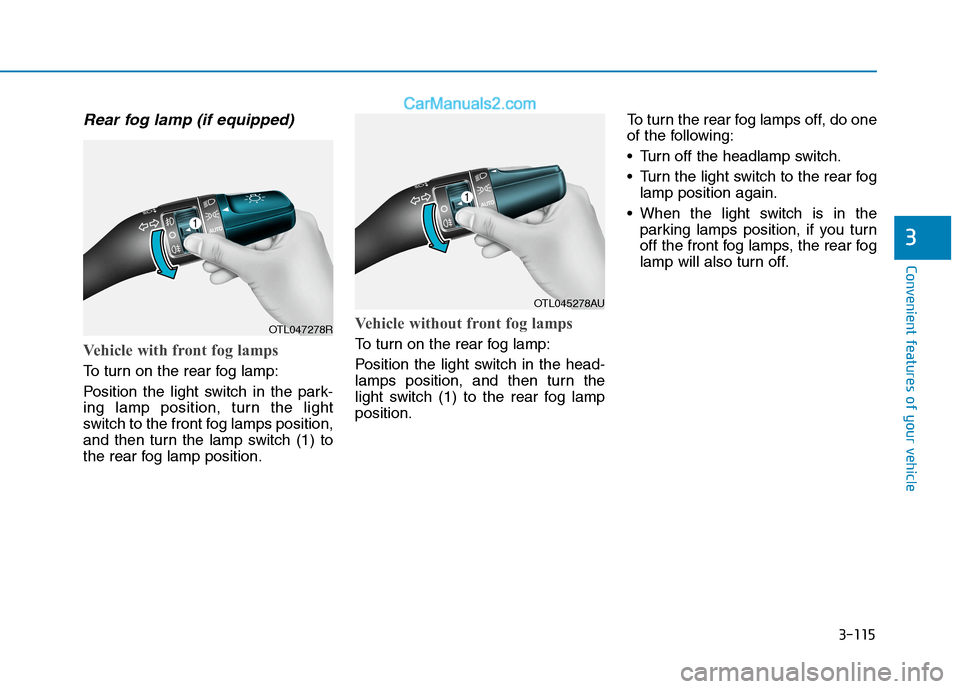

Rear fog lamp (if equipped)
Vehicle with front fog lamps
To turn on the rear fog lamp:
Position the light switch in the park-
ing lamp position, turn the light
switch to the front fog lamps position,
and then turn the lamp switch (1) to
the rear fog lamp position.
Vehicle without front fog lamps
To turn on the rear fog lamp:
Position the light switch in the head-
lamps position, and then turn the
light switch (1) to the rear fog lamp
position.To turn the rear fog lamps off, do one
of the following:
Turn off the headlamp switch.
Turn the light switch to the rear fog
lamp position again.
When the light switch is in the
parking lamps position, if you turn
off the front fog lamps, the rear fog
lamp will also turn off.
OTL047278R
OTL045278AU

3-116
Convenient features of your vehicle
Battery saver function
The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the parking lamps when the
driver turns the engine off and opens
the driver-side door.
With this feature, the parking lamps
will turn off automatically if the driver
parks on the side of the road at night.
If necessary, to keep the lamps on
when the engine is turned off, per-
form the following:
1) Open the driver-side door.
2) Turn the parking lamps OFF and
ON again using the light switch on
the steering column.
Headlamp delay function
(if equipped)
If you place the ignition switch in to
the ACC or OFF position with the
headlamps ON, the headlamps
(and/or parking lamps) remain on for
about 5 minutes. However, with the
engine off if the driver’s door is
opened and closed, the headlamps
(and/or parking lamps) are turned off
after 15 seconds.
The headlamps (and/or parking
lamps) can be turned off by pressing
the lock button on the smart key
twice or turning the light switch to the
OFF or AUTO position. However, if
you turn the light switch to the AUTO
position when it is dark outside, the
headlamps will not be turned off.
You can activate or deactivate the
Headlamp Delay function from the
User Settings Mode on the LCD dis-
play.For more details, refer to
"LCD Display" in this chapter.If the driver gets out of the vehicle
through other doors (except the
driver's door), the battery saver
function does not operate and the
headlamp delay function does not
turn off automatically. Therefore, It
causes the battery to be dis-
charged. In this case, make sure
to turn off the lamps before get-
ting out of the vehicle.
NOTICE

3-117
Convenient features of your vehicle
3
Daytime running light (DRL)
(if equipped)
The Daytime Running Lights (DRL)
can make it easier for others to see
the front of your vehicle during the
day, especially after dawn and before
sunset.
The DRL system will turn the dedi-
cated lamps OFF when:
- The headlights or front fog lights
are in the ON position.
- The parking lamps switch is in the
ON position.
- The engine is turned off.
Headlight levelling device
(if equipped)
Manual type
To adjust the headlight beam level
according to the number of the pas-
sengers and loading weight in the
luggage compartment, turn the
beam levelling switch.
The higher the number on the switch
position, the lower the headlight
beam level. Always keep the head-
light beams at the proper levelling
position, or headlights may dazzle
other road users.Listed below are examples of proper
switch settings. For loading condi-
tions other than those listed below,
adjust the switch position so that the
beam level may be the nearest as
the condition obtained according to
the list.
OTLE048277R
Loading conditionSwitch
position
Driver only 0
Driver + Front passenger 0
Full passengers (including driver) 1
Full passengers (including driver)
+ Maximum permissible loading2
Driver + Maximum permissible
loading 3

3-118
Convenient features of your vehicle

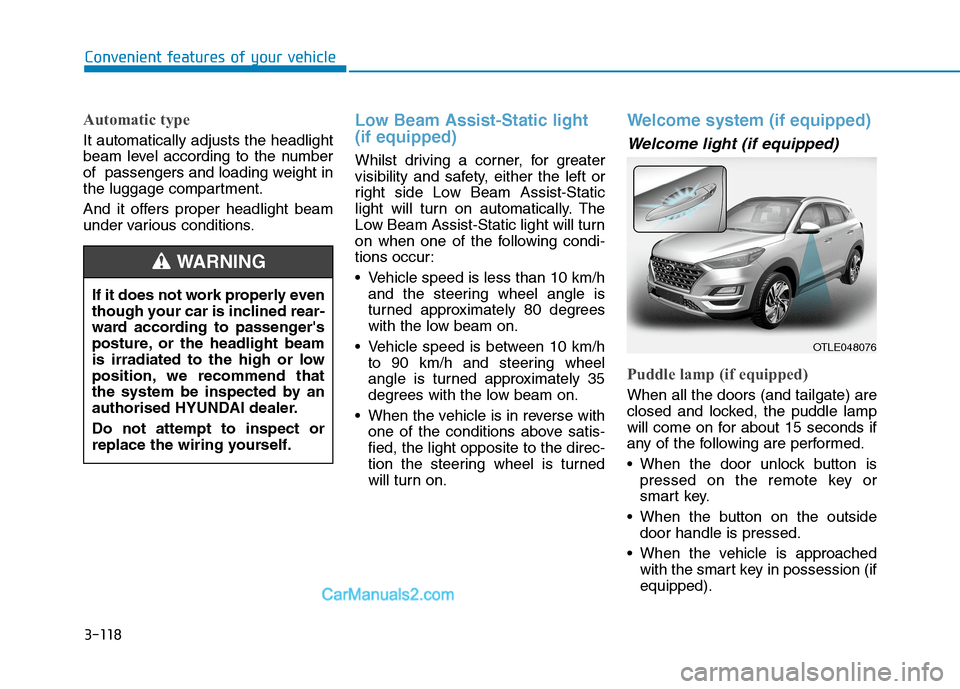

Automatic type
It automatically adjusts the headlight
beam level according to the number
of passengers and loading weight in
the luggage compartment.
And it offers proper headlight beam
under various conditions.
Low Beam Assist-Static light
(if equipped)
Whilst driving a corner, for greater
visibility and safety, either the left or
right side Low Beam Assist-Static
light will turn on automatically. The
Low Beam Assist-Static light will turn
on when one of the following condi-
tions occur:
Vehicle speed is less than 10 km/h
and the steering wheel angle is
turned approximately 80 degrees
with the low beam on.
Vehicle speed is between 10 km/h
to 90 km/h and steering wheel
angle is turned approximately 35
degrees with the low beam on.
When the vehicle is in reverse with
one of the conditions above satis-
fied, the light opposite to the direc-
tion the steering wheel is turned
will turn on.
Welcome system (if equipped)
Welcome light (if equipped)
Puddle lamp (if equipped)
When all the doors (and tailgate) are
closed and locked, the puddle lamp
will come on for about 15 seconds if
any of the following are performed.
When the door unlock button is
pressed on the remote key or
smart key.
When the button on the outside
door handle is pressed.
When the vehicle is approached
with the smart key in possession (if
equipped). If it does not work properly even
though your car is inclined rear-
ward according to passenger's
posture, or the headlight beam
is irradiated to the high or low
position, we recommend that
the system be inspected by an
authorised HYUNDAI dealer.
Do not attempt to inspect or
replace the wiring yourself.
WARNING
OTLE048076

3-119
Convenient features of your vehicle
3

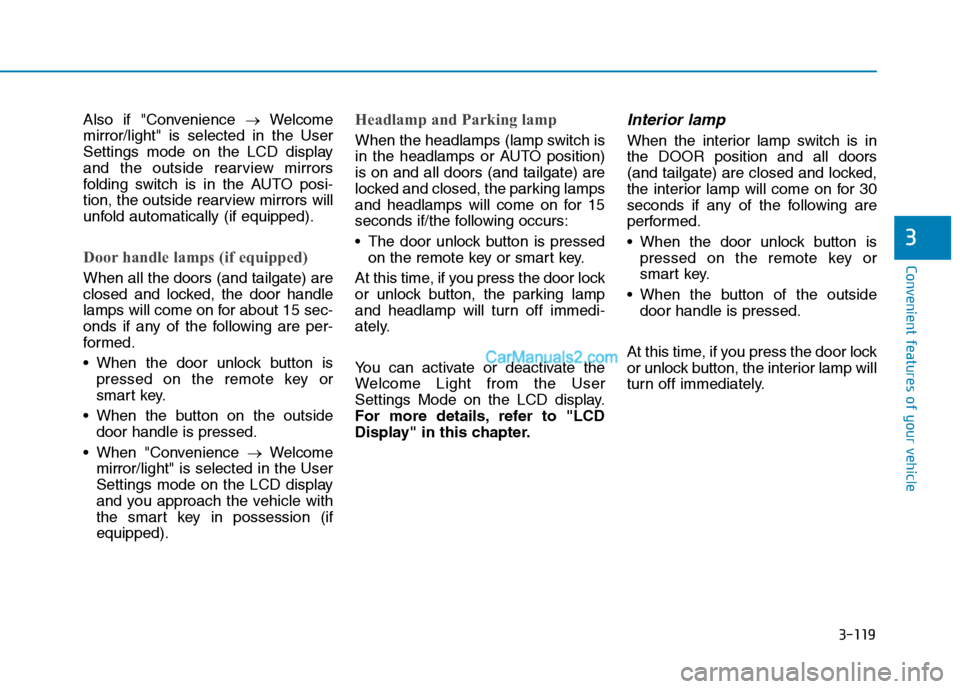

Also if "Convenience →Welcome
mirror/light" is selected in the User
Settings mode on the LCD display
and the outside rearview mirrors
folding switch is in the AUTO posi-
tion, the outside rearview mirrors will
unfold automatically (if equipped).
Door handle lamps (if equipped)
When all the doors (and tailgate) are
closed and locked, the door handle
lamps will come on for about 15 sec-
onds if any of the following are per-
formed.
When the door unlock button is
pressed on the remote key or
smart key.
When the button on the outside
door handle is pressed.
When "Convenience →Welcome
mirror/light" is selected in the User
Settings mode on the LCD display
and you approach the vehicle with
the smart key in possession (if
equipped).
Headlamp and Parking lamp
When the headlamps (lamp switch is
in the headlamps or AUTO position)
is on and all doors (and tailgate) are
locked and closed, the parking lamps
and headlamps will come on for 15
seconds if/the following occurs:
The door unlock button is pressed
on the remote key or smart key.
At this time, if you press the door lock
or unlock button, the parking lamp
and headlamp will turn off immedi-
ately.
You can activate or deactivate the
Welcome Light from the User
Settings Mode on the LCD display.
For more details, refer to "LCD
Display" in this chapter.
Interior lamp
When the interior lamp switch is in
the DOOR position and all doors
(and tailgate) are closed and locked,
the interior lamp will come on for 30
seconds if any of the following are
performed.
When the door unlock button is
pressed on the remote key or
smart key.
When the button of the outside
door handle is pressed.
At this time, if you press the door lock
or unlock button, the interior lamp will
turn off immediately.

3-120
Convenient features of your vehicle

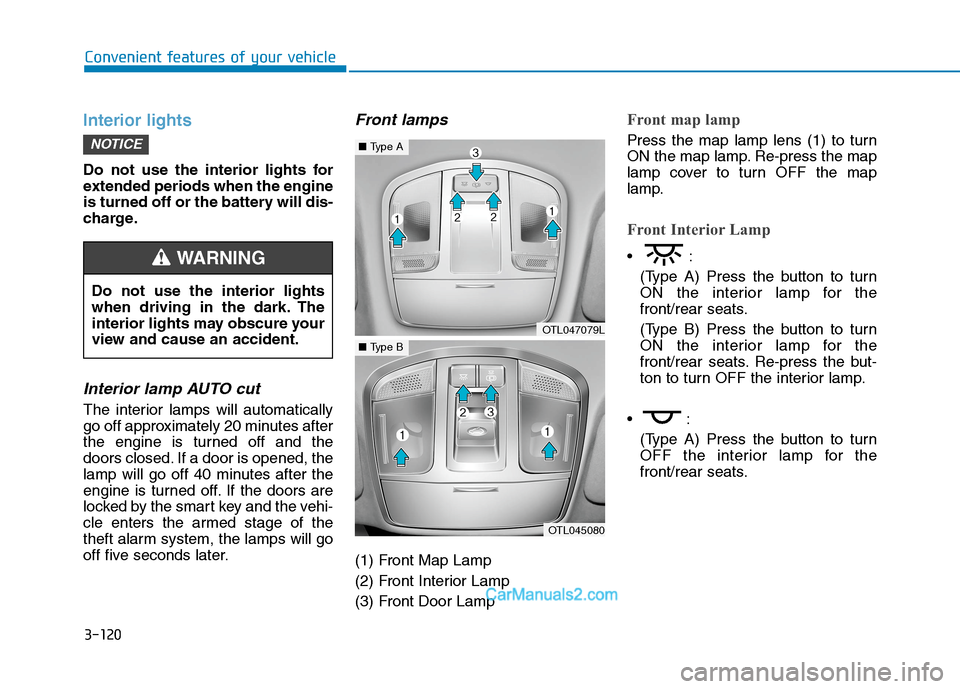

Interior lights
Do not use the interior lights for
extended periods when the engine
is turned off or the battery will dis-
charge.
Interior lamp AUTO cut
The interior lamps will automatically
go off approximately 20 minutes after
the engine is turned off and the
doors closed. If a door is opened, the
lamp will go off 40 minutes after the
engine is turned off. If the doors are
locked by the smart key and the vehi-
cle enters the armed stage of the
theft alarm system, the lamps will go
off five seconds later.
Front lamps
(1) Front Map Lamp
(2) Front Interior Lamp
(3) Front Door Lamp
Front map lamp
Press the map lamp lens (1) to turn
ON the map lamp. Re-press the map
lamp cover to turn OFF the map
lamp.
Front Interior Lamp

(Type A) Press the button to turn
ON the interior lamp for the
front/rear seats.
(Type B) Press the button to turn
ON the interior lamp for the
front/rear seats. Re-press the but-
ton to turn OFF the interior lamp.

(Type A) Press the button to turn
OFF the interior lamp for the
front/rear seats.
NOTICE
OTL047079L
■Type A
OTL045080
■Type B
Do not use the interior lights
when driving in the dark. The
interior lights may obscure your
view and cause an accident.
WARNING

3-121
Convenient features of your vehicle
3

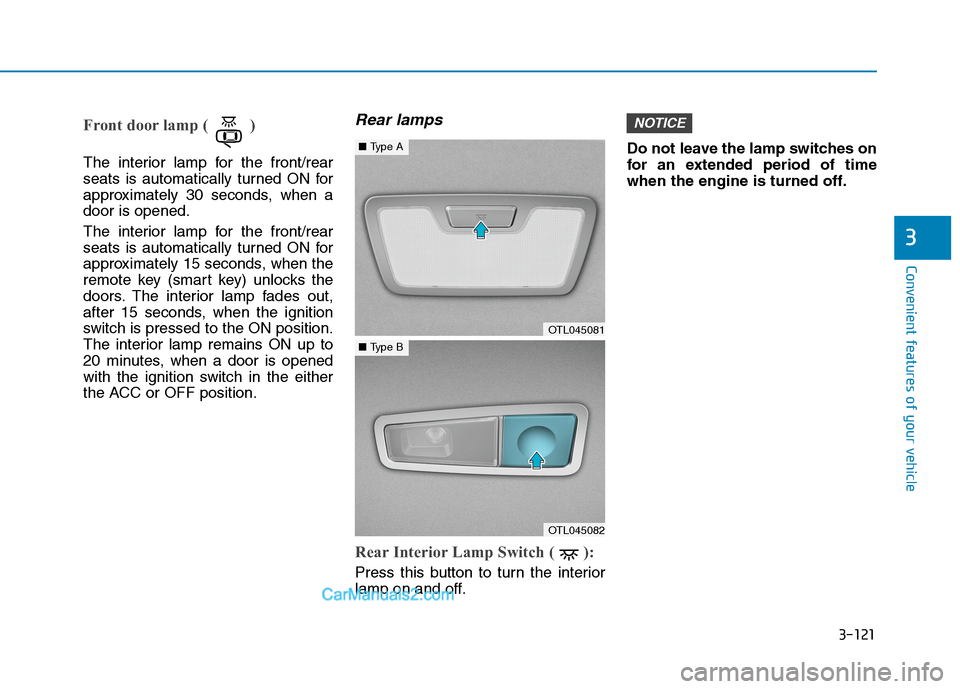

Front door lamp ( )
The interior lamp for the front/rear
seats is automatically turned ON for
approximately 30 seconds, when a
door is opened.
The interior lamp for the front/rear
seats is automatically turned ON for
approximately 15 seconds, when the
remote key (smart key) unlocks the
doors. The interior lamp fades out,
after 15 seconds, when the ignition
switch is pressed to the ON position.
The interior lamp remains ON up to
20 minutes, when a door is opened
with the ignition switch in the either
the ACC or OFF position.
Rear lamps
Rear Interior Lamp Switch ( ):
Press this button to turn the interior
lamp on and off.Do not leave the lamp switches on
for an extended period of time
when the engine is turned off.
NOTICE
OTL045081
■Type A
OTL045082
■Type B

3-122
Convenient features of your vehicle

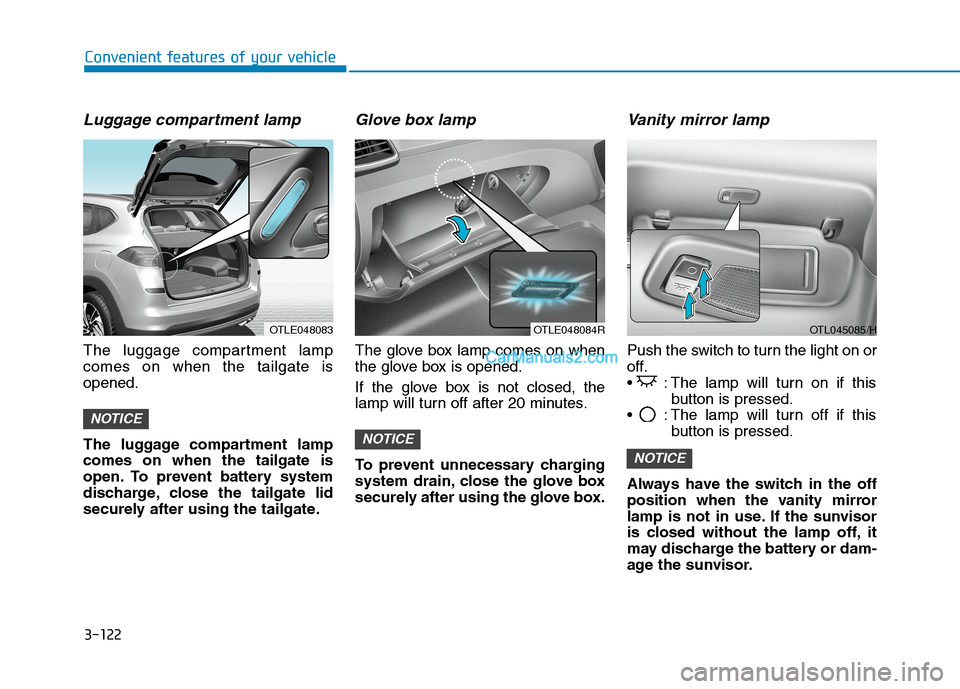

Luggage compartment lamp
The luggage compartment lamp
comes on when the tailgate is
opened.
The luggage compartment lamp
comes on when the tailgate is
open. To prevent battery system
discharge, close the tailgate lid
securely after using the tailgate.
Glove box lamp
The glove box lamp comes on when
the glove box is opened.
If the glove box is not closed, the
lamp will turn off after 20 minutes.
To prevent unnecessary charging
system drain, close the glove box
securely after using the glove box.
Vanity mirror lamp
Push the switch to turn the light on or
off.
: The lamp will turn on if this
button is pressed.
: The lamp will turn off if this
button is pressed.
Always have the switch in the off
position when the vanity mirror
lamp is not in use. If the sunvisor
is closed without the lamp off, it
may discharge the battery or dam-
age the sunvisor.
NOTICE
NOTICE
NOTICE
OTLE048083OTLE048084ROTL045085/H
