2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

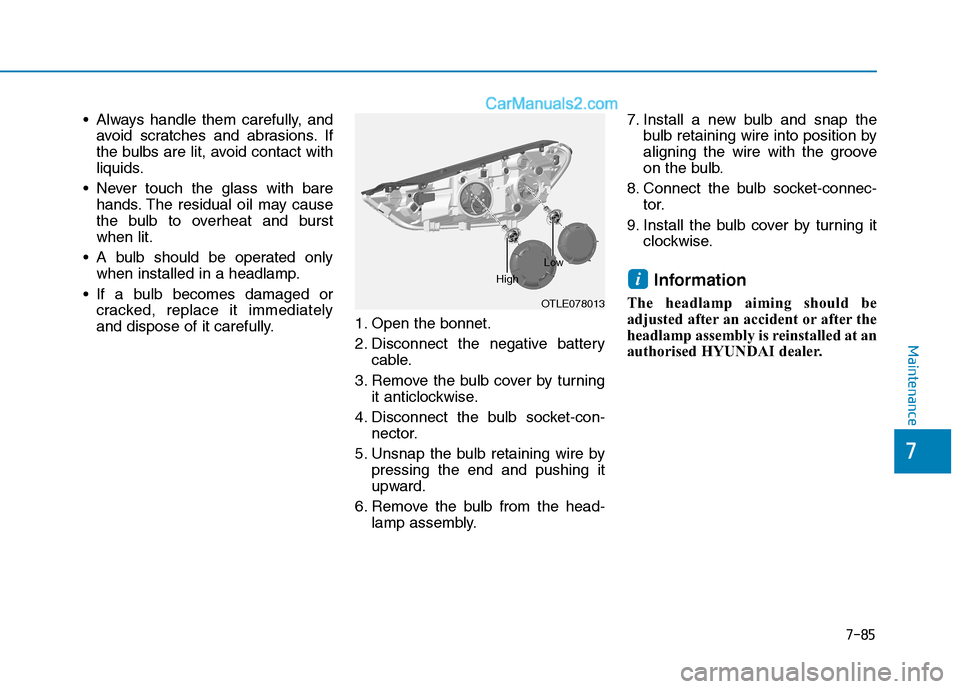

7-85
7
Maintenance
Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare
hands. The residual oil may cause
the bulb to overheat and burst
when lit.
A bulb should be operated only
when installed in a headlamp.
If a bulb becomes damaged or
cracked, replace it immediately
and dispose of it carefully.1. Open the bonnet.
2. Disconnect the negative battery
cable.
3. Remove the bulb cover by turning
it anticlockwise.
4. Disconnect the bulb socket-con-
nector.
5. Unsnap the bulb retaining wire by
pressing the end and pushing it
upward.
6. Remove the bulb from the head-
lamp assembly.7. Install a new bulb and snap the
bulb retaining wire into position by
aligning the wire with the groove
on the bulb.
8. Connect the bulb socket-connec-
tor.
9. Install the bulb cover by turning it
clockwise.
Information
The headlamp aiming should be
adjusted after an accident or after the
headlamp assembly is reinstalled at an
authorised HYUNDAI dealer.
i
OTLE078013
High
Low

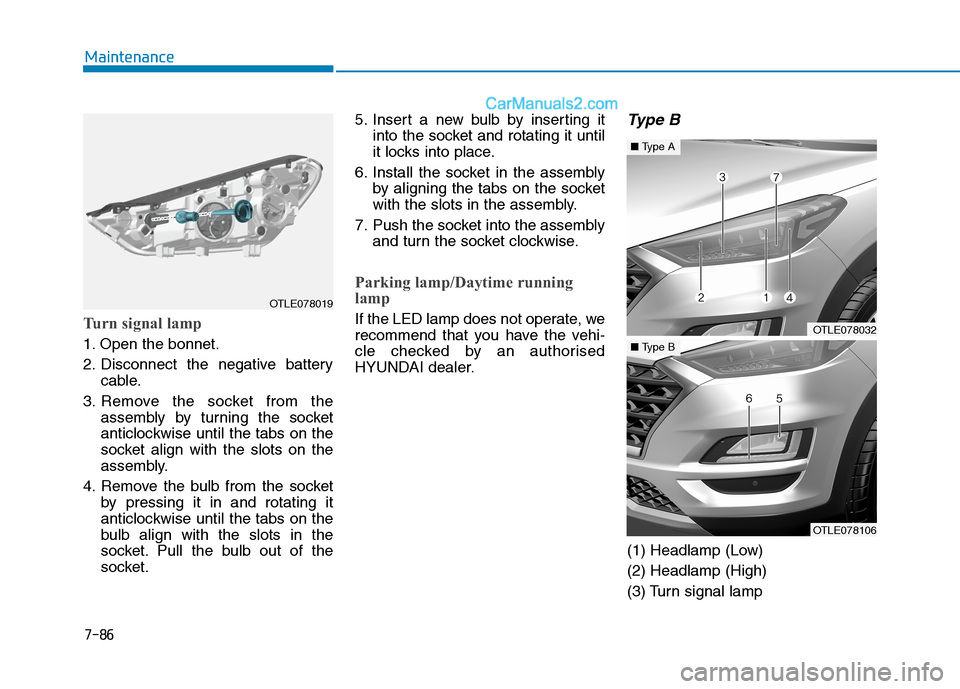

7-86
Maintenance
Turn signal lamp
1. Open the bonnet.
2. Disconnect the negative battery
cable.
3. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly
and turn the socket clockwise.
Parking lamp/Daytime running
lamp
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.
Type B
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
OTLE078019
OTLE078032
■Type A
OTLE078106
■Type B

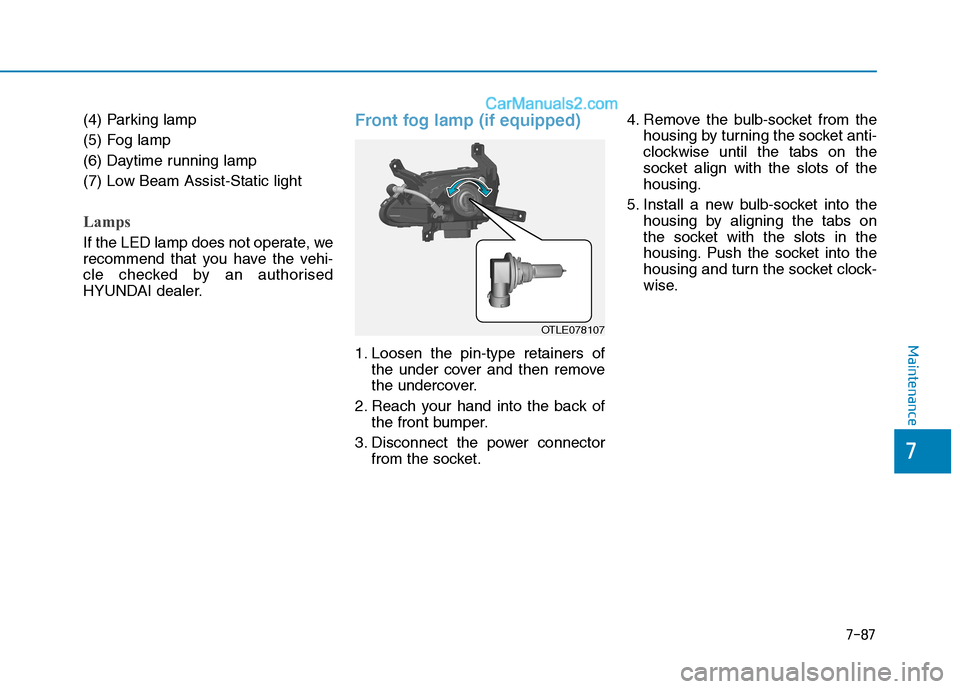

7-87
7
Maintenance
(4) Parking lamp
(5) Fog lamp
(6) Daytime running lamp
(7) Low Beam Assist-Static light
Lamps
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.
Front fog lamp (if equipped)
1. Loosen the pin-type retainers of
the under cover and then remove
the undercover.
2. Reach your hand into the back of
the front bumper.
3. Disconnect the power connector
from the socket.4. Remove the bulb-socket from the
housing by turning the socket anti-
clockwise until the tabs on the
socket align with the slots of the
housing.
5. Install a new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
OTLE078107

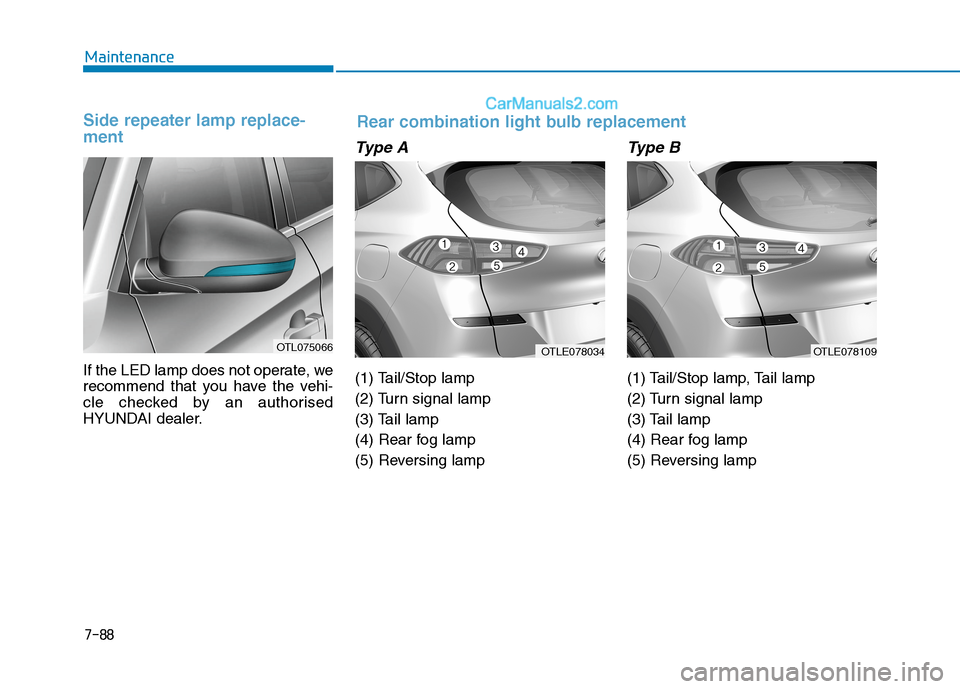

7-88
Maintenance
Side repeater lamp replace-
ment
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.
Type A
(1) Tail/Stop lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Rear fog lamp
(5) Reversing lamp
Type B
(1) Tail/Stop lamp, Tail lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Rear fog lamp
(5) Reversing lamp
OTL075066OTLE078034OTLE078109
Rear combination light bulb replacement

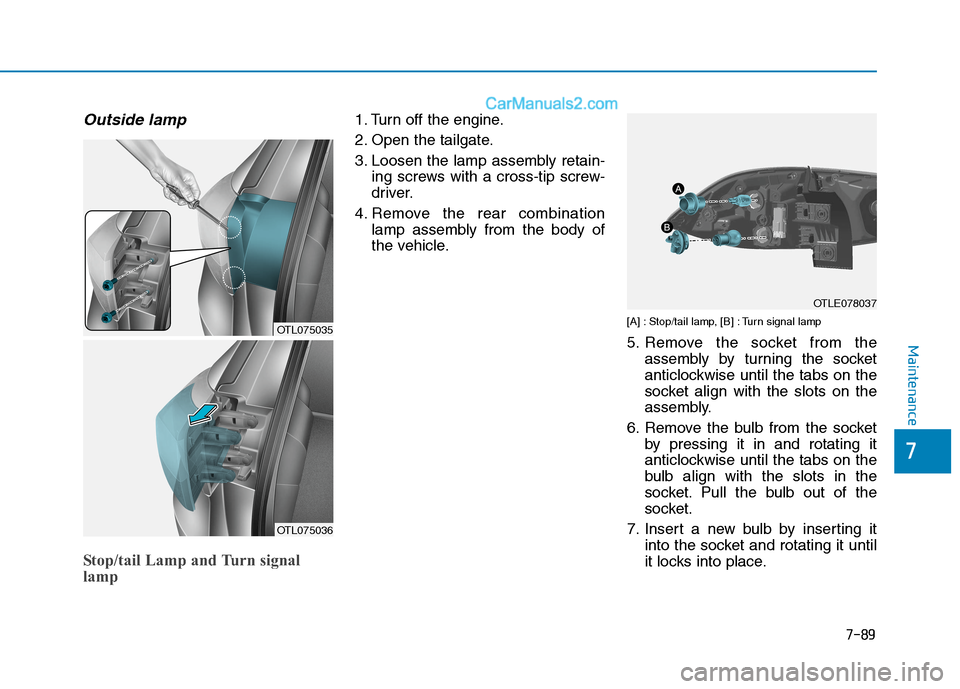

7-89
7
Maintenance
Outside lamp
Stop/tail Lamp and Turn signal
lamp
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the lamp assembly retain-
ing screws with a cross-tip screw-
driver.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
[A] : Stop/tail lamp, [B] : Turn signal lamp
5. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.OTL075035
OTL075036
OTLE078037

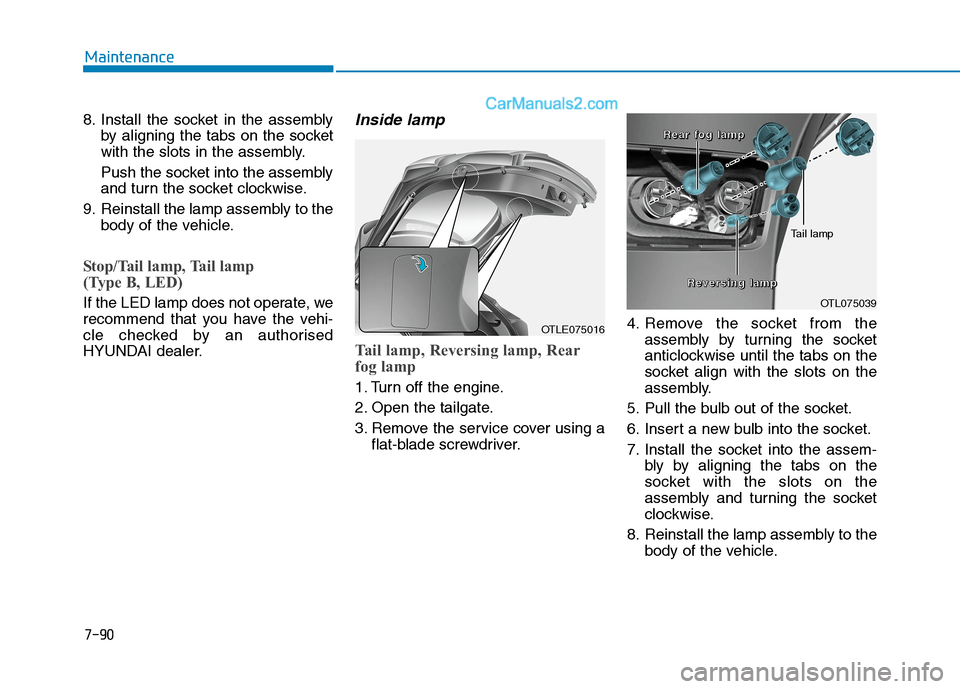

7-90
Maintenance
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Reinstall the lamp assembly to the
body of the vehicle.
Stop/Tail lamp, Tail lamp
(Type B, LED)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.
Inside lamp
Tail lamp, Reversing lamp, Rear
fog lamp
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using a
flat-blade screwdriver.4. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
5. Pull the bulb out of the socket.
6. Insert a new bulb into the socket.
7. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots on the
assembly and turning the socket
clockwise.
8. Reinstall the lamp assembly to the
body of the vehicle.
OTLE075016
OTL075039
Tail lamp
R R R R
e e e e
v v v v
e e e e
r r r r
s s s s
i i i i
n n n n
g g g g

l l l l
a a a a
m m m m
p p p p
R
R R R
e e e e
a a a a
r r r r

f f f f
o o o o
g g g g

l l l l
a a a a
m m m m
p p p p

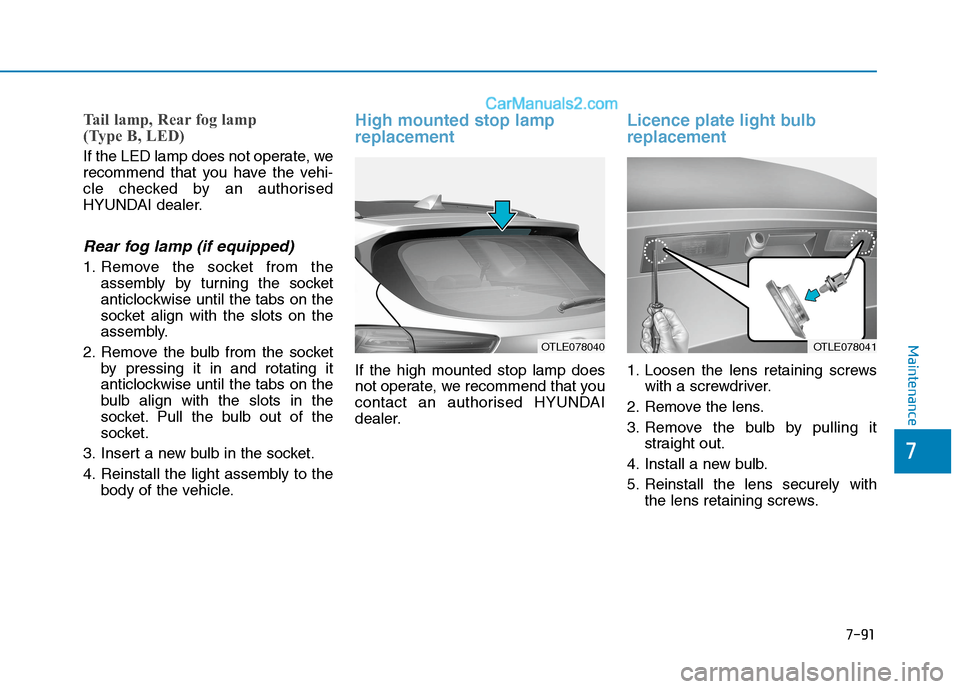

7-91
7
Maintenance
Tail lamp, Rear fog lamp
(Type B, LED)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.
Rear fog lamp (if equipped)
1. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
2. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
3. Insert a new bulb in the socket.
4. Reinstall the light assembly to the
body of the vehicle.
High mounted stop lamp
replacement
If the high mounted stop lamp does
not operate, we recommend that you
contact an authorised HYUNDAI
dealer.
Licence plate light bulb
replacement
1. Loosen the lens retaining screws
with a screwdriver.
2. Remove the lens.
3. Remove the bulb by pulling it
straight out.
4. Install a new bulb.
5. Reinstall the lens securely with
the lens retaining screws.
OTLE078040OTLE078041

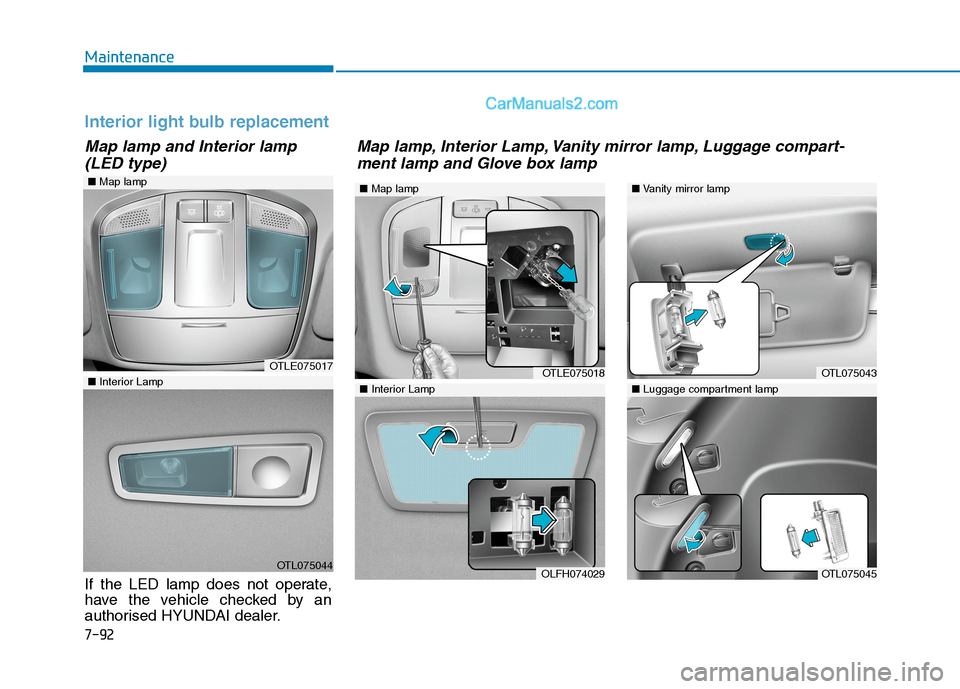

7-92
Maintenance
OTLE075017
OTL075044
■Map lamp
■Interior Lamp
■Map lamp
OTLE075018
OLFH074029
■Interior Lamp
■Vanity mirror lamp
■Luggage compartment lamp
OTL075043
OTL075045
Interior light bulb replacement
Map lamp and Interior lamp
(LED type)Map lamp, Interior Lamp, Vanity mirror lamp, Luggage compart-
ment lamp and Glove box lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorised HYUNDAI dealer.
