2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

3-179
Convenient features of your vehicle

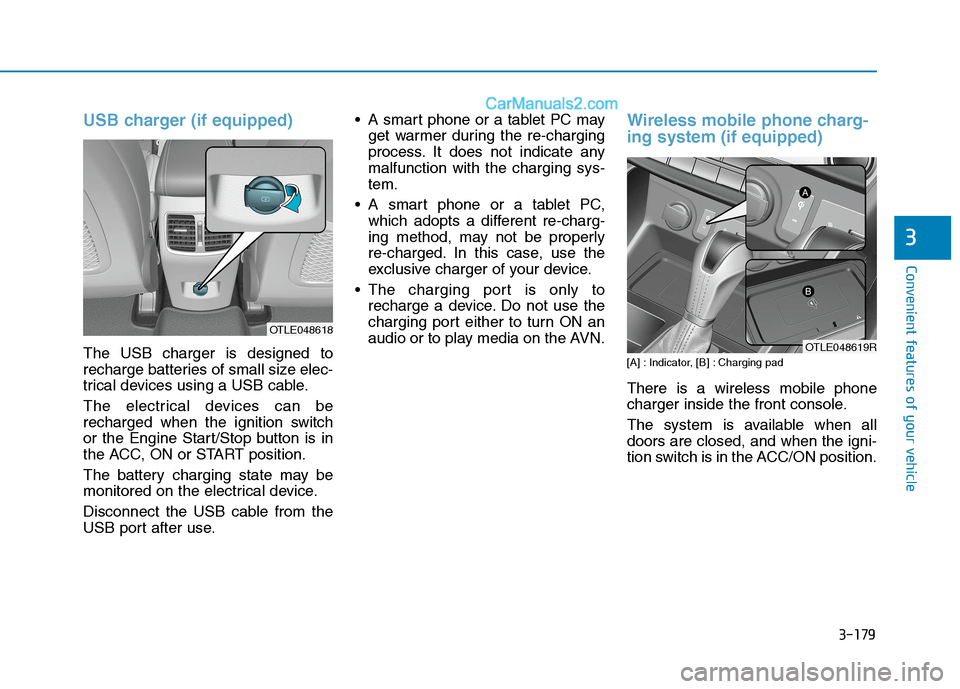

USB charger (if equipped)
The USB charger is designed to
recharge batteries of small size elec-
trical devices using a USB cable.
The electrical devices can be
recharged when the ignition switch
or the Engine Start/Stop button is in
the ACC, ON or START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the
USB port after use. A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging sys-
tem.
A smart phone or a tablet PC,
which adopts a different re-charg-
ing method, may not be properly
re-charged. In this case, use the
exclusive charger of your device.
The charging port is only to
recharge a device. Do not use the
charging port either to turn ON an
audio or to play media on the AVN.
Wireless mobile phone charg-
ing system (if equipped)
[A] : Indicator, [B] : Charging pad
There is a wireless mobile phone
charger inside the front console.
The system is available when all
doors are closed, and when the igni-
tion switch is in the ACC/ON position.
3
OTLE048618
OTLE048619R

3-180

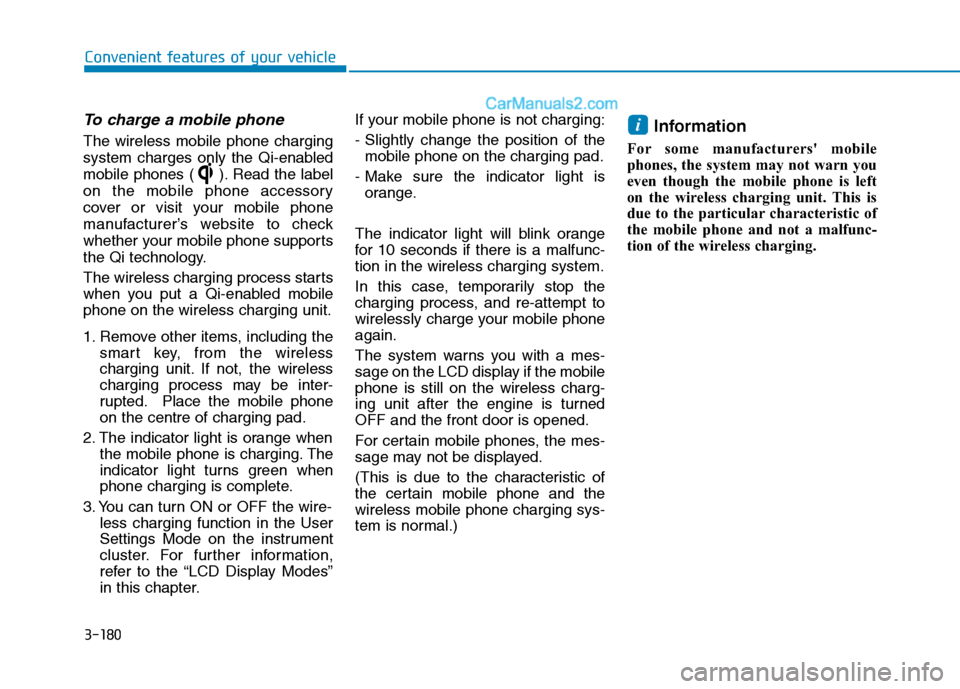

To charge a mobile phone
The wireless mobile phone charging
system charges only the Qi-enabled
mobile phones ( ). Read the label
on the mobile phone accessory
cover or visit your mobile phone
manufacturer’s website to check
whether your mobile phone supports
the Qi technology.
The wireless charging process starts
when you put a Qi-enabled mobile
phone on the wireless charging unit.
1. Remove other items, including the
smart key, from the wireless
charging unit. If not, the wireless
charging process may be inter-
rupted. Place the mobile phone
on the centre of charging pad.
2. The indicator light is orange when
the mobile phone is charging. The
indicator light turns green when
phone charging is complete.
3. You can turn ON or OFF the wire-
less charging function in the User
Settings Mode on the instrument
cluster. For further information,
refer to the “LCD Display Modes”
in this chapter.If your mobile phone is not charging:
- Slightly change the position of the
mobile phone on the charging pad.
- Make sure the indicator light is
orange.
The indicator light will blink orange
for 10 seconds if there is a malfunc-
tion in the wireless charging system.
In this case, temporarily stop the
charging process, and re-attempt to
wirelessly charge your mobile phone
again.
The system warns you with a mes-
sage on the LCD display if the mobile
phone is still on the wireless charg-
ing unit after the engine is turned
OFF and the front door is opened.
For certain mobile phones, the mes-
sage may not be displayed.
(This is due to the characteristic of
the certain mobile phone and the
wireless mobile phone charging sys-
tem is normal.)Information
For some manufacturers' mobile
phones, the system may not warn you
even though the mobile phone is left
on the wireless charging unit. This is
due to the particular characteristic of
the mobile phone and not a malfunc-
tion of the wireless charging.
i
Convenient features of your vehicle

3-181
Convenient features of your vehicle

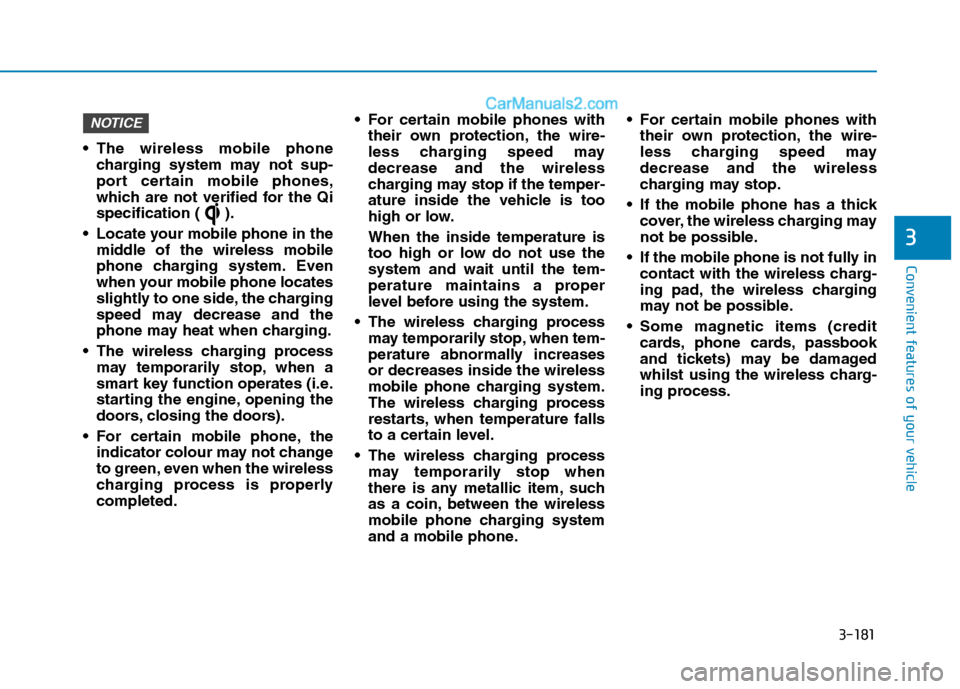

The wireless mobile phone
charging system may not sup-
port certain mobile phones,
which are not verified for the Qi
specification ( ).
Locate your mobile phone in the
middle of the wireless mobile
phone charging system. Even
when your mobile phone locates
slightly to one side, the charging
speed may decrease and the
phone may heat when charging.
The wireless charging process
may temporarily stop, when a
smart key function operates (i.e.
starting the engine, opening the
doors, closing the doors).
For certain mobile phone, the
indicator colour may not change
to green, even when the wireless
charging process is properly
completed. For certain mobile phones with
their own protection, the wire-
less charging speed may
decrease and the wireless
charging may stop if the temper-
ature inside the vehicle is too
high or low.
When the inside temperature is
too high or low do not use the
system and wait until the tem-
perature maintains a proper
level before using the system.
The wireless charging process
may temporarily stop, when tem-
perature abnormally increases
or decreases inside the wireless
mobile phone charging system.
The wireless charging process
restarts, when temperature falls
to a certain level.
The wireless charging process
may temporarily stop when
there is any metallic item, such
as a coin, between the wireless
mobile phone charging system
and a mobile phone. For certain mobile phones with
their own protection, the wire-
less charging speed may
decrease and the wireless
charging may stop.
If the mobile phone has a thick
cover, the wireless charging may
not be possible.
If the mobile phone is not fully in
contact with the wireless charg-
ing pad, the wireless charging
may not be possible.
Some magnetic items (credit
cards, phone cards, passbook
and tickets) may be damaged
whilst using the wireless charg-
ing process.
NOTICE
3

3-182

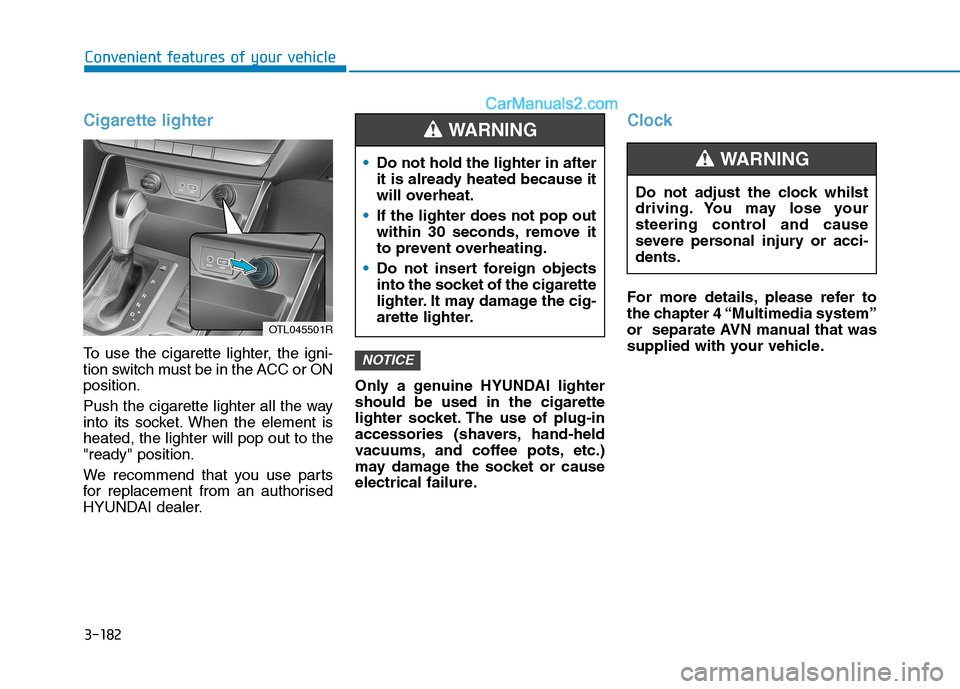

Cigarette lighter
To use the cigarette lighter, the igni-
tion switch must be in the ACC or ON
position.
Push the cigarette lighter all the way
into its socket. When the element is
heated, the lighter will pop out to the
"ready" position.
We recommend that you use parts
for replacement from an authorised
HYUNDAI dealer.Only a genuine HYUNDAI lighter
should be used in the cigarette
lighter socket. The use of plug-in
accessories (shavers, hand-held
vacuums, and coffee pots, etc.)
may damage the socket or cause
electrical failure.
Clock
For more details, please refer to
the chapter 4 “Multimedia system”
or separate AVN manual that was
supplied with your vehicle.
NOTICE
Convenient features of your vehicle
Do not hold the lighter in after
it is already heated because it
will overheat.
If the lighter does not pop out
within 30 seconds, remove it
to prevent overheating.
Do not insert foreign objects
into the socket of the cigarette
lighter. It may damage the cig-
arette lighter.
WARNING
Do not adjust the clock whilst
driving. You may lose your
steering control and cause
severe personal injury or acci-
dents.
WARNING
OTL045501R

3-183
Convenient features of your vehicle
3

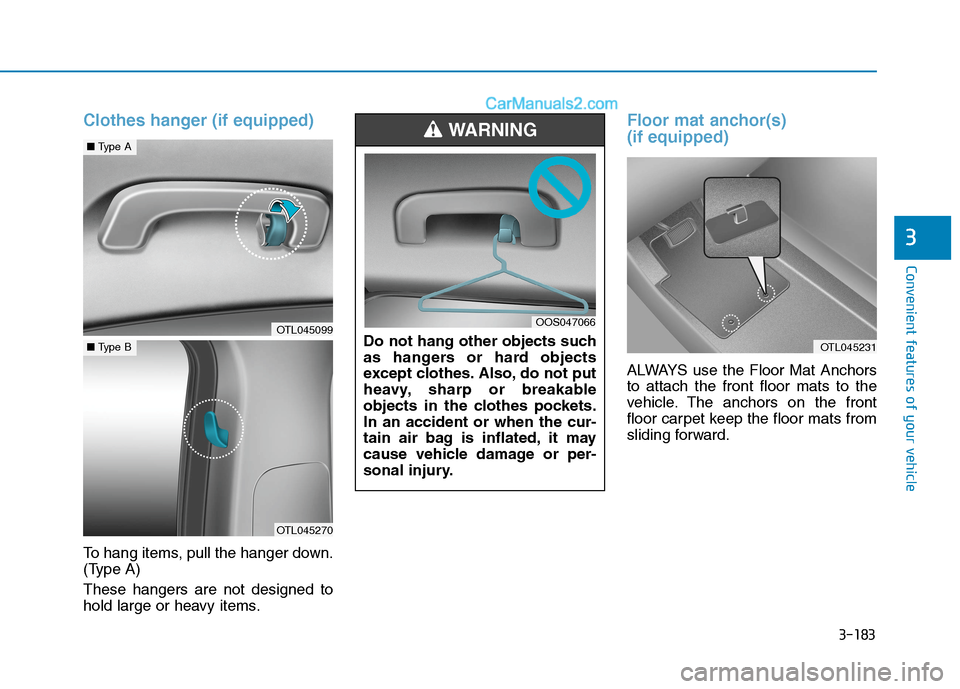

Clothes hanger (if equipped)
To hang items, pull the hanger down.
(Type A)
These hangers are not designed to
hold large or heavy items.
Floor mat anchor(s)
(if equipped)
ALWAYS use the Floor Mat Anchors
to attach the front floor mats to the
vehicle. The anchors on the front
floor carpet keep the floor mats from
sliding forward.
OTL045099
■Type A
OTL045270
■Type BDo not hang other objects such
as hangers or hard objects
except clothes. Also, do not put
heavy, sharp or breakable
objects in the clothes pockets.
In an accident or when the cur-
tain air bag is inflated, it may
cause vehicle damage or per-
sonal injury.
WARNING
OOS047066
OTL045231

3-184
Convenient features of your vehicle

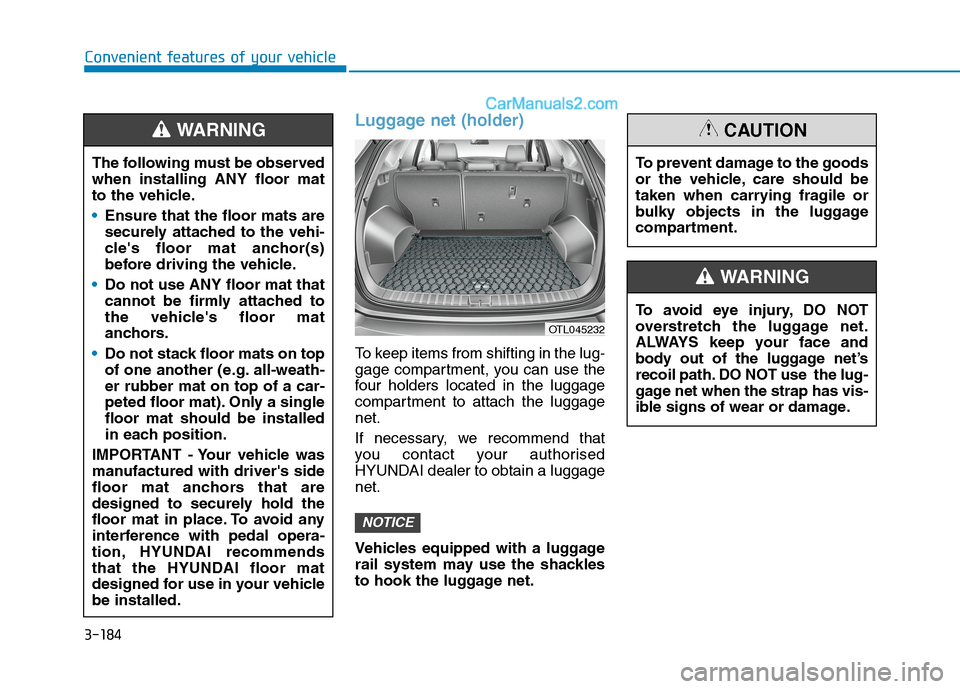

Luggage net (holder)
To keep items from shifting in the lug-
gage compartment, you can use the
four holders located in the luggage
compartment to attach the luggage
net.
If necessary, we recommend that
you contact your authorised
HYUNDAI dealer to obtain a luggage
net.
Vehicles equipped with a luggage
rail system may use the shackles
to hook the luggage net.
NOTICE
The following must be observed
when installing ANY floor mat
to the vehicle.
Ensure that the floor mats are
securely attached to the vehi-
cle's floor mat anchor(s)
before driving the vehicle.
Do not use ANY floor mat that
cannot be firmly attached to
the vehicle's floor mat
anchors.
Do not stack floor mats on top
of one another (e.g. all-weath-
er rubber mat on top of a car-
peted floor mat). Only a single
floor mat should be installed
in each position.
IMPORTANT - Your vehicle was
manufactured with driver's side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal opera-
tion, HYUNDAI recommends
that the HYUNDAI floor mat
designed for use in your vehicle
be installed.
WARNING
OTL045232
To avoid eye injury, DO NOT
overstretch the luggage net.
ALWAYS keep your face and
body out of the luggage net’s
recoil path. DO NOT use the lug-
gage net when the strap has vis-
ible signs of wear or damage.
WARNING
To prevent damage to the goods
or the vehicle, care should be
taken when carrying fragile or
bulky objects in the luggage
compartment.
CAUTION

3-185
Convenient features of your vehicle
3

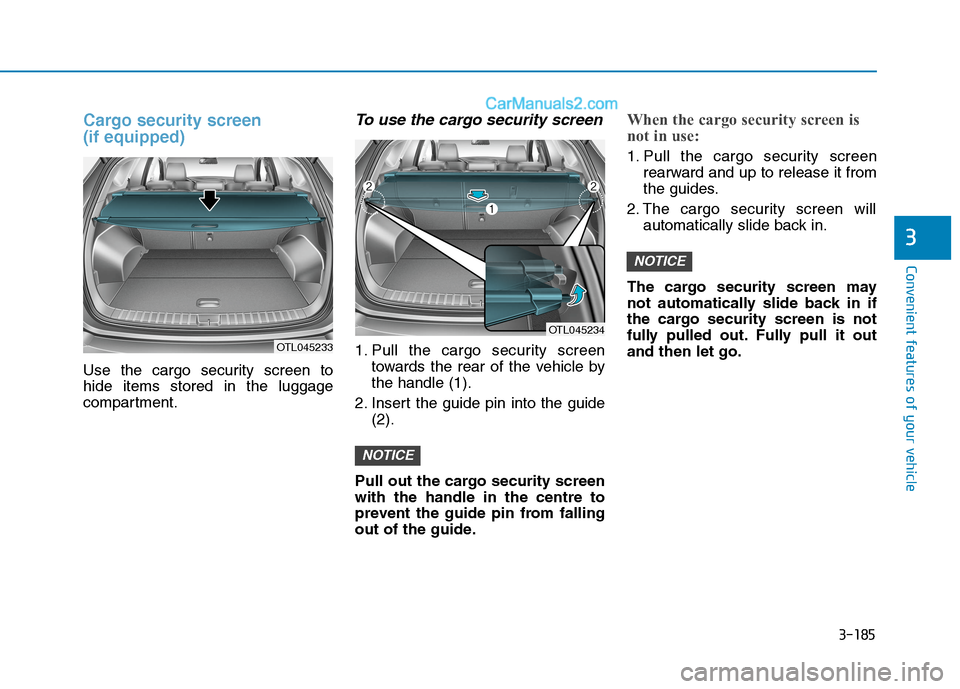

Cargo security screen
(if equipped)
Use the cargo security screen to
hide items stored in the luggage
compartment.
To use the cargo security screen
1. Pull the cargo security screen
towards the rear of the vehicle by
the handle (1).
2. Insert the guide pin into the guide
(2).
Pull out the cargo security screen
with the handle in the centre to
prevent the guide pin from falling
out of the guide.
When the cargo security screen is
not in use:
1. Pull the cargo security screen
rearward and up to release it from
the guides.
2. The cargo security screen will
automatically slide back in.
The cargo security screen may
not automatically slide back in if
the cargo security screen is not
fully pulled out. Fully pull it out
and then let go.
NOTICE
NOTICE
OTL045233
OTL045234

3-186
Convenient features of your vehicle

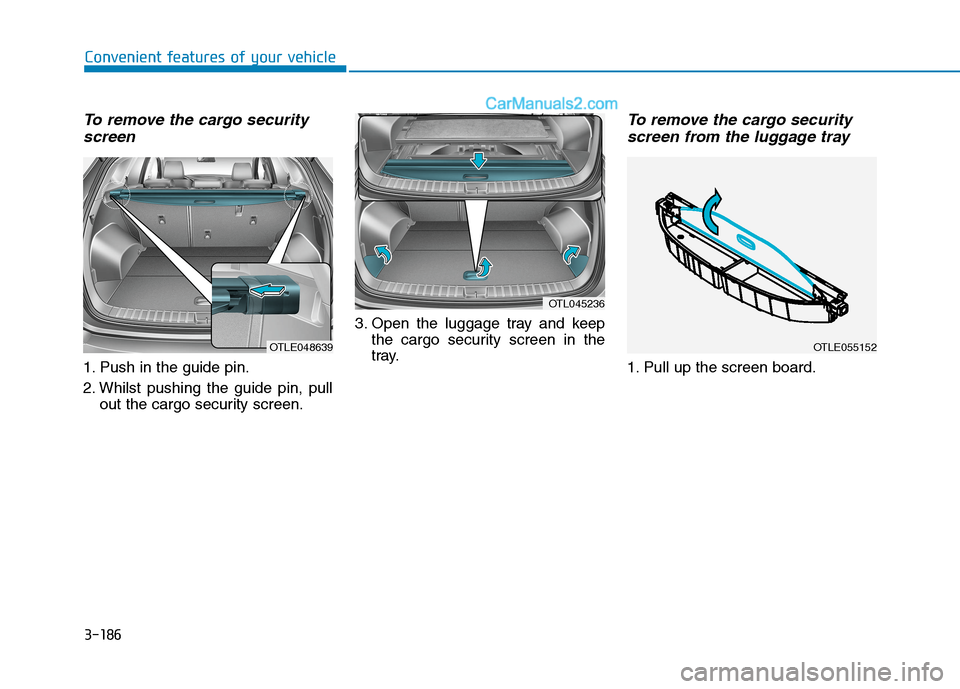

To remove the cargo security
screen
1. Push in the guide pin.
2. Whilst pushing the guide pin, pull
out the cargo security screen.3. Open the luggage tray and keep
the cargo security screen in the
tray.
To remove the cargo security
screen from the luggage tray
1. Pull up the screen board.
OTLE048639
OTL045236
OTLE055152
