2020 Hyundai Tucson Owner's Manual - RHD (UK, Australia)

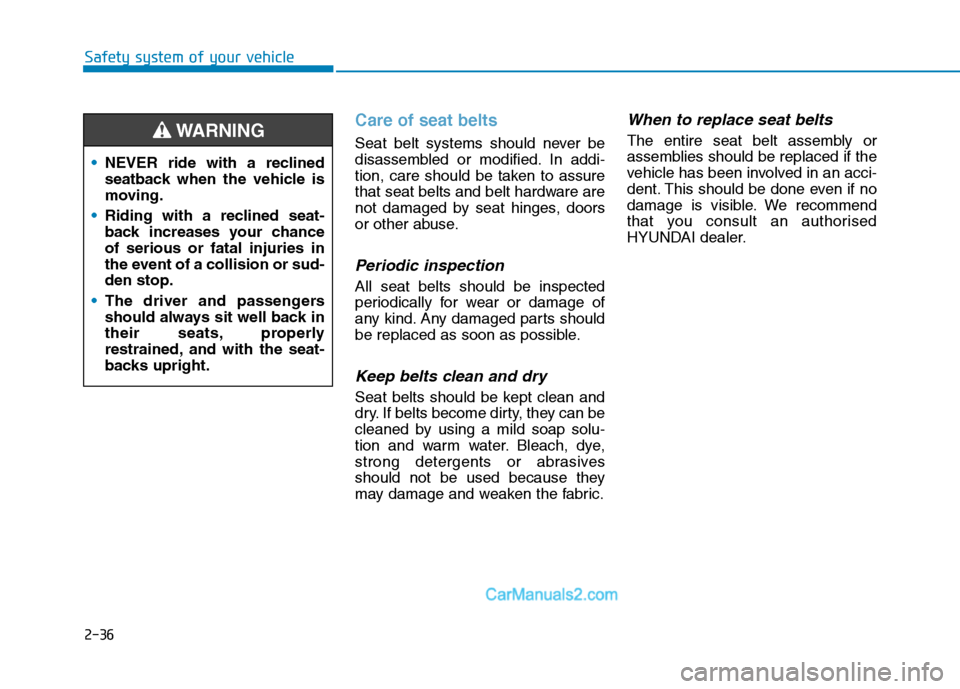

2-36
Safety system of your vehicle
Care of seat belts
Seat belt systems should never be
disassembled or modified. In addi-
tion, care should be taken to assure
that seat belts and belt hardware are
not damaged by seat hinges, doors
or other abuse.
Periodic inspection
All seat belts should be inspected
periodically for wear or damage of
any kind. Any damaged parts should
be replaced as soon as possible.
Keep belts clean and dry
Seat belts should be kept clean and
dry. If belts become dirty, they can be
cleaned by using a mild soap solu-
tion and warm water. Bleach, dye,
strong detergents or abrasives
should not be used because they
may damage and weaken the fabric.
When to replace seat belts
The entire seat belt assembly or
assemblies should be replaced if the
vehicle has been involved in an acci-
dent. This should be done even if no
damage is visible. We recommend
that you consult an authorised
HYUNDAI dealer. NEVER ride with a reclined
seatback when the vehicle is
moving.
Riding with a reclined seat-
back increases your chance
of serious or fatal injuries in
the event of a collision or sud-
den stop.
The driver and passengers
should always sit well back in
their seats, properly
restrained, and with the seat-
backs upright.WARNING

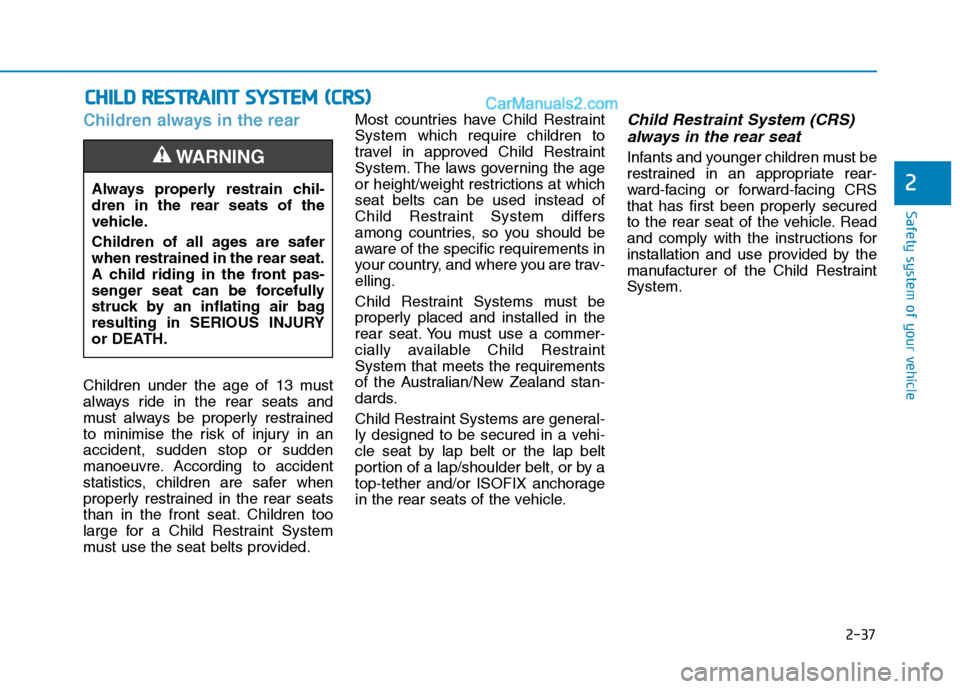

2-37
Safety system of your vehicle
2
Children always in the rear
Children under the age of 13 must
always ride in the rear seats and
must always be properly restrained
to minimise the risk of injury in an
accident, sudden stop or sudden
manoeuvre. According to accident
statistics, children are safer when
properly restrained in the rear seats
than in the front seat. Children too
large for a Child Restraint System
must use the seat belts provided.Most countries have Child Restraint
System which require children to
travel in approved Child Restraint
System. The laws governing the age
or height/weight restrictions at which
seat belts can be used instead of
Child Restraint System differs
among countries, so you should be
aware of the specific requirements in
your country, and where you are trav-
elling.
Child Restraint Systems must be
properly placed and installed in the
rear seat. You must use a commer-
cially available Child Restraint
System that meets the requirements
of the Australian/New Zealand stan-
dards.
Child Restraint Systems are general-
ly designed to be secured in a vehi-
cle seat by lap belt or the lap belt
portion of a lap/shoulder belt, or by a
top-tether and/or ISOFIX anchorage
in the rear seats of the vehicle.
Child Restraint System (CRS)
always in the rear seat
Infants and younger children must be
restrained in an appropriate rear-
ward-facing or forward-facing CRS
that has first been properly secured
to the rear seat of the vehicle. Read
and comply with the instructions for
installation and use provided by the
manufacturer of the Child Restraint
System.
C CH
HI
IL
LD
D
R
RE
ES
ST
TR
RA
AI
IN
NT
T
S
SY
YS
ST
TE
EM
M
(
(C
CR
RS
S)
)

Always properly restrain chil-
dren in the rear seats of the
vehicle.
Children of all ages are safer
when restrained in the rear seat.
A child riding in the front pas-
senger seat can be forcefully
struck by an inflating air bag
resulting in SERIOUS INJURY
or DEATH.
WARNING

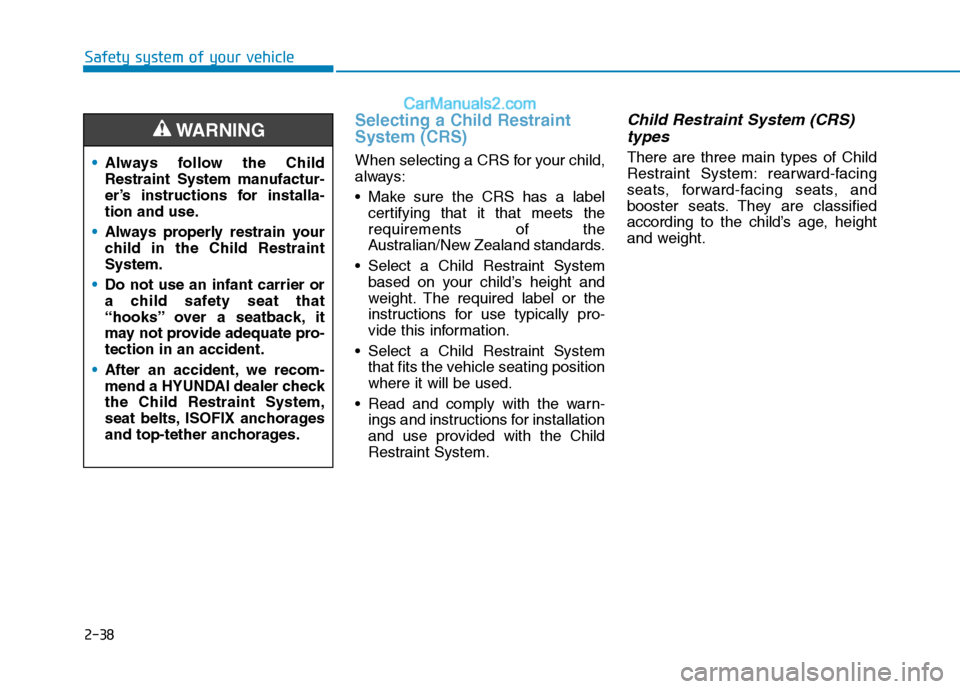

2-38
Safety system of your vehicle
Selecting a Child Restraint
System (CRS)
When selecting a CRS for your child,
always:
Make sure the CRS has a label
certifying that it that meets the
requirements of the
Australian/New Zealand standards.
Select a Child Restraint System
based on your child’s height and
weight. The required label or the
instructions for use typically pro-
vide this information.
Select a Child Restraint System
that fits the vehicle seating position
where it will be used.
Read and comply with the warn-
ings and instructions for installation
and use provided with the Child
Restraint System.
Child Restraint System (CRS)
types
There are three main types of Child
Restraint System: rearward-facing
seats, forward-facing seats, and
booster seats. They are classified
according to the child’s age, height
and weight.Always follow the Child
Restraint System manufactur-
er’s instructions for installa-
tion and use.
Always properly restrain your
child in the Child Restraint
System.
Do not use an infant carrier or
a child safety seat that
“hooks” over a seatback, it
may not provide adequate pro-
tection in an accident.
After an accident, we recom-
mend a HYUNDAI dealer check
the Child Restraint System,
seat belts, ISOFIX anchorages
and top-tether anchorages.
WARNING

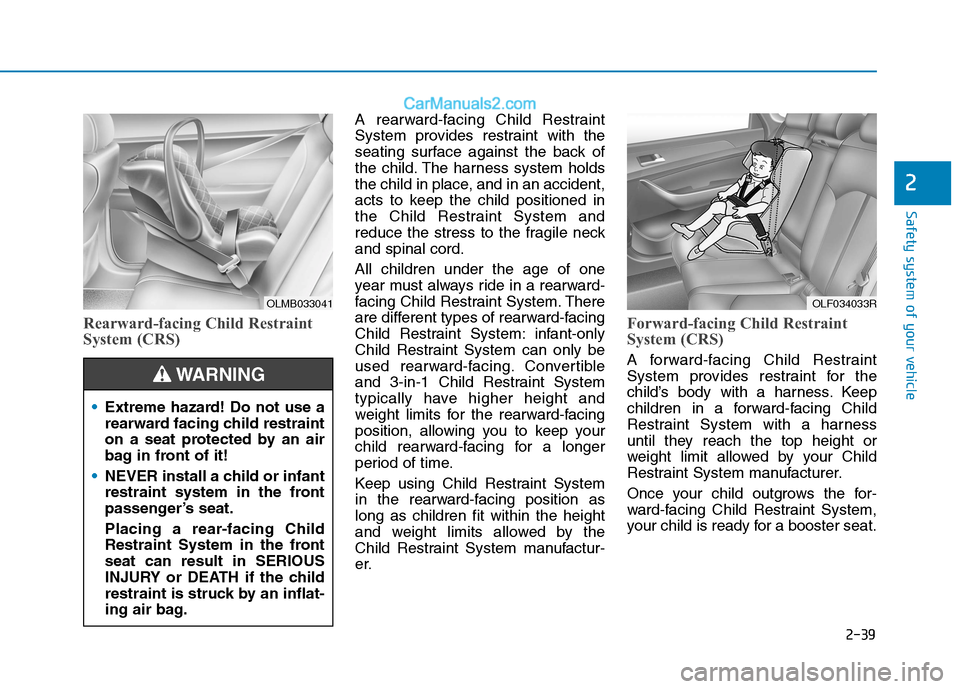

2-39
Safety system of your vehicle
2
Rearward-facing Child Restraint
System (CRS)
A rearward-facing Child Restraint
System provides restraint with the
seating surface against the back of
the child. The harness system holds
the child in place, and in an accident,
acts to keep the child positioned in
the Child Restraint System and
reduce the stress to the fragile neck
and spinal cord.
All children under the age of one
year must always ride in a rearward-
facing Child Restraint System. There
are different types of rearward-facing
Child Restraint System: infant-only
Child Restraint System can only be
used rearward-facing. Convertible
and 3-in-1 Child Restraint System
typically have higher height and
weight limits for the rearward-facing
position, allowing you to keep your
child rearward-facing for a longer
period of time.
Keep using Child Restraint System
in the rearward-facing position as
long as children fit within the height
and weight limits allowed by the
Child Restraint System manufactur-
er.
Forward-facing Child Restraint
System (CRS)
A forward-facing Child Restraint
System provides restraint for the
child’s body with a harness. Keep
children in a forward-facing Child
Restraint System with a harness
until they reach the top height or
weight limit allowed by your Child
Restraint System manufacturer.
Once your child outgrows the for-
ward-facing Child Restraint System,
your child is ready for a booster seat.
OLF034033ROLMB033041
Extreme hazard! Do not use a
rearward facing child restraint
on a seat protected by an air
bag in front of it!
NEVER install a child or infant
restraint system in the front
passenger’s seat.
Placing a rear-facing Child
Restraint System in the front
seat can result in SERIOUS
INJURY or DEATH if the child
restraint is struck by an inflat-
ing air bag.
WARNING

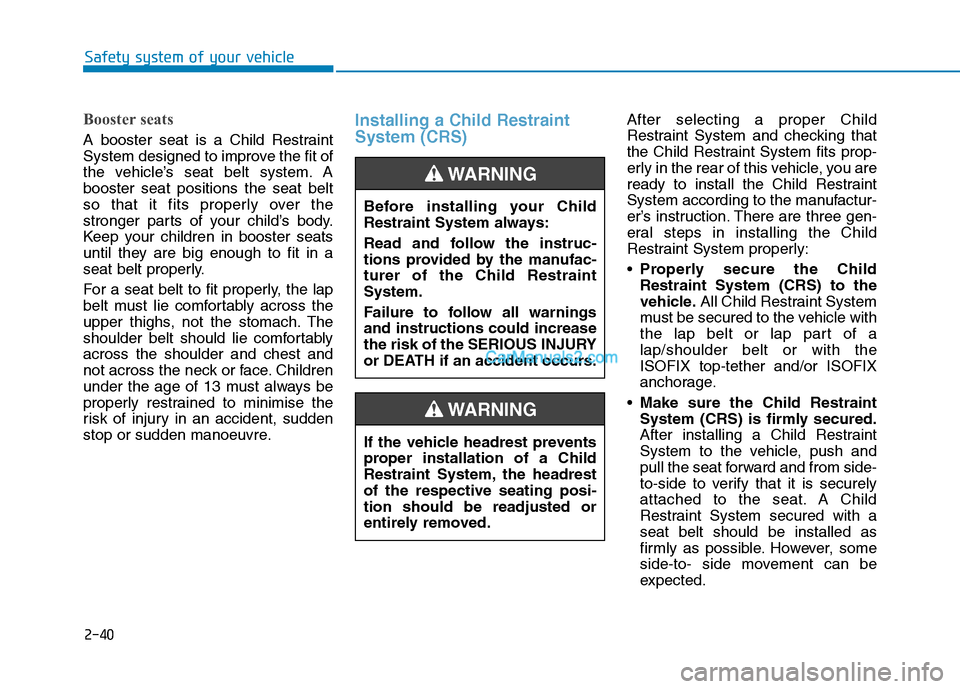

2-40
Safety system of your vehicle
Booster seats
A booster seat is a Child Restraint
System designed to improve the fit of
the vehicle’s seat belt system. A
booster seat positions the seat belt
so that it fits properly over the
stronger parts of your child’s body.
Keep your children in booster seats
until they are big enough to fit in a
seat belt properly.
For a seat belt to fit properly, the lap
belt must lie comfortably across the
upper thighs, not the stomach. The
shoulder belt should lie comfortably
across the shoulder and chest and
not across the neck or face. Children
under the age of 13 must always be
properly restrained to minimise the
risk of injury in an accident, sudden
stop or sudden manoeuvre.
Installing a Child Restraint
System (CRS)After selecting a proper Child
Restraint System and checking that
the Child Restraint System fits prop-
erly in the rear of this vehicle, you are
ready to install the Child Restraint
System according to the manufactur-
er’s instruction. There are three gen-
eral steps in installing the Child
Restraint System properly:
Properly secure the Child
Restraint System (CRS) to the
vehicle.All Child Restraint System
must be secured to the vehicle with
the lap belt or lap part of a
lap/shoulder belt or with the
ISOFIX top-tether and/or ISOFIX
anchorage.
Make sure the Child Restraint
System (CRS) is firmly secured.
After installing a Child Restraint
System to the vehicle, push and
pull the seat forward and from side-
to-side to verify that it is securely
attached to the seat. A Child
Restraint System secured with a
seat belt should be installed as
firmly as possible. However, some
side-to- side movement can be
expected. Before installing your Child
Restraint System always:
Read and follow the instruc-
tions provided by the manufac-
turer of the Child Restraint
System.
Failure to follow all warnings
and instructions could increase
the risk of the SERIOUS INJURY
or DEATH if an accident occurs.
WARNING
If the vehicle headrest prevents
proper installation of a Child
Restraint System, the headrest
of the respective seating posi-
tion should be readjusted or
entirely removed.
WARNING

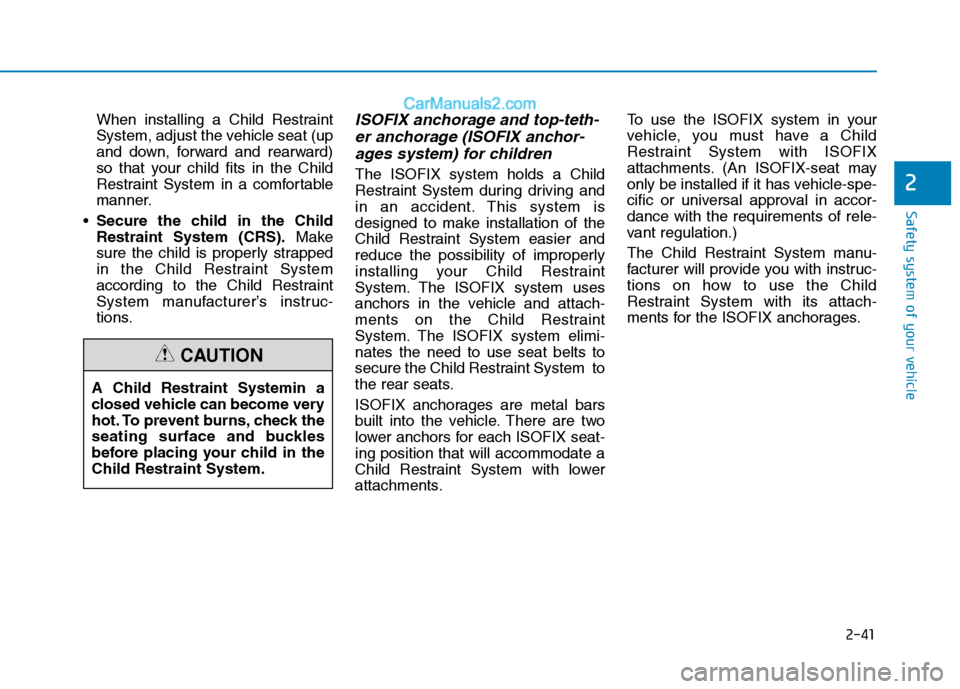

2-41
Safety system of your vehicle
2
When installing a Child Restraint
System, adjust the vehicle seat (up
and down, forward and rearward)
so that your child fits in the Child
Restraint System in a comfortable
manner.
Secure the child in the Child
Restraint System (CRS).Make
sure the child is properly strapped
in the Child Restraint System
according to the Child Restraint
System manufacturer’s instruc-
tions.ISOFIX anchorage and top-teth-
er anchorage (ISOFIX anchor-
ages system) for children
The ISOFIX system holds a Child
Restraint System during driving and
in an accident. This system is
designed to make installation of the
Child Restraint System easier and
reduce the possibility of improperly
installing your Child Restraint
System. The ISOFIX system uses
anchors in the vehicle and attach-
ments on the Child Restraint
System. The ISOFIX system elimi-
nates the need to use seat belts to
secure the Child Restraint System to
the rear seats.
ISOFIX anchorages are metal bars
built into the vehicle. There are two
lower anchors for each ISOFIX seat-
ing position that will accommodate a
Child Restraint System with lower
attachments.To use the ISOFIX system in your
vehicle, you must have a Child
Restraint System with ISOFIX
attachments. (An ISOFIX-seat may
only be installed if it has vehicle-spe-
cific or universal approval in accor-
dance with the requirements of rele-
vant regulation.)
The Child Restraint System manu-
facturer will provide you with instruc-
tions on how to use the Child
Restraint System with its attach-
ments for the ISOFIX anchorages.
A Child Restraint Systemin a
closed vehicle can become very
hot. To prevent burns, check the
seating surface and buckles
before placing your child in the
Child Restraint System.
CAUTION

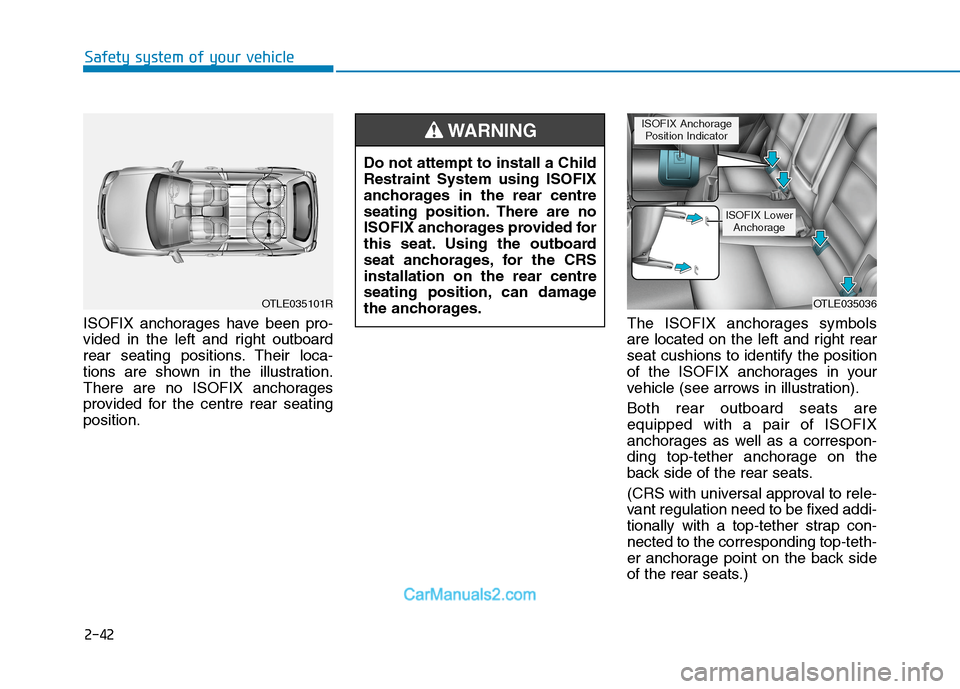

2-42
Safety system of your vehicle
ISOFIX anchorages have been pro-
vided in the left and right outboard
rear seating positions. Their loca-
tions are shown in the illustration.
There are no ISOFIX anchorages
provided for the centre rear seating
position.The ISOFIX anchorages symbols
are located on the left and right rear
seat cushions to identify the position
of the ISOFIX anchorages in your
vehicle (see arrows in illustration).
Both rear outboard seats are
equipped with a pair of ISOFIX
anchorages as well as a correspon-
ding top-tether anchorage on the
back side of the rear seats.
(CRS with universal approval to rele-
vant regulation need to be fixed addi-
tionally with a top-tether strap con-
nected to the corresponding top-teth-
er anchorage point on the back side
of the rear seats.) Do not attempt to install a Child
Restraint System using ISOFIX
anchorages in the rear centre
seating position. There are no
ISOFIX anchorages provided for
this seat. Using the outboard
seat anchorages, for the CRS
installation on the rear centre
seating position, can damage
the anchorages.
WARNING
OTLE035036
ISOFIX Anchorage
Position Indicator
ISOFIX Lower
Anchorage
OTLE035101R

2-43
Safety system of your vehicle
2

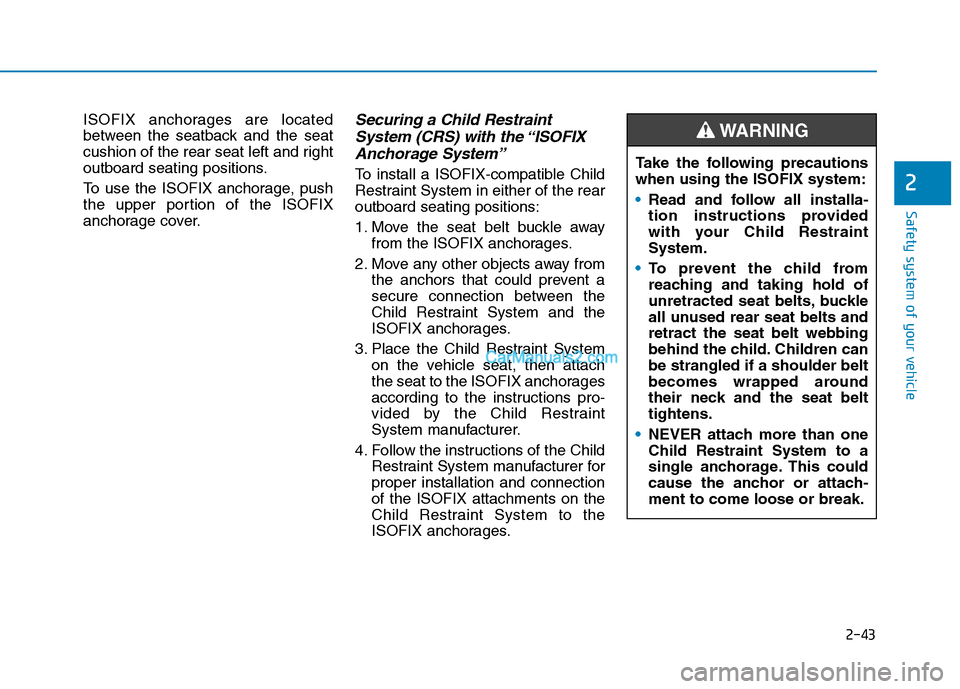

ISOFIX anchorages are located
between the seatback and the seat
cushion of the rear seat left and right
outboard seating positions.
To use the ISOFIX anchorage, push
the upper portion of the ISOFIX
anchorage cover.Securing a Child Restraint
System (CRS) with the “ISOFIX
Anchorage System”
To install a ISOFIX-compatible Child
Restraint System in either of the rear
outboard seating positions:
1. Move the seat belt buckle away
from the ISOFIX anchorages.
2. Move any other objects away from
the anchors that could prevent a
secure connection between the
Child Restraint System and the
ISOFIX anchorages.
3. Place the Child Restraint System
on the vehicle seat, then attach
the seat to the ISOFIX anchorages
according to the instructions pro-
vided by the Child Restraint
System manufacturer.
4. Follow the instructions of the Child
Restraint System manufacturer for
proper installation and connection
of the ISOFIX attachments on the
Child Restraint System to the
ISOFIX anchorages.Take the following precautions
when using the ISOFIX system:
Read and follow all installa-
tion instructions provided
with your Child Restraint
System.
To prevent the child from
reaching and taking hold of
unretracted seat belts, buckle
all unused rear seat belts and
retract the seat belt webbing
behind the child. Children can
be strangled if a shoulder belt
becomes wrapped around
their neck and the seat belt
tightens.
NEVER attach more than one
Child Restraint System to a
single anchorage. This could
cause the anchor or attach-
ment to come loose or break.
WARNING
