2017 TOYOTA AURIS TOURING SPORTS Owners Manual

2974-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
■If “Stop & Start system malfunction. Inspect at dealer.” is displayed on
the multi-information display (vehicles with a 2-ring meter)
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
■If the Stop & Start cancel indicator continues to flash
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■When the Stop & Start system is operating
●Vehicles with a Multidrive: Depress the brake pedal and apply the parking
brake when necessary while the engine is stopped by the Stop & Start sys-
tem (while the Stop & Start indicator is on).
●Vehicles with a manual transmission: Keep the shift lever in N and depress
the brake pedal or apply the parking brake while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
●Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
●Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.
AURIS Touring Sports_OM_Europe_OM12L13E.book 297 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2984-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
NOTICE
■To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle checked by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
●While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
●Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
●Vehicles with a 3-ring meter: Even though the driver’s door is closed, the
open door warning light is illuminated or the interior light is illuminated
when the interior light switch is in the door position.
●Vehicles with a 2-ring meter: Even though the driver’s door is closed, the
open door warning is displayed on the multi-information display or the inte-
rior light is illuminated when the interior light switch is in the door position.
●Vehicles with a 3-ring meter: Even though the driver’s door is open, the
open door warning light does not illuminate or the interior light does not
illuminate when the interior light switch is in the door position.
●Vehicles with a 2-ring meter: Even though the driver’s door is open, the
open door warning is not displayed on the multi-information display or the
interior light does not illuminate when the interior light switch is in the door
position.
AURIS Touring Sports_OM_Europe_OM12L13E.book 298 ページ ２０１６年６月２７日　月曜日　午後５時２１分

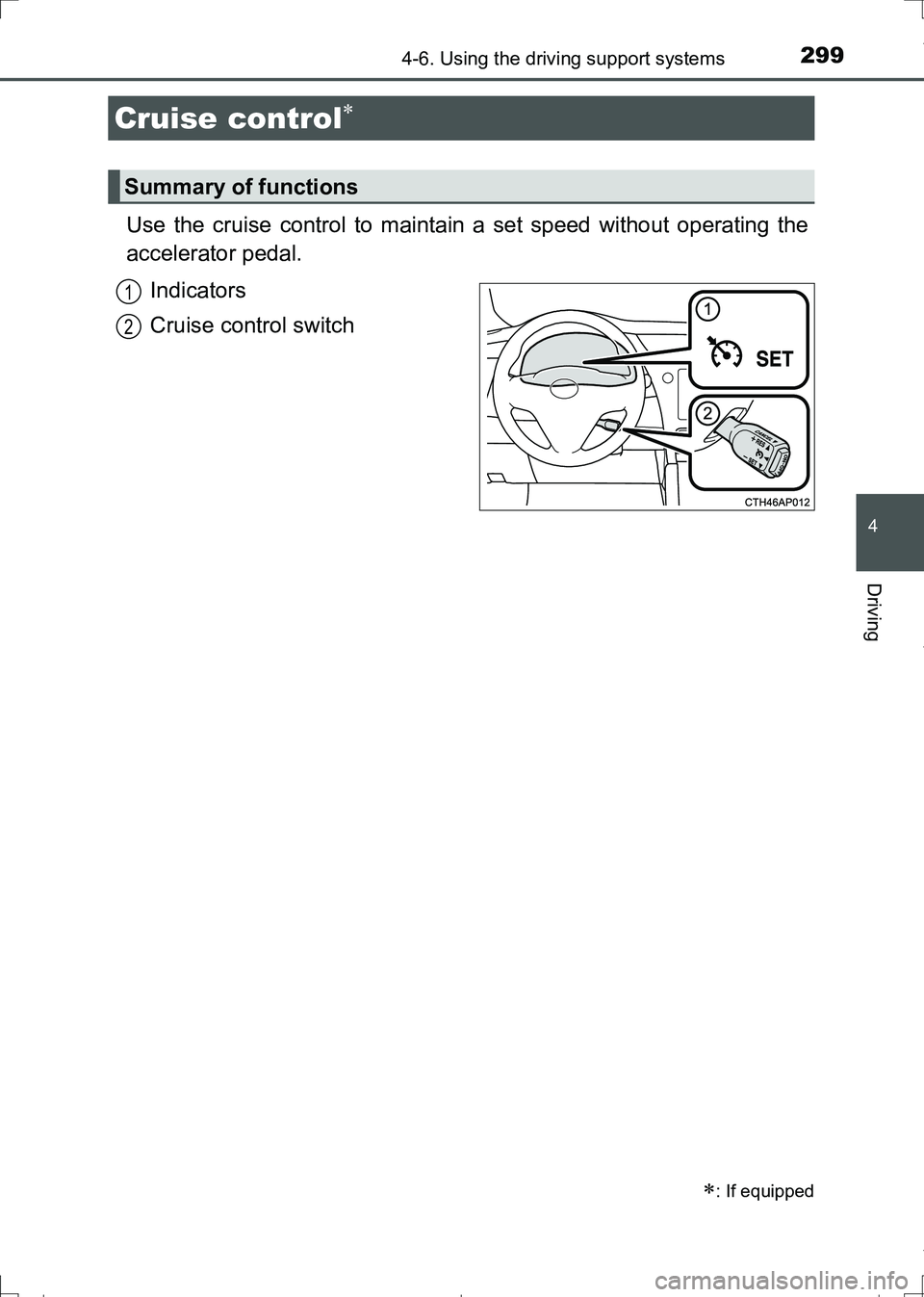

2994-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
Use the cruise control to maintain a set speed without operating the
accelerator pedal.
Indicators
Cruise control switch
Cruise control
: If equipped
Summary of functions
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 299 ページ ２０１６年６月２７日　月曜日　午後５時２１分

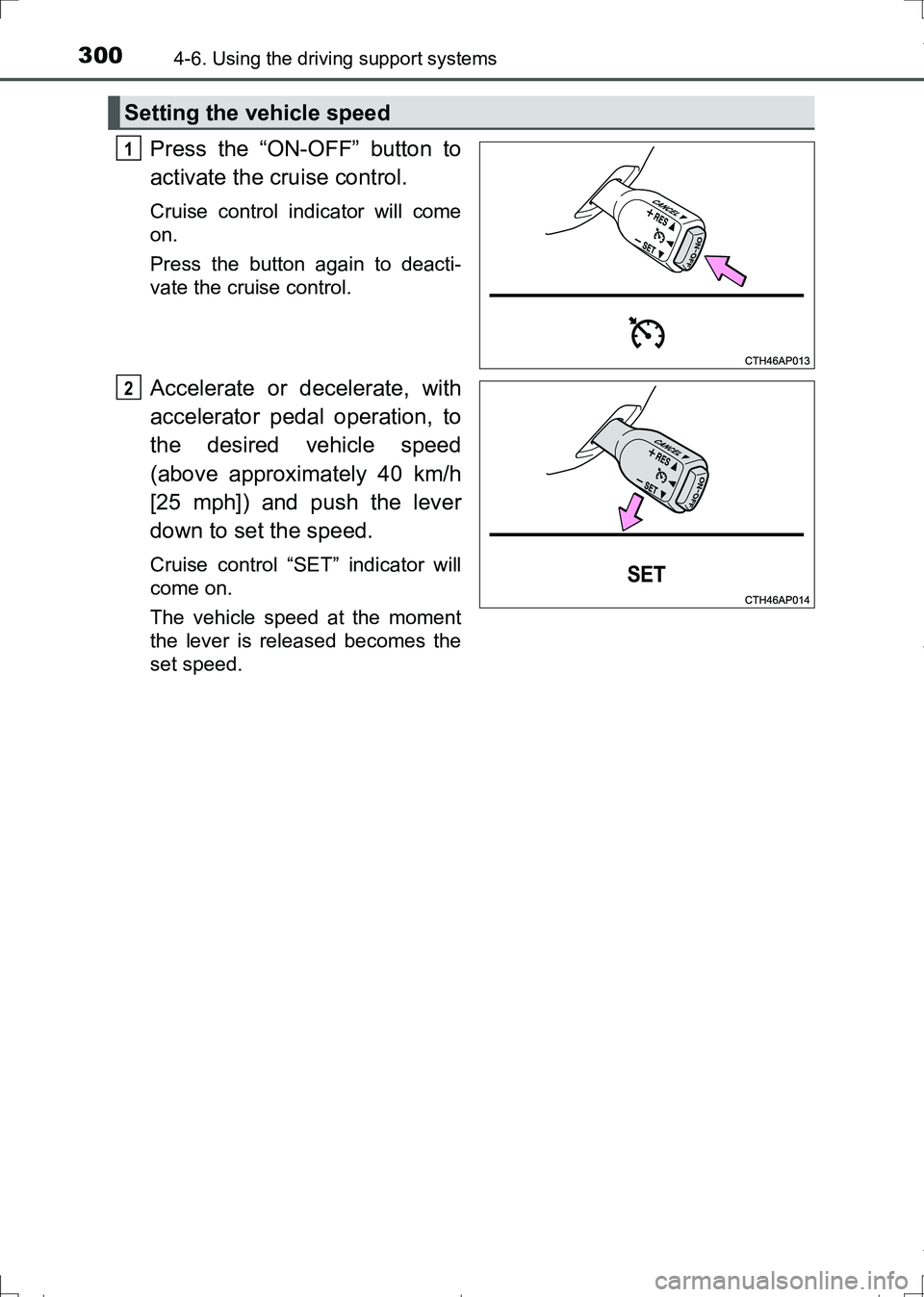

3004-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed
(above approximately 40 km/h
[25 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Setting the vehicle speed
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 300 ページ ２０１６年６月２７日　月曜日　午後５時２１分

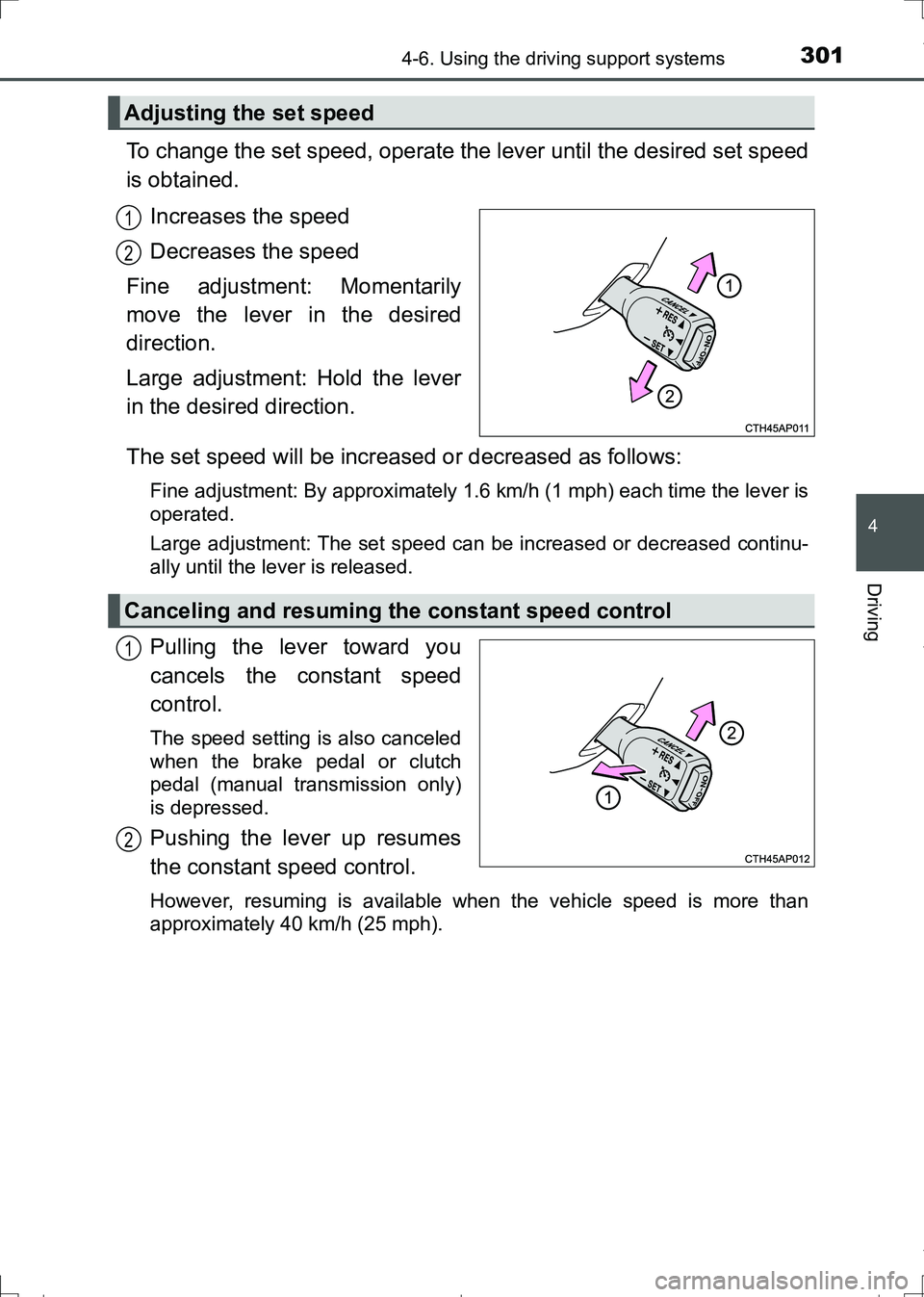

3014-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever
in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the lever is
operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brake pedal or clutch
pedal (manual transmission only)
is depressed.
Pushing the lever up resumes
the constant speed control.
However, resuming is available when the vehicle speed is more than
approximately 40 km/h (25 mph).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 301 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3024-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
■Cruise control can be set when
Vehicles with a Multidrive
●The shift lever is in the D or range 4 or higher of M has been selected.
●Range 4 or higher has been selected by using the paddle shift.
(vehicles with paddle shift switch)
●Vehicle speed is above approximately 40 km/h (25 mph).
Vehicles with a manual transmission
Vehicle speed is above approximately 40 km/h (25 mph).
■Accelerating after setting the vehicle speed
●The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.
●Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■Automatic cruise control cancelation
Cruise control is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below approximately 40 km/h (25 mph).
●VSC is activated.
●Speed limiter is activated. (if equipped)
■If the cruise control indicator light comes on in yellow (vehicles with a 3-
ring meter) or “Check cruise control system.” is displayed on the multi-
information display (vehicles with a 2-ring meter)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
AURIS Touring Sports_OM_Europe_OM12L13E.book 302 ページ ２０１６年６月２７日　月曜日　午後５時２１分

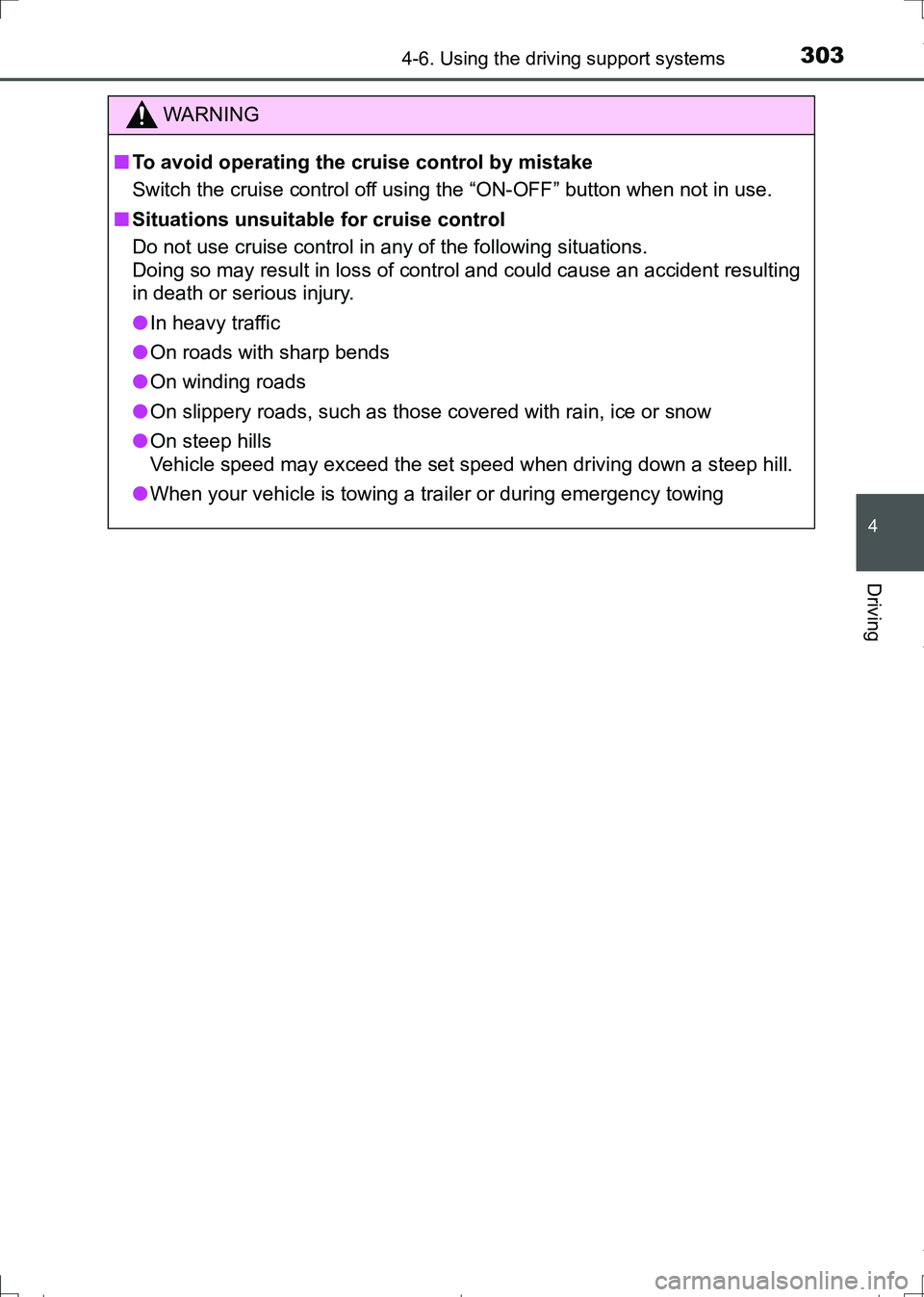

3034-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
WARNING
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
●When your vehicle is towing a trailer or during emergency towing
AURIS Touring Sports_OM_Europe_OM12L13E.book 303 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3044-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
A desired maximum speed can be set using the cruise control switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.
Indicator
Speed limiter switch
Set speed
Speed limiter
: If equipped
Summary of functions
Vehicles with a 3-ring meterVehicles with a 2-ring meter
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 304 ページ ２０１６年６月２７日　月曜日　午後５時２１分
