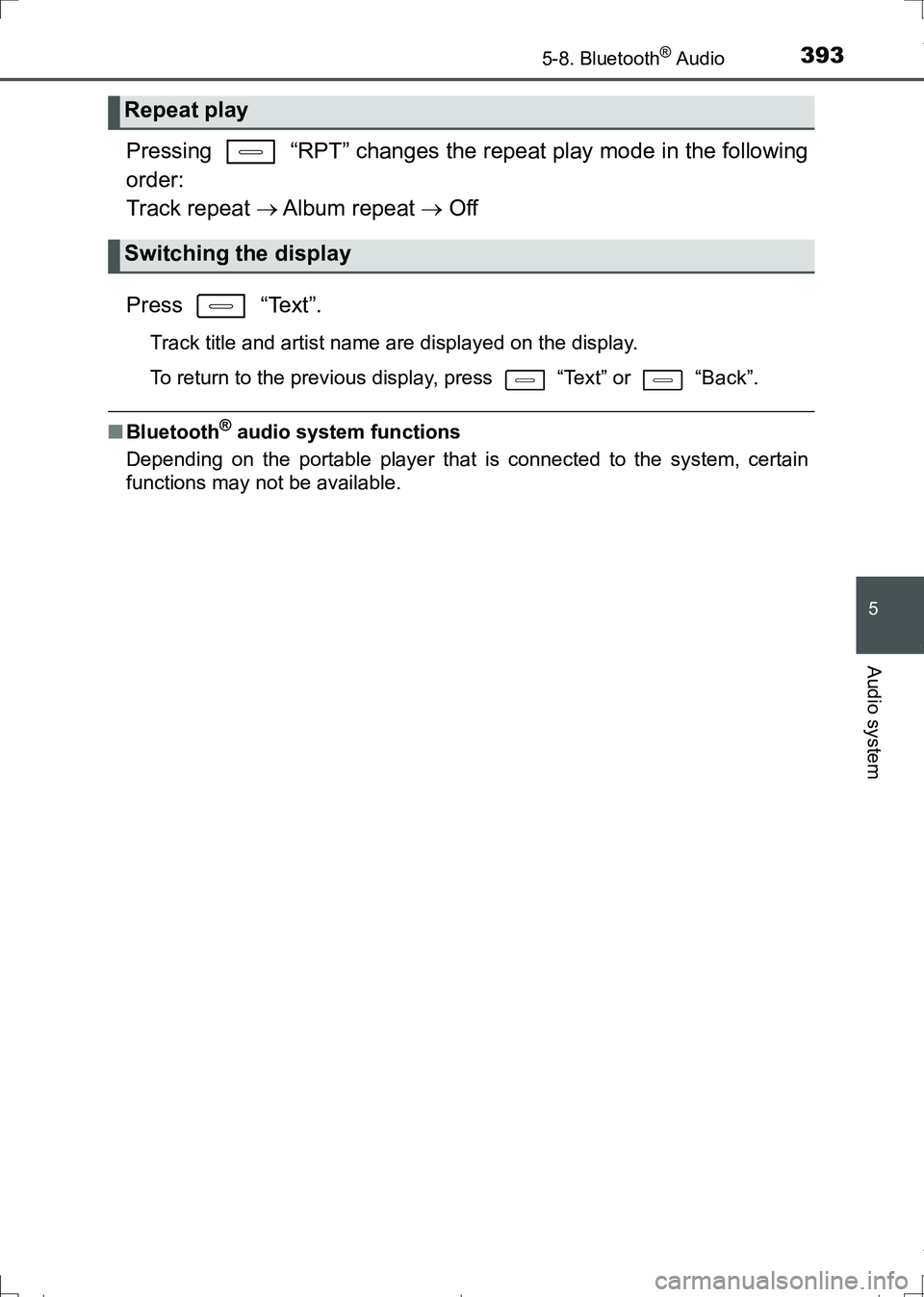

2017 TOYOTA AURIS TOURING SPORTS Owners Manual

3935-8. Bluetooth® Audio
AURIS Touring Sports_EE (12L13E)
5
Audio system
Pressing “RPT” changes the repeat play mode in the following
order:
Track repeat  Album repeat  Off
Press “Text”.
Track title and artist name are displayed on the display.
To return to the previous display, press “Text” or “Back”.
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Repeat play
Switching the display
AURIS Touring Sports_OM_Europe_OM12L13E.book 393 ページ ２０１６年６月２７日　月曜日　午後５時２１分

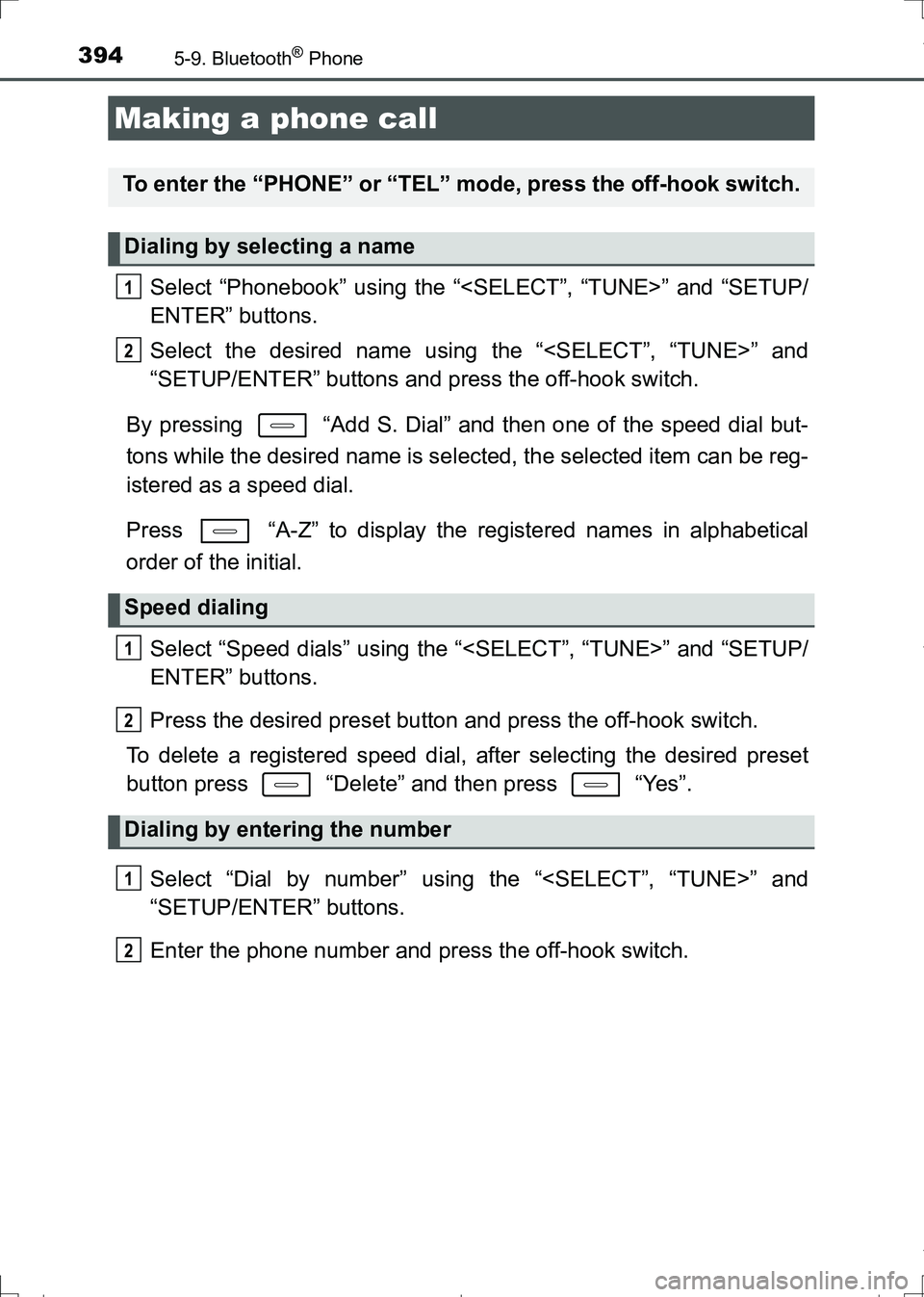

394
AURIS Touring Sports_EE (12L13E)
5-9. Bluetooth® Phone
Select “Phonebook” using the “” and “SETUP/
ENTER” buttons.
Select the desired name using the “” and
“SETUP/ENTER” buttons and press the off-hook switch.
By pressing “Add S. Dial” and then one of the speed dial but-
tons while the desired name is selected, the selected item can be reg-
istered as a speed dial.
Press “A-Z” to display the registered names in alphabetical
order of the initial.
Select “Speed dials” using the “” and “SETUP/
ENTER” buttons.
Press the desired preset button and press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button press “Delete” and then press “Yes”.
Select “Dial by number” using the “” and
“SETUP/ENTER” buttons.
Enter the phone number and press the off-hook switch.
Making a phone call
To enter the “PHONE” or “TEL” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing
Dialing by entering the number
1
2
1
2
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 394 ページ ２０１６年６月２７日　月曜日　午後５時２１分

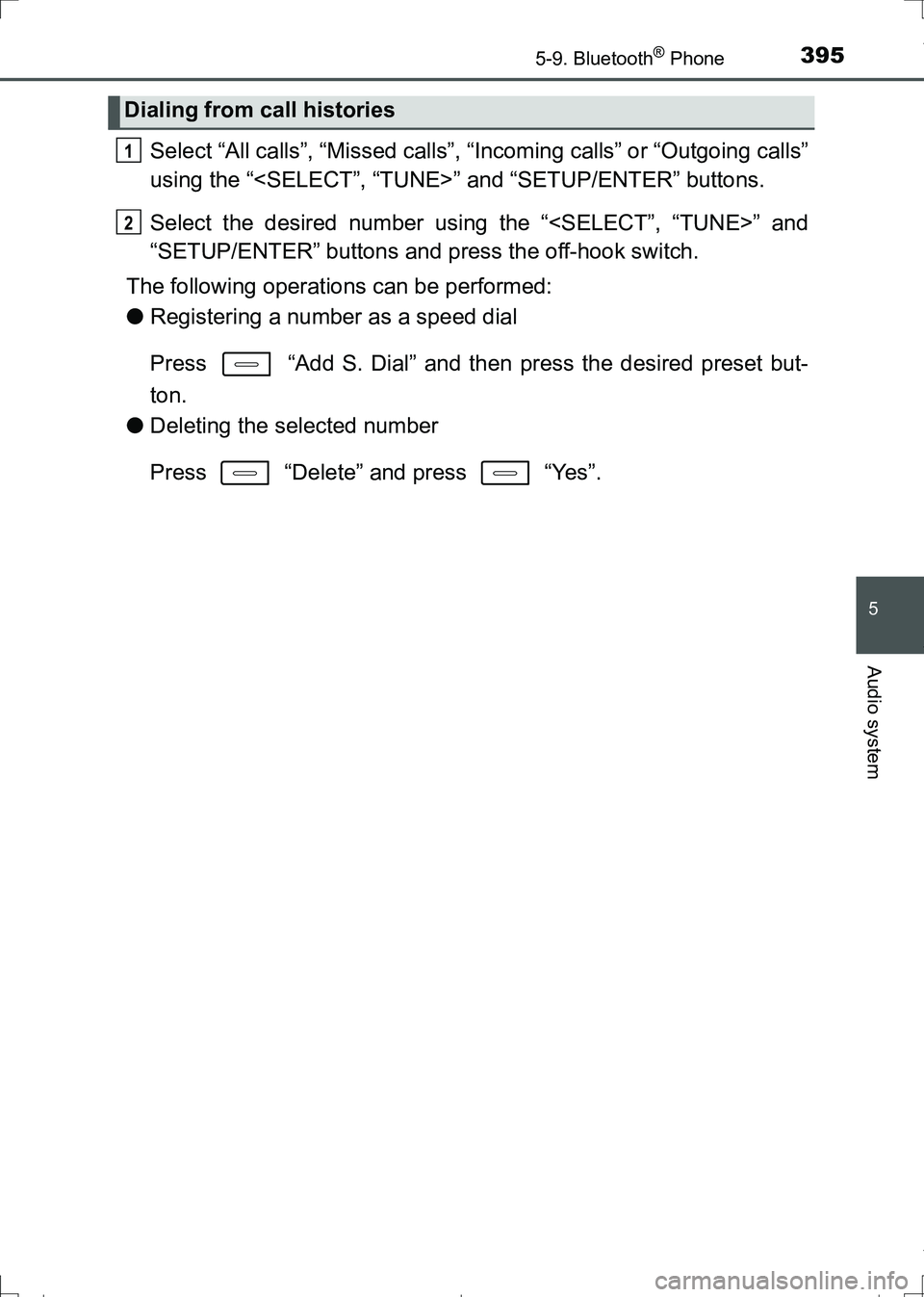

3955-9. Bluetooth® Phone
AURIS Touring Sports_EE (12L13E)
5
Audio system
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the “” and “SETUP/ENTER” buttons.
Select the desired number using the “” and
“SETUP/ENTER” buttons and press the off-hook switch.
The following operations can be performed:
●Registering a number as a speed dial
Press “Add S. Dial” and then press the desired preset but-
ton.
●Deleting the selected number
Press “Delete” and press “Yes”.
Dialing from call histories
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 395 ページ ２０１６年６月２７日　月曜日　午後５時２１分

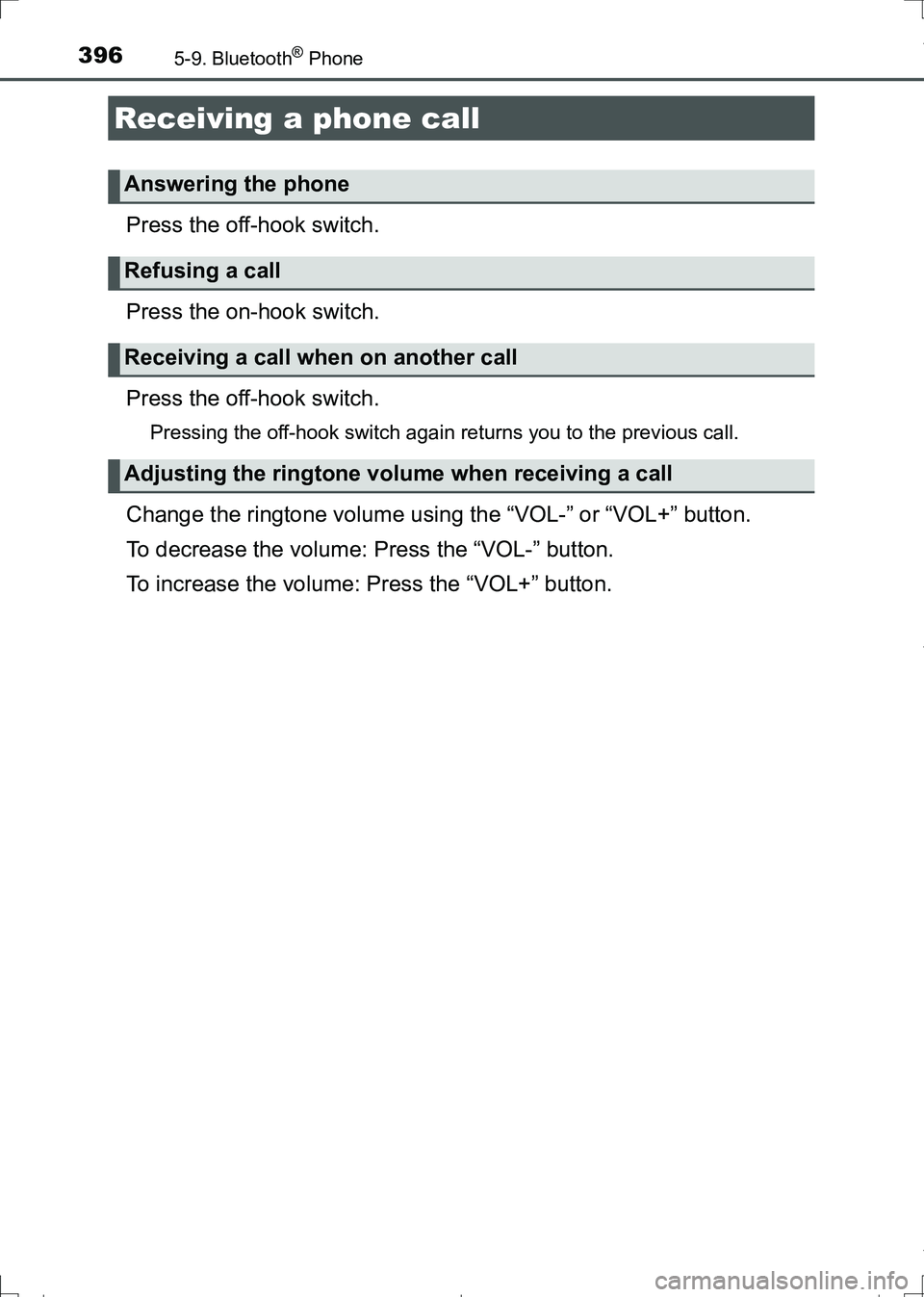

3965-9. Bluetooth® Phone
AURIS Touring Sports_EE (12L13E)
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
Change the ringtone volume using the “VOL-” or “VOL+” button.
To decrease the volume: Press the “VOL-” button.
To increase the volume: Press the “VOL+” button.
Receiving a phone call
Answering the phone
Refusing a call
Receiving a call when on another call
Adjusting the ringtone volume when receiving a call
AURIS Touring Sports_OM_Europe_OM12L13E.book 396 ページ ２０１６年６月２７日　月曜日　午後５時２１分

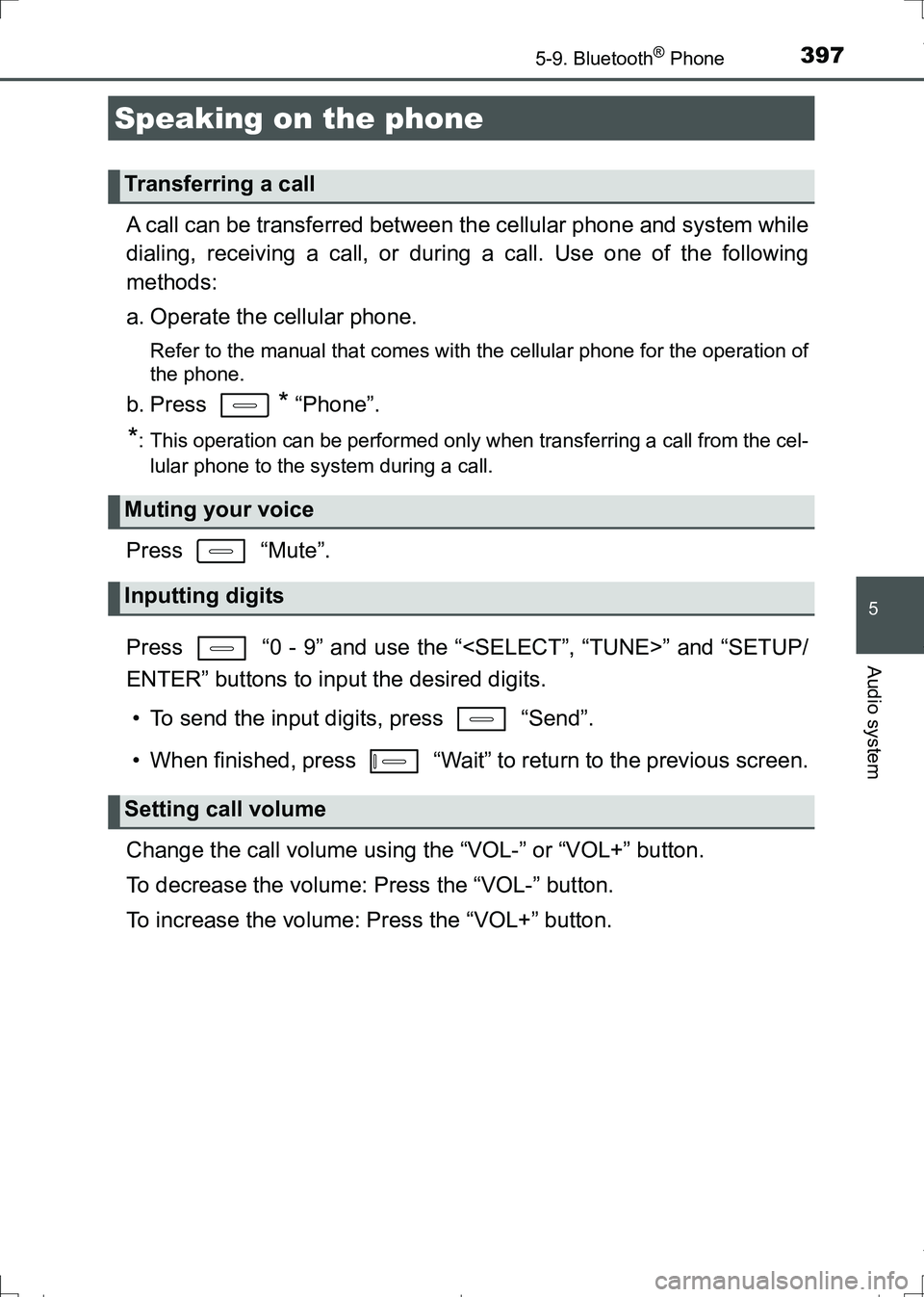

3975-9. Bluetooth® Phone
AURIS Touring Sports_EE (12L13E)
5
Audio system
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of
the phone.
b. Press * “Phone”.
*: This operation can be performed only when transferring a call from the cel-
lular phone to the system during a call.
Press “Mute”.
Press “0 - 9” and use the “” and “SETUP/
ENTER” buttons to input the desired digits.
• To send the input digits, press “Send”.
• When finished, press “Wait” to return to the previous screen.
Change the call volume using the “VOL-” or “VOL+” button.
To decrease the volume: Press the “VOL-” button.
To increase the volume: Press the “VOL+” button.
Speaking on the phone
Transferring a call
Muting your voice
Inputting digits
Setting call volume
AURIS Touring Sports_OM_Europe_OM12L13E.book 397 ページ ２０１６年６月２７日　月曜日　午後５時２１分

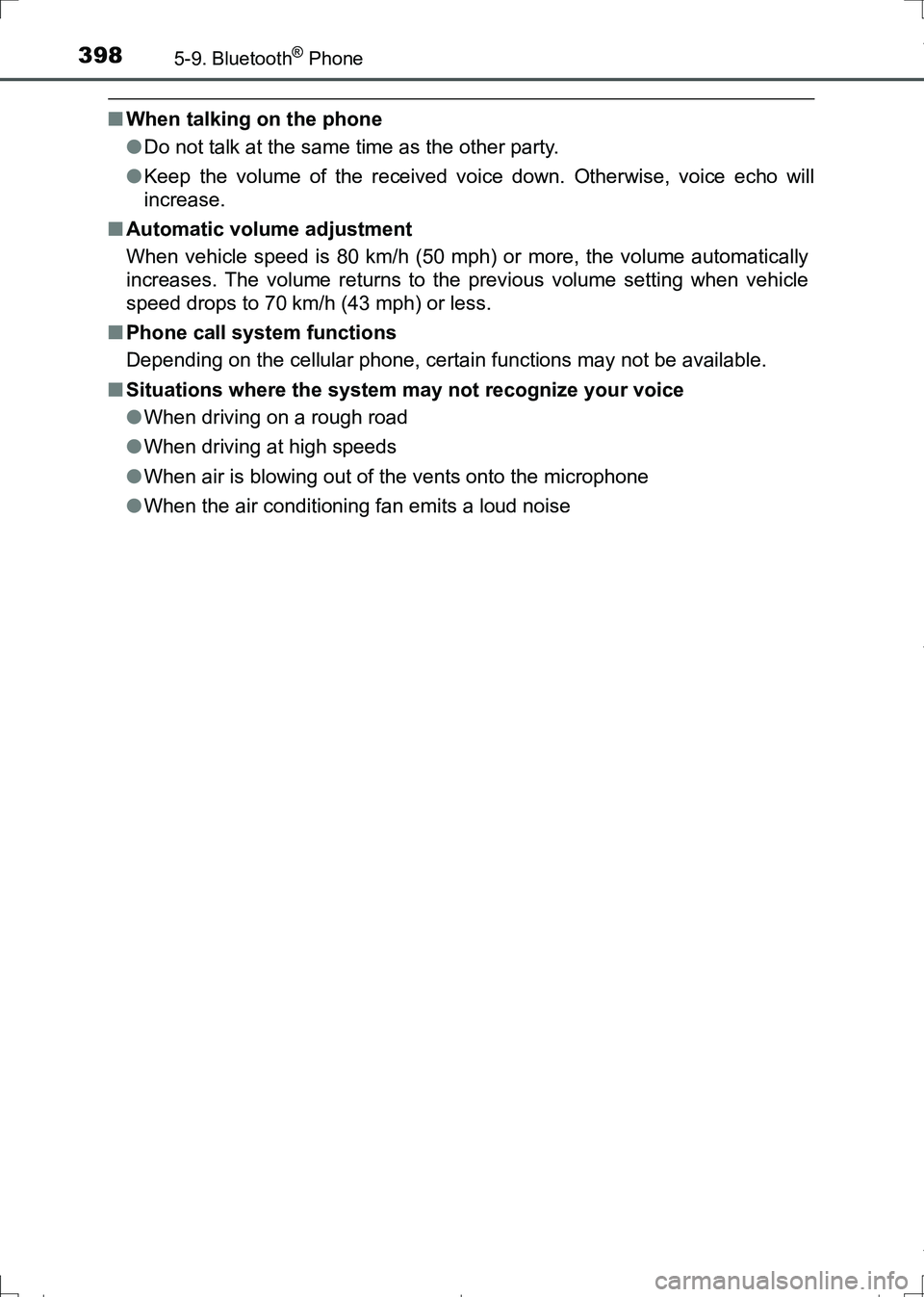

3985-9. Bluetooth® Phone
AURIS Touring Sports_EE (12L13E)
■When talking on the phone
●Do not talk at the same time as the other party.
●Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■Phone call system functions
Depending on the cellular phone, certain functions may not be available.
■Situations where the system may not recognize your voice
●When driving on a rough road
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
AURIS Touring Sports_OM_Europe_OM12L13E.book 398 ページ ２０１６年６月２７日　月曜日　午後５時２１分

399
AURIS Touring Sports_EE (12L13E)
5
Audio system
5-10. Bluetooth®
■When using the Bluetooth® audio/Phone
●In the following situations, the system may not function.
• The portable player does not support Bluetooth
®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or is touching or covered by metal objects
●There may be a delay if a cellular phone connection is made during
Bluetooth
® audio playback.
●Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. (P. 385)
■About Bluetooth
®
■Compatible models
●Bluetooth® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
●Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
●Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
AURIS Touring Sports_OM_Europe_OM12L13E.book 399 ページ ２０１６年６月２７日　月曜日　午後５時２１分

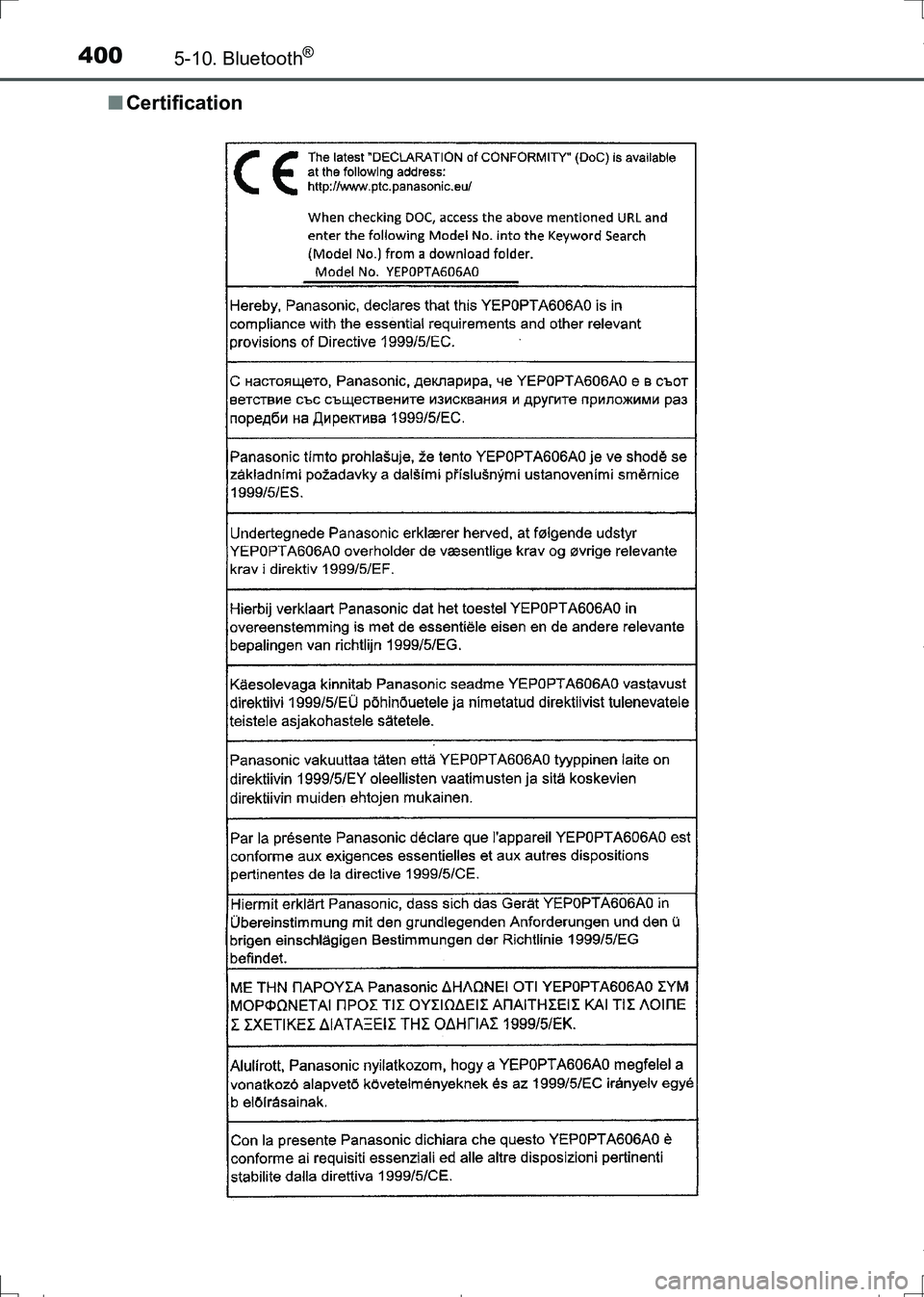

4005-10. Bluetooth®
AURIS Touring Sports_EE (12L13E)■Certification
