5618-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

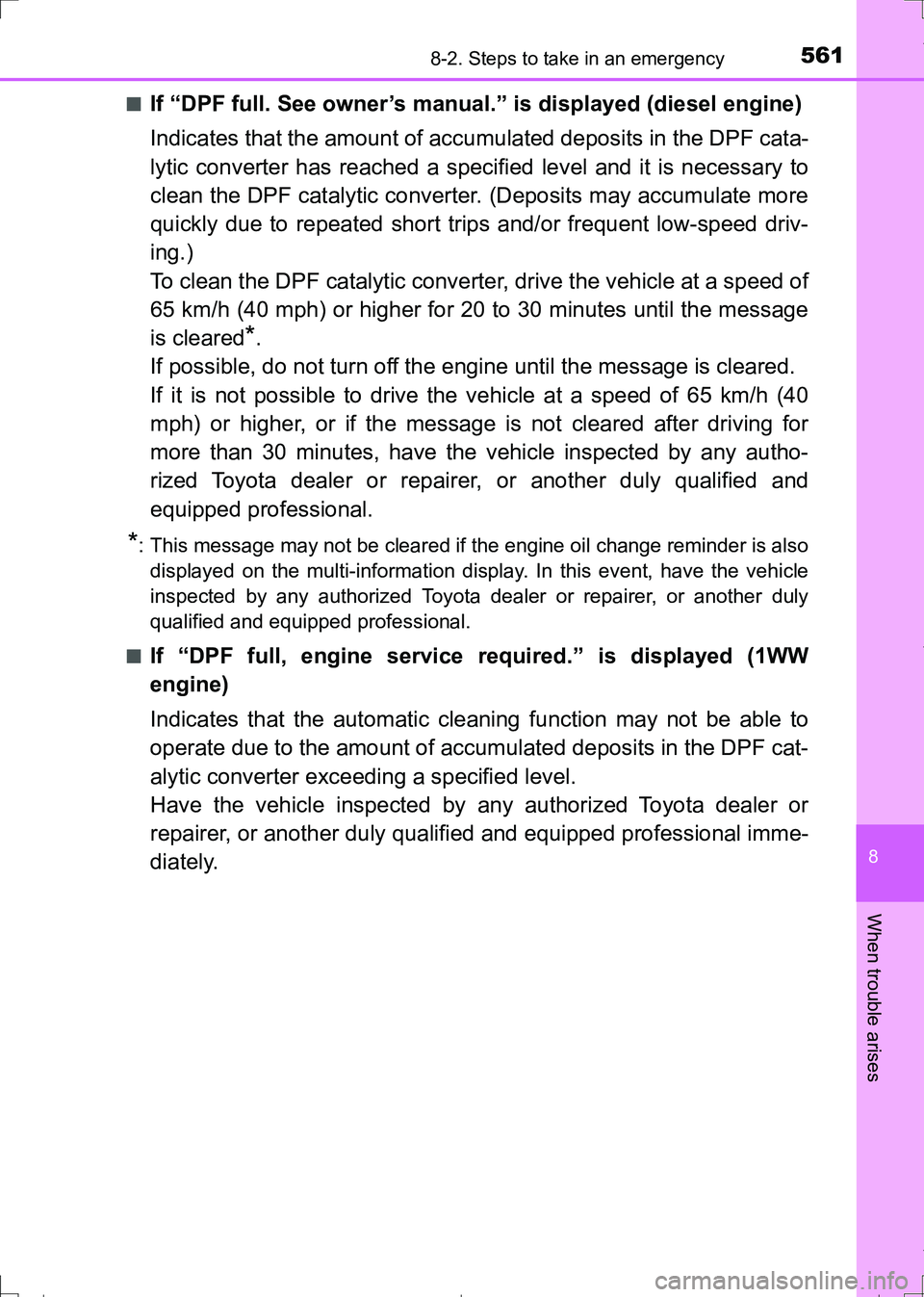

■If “DPF full. See owner’s manual.” is displayed (diesel engine)
Indicates that the amount of accumulated deposits in the DPF cata-
lytic converter has reached a specified level and it is necessary to
clean the DPF catalytic converter. (Deposits may accumulate more
quickly due to repeated short trips and/or frequent low-speed driv-
ing.)
To clean the DPF catalytic converter, drive the vehicle at a speed of
65 km/h (40 mph) or higher for 20 to 30 minutes until the message
is cleared
*.
If possible, do not turn off the engine until the message is cleared.
If it is not possible to drive the vehicle at a speed of 65 km/h (40
mph) or higher, or if the message is not cleared after driving for
more than 30 minutes, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*: This message may not be cleared if the engine oil change reminder is also
displayed on the multi-information display. In this event, have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
■
If “DPF full, engine service required.” is displayed (1WW
engine)
Indicates that the automatic cleaning function may not be able to
operate due to the amount of accumulated deposits in the DPF cat-
alytic converter exceeding a specified level.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional imme-
diately.
AURIS Touring Sports_OM_Europe_OM12L13E.book 561 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5628-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

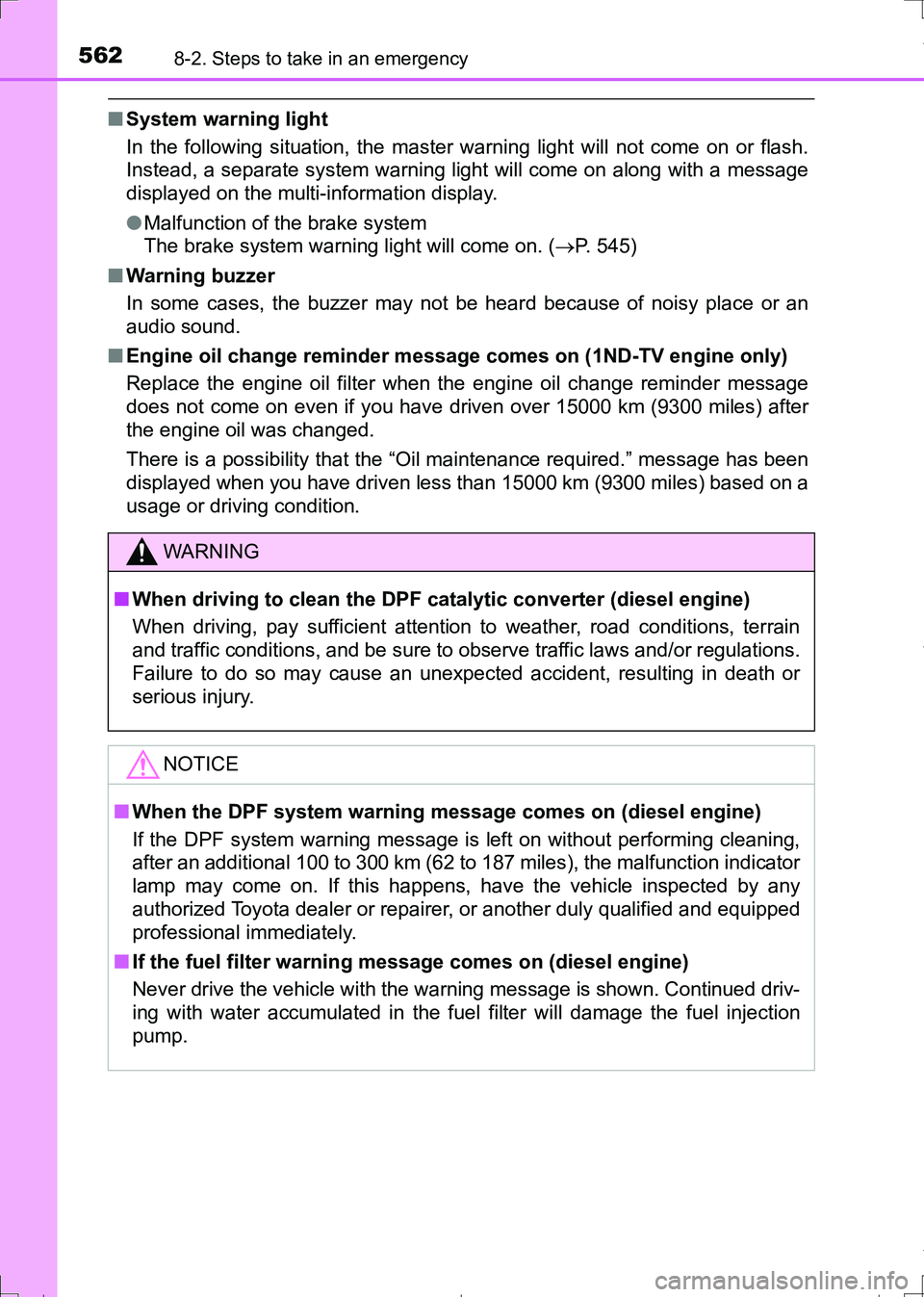

■System warning light
In the following situation, the master warning light will not come on or flash.
Instead, a separate system warning light will come on along with a message
displayed on the multi-information display.
●Malfunction of the brake system
The brake system warning light will come on. (P. 545)
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■Engine oil change reminder message comes on (1ND-TV engine only)
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the “Oil maintenance required.” message has been
displayed when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
WARNING
■When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
NOTICE
■When the DPF system warning message comes on (diesel engine)
If the DPF system warning message is left on without performing cleaning,
after an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■If the fuel filter warning message comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.
AURIS Touring Sports_OM_Europe_OM12L13E.book 562 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5638-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P (Multidrive) or R (manual transmission).
●Stop the engine.
●Turn on the emergency flashers. (P. 534)

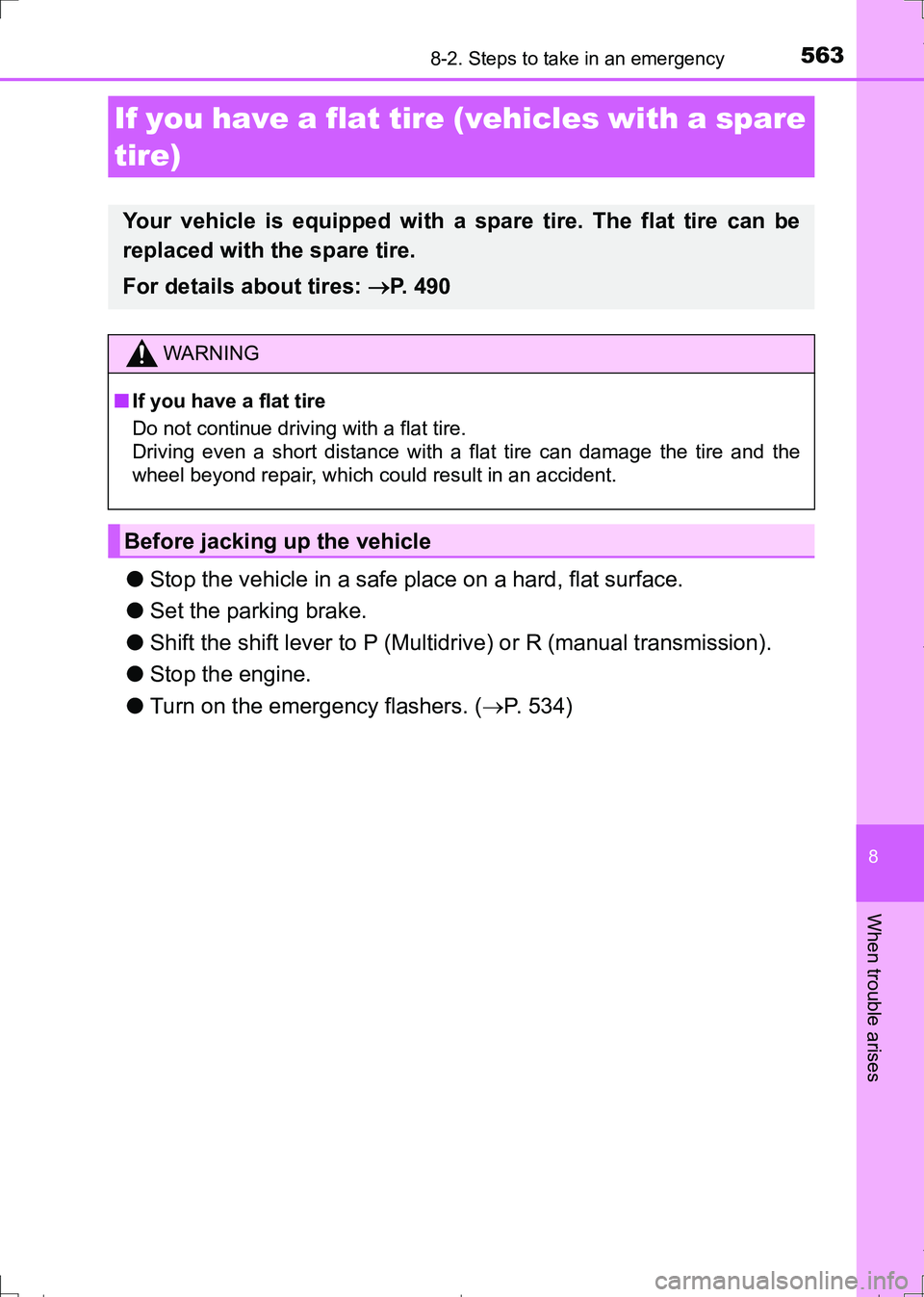

If you have a flat tire (vehicles with a spare
tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 490
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
AURIS Touring Sports_OM_Europe_OM12L13E.book 563 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5648-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

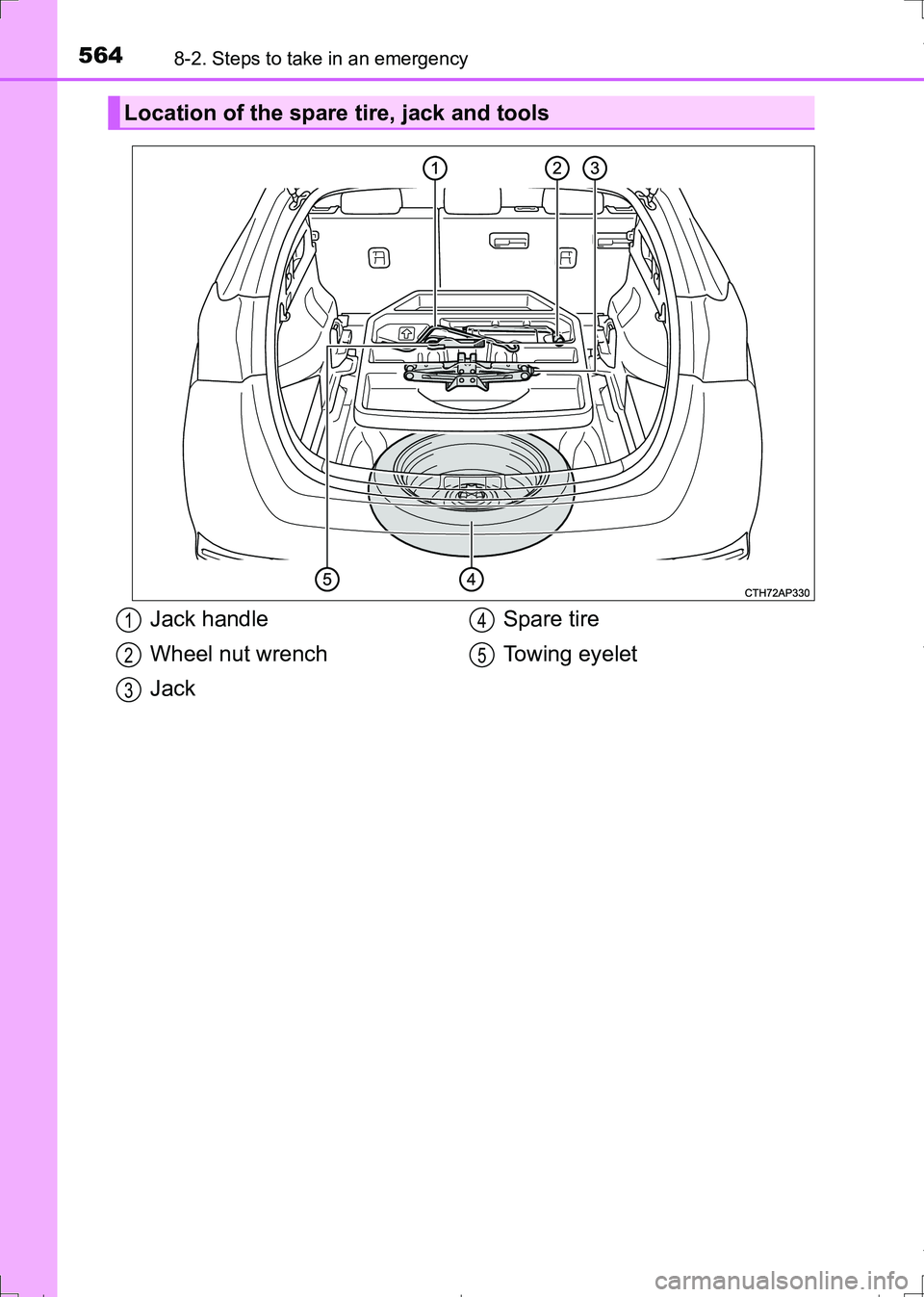

Location of the spare tire, jack and tools
Jack handle
Wheel nut wrench
JackSpare tire
Towing eyelet1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 564 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5658-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

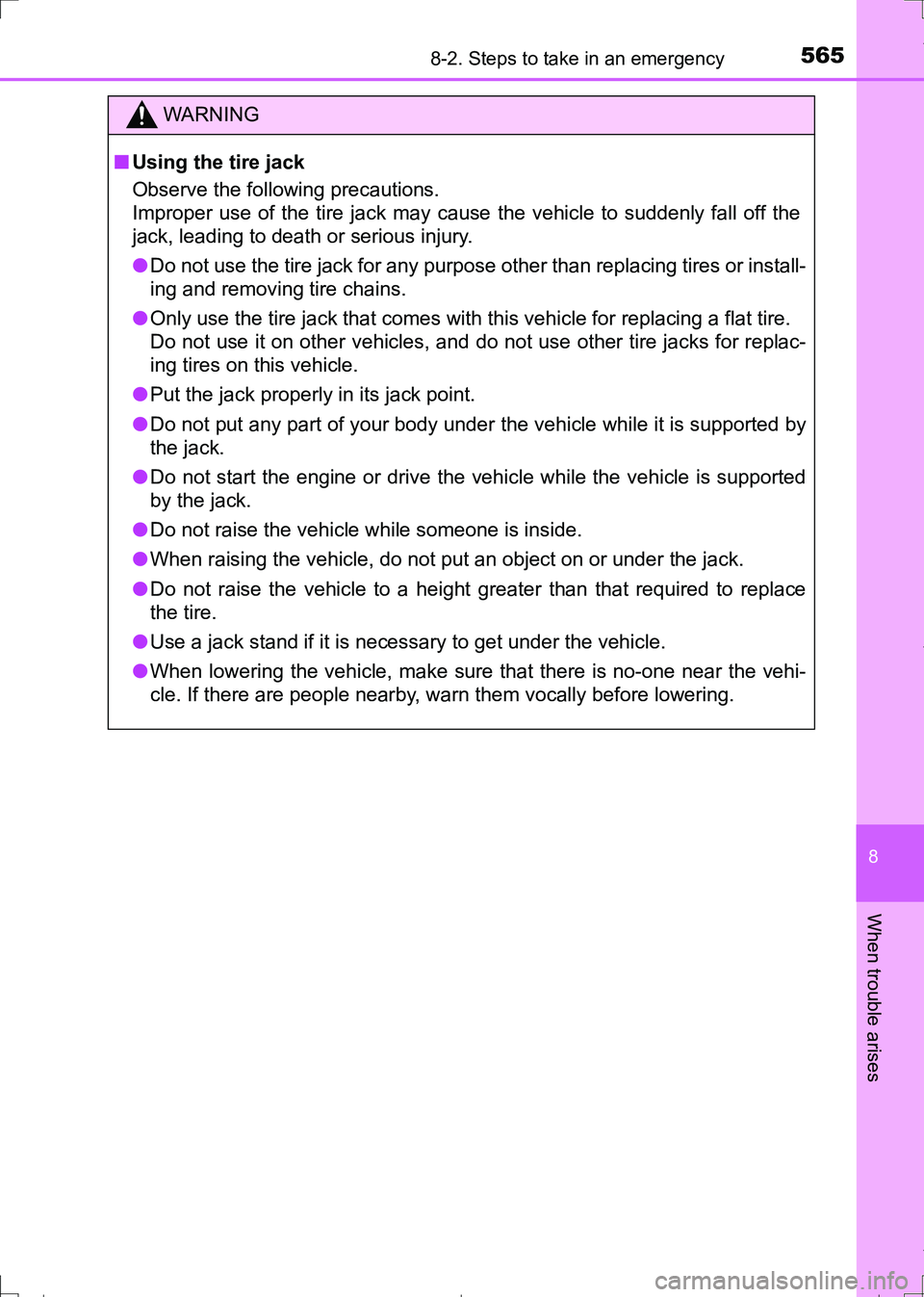

WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by
the jack.
●Do not start the engine or drive the vehicle while the vehicle is supported
by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
AURIS Touring Sports_OM_Europe_OM12L13E.book 565 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5668-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

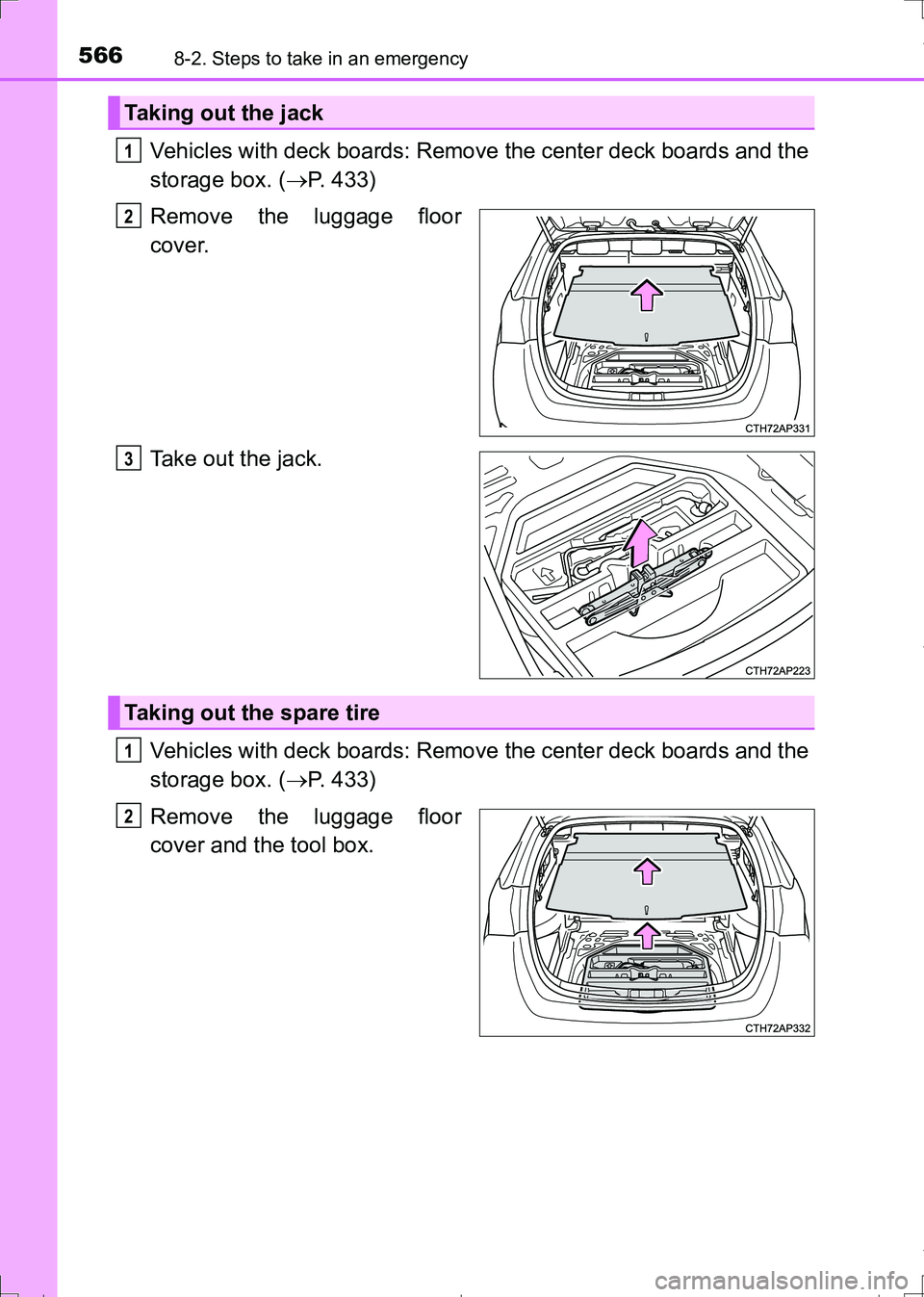

Vehicles with deck boards: Remove the center deck boards and the
storage box. (P. 433)
Remove the luggage floor
cover.
Take out the jack.
Vehicles with deck boards: Remove the center deck boards and the
storage box. (P. 433)
Remove the luggage floor
cover and the tool box.
Taking out the jack
1
2
3
Taking out the spare tire
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 566 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5678-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

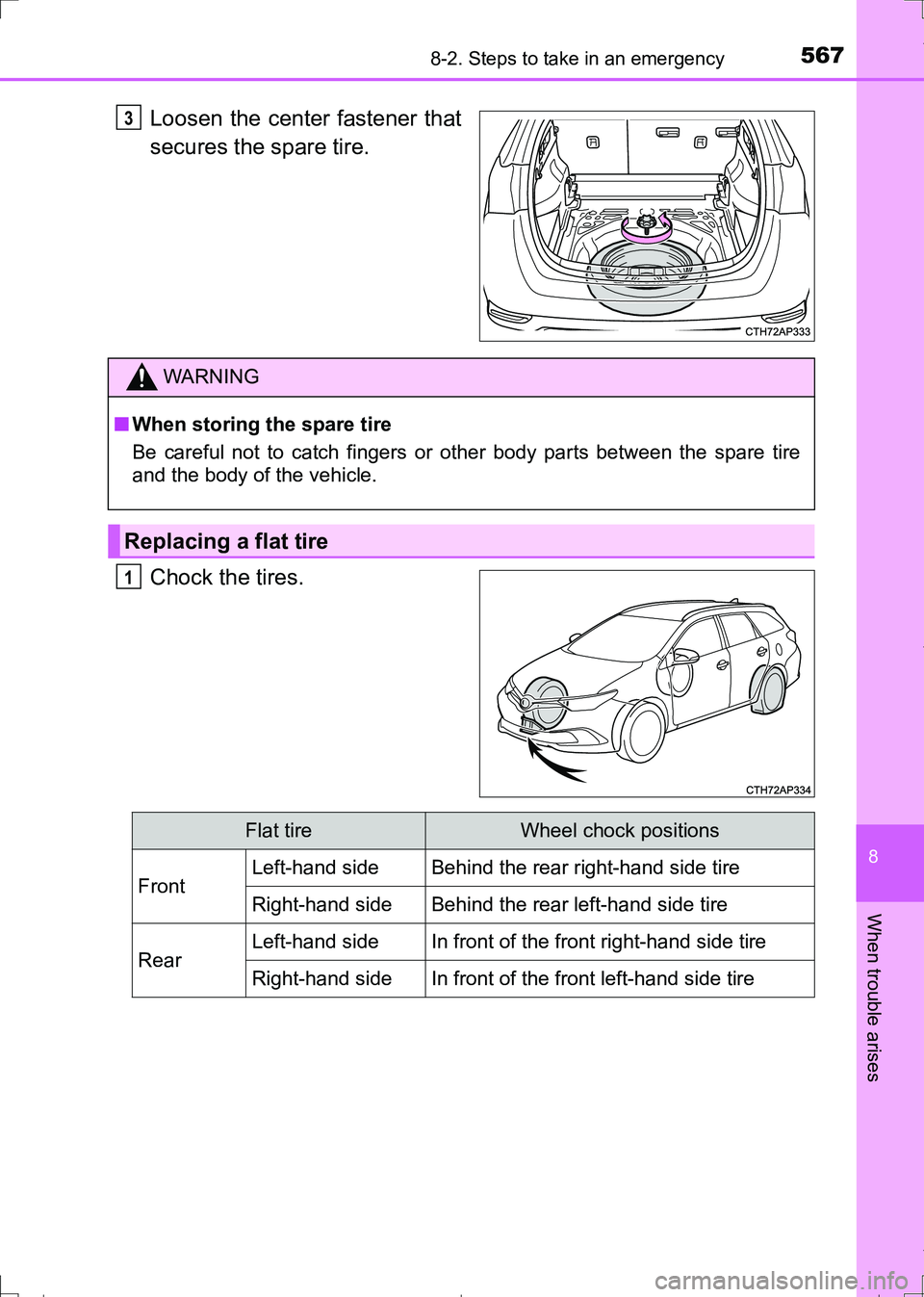

Loosen the center fastener that
secures the spare tire.
Chock the tires.3
WARNING
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
AURIS Touring Sports_OM_Europe_OM12L13E.book 567 ページ ２０１６年６月２７日　月曜日　午後５時２１分

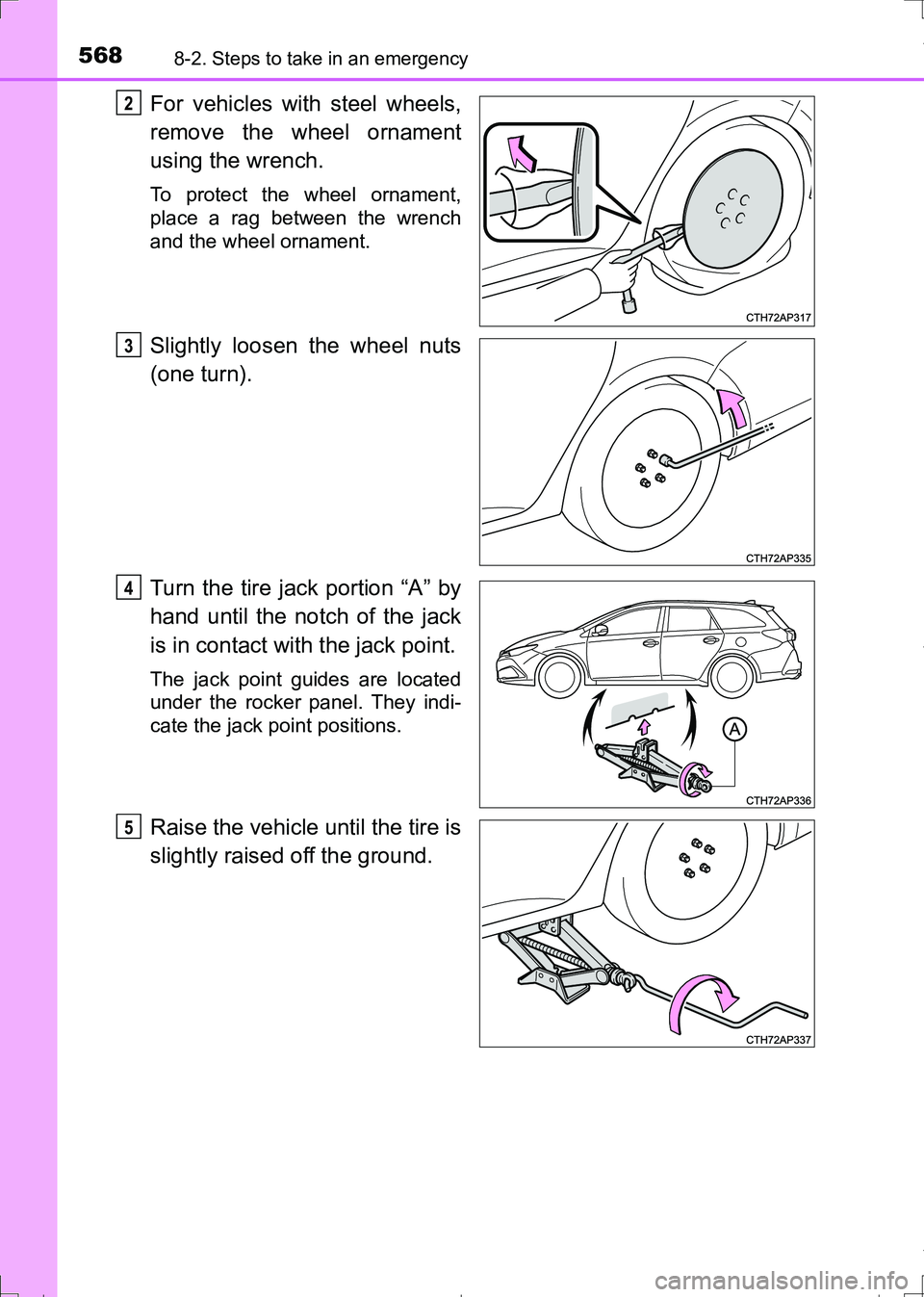

5688-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
2
3
4
5
