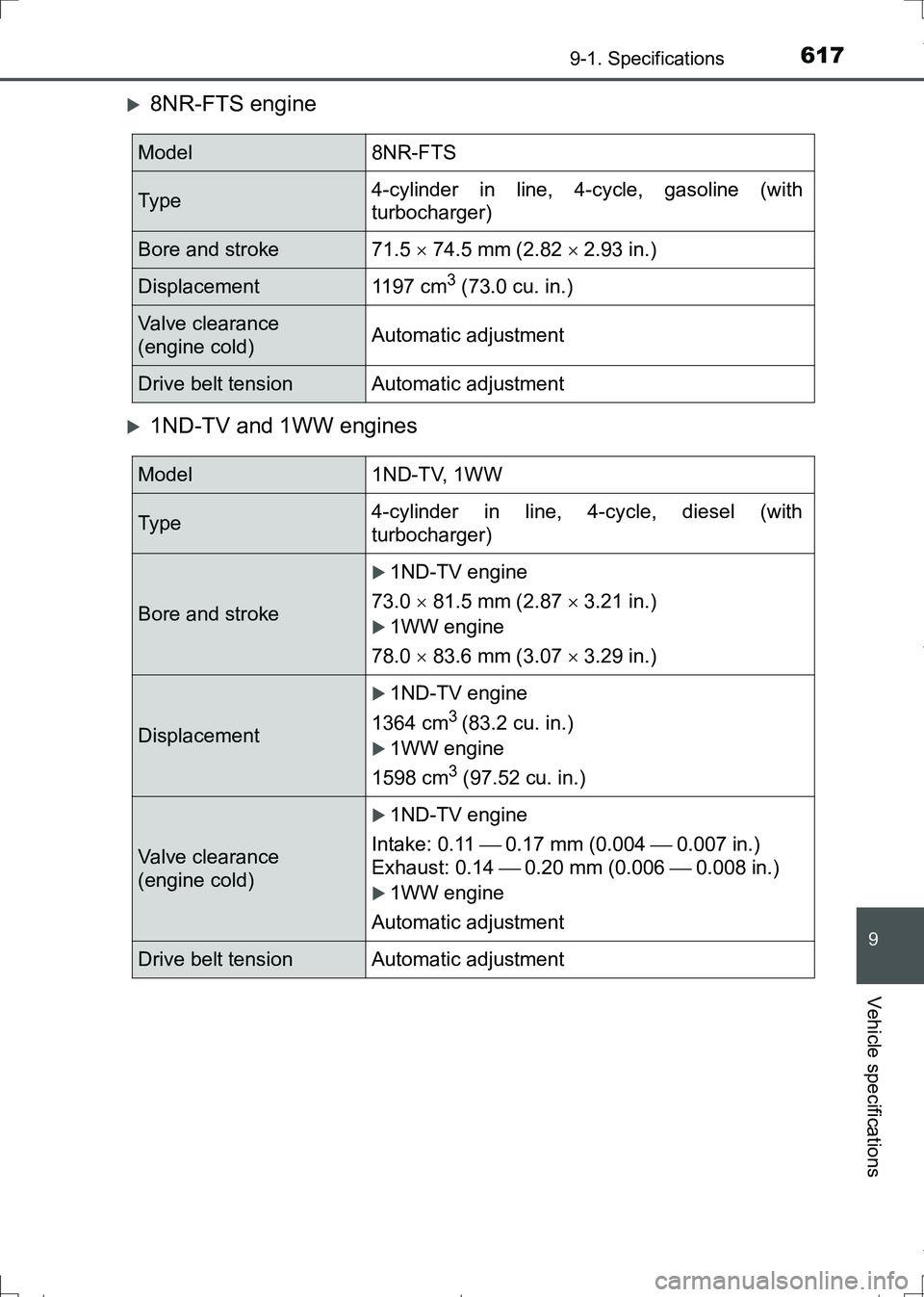

Vehicle specifications
8NR-FTS engine
1ND-TV and 1WW engines
Model8NR-FTS
Ty p e4-cylinder in line, 4-cycle, gasoline (with
turbocharger)
Bore and stroke71.5  74.5 mm (2.82  2.93 in.)
Displacement1197 cm3 (73.0 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model 1ND-TV, 1WW
Ty p e4-cylinder in line, 4-cycle, diesel (with
turbocharger)
Bore and stroke
1ND-TV engine
73.0  81.5 mm (2.87  3.21 in.)
1WW engine
78.0  83.6 mm (3.07  3.29 in.)
Displacement
1ND-TV engine
1364 cm
3 (83.2 cu. in.)
1WW engine
1598 cm
3 (97.52 cu. in.)
Valve clearance
(engine cold)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
1WW engine
Automatic adjustment
Drive belt tension Automatic adjustment
AURIS Touring Sports_OM_Europe_OM12L13E.book 617 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6189-1. Specifications
AURIS Touring Sports_EE (12L13E)
Gasoline engine
Diesel engine

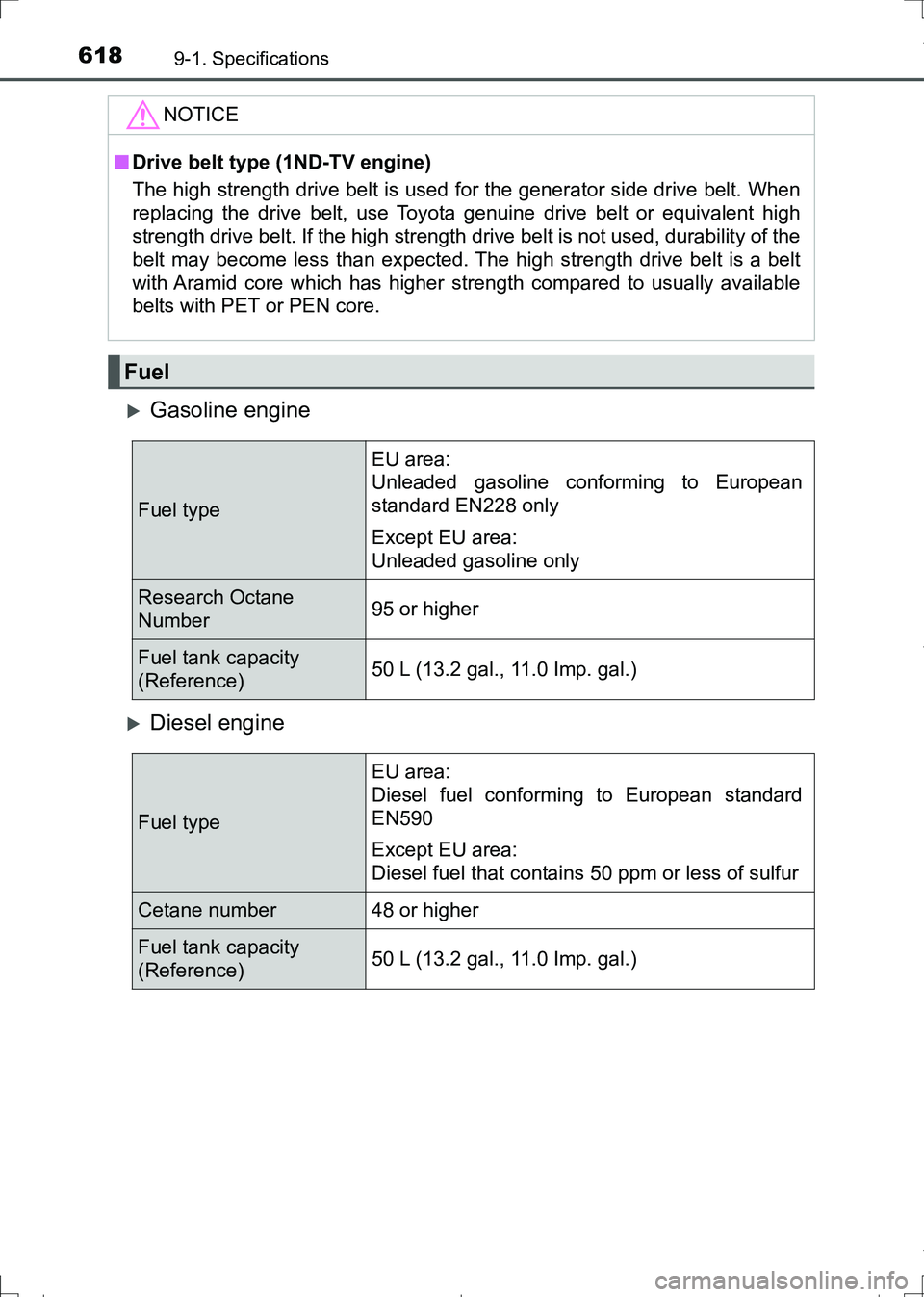

NOTICE
■Drive belt type (1ND-TV engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 618 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6199-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
1NR-FE and 1ZR-FAE engines
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ZR-FAE engine
4.2 L (4.4 qt., 3.7 Imp. qt.)
8NR-FTS engine
4.0 L (4.2 qt., 3.5 Imp. qt.)
1ND-TV engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1WW engine
5.2 L (5.5 qt., 4.6 Imp. qt.)
Without filter1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ZR-FAE engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
8NR-FTS engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1ND-TV engine
3.3 L (3.5 qt., 2.9 Imp. qt.)
1WW engine
4.9 L (5.2 qt., 4.3 Imp. qt.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 619 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6209-1. Specifications
AURIS Touring Sports_EE (12L13E)

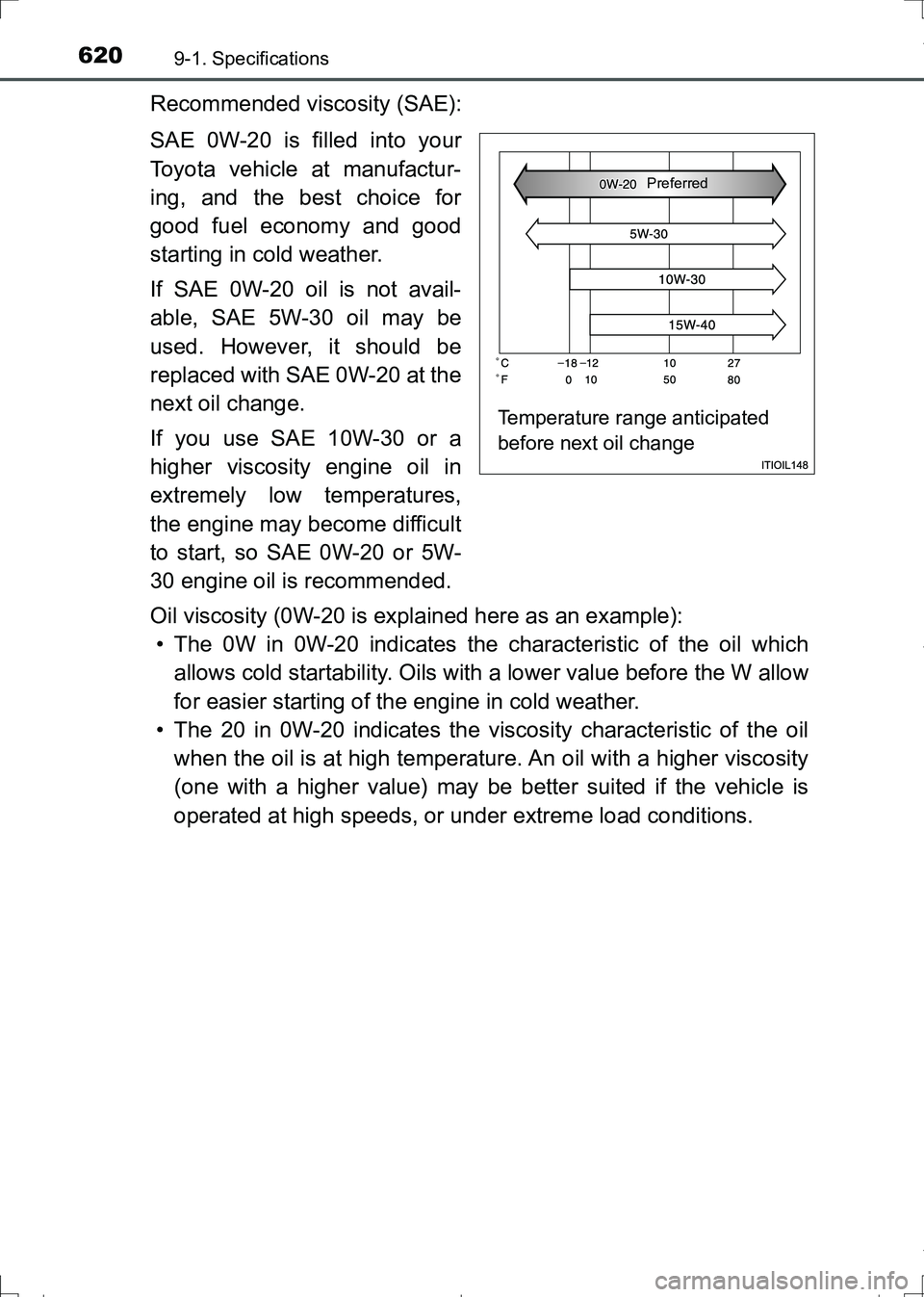

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
AURIS Touring Sports_OM_Europe_OM12L13E.book 620 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6219-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications

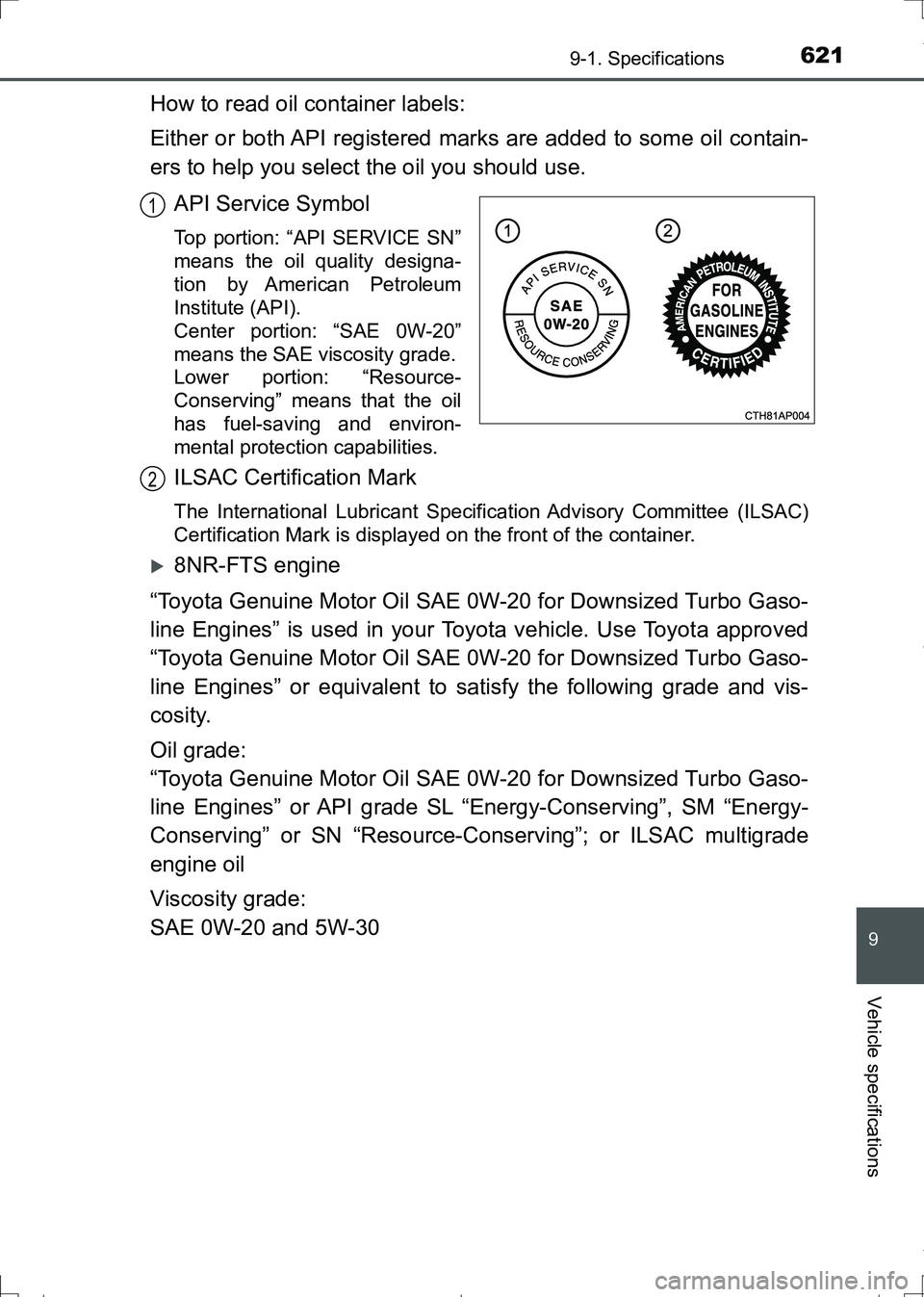

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
8NR-FTS engine
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” is used in your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or equivalent to satisfy the following grade and vis-
cosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or API grade SL “Energy-Conserving”, SM “Energy-
Conserving” or SN “Resource-Conserving”; or ILSAC multigrade
engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 621 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6229-1. Specifications
AURIS Touring Sports_EE (12L13E)

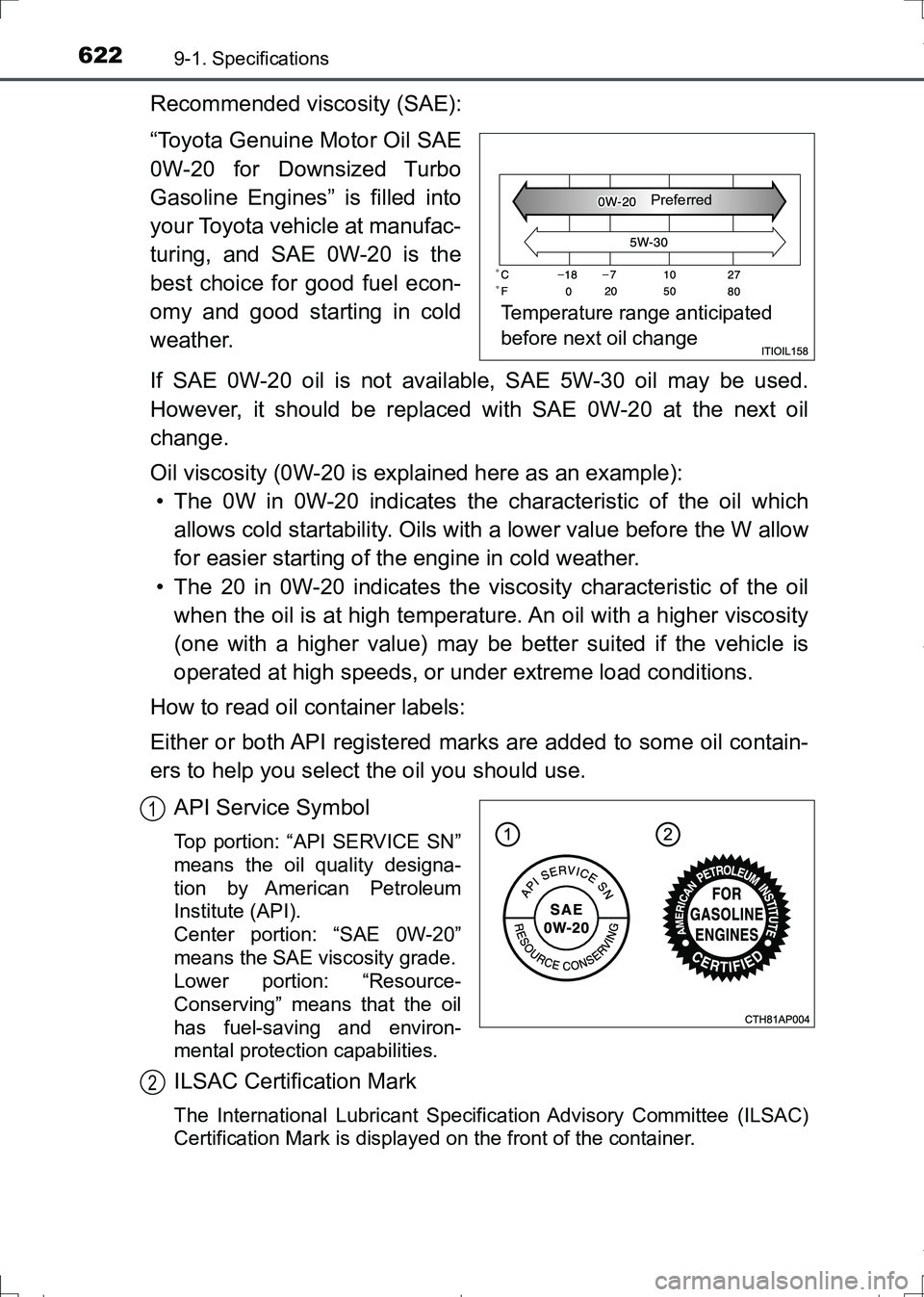

Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo
Gasoline Engines” is filled into
your Toyota vehicle at manufac-
turing, and SAE 0W-20 is the
best choice for good fuel econ-
omy and good starting in cold
weather.
If SAE 0W-20 oil is not available, SAE 5W-30 oil may be used.
However, it should be replaced with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
Temperature range anticipated
before next oil change
Preferred
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 622 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6239-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications

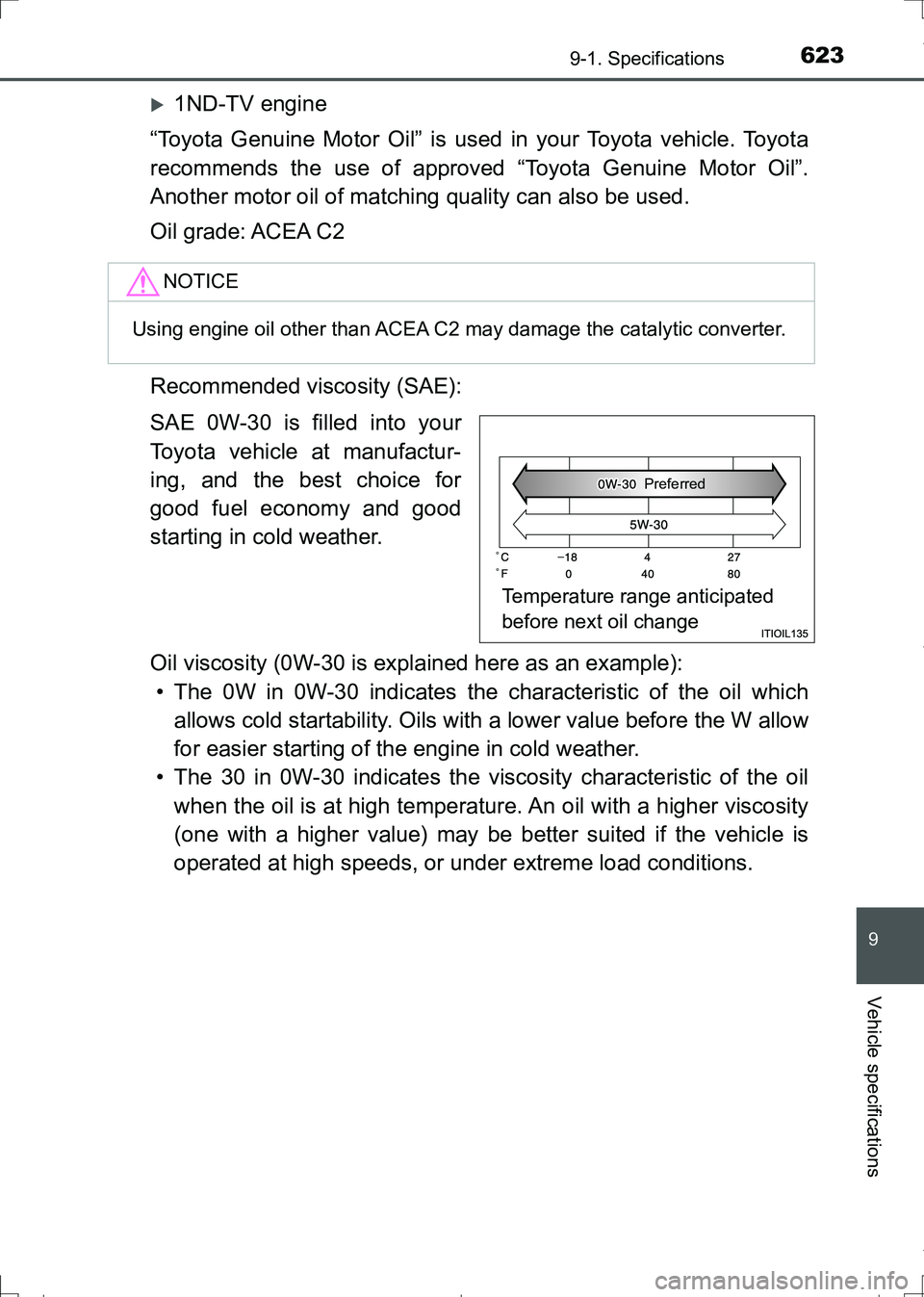

1ND-TV engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change
Preferred
AURIS Touring Sports_OM_Europe_OM12L13E.book 623 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6249-1. Specifications
AURIS Touring Sports_EE (12L13E)

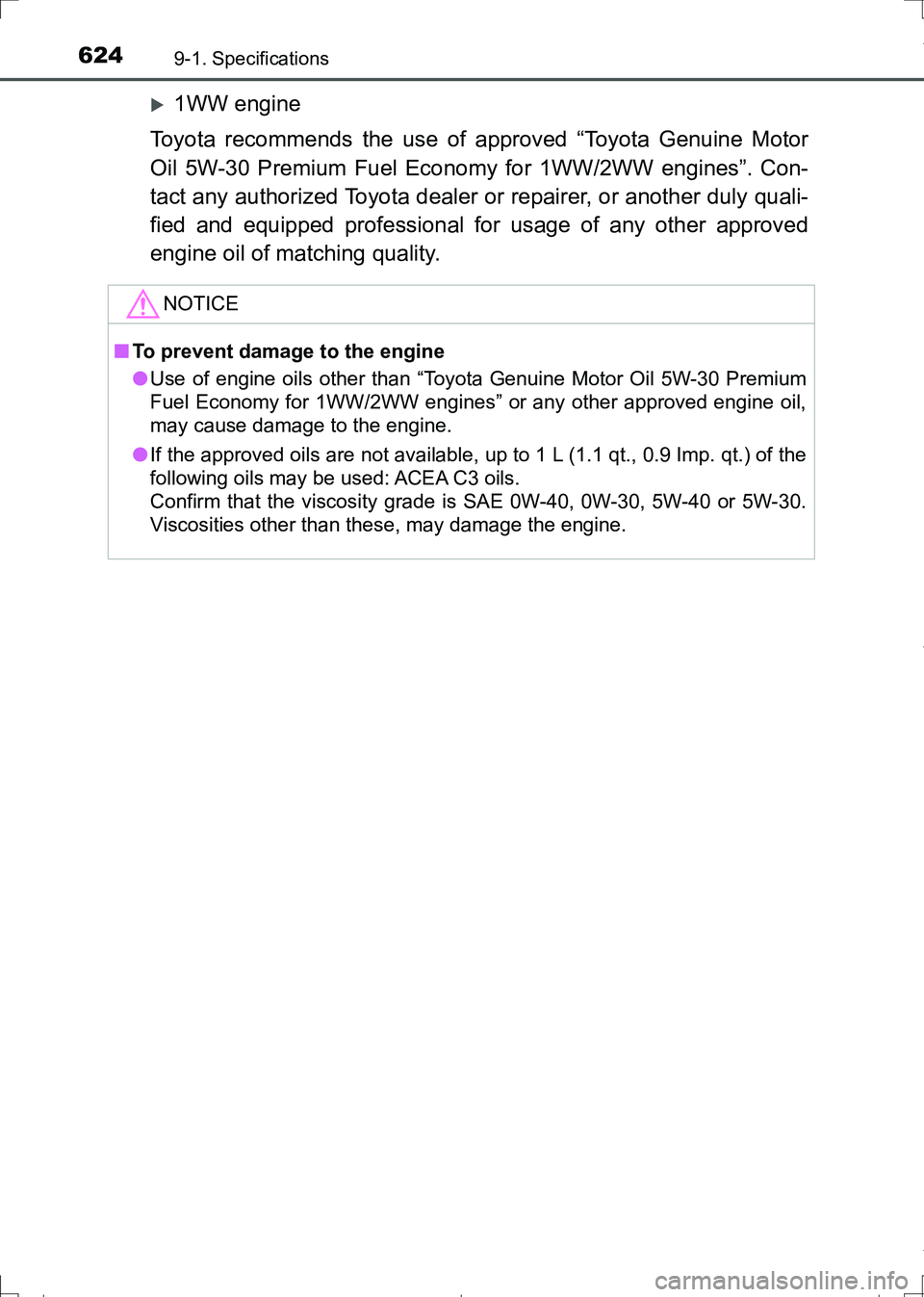

1WW engine
Toyota recommends the use of approved “Toyota Genuine Motor
Oil 5W-30 Premium Fuel Economy for 1WW/2WW engines”. Con-
tact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional for usage of any other approved
engine oil of matching quality.
NOTICE
■To prevent damage to the engine
●Use of engine oils other than “Toyota Genuine Motor Oil 5W-30 Premium
Fuel Economy for 1WW/2WW engines” or any other approved engine oil,
may cause damage to the engine.
●If the approved oils are not available, up to 1 L (1.1 qt., 0.9 Imp. qt.) of the
following oils may be used: ACEA C3 oils.
Confirm that the viscosity grade is SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Viscosities other than these, may damage the engine.
