2017 TOYOTA AURIS TOURING SPORTS Owners Manual

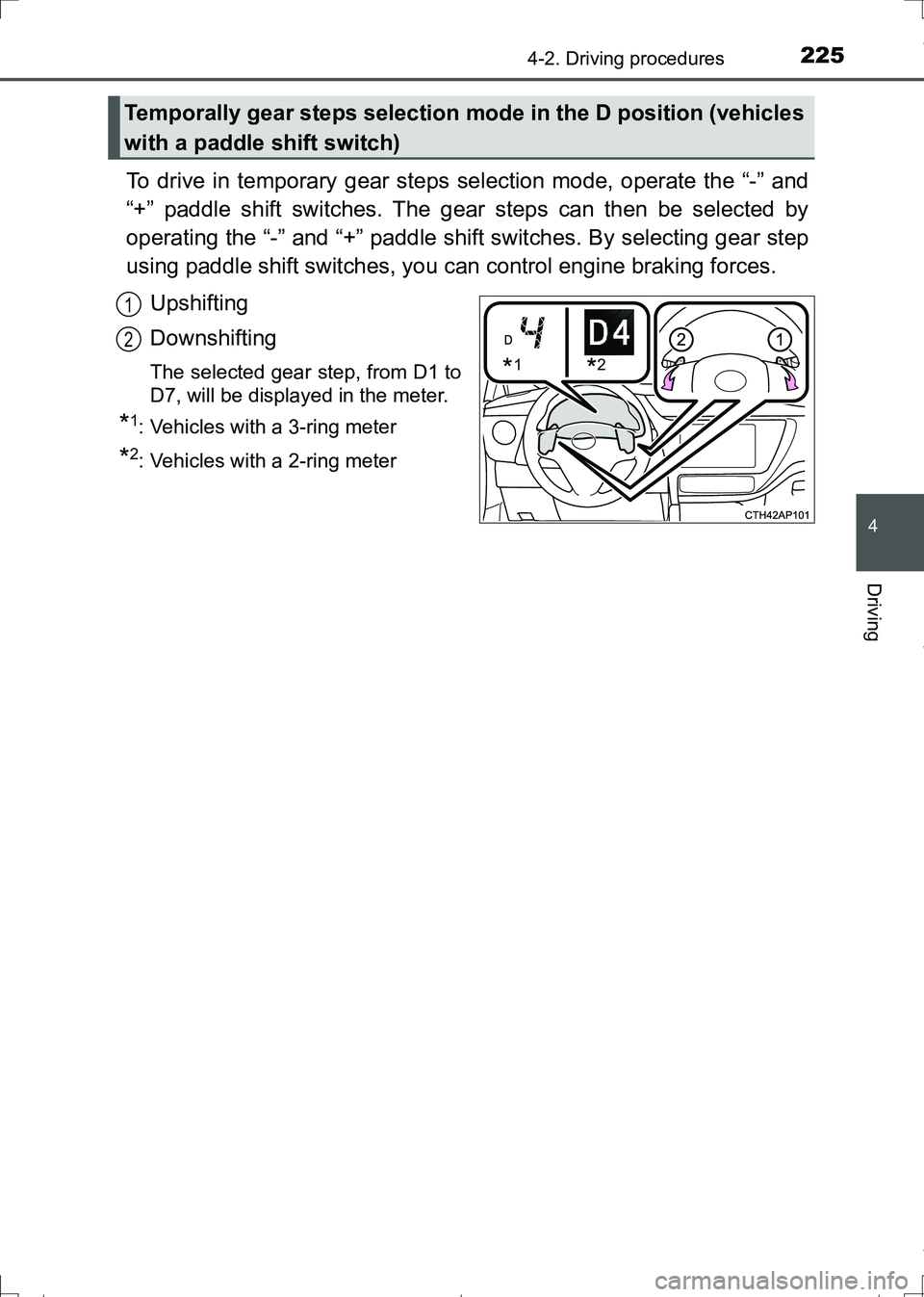

2254-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
To drive in temporary gear steps selection mode, operate the “-” and
“+” paddle shift switches. The gear steps can then be selected by
operating the “-” and “+” paddle shift switches. By selecting gear step
using paddle shift switches, you can control engine braking forces.
Upshifting
Downshifting
The selected gear step, from D1 to
D7, will be displayed in the meter.
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
Temporally gear steps selection mode in the D position (vehicles
with a paddle shift switch)
*1*2
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 225 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2264-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
To enter 7-speed sport sequential shiftmatic mode, shift the shift lever
to M position. Gear steps can then be selected by operating the shift
lever or paddle shift switches (vehicles with a paddle shift switch),
allowing you to drive in the gear step of your choosing.
Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear step, from M1 to
M7, will be displayed in the meter.
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
However, even when in the M position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
■Gear step functions
●You can choose from 7 levels of engine braking force.
●A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
■If the 7-speed sport sequential shiftmatic mode indicator does not come
on even after shifting the shift lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■When the vehicle comes to a stop with the shift lever in the M position
●The transmission will automatically downshift to M1 once the vehicle is
stopped.
●After a stop, the vehicle will start off in M1.
●When the vehicle is stopped, the transmission is set at M1.
Changing gear steps in the M position
*1*2
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 226 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2274-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
■Automatic deactivation of gear steps selection in the D position (vehi-
cles with a paddle shift switch)
Temporally gear steps selection mode in the D position will be deactivated in
the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time in
one gear step
●When the shift lever is shifted to other than D
●When the “+” paddle shift switch is held down for a period of time
■When driving with cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
●While driving in D or 7-speed sport sequential shiftmatic mode, downshifting
to 6, 5 or 4. (P. 299)
●When switching the driving mode to sport mode while driving in D position.
(P. 224)
■Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch (if equipped) is oper-
ated. (A buzzer will sound twice.)
■Sport mode automatic deactivation
Sport mode is automatically deactivated if the engine switch is turned off after
driving in sport mode.
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position (vehicles without a smart entry & start system) or IGNITION ON
mode (vehicles with a smart entry & start system) and the brake pedal is
being depressed.
AURIS Touring Sports_OM_Europe_OM12L13E.book 227 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2284-2. Driving procedures
AURIS Touring Sports_EE (12L13E)■If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Vehicles without a smart entry & start system: Turn the engine switch to the
“LOCK” position.
Vehicles with a smart entry & start system: Turn the engine switch off.
Depress the brake pedal.
■G AI-SHIFT
G AI-SHIFT automatically selects a suitable gear for sporty driving according
to driver’s input and driving conditions. G AI-SHIFT operates automatically
when the shift lever is in D and sport mode is selected for the driving mode.
(Selecting normal mode or shifting the shift lever to the M position cancels
this function.)Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 228 ページ ２０１６年６月２７日　月曜日　午後５時２１分

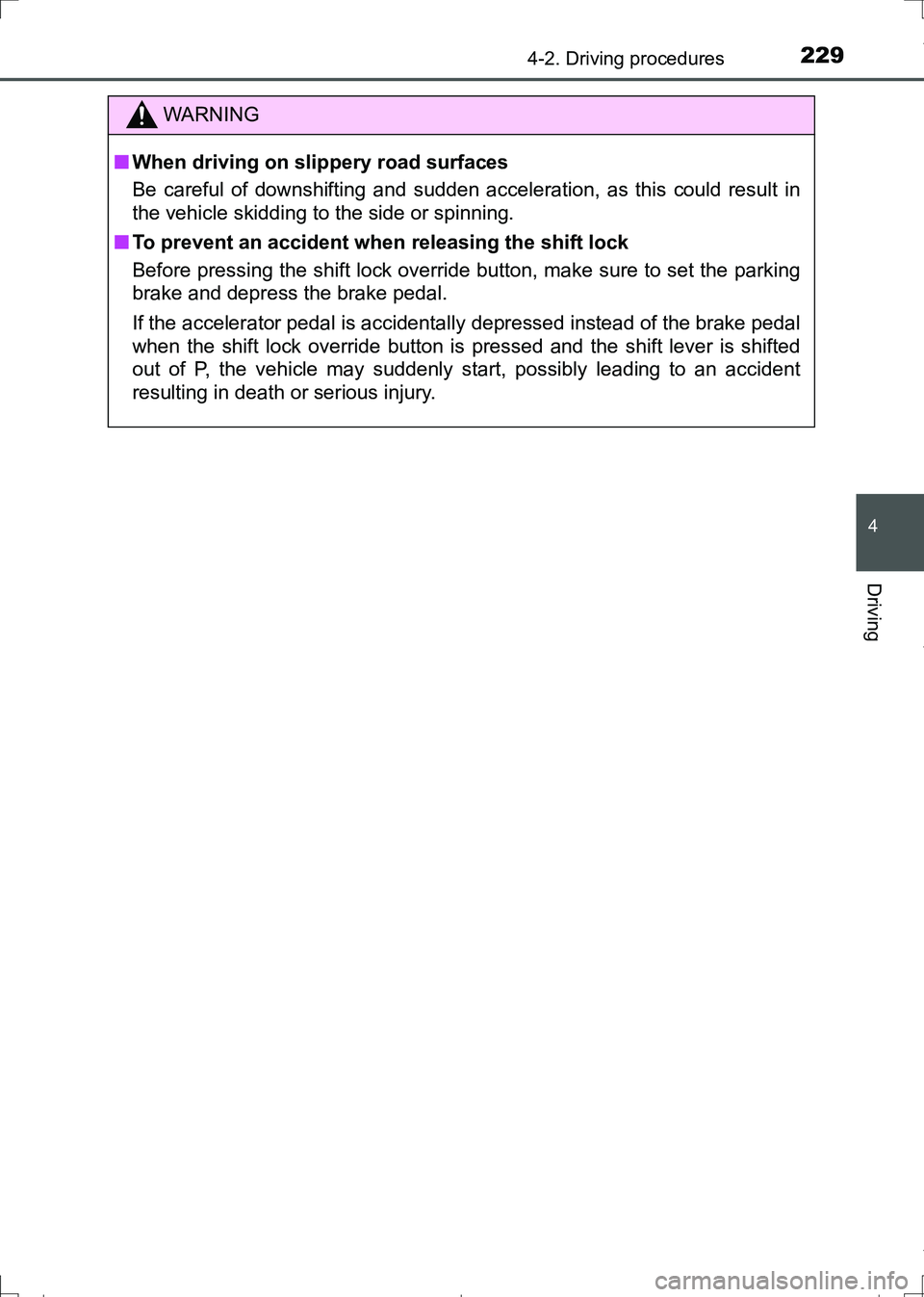

2294-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
WARNING
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in
the vehicle skidding to the side or spinning.
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
AURIS Touring Sports_OM_Europe_OM12L13E.book 229 ページ ２０１６年６月２７日　月曜日　午後５時２１分

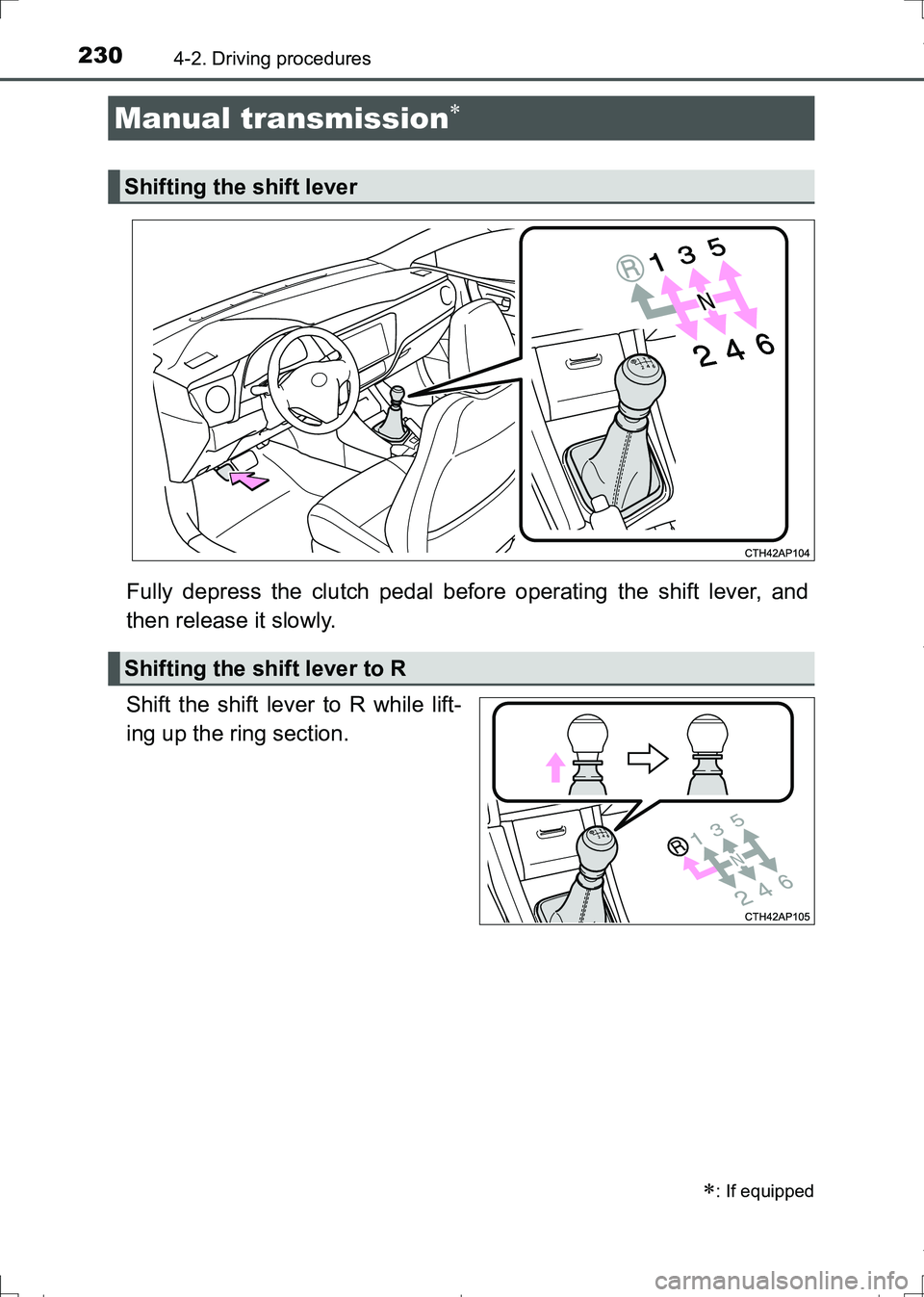

2304-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shift the shift lever to R while lift-
ing up the ring section.
Manual transmission
: If equipped
Shifting the shift lever
Shifting the shift lever to R
AURIS Touring Sports_OM_Europe_OM12L13E.book 230 ページ ２０１６年６月２７日　月曜日　午後５時２１分

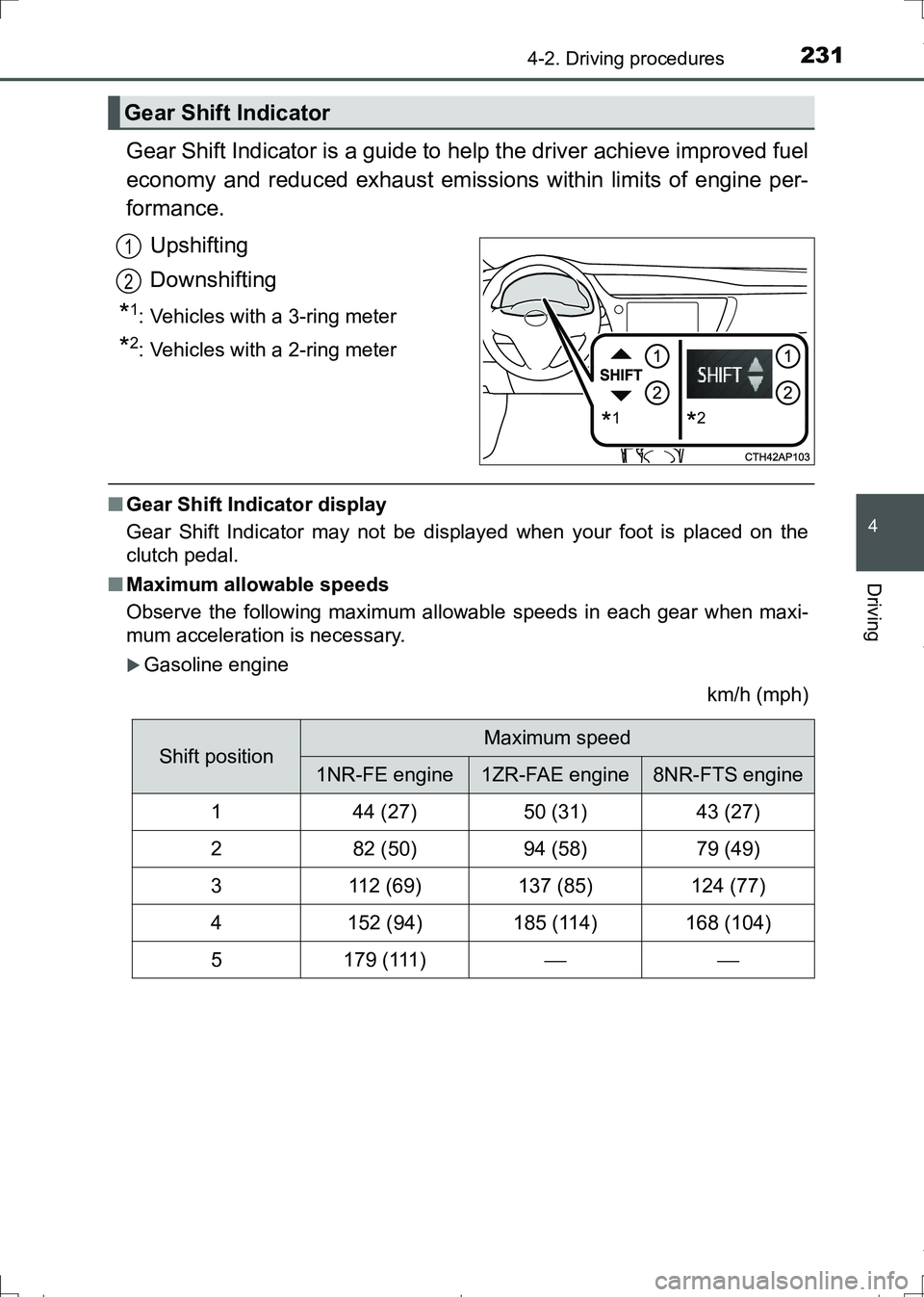

2314-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
*1: Vehicles with a 3-ring meter
*2: Vehicles with a 2-ring meter
■Gear Shift Indicator display
Gear Shift Indicator may not be displayed when your foot is placed on the
clutch pedal.
■Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
Gasoline engine
km/h (mph)
Gear Shift Indicator
*1*2
1
2
Shift positionMaximum speed
1NR-FE engine1ZR-FAE engine8NR-FTS engine
144 (27)50 (31)43 (27)
282 (50)94 (58)79 (49)
3112 (69)137 (85)124 (77)
4152 (94)185 (114)168 (104)
5179 (111)
AURIS Touring Sports_OM_Europe_OM12L13E.book 231 ページ ２０１６年６月２７日　月曜日　午後５時２１分

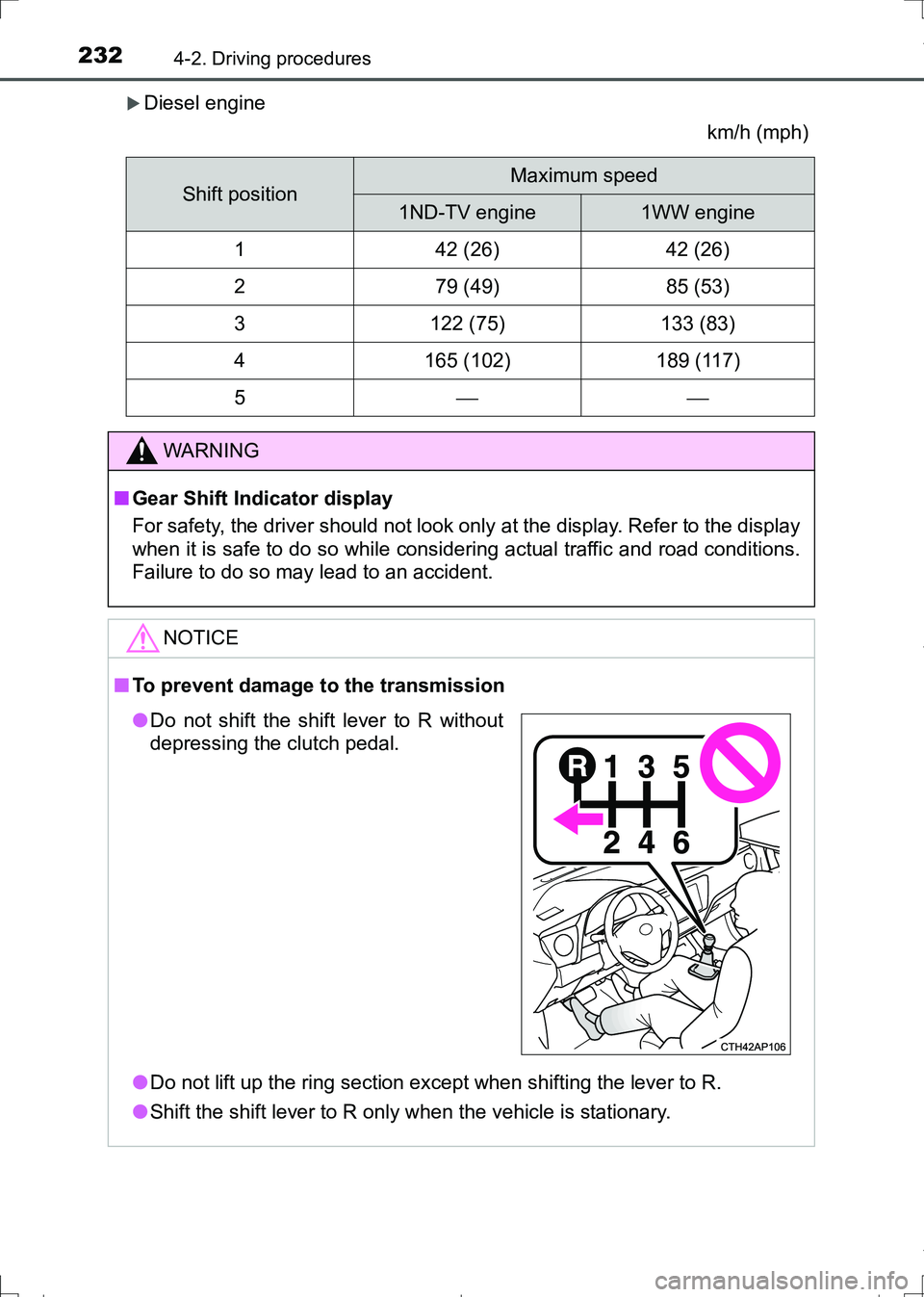

2324-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
Diesel engine
km/h (mph)
Shift positionMaximum speed
1ND-TV engine1WW engine
142 (26)42 (26)
279 (49)85 (53)
3122 (75)133 (83)
4165 (102)189 (117)
5
WARNING
■Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
NOTICE
■To prevent damage to the transmission
●Do not lift up the ring section except when shifting the lever to R.
●Shift the shift lever to R only when the vehicle is stationary.
●Do not shift the shift lever to R without
depressing the clutch pedal.
AURIS Touring Sports_OM_Europe_OM12L13E.book 232 ページ ２０１６年６月２７日　月曜日　午後５時２１分
