2017 TOYOTA AURIS TOURING SPORTS Owners Manual

1693-3. Adjusting the seats
AURIS Touring Sports_EE (12L13E)
3
Operation of each component
Move the front seats forward. (P. 167)
Stow the rear armrest. (if equipped) (P. 446)
Stow the rear center seat belt
buckle.
Lower the head restraints to the lowest position. (P. 172)
From inside
Pull the seatback lock release
lever and fold the seatback
down.
Each seatback may be folded sep-
arately.
From outside
Pull the lever on the sidewall of
the luggage compartment.
Each seatback may be folded sep-
arately.

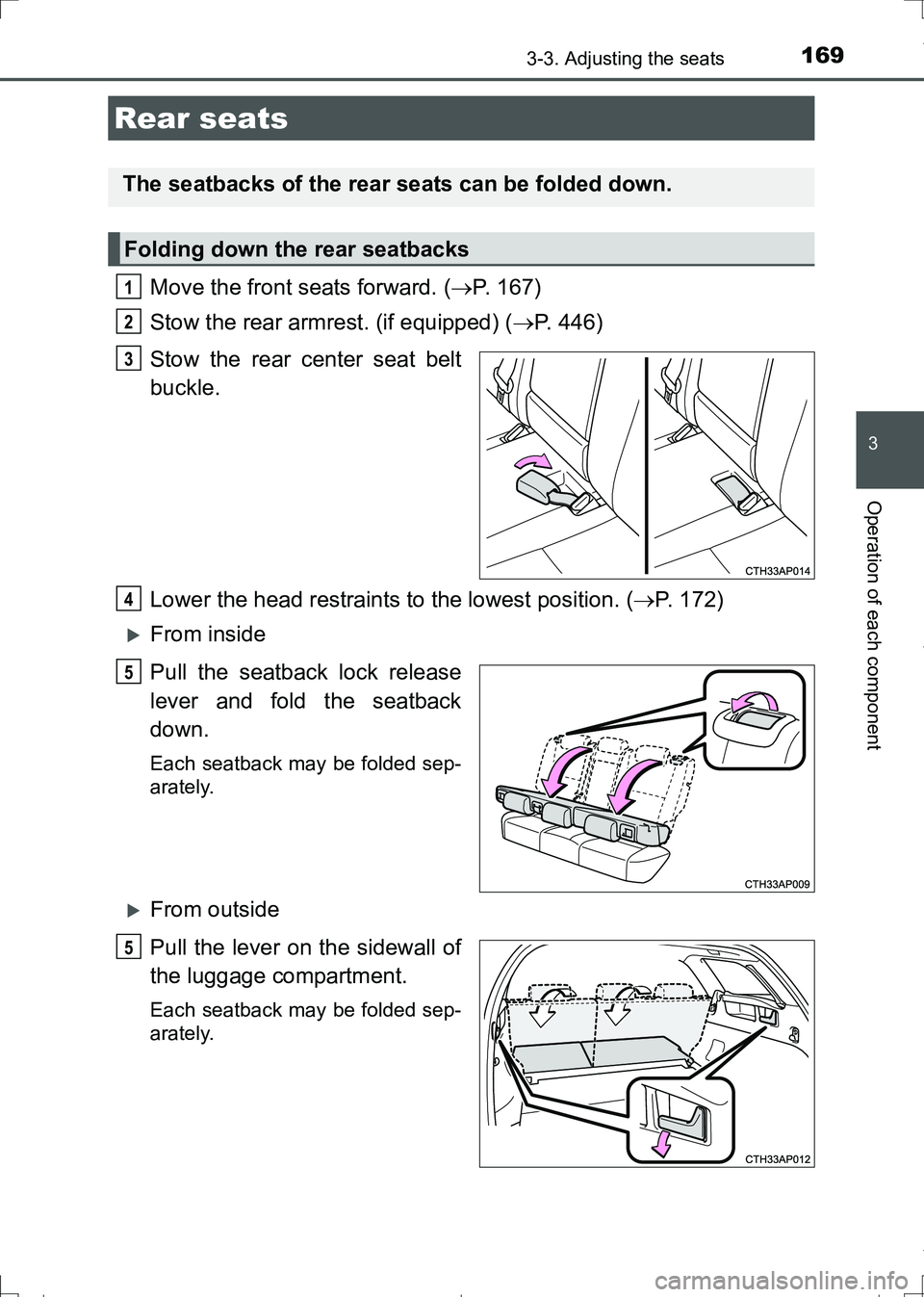

Rear seats
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
2
3
4
5
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 169 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1703-3. Adjusting the seats
AURIS Touring Sports_EE (12L13E)

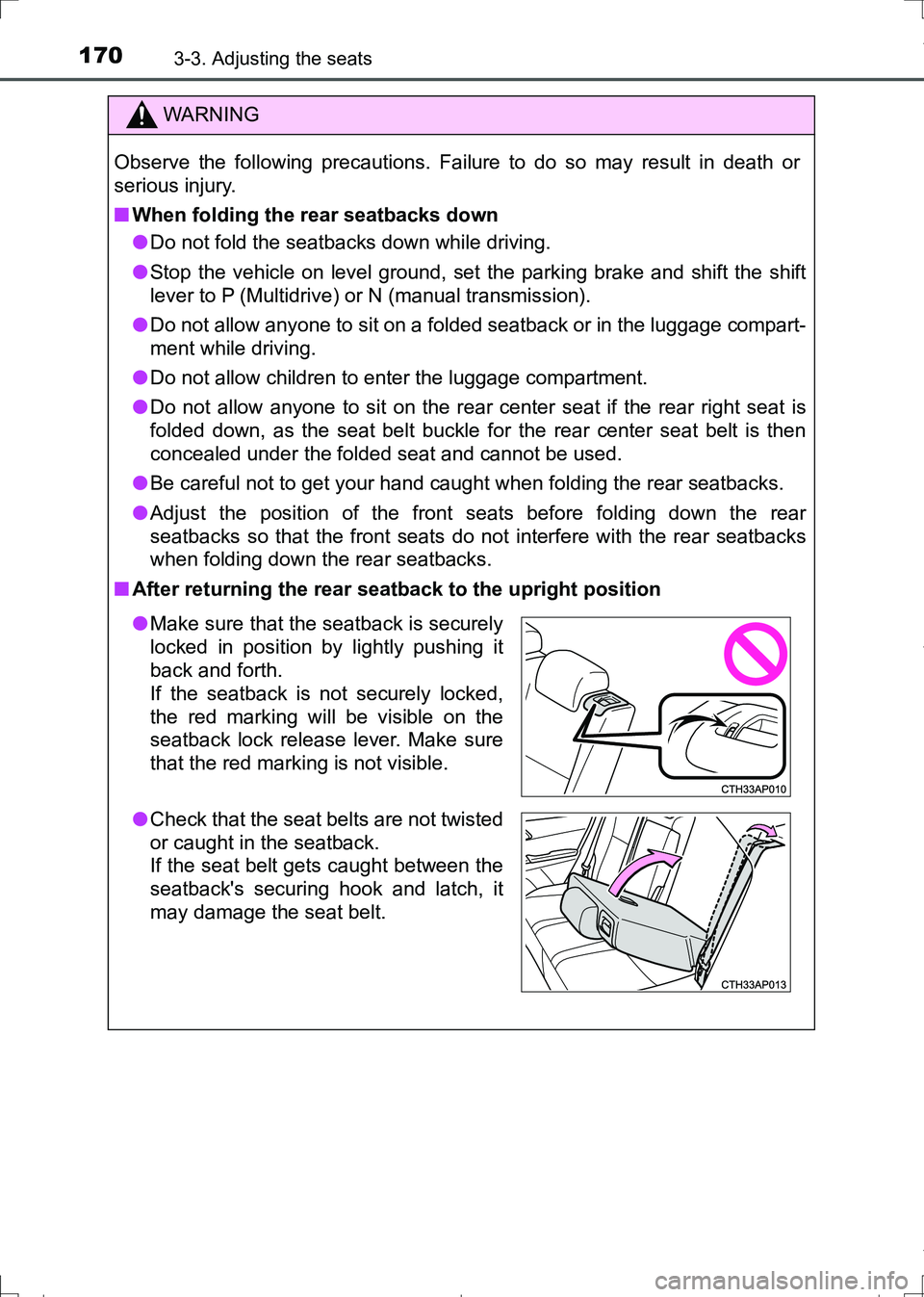

WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or N (manual transmission).
●Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
●Do not allow children to enter the luggage compartment.
●Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
●Be careful not to get your hand caught when folding the rear seatbacks.
●Adjust the position of the front seats before folding down the rear
seatbacks so that the front seats do not interfere with the rear seatbacks
when folding down the rear seatbacks.
■After returning the rear seatback to the upright position
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
●Check that the seat belts are not twisted
or caught in the seatback.
If the seat belt gets caught between the
seatback's securing hook and latch, it
may damage the seat belt.
AURIS Touring Sports_OM_Europe_OM12L13E.book 170 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1713-3. Adjusting the seats
AURIS Touring Sports_EE (12L13E)
3
Operation of each component

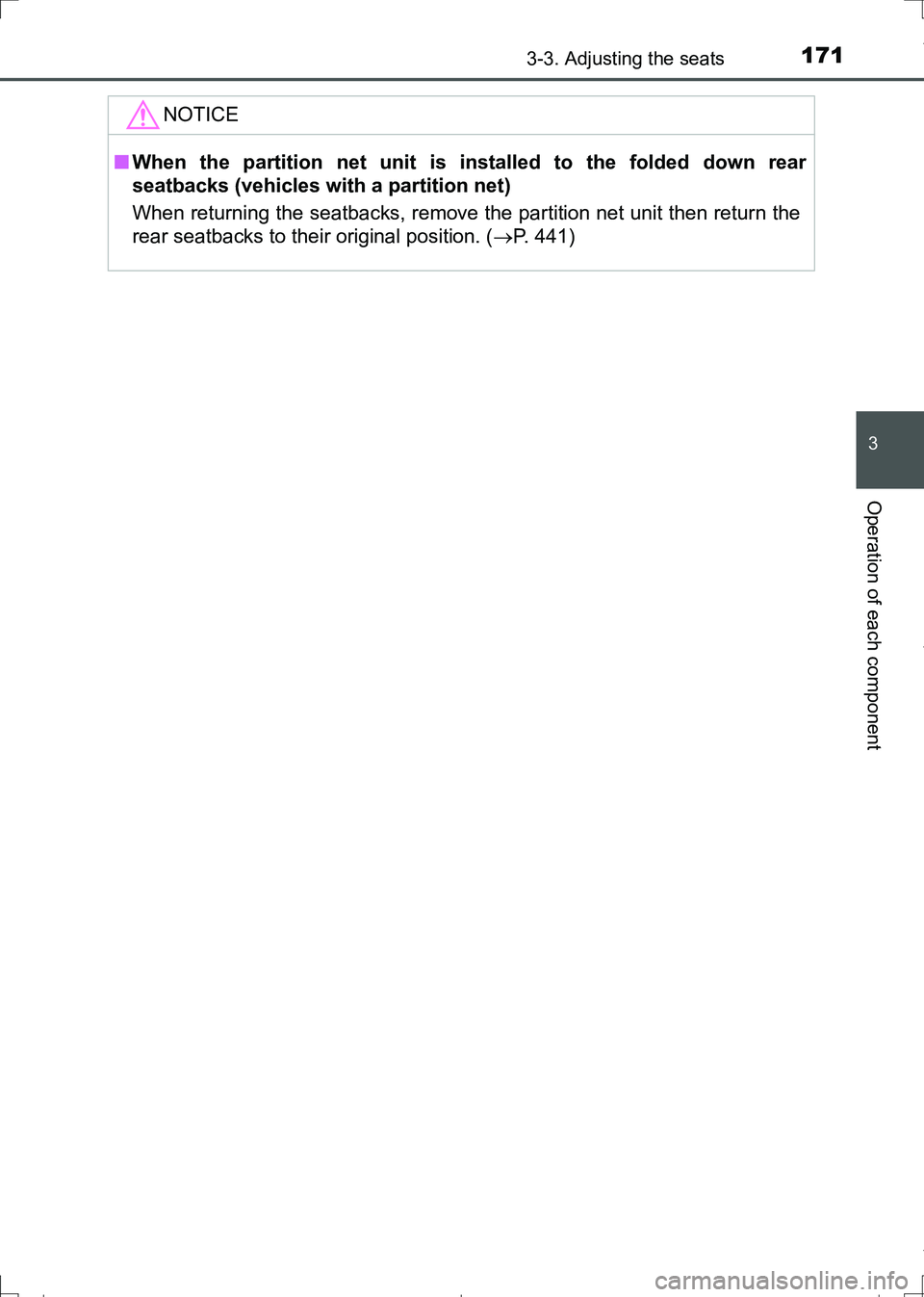

NOTICE
■When the partition net unit is installed to the folded down rear
seatbacks (vehicles with a partition net)
When returning the seatbacks, remove the partition net unit then return the
rear seatbacks to their original position. (P. 441)
AURIS Touring Sports_OM_Europe_OM12L13E.book 171 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1723-3. Adjusting the seats
AURIS Touring Sports_EE (12L13E)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Head restraints
Head restraints are provided for all seats.
Lock release button
1
2
Pull the head restraint up while pressing
the lock release button.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
AURIS Touring Sports_OM_Europe_OM12L13E.book 172 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1733-3. Adjusting the seats
AURIS Touring Sports_EE (12L13E)
3
Operation of each component

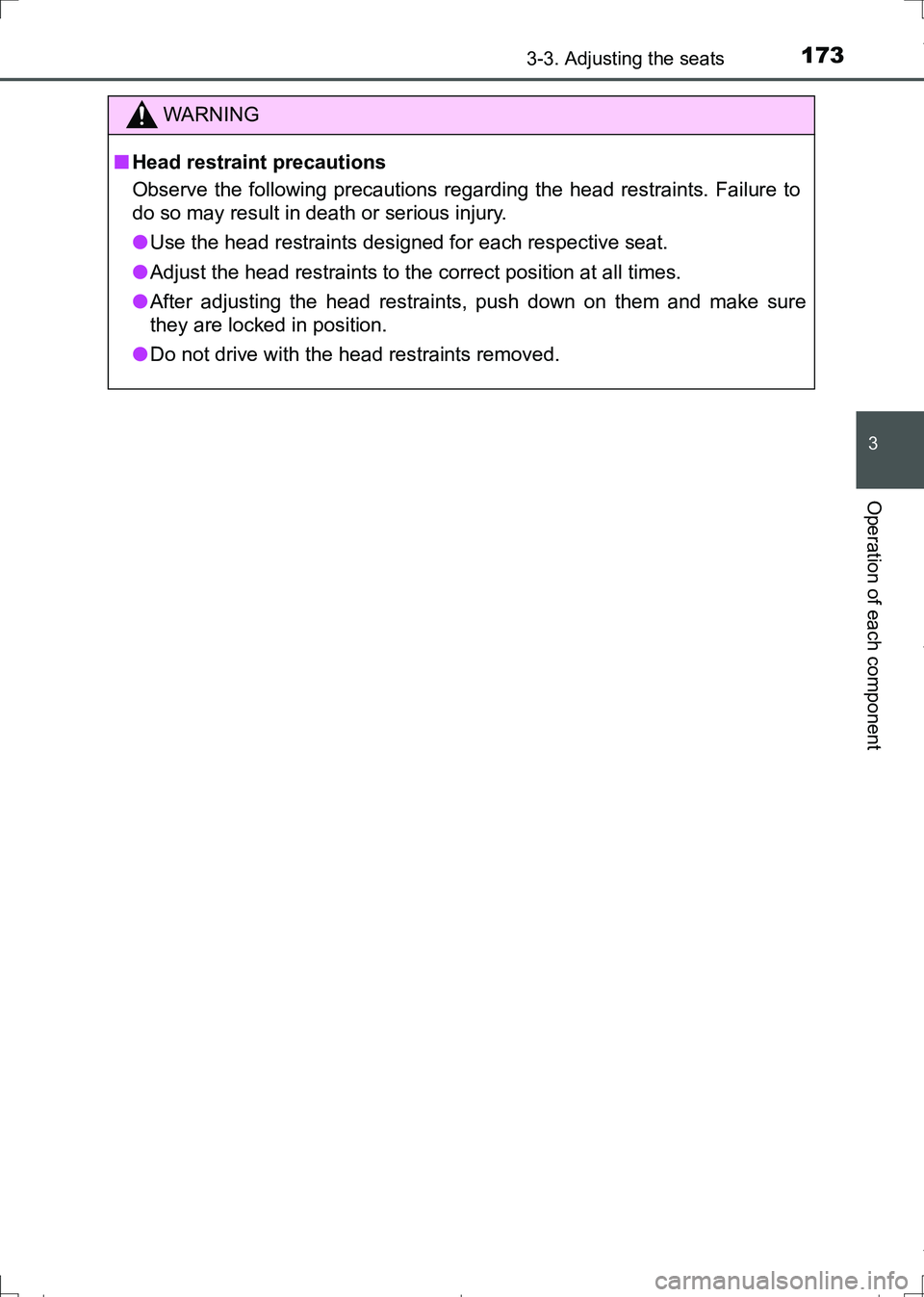

WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head restraints removed.
AURIS Touring Sports_OM_Europe_OM12L13E.book 173 ページ ２０１６年６月２７日　月曜日　午後５時２１分

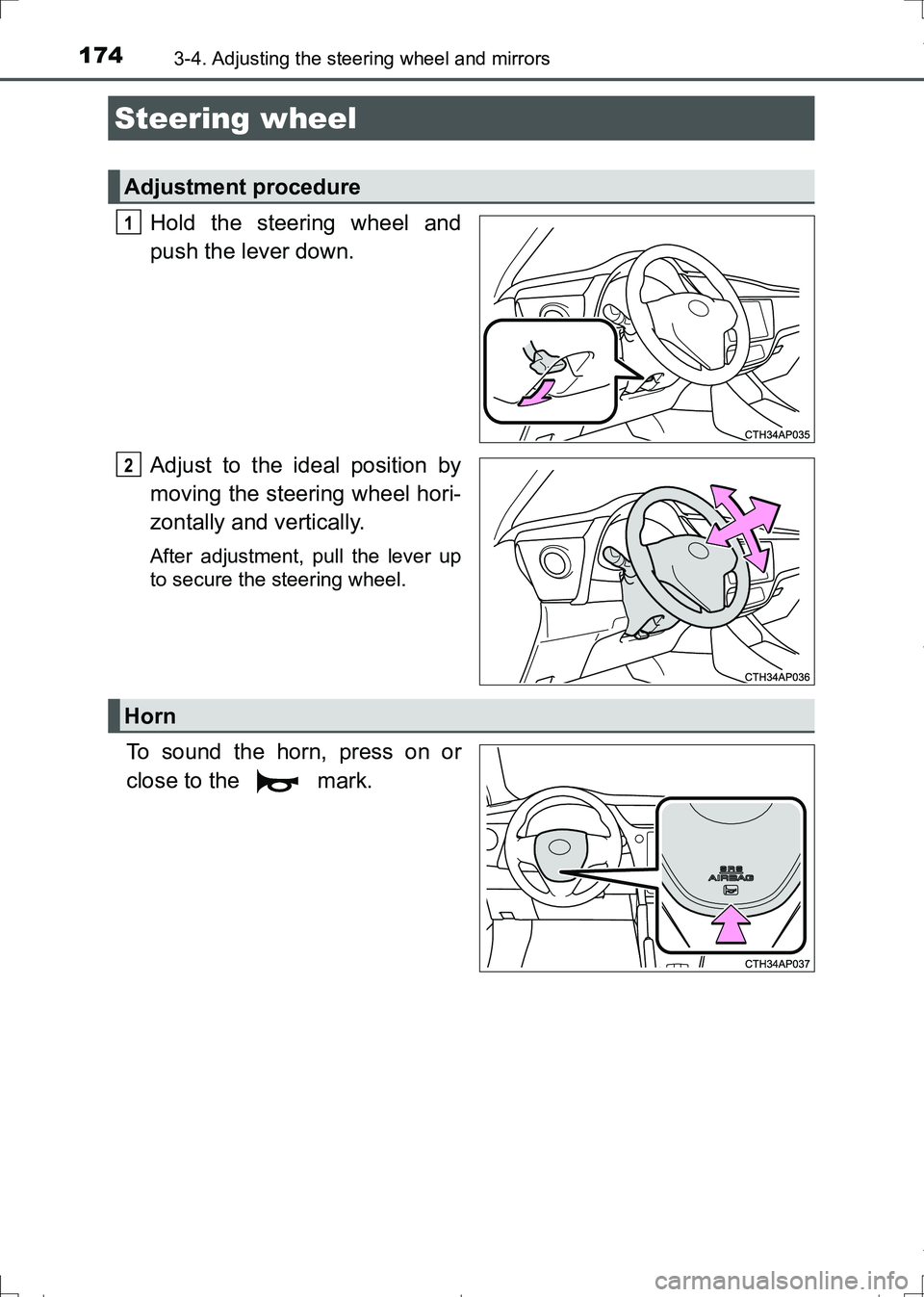

174
AURIS Touring Sports_EE (12L13E)
3-4. Adjusting the steering wheel and mirrors
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
1
2
Horn
AURIS Touring Sports_OM_Europe_OM12L13E.book 174 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1753-4. Adjusting the steering wheel and mirrors
AURIS Touring Sports_EE (12L13E)
3
Operation of each component

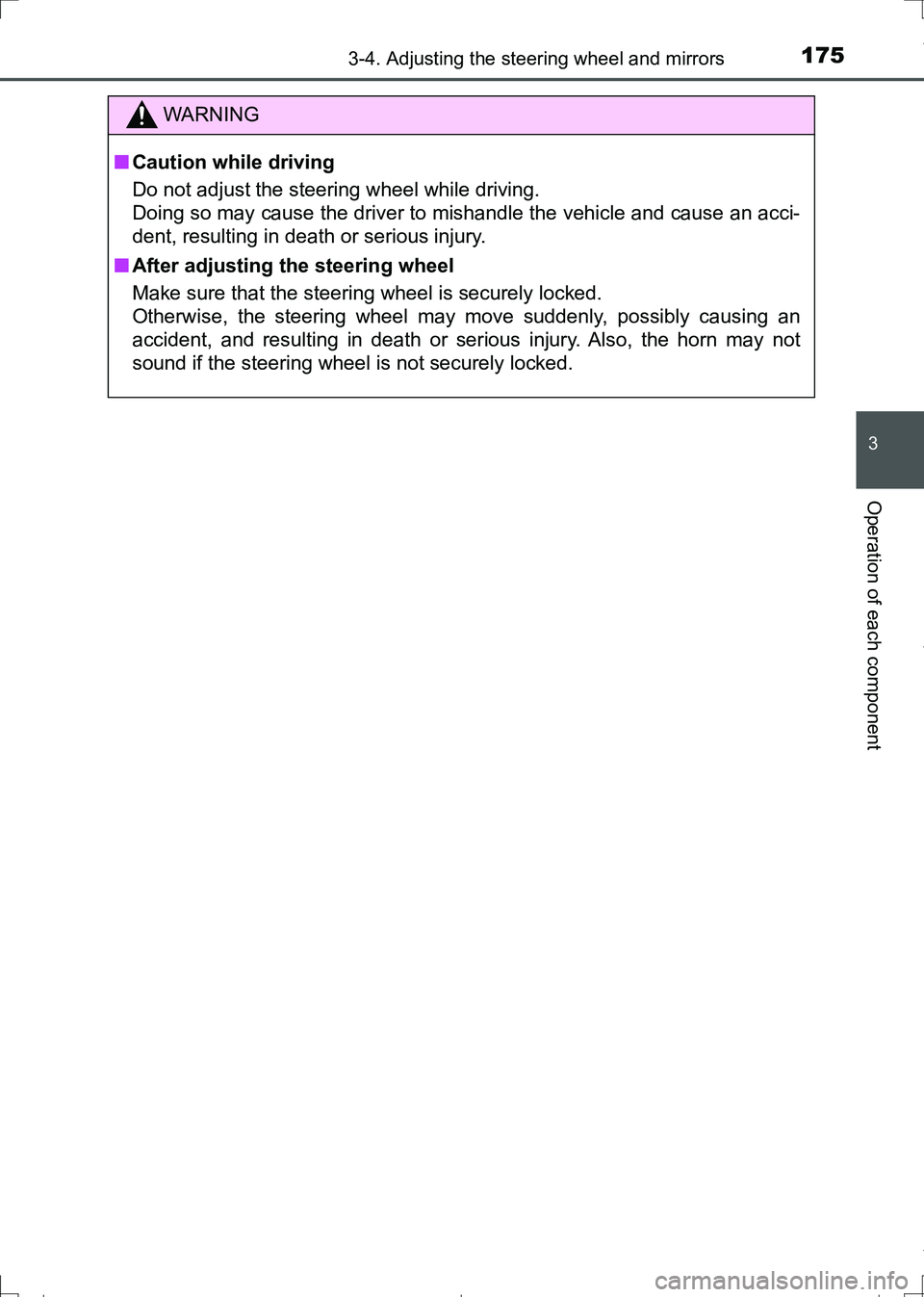

WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury. Also, the horn may not
sound if the steering wheel is not securely locked.
AURIS Touring Sports_OM_Europe_OM12L13E.book 175 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1763-4. Adjusting the steering wheel and mirrors
AURIS Touring Sports_EE (12L13E)

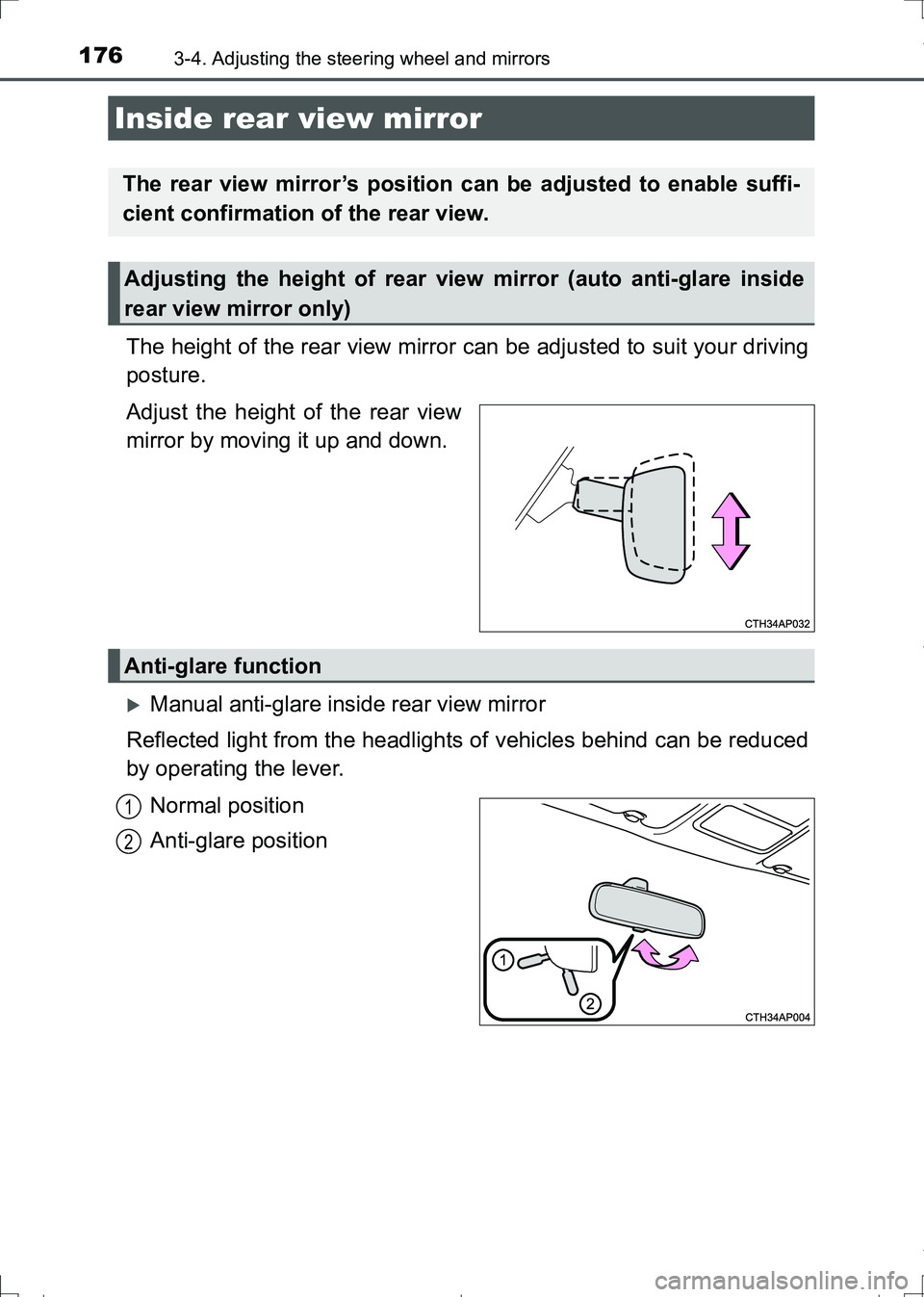

The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (auto anti-glare inside
rear view mirror only)
Anti-glare function
1
2
