2017 TOYOTA AURIS TOURING SPORTS Owners Manual

337
AURIS Touring Sports_EE (12L13E)
4
Driving
4-7. Driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
●To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
●Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
Winter driving tips
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle
When driving the vehicle
AURIS Touring Sports_OM_Europe_OM12L13E.book 337 ページ ２０１６年６月２７日　月曜日　午後５時２１分

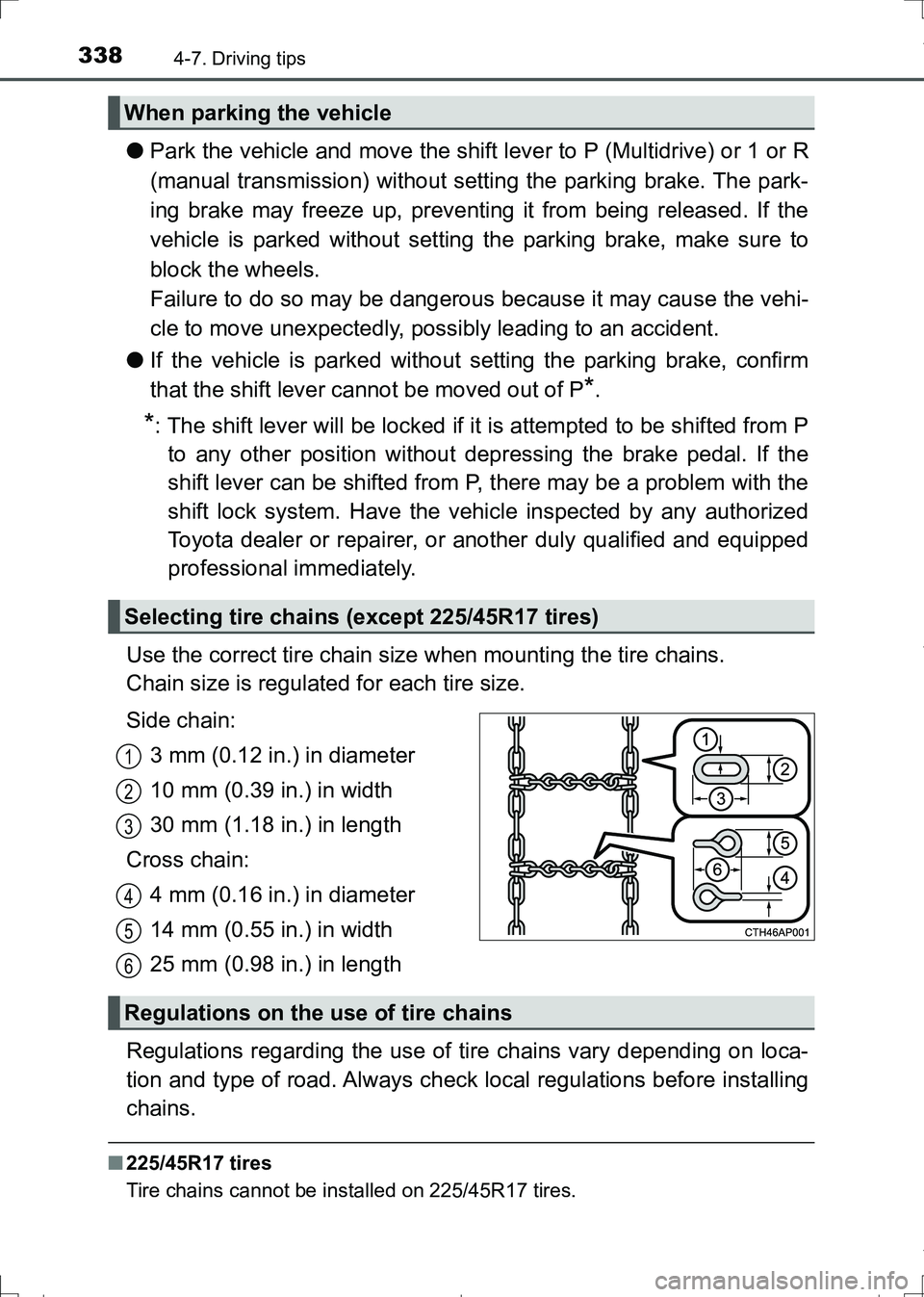

3384-7. Driving tips
AURIS Touring Sports_EE (12L13E)
●Park the vehicle and move the shift lever to P (Multidrive) or 1 or R
(manual transmission) without setting the parking brake. The park-
ing brake may freeze up, preventing it from being released. If the
vehicle is parked without setting the parking brake, make sure to
block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.
●If the vehicle is parked without setting the parking brake, confirm
that the shift lever cannot be moved out of P
*.
*: The shift lever will be locked if it is attempted to be shifted from P
to any other position without depressing the brake pedal. If the
shift lever can be shifted from P, there may be a problem with the
shift lock system. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain:
3 mm (0.12 in.) in diameter
10 mm (0.39 in.) in width
30 mm (1.18 in.) in length
Cross chain:
4 mm (0.16 in.) in diameter
14 mm (0.55 in.) in width
25 mm (0.98 in.) in length
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
■225/45R17 tires
Tire chains cannot be installed on 225/45R17 tires.
When parking the vehicle
Selecting tire chains (except 225/45R17 tires)
1
2
3
4
5
Regulations on the use of tire chains
6
AURIS Touring Sports_OM_Europe_OM12L13E.book 338 ページ ２０１６年６月２７日　月曜日　午後５時２１分

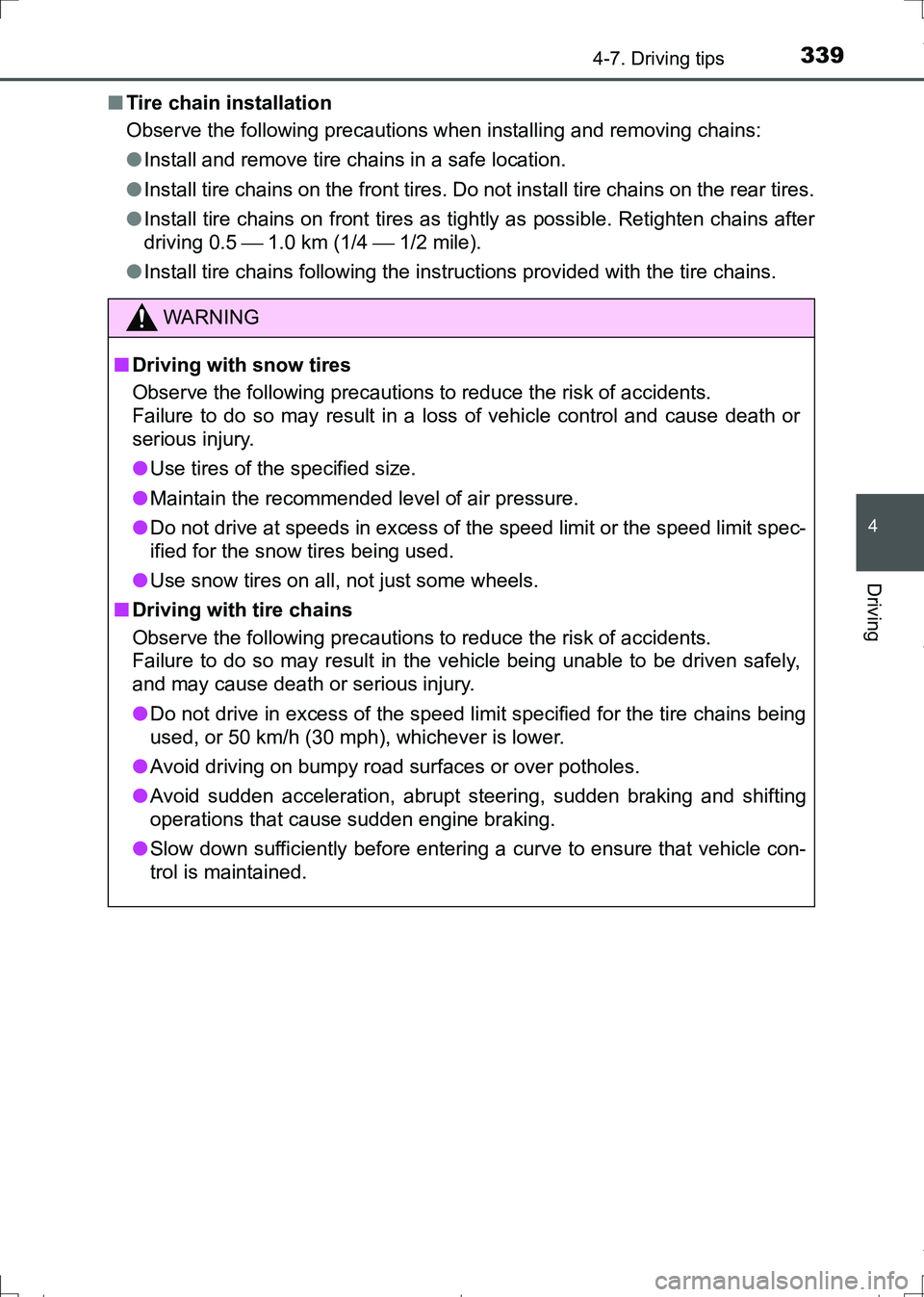

3394-7. Driving tips
AURIS Touring Sports_EE (12L13E)
4
Driving
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the front tires. Do not install tire chains on the rear tires.
●Install tire chains on front tires as tightly as possible. Retighten chains after
driving 0.5  1.0 km (1/4  1/2 mile).
●Install tire chains following the instructions provided with the tire chains.
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
●Use snow tires on all, not just some wheels.
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
●Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
AURIS Touring Sports_OM_Europe_OM12L13E.book 339 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3404-7. Driving tips
AURIS Touring Sports_EE (12L13E)

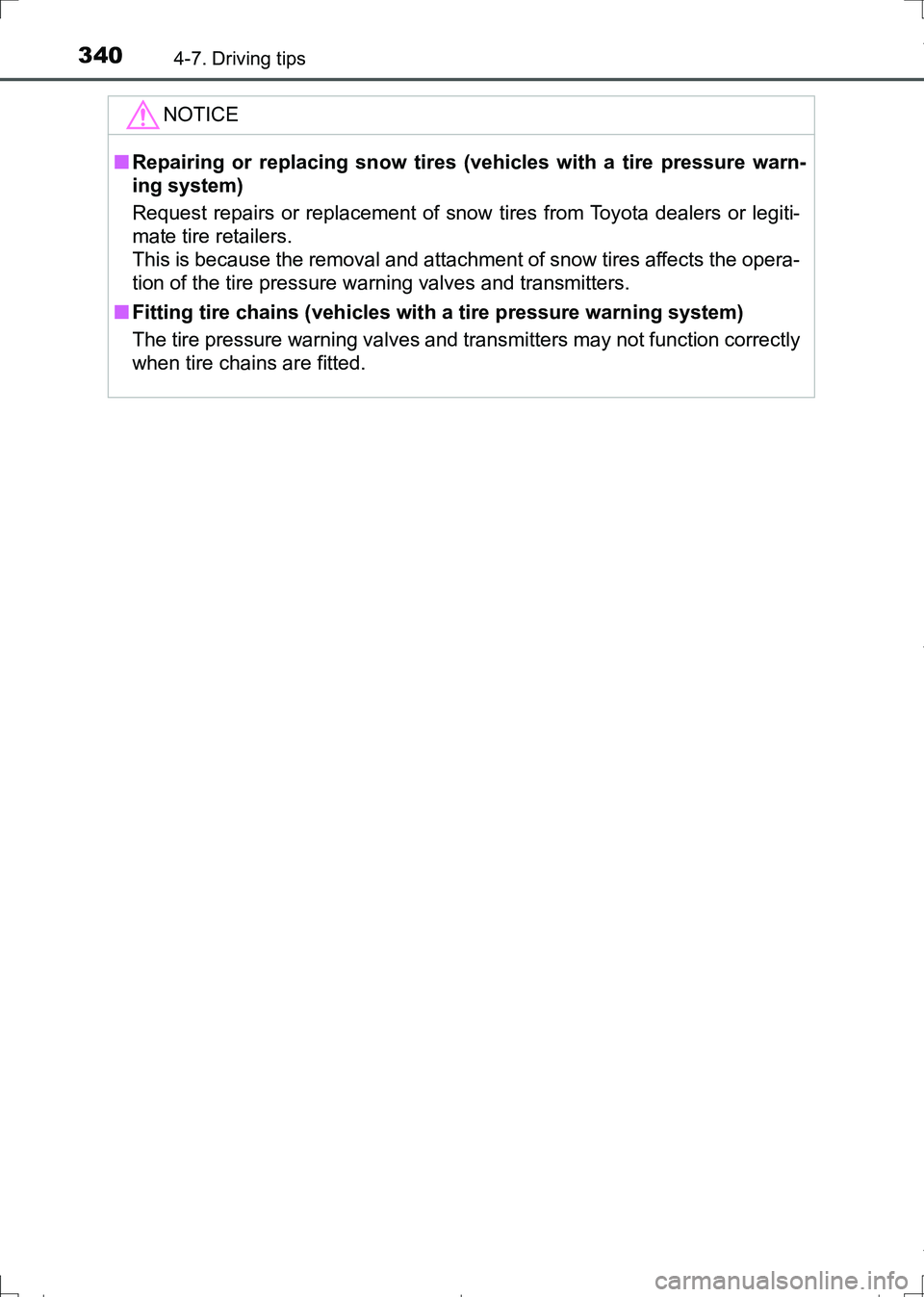

NOTICE
■Repairing or replacing snow tires (vehicles with a tire pressure warn-
ing system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■Fitting tire chains (vehicles with a tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
AURIS Touring Sports_OM_Europe_OM12L13E.book 340 ページ ２０１６年６月２７日　月曜日　午後５時２１分

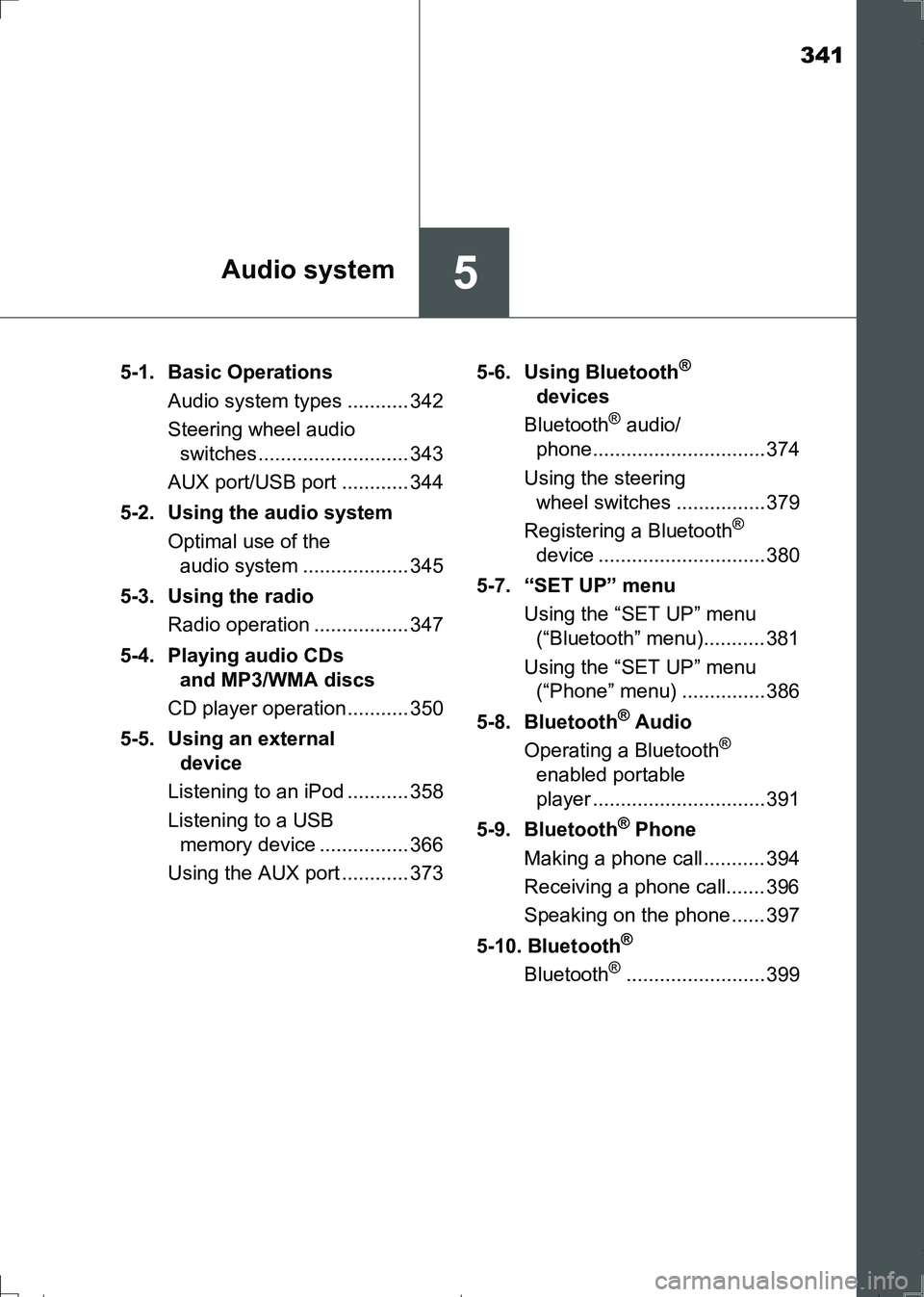

341
5Audio system
AURIS Touring Sports_EE (12L13E)5-1. Basic Operations
Audio system types ........... 342
Steering wheel audio
switches........................... 343
AUX port/USB port ............ 344
5-2. Using the audio system
Optimal use of the
audio system ................... 345
5-3. Using the radio
Radio operation ................. 347
5-4. Playing audio CDs
and MP3/WMA discs
CD player operation........... 350
5-5. Using an external
device
Listening to an iPod ........... 358
Listening to a USB
memory device ................ 366
Using the AUX port ............ 3735-6. Using Bluetooth
®
devices
Bluetooth
® audio/
phone............................... 374
Using the steering
wheel switches ................ 379
Registering a Bluetooth
®
device .............................. 380
5-7. “SET UP” menu
Using the “SET UP” menu
(“Bluetooth” menu)........... 381
Using the “SET UP” menu
(“Phone” menu) ............... 386
5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player ............................... 391
5-9. Bluetooth
® Phone
Making a phone call ........... 394
Receiving a phone call....... 396
Speaking on the phone ...... 397
5-10. Bluetooth
®
Bluetooth®......................... 399
AURIS Touring Sports_OM_Europe_OM12L13E.book 341 ページ ２０１６年６月２７日　月曜日　午後５時２１分

342
AURIS Touring Sports_EE (12L13E)
5-1. Basic Operations
Vehicles with an audio system
Vehicles with a navigation/multimedia system
Owners of models equipped with a navigation/multimedia system
should refer to the “Navigation and multimedia system Owner's man-
ual”.
■Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
■About Bluetooth
®
The Bluetooth wordmark and logo are owned by Bluetooth SIG. and permis-
sion has been granted to use the trademark of the licensee Panasonic
Corporation. Other trademarks and trade names are owned by various differ-
ent owners.
Audio system types
: If equipped
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
stopped.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.
AURIS Touring Sports_OM_Europe_OM12L13E.book 342 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3435-1. Basic Operations
AURIS Touring Sports_EE (12L13E)
5
Audio system
Vo l u m e s w i t c h :
• Press: Increases/decreases
volume
• Press and hold: Continuously
increases/decreases volume
Radio mode:
• Press: Selects a radio station
• Press and hold: Seeks up/
down
CD, MP3/WMA disc, Bluetooth
®, iPod or USB mode:
• Press: Selects a track/file/song
• Press and hold: Selects a folder or album (MP3/WMA disc,
Bluetooth
®, iPod or USB)
“MODE” switch:
• Press: Turns the power on, selects an audio source
• Press and hold: Mutes or pauses the current operation. To cancel
the mute or pause, press and hold again.
Steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the audio system using the steering wheel switches
1
2
3
WARNING
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
AURIS Touring Sports_OM_Europe_OM12L13E.book 343 ページ ２０１６年６月２７日　月曜日　午後５時２１分

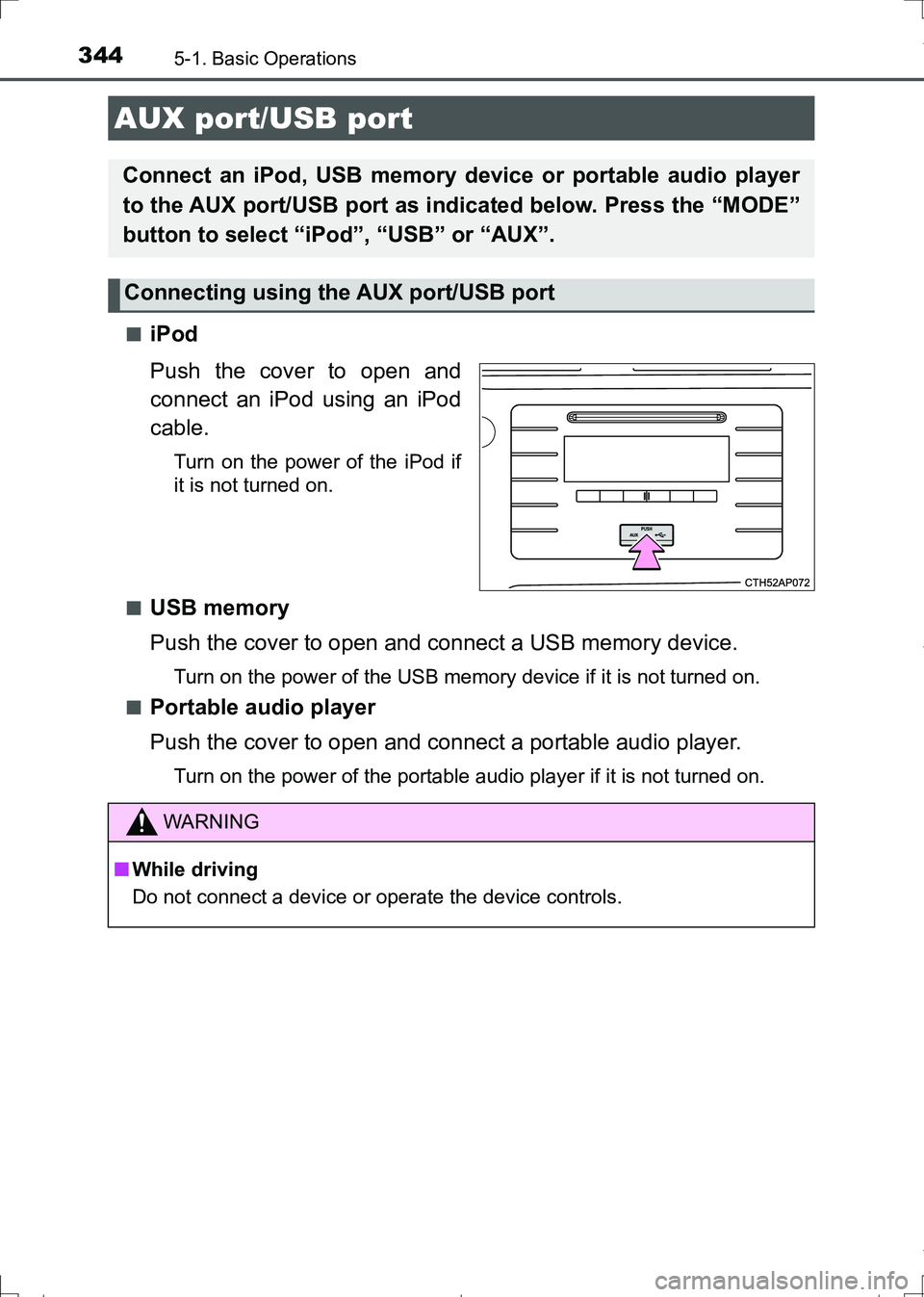

3445-1. Basic Operations
AURIS Touring Sports_EE (12L13E)■
iPod
Push the cover to open and
connect an iPod using an iPod
cable.
Turn on the power of the iPod if
it is not turned on.
■
USB memory
Push the cover to open and connect a USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■
Portable audio player
Push the cover to open and connect a portable audio player.
Turn on the power of the portable audio player if it is not turned on.
AUX port/USB port
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
■While driving
Do not connect a device or operate the device controls.
AURIS Touring Sports_OM_Europe_OM12L13E.book 344 ページ ２０１６年６月２７日　月曜日　午後５時２１分
