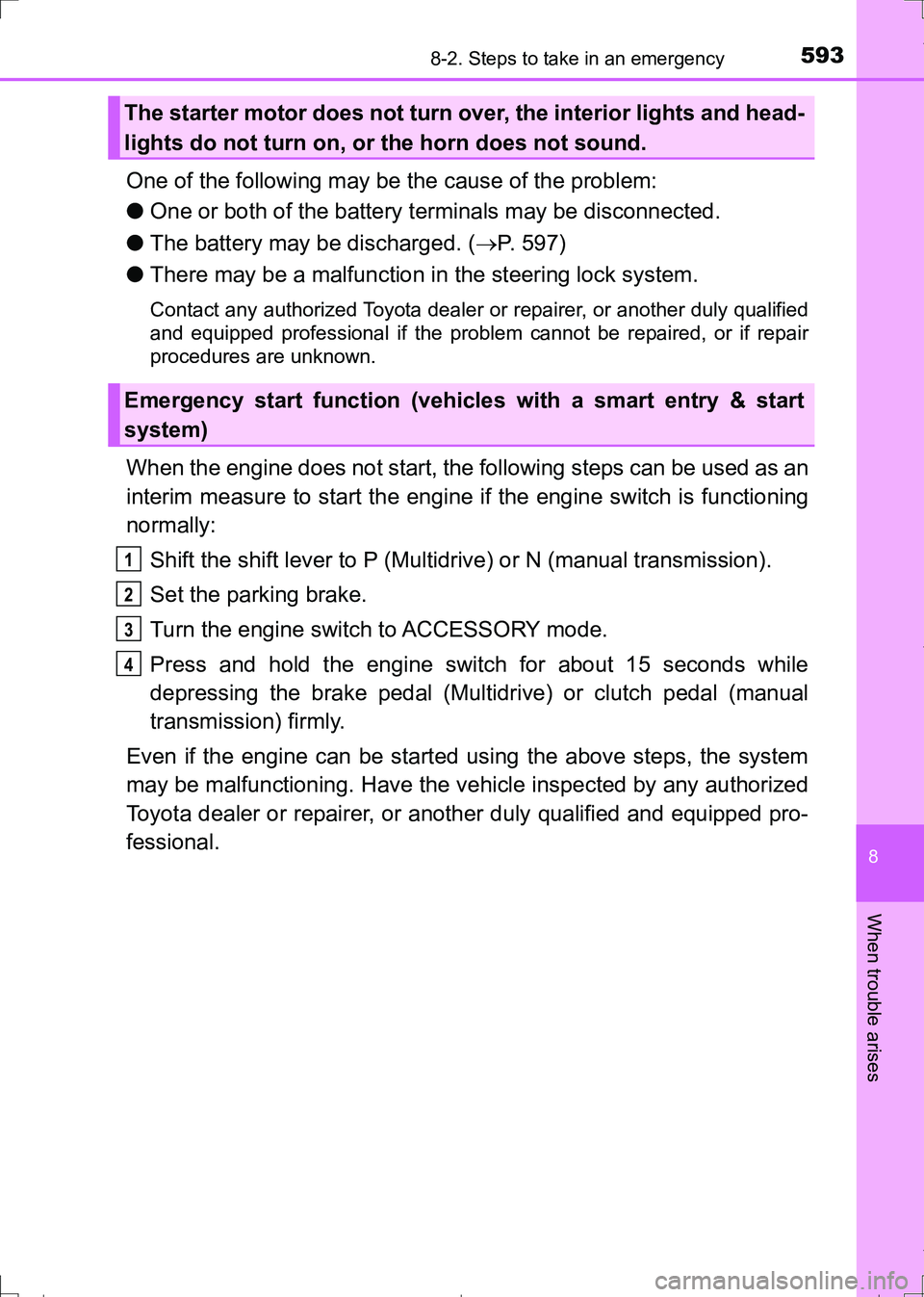

When trouble arises
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 597)
●There may be a malfunction in the steering lock system.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional if the problem cannot be repaired, or if repair
procedures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:
Shift the shift lever to P (Multidrive) or N (manual transmission).
Set the parking brake.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal (Multidrive) or clutch pedal (manual
transmission) firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function (vehicles with a smart entry & start
system)
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 593 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5948-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
Use the mechanical key (P.
124) in order to perform the fol-
lowing operations:
Locks all the doors
Unlocks all the doors

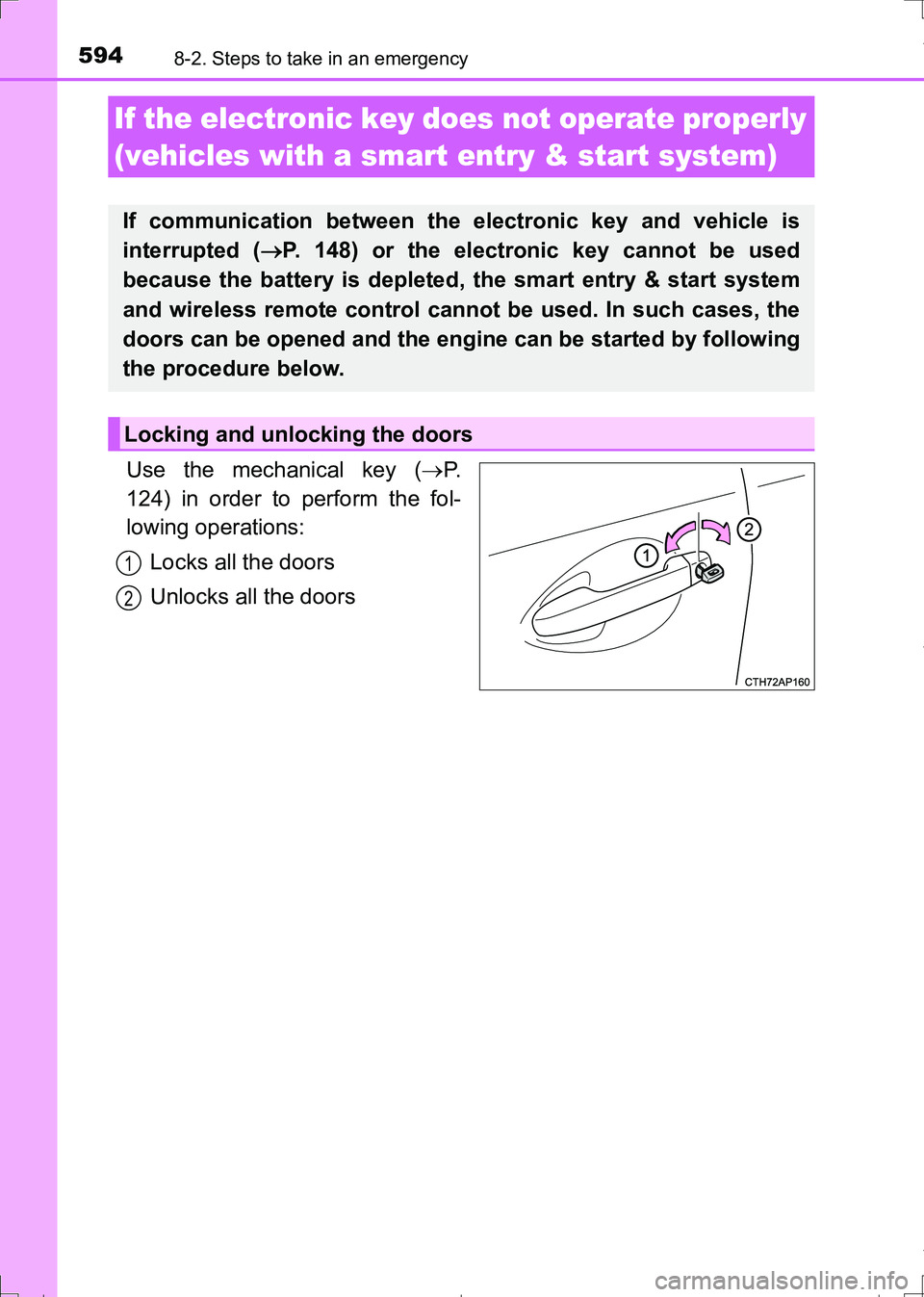

If the electronic key does not operate properly
(vehicles with a smart entry & start system)
If communication between the electronic key and vehicle is
interrupted (P. 148) or the electronic key cannot be used
because the battery is depleted, the smart entry & start system
and wireless remote control cannot be used. In such cases, the
doors can be opened and the engine can be started by following
the procedure below.
Locking and unlocking the doors
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 594 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5958-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises
Multidrive: Ensure that the shift lever is in P and depress the brake
pedal.
Manual transmission: Shift the shift lever to N and depress the
clutch pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.
Vehicles with a 3-ring meter: Firmly depress the brake pedal
(Multidrive) or clutch pedal (manual transmission) and check that
the smart entry & start system indicator light (green) turns on.
Vehicles with a 2-ring meter: Firmly depress the brake pedal
(Multidrive) or clutch pedal (manual transmission) and check that
is shown on the multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Starting the engine
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 595 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5968-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
■Stopping the engine
Shift the shift lever to P (Multidrive) or N (manual transmission) and press the
engine switch as you normally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 511)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.
■Changing engine switch modes
Release the brake pedal (Multidrive) or clutch pedal (manual transmission)
and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. (P. 216)
■When the electronic key does not work properly
●Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features P. 635)
●Check if battery-saving mode is set. If it is set, cancel the function.
(P. 147)
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 596 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5978-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

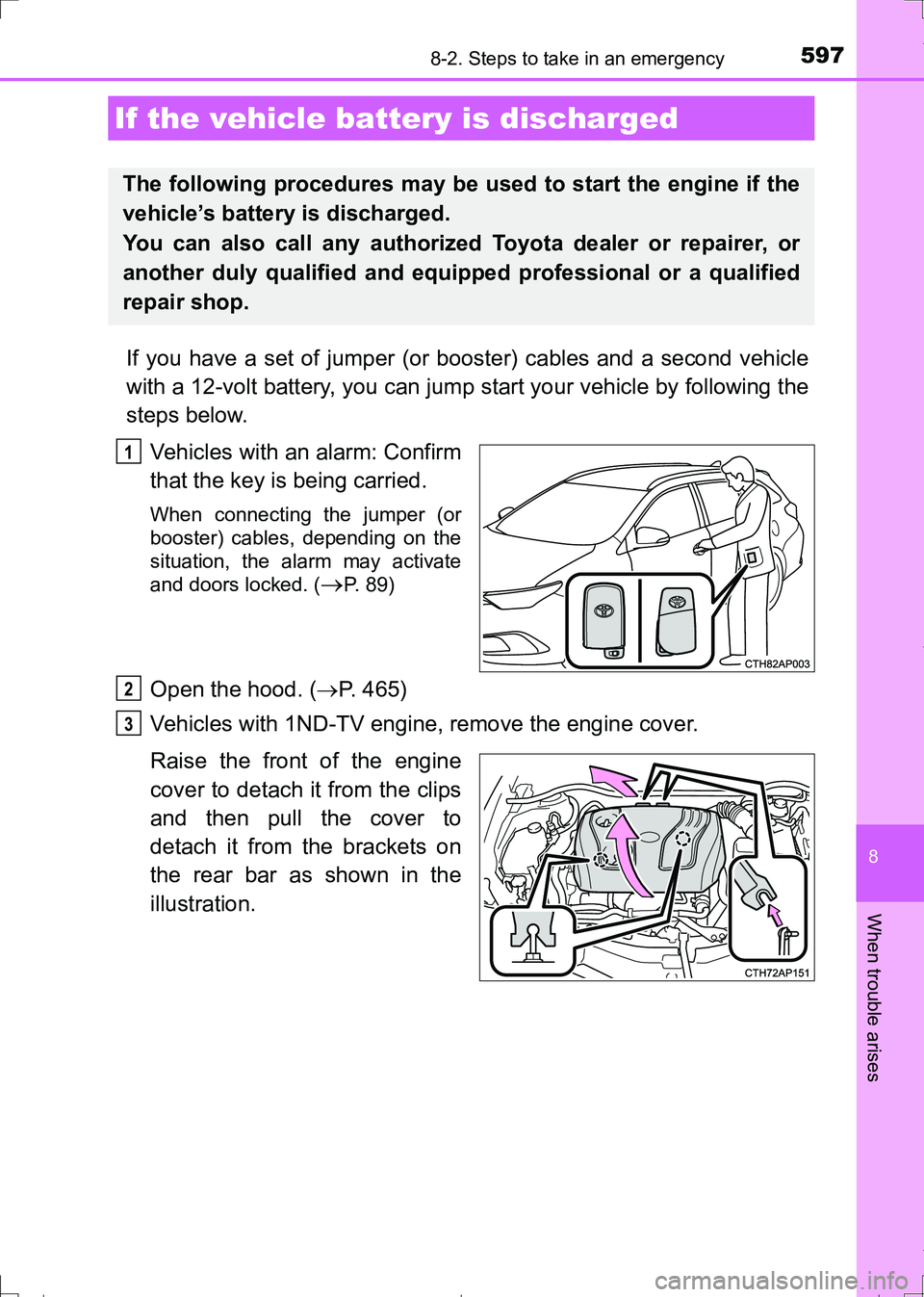

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Vehicles with an alarm: Confirm
that the key is being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. (
P. 89)
Open the hood. (P. 465)
Vehicles with 1ND-TV engine, remove the engine cover.
Raise the front of the engine
cover to detach it from the clips
and then pull the cover to
detach it from the brackets on
the rear bar as shown in the
illustration.
If the vehicle battery is discharged
The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional or a qualified
repair shop.
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 597 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5988-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

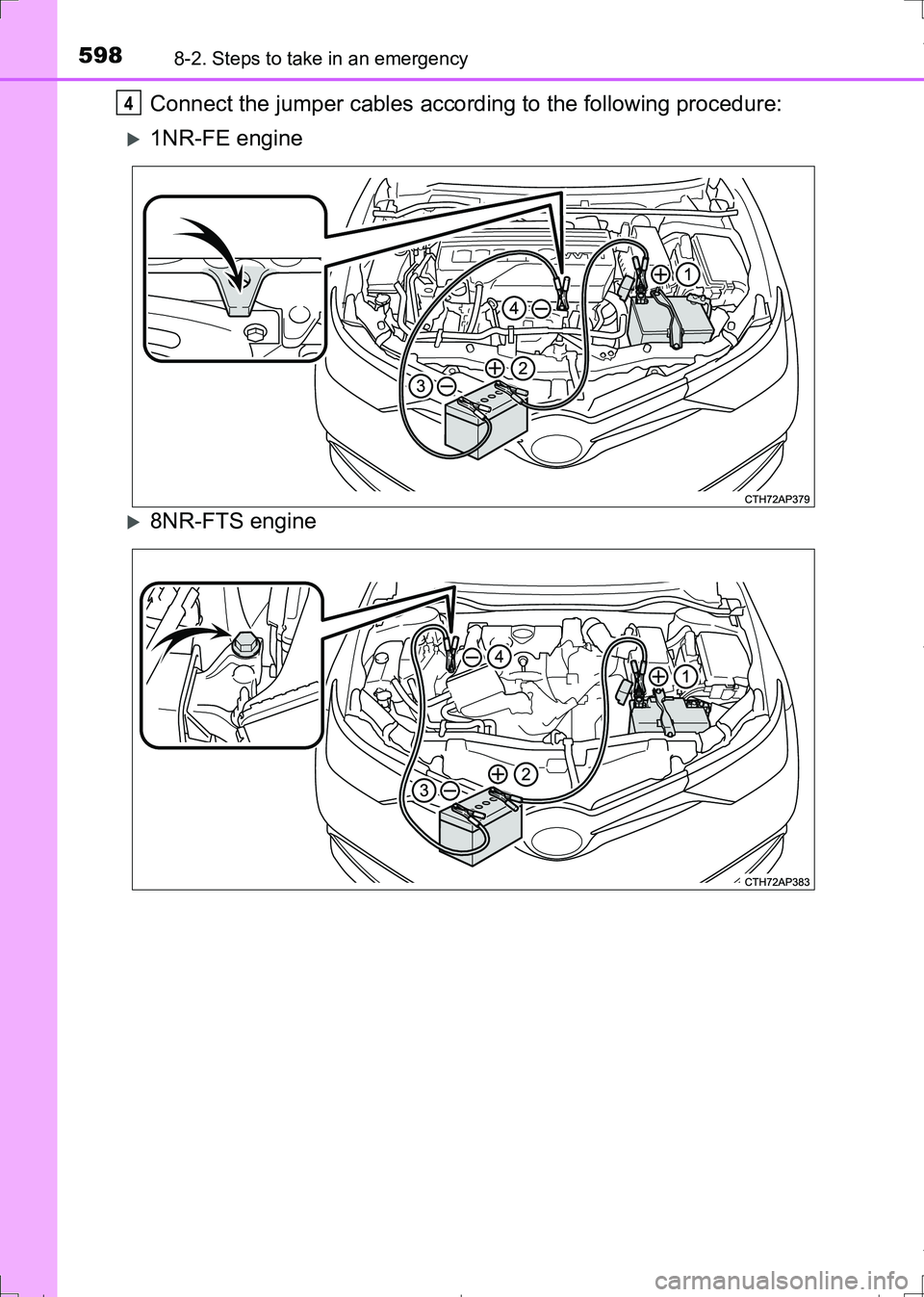

Connect the jumper cables according to the following procedure:
1NR-FE engine
8NR-FTS engine
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 598 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5998-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

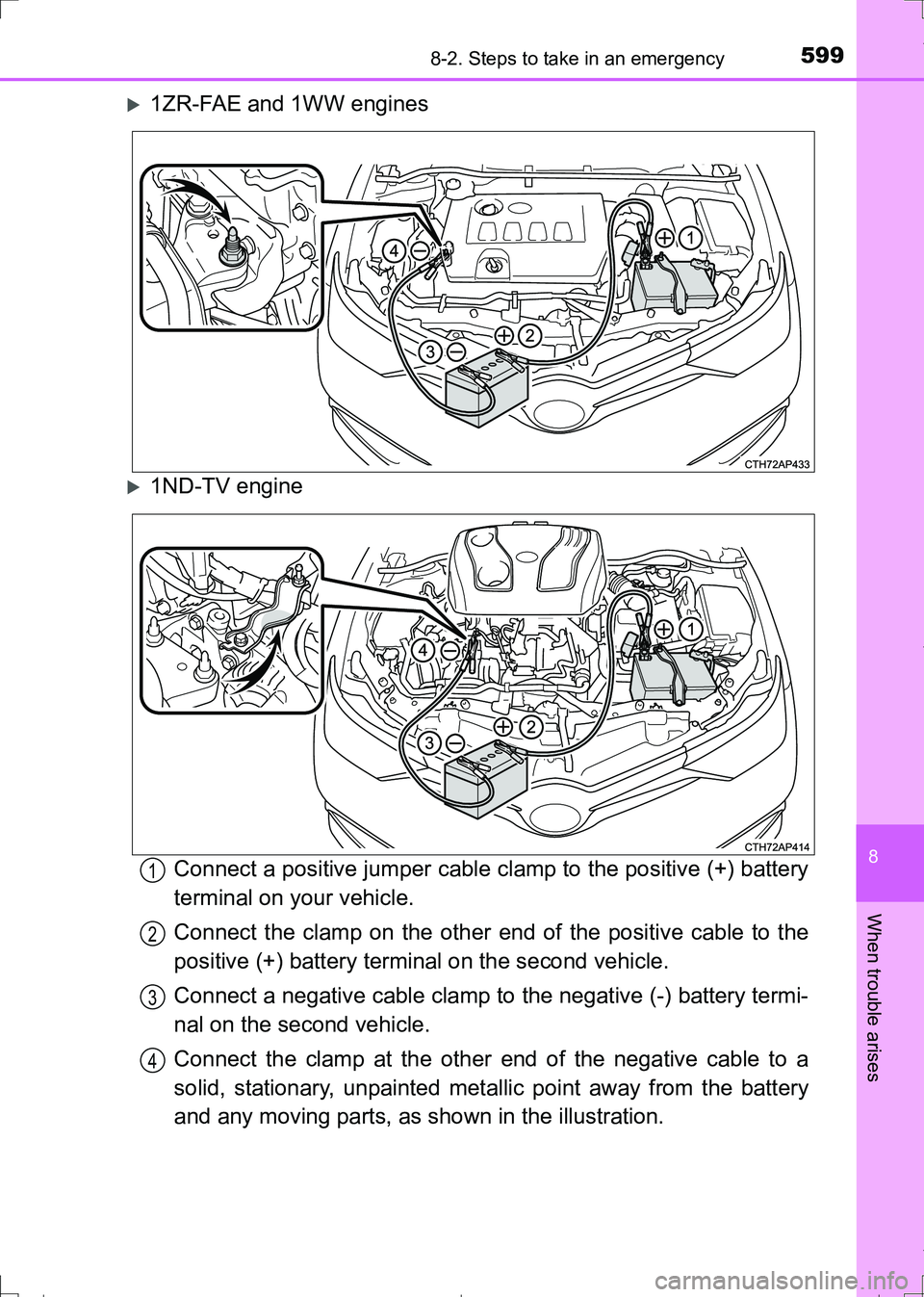

1ZR-FAE and 1WW engines
1ND-TV engine
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 599 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6008-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Vehicles with a smart entry & start system: Open and close any of
the doors of your vehicle with the engine switch off.
Vehicles without a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to the “ON” position, then start the vehicle's engine.
Vehicles with a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle's
engine.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and audio system while the engine is stopped. (Vehi-
cles with a Stop & Start system: except when the engine is stopped by the
Stop & Start system.)
●Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
5
