2017 TOYOTA AURIS TOURING SPORTS Owners Manual

209
AURIS Touring Sports_EE (12L13E)
4
Driving
4-2. Driving procedures
Multidrive
Check that the parking brake is set.
Check that the shift lever is set in P.
Sit in the driver’s seat and firmly depress the brake pedal.
Turn the engine switch to the “START” position and start the
engine.
Manual transmission (gasoline engine)
Check that the parking brake is set.
Check that the shift lever is set in N.
Firmly depress the clutch pedal.
Turn the engine switch to the “START” position and start the
engine.
Manual transmission (diesel engine)
Check that the parking brake is set.
Check that the shift lever is set in N.
Firmly depress the clutch pedal.
Turn the engine switch to the “ON” position.
turns on.
After goes out, turn the engine switch to the “START” position
and start the engine.
Engine (ignition) switch (vehicles without a
smart entry & start system)
Starting the engine
1
2
3
4
1
2
3
4
1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 209 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2104-2. Driving procedures
AURIS Touring Sports_EE (12L13E)

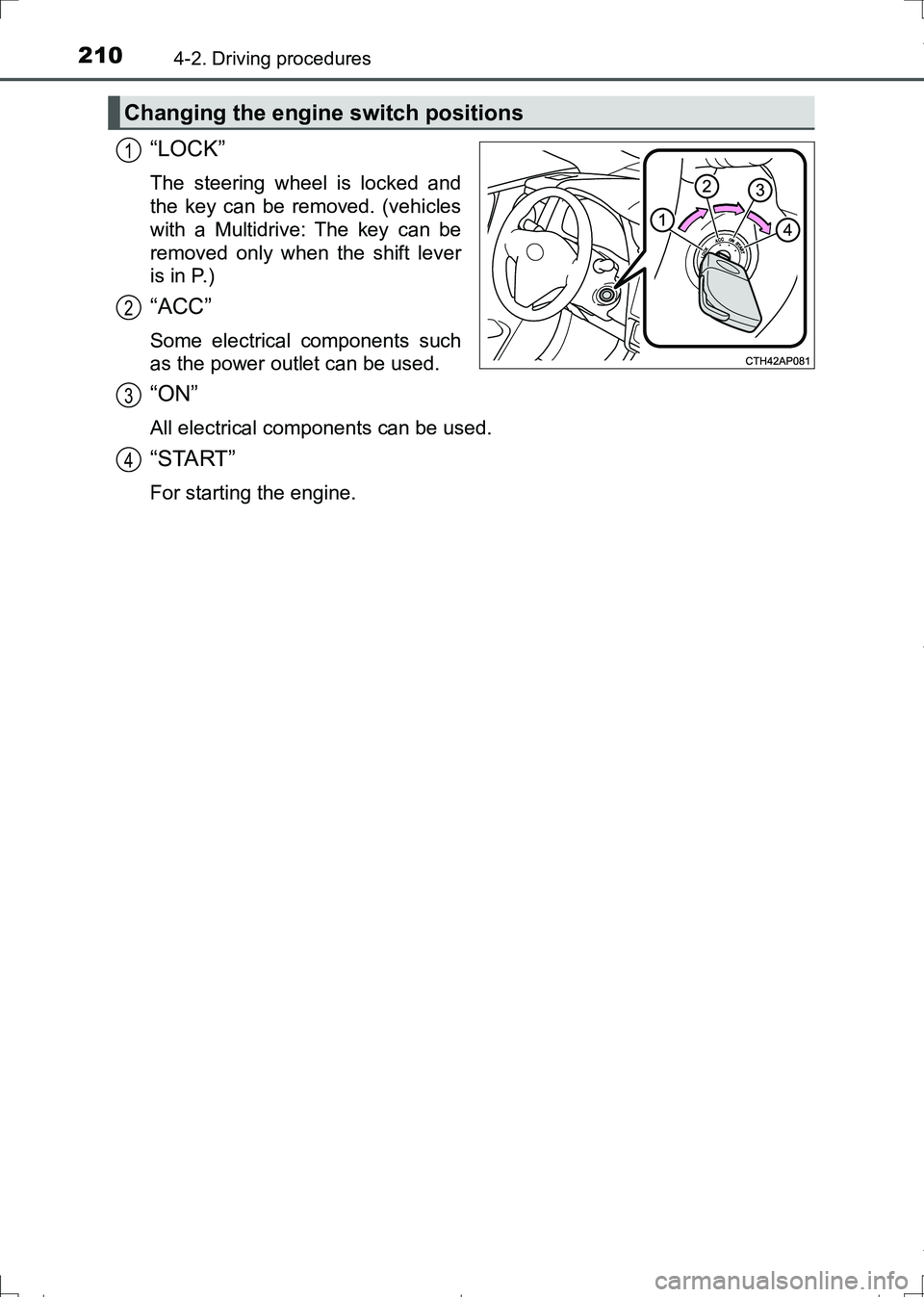

“LOCK”
The steering wheel is locked and
the key can be removed. (vehicles
with a Multidrive: The key can be
removed only when the shift lever
is in P.)
“ACC”
Some electrical components such
as the power outlet can be used.
“ON”
All electrical components can be used.
“START”
For starting the engine.
Changing the engine switch positions
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 210 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2114-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
■If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 75)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■When the steering lock cannot be released
■Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key. When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.
WARNING
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn
the engine switch only to the “ACC” position to stop the engine. An accident
may result if the engine is stopped while driving. (P. 535)
AURIS Touring Sports_OM_Europe_OM12L13E.book 211 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2124-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
NOTICE
■To prevent battery discharge
Do not leave the engine switch in the “ACC” or “ON” position for long peri-
ods of time without the engine running.
■When starting the engine
●Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
AURIS Touring Sports_OM_Europe_OM12L13E.book 212 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2134-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
Check that the parking brake is set.
Check that the shift lever is set in P (Multidrive) or N (manual trans-
mission).
Vehicles with a 3-ring meter
Multidrive: Firmly depress the brake pedal.
Manual transmission: Firmly depress the clutch pedal.
The smart entry & start system indicator light (green) will turn on. If the
indicator light does not turn on, the engine cannot be started.
Press the engine switch shortly
and firmly.
When operating the engine switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal (Multidrive) or clutch pedal
(manual transmission) until the
engine is completely started.
Diesel engine: turns on. The
engine begins starting after
goes out.
The engine can be started from
any engine switch mode.
Engine (ignition) switch (vehicles with a
smart entry & start system)
Performing the following operations when carrying the elec-
tronic key on your person starts the engine or changes engine
switch modes.
Starting the engine
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 213 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2144-2. Driving procedures
AURIS Touring Sports_EE (12L13E)

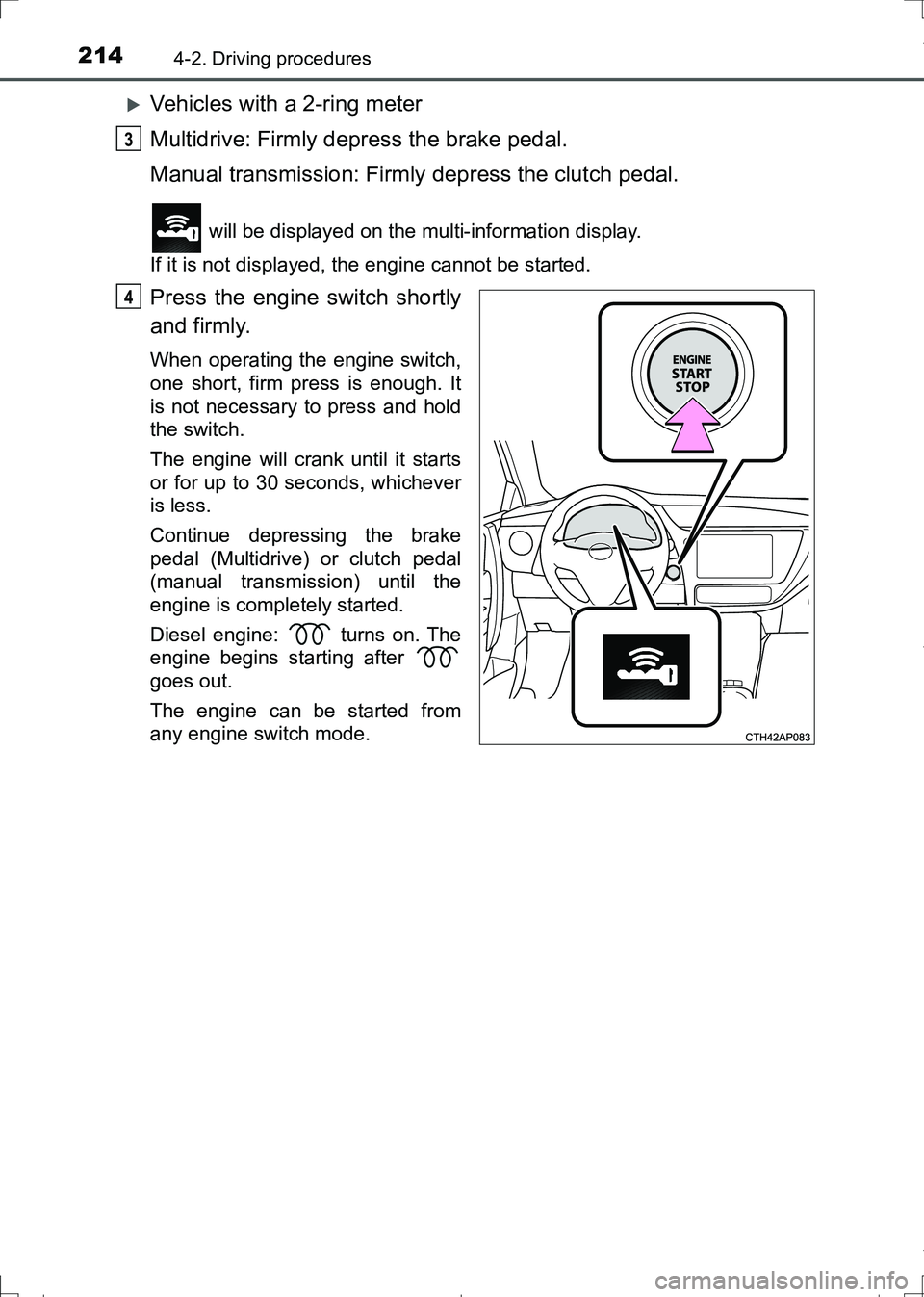

Vehicles with a 2-ring meter
Multidrive: Firmly depress the brake pedal.
Manual transmission: Firmly depress the clutch pedal.
will be displayed on the multi-information display.
If it is not displayed, the engine cannot be started.
Press the engine switch shortly
and firmly.
When operating the engine switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal (Multidrive) or clutch pedal
(manual transmission) until the
engine is completely started.
Diesel engine: turns on. The
engine begins starting after
goes out.
The engine can be started from
any engine switch mode.
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 214 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2154-2. Driving procedures
AURIS Touring Sports_EE (12L13E)
4
Driving
Multidrive
Stop the vehicle.
Set the parking brake (→P. 234), and shift the shift lever to P.
Press the engine switch.
Vehicles with a 3-ring meter: Release the brake pedal and check
that the smart entry & start system indicator light (green) is off.
Vehicles with a 2-ring meter: Release the brake pedal and check
that “Power ON.” on the multi-information display is off.
Manual transmission
While depressing the clutch pedal, stop the vehicle.
Shift the shift lever to N.
Set the parking brake. (→P. 234)
Press the engine switch.
Vehicles with a 3-ring meter: Release the clutch pedal and check
that the smart entry & start system indicator light (green) is off.
Vehicles with a 2-ring meter: Release the clutch pedal and check
that “Power ON.” on the multi-information display is off.
Stopping the engine
1
2
3
4
1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 215 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2164-2. Driving procedures
AURIS Touring Sports_EE (12L13E)

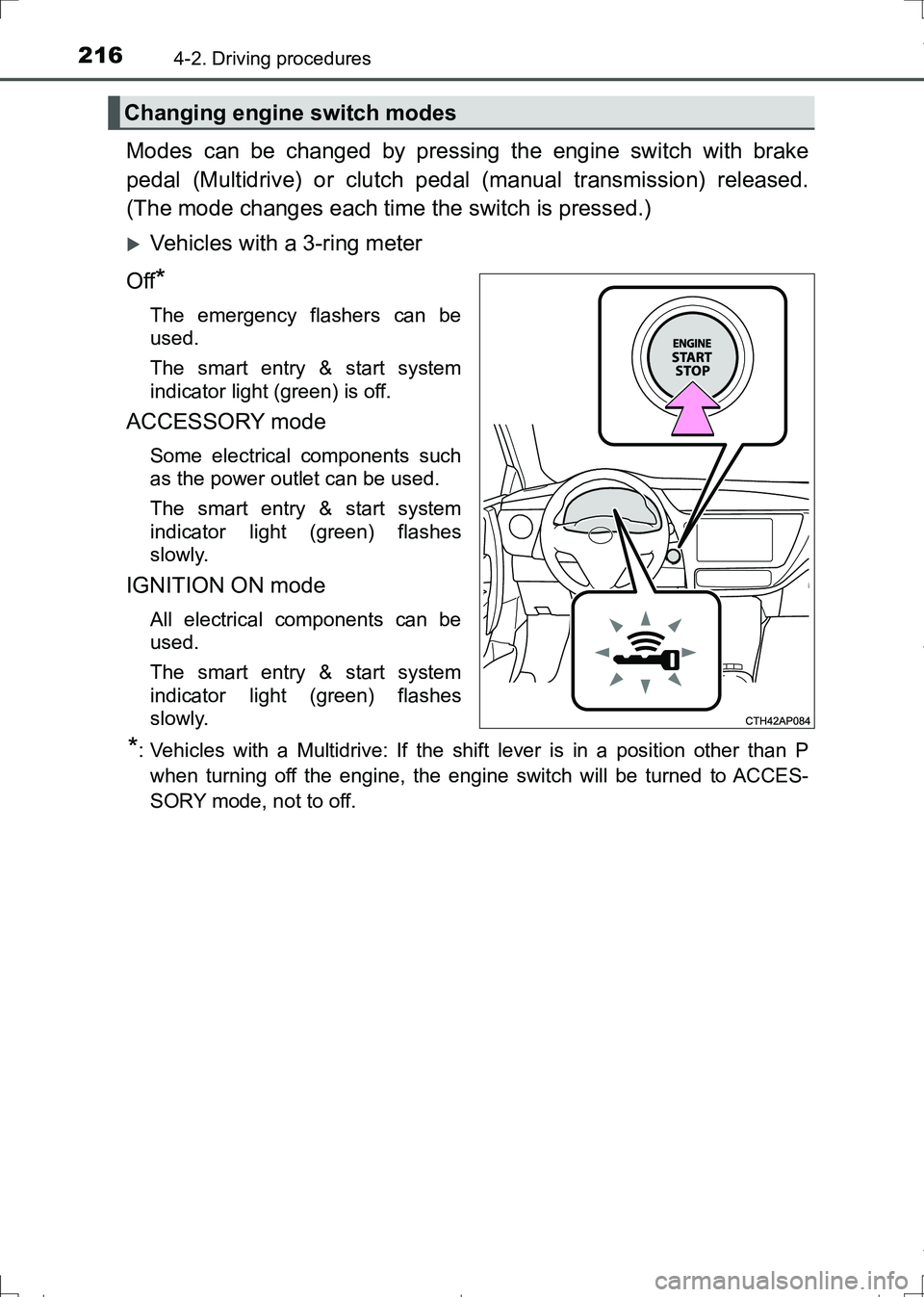

Modes can be changed by pressing the engine switch with brake
pedal (Multidrive) or clutch pedal (manual transmission) released.
(The mode changes each time the switch is pressed.)
Vehicles with a 3-ring meter
Off
*
The emergency flashers can be
used.
The smart entry & start system
indicator light (green) is off.
ACCESSORY mode
Some electrical components such
as the power outlet can be used.
The smart entry & start system
indicator light (green) flashes
slowly.
IGNITION ON mode
All electrical components can be
used.
The smart entry & start system
indicator light (green) flashes
slowly.
*: Vehicles with a Multidrive: If the shift lever is in a position other than P
when turning off the engine, the engine switch will be turned to ACCES-
SORY mode, not to off.
Changing engine switch modes
AURIS Touring Sports_OM_Europe_OM12L13E.book 216 ページ ２０１６年６月２７日　月曜日　午後５時２１分
