2017 TOYOTA AURIS TOURING SPORTS Owners Manual

1052. Instrument cluster
AURIS Touring Sports_EE (12L13E)
2
Instrument cluster
■Eco Driving Indicator (if equipped)
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch (if equipped) is operated.
●Sport mode is selected.
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
■Stop & Start system operation time pop-up display (if equipped)
When enabled (P. 104), the current Stop & Start system operation time will
be displayed on the multi-information display.
■Brightness of the meters
When the tail lights are turned on, the brightness will be reduced slightly
unless the meters are set to the maximum brightness level.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Average fuel consumption
●Driving range
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco driving, the right side of the
Eco Driving Indicator Zone Display blinks and the Eco Driving Indicator
light will turn off.
Zone of Eco driving
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 105 ページ ２０１６年６月２７日　月曜日　午後５時２１分

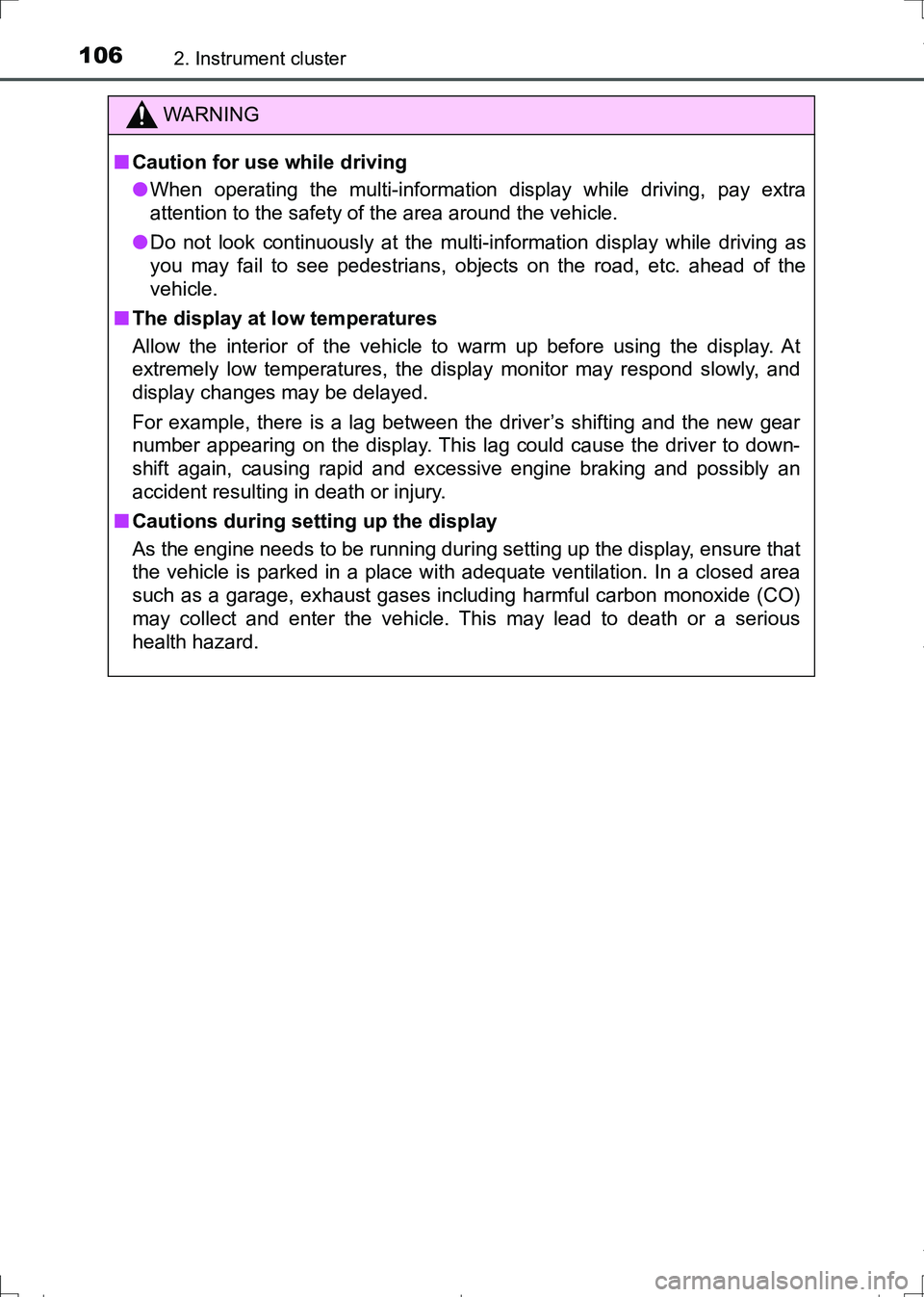

1062. Instrument cluster
AURIS Touring Sports_EE (12L13E)
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■The display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
AURIS Touring Sports_OM_Europe_OM12L13E.book 106 ページ ２０１６年６月２７日　月曜日　午後５時２１分

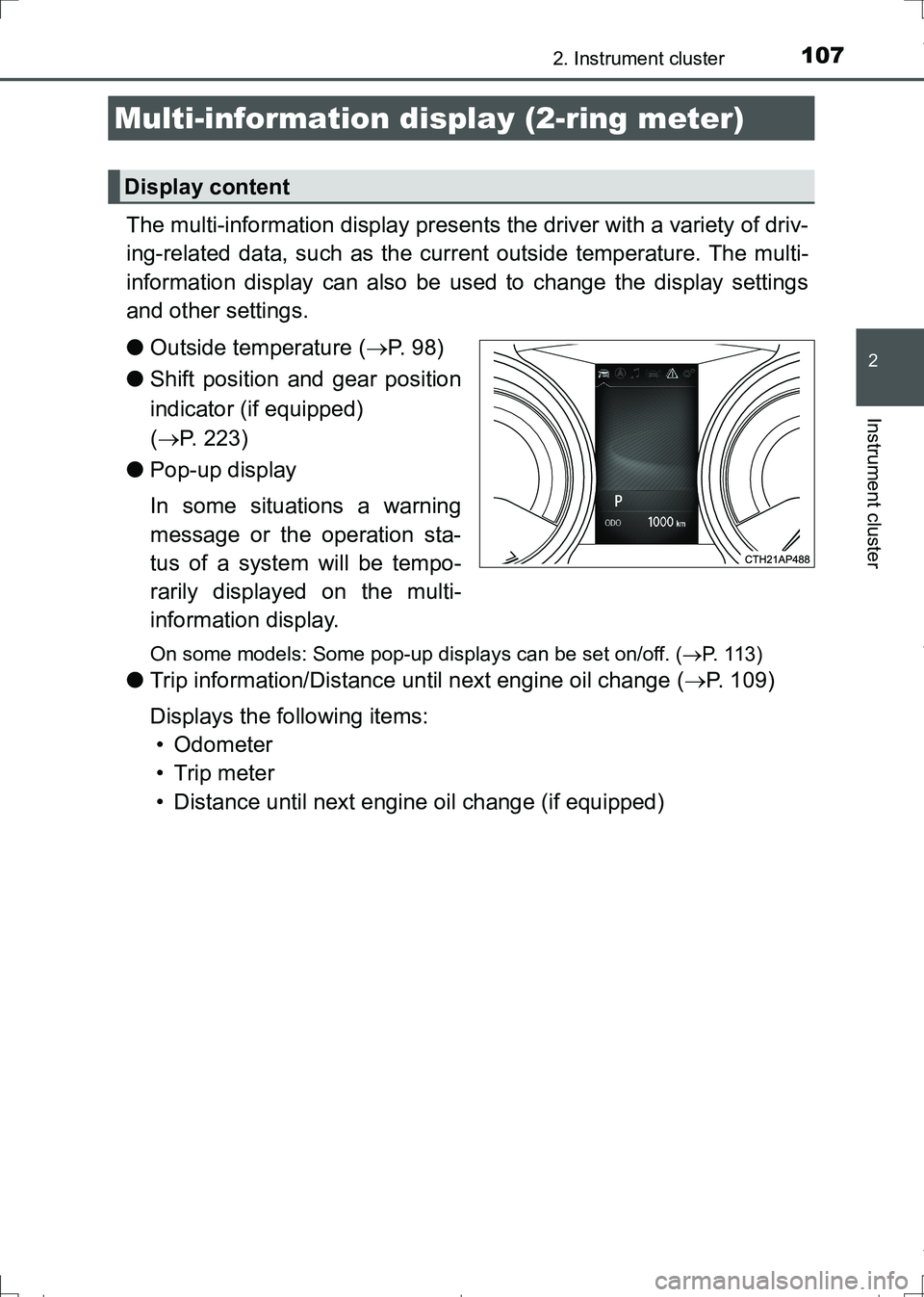

1072. Instrument cluster
AURIS Touring Sports_EE (12L13E)
2
Instrument cluster
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
●Outside temperature (P. 9 8 )
●Shift position and gear position
indicator (if equipped)
(P. 223)
●Pop-up display
In some situations a warning
message or the operation sta-
tus of a system will be tempo-
rarily displayed on the multi-
information display.
On some models: Some pop-up displays can be set on/off. (P. 113)
●Trip information/Distance until next engine oil change (P. 109)
Displays the following items:
•Odometer
•Trip meter
• Distance until next engine oil change (if equipped)
Multi-information display (2-ring meter)
Display content
AURIS Touring Sports_OM_Europe_OM12L13E.book 107 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1082. Instrument cluster
AURIS Touring Sports_EE (12L13E)
●Menu icons (P. 110)
Select a menu icon to display its content.
To display the menu icons, press the or switch on the
steering wheel.
Drive information (P. 1 1 1 )
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert) (P. 271)
• RSA (Road Sign Assist) (P. 280)
Warning message display (P. 557)
Select to display warning messages and measures to be taken if a
malfunction is detected.
Settings display (P. 1 1 3 )
Select to change the meter display settings and other settings.
AURIS Touring Sports_OM_Europe_OM12L13E.book 108 ページ ２０１６年６月２７日　月曜日　午後５時２１分

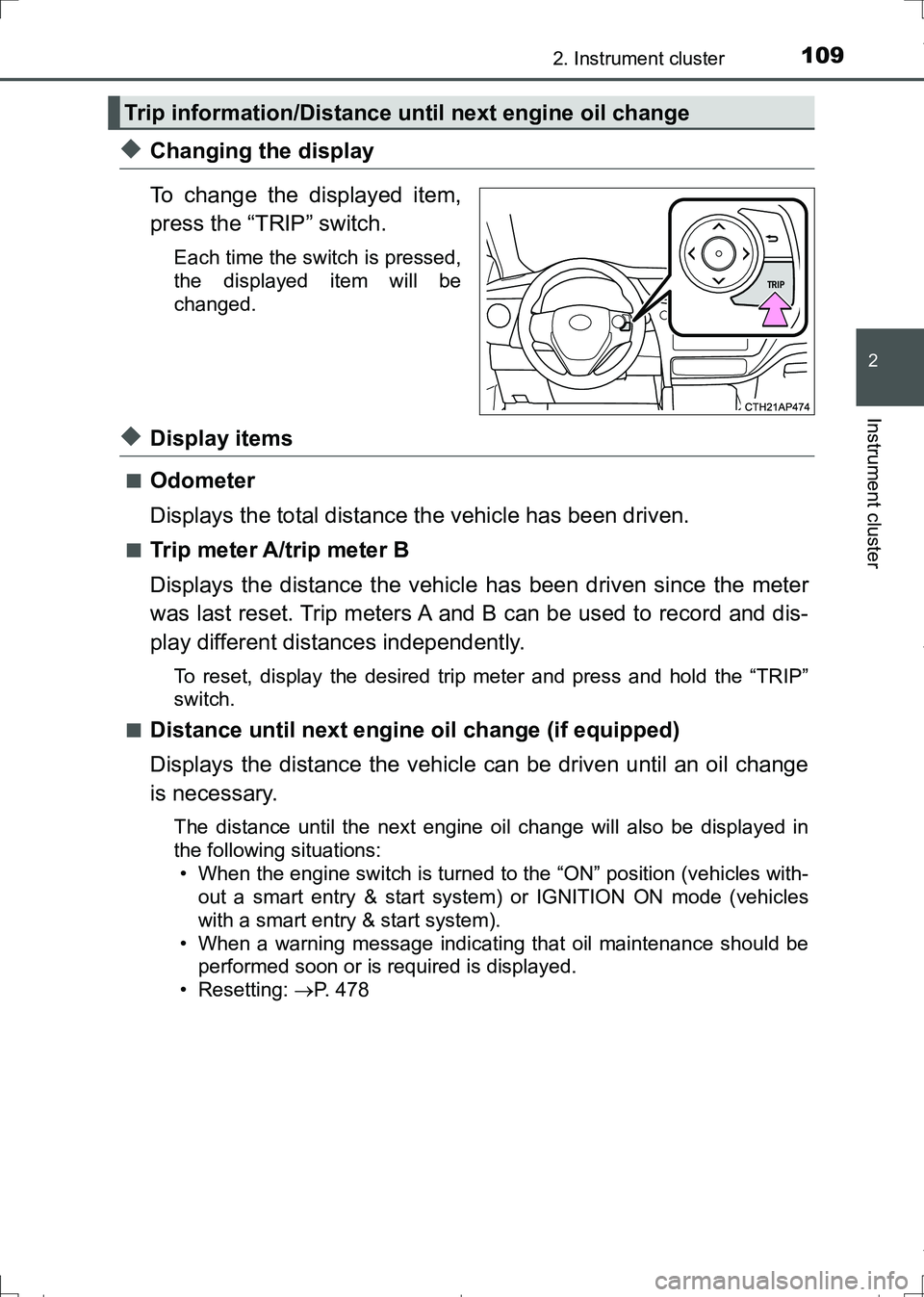

1092. Instrument cluster
AURIS Touring Sports_EE (12L13E)
2
Instrument cluster
◆Changing the display
To change the displayed item,
press the “TRIP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
■
Distance until next engine oil change (if equipped)
Displays the distance the vehicle can be driven until an oil change
is necessary.
The distance until the next engine oil change will also be displayed in
the following situations:
• When the engine switch is turned to the “ON” position (vehicles with-
out a smart entry & start system) or IGNITION ON mode (vehicles
with a smart entry & start system).
• When a warning message indicating that oil maintenance should be
performed soon or is required is displayed.
• Resetting: P. 478
Trip information/Distance until next engine oil change
AURIS Touring Sports_OM_Europe_OM12L13E.book 109 ページ ２０１６年６月２７日　月曜日　午後５時２１分

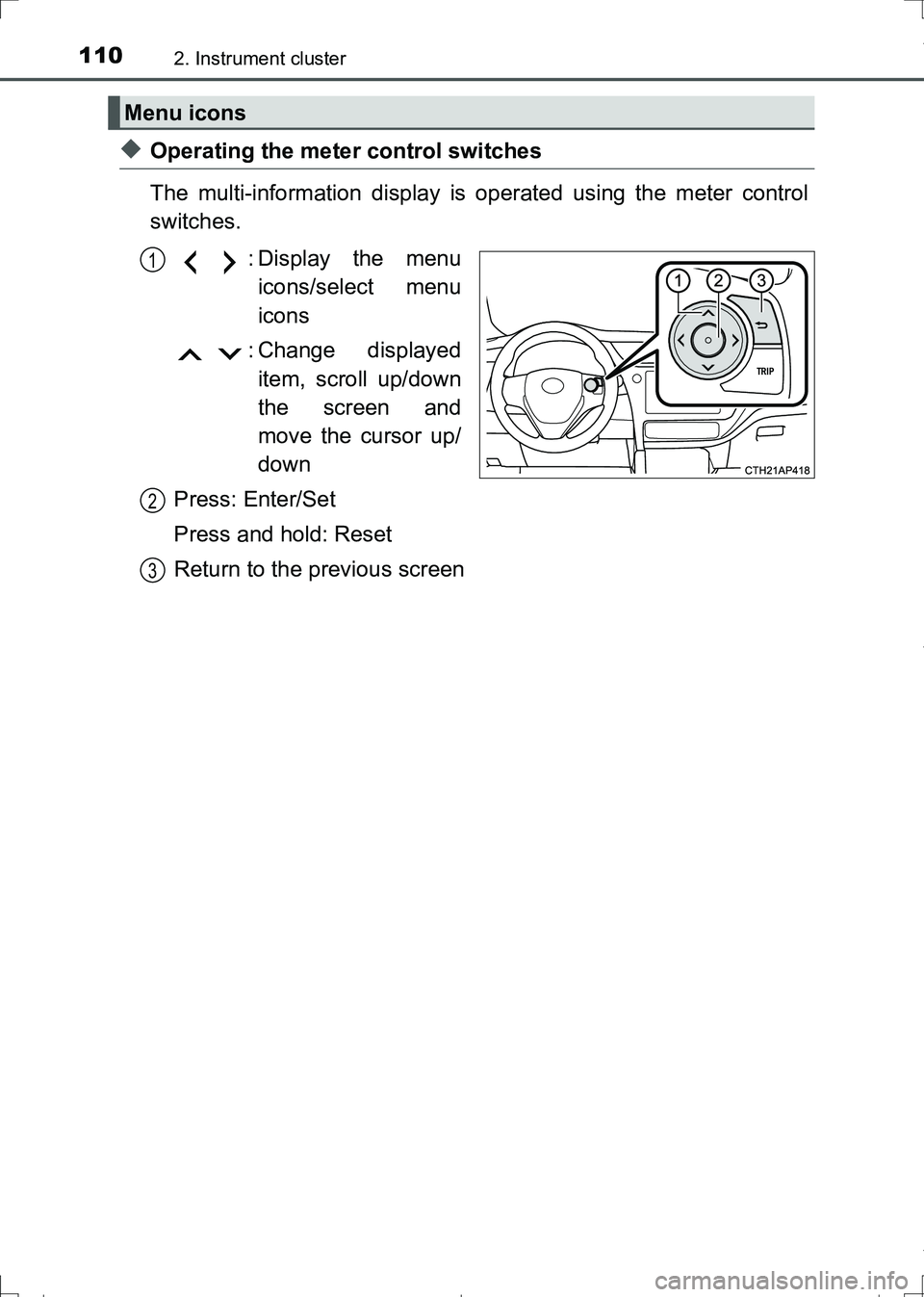

1102. Instrument cluster
AURIS Touring Sports_EE (12L13E)
◆Operating the meter control switches
The multi-information display is operated using the meter control
switches.
: Display the menu
icons/select menu
icons
: Change displayed
item, scroll up/down
the screen and
move the cursor up/
down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Menu icons
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 110 ページ ２０１６年６月２７日　月曜日　午後５時２１分

1112. Instrument cluster
AURIS Touring Sports_EE (12L13E)
2
Instrument cluster
◆Drive information
■Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following:
●Drive information 1
• Current fuel consumption (gauge display)
• Average fuel economy (after reset)
●Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
●Drive information 3 (if equipped)
• Stop & Start system operation time (after start)
• Stop & Start system operation time (after reset)
Displayed items (listed below) can be changed on the settings dis-
play. (P. 113)
ItemContent
Current fuel con-
sumption
(gauge display)Displays the current rate of fuel consump-
tion on a gauge display
Current fuel con-
sumption
(numeric display)Displays the current rate of fuel consump-
tion as a number
Average fuel
economy
(after reset)Displays average fuel consumption since
display reset
*2, 3
Average fuel
economy
(after start)Displays average fuel consumption since
engine start
*3
Average fuel
economy
(after refuel)Displays average fuel consumption since
refuel
*3, 4
Stop & Start sys-
tem operation time
(after reset)
*1
Displays the total amount of time the engine
has been stopped due to the operation of
the Stop & Start system since the system
was last reset
*2
Stop & Start sys-
tem operation time
(after start)
*1
Displays the amount of time the engine has
been stopped due to the operation of the
Stop & Start system since the engine was
started
AURIS Touring Sports_OM_Europe_OM12L13E.book 111 ページ ２０１６年６月２７日　月曜日　午後５時２１分

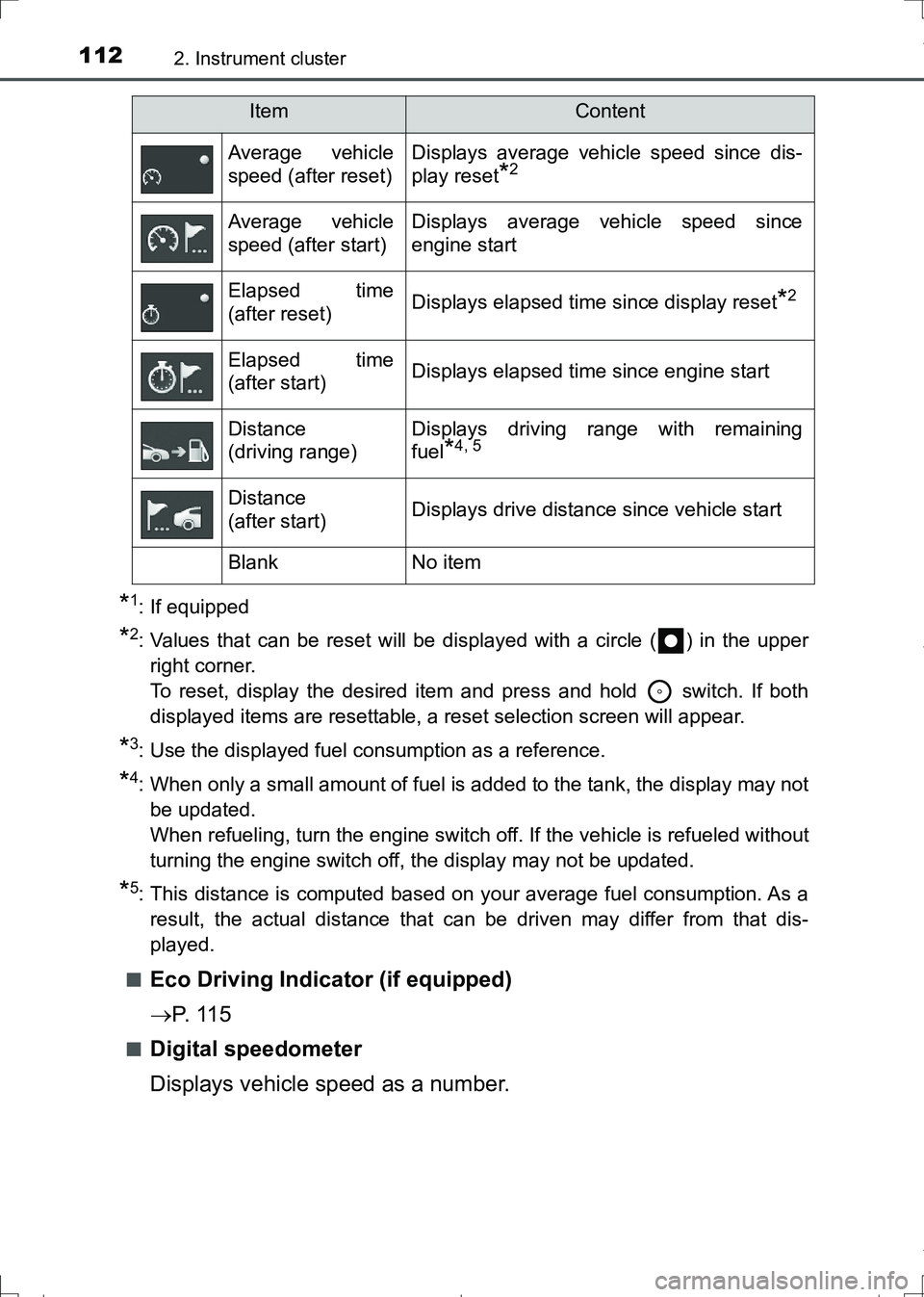

1122. Instrument cluster
AURIS Touring Sports_EE (12L13E)
*1: If equipped
*2: Values that can be reset will be displayed with a circle ( ) in the upper
right corner.
To reset, display the desired item and press and hold switch. If both
displayed items are resettable, a reset selection screen will appear.
*3: Use the displayed fuel consumption as a reference.
*4: When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without
turning the engine switch off, the display may not be updated.
*5: This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that dis-
played.
■
Eco Driving Indicator (if equipped)
P. 1 1 5
■Digital speedometer
Displays vehicle speed as a number.
Average vehicle
speed (after reset)Displays average vehicle speed since dis-
play reset
*2
Average vehicle
speed (after start)Displays average vehicle speed since
engine start
Elapsed time
(after reset)Displays elapsed time since display reset*2
Elapsed time
(after start)Displays elapsed time since engine start
Distance
(driving range)Displays driving range with remaining
fuel
*4, 5
Distance
(after start)Displays drive distance since vehicle start
BlankNo item
ItemContent
AURIS Touring Sports_OM_Europe_OM12L13E.book 112 ページ ２０１６年６月２７日　月曜日　午後５時２１分
