■Before repairing the tire
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P (Multidrive) or N (manual transmission).
●Stop the engine.
●Turn on the emergency flashers. (P. 534)
●Check the degree of the tire
damage.
Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and prevent emer-
gency repair with the repair
kit.
■A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
●When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
●When the sealant has expired
AURIS Touring Sports_OM_Europe_OM12L13E.book 577 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5788-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)■
Location of the emergency tire puncture repair kit
*: Use of the wheel cap clip (if equipped) (P. 507)
Emergency tire puncture
repair kit
Towing eyeletWheel cap clip*1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 578 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5798-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

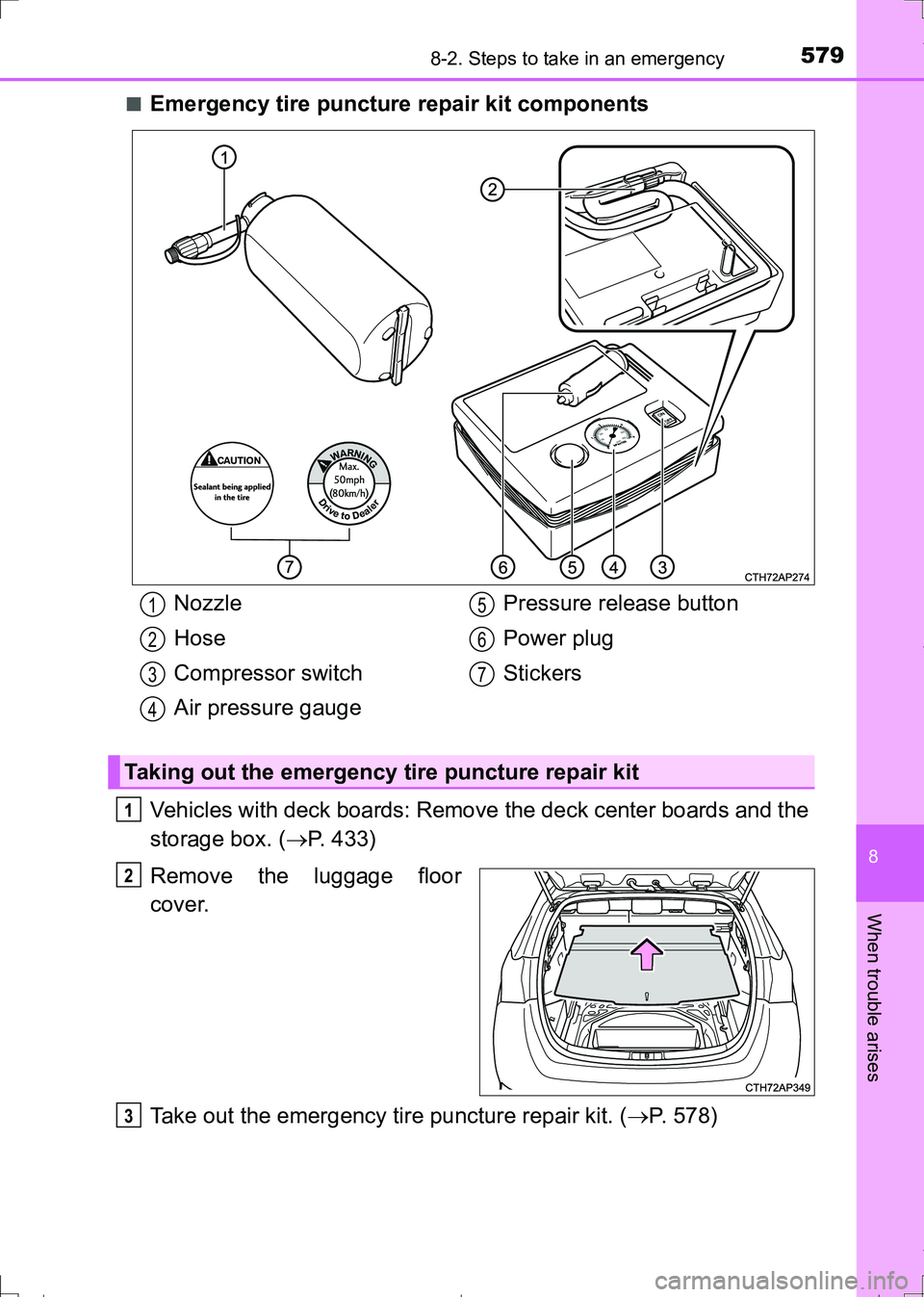

■Emergency tire puncture repair kit components
Vehicles with deck boards: Remove the deck center boards and the
storage box. (P. 433)
Remove the luggage floor
cover.
Take out the emergency tire puncture repair kit. (P. 578)
Nozzle
Hose
Compressor switch
Air pressure gaugePressure release button
Power plug
Stickers1
2
3
4
5
6
7
Taking out the emergency tire puncture repair kit
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 579 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5808-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
Take out the repair kit.
When taking out the bottle from the original bag, do not tear or discard the
bag.

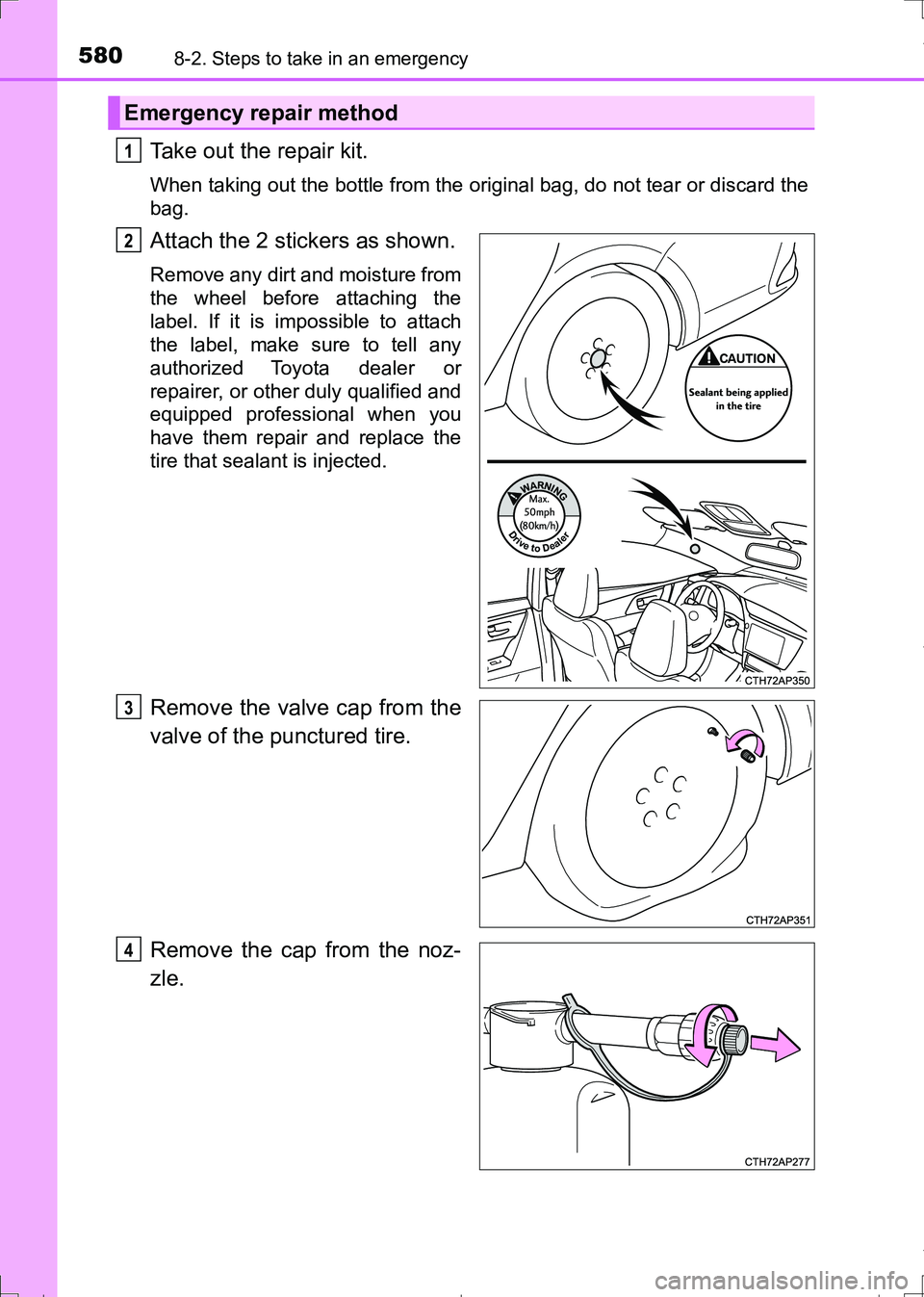

Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.
Emergency repair method
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 580 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5818-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

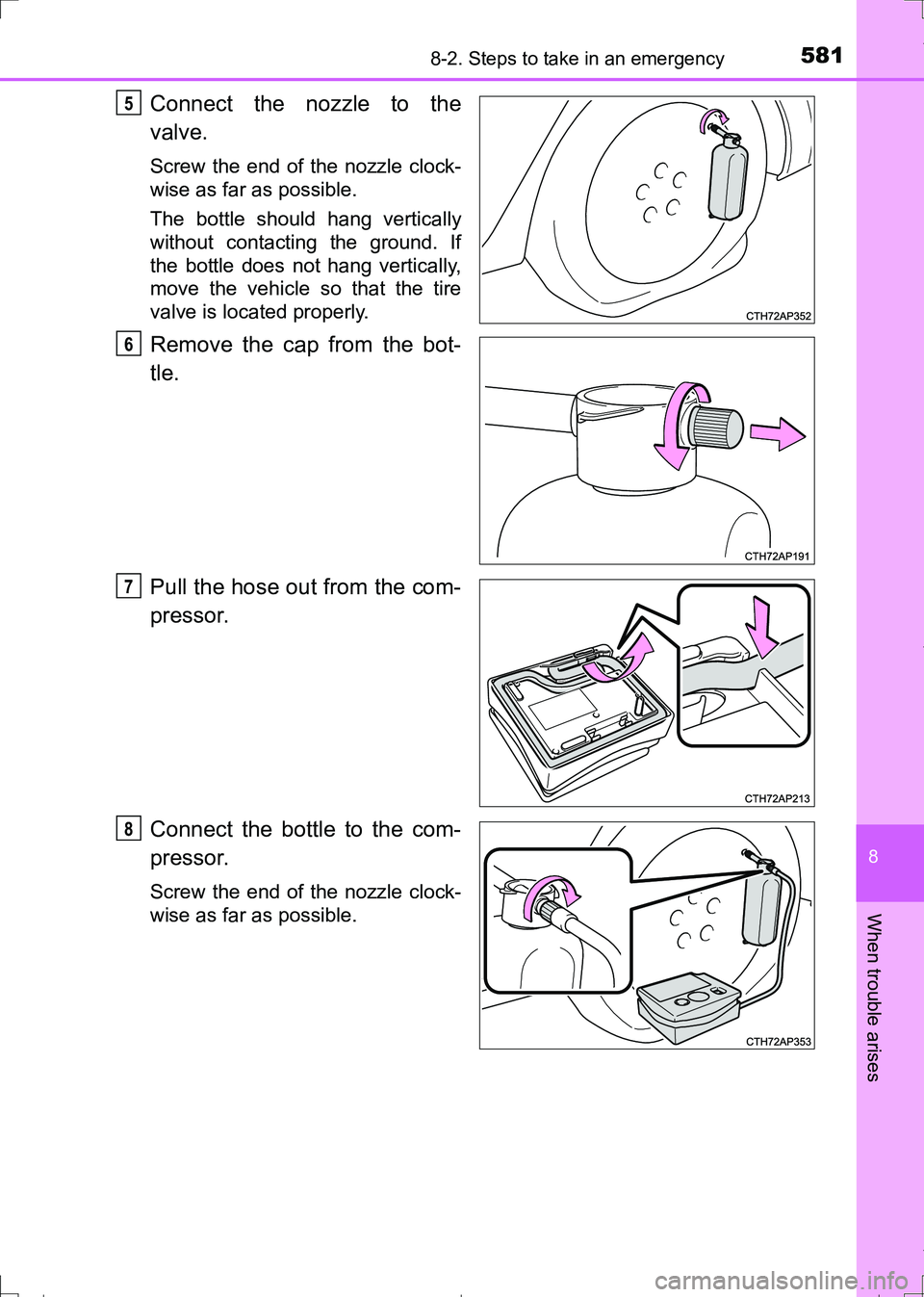

Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
5
6
7
8
AURIS Touring Sports_OM_Europe_OM12L13E.book 581 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5828-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

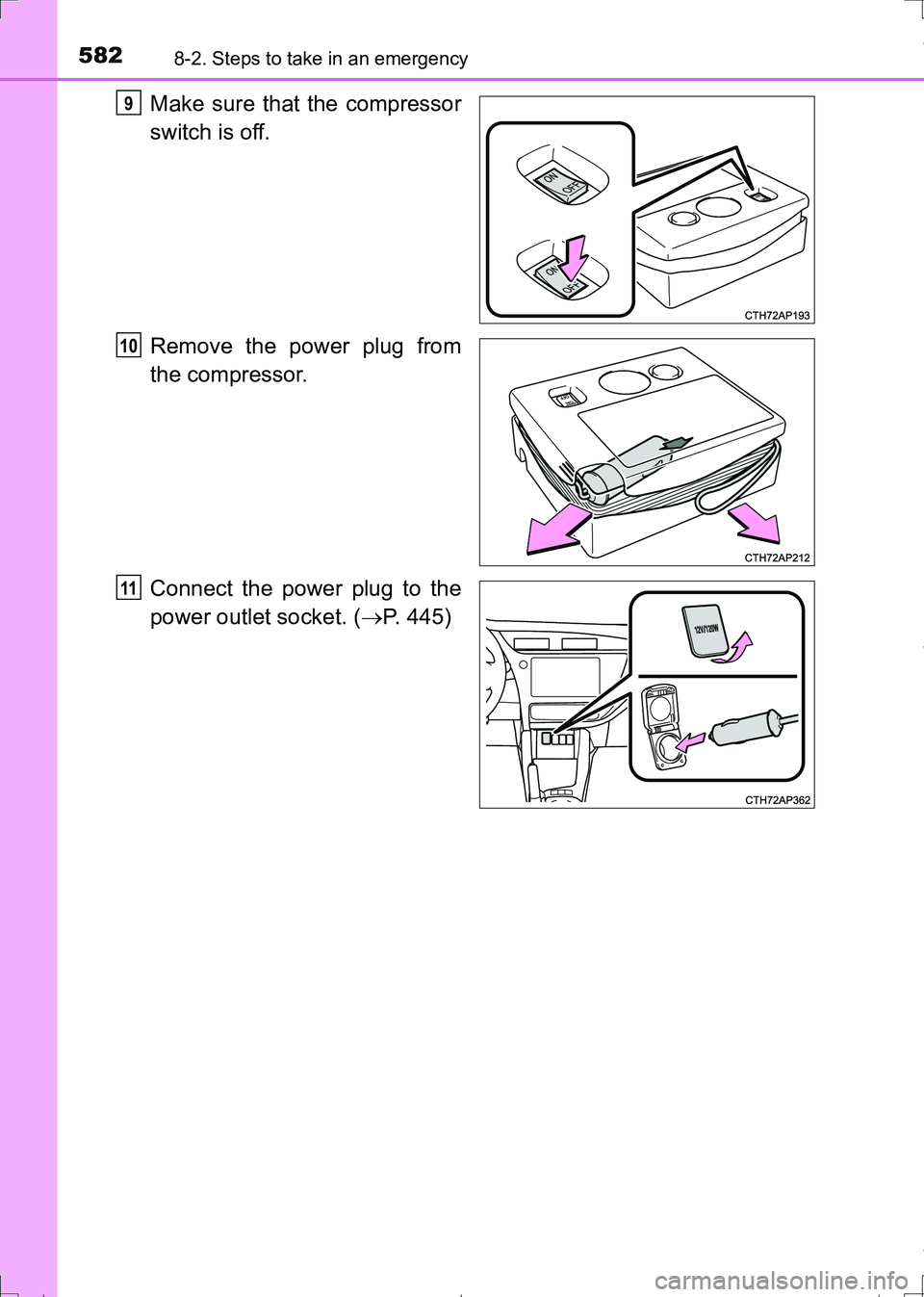

Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. (P. 445)9
10
11
AURIS Touring Sports_OM_Europe_OM12L13E.book 582 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5838-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 630)
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
12
Left-hand drive vehiclesRight-hand drive vehicles
13
14
AURIS Touring Sports_OM_Europe_OM12L13E.book 583 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5848-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

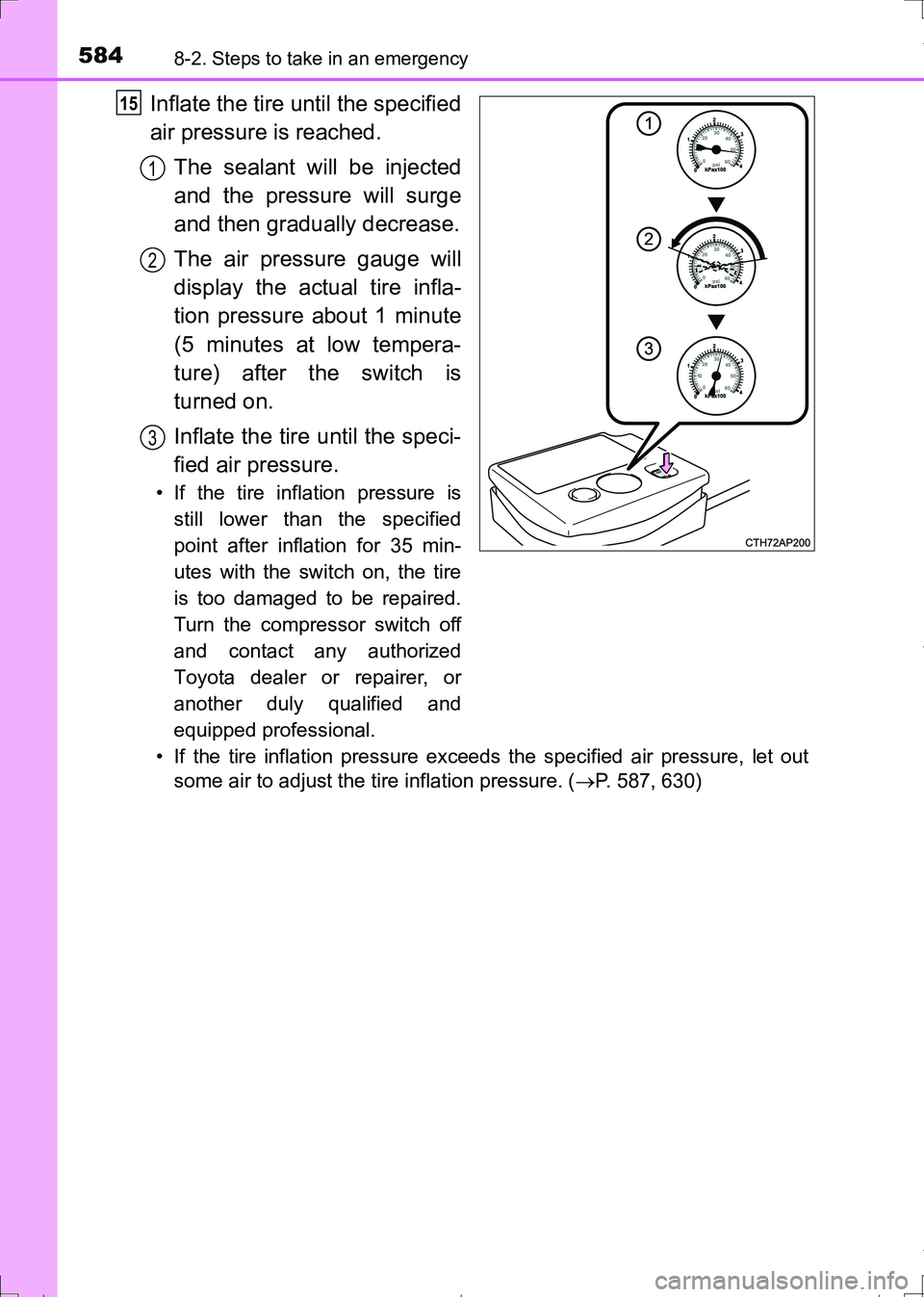

Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out
some air to adjust the tire inflation pressure. (P. 587, 630)
