2017 TOYOTA AURIS TOURING SPORTS Owners Manual

425
AURIS Touring Sports_EE (12L13E)
6
Interior features

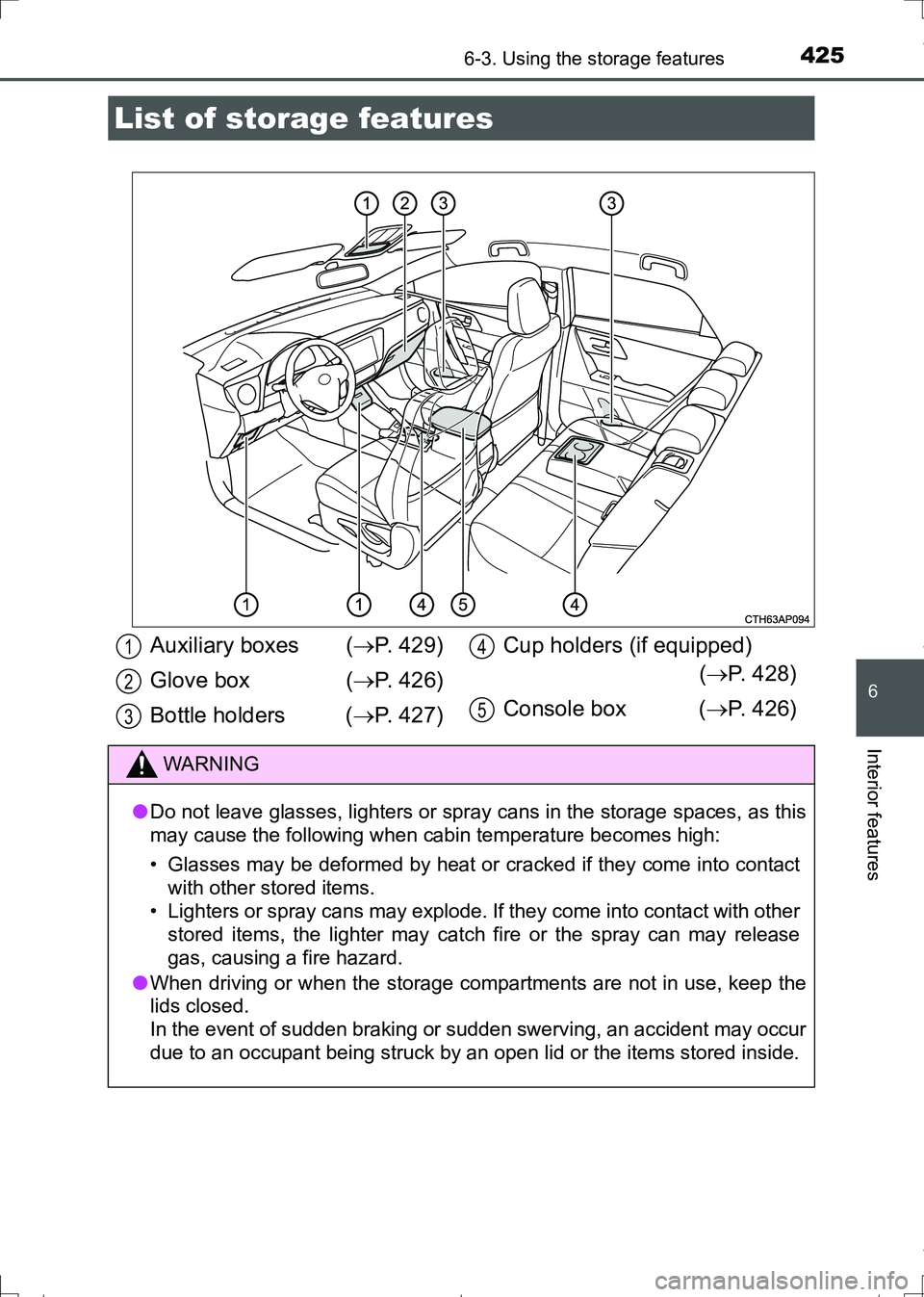

6-3. Using the storage features
List of storage features
Auxiliary boxes (P. 429)
Glove box (P. 426)
Bottle holders (P. 427)Cup holders (if equipped)
(P. 428)
Console box (P. 426)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
●When driving or when the storage compartments are not in use, keep the
lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 425 ページ ２０１６年６月２７日　月曜日　午後５時２１分

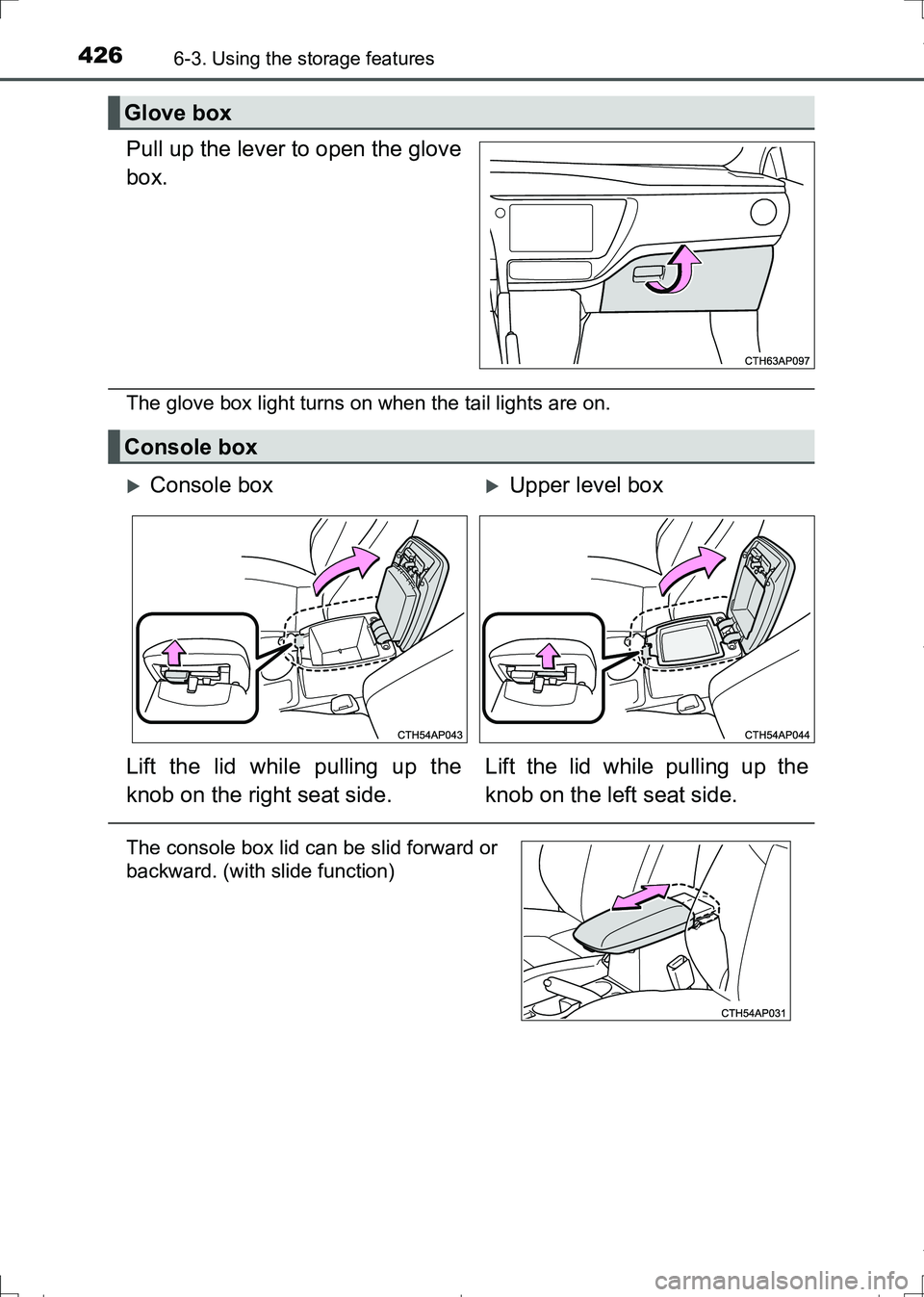

4266-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
Pull up the lever to open the glove
box.
The glove box light turns on when the tail lights are on.
Glove box
Console box
Console boxUpper level box
Lift the lid while pulling up the
knob on the right seat side.Lift the lid while pulling up the
knob on the left seat side.
The console box lid can be slid forward or
backward. (with slide function)
AURIS Touring Sports_OM_Europe_OM12L13E.book 426 ページ ２０１６年６月２７日　月曜日　午後５時２１分

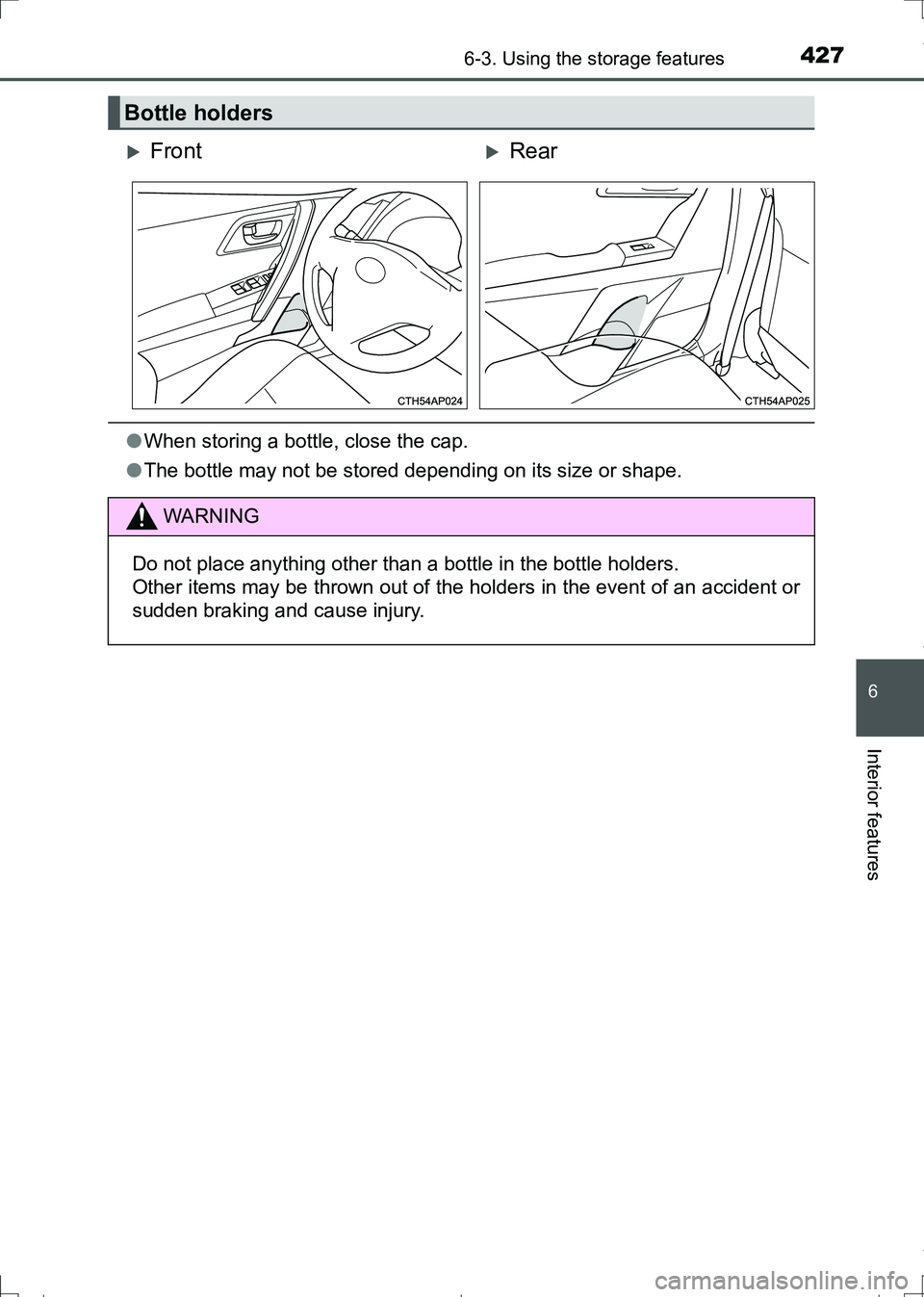

4276-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features
●When storing a bottle, close the cap.
●The bottle may not be stored depending on its size or shape.
Bottle holders
FrontRear
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
AURIS Touring Sports_OM_Europe_OM12L13E.book 427 ページ ２０１６年６月２７日　月曜日　午後５時２１分

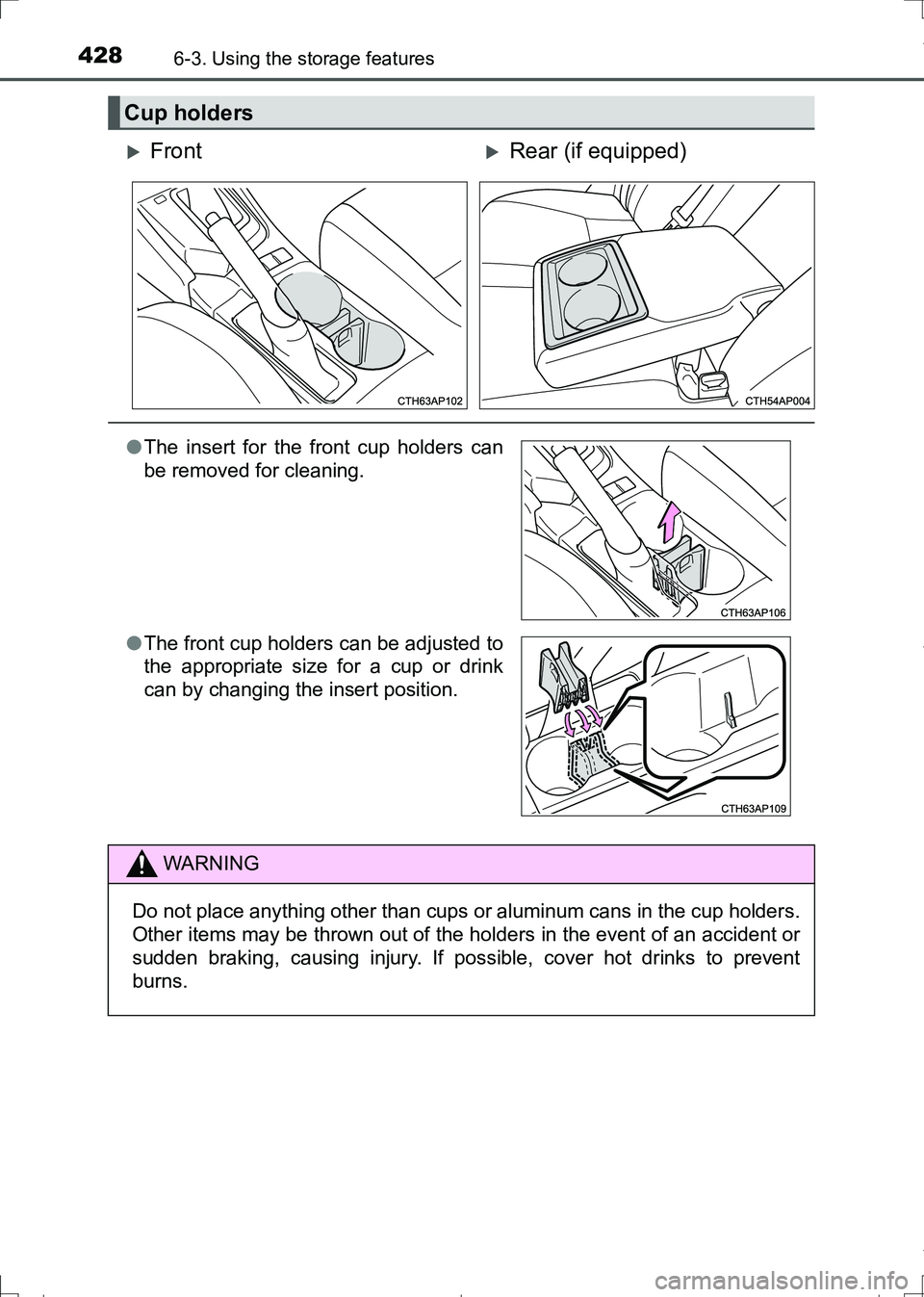

4286-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
Cup holders
FrontRear (if equipped)
●The insert for the front cup holders can
be removed for cleaning.
●The front cup holders can be adjusted to
the appropriate size for a cup or drink
can by changing the insert position.
WARNING
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
AURIS Touring Sports_OM_Europe_OM12L13E.book 428 ページ ２０１６年６月２７日　月曜日　午後５時２１分

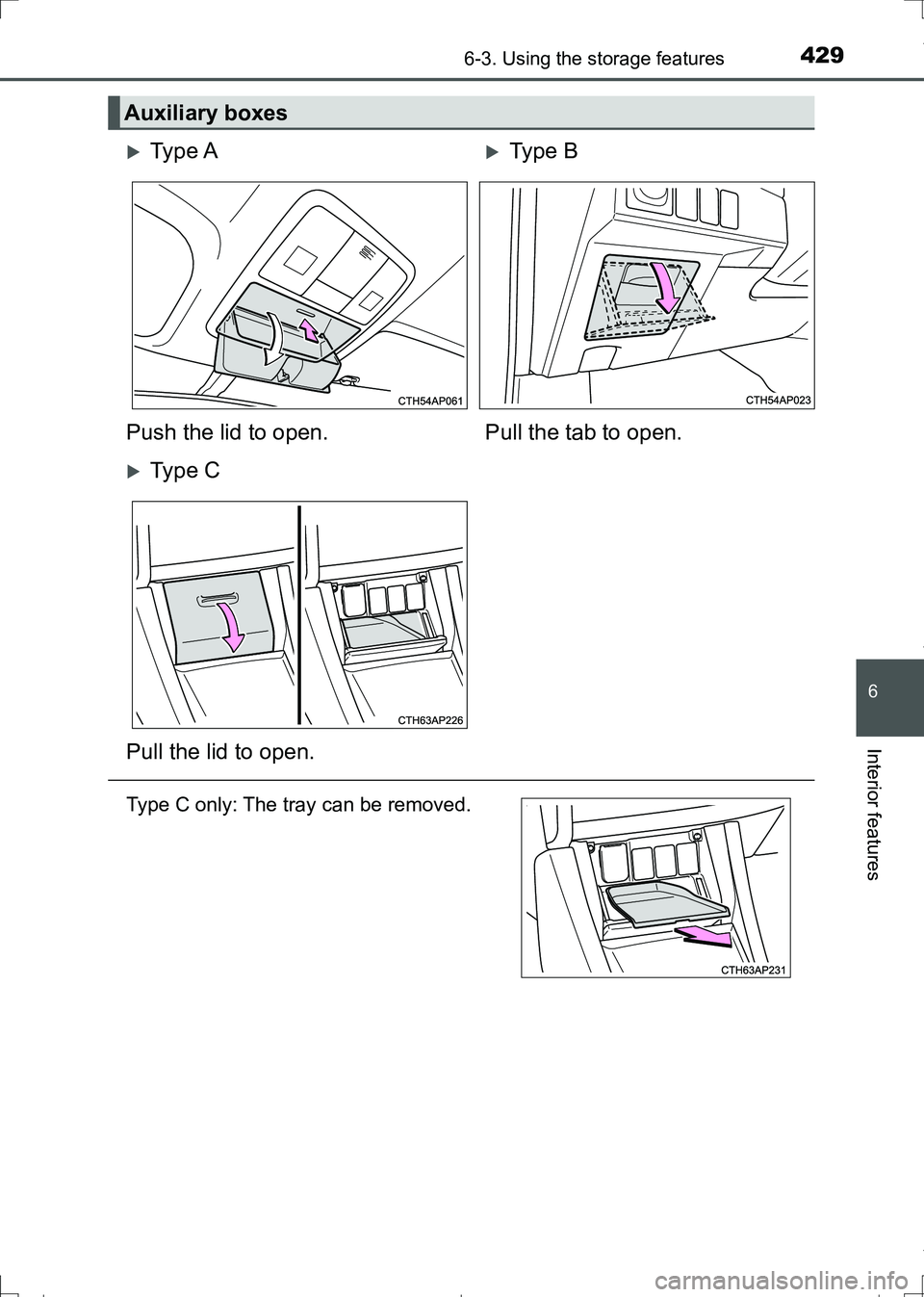

4296-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features
Auxiliary boxes
Ty p e AType B
Push the lid to open. Pull the tab to open.
Ty p e C
Pull the lid to open.
Type C only: The tray can be removed.
AURIS Touring Sports_OM_Europe_OM12L13E.book 429 ページ ２０１６年６月２７日　月曜日　午後５時２１分

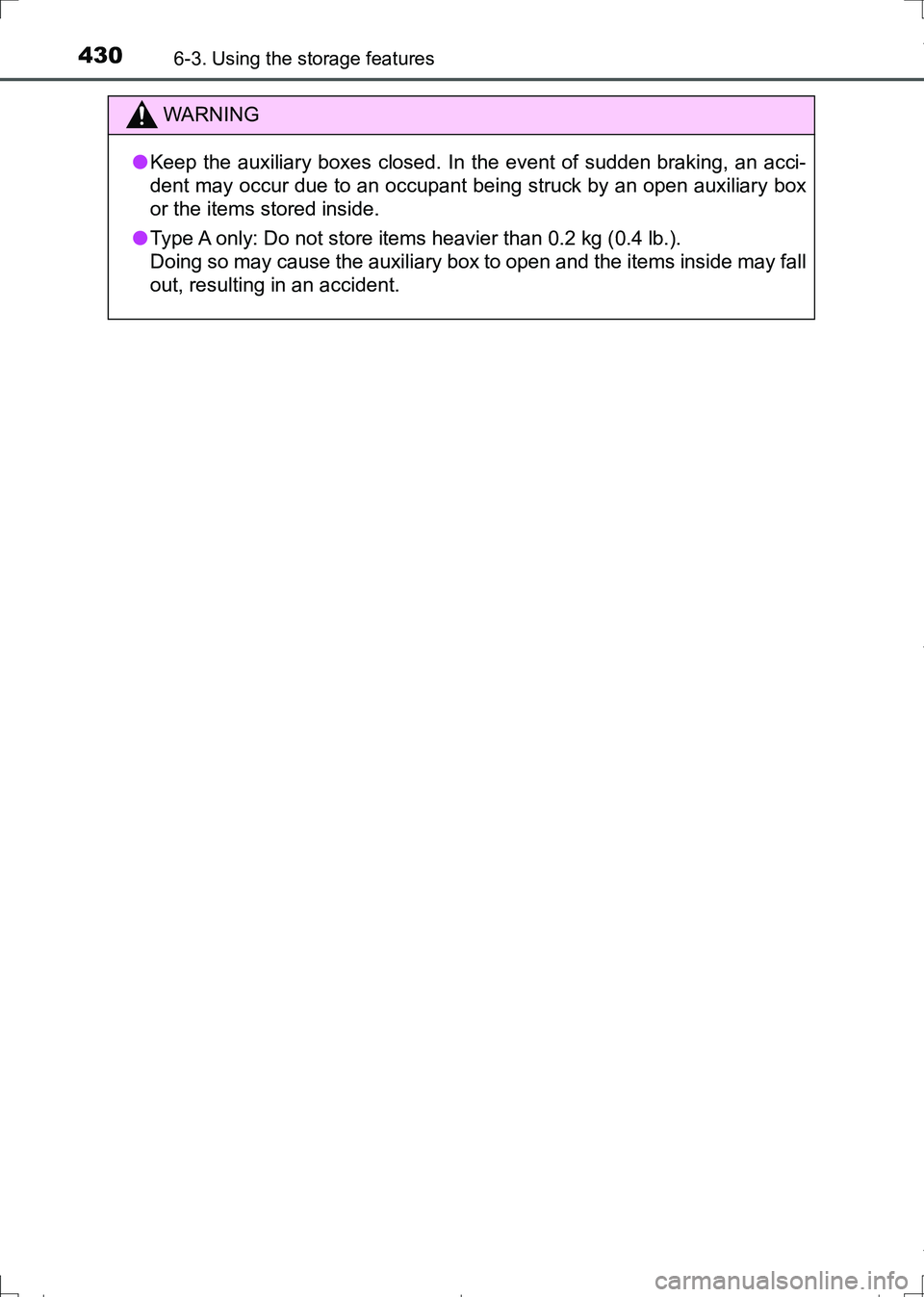

4306-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
WARNING
●Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box
or the items stored inside.
●Type A only: Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
AURIS Touring Sports_OM_Europe_OM12L13E.book 430 ページ ２０１６年６月２７日　月曜日　午後５時２１分

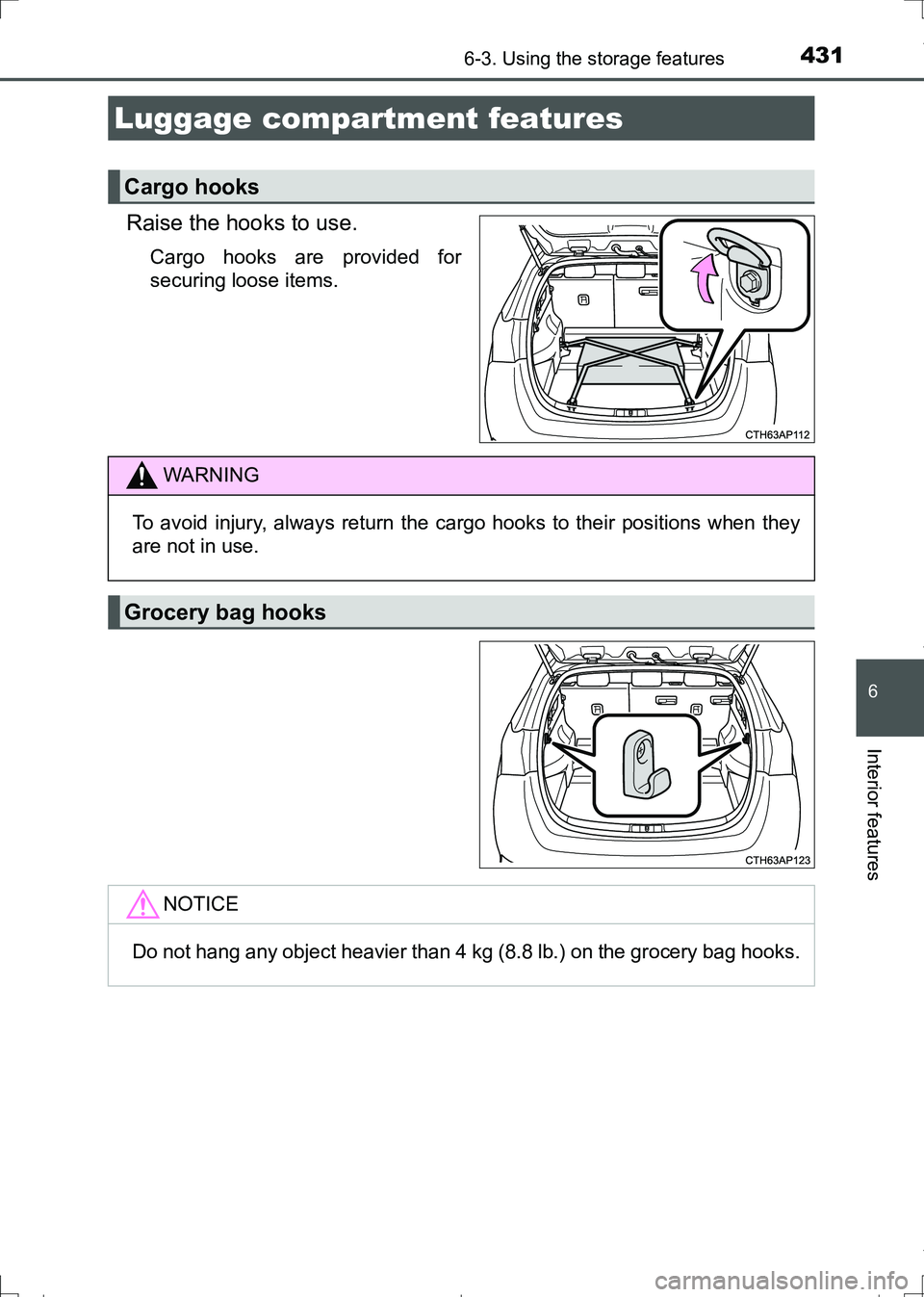

4316-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features
Raise the hooks to use.
Cargo hooks are provided for
securing loose items.
Luggage compartment features
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.
AURIS Touring Sports_OM_Europe_OM12L13E.book 431 ページ ２０１６年６月２７日　月曜日　午後５時２１分

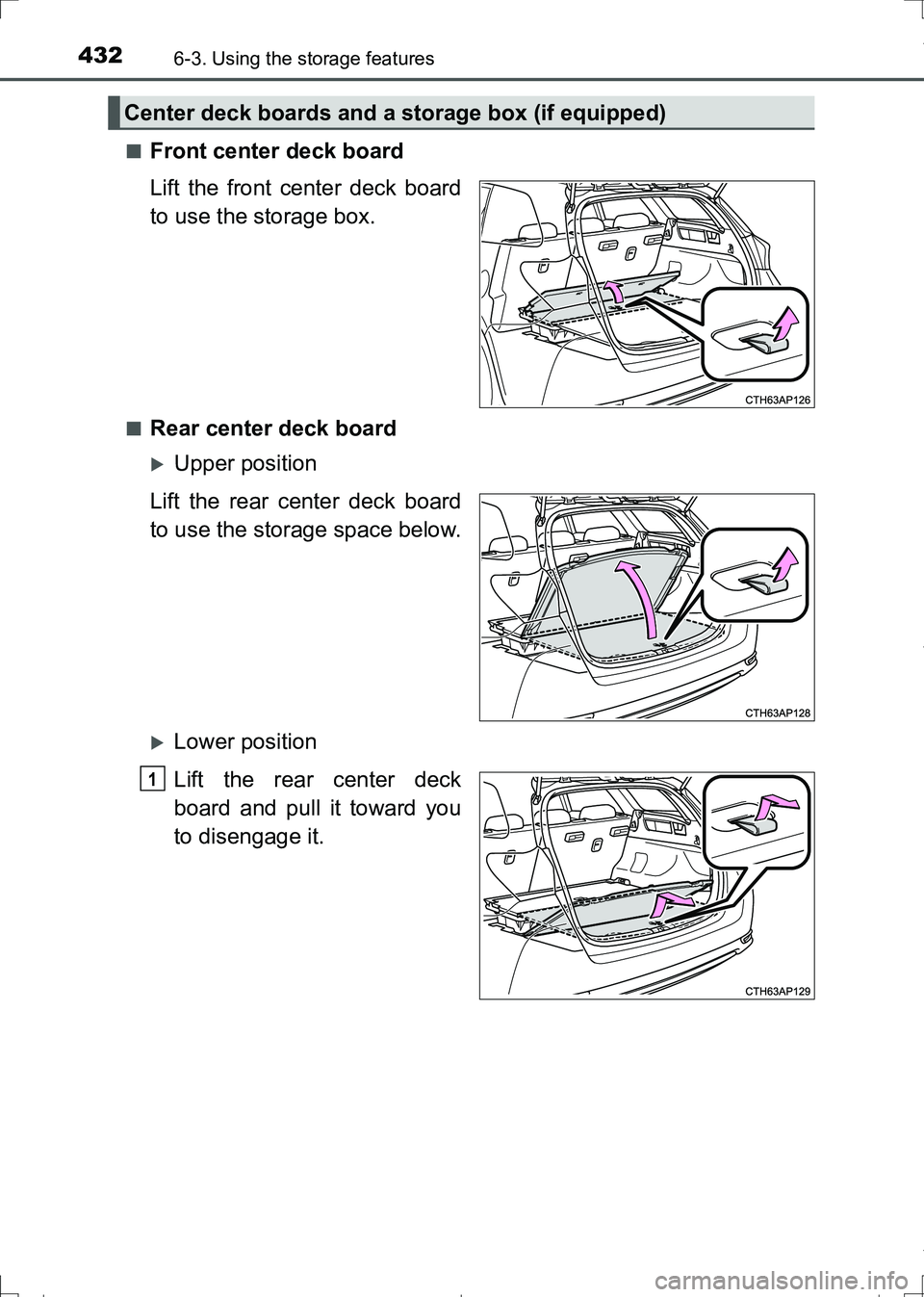

4326-3. Using the storage features
AURIS Touring Sports_EE (12L13E)■
Front center deck board
Lift the front center deck board
to use the storage box.
■Rear center deck board
Upper position
Lift the rear center deck board
to use the storage space below.
Lower position
Lift the rear center deck
board and pull it toward you
to disengage it.
Center deck boards and a storage box (if equipped)
1
