891-2. Theft deterrent system
1
For safety and security

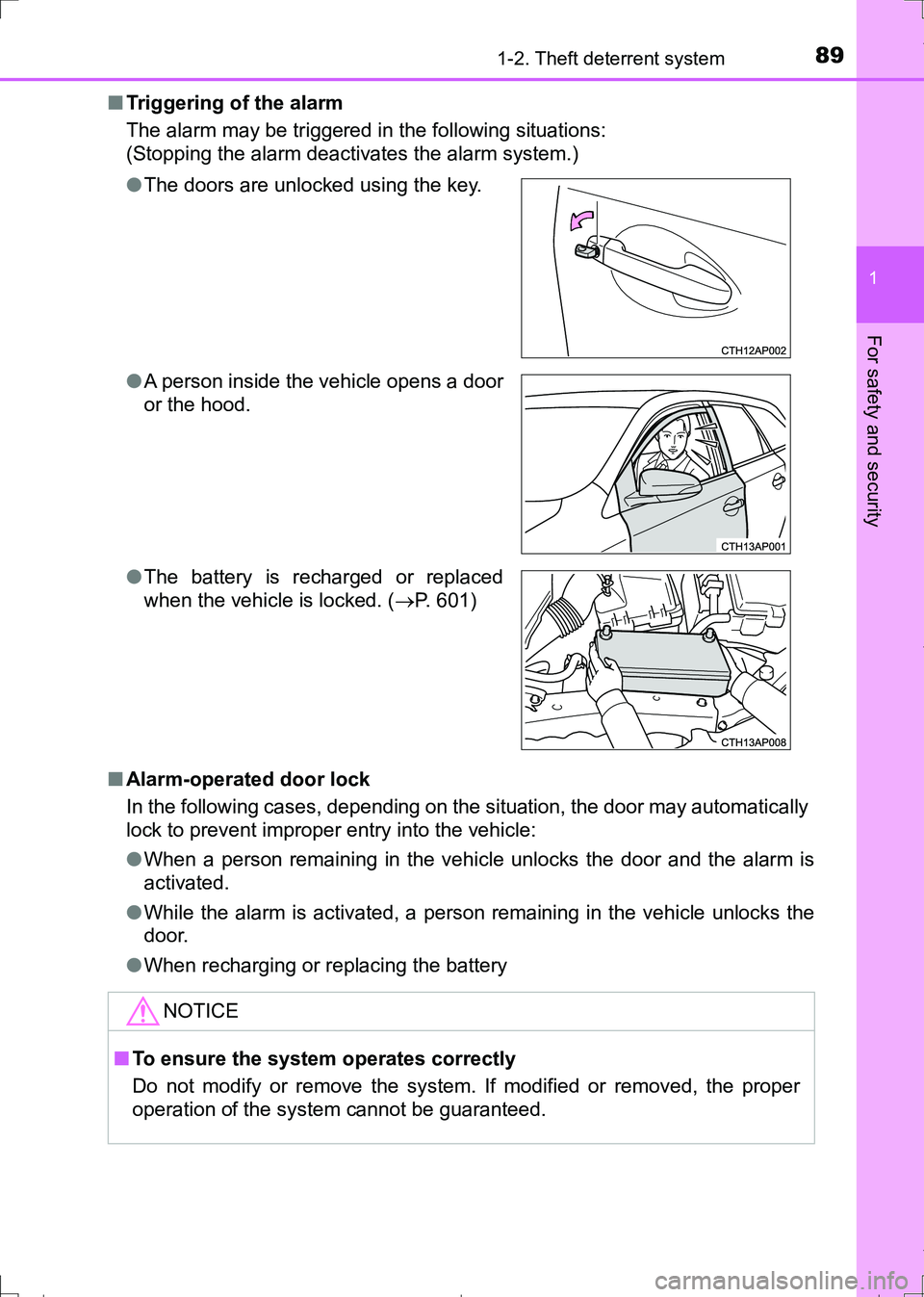

AURIS Touring Sports_EE (12L13E)■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
●When a person remaining in the vehicle unlocks the door and the alarm is
activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the
door.
●When recharging or replacing the battery ●The doors are unlocked using the key.
●A person inside the vehicle opens a door
or the hood.
●The battery is recharged or replaced
when the vehicle is locked. (P. 601)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
AURIS Touring Sports_OM_Europe_OM12L13E.book 89 ページ ２０１６年６月２７日　月曜日　午後５時２１分

901-2. Theft deterrent system
AURIS Touring Sports_EE (12L13E)
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function (if equipped): Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system (right-hand drive
vehicles only)
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
WARNING
■Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 90 ページ ２０１６年６月２７日　月曜日　午後５時２１分

91
2Instrument cluster
AURIS Touring Sports_EE (12L13E)2. Instrument cluster

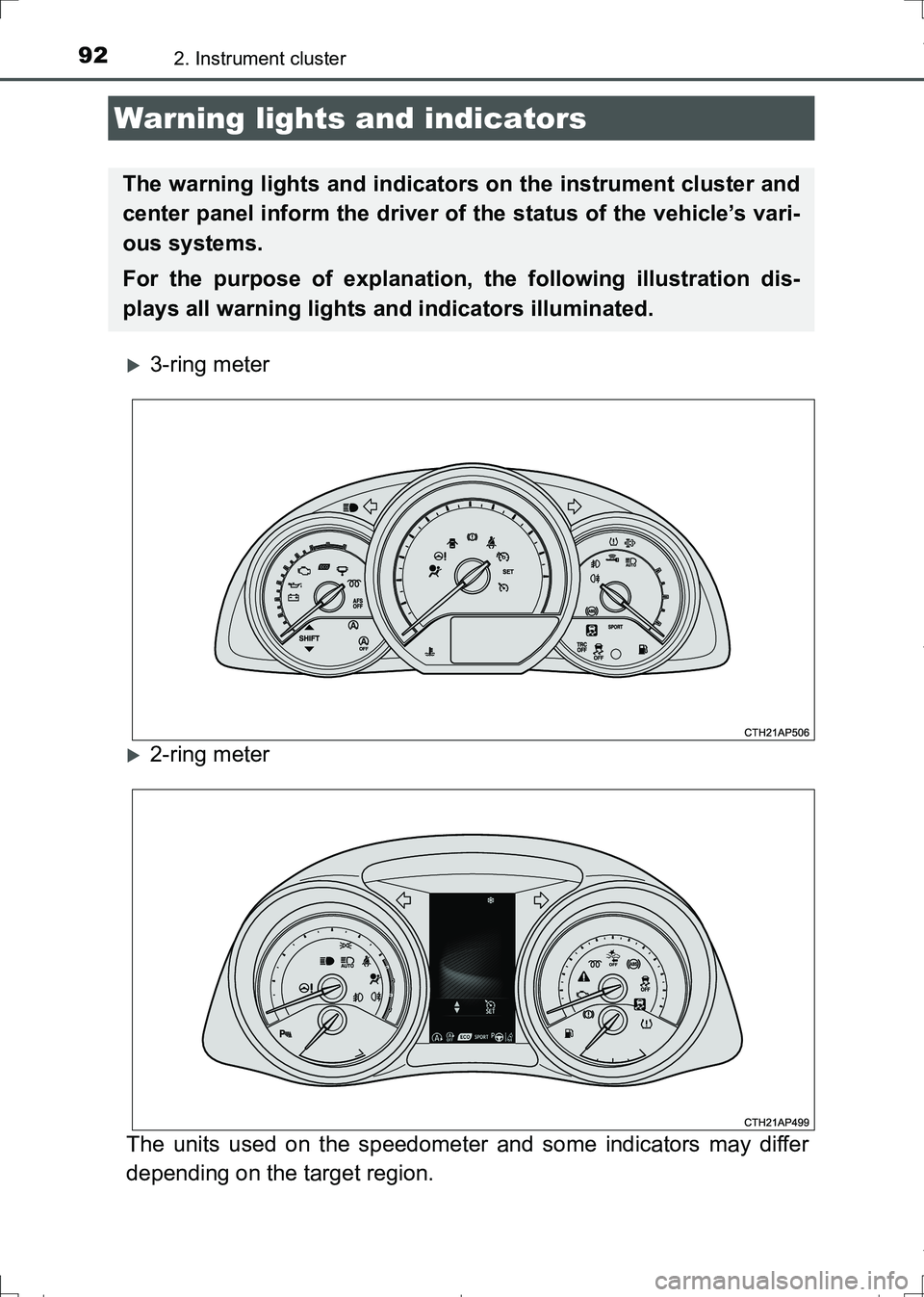

Warning lights and
indicators ........................... 92
Gauges and meters ............. 98
Multi-information display
(3-ring meter) ................... 101
Multi-information display
(2-ring meter) ................... 107
Fuel consumption
