2017 TOYOTA AURIS TOURING SPORTS Owners Manual

345
AURIS Touring Sports_EE (12L13E)
5

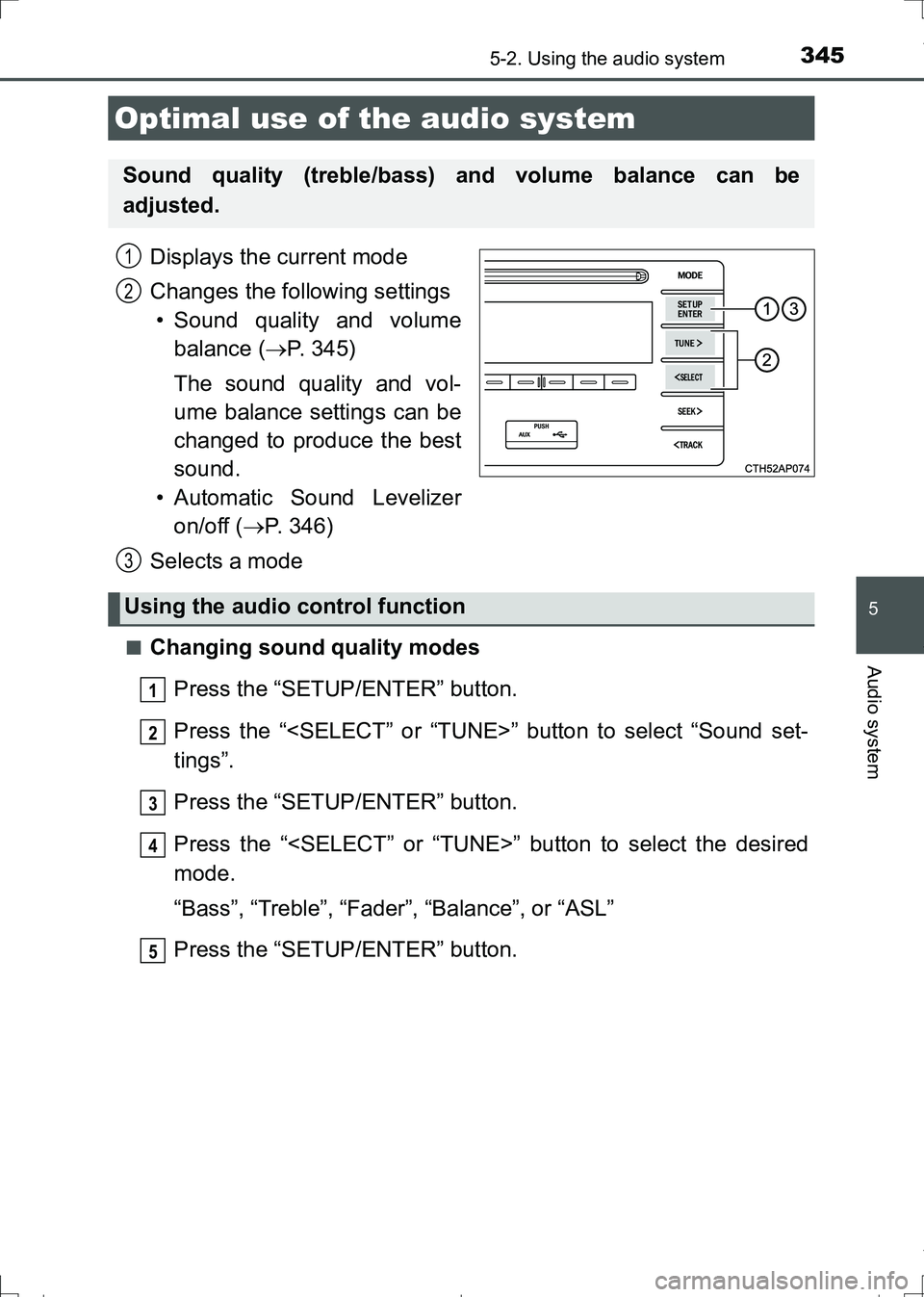

Audio system
5-2. Using the audio system
Displays the current mode
Changes the following settings
• Sound quality and volume
balance (P. 345)
The sound quality and vol-
ume balance settings can be
changed to produce the best
sound.
• Automatic Sound Levelizer
on/off (P. 346)
Selects a mode
■Changing sound quality modes
Press the “SETUP/ENTER” button.
Press the “” button to select “Sound set-
tings”.
Press the “SETUP/ENTER” button.
Press the “” button to select the desired
mode.
“Bass”, “Treble”, “Fader”, “Balance”, or “ASL”
Press the “SETUP/ENTER” button.
Optimal use of the audio system
Sound quality (treble/bass) and volume balance can be
adjusted.
1
2
3
Using the audio control function
1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 345 ページ ２０１６年６月２７日　月曜日　午後５時２１分

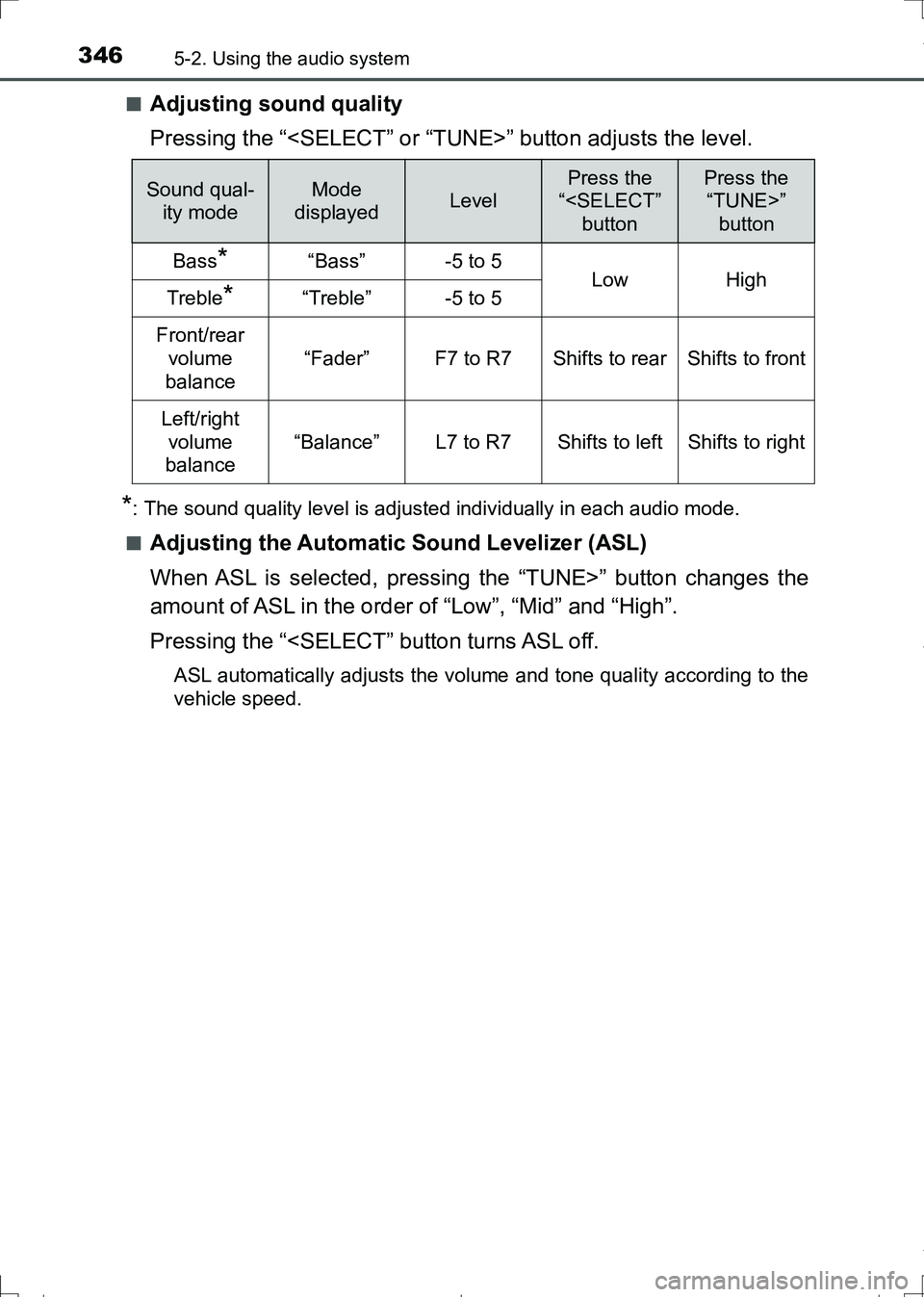

3465-2. Using the audio system
AURIS Touring Sports_EE (12L13E)■
Adjusting sound quality
Pressing the “” button adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
■
Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, pressing the “TUNE>” button changes the
amount of ASL in the order of “Low”, “Mid” and “High”.
Pressing the “ ASL automatically adjusts the volume and tone quality according to the
vehicle speed.
Sound qual-
ity modeMode
displayedLevel
Press the
“ buttonPress the
“TUNE>”
button
Bass*“Bass”-5 to 5LowHighTreble*“Treble”-5 to 5
Front/rear
volume
balance
“Fader”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“Balance”L7 to R7Shifts to leftShifts to right
AURIS Touring Sports_OM_Europe_OM12L13E.book 346 ページ ２０１６年６月２７日　月曜日　午後５時２１分

347
AURIS Touring Sports_EE (12L13E)
5
Audio system

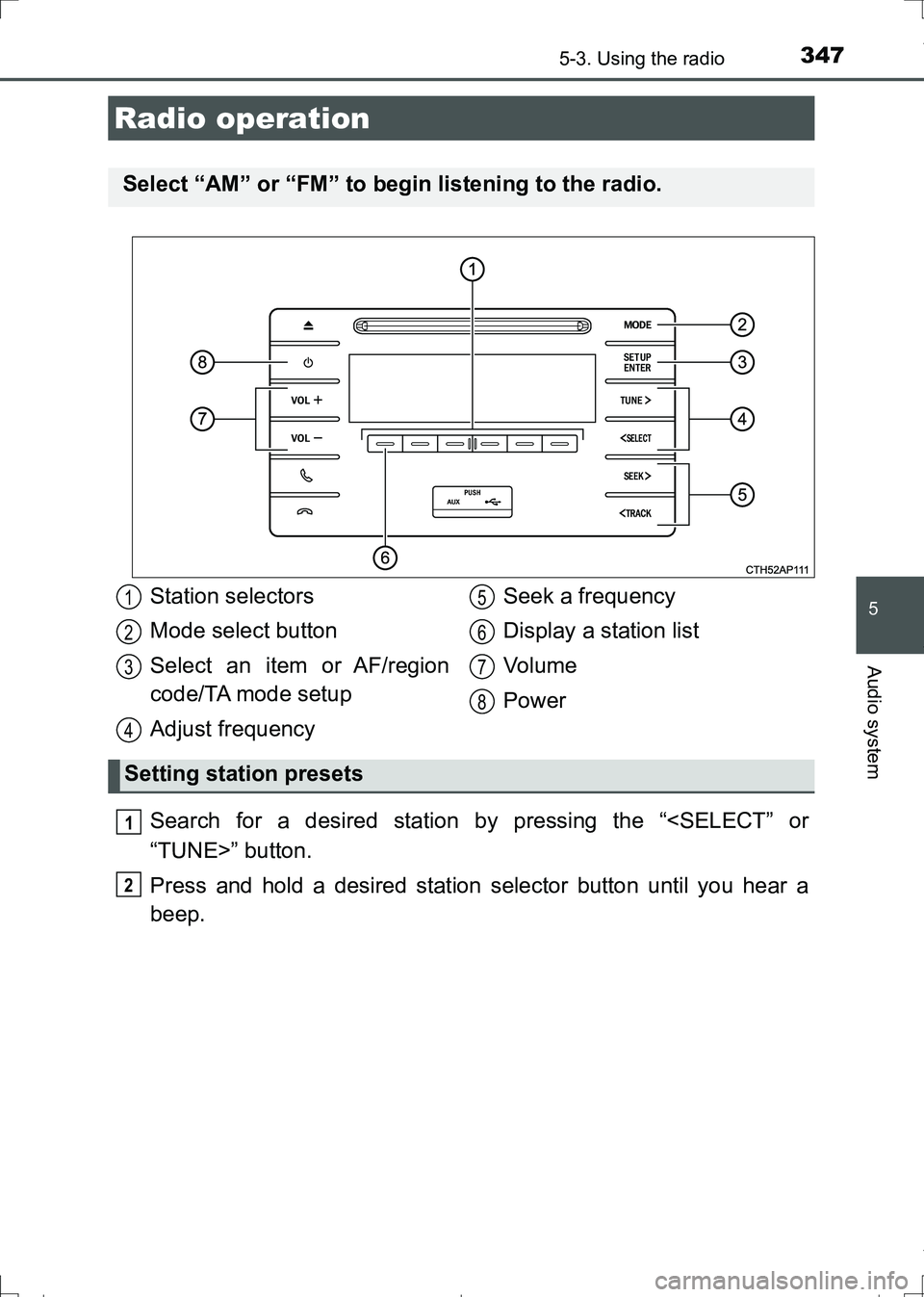

5-3. Using the radio
Search for a desired station by pressing the “ “TUNE>” button.
Press and hold a desired station selector button until you hear a
beep.
Radio operation
Select “AM” or “FM” to begin listening to the radio.
Station selectors
Mode select button
Select an item or AF/region
code/TA mode setup
Adjust frequencySeek a frequency
Display a station list
Vo l u m e
Power
Setting station presets
1
2
3
4
5
6
7
8
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 347 ページ ２０１６年６月２７日　月曜日　午後５時２１分

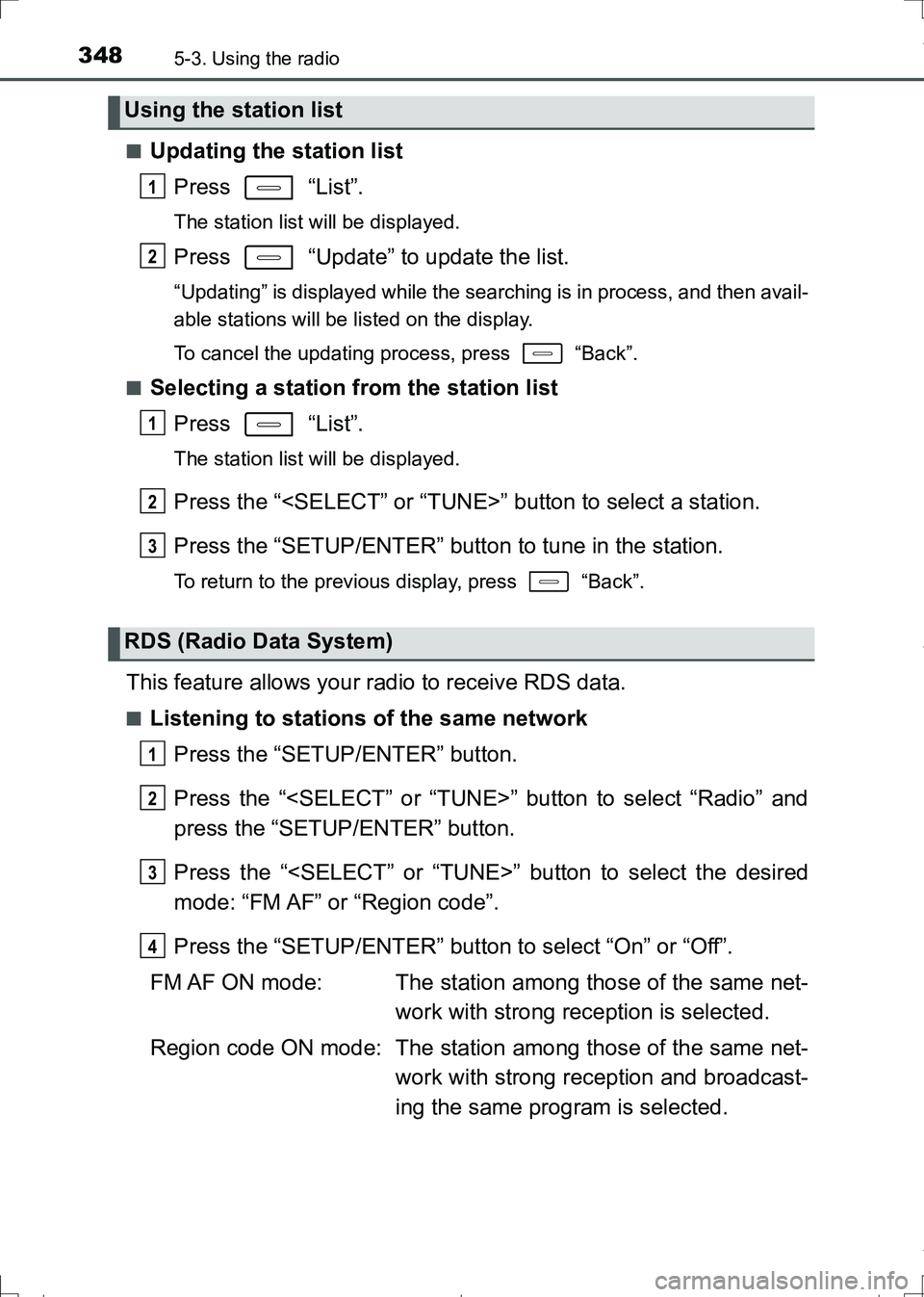

3485-3. Using the radio
AURIS Touring Sports_EE (12L13E)■
Updating the station list
Press “List”.
The station list will be displayed.
Press “Update” to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press “Back”.
■
Selecting a station from the station list
Press “List”.
The station list will be displayed.
Press the “” button to select a station.
Press the “SETUP/ENTER” button to tune in the station.
To return to the previous display, press “Back”.
This feature allows your radio to receive RDS data.
■Listening to stations of the same network
Press the “SETUP/ENTER” button.
Press the “” button to select “Radio” and
press the “SETUP/ENTER” button.
Press the “” button to select the desired
mode: “FM AF” or “Region code”.
Press the “SETUP/ENTER” button to select “On” or “Off”.
FM AF ON mode: The station among those of the same net-
work with strong reception is selected.
Region code ON mode: The station among those of the same net-
work with strong reception and broadcast-
ing the same program is selected.
Using the station list
RDS (Radio Data System)
1
2
1
2
3
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 348 ページ ２０１６年６月２７日　月曜日　午後５時２１分

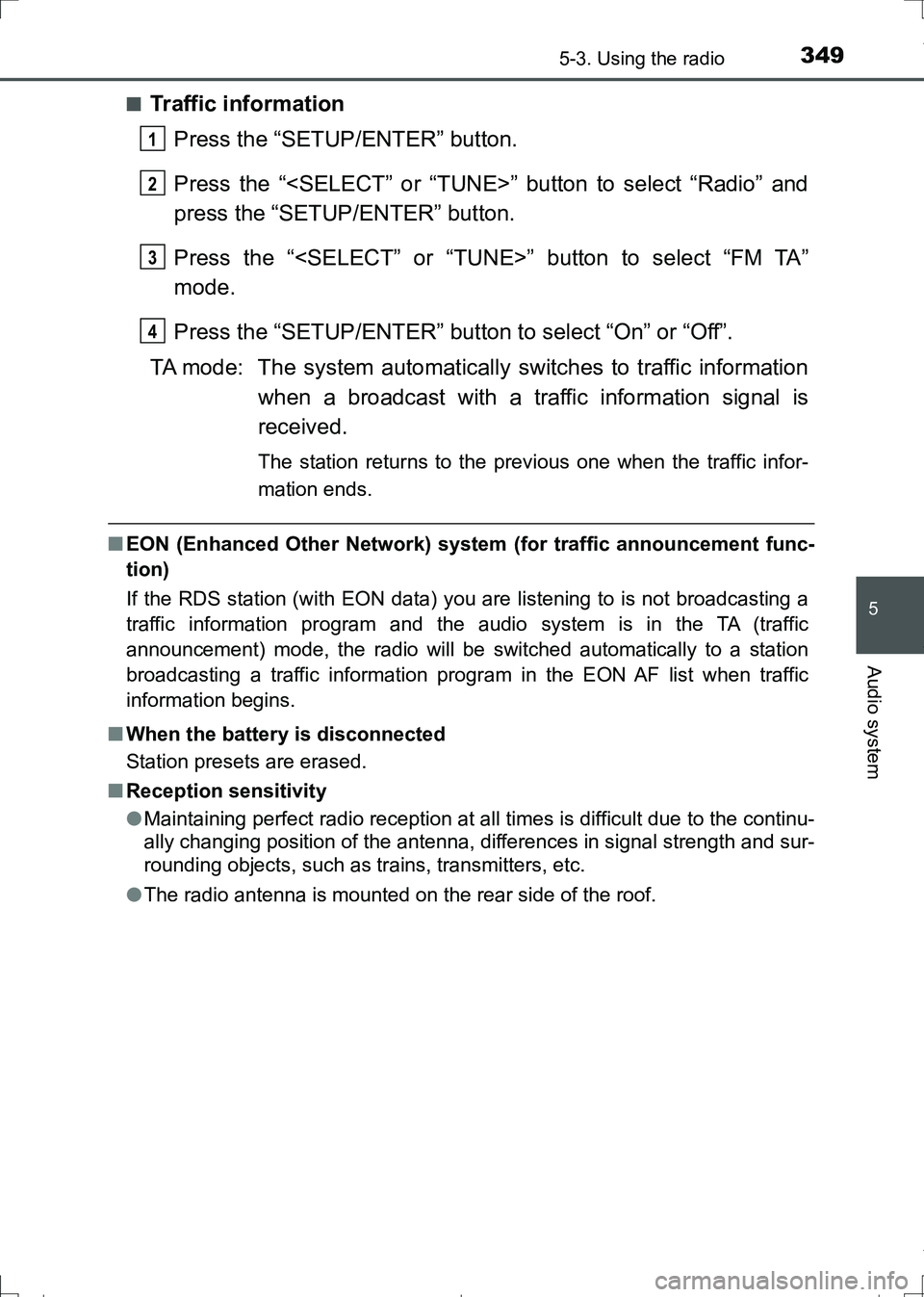

3495-3. Using the radio
AURIS Touring Sports_EE (12L13E)
5
Audio system
■Traffic information
Press the “SETUP/ENTER” button.
Press the “” button to select “Radio” and
press the “SETUP/ENTER” button.
Press the “” button to select “FM TA”
mode.
Press the “SETUP/ENTER” button to select “On” or “Off”.
TA mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
■EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
■When the battery is disconnected
Station presets are erased.
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
●The radio antenna is mounted on the rear side of the roof.
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 349 ページ ２０１６年６月２７日　月曜日　午後５時２１分

350
AURIS Touring Sports_EE (12L13E)

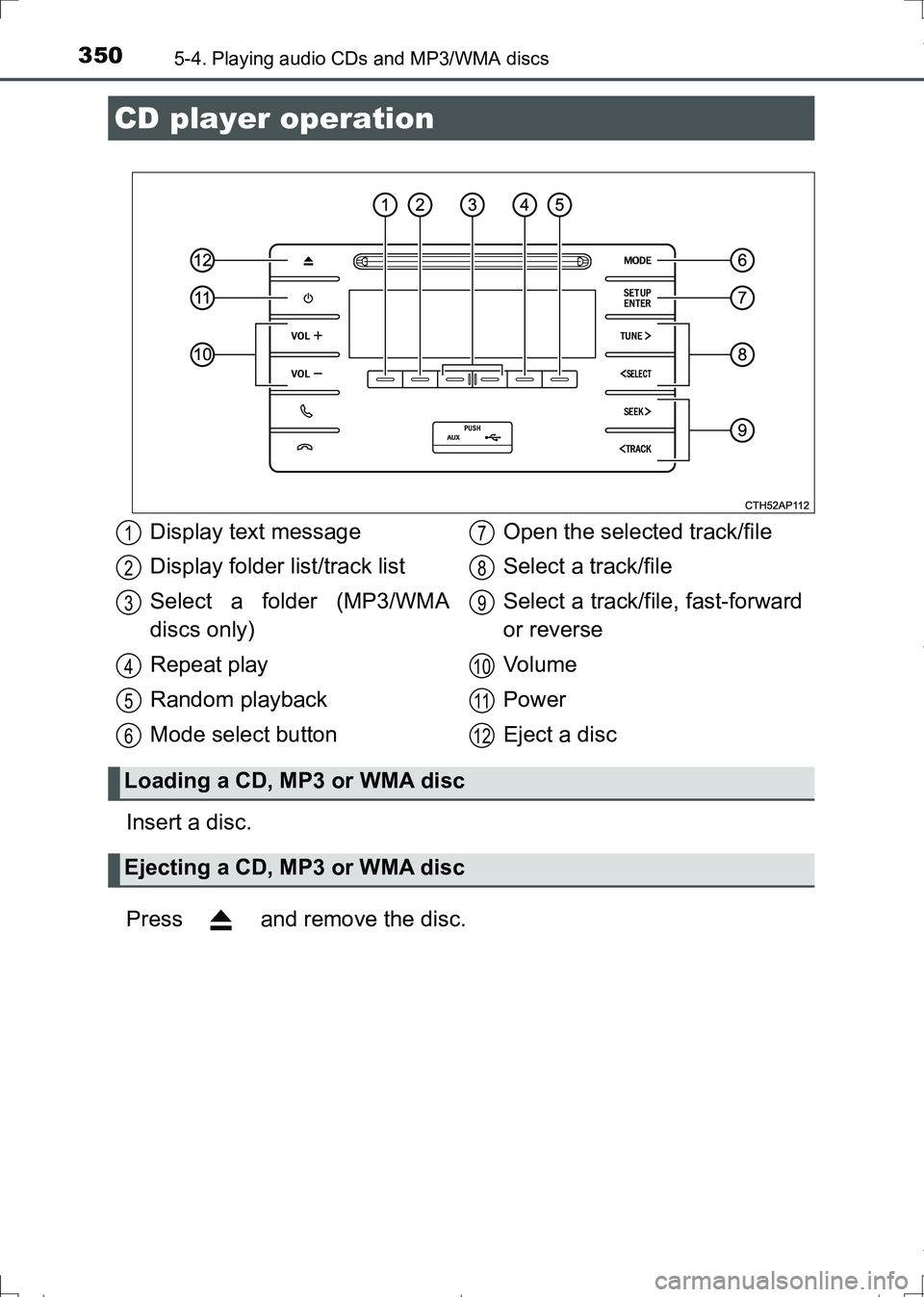

5-4. Playing audio CDs and MP3/WMA discs
Insert a disc.
Press and remove the disc.
CD player operation
Display text message
Display folder list/track list
Select a folder (MP3/WMA
discs only)
Repeat play
Random playback
Mode select buttonOpen the selected track/file
Select a track/file
Select a track/file, fast-forward
or reverse
Vo l u m e
Power
Eject a disc
Loading a CD, MP3 or WMA disc
Ejecting a CD, MP3 or WMA disc
1
2
3
4
5
6
7
8
9
10
11
12
AURIS Touring Sports_OM_Europe_OM12L13E.book 350 ページ ２０１６年６月２７日　月曜日　午後５時２１分

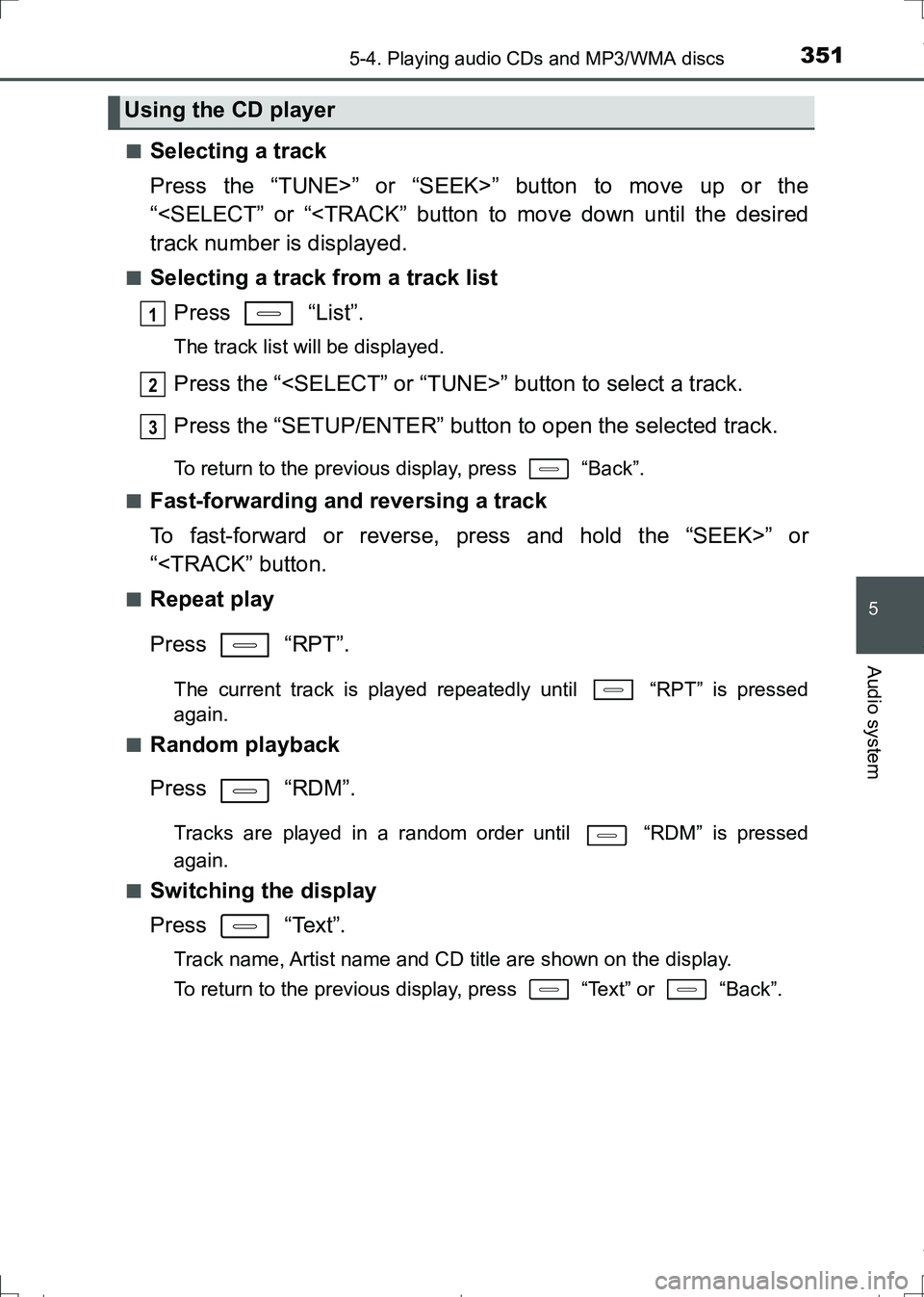

3515-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12L13E)
5
Audio system
■Selecting a track
Press the “TUNE>” or “SEEK>” button to move up or the
“ track number is displayed.
■Selecting a track from a track list
Press “List”.
The track list will be displayed.
Press the “” button to select a track.
Press the “SETUP/ENTER” button to open the selected track.
To return to the previous display, press “Back”.
■
Fast-forwarding and reversing a track
To fast-forward or reverse, press and hold the “SEEK>” or
“ ■Repeat play
Press “RPT”.
The current track is played repeatedly until “RPT” is pressed
again.
■
Random playback
Press “RDM”.
Tracks are played in a random order until “RDM” is pressed
again.
■
Switching the display
Press “Text”.
Track name, Artist name and CD title are shown on the display.
To return to the previous display, press “Text” or “Back”.
Using the CD player
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 351 ページ ２０１６年６月２７日　月曜日　午後５時２１分

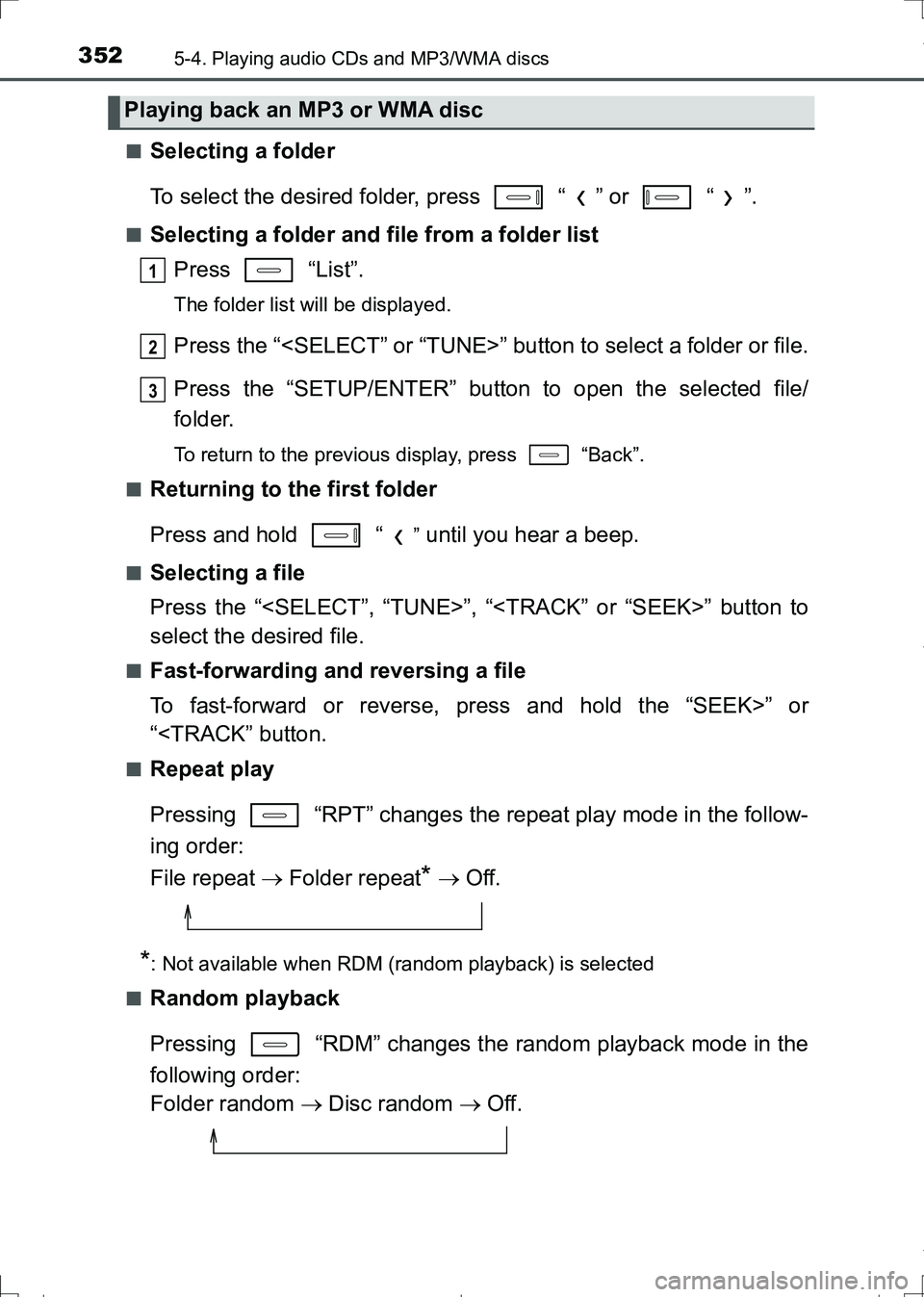

3525-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12L13E)■
Selecting a folder
To select the desired folder, press “ ” or “ ”.
■Selecting a folder and file from a folder list
Press “List”.
The folder list will be displayed.
Press the “” button to select a folder or file.
Press the “SETUP/ENTER” button to open the selected file/
folder.
To return to the previous display, press “Back”.
■
Returning to the first folder
Press and hold “
” until you hear a beep.
■Selecting a file
Press the “”, “” button to
select the desired file.
■Fast-forwarding and reversing a file
To fast-forward or reverse, press and hold the “SEEK>” or
“ ■Repeat play
Pressing “RPT” changes the repeat play mode in the follow-
ing order:
File repeat  Folder repeat
*  Off.
*: Not available when RDM (random playback) is selected
■
Random playback
Pressing “RDM” changes the random playback mode in the
following order:
Folder random  Disc random  Off.
Playing back an MP3 or WMA disc
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 352 ページ ２０１６年６月２７日　月曜日　午後５時２１分
