2017 TOYOTA AURIS TOURING SPORTS Owners Manual

4496-4. Other interior features
AURIS Touring Sports_EE (12L13E)
6
Interior features

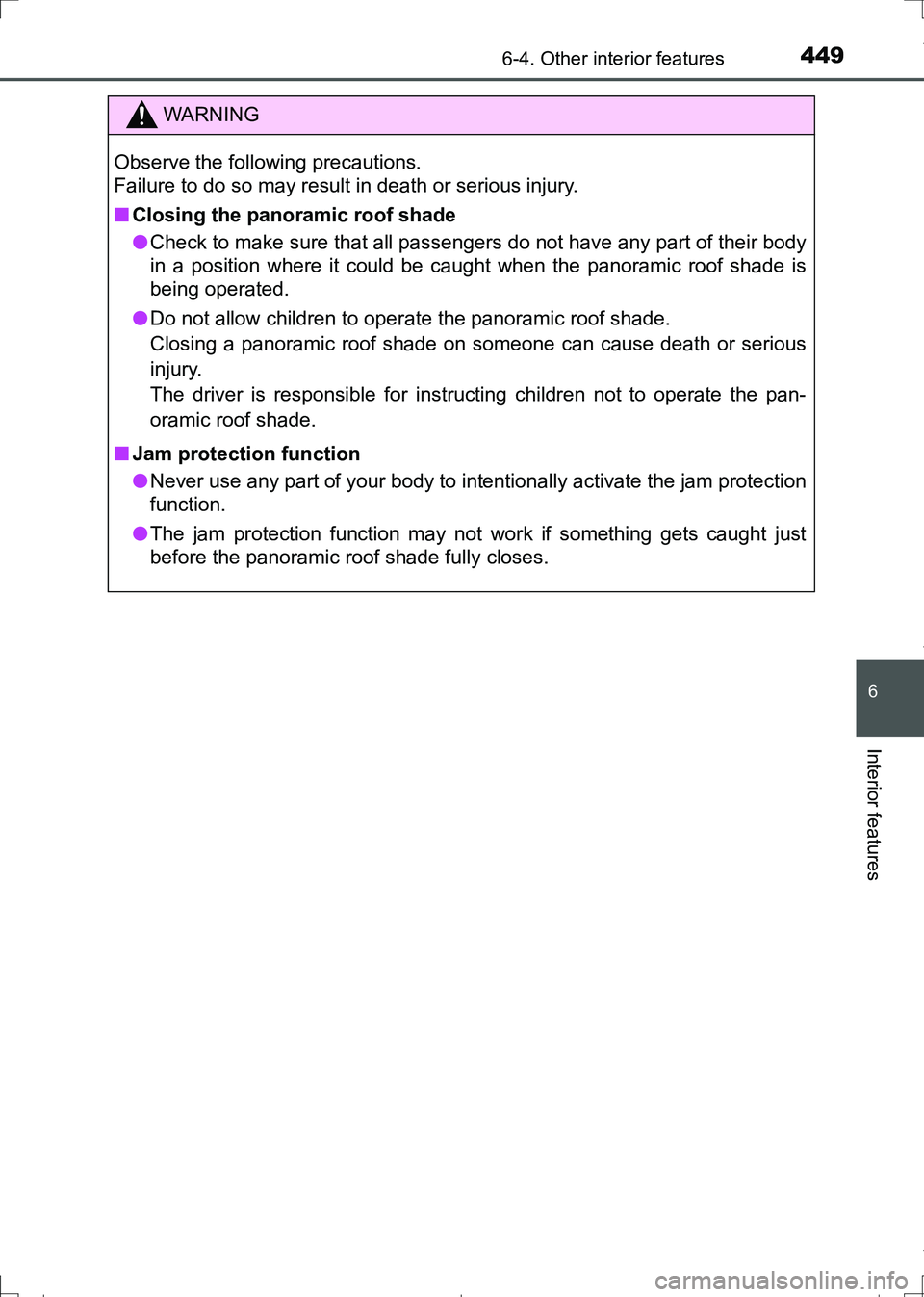

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the panoramic roof shade
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the panoramic roof shade is
being operated.
●Do not allow children to operate the panoramic roof shade.
Closing a panoramic roof shade on someone can cause death or serious
injury.
The driver is responsible for instructing children not to operate the pan-
oramic roof shade.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
●The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.
AURIS Touring Sports_OM_Europe_OM12L13E.book 449 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4506-4. Other interior features
AURIS Touring Sports_EE (12L13E)
AURIS Touring Sports_OM_Europe_OM12L13E.book 450 ページ ２０１６年６月２７日　月曜日　午後５時２１分

451
7Maintenance and care
AURIS Touring Sports_EE (12L13E)7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 452
Cleaning and protecting
the vehicle interior ........... 456
7-2. Maintenance
Maintenance
requirements.................... 459
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 462
Hood .................................. 465
Positioning a floor jack ....... 467
Engine compartment.......... 468
Tires ................................... 490
Tire inflation pressure ........ 504
Wheels ............................... 506
Air conditioning filter .......... 509
Wireless remote control/
electronic key battery....... 511
Checking and replacing
fuses ................................ 514
Light bulbs ......................... 519
AURIS Touring Sports_OM_Europe_OM12L13E.book 451 ページ ２０１６年６月２７日　月曜日　午後５時２１分

452
AURIS Touring Sports_EE (12L13E)
7-1. Maintenance and care

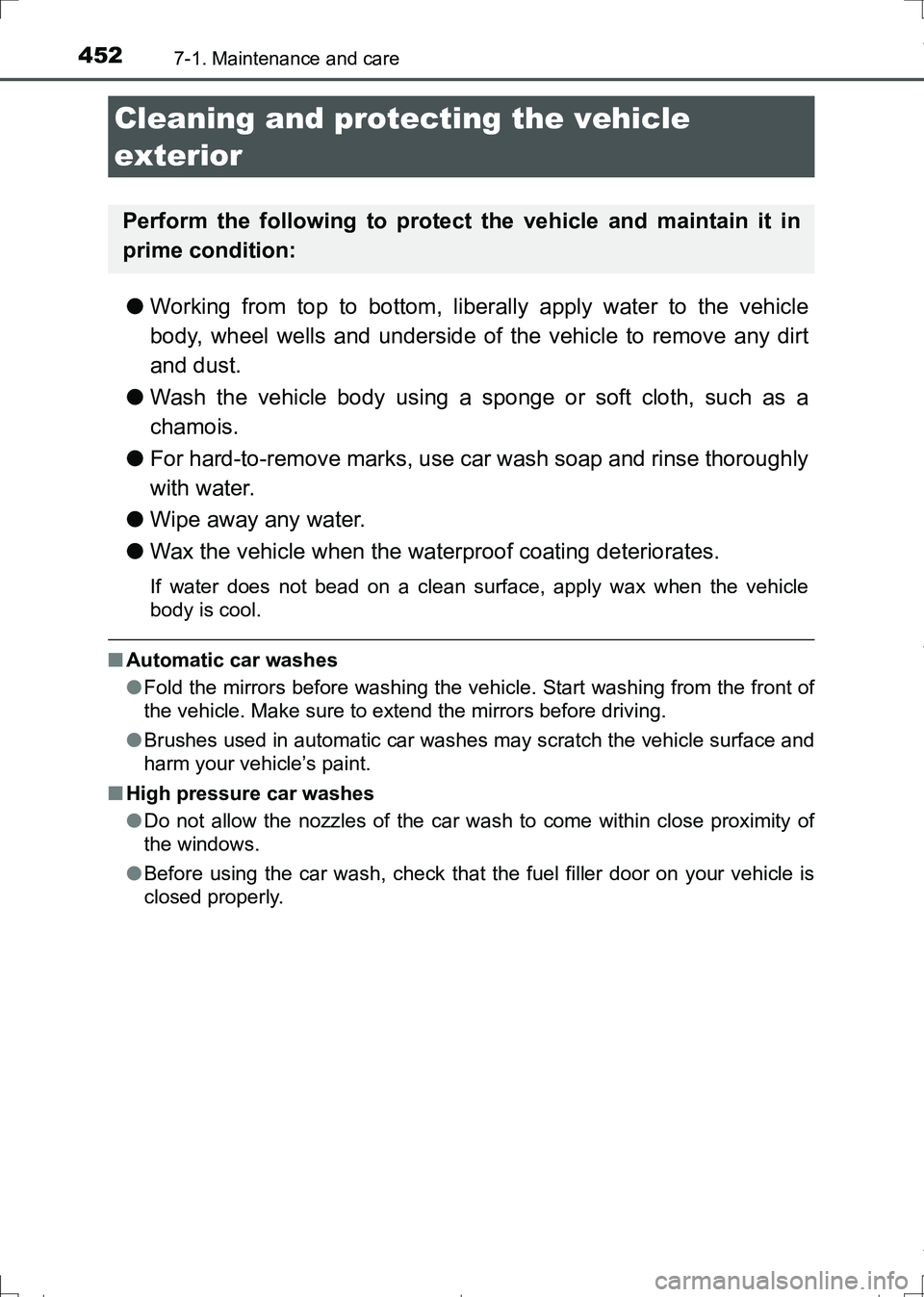

●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of
the windows.
●Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
Cleaning and protecting the vehicle
exterior
Perform the following to protect the vehicle and maintain it in
prime condition:
AURIS Touring Sports_OM_Europe_OM12L13E.book 452 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4537-1. Maintenance and care
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

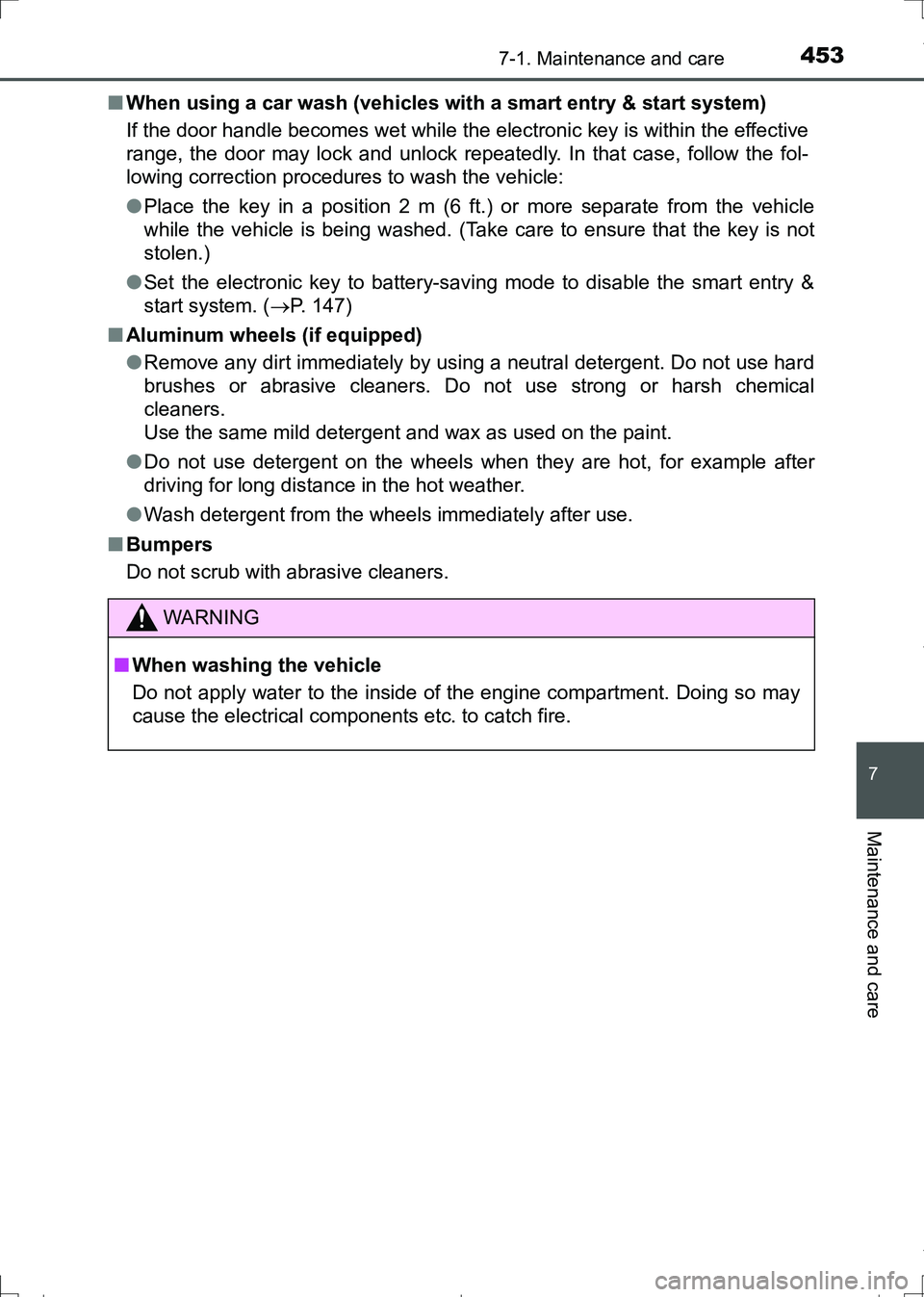

■When using a car wash (vehicles with a smart entry & start system)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is not
stolen.)
●Set the electronic key to battery-saving mode to disable the smart entry &
start system. (P. 147)
■Aluminum wheels (if equipped)
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
AURIS Touring Sports_OM_Europe_OM12L13E.book 453 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4547-1. Maintenance and care
AURIS Touring Sports_EE (12L13E)
WARNING
■When cleaning the windshield (vehicles with rain-sensing windshield
wipers)
• When the upper part of the windshield where the raindrop sensor is
located is touched by hand
• When a wet rag or similar is held close to the raindrop sensor
• If something bumps against the windshield
• If you directly touch the raindrop sensor body or if something bumps
into the raindrop sensor
●Installation area of front sensor on windshield: P. 257
■Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the exhaust pipe until it
has cooled sufficiently, as touching a hot exhaust pipe can cause burns.
●Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in
hands being caught or other serious
injuries and cause damage to the wiper
blades.
Off
AURIS Touring Sports_OM_Europe_OM12L13E.book 454 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4557-1. Maintenance and care
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

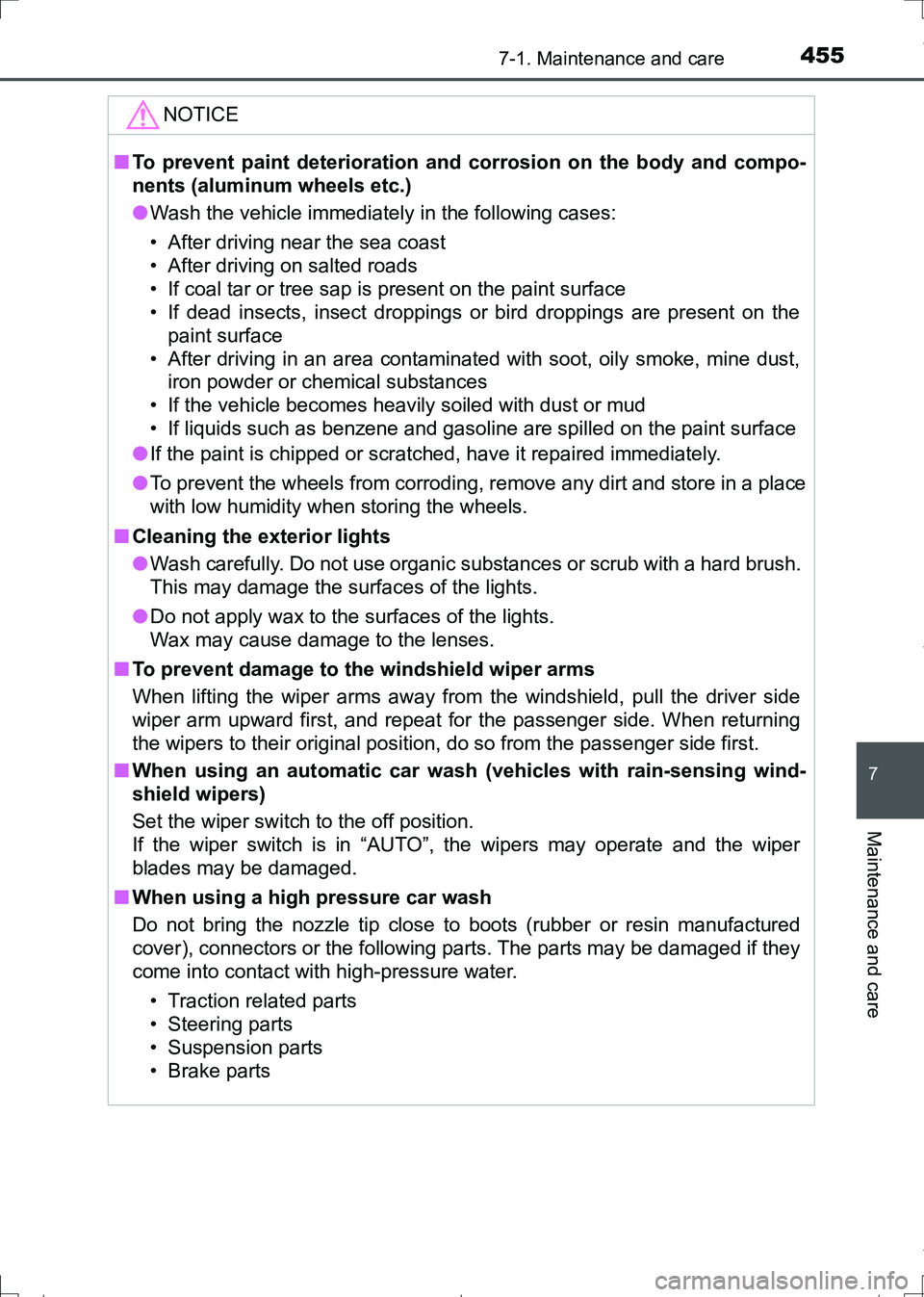

NOTICE
■To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
■When using an automatic car wash (vehicles with rain-sensing wind-
shield wipers)
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers may operate and the wiper
blades may be damaged.
■When using a high pressure car wash
Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be damaged if they
come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts
AURIS Touring Sports_OM_Europe_OM12L13E.book 455 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4567-1. Maintenance and care
AURIS Touring Sports_EE (12L13E)

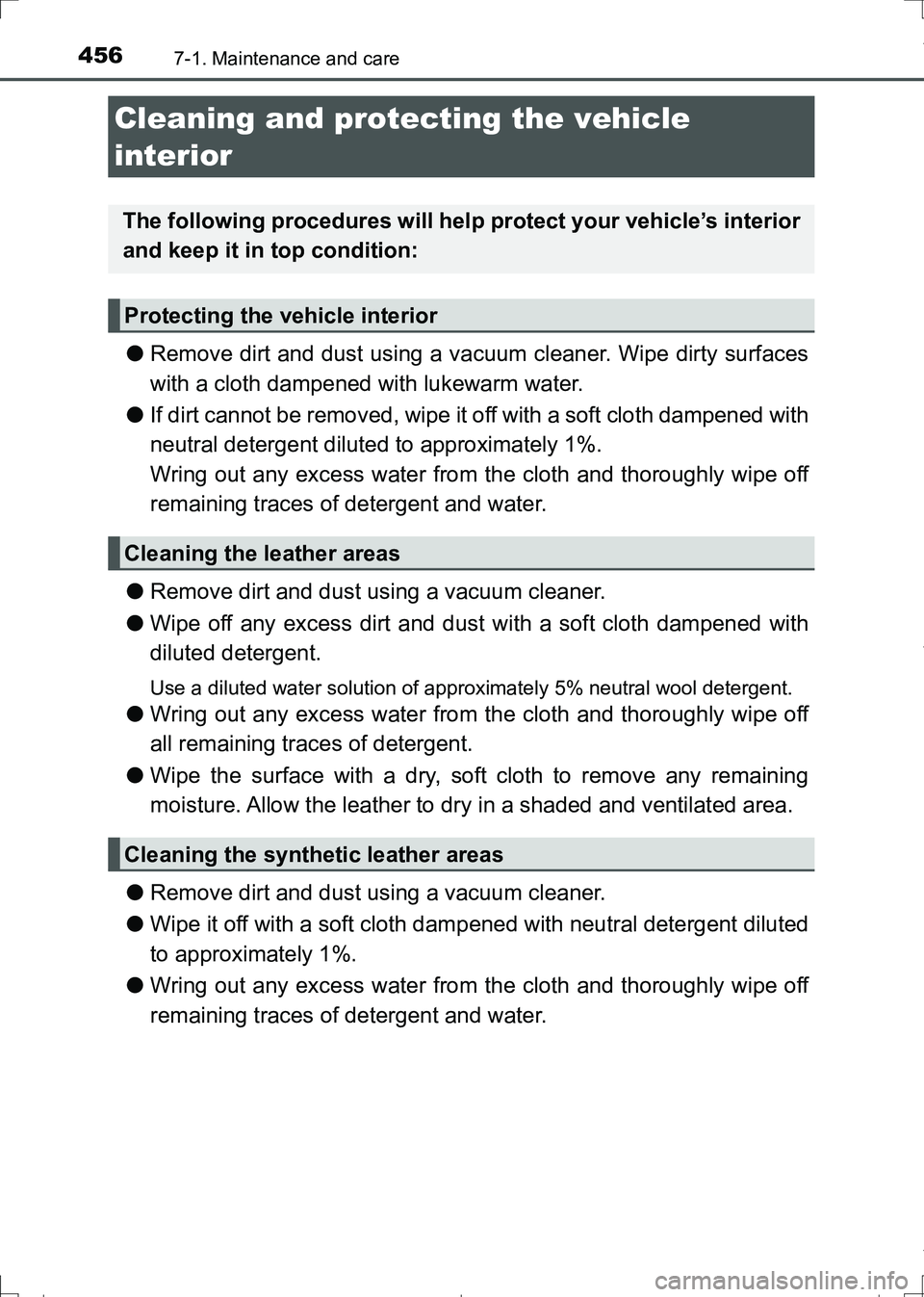

●Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
●If dirt cannot be removed, wipe it off with a soft cloth dampened with
neutral detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off
all remaining traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining
moisture. Allow the leather to dry in a shaded and ventilated area.
●Remove dirt and dust using a vacuum cleaner.
●Wipe it off with a soft cloth dampened with neutral detergent diluted
to approximately 1%.
●Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
Cleaning and protecting the vehicle
interior
The following procedures will help protect your vehicle’s interior
and keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
AURIS Touring Sports_OM_Europe_OM12L13E.book 456 ページ ２０１６年６月２７日　月曜日　午後５時２１分
