5297-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

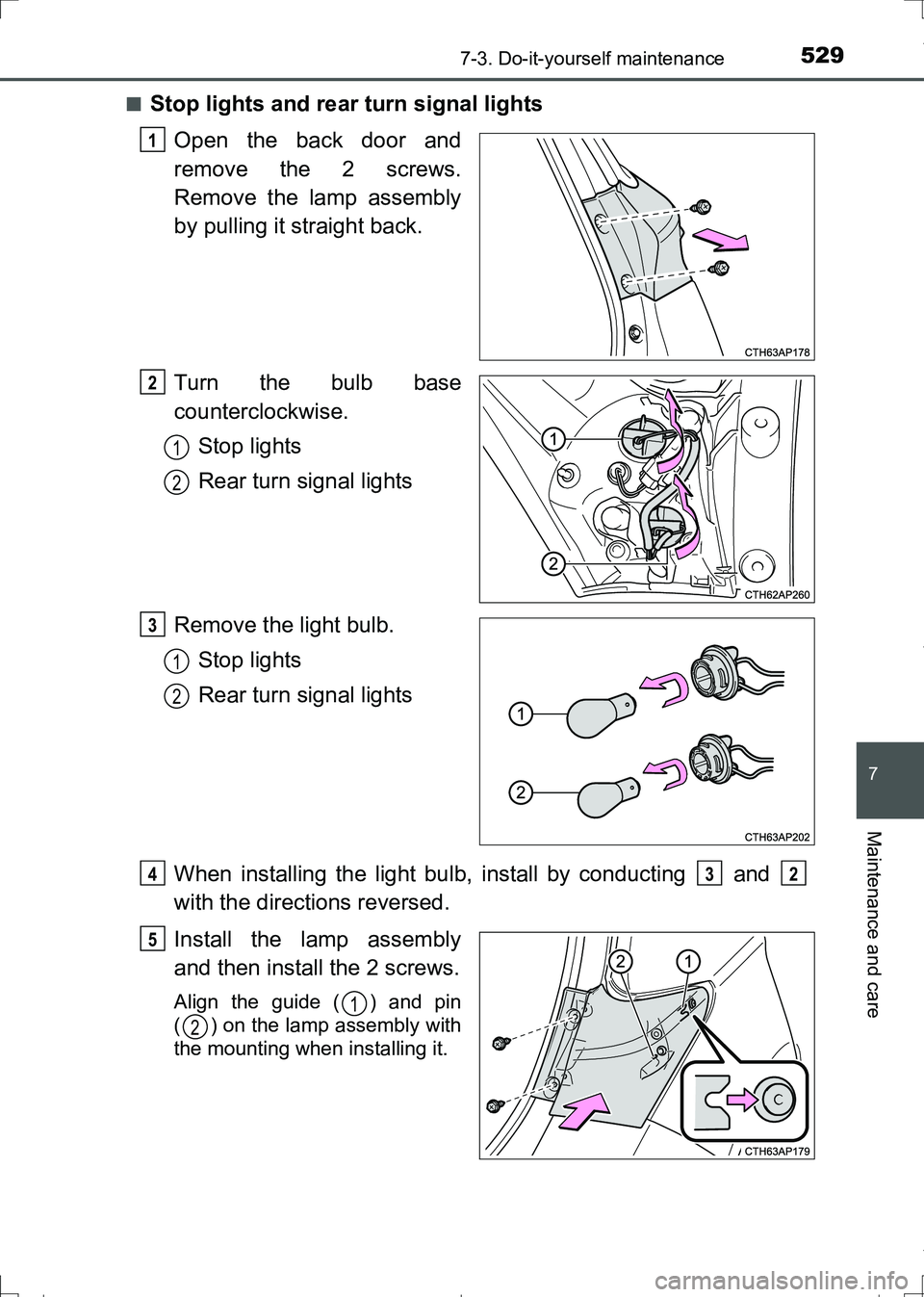

■Stop lights and rear turn signal lights
Open the back door and
remove the 2 screws.
Remove the lamp assembly
by pulling it straight back.
Turn the bulb base
counterclockwise.
Stop lights
Rear turn signal lights
Remove the light bulb.
Stop lights
Rear turn signal lights
When installing the light bulb, install by conducting and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
( ) on the lamp assembly with
the mounting when installing it.
1
2
1
2
3
1
2
432
5
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 529 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5307-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■

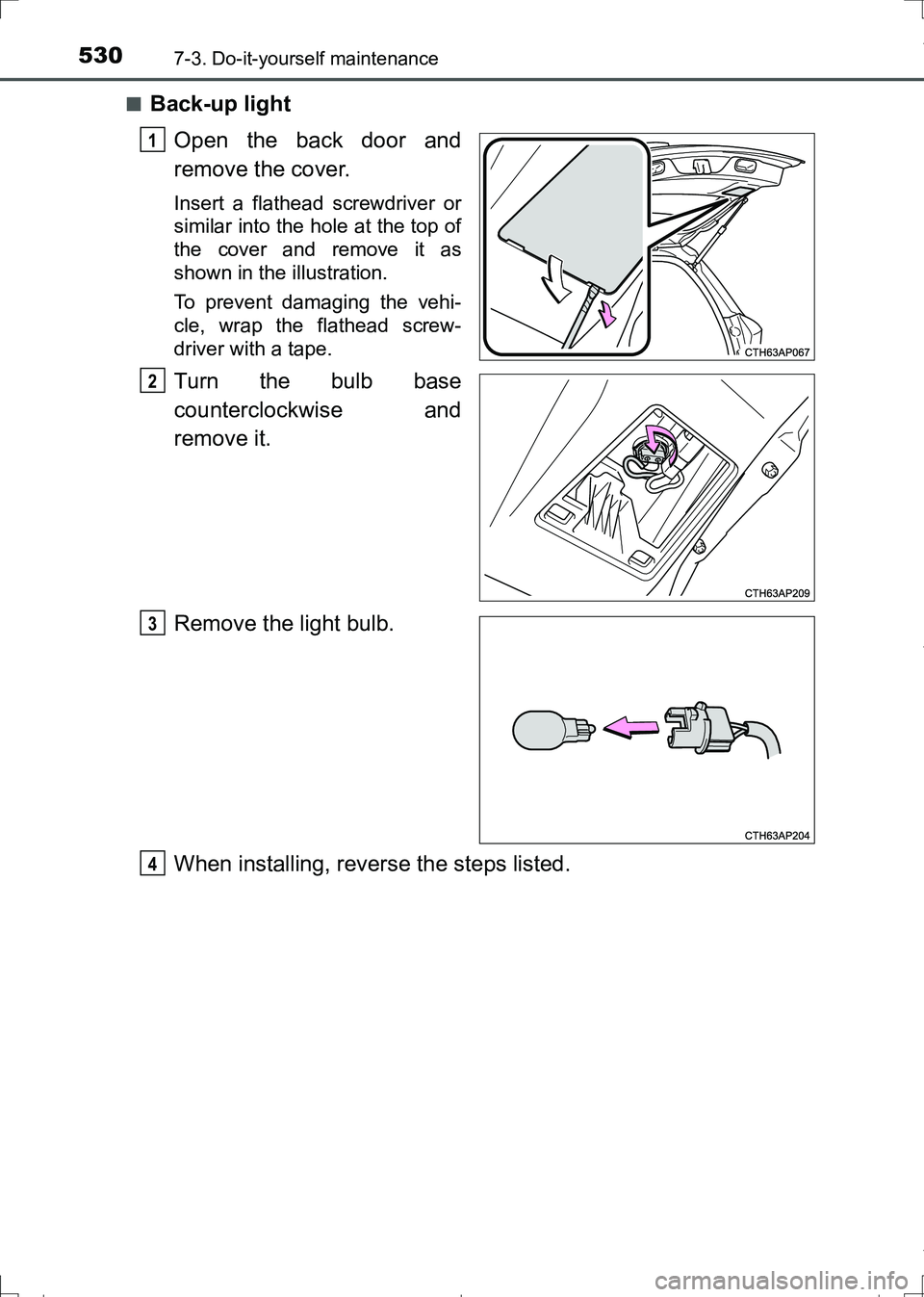

Back-up light
Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base
counterclockwise and
remove it.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 530 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5317-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

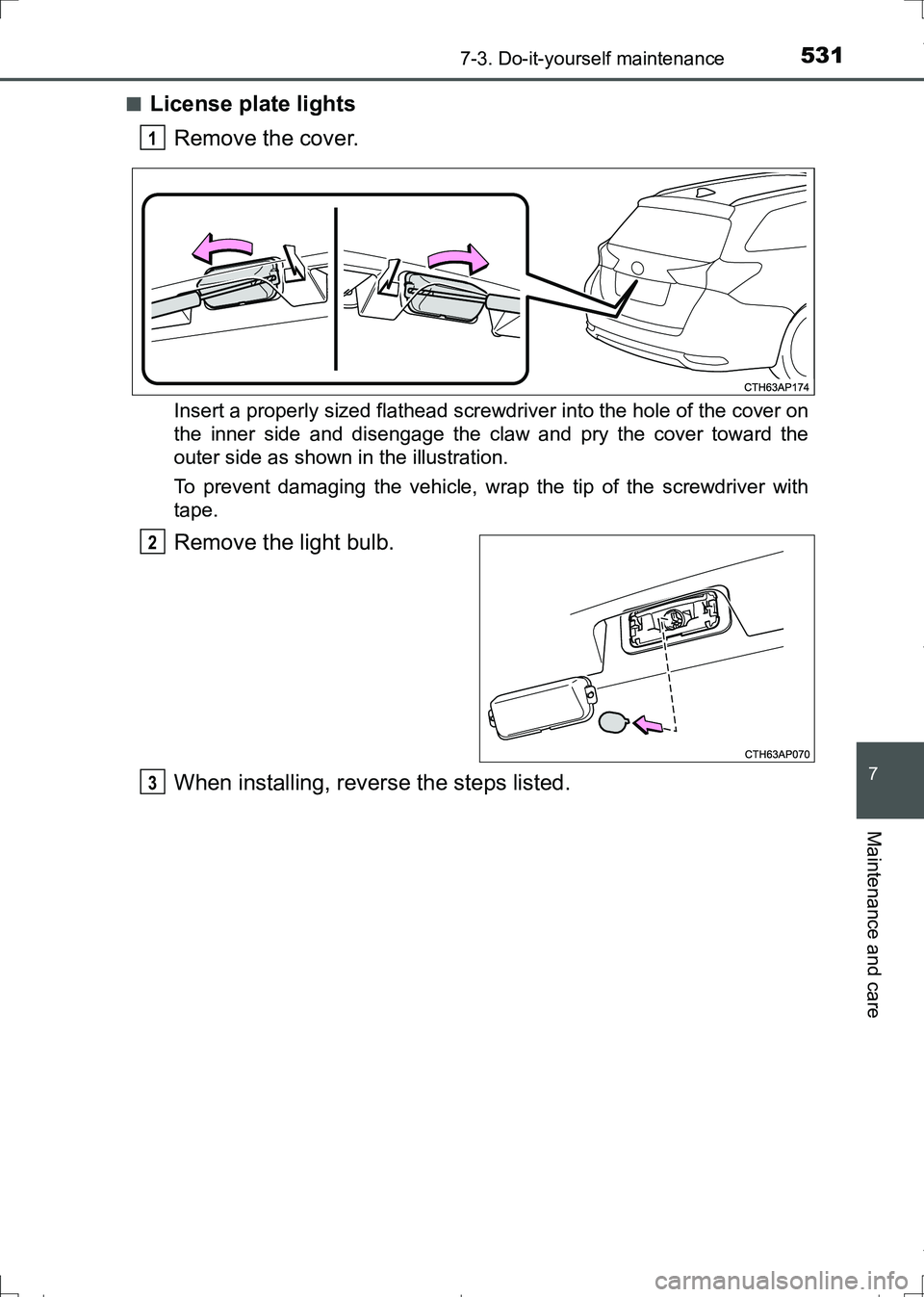

■License plate lights
Remove the cover.
Insert a properly sized flathead screwdriver into the hole of the cover on
the inner side and disengage the claw and pry the cover toward the
outer side as shown in the illustration.
To prevent damaging the vehicle, wrap the tip of the screwdriver with
tape.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 531 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5327-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■

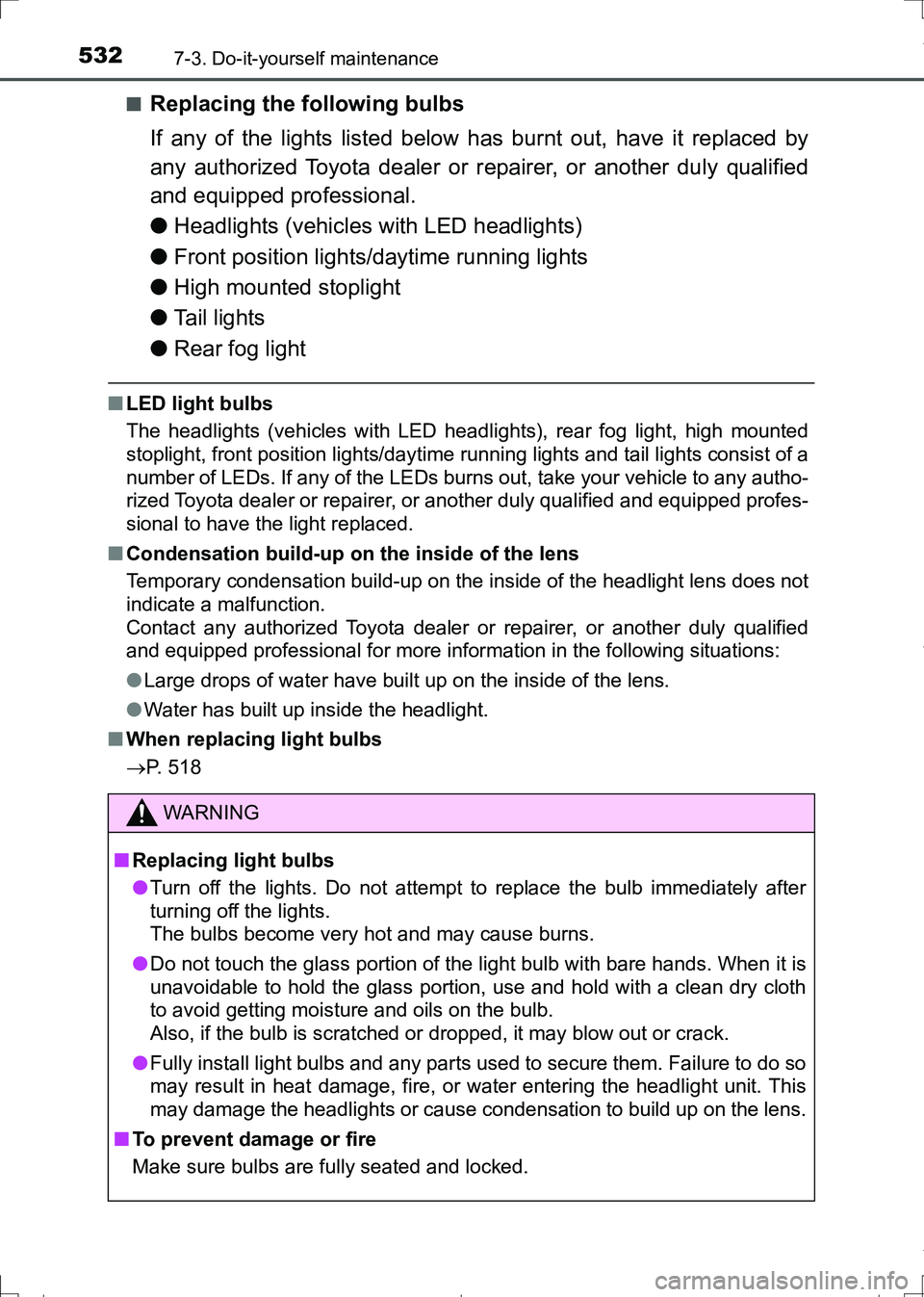

Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●Headlights (vehicles with LED headlights)
●Front position lights/daytime running lights
●High mounted stoplight
●Tail lights
●Rear fog light
■LED light bulbs
The headlights (vehicles with LED headlights), rear fog light, high mounted
stoplight, front position lights/daytime running lights and tail lights consist of a
number of LEDs. If any of the LEDs burns out, take your vehicle to any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
P. 518
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
AURIS Touring Sports_OM_Europe_OM12L13E.book 532 ページ ２０１６年６月２７日　月曜日　午後５時２１分

533
8When trouble arises
AURIS Touring Sports_EE (12L13E)8-1. Essential information
Emergency flashers ........... 534
If your vehicle has
to be stopped
in an emergency .............. 535
8-2. Steps to take
in an emergency
If your vehicle needs
to be towed ...................... 537
If you think something
is wrong ........................... 543
Fuel pump shut off
system ............................. 544
If a warning light turns on
or a warning buzzer
sounds ............................. 545
If a warning message
is displayed ...................... 557
If you have a flat tire
(vehicles with
a spare tire) ..................... 563
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit)........... 576If the engine will not
start.................................. 592
If the electronic key does
not operate properly ........ 594
If the vehicle battery
is discharged ................... 597
If your vehicle
overheats ......................... 603
If you run out of fuel
and the engine stalls........ 607
If the vehicle becomes
stuck ................................ 608
AURIS Touring Sports_OM_Europe_OM12L13E.book 533 ページ ２０１６年６月２７日　月曜日　午後５時２１分

534
AURIS Touring Sports_EE (12L13E)
8-1. Essential information

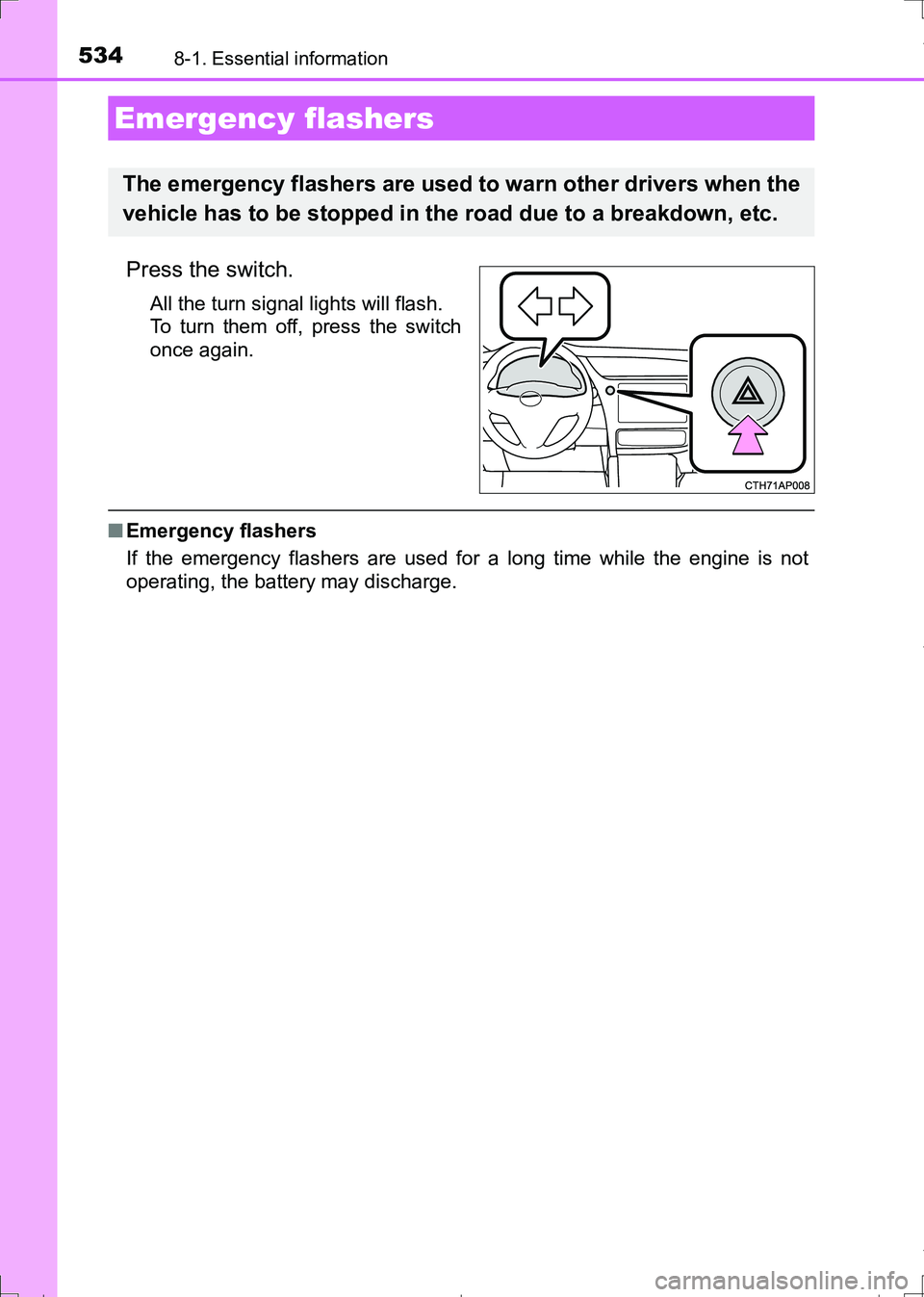

Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
AURIS Touring Sports_OM_Europe_OM12L13E.book 534 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5358-1. Essential information
AURIS Touring Sports_EE (12L13E)
8
When trouble arises
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 535 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5368-1. Essential information
AURIS Touring Sports_EE (12L13E)

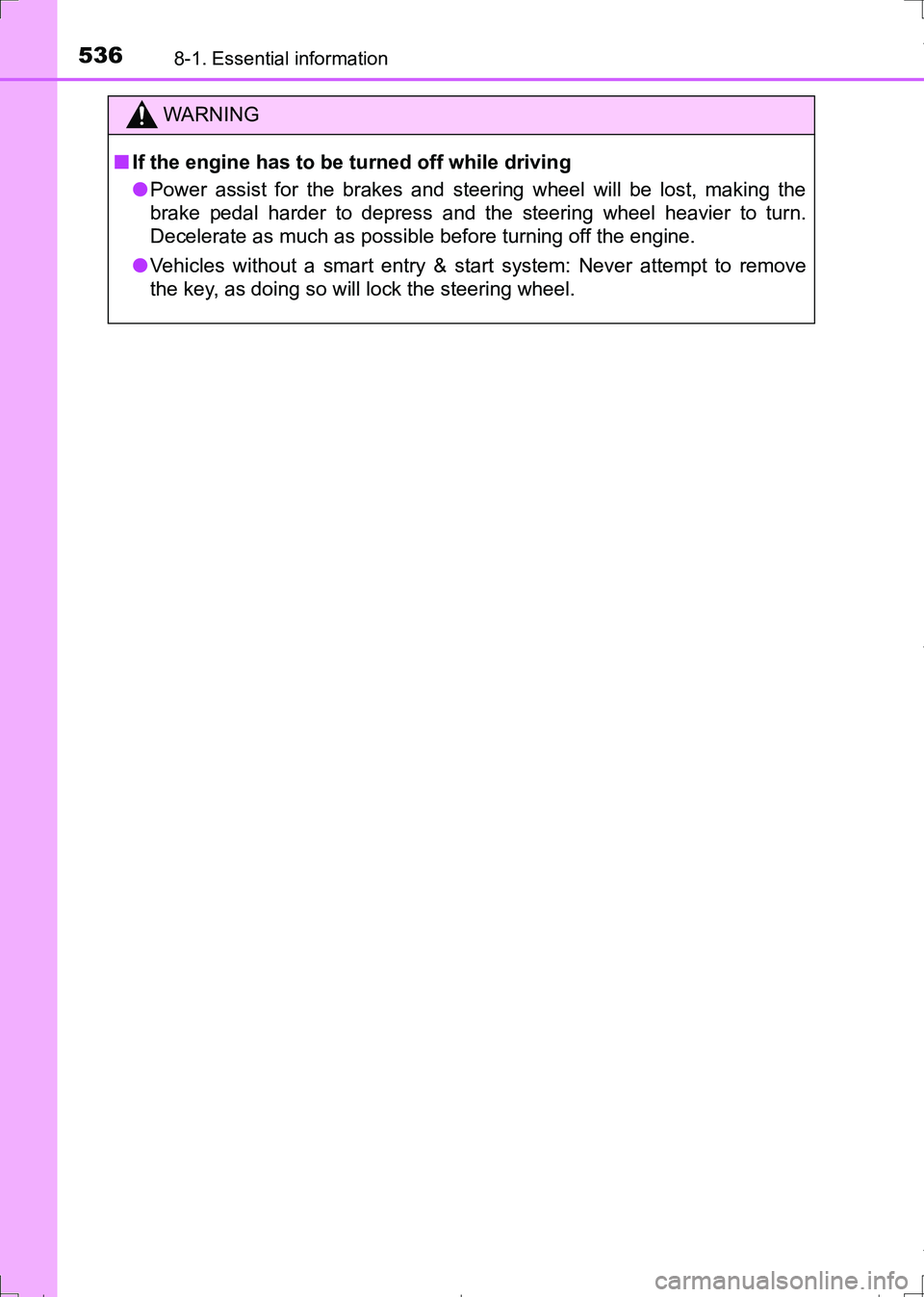

WARNING
