2017 TOYOTA AURIS TOURING SPORTS Owners Manual

6098-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

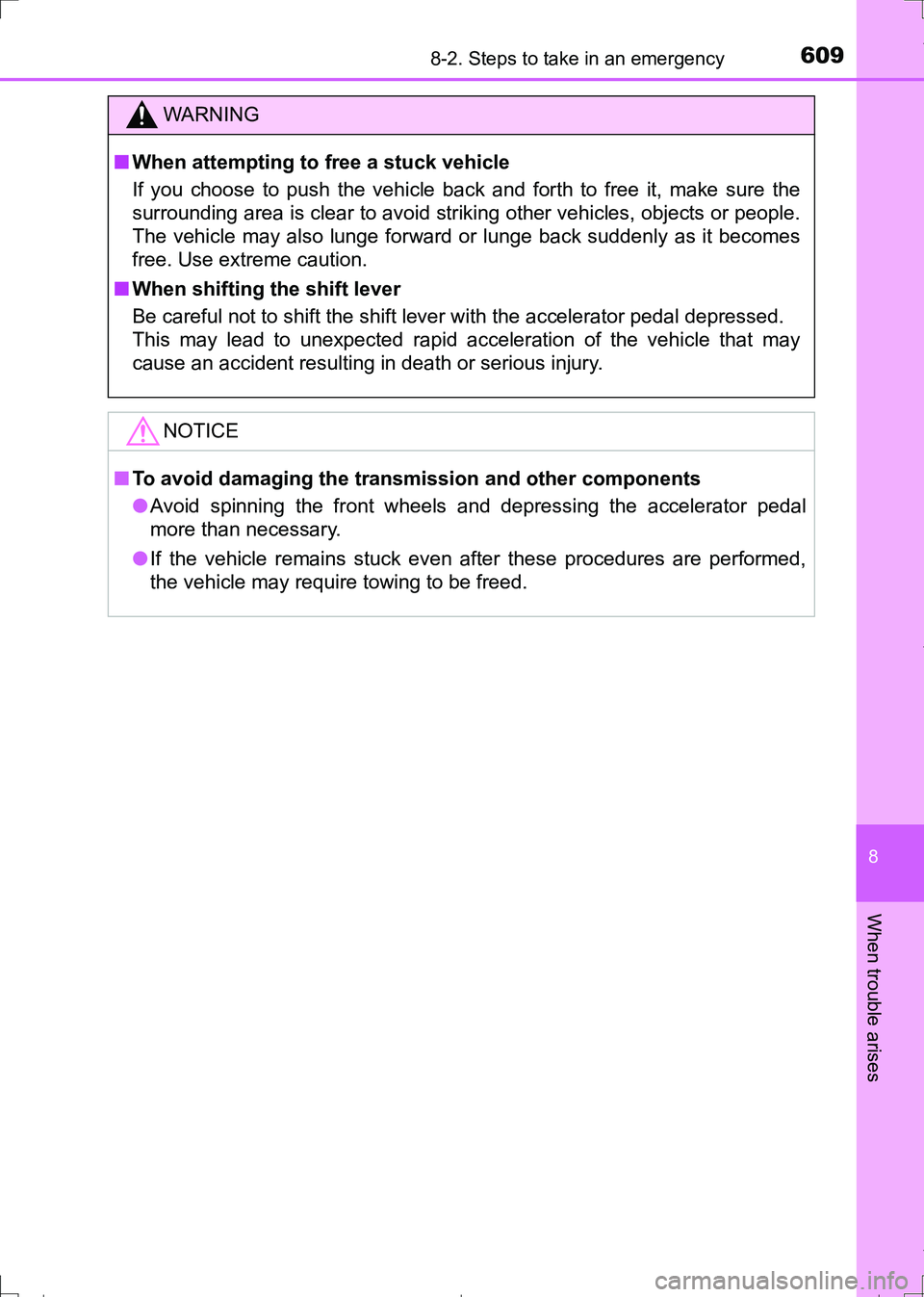

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
AURIS Touring Sports_OM_Europe_OM12L13E.book 609 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6108-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
AURIS Touring Sports_OM_Europe_OM12L13E.book 610 ページ ２０１６年６月２７日　月曜日　午後５時２１分

611

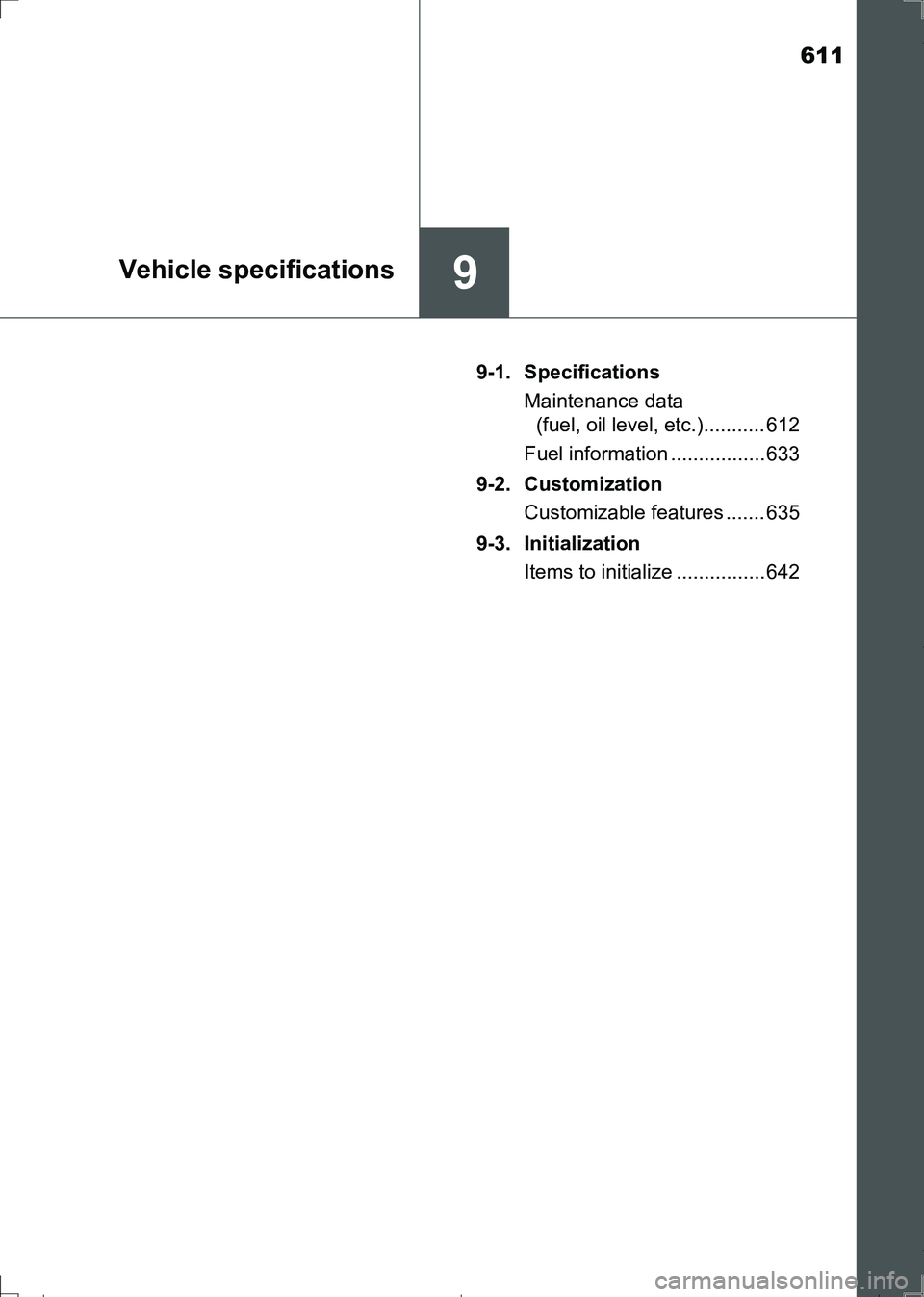

9Vehicle specifications
AURIS Touring Sports_EE (12L13E)9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 612
Fuel information ................. 633
9-2. Customization
Customizable features ....... 635
9-3. Initialization
Items to initialize ................ 642
AURIS Touring Sports_OM_Europe_OM12L13E.book 611 ページ ２０１６年６月２７日　月曜日　午後５時２１分

612
AURIS Touring Sports_EE (12L13E)
9-1. Specifications
Maintenance data (fuel, oil level, etc.)

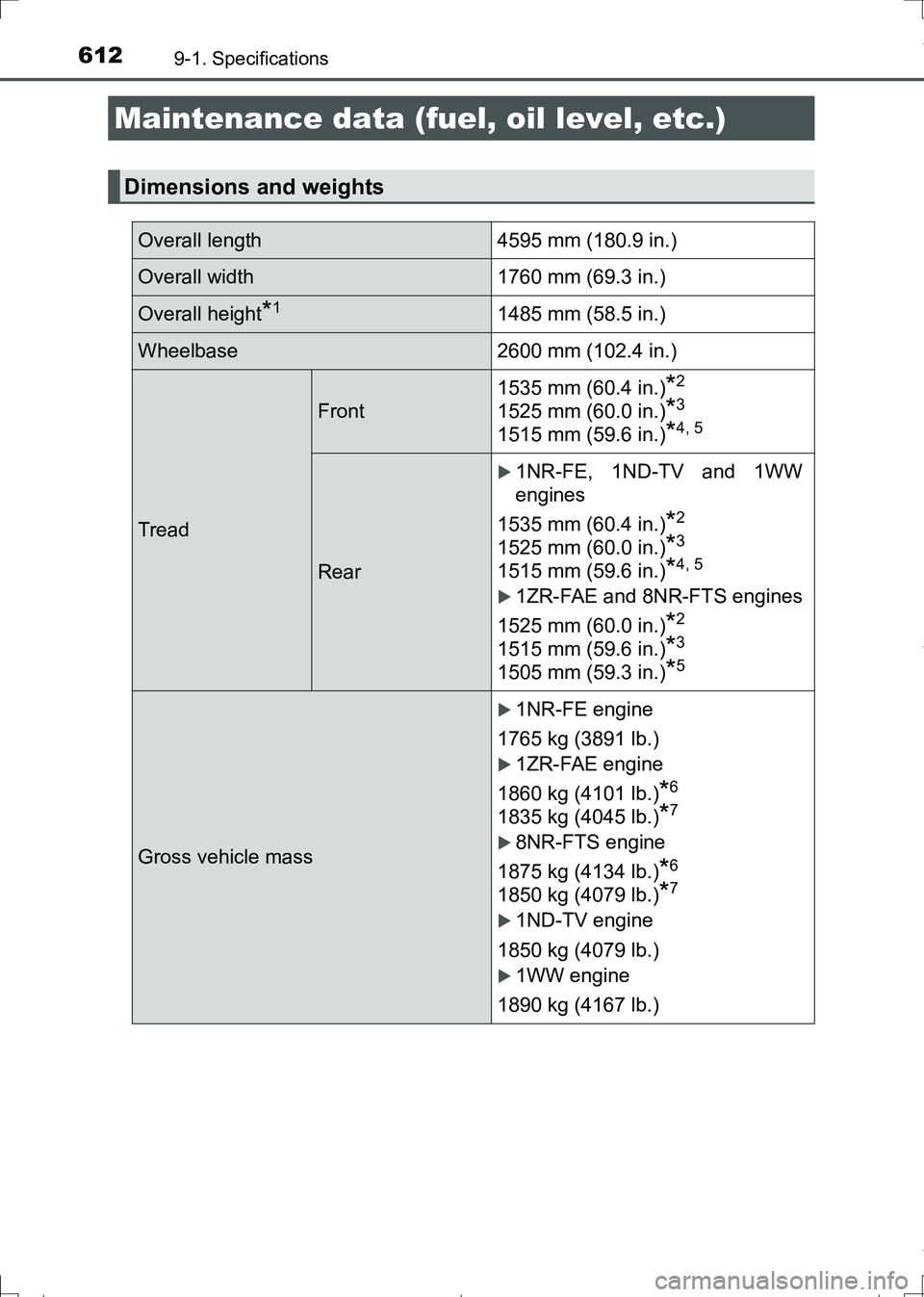

Dimensions and weights
Overall length 4595 mm (180.9 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11485 mm (58.5 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
Rear
1NR-FE, 1ND-TV and 1WW
engines
1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
1ZR-FAE and 8NR-FTS engines
1525 mm (60.0 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
Gross vehicle mass
1NR-FE engine
1765 kg (3891 lb.)
1ZR-FAE engine
1860 kg (4101 lb.)
*6
1835 kg (4045 lb.)*7
8NR-FTS engine
1875 kg (4134 lb.)
*6
1850 kg (4079 lb.)*7
1ND-TV engine
1850 kg (4079 lb.)
1WW engine
1890 kg (4167 lb.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 612 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6139-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 215/45R17 tires
*5: Vehicles with 225/45R17 tires
*6: Vehicles with a Multidrive
*7: Vehicles with a manual transmission
Maximum
permissible axle
capacityFront
1NR-FE, 1ZR-FAE, 8NR-FTS
and 1ND-TV engines
1020 kg (2249 lb.)
1WW engine
1080 kg (2381 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load
1NR-FE and 1ND-TV engines
55 kg (121 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
65 kg (143 lb.)
Towing capacityWith brake
1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
1300 kg (2867 lb.)
Without brake 450 kg (992 lb.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 613 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6149-1. Specifications
AURIS Touring Sports_EE (12L13E)■

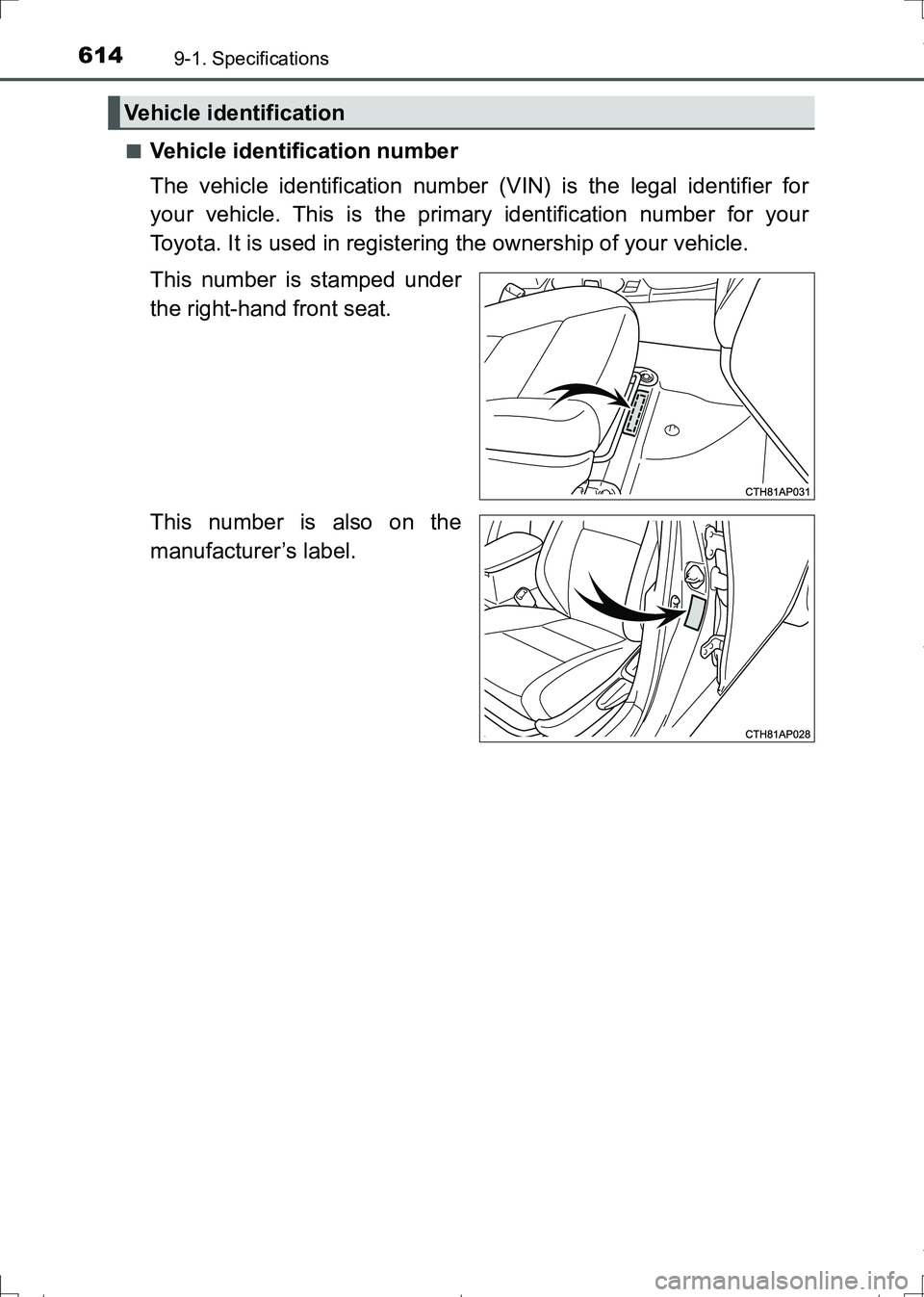

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification
AURIS Touring Sports_OM_Europe_OM12L13E.book 614 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6159-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications

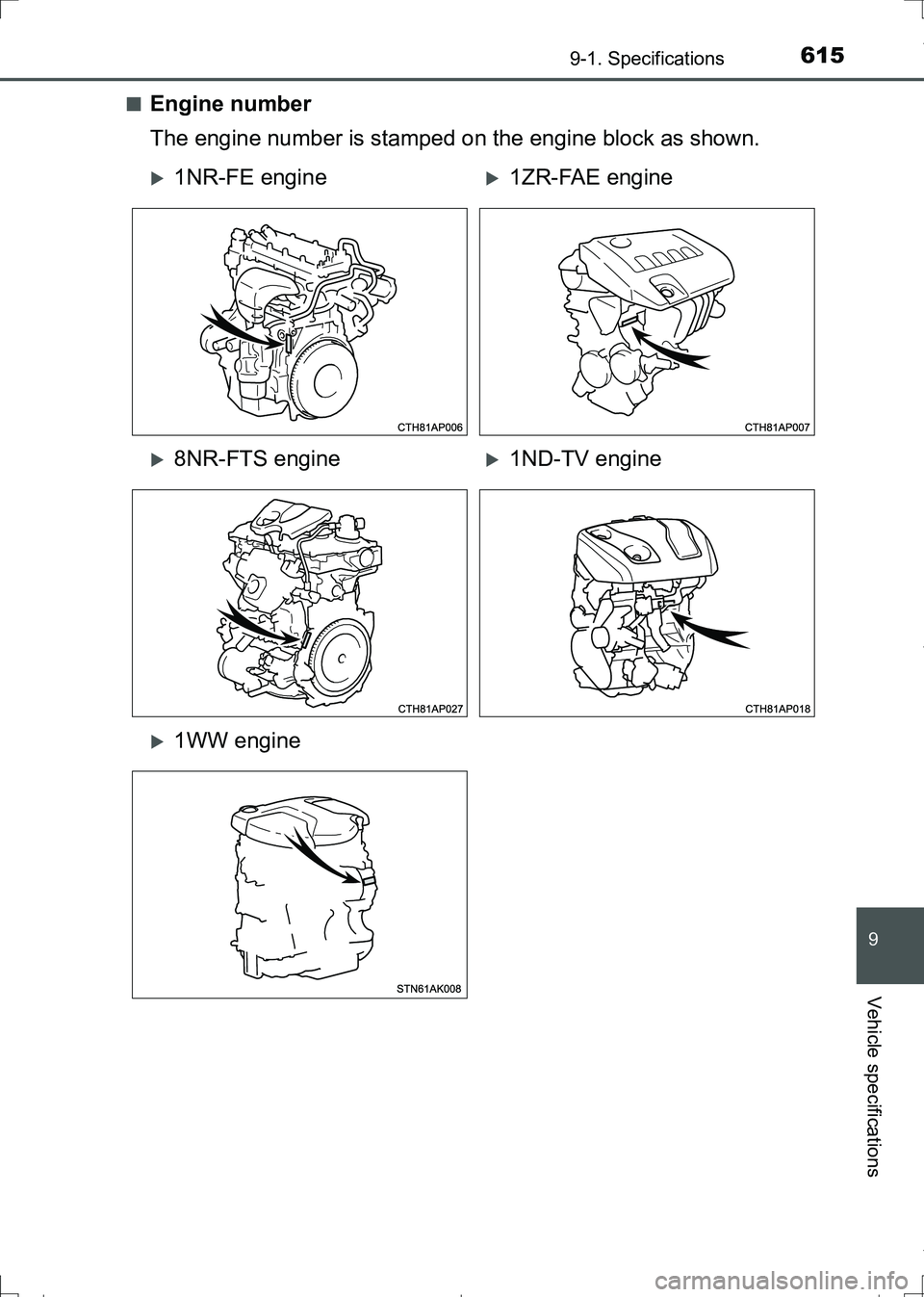

■Engine number
The engine number is stamped on the engine block as shown.
1NR-FE engine1ZR-FAE engine
8NR-FTS engine1ND-TV engine
1WW engine
AURIS Touring Sports_OM_Europe_OM12L13E.book 615 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6169-1. Specifications
AURIS Touring Sports_EE (12L13E)

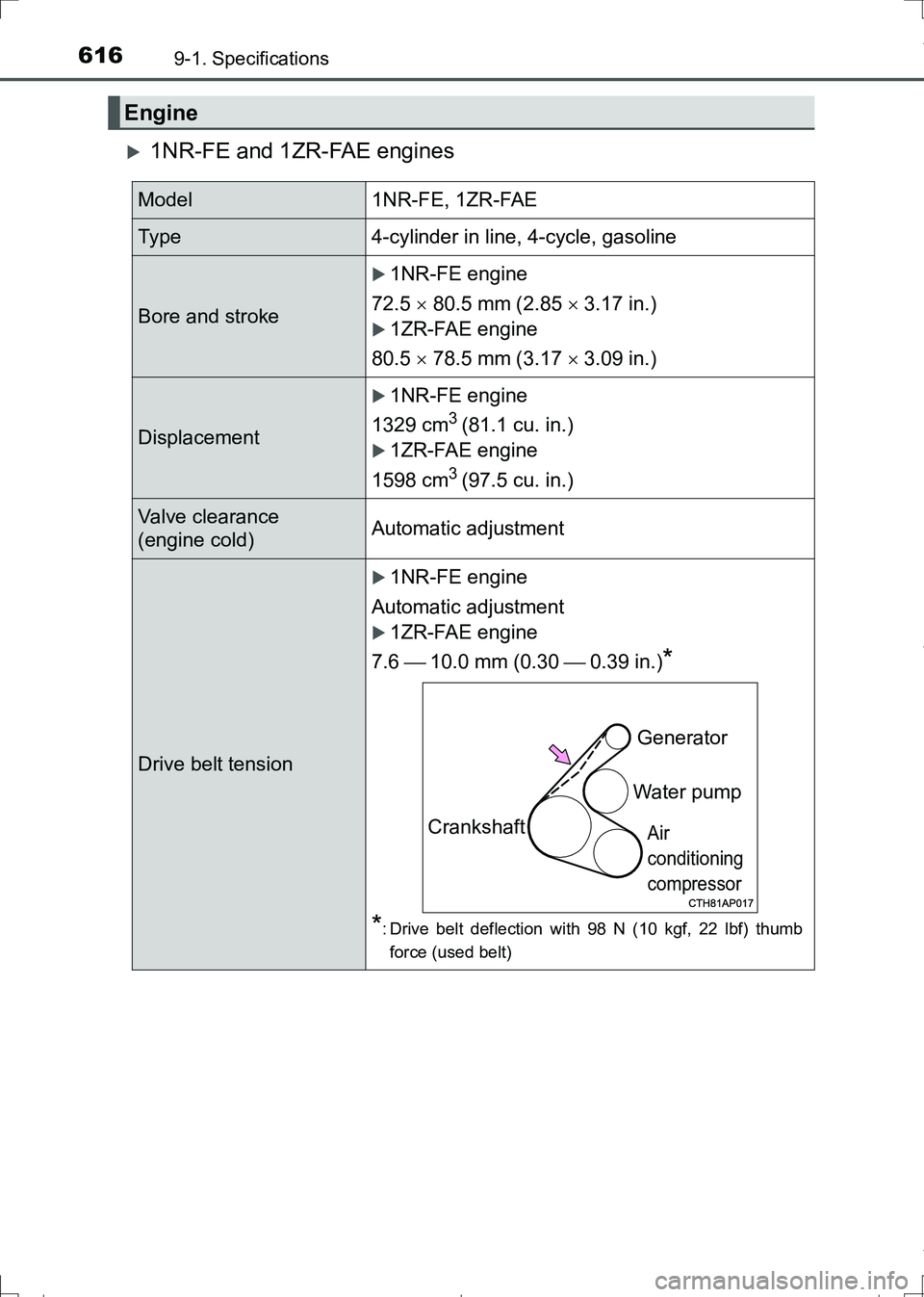

1NR-FE and 1ZR-FAE engines
Engine
Model1NR-FE, 1ZR-FAE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1NR-FE engine
72.5  80.5 mm (2.85  3.17 in.)
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
Displacement
1NR-FE engine
1329 cm
3 (81.1 cu. in.)
1ZR-FAE engine
1598 cm
3 (97.5 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
1NR-FE engine
Automatic adjustment
1ZR-FAE engine
7.6 10.0 mm (0.30 0.39 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
Generator
Water pump
Air
conditioning
compressorCrankshaft
AURIS Touring Sports_OM_Europe_OM12L13E.book 616 ページ ２０１６年６月２７日　月曜日　午後５時２１分
