2017 TOYOTA AURIS TOURING SPORTS Owners Manual

4657-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the support rod into the slot.

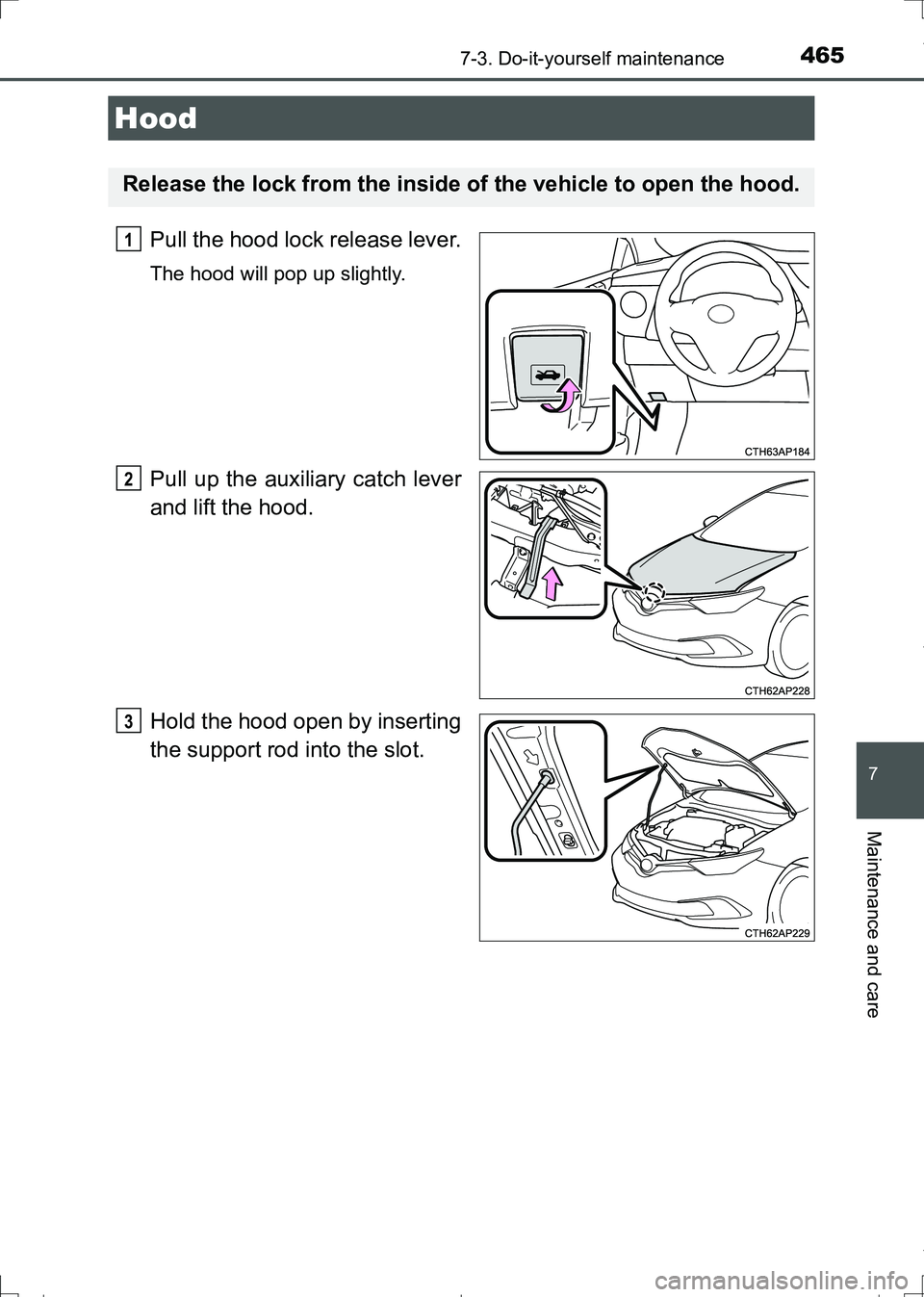

Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 465 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4667-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)

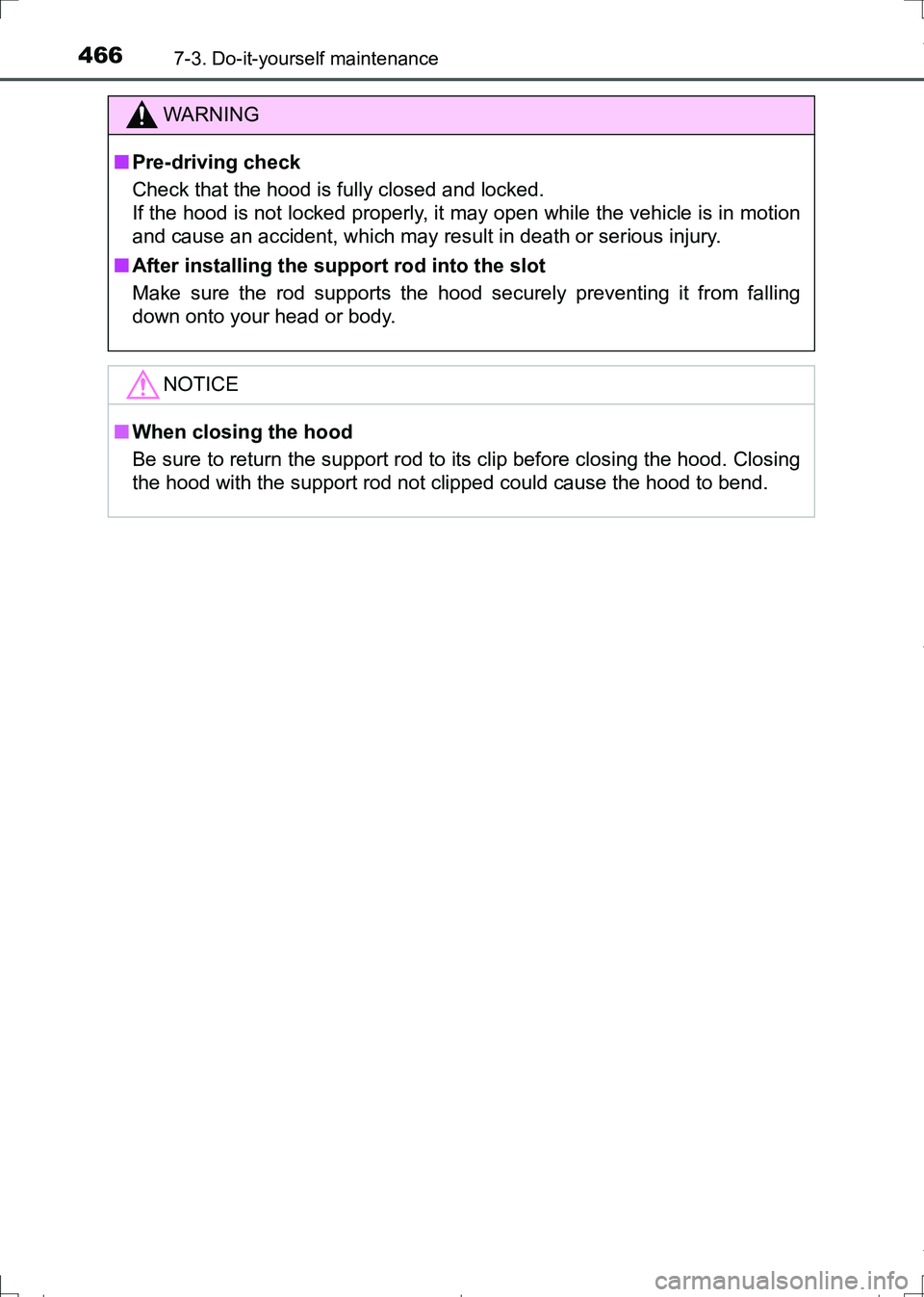

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■After installing the support rod into the slot
Make sure the rod supports the hood securely preventing it from falling
down onto your head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod not clipped could cause the hood to bend.
AURIS Touring Sports_OM_Europe_OM12L13E.book 466 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4677-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
◆Front
◆Rear
Type A
Type B

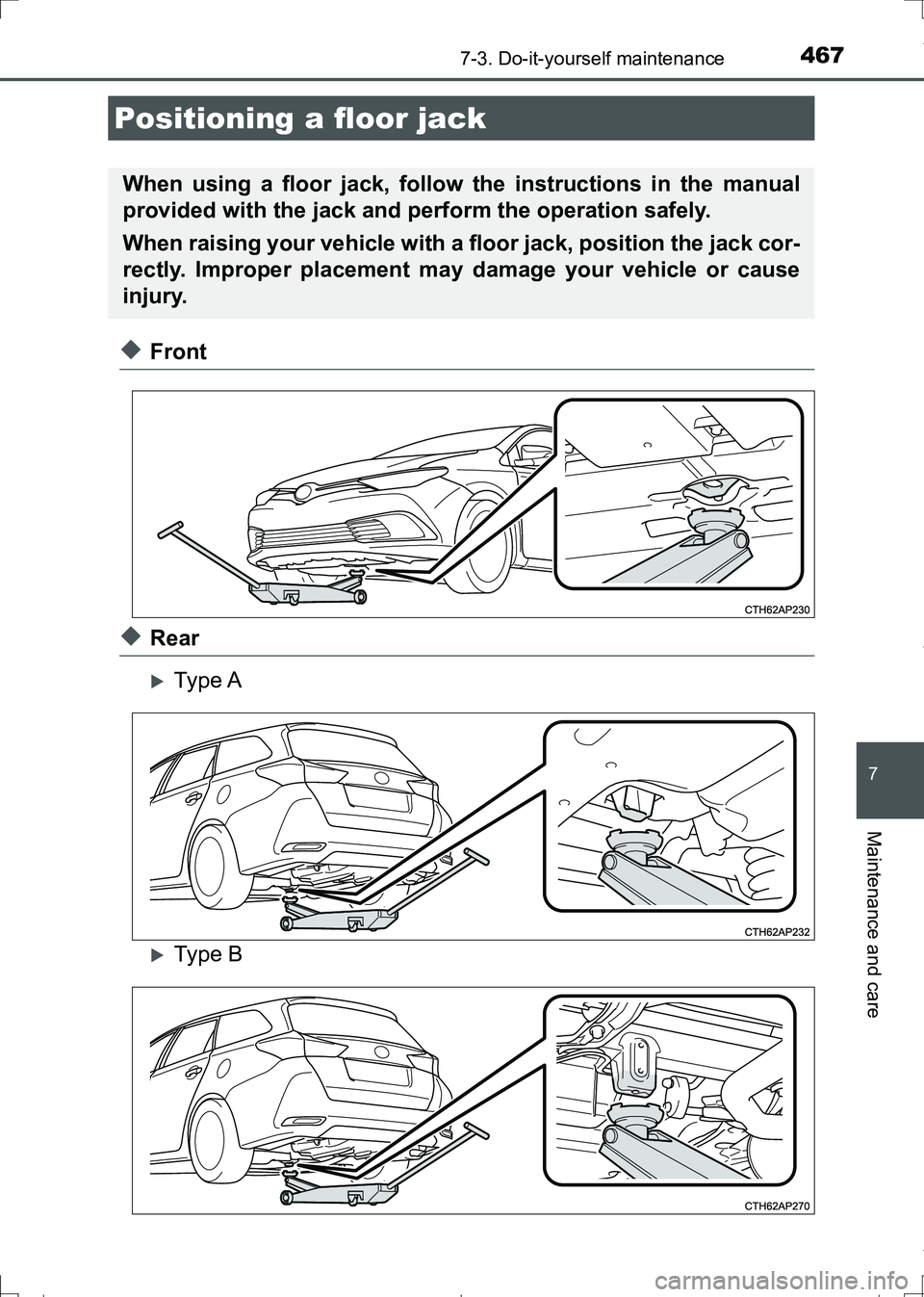

Positioning a floor jack
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
AURIS Touring Sports_OM_Europe_OM12L13E.book 467 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4687-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■
1NR-FE engine
Engine compartment
Washer fluid tank
(P. 487)
Engine coolant reservoir
(P. 481)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Battery (P. 484)
Fuse box (P. 514)
Electric cooling fan
Condenser (P. 483)
Radiator (P. 483)1
2
3
4
5
6
7
8
9
AURIS Touring Sports_OM_Europe_OM12L13E.book 468 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4697-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
■1ZR-FAE engine
Washer fluid tank
(P. 487)
Engine coolant reservoir
(P. 481)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Battery (P. 484)
Fuse box (P. 514)
Electric cooling fan
Condenser (P. 483)
Radiator (P. 483)1
2
3
4
5
6
7
8
9
AURIS Touring Sports_OM_Europe_OM12L13E.book 469 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4707-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■
8NR-FTS engine
Engine coolant reservoir
(P. 481)
Intercooler coolant reservoir
(P. 482)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Battery (P. 484)
Fuse box (P. 514)
Radiator (P. 483)
Condenser (P. 483)
Electric cooling fans
Intercooler
Washer fluid tank (P. 487)1
2
3
4
5
6
7
8
9
10
11
AURIS Touring Sports_OM_Europe_OM12L13E.book 470 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4717-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
■1ND-TV engine
Washer fluid tank
(P. 487)
Engine coolant reservoir
(P. 481)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Fuel filter (P. 488)
Battery (P. 484)
Fuse box (P. 514)
Radiator (P. 483)
Electric cooling fan
Condenser (P. 483)
Intercooler (P. 483)1
2
3
4
5
6
7
8
9
10
11
AURIS Touring Sports_OM_Europe_OM12L13E.book 471 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4727-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■
1WW engine
Washer fluid tank
(P. 487)
Engine coolant reservoir
(P. 481)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Fuel filter (P. 489)
Fuse box (P. 514)
Battery (P. 484)
Condenser (P. 483)
Electric cooling fans
Intercooler (P. 483)
Radiator (P. 483)1
2
3
4
5
6
7
8
9
10
11
