2011 TOYOTA URBAN CRUISER Owners Manual

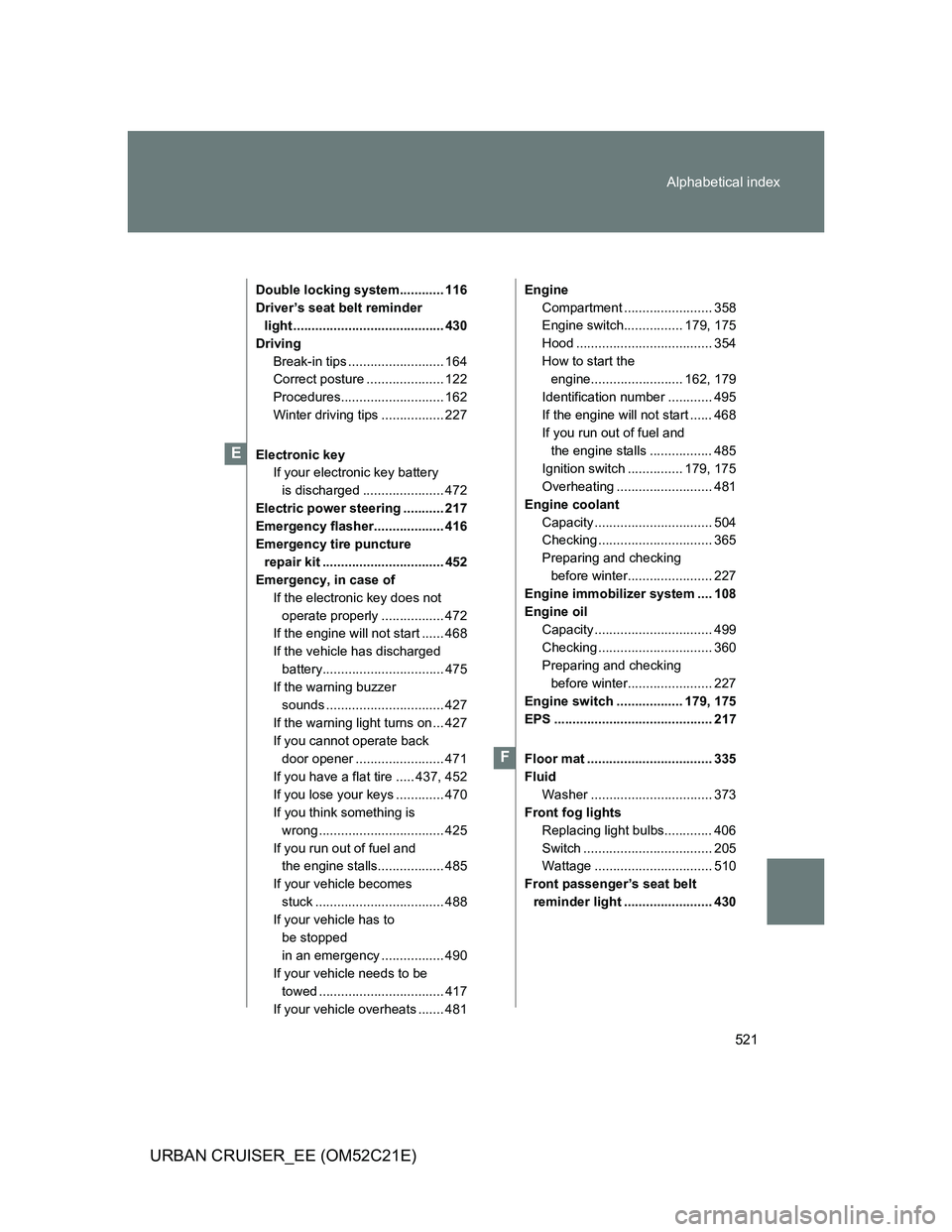

521 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Double locking system............ 116
Driver’s seat belt reminder
light ......................................... 430
Driving
Break-in tips .......................... 164
Correct posture ..................... 122
Procedures............................ 162
Winter driving tips ................. 227
Electronic key
If your electronic key battery
is discharged ...................... 472
Electric power steering ........... 217
Emergency flasher................... 416
Emergency tire puncture
repair kit ................................. 452
Emergency, in case of
If the electronic key does not
operate properly ................. 472
If the engine will not start ...... 468
If the vehicle has discharged
battery................................. 475
If the warning buzzer
sounds ................................ 427
If the warning light turns on ... 427
If you cannot operate back
door opener ........................ 471
If you have a flat tire ..... 437, 452
If you lose your keys ............. 470
If you think something is
wrong .................................. 425
If you run out of fuel and
the engine stalls.................. 485
If your vehicle becomes
stuck ................................... 488
If your vehicle has to
be stopped
in an emergency ................. 490
If your vehicle needs to be
towed .................................. 417
If your vehicle overheats ....... 481Engine
Compartment ........................ 358
Engine switch................ 179, 175
Hood ..................................... 354
How to start the
engine......................... 162, 179
Identification number ............ 495
If the engine will not start ...... 468
If you run out of fuel and
the engine stalls ................. 485
Ignition switch ............... 179, 175
Overheating .......................... 481
Engine coolant
Capacity ................................ 504
Checking ............................... 365
Preparing and checking
before winter....................... 227
Engine immobilizer system .... 108
Engine oil
Capacity ................................ 499
Checking ............................... 360
Preparing and checking
before winter....................... 227
Engine switch .................. 179, 175
EPS ........................................... 217
Floor mat .................................. 335
Fluid
Washer ................................. 373
Front fog lights
Replacing light bulbs............. 406
Switch ................................... 205
Wattage ................................ 510
Front passenger’s seat belt
reminder light ........................ 430
E
F

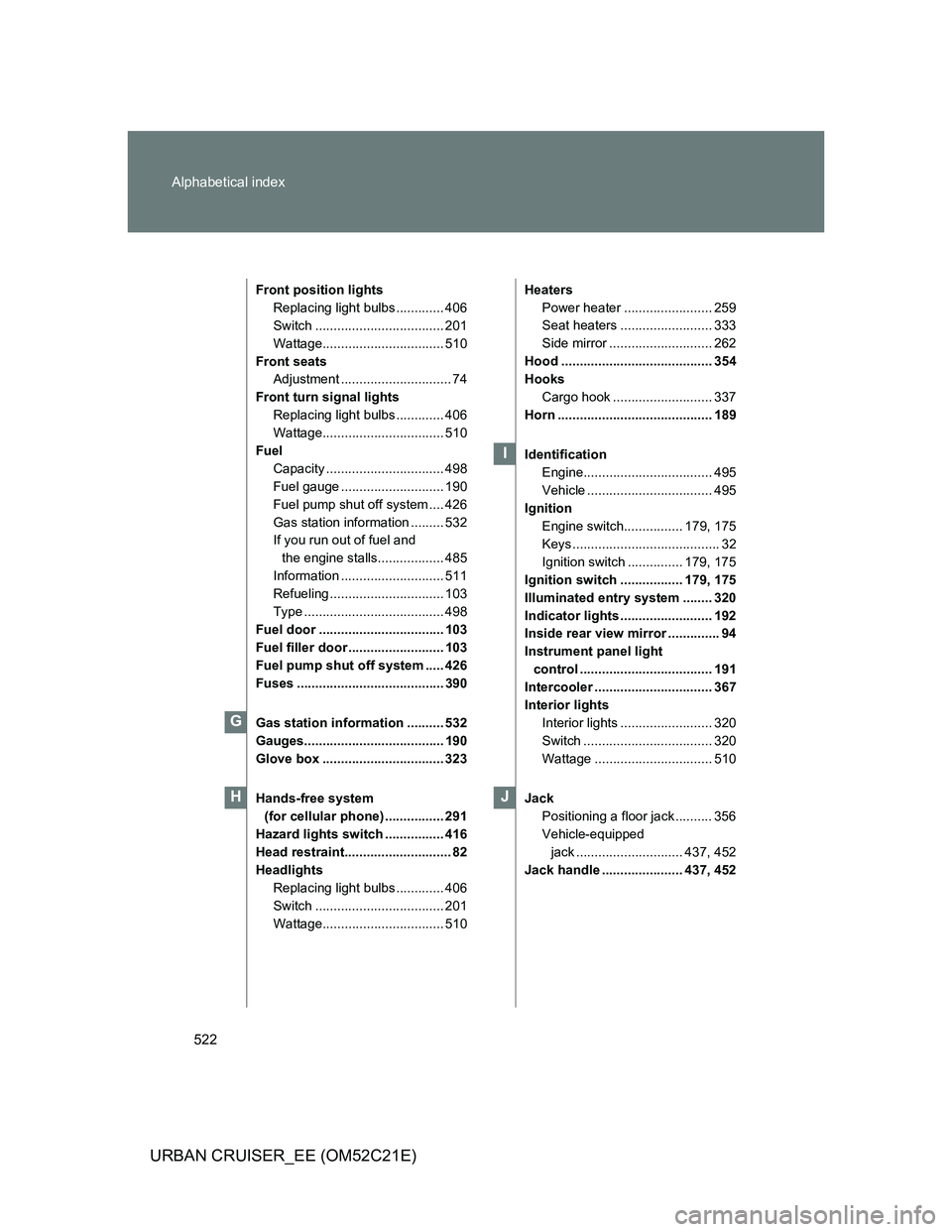

522 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Front position lights
Replacing light bulbs ............. 406
Switch ................................... 201
Wattage................................. 510
Front seats
Adjustment .............................. 74
Front turn signal lights
Replacing light bulbs ............. 406
Wattage................................. 510
Fuel
Capacity ................................ 498
Fuel gauge ............................ 190
Fuel pump shut off system .... 426
Gas station information ......... 532
If you run out of fuel and
the engine stalls.................. 485
Information ............................ 511
Refueling ............................... 103
Type ...................................... 498
Fuel door .................................. 103
Fuel filler door .......................... 103
Fuel pump shut off system ..... 426
Fuses ........................................ 390
Gas station information .......... 532
Gauges...................................... 190
Glove box ................................. 323
Hands-free system
(for cellular phone) ................ 291
Hazard lights switch ................ 416
Head restraint............................. 82
Headlights
Replacing light bulbs ............. 406
Switch ................................... 201
Wattage................................. 510Heaters
Power heater ........................ 259
Seat heaters ......................... 333
Side mirror ............................ 262
Hood ......................................... 354
Hooks
Cargo hook ........................... 337
Horn .......................................... 189
Identification
Engine................................... 495
Vehicle .................................. 495
Ignition
Engine switch................ 179, 175
Keys ........................................ 32
Ignition switch ............... 179, 175
Ignition switch ................. 179, 175
Illuminated entry system ........ 320
Indicator lights ......................... 192
Inside rear view mirror .............. 94
Instrument panel light
control .................................... 191
Intercooler ................................ 367
Interior lights
Interior lights ......................... 320
Switch ................................... 320
Wattage ................................ 510
Jack
Positioning a floor jack .......... 356
Vehicle-equipped
jack ............................. 437, 452
Jack handle ...................... 437, 452
G
H
I
J

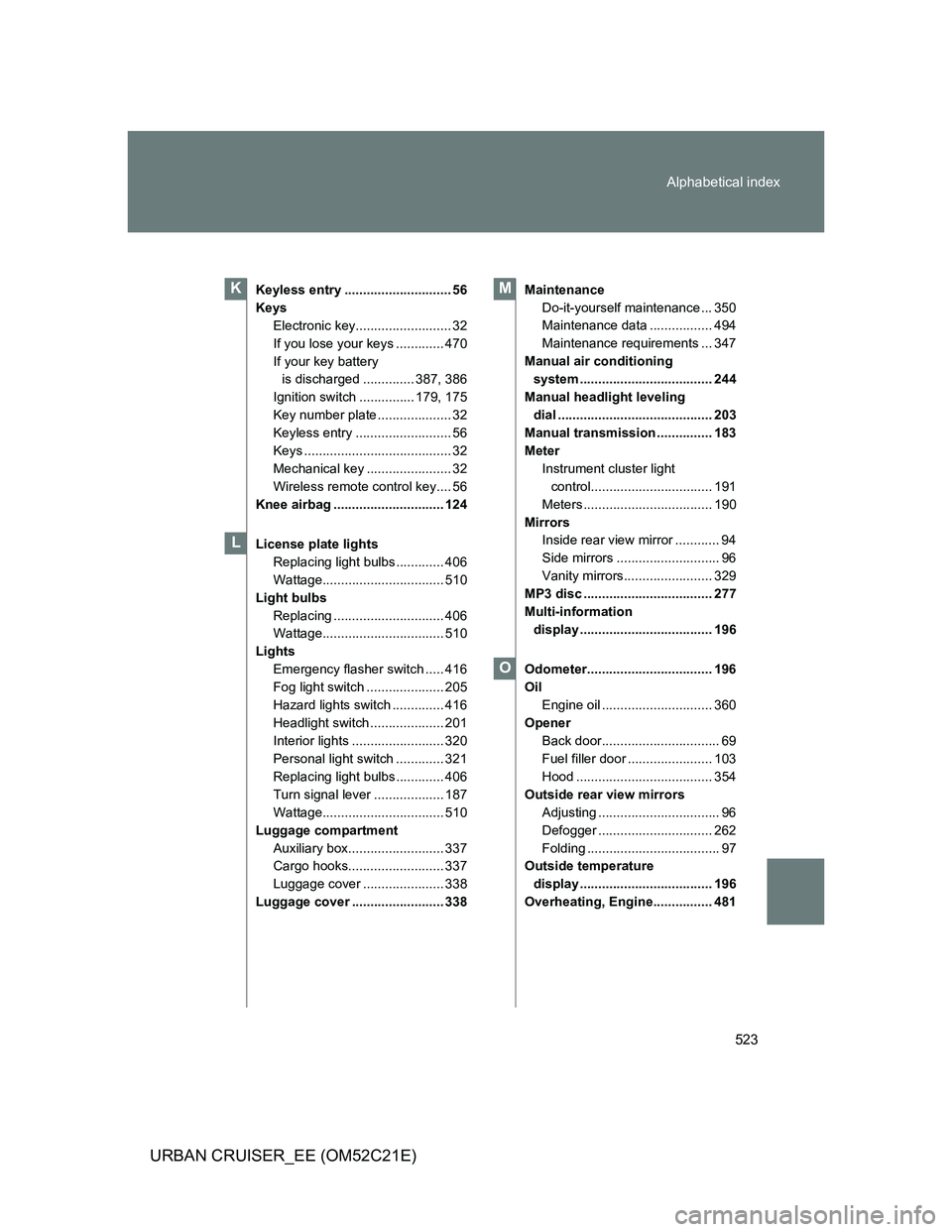

523 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Keyless entry ............................. 56
Keys
Electronic key.......................... 32
If you lose your keys ............. 470
If your key battery
is discharged .............. 387, 386
Ignition switch ............... 179, 175
Key number plate .................... 32
Keyless entry .......................... 56
Keys ........................................ 32
Mechanical key ....................... 32
Wireless remote control key.... 56
Knee airbag .............................. 124
License plate lights
Replacing light bulbs ............. 406
Wattage................................. 510
Light bulbs
Replacing .............................. 406
Wattage................................. 510
Lights
Emergency flasher switch ..... 416
Fog light switch ..................... 205
Hazard lights switch .............. 416
Headlight switch .................... 201
Interior lights ......................... 320
Personal light switch ............. 321
Replacing light bulbs ............. 406
Turn signal lever ................... 187
Wattage................................. 510
Luggage compartment
Auxiliary box.......................... 337
Cargo hooks.......................... 337
Luggage cover ...................... 338
Luggage cover ......................... 338Maintenance
Do-it-yourself maintenance ... 350
Maintenance data ................. 494
Maintenance requirements ... 347
Manual air conditioning
system .................................... 244
Manual headlight leveling
dial .......................................... 203
Manual transmission ............... 183
Meter
Instrument cluster light
control................................. 191
Meters ................................... 190
Mirrors
Inside rear view mirror ............ 94
Side mirrors ............................ 96
Vanity mirrors........................ 329
MP3 disc ................................... 277
Multi-information
display .................................... 196
Odometer.................................. 196
Oil
Engine oil .............................. 360
Opener
Back door................................ 69
Fuel filler door ....................... 103
Hood ..................................... 354
Outside rear view mirrors
Adjusting ................................. 96
Defogger ............................... 262
Folding .................................... 97
Outside temperature
display .................................... 196
Overheating, Engine................ 481K
L
M
O

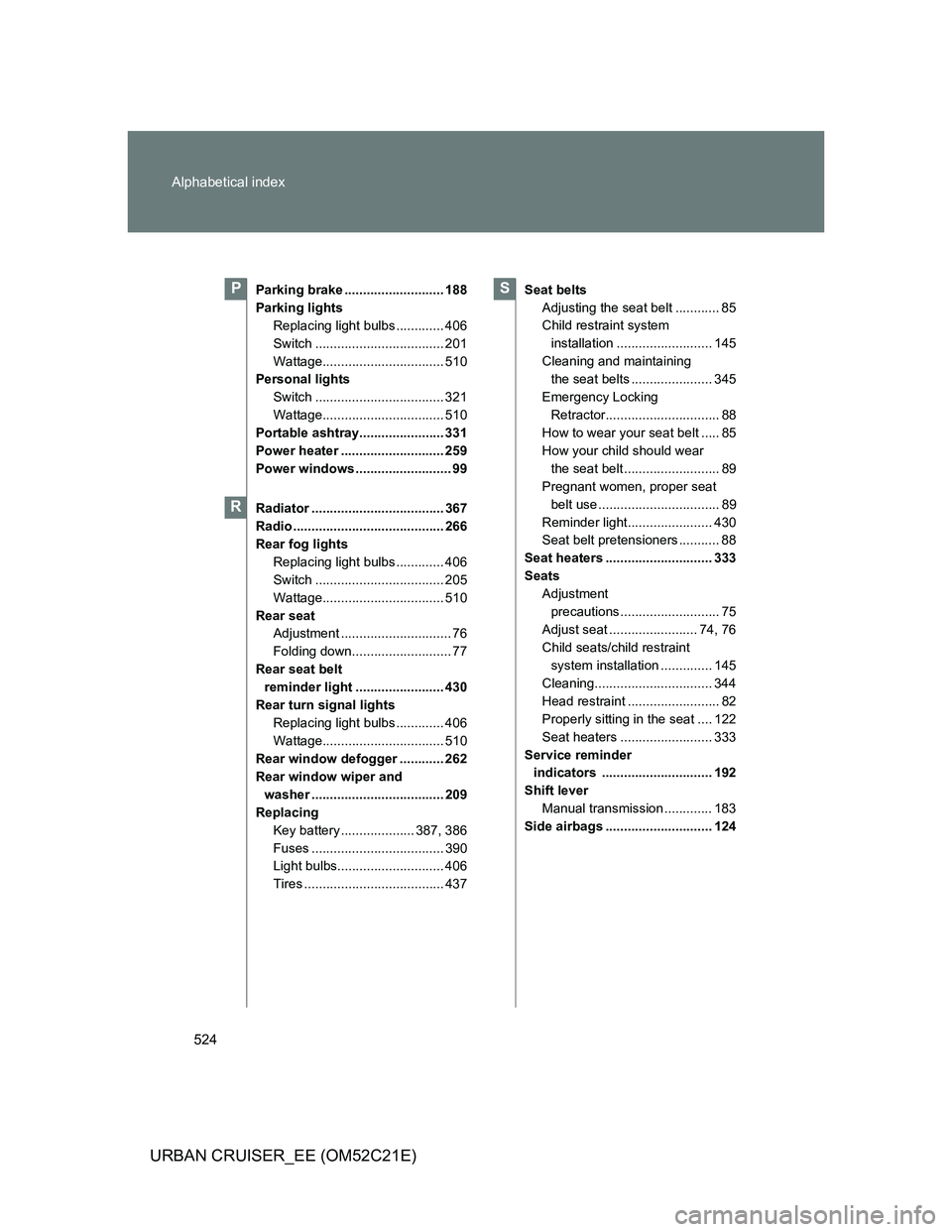

524 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Parking brake ........................... 188
Parking lights
Replacing light bulbs ............. 406
Switch ................................... 201
Wattage................................. 510
Personal lights
Switch ................................... 321
Wattage................................. 510
Portable ashtray....................... 331
Power heater ............................ 259
Power windows .......................... 99
Radiator .................................... 367
Radio ......................................... 266
Rear fog lights
Replacing light bulbs ............. 406
Switch ................................... 205
Wattage................................. 510
Rear seat
Adjustment .............................. 76
Folding down........................... 77
Rear seat belt
reminder light ........................ 430
Rear turn signal lights
Replacing light bulbs ............. 406
Wattage................................. 510
Rear window defogger ............ 262
Rear window wiper and
washer .................................... 209
Replacing
Key battery .................... 387, 386
Fuses .................................... 390
Light bulbs............................. 406
Tires ...................................... 437Seat belts
Adjusting the seat belt ............ 85
Child restraint system
installation .......................... 145
Cleaning and maintaining
the seat belts ...................... 345
Emergency Locking
Retractor............................... 88
How to wear your seat belt ..... 85
How your child should wear
the seat belt .......................... 89
Pregnant women, proper seat
belt use ................................. 89
Reminder light....................... 430
Seat belt pretensioners ........... 88
Seat heaters ............................. 333
Seats
Adjustment
precautions ........................... 75
Adjust seat ........................ 74, 76
Child seats/child restraint
system installation .............. 145
Cleaning................................ 344
Head restraint ......................... 82
Properly sitting in the seat .... 122
Seat heaters ......................... 333
Service reminder
indicators .............................. 192
Shift lever
Manual transmission ............. 183
Side airbags ............................. 124P
R
S

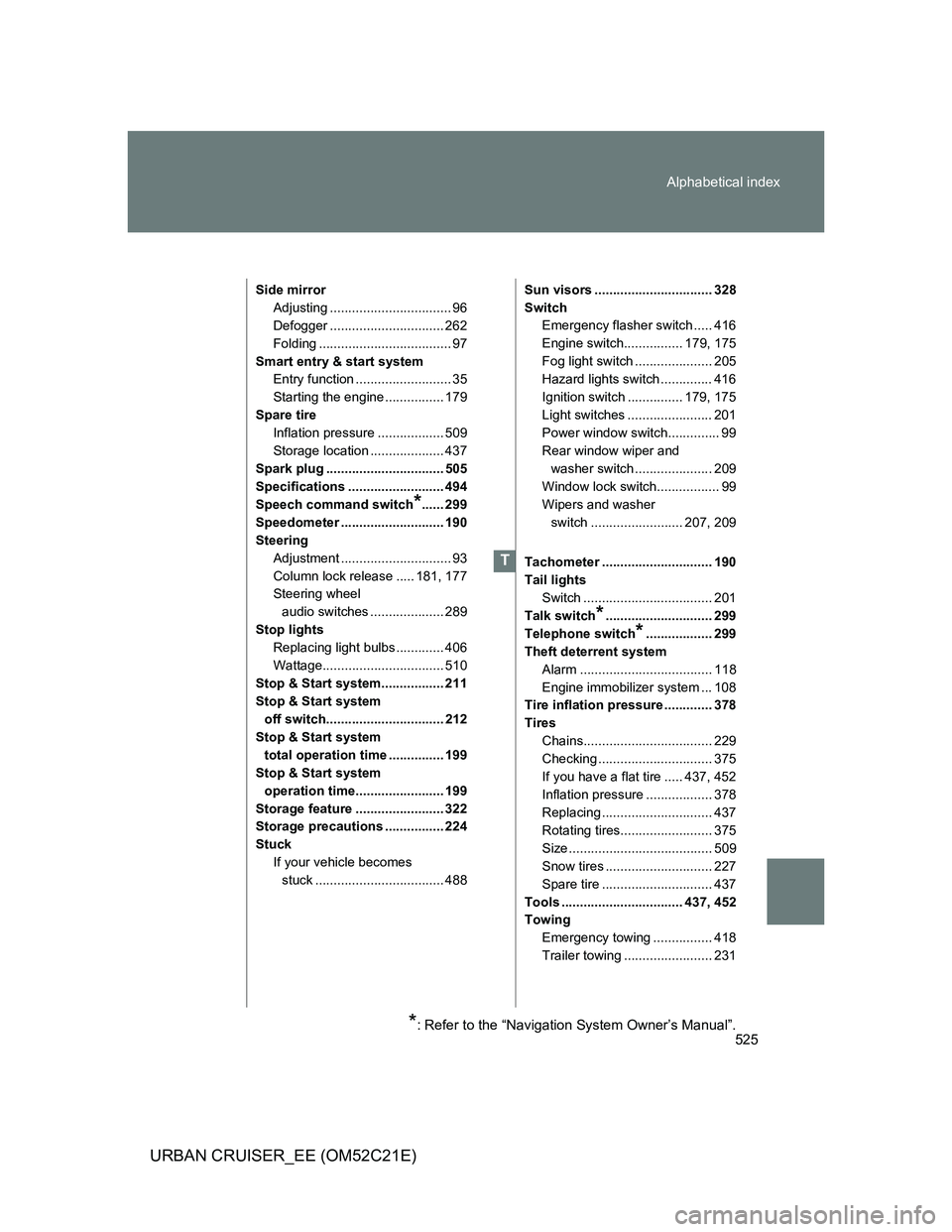

525 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Side mirror
Adjusting ................................. 96
Defogger ............................... 262
Folding .................................... 97
Smart entry & start system
Entry function .......................... 35
Starting the engine ................ 179
Spare tire
Inflation pressure .................. 509
Storage location .................... 437
Spark plug ................................ 505
Specifications .......................... 494
Speech command switch
*...... 299
Speedometer ............................ 190
Steering
Adjustment .............................. 93
Column lock release ..... 181, 177
Steering wheel
audio switches .................... 289
Stop lights
Replacing light bulbs ............. 406
Wattage................................. 510
Stop & Start system................. 211
Stop & Start system
off switch................................ 212
Stop & Start system
total operation time ............... 199
Stop & Start system
operation time........................ 199
Storage feature ........................ 322
Storage precautions ................ 224
Stuck
If your vehicle becomes
stuck ................................... 488Sun visors ................................ 328
Switch
Emergency flasher switch ..... 416
Engine switch................ 179, 175
Fog light switch ..................... 205
Hazard lights switch .............. 416
Ignition switch ............... 179, 175
Light switches ....................... 201
Power window switch.............. 99
Rear window wiper and
washer switch ..................... 209
Window lock switch................. 99
Wipers and washer
switch ......................... 207, 209
Tachometer .............................. 190
Tail lights
Switch ................................... 201
Talk switch
*............................. 299
Telephone switch
*.................. 299
Theft deterrent system
Alarm .................................... 118
Engine immobilizer system ... 108
Tire inflation pressure ............. 378
Tires
Chains................................... 229
Checking ............................... 375
If you have a flat tire ..... 437, 452
Inflation pressure .................. 378
Replacing .............................. 437
Rotating tires......................... 375
Size ....................................... 509
Snow tires ............................. 227
Spare tire .............................. 437
Tools ................................. 437, 452
Towing
Emergency towing ................ 418
Trailer towing ........................ 231
T
*: Refer to the “Navigation System Owner’s Manual”.

526 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Traction control ....................... 217
TRC ........................................... 217
Trip information display .......... 196
Trip meter ................................. 190
Turn signal lights
Replacing light bulbs ............. 406
Switch ................................... 187
Wattage................................. 510
Vanity mirrors .......................... 329
Vehicle identification
number ................................... 495
Vehicle stability control .......... 217
VSC ........................................... 217
Warning buzzers
Brake system ........................ 427
Seat belt reminder................. 430
Warning lights
Active Torque Control
4WD system ....................... 428
Anti-lock brake system .......... 428
Brake system ........................ 427
Charging system ................... 428
Electric power steering.......... 428
Engine oil change
reminder light ...................... 430
Fuel filter ............................... 428
High engine coolant
temperature ........................ 428
Low engine oil level............... 430
Low engine oil pressure ........ 428
Low fuel level ........................ 430
Malfunction indicator lamp .... 428
Open door ............................. 430
Seat belt reminder light ......... 430
Slip indicator ......................... 428
Smart entry & start system.... 434
SRS airbags .......................... 428
VSC OFF indicator ................ 428Washer
Checking ............................... 373
Preparing and checking
before winter....................... 227
Switch ........................... 207, 209
Washing and waxing ............... 340
Weight....................................... 494
Wheels ...................................... 380
Window glasses ........................ 99
Window lock switch .................. 99
Windows
Power windows ....................... 99
Rear window defogger .......... 262
Washer ......................... 207, 209
Windshield wipers ................... 207
Wireless remote control key
Replacing the battery .... 387, 386
Wireless remote control key ... 56
WMA disc ................................. 277
V
W

527 Alphabetical index
URBAN CRUISER_EE (OM52C21E)

528
URBAN CRUISER_EE (OM52C21E)
What to do if...
What to do if...
A tire puncturesP. 437,
452If you have a flat tire
The engine does not start
P. 468If the engine will not start
P. 485If you run out of fuel and the engine stalls
P. 108Engine immobilizer system
P. 475If the battery is discharged
The high engine coolant temperature
warning light flashes or comes on
Steam can be seen coming
from under the hood
P. 481If your vehicle overheats
The key is lostP. 470If you lose your keys
The battery runs outP. 475If the battery is discharged
The doors cannot be lockedP. 6 5Side doors
P. 6 9Back door
The horn begins to soundP. 1 1 8Alarm
The vehicle is stuck in
mud or sandP. 488If the vehicle becomes stuck
The warning light or indicator
light comes onP. 427If a warning light turns on
