2011 TOYOTA URBAN CRUISER Owners Manual

5
465 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

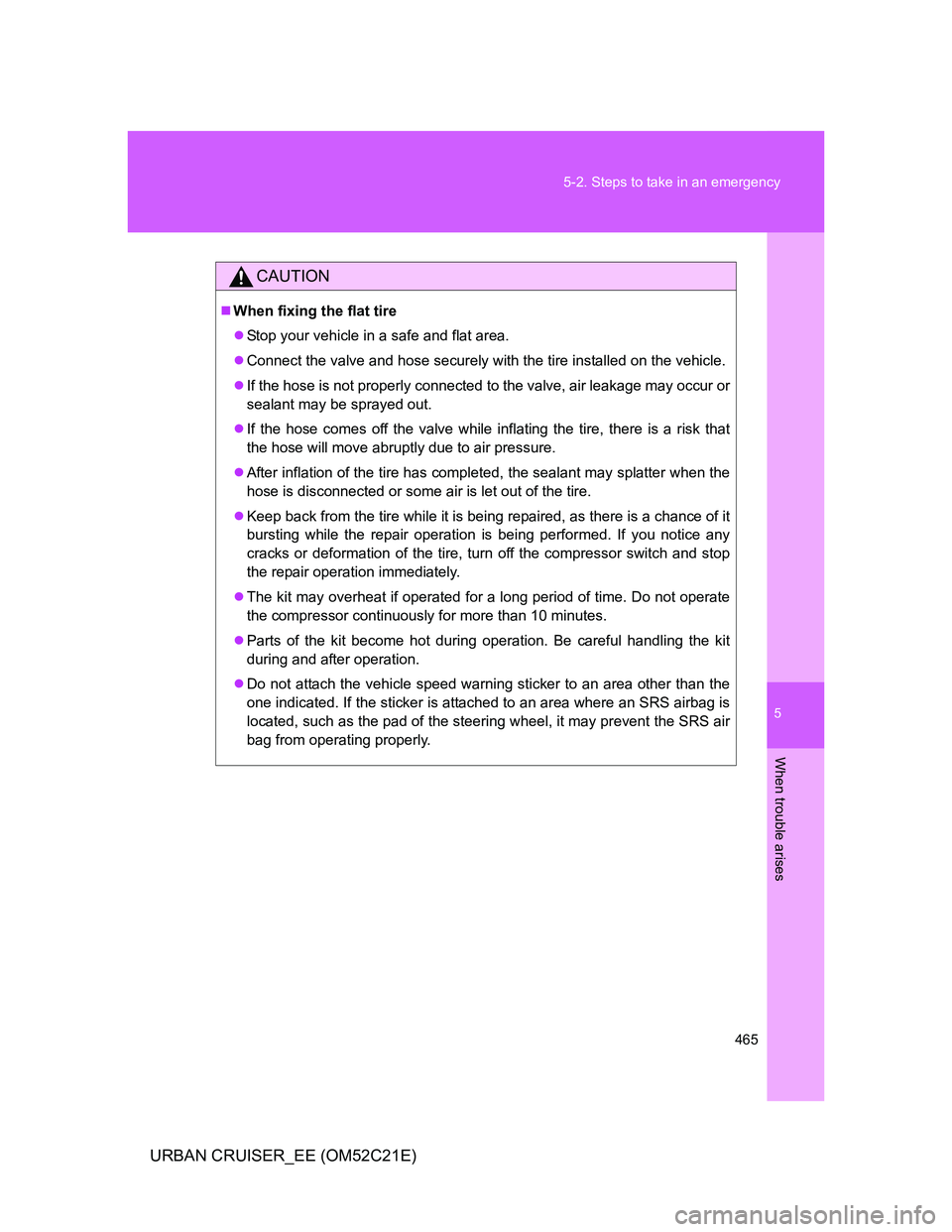

CAUTION
When fixing the flat tire
Stop your vehicle in a safe and flat area.
Connect the valve and hose securely with the tire installed on the vehicle.
If the hose is not properly connected to the valve, air leakage may occur or
sealant may be sprayed out.
If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
The kit may overheat if operated for a long period of time. Do not operate
the compressor continuously for more than 10 minutes.
Parts of the kit become hot during operation. Be careful handling the kit
during and after operation.
Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air
bag from operating properly.

466 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

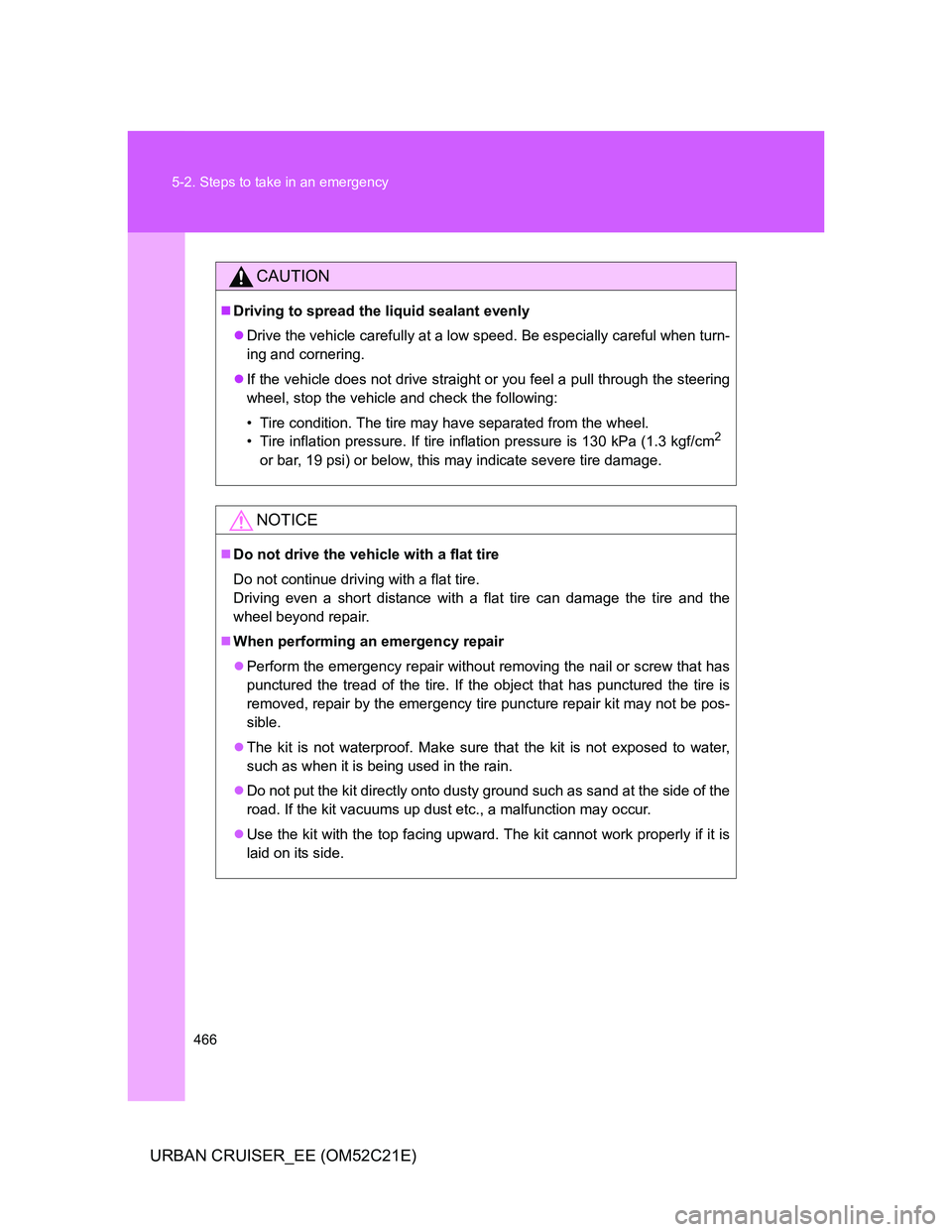

CAUTION
Driving to spread the liquid sealant evenly
Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If tire inflation pressure is 130 kPa (1.3 kgf/cm
2
or bar, 19 psi) or below, this may indicate severe tire damage.
NOTICE
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When performing an emergency repair
Perform the emergency repair without removing the nail or screw that has
punctured the tread of the tire. If the object that has punctured the tire is
removed, repair by the emergency tire puncture repair kit may not be pos-
sible.
The kit is not waterproof. Make sure that the kit is not exposed to water,
such as when it is being used in the rain.
Do not put the kit directly onto dusty ground such as sand at the side of the
road. If the kit vacuums up dust etc., a malfunction may occur.
Use the kit with the top facing upward. The kit cannot work properly if it is
laid on its side.

5
467 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

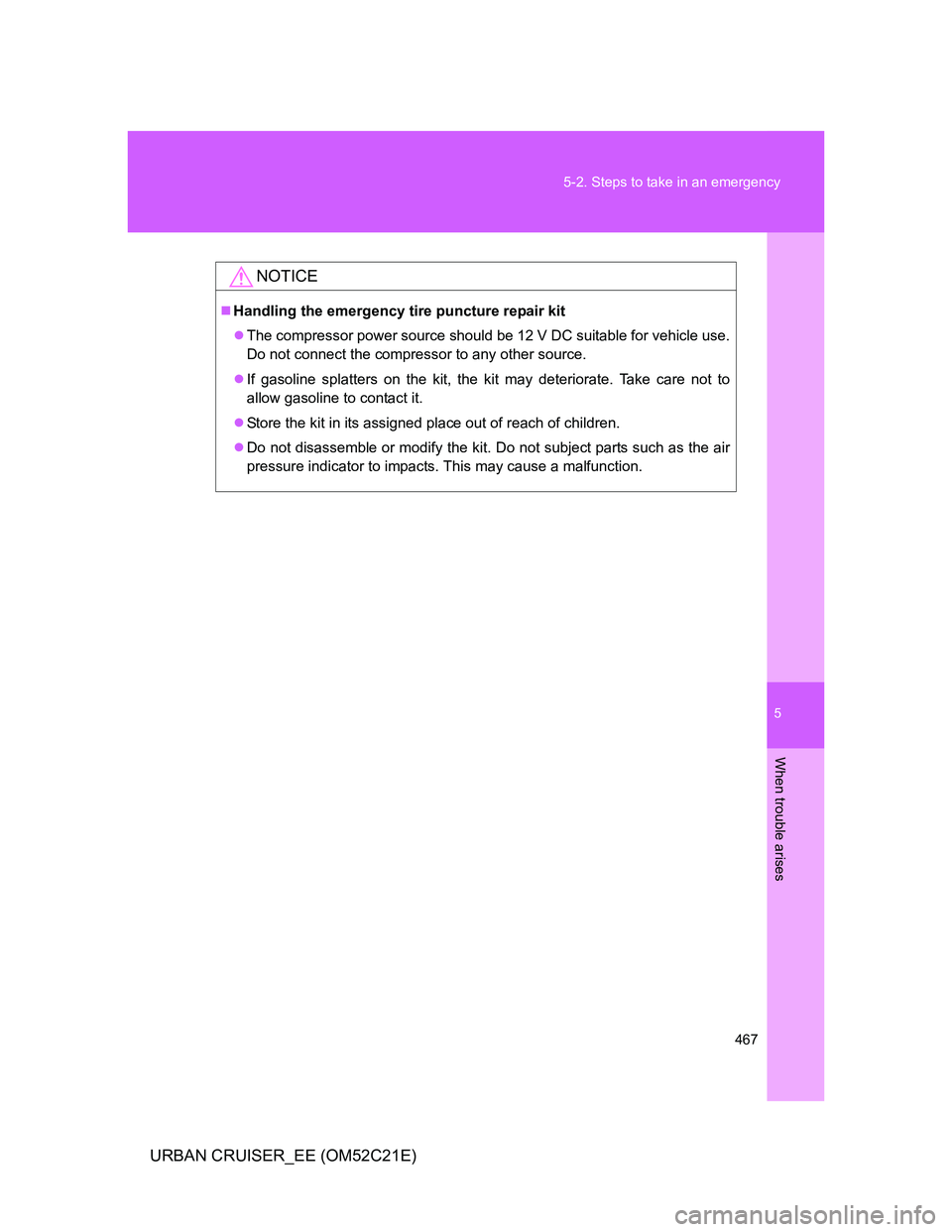

NOTICE
Handling the emergency tire puncture repair kit
The compressor power source should be 12 V DC suitable for vehicle use.
Do not connect the compressor to any other source.
If gasoline splatters on the kit, the kit may deteriorate. Take care not to
allow gasoline to contact it.
Store the kit in its assigned place out of reach of children.
Do not disassemble or modify the kit. Do not subject parts such as the air
pressure indicator to impacts. This may cause a malfunction.

468
5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

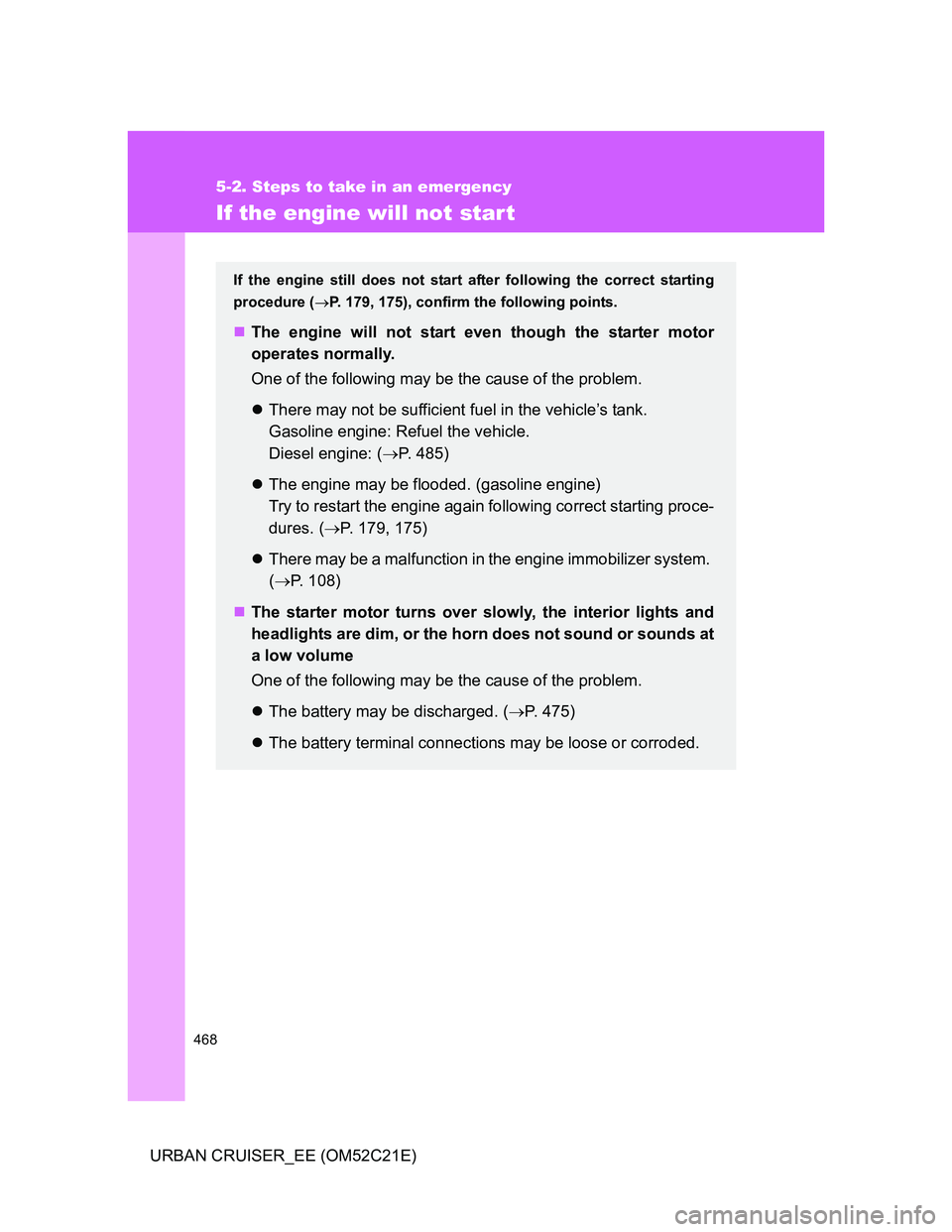

If the engine will not start
If the engine still does not start after following the correct starting
procedure (P. 179, 175), confirm the following points.
The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 485)
The engine may be flooded. (gasoline engine)
Try to restart the engine again following correct starting proce-
dures. (P. 179, 175)
There may be a malfunction in the engine immobilizer system.
(P. 108)
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume
One of the following may be the cause of the problem.
The battery may be discharged. (P. 475)
The battery terminal connections may be loose or corroded.

5
469 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

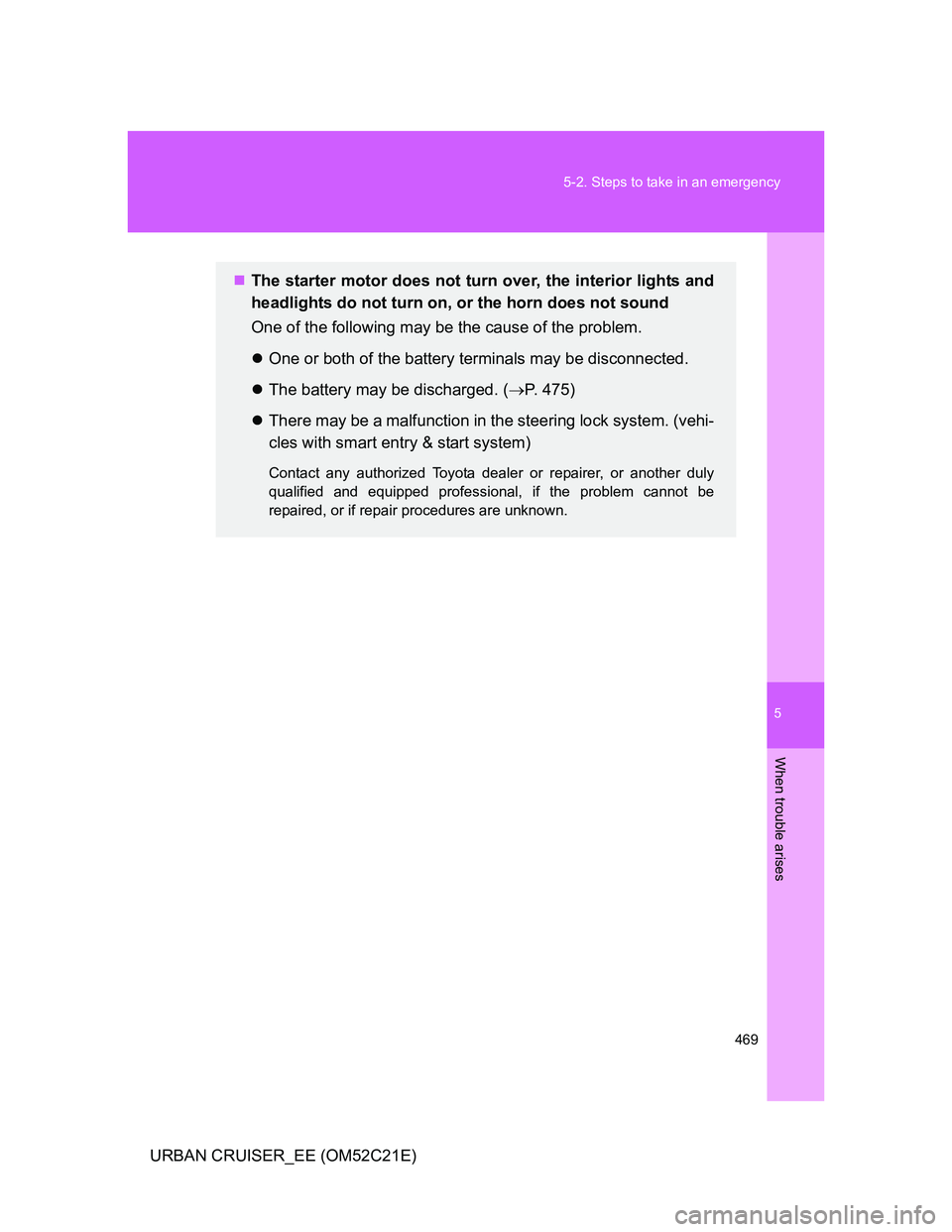

The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 475)
There may be a malfunction in the steering lock system. (vehi-
cles with smart entry & start system)
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, if the problem cannot be
repaired, or if repair procedures are unknown.

470
5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

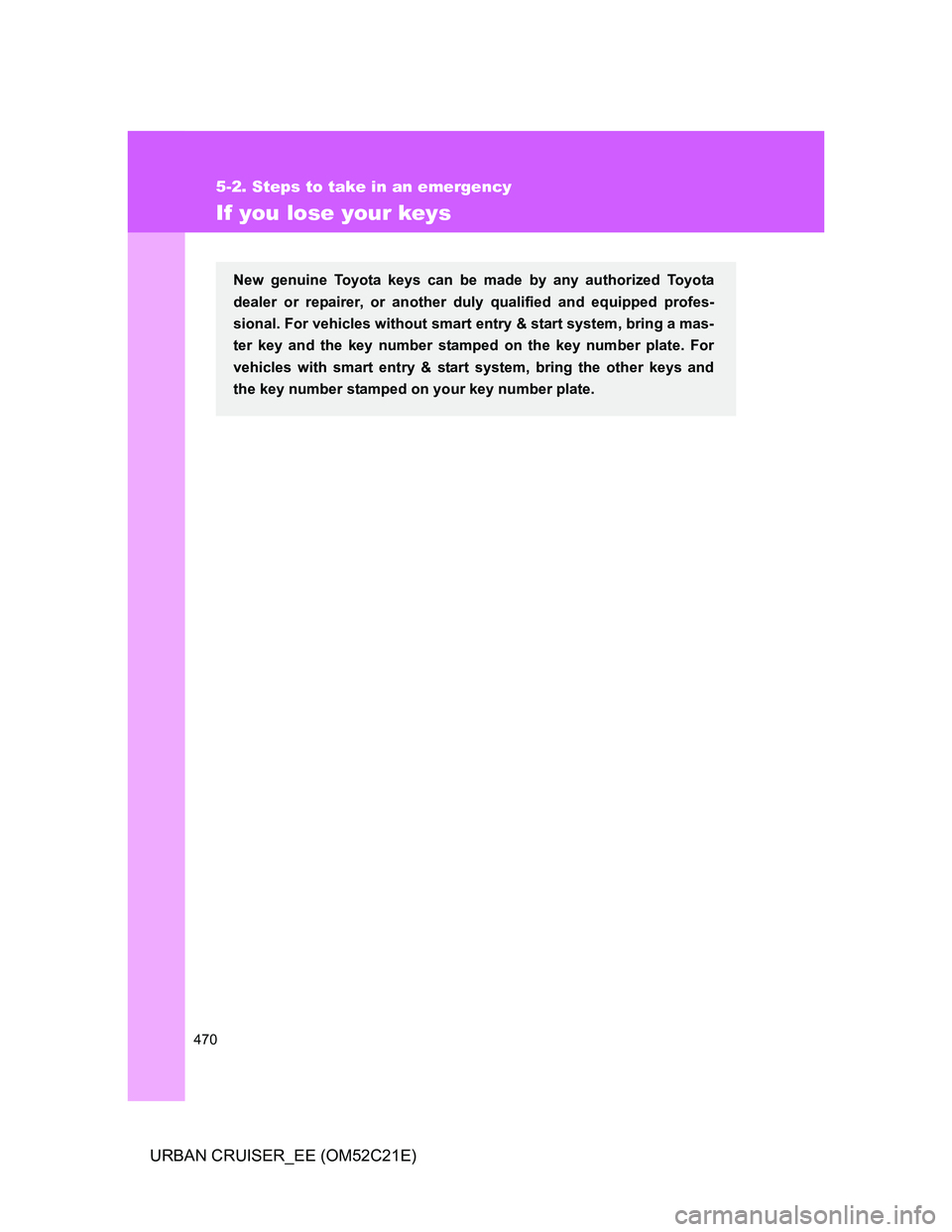

If you lose your keys
New genuine Toyota keys can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional. For vehicles without smart entry & start system, bring a mas-
ter key and the key number stamped on the key number plate. For
vehicles with smart entry & start system, bring the other keys and
the key number stamped on your key number plate.

5
471
5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

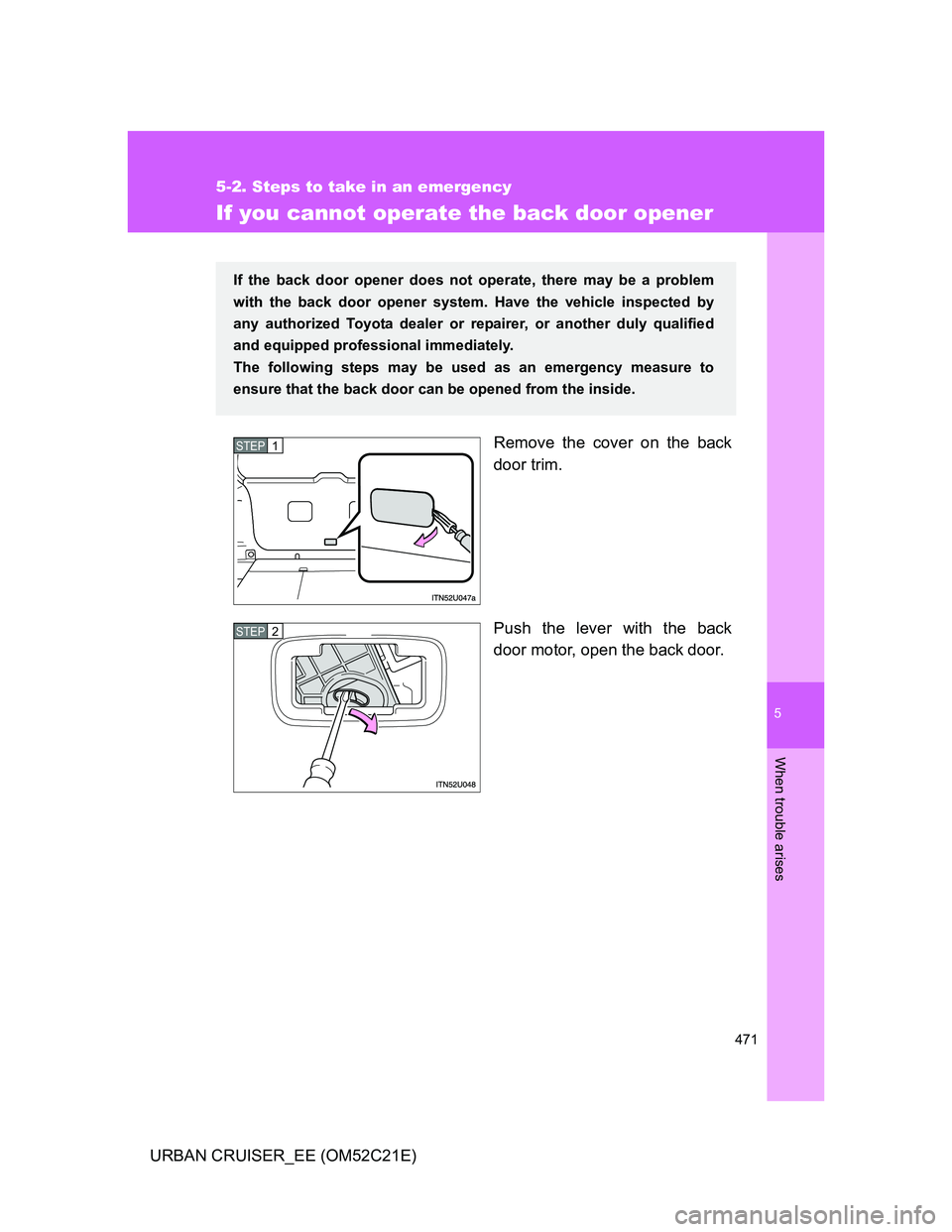

If you cannot operate the back door opener
Remove the cover on the back
door trim.
Push the lever with the back
door motor, open the back door.
If the back door opener does not operate, there may be a problem
with the back door opener system. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the back door can be opened from the inside.
STEP1
STEP2

472
5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

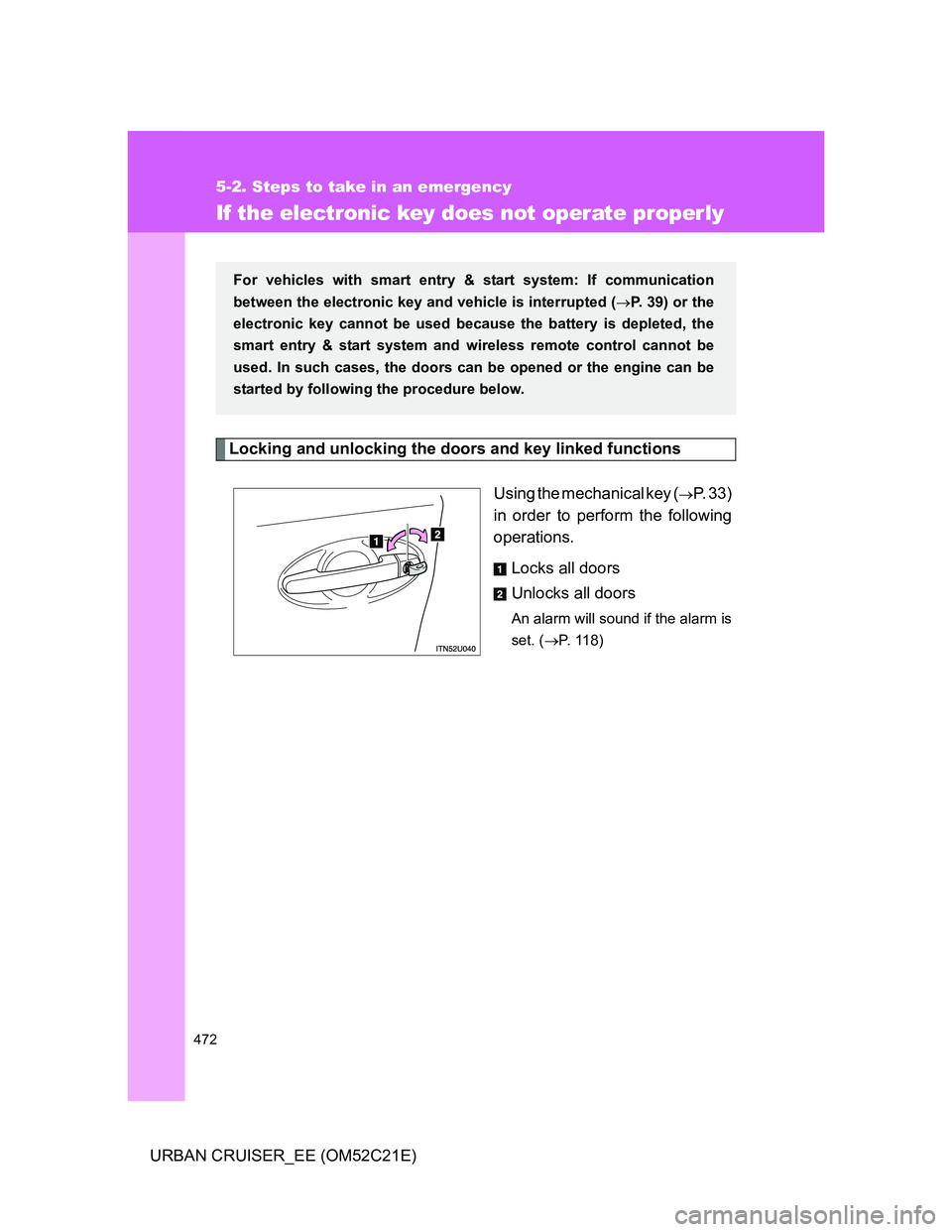

If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Using the mechanical key (
P. 3 3 )
in order to perform the following
operations.
Locks all doors
Unlocks all doors
An alarm will sound if the alarm is
set. (P. 118)
For vehicles with smart entry & start system: If communication
between the electronic key and vehicle is interrupted (P. 39) or the
electronic key cannot be used because the battery is depleted, the
smart entry & start system and wireless remote control cannot be
used. In such cases, the doors can be opened or the engine can be
started by following the procedure below.
