2011 TOYOTA URBAN CRUISER Owners Manual

289
3-2. Using the audio system
3
Interior features
URBAN CRUISER_EE (OM52C21E)

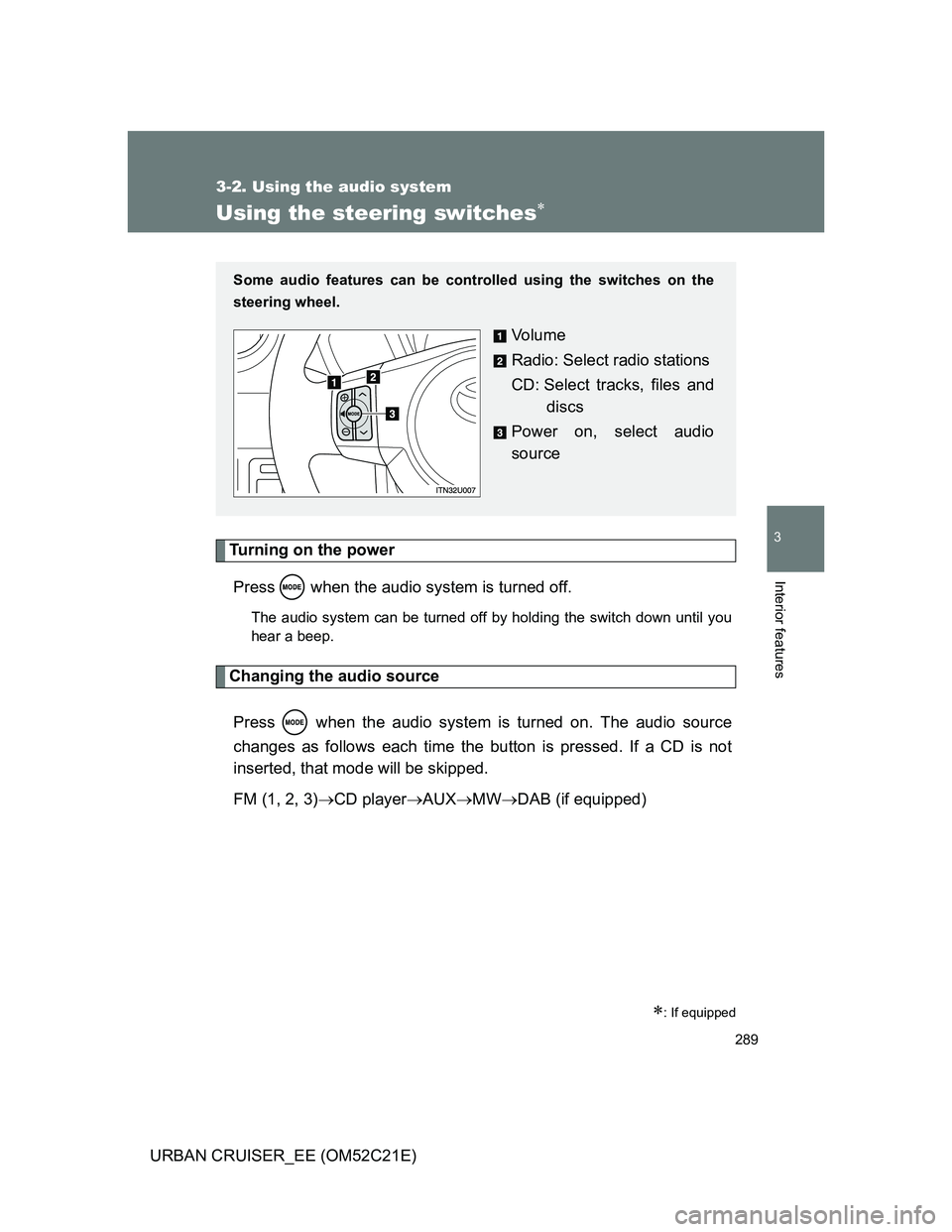

Using the steering switches
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If a CD is not
inserted, that mode will be skipped.
FM (1, 2, 3)CD playerAUXMWDAB (if equipped)
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files and
discs
Power on, select audio
source

290 3-2. Using the audio system
URBAN CRUISER_EE (OM52C21E)

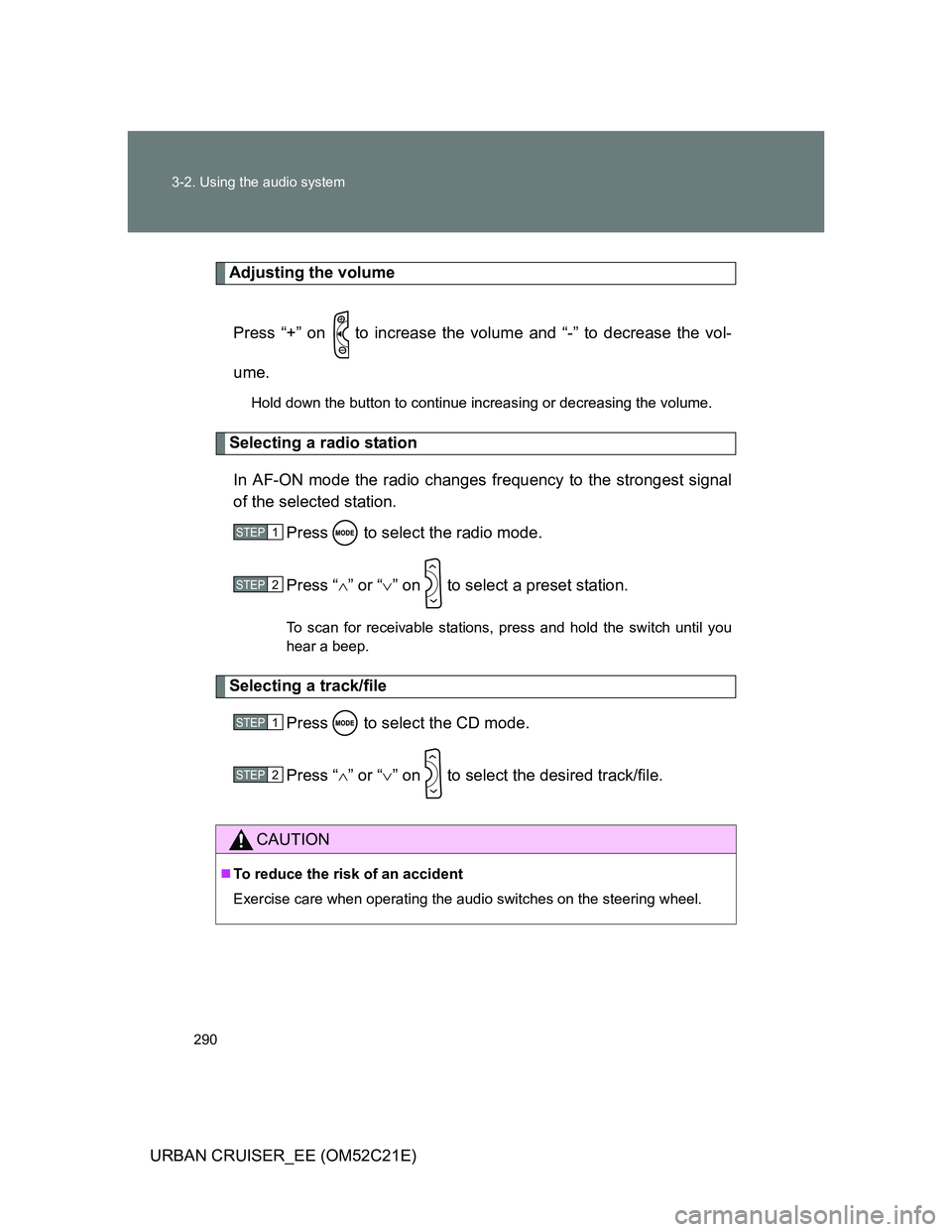

Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down the button to continue increasing or decreasing the volume.
Selecting a radio station
In AF-ON mode the radio changes frequency to the strongest signal
of the selected station.
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
Selecting a track/file
Press to select the CD mode.
Press “” or “” on to select the desired track/file.
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2

291
3
Interior features
URBAN CRUISER_EE (OM52C21E)
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone)
: If equipped
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
Hands-free system quick guide
Setting a cellular phone. (P. 300)
Adding an entry to the phonebook. (Up to 20 names can be
stored.) (P. 314)
Dialing by inputting a name. (P. 302)
Hands-free function list
TitlePage
Using the hands-free system
Using the hands-free system for the first
time
P. 298
Making a phone call
Making a phone call
• Dialing by inputting a name
• Speed dialing
• Redial
• Call back
Receiving a phone call
• Answering the phone
• Refusing the call
Transferring a call
Using a call history memory
• Dialing by inputting a name
• Storing data in the phone book
• Deleting
P. 302
STEP1
STEP2
STEP3

292 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)
Conditions under which the system will not operate
If using a cellular phone that does not support Bluetooth
®.
If the cellular phone is switched off.
If you are outside service range.
If the cellular phone is not connected.
If the cellular phone’s battery is low.
Bluetooth
® antenna
The antenna is built into the display. If the cellular phone is behind the seat
or in the console box, or touching or covered by metal objects, connection
status may deteriorate.
Signal status
This display may not correspond exactly with the cellular phone itself.
TitlePage
Setting a cellular phone
Functions and operation proceduresP. 306
Security and system setup
Security setting items and operation
procedure
System setup items and operation
procedure
P. 310
Using the phone book
Adding a new phone number
Setting speed dial
Changing a registered name
Deleting registered name
Deleting speed dial
Listing the registered data
P. 314

293 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)
When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
About Bluetooth
®
Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone, and take OPP service individually.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

294 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

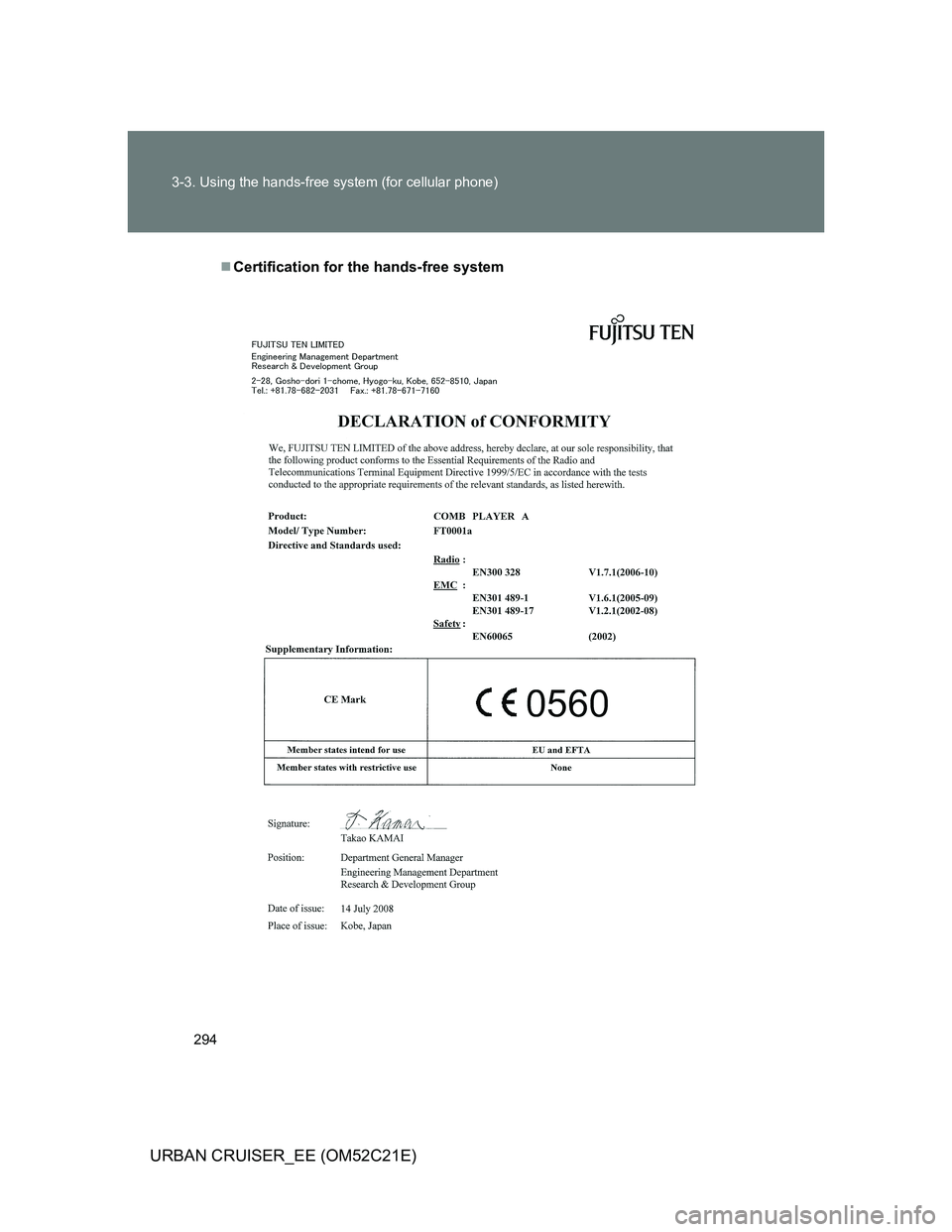

Certification for the hands-free system

295 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

296 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)
