2011 TOYOTA URBAN CRUISER Owners Manual

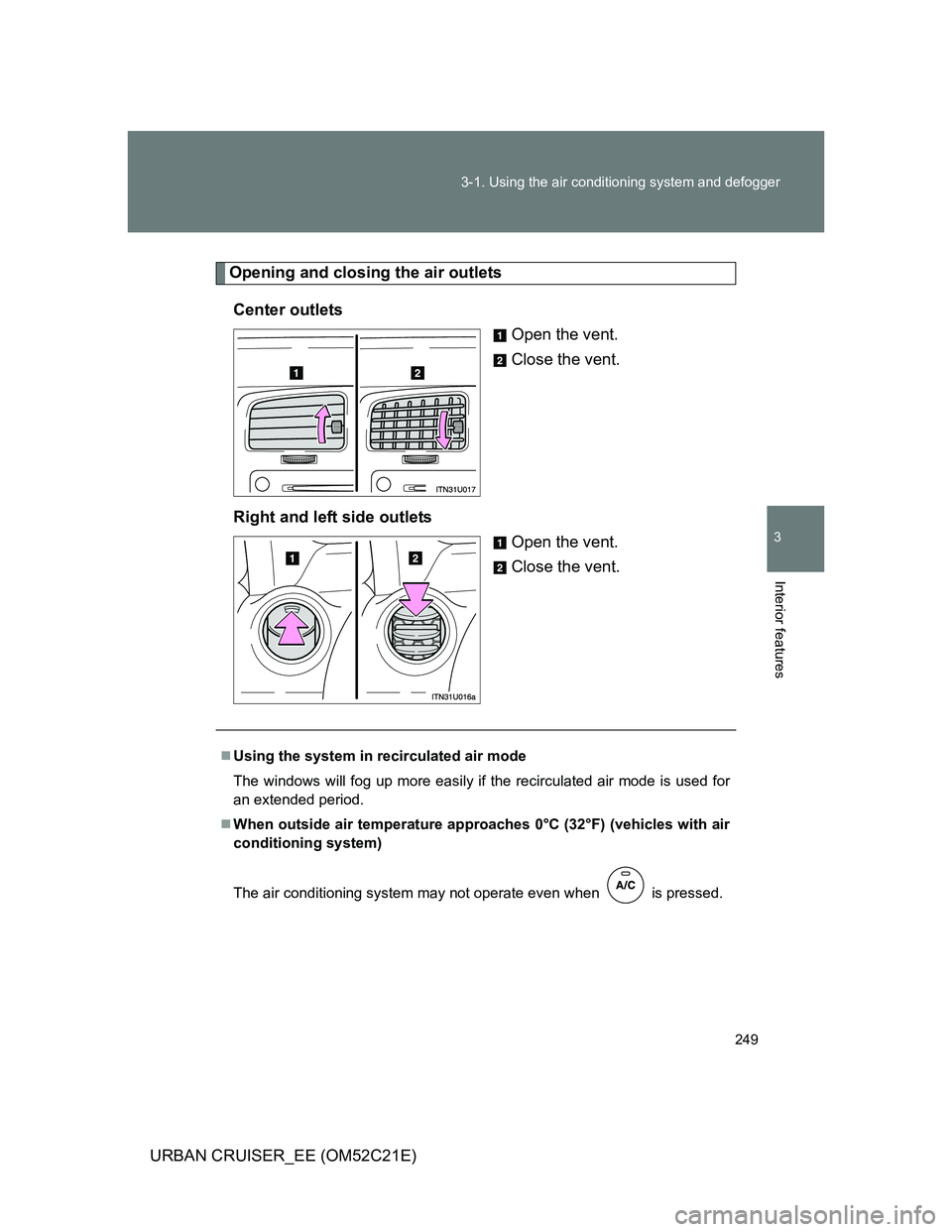

249 3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Opening and closing the air outlets
Center outlets
Open the vent.
Close the vent.
Right and left side outlets
Open the vent.
Close the vent.
Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
When outside air temperature approaches 0°C (32°F) (vehicles with air
conditioning system)
The air conditioning system may not operate even when is pressed.

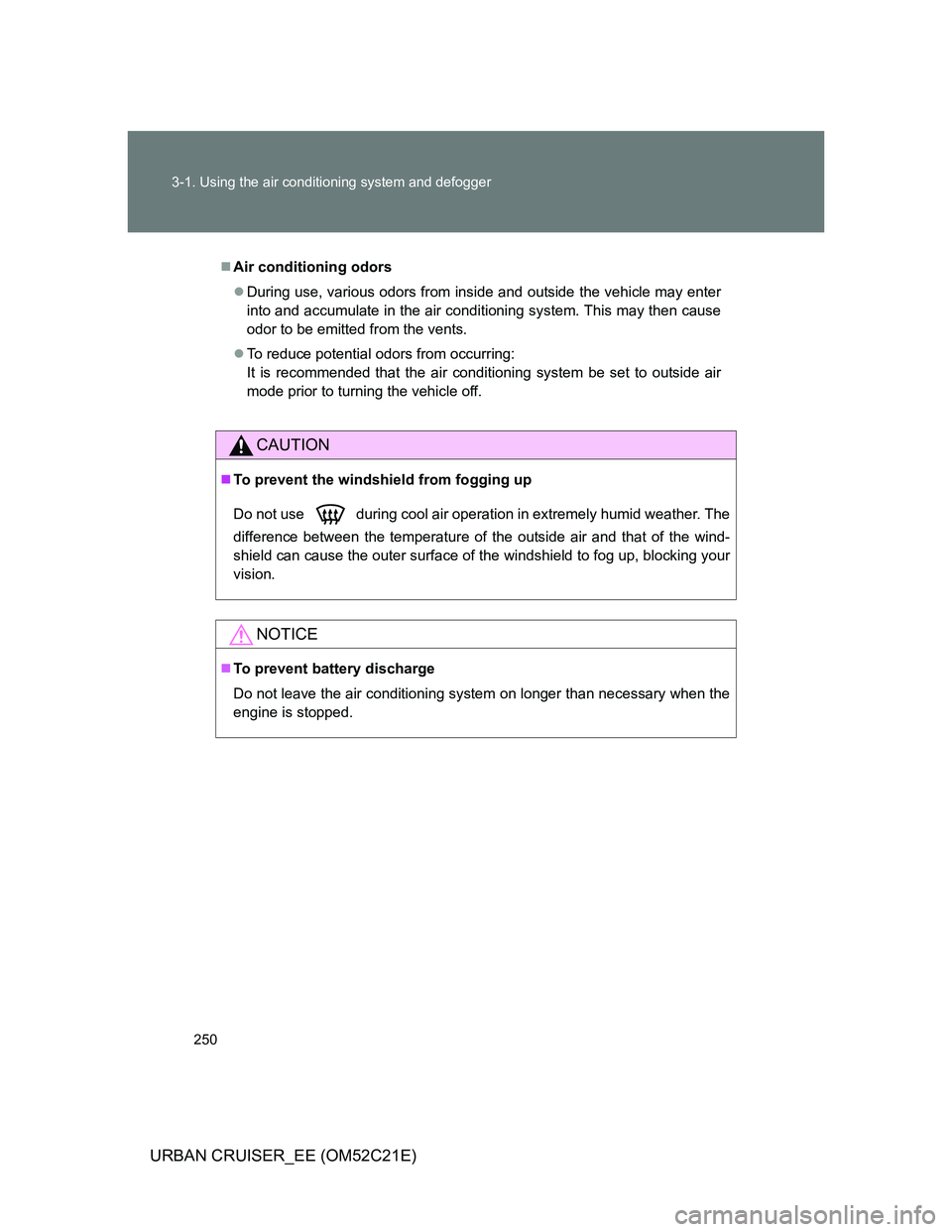

250 3-1. Using the air conditioning system and defogger
URBAN CRUISER_EE (OM52C21E)
Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

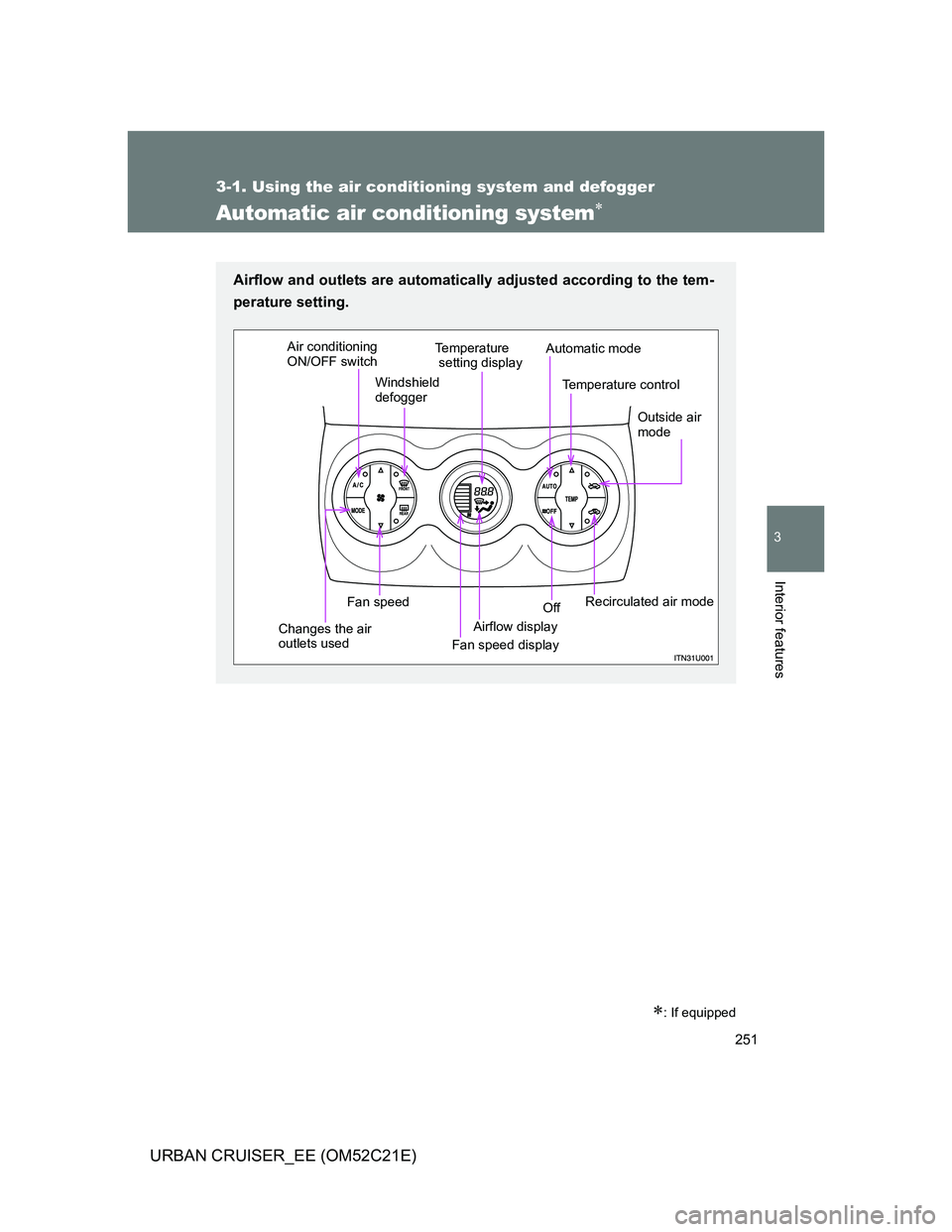

251
3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Automatic air conditioning system
: If equipped
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Temperature
setting display
Temperature control
Airflow display Windshield
defogger
Outside air
mode
Fan speed displayOff Fan speed Air conditioning
ON/OFF switchAutomatic mode
Recirculated air mode
Changes the air
outlets used

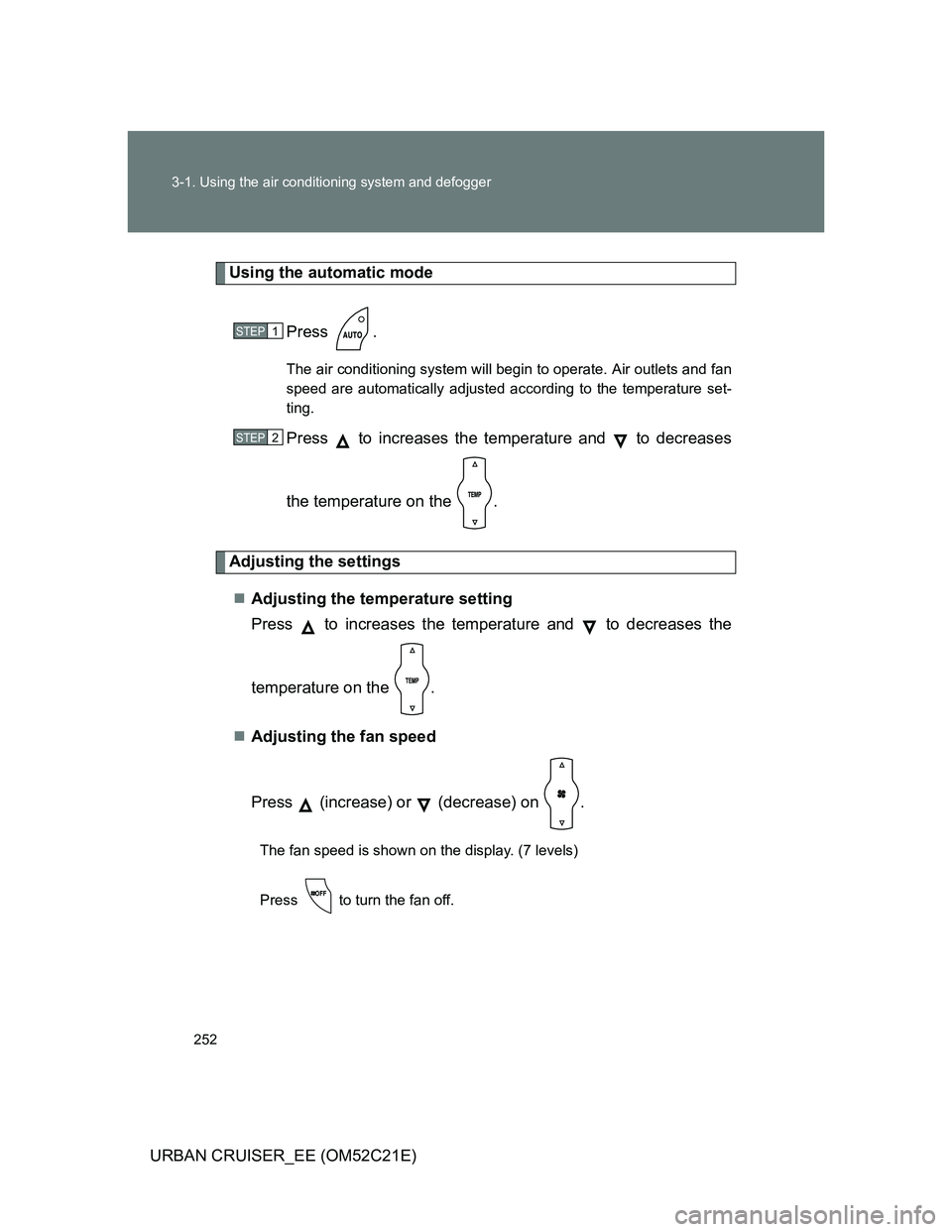

252 3-1. Using the air conditioning system and defogger
URBAN CRUISER_EE (OM52C21E)
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press to increases the temperature and to decreases
the temperature on the .
Adjusting the settings
Adjusting the temperature setting
Press to increases the temperature and to decreases the
temperature on the .
Adjusting the fan speed
Press (increase) or (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
STEP1
STEP2

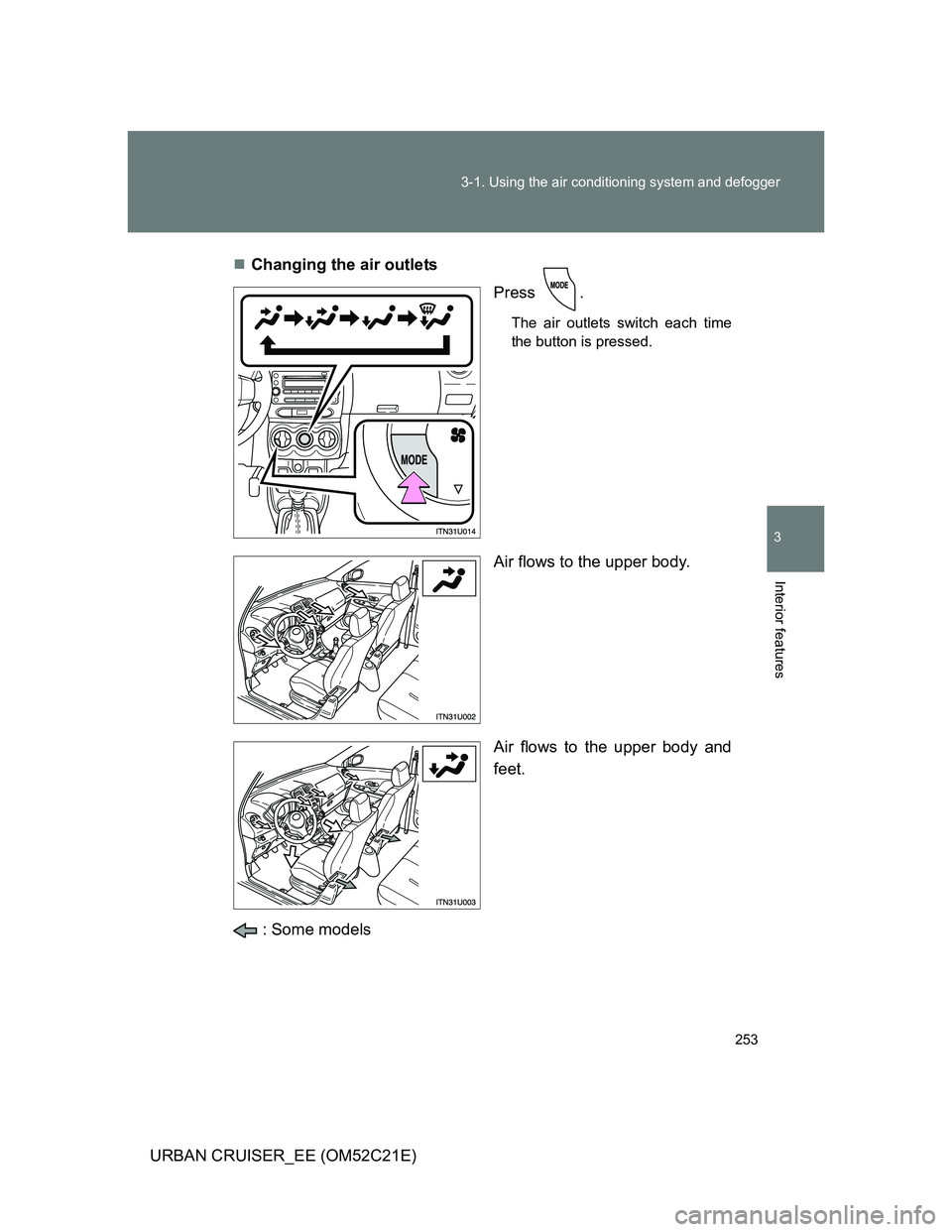

253 3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_EE (OM52C21E)Changing the air outlets
Press .
The air outlets switch each time
the button is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models

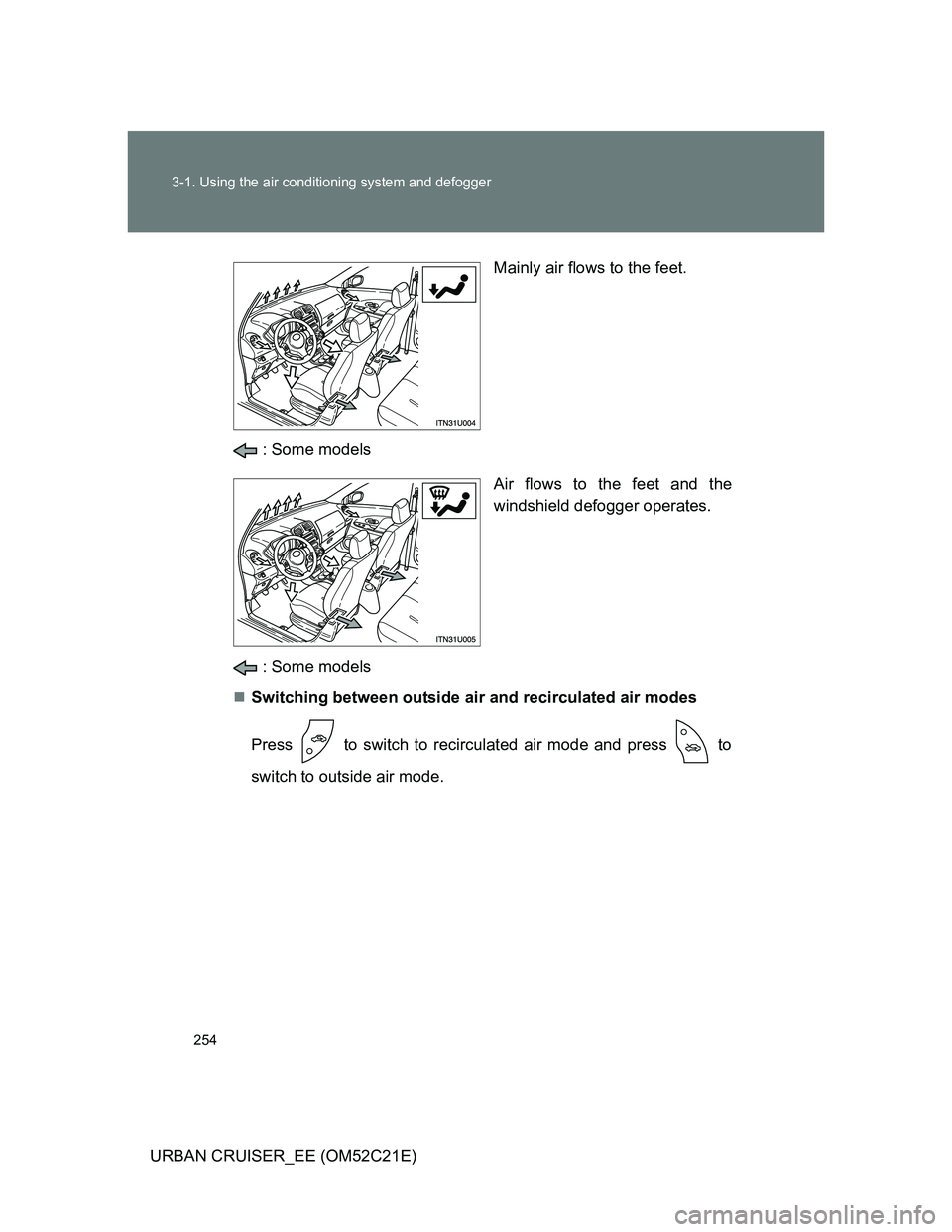

254 3-1. Using the air conditioning system and defogger
URBAN CRUISER_EE (OM52C21E)Mainly air flows to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
Switching between outside air and recirculated air modes
Press to switch to recirculated air mode and press to
switch to outside air mode.

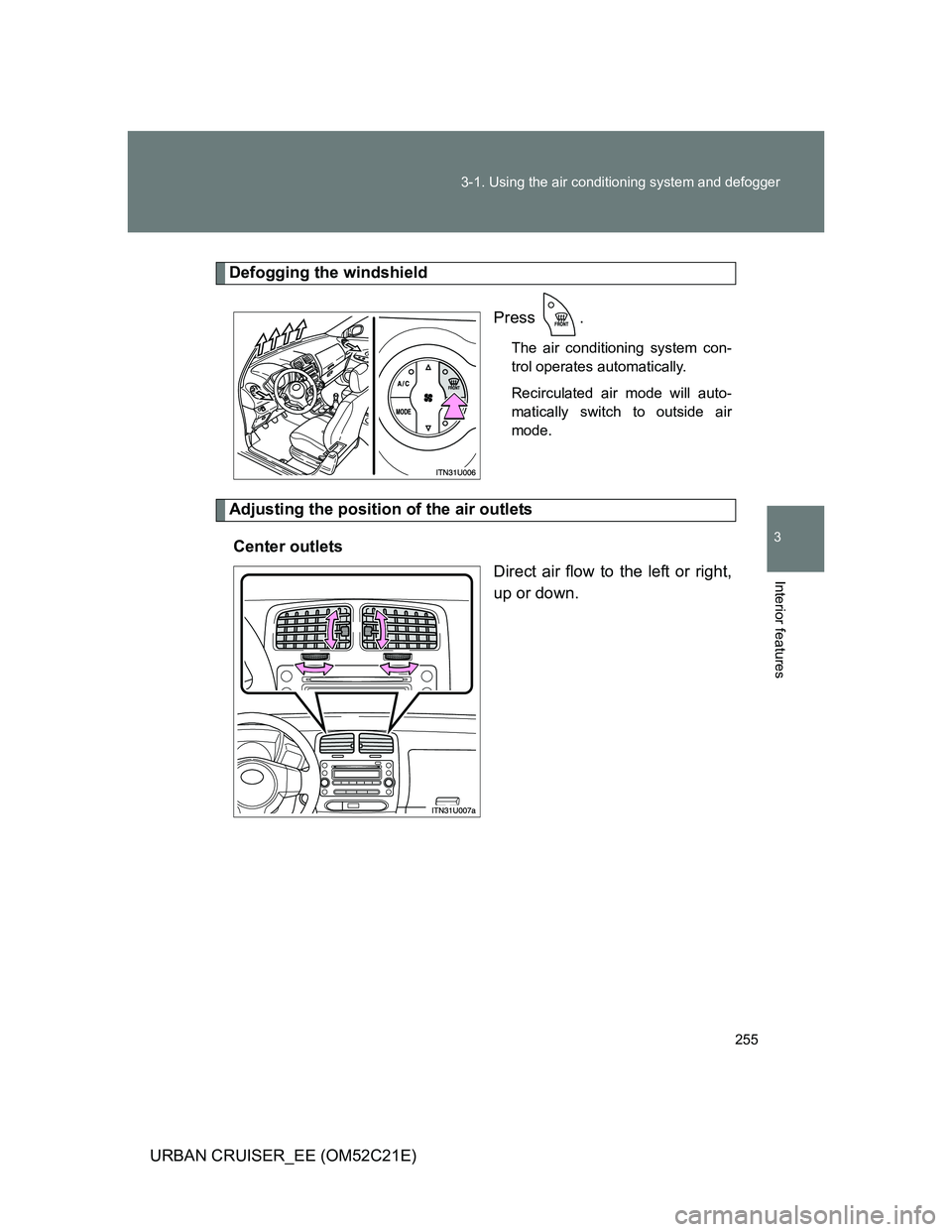

255 3-1. Using the air conditioning system and defogger
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Defogging the windshield
Press .
The air conditioning system con-
trol operates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode.
Adjusting the position of the air outlets
Center outlets
Direct air flow to the left or right,
up or down.

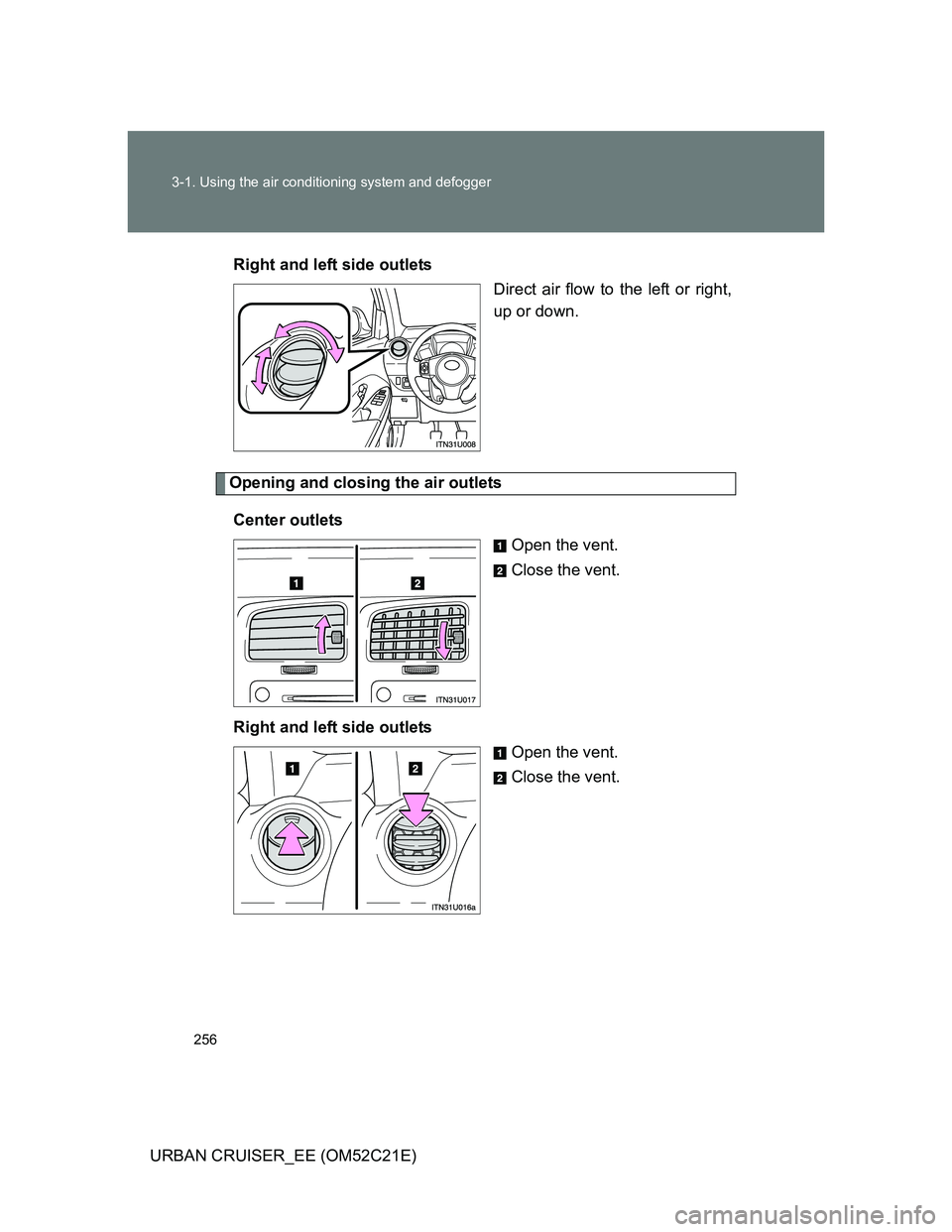

256 3-1. Using the air conditioning system and defogger
URBAN CRUISER_EE (OM52C21E)Right and left side outlets
Direct air flow to the left or right,
up or down.
Opening and closing the air outlets
Center outlets
Open the vent.
Close the vent.
Right and left side outlets
Open the vent.
Close the vent.
